15-Weight “Vintage” Thread on a Brother Luminaire 2: The Settings, the Noise, and the Cleanest Way to Avoid Puckering

The Ultimate Guide to Heavyweight Thread: Mastering 15-Weight Vintage Texture on Your Brother Machine

If you have ever watched thick, 15-weight thread chug through your embroidery machine and thought, "That sound can't be good for my gears," you are not alone. It triggers a primal fear in every machine owner. The acoustics change, the floor vibration increases, and the fabric behaves differently under your fingertips.

But here is the truth: That "scary" mechanical feedback is just physics. 15-weight thread creates a stunning, hand-embroidered look—ropey, raised, and bold—that standard 40-weight rayon simply cannot mimic. However, running it requires a shift in your mental framework from "casual stitching" to "heavy-duty production."

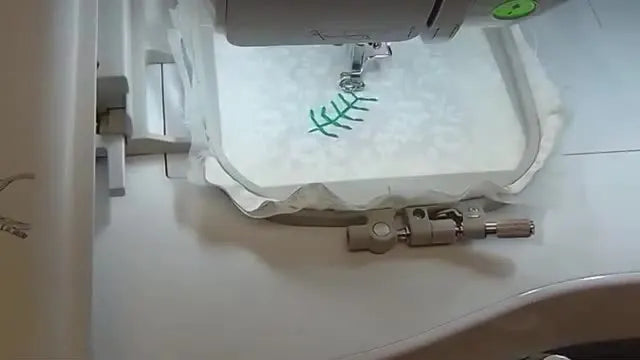

In this guide, we analyze a live field test performed on a Brother Luminaire 2 Innov-is XP2, breaking down the variables of needle choice, stabilization, and hooping physics. Whether you are a hobbyist or a shop owner, we will turn this intimidating technique into a repeatable, profitable skill.

The "Don't Panic" Moment: Why Your Machine Sounds Different

When Sue, an experienced operator, runs the Dime 15-Weight Vintage Thread, she immediately flags a change in the machine's auditory profile: it sounds "clunky."

Do not panic. This isn’t the sound of your machine dying; it is the sound of Torque.

Think of 15-weight thread like rope compared to the "string" of standard thread. Because it has more mass, it requires more force to pull off the spool, through the tension discs, and into the fabric. The "clunk" you hear is the needle permeating the fabric with a much larger payload.

Sensory Anchor: Good Sound vs. Bad Sound

• The "Good" Clunk: A rhythmic, low-pitched thump-thump-thump. This indicates the needlebar is doing its job against resistance.
• The "Bad" Sound: A sharp click-click, a grinding noise, or the sound of the machine laboring (slowing down and speeding up). This usually means your top tension is too tight or the thread path is snagged.


The Equipment Swap: Critical Needle Selection

The single most common point of failure with heavy thread is the needle. Sue’s most crucial move happens before the machine stays active: she installs a Schmetz 90/14 Topstitch Needle.

Why 90/14? Standard 75/11 needles have an eye that is too narrow for 15-weight thread. As the thread passes through a small eye at 800 stitches per minute, the friction shreds the cotton fibers. The Topstitch needle has an elongated eye and a deeper groove down the shaft, allowing the thick thread to hide inside the groove as it penetrates the fabric.

• Rule of Thumb: If the thread cannot slide through the unthreaded needle eye with gravity alone, the needle is too small.


Prep Checklist: The Pre-Flight Safety Protocol

• Needle Check: Install a fresh 90/14 Topstitch needle. Run your fingernail over the tip to ensure no burrs.
• Design Audit: Ensure your design is specifically digitized for 12-15 weight thread. (Standard density designs will bulletproof your shirt).
• Speed Governor: Reduce your machine speed. While the machine can make 1000 stitches per minute (SPM), the Sweet Spot for thick thread is usually 600-700 SPM.
• Tension Feel: Pull the thread through the needle. It should feel like pulling unwaxed dental floss—some resistance, but smooth. If it feels like a guitar string, loosen your top tension.
• Bobbin: Use standard 60-weight bobbin thread. Do not put thick thread in the bobbin unless you want a bird's nest.

The Hooping Battle: Mastering "Thick Thread Drag"

Thickness creates drag. When 15-weight thread creates a stitch, it pulls the fabric tighter than standard thread. On a T-shirt, this often results in the dreaded "puckering" or "tunneling" effect, where the fabric ripples around the design.

This is where your technique regarding hooping for embroidery machine setups makes or breaks the project. Novices try to fix the pull by tightening the fabric in the hoop like a drum. This is a mistake. Stretching a knit fabric in the hoop guarantees puckering when you unhoop it.

The Professional Approach: You need a "Neutral Tautness." The fabric should be flat, but the fibers should not be distorted. This is difficult to achieve with standard inner/outer ring hoops, which rely on friction and often leave "hoop burn" (shiny crushed fibers) on delicate cottons.

Warning: Mechanical Safety
Needles are sharp, and machine arms are strong. Never place your fingers near the needle bar to "clean a fuzz" while the machine is running. Always stop the machine completely before changing needles or clearing a thread nest.

The "Hidden" Variable: Stabilization Strategy

Sue notices pulling during her test and correctly diagnoses the solution: Heavier Stabilization.

With 15-weight thread, the physical displacement of the fabric fibers is significant. A single layer of tear-away is insufficient for a T-shirt because the thread is stronger than the stabilizer.

Stabilizer Decision Tree

Follow this logic to ensure your foundation is solid:

1. Is the fabric unstable? (e.g., T-shirt, Knit)
   • YES: You must use Cutaway stabilizer. Two layers of medium-weight cutaway or one layer of "No Show" mesh fused to the back + one layer of standard cutaway.
   • NO (Denim, Canvas): You can use Tear-away, but ensure it is a heavy crisp weight.
2. Is the Thread Heavy (15wt)?
   • YES: Upgrade your stabilizer choice by one level. (e.g., If you normally use 2.0oz Cutaway, use 2.5oz or float an extra sheet of tear-away under the hoop).

If you are consistently struggling with alignment or holding thick stabilizer layers together, a hooping station for embroidery can act as a "third hand," ensuring your layers stay perfectly aligned while you clamp the hoop.

Setup Checklist: The Final Countdown

• Hoop Check: Is the inner ring pushed slightly past the outer ring?
• Clearance: Ensure the garment arms/sleeves are not tucked under the hoop.
• Visual Scan: Is the thread path clear? (Thick thread loves to jump out of the take-up lever).
• Sound Check: Listen to the first 100 stitches. If you hear a "Snap," stop immediately.

Real-Time Stitching: What to Watch For

Sue’s test reveals three distinct phases of the stitch-out, each with unique sensory details.

1. The Foliage (Green)

The initial vine stitches are heavy. Because they are long satin stitches or running beans, the machine generates that "clunky" sound.

• Visual Check: Look at the edges of the satin stitch. Are they smooth (sawtooth) or ragged? If ragged, your needle point might be dull.


2. The Flowers (Pink & Turquoise)

Sue notes the sound softens during the pink flower. Why? The stitch angle and length likely changed. Short, multidirectional fill stitches often sound smoother than long satin columns.

• Operational Note: When Sue swaps to the large turquoise flower, the coverage becomes intense. This is where most needle breaks happen. If the design places too many needle penetrations in one spot, the 15-weight thread builds up a "wall" that the needle can strike.




3. The Accents (Yellow & Orange)

This is the danger zone for puckering. The fabric has already been stitched heavily. Adding the final accents pulls the remaining open fabric.

• Diagnosis: If you see ripples forming now, do not tighten the tension. It is too late. The issue was insufficient stabilizer (Prep Phase). Note it for the next run.


Troubleshooting Tangles: The "Cord Memory" Effect

Sue encounters a knot. This is classic behavior for thick threads. Unlike rayon, which is limp, heavy cotton-like thread has "memory"—it wants to coil back into the shape of the spool.

The Fix:

1. Vertical Spool Pin: Do not use horizontal pins. The thread needs to unwind off the top to remove twist.
2. Thread Net: Use a thread net over the cone to control the flow.
3. Distance: If possible, place the thread stand further away from the machine to allow the thread to relax before hitting the tension discs.


The Efficiency Gap: When to Upgrade Your Gear

In the comments of Sue's test, a viewer asks: "Can I do this on a multi-needle?"

The answer is yes, but the implication is deeper. If you are doing this commercially (e.g., 50 "Vintage" style shirts for a client), the single-needle machine becomes a bottleneck.

The Pain Points of Production:

1. Needle Changes: Swapping to a 90/14 and back again for every project is slow.
2. Thread Trims: Thick thread dulls standard cutters faster.
3. Hooping Fatigue: Wrist strain from tightening manual hoops on thick materials.

This is where the SEWTECH Ecosystem offers a graduation path. Shops moving into volume production often switch to Multi-Needle Machines where Needle #1 is permanently set up for 15-weight thread (tension, needle size) while Needle #2-4 are set for standard thread.

Furthermore, solving the hooping struggle is paramount. Terms like magnetic embroidery hoops for brother are gateways to understanding efficient production. Unlike friction hoops that confuse new users, magnetic frames simply "snap" the fabric and stabilizer sandwich together.

Warning: Magnet Safety
Magnetic hoops utilize powerful Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the contact zone; the snap is instantaneous and forceful.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers and insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

The Physics of Hoop Burn and The Magnetic Solution

Sue’s test showed pulling. On dark T-shirts, you might also see a white "ring" where the hoop crushed the fabric fibers—this is hoop burn.

If you are fighting hoop burn, you essentially have two options:

1. Chemical: Use "Hoop Burn Remover" sprays (hit or miss).
2. Mechanical: Switch to a brother luminaire magnetic hoop or similar magnetic frame.

Why upgrade to Magnetic Hoops?

• Zero Burn: They hold via vertical magnetic force, not friction, so fibers aren't crushed.
• Auto-Adjustment: They automatically adjust to the thickness of heavy 15-weight thread designs without needing screw tightening.
• Speed: You can hoop a shirt in 10 seconds vs. 60 seconds.

For hobbyists with high-end machines, finding a compatible dime magnetic hoop for brother or a dedicated SEWTECH magnetic frame is often the highest ROI upgrade after the machine itself.

The Cutter Dilemma: To Trim or Not To Trim?

A retired dealer noted that thick thread is hard on auto-cutters.

• The Risk: 15-weight thread is strong. Repeated cutting can torque the cutter blade or dull it prematurely.
• The Fix: On your settings screen, Turn Off Jump Stitch Trimming for this project.
• The Trade-off: You will have to hand-trim the jump stitches. Invest in high-quality curved snips. It takes 2 minutes but saves a $100 service call.

The Quality Control Audit

When you take the hoop off, perform the "3-Point Inspection":

1. Loft: Rub your thumb over the design. It should feel significantly raised, like a rope.
2. Coverage: Spread the jersey knit slightly with your fingers. Do you see the T-shirt color peeking through the stitches? If yes, the density was too low.
3. Perimeter: Check the outline. Is it puckered? (Stabilizer failure). Is it distorted? (Hooping failure).


Conclusion: Building a Repeatable Workflow

The "Vintage Hand Stitch" look is a premium offering that can set your work apart. It commands a higher price because it looks unique. However, it requires a "Heavy Duty" protocol.

The Golden Rules:

1. Needle: 90/14 Topstitch. (Non-negotiable).
2. Speed: 600 SPM. (Have patience).
3. Stability: Cutaway Mesh + Magnetic Hoops.

If you find yourself dreading the setup process—fighting the hoop screw or getting uneven tension—it is time to look at your tools. A magnetic hooping station or a magnetic frame set removes the variable of "hand strength" from the equation, ensuring that your 50th shirt looks exactly like your first.

Operation Checklist: During the Stitch

• Listen: Is the thumping rhythmic? (Good) or erratic? (Stop).
• Watch: Is the thread feeding off the spool smoothly?
• Touch: Gently touch the thread near the tension disc (carefully!). Is it tight?
• Observe: If a loop appears on top, your top tension is too loose. Tighten it by 1-2 increments.

Troubleshooting Quick-Reference Table

Final Verdict

Sue’s experiment proves that with the right needle and patience, a domestic machine like the Brother Luminaire can handle "rope-like" thread beautifully. The texture is undeniable.

However, remember: You are the engineer. The machine will do exactly what you tell it to do. If you feed it thick thread without giving it the room (needle) and support (stabilizer) it needs, it will fail. Give it the right conditions, and you will produce embroidery that looks like it took a grandmother weeks to stitch by hand—in just 12 minutes.

FAQ

• Q: Why does a Brother Luminaire 2 Innov-is XP2 sound “clunky” when stitching with 15-weight thread?
  A: A rhythmic, low-pitched “thump-thump” is usually normal torque from pulling thick 15wt thread; sharp clicking or grinding is not.
  • Reduce speed to about 600–700 SPM for heavy thread runs.
  • Recheck the thread path for snags (thick thread can jump out of the take-up lever).
  • Loosen top tension slightly if the machine sounds like it is laboring or surging.
  • Success check: The sound stays steady and rhythmic, and stitches form cleanly without shredding.
  • If it still fails, stop and rethread with the presser foot UP to ensure the thread is seated in the tension discs.
• Q: What needle should a Brother Luminaire 2 Innov-is XP2 use for 15-weight vintage thread to prevent thread shredding?
  A: Use a fresh Schmetz 90/14 Topstitch needle as the go-to fix for 15wt thread shredding on a Brother Luminaire 2 Innov-is XP2.
  • Install a new 90/14 Topstitch needle and check the tip for burrs before stitching.
  • Do the gravity test: the 15wt thread should slide through the unthreaded needle eye easily.
  • Slow down (often 600–700 SPM) to reduce friction heat and fiber damage.
  • Success check: No fuzz buildup at the needle, no fraying, and satin edges look clean instead of ragged.
  • If it still fails, suspect a dull/burred needle again or a snag in the thread path and correct before changing any other settings.
• Q: How do I stop bird’s nests on a Brother Luminaire 2 Innov-is XP2 when using 15-weight top thread and 60-weight bobbin thread?
  A: Most “bird’s nest” tangles on a Brother Luminaire 2 Innov-is XP2 happen when the top thread is not seated in the tension discs—rethread correctly first.
  • Rethread the top thread with the presser foot UP, then “floss” the thread into the tension discs.
  • Keep standard 60wt bobbin thread in the bobbin (do not load 15wt in the bobbin).
  • Run the first 50–100 stitches slowly and be ready to stop immediately if a nest starts forming.
  • Success check: The underside shows controlled bobbin lines (not a wad of loops), and the top thread is not looping freely.
  • If it still fails, stop and confirm the thread path is fully engaged (especially take-up lever) before touching tension settings.
• Q: How do I prevent T-shirt puckering and tunneling on a Brother Luminaire 2 Innov-is XP2 when stitching 15-weight thread?
  A: Use heavier stabilization and avoid over-stretching the knit in the hoop; thick 15wt thread pulls harder and will pucker weak setups.
  • Choose cutaway for knits: use two layers of medium cutaway or a no-show mesh fused plus a cutaway layer.
  • “Upgrade by one level” from the stabilizer weight you normally use for 40wt thread (adding an extra floated sheet can help).
  • Hoop with neutral tautness (flat fabric, no fiber distortion) instead of drum-tight stretching.
  • Success check: After unhooping, the design perimeter stays flat without ripples forming around the stitching.
  • If it still fails, note when ripples appear (often near the end accents) and add more stabilization on the next run rather than tightening top tension.
• Q: How can a Brother Luminaire 2 Innov-is XP2 user reduce hoop burn marks on dark T-shirts with heavy 15-weight thread designs?
  A: If hoop burn (a crushed “ring” on fabric) is the issue, the most reliable mechanical fix is switching from a friction hoop to a compatible magnetic hoop/frame.
  • Hoop with neutral tautness and avoid over-tightening traditional screw hoops on delicate cottons.
  • Consider a Brother Luminaire-compatible magnetic hoop/frame to hold by vertical force instead of crushing fibers.
  • If using a standard hoop, minimize re-hooping and avoid repeatedly tightening/loosening in the same spot.
  • Success check: After unhooping, the fabric surface shows minimal or no shiny crushed ring around the hoop area.
  • If it still fails, a hoop-burn remover spray may help sometimes, but repeated hoop burn usually points to a hooping method/tool limitation.
• Q: What are the key needle and hand safety rules when running 15-weight thread on a Brother Luminaire 2 Innov-is XP2?
  A: Stop the Brother Luminaire 2 Innov-is XP2 completely before touching the needle area—never reach near the needle bar while the machine is running.
  • Stop the machine fully before clearing fuzz, cutting a nest, or changing the needle.
  • Keep fingers out of the needle/arm path; needle penetration force is higher with 15wt thread.
  • Listen closely in the first 100 stitches; stop immediately if you hear a “snap.”
  • Success check: Hands stay away from moving parts, and all adjustments happen only when the machine is fully stopped.
  • If it still fails, review the machine’s safety guidance in the user manual and slow the job down to reduce reaction-time risk.
• Q: What magnetic hoop safety precautions should embroidery operators follow when using magnetic hoops/frames for Brother Luminaire-class machines?
  A: Treat magnetic hoops/frames as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of the contact zone; the magnetic “snap” is fast and forceful.
  • Maintain at least a 6-inch distance from pacemakers and insulin pumps.
  • Do not place phones, credit cards, or similar electronics directly on the magnets.
  • Success check: The hoop closes without pinching skin, and the work area stays clear of restricted items.
  • If it still fails, stop using the magnetic hoop immediately and switch back to a standard hoop until safe handling can be ensured.
• Q: When does a Brother Luminaire 2 Innov-is XP2 workflow with 15-weight thread justify upgrading to magnetic hoops or a multi-needle machine like SEWTECH?
  A: Upgrade when the real bottleneck is repeatability and fatigue—first optimize settings, then reduce hooping strain with magnetic hoops, then scale production with a multi-needle machine.
  • Level 1 (technique): Standardize the heavy-thread protocol (90/14 Topstitch needle, ~600–700 SPM, cutaway strategy, no auto-trim if cutters struggle).
  • Level 2 (tool): Move to magnetic hoops/frames if hooping is inconsistent, causes hoop burn, or creates wrist strain from screw-tightening.
  • Level 3 (capacity): Consider a multi-needle setup (e.g., SEWTECH) if frequent needle/thread swaps and volume orders make a single-needle workflow the bottleneck.
  • Success check: The 10th–50th garment matches the first in stitch quality with less rework and less operator fatigue.
  • If it still fails, document which step consumes the most time (needle swaps, trims, hooping, or restitching) and address that constraint first rather than changing everything at once.
