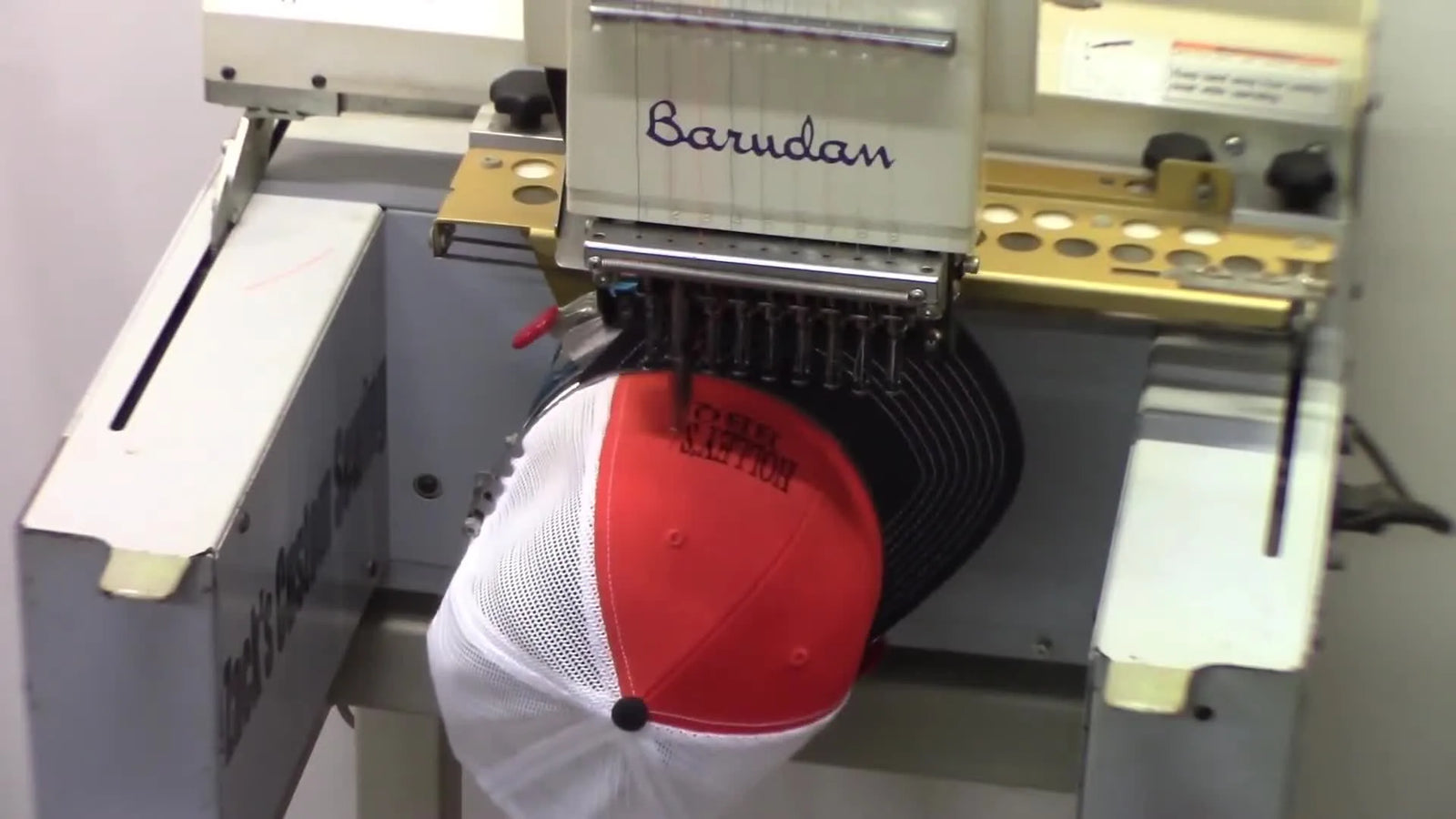

Barudan Cap Embroidery on Richardson Trucker Hats: The Hooping Routine That Makes (or Breaks) Production Speed

Commercial cap work is supposed to feel “repeatable.” But let’s be honest about the reality of the shop floor: one sloppy hoop, one rushed clamp, or one questionable stitch file can turn a simple hat order into a long, expensive afternoon.

Embroidery on caps is physically different from flat garments. You are fighting physics—forcing a 3D curved object into a 2D distortion field, often through thick seams and stiff buckram.

This post reconstructs the workflow shown in the video—Richardson trucker caps, a Barudan multi-needle with a cap driver, and a mechanical cap frame. However, I am going to overlay this with 20 years of production experience to give you the "invisible" checkpoints that keep your run moving and your profit margin safe.

Inventory First: Unboxing Richardson Caps Without Letting a Simple Order Go Sideways

The video starts the way real production starts: a bulk box of Richardson blanks gets opened on a bench. To the amateur, this is just "opening a box." To the professional, this is Quality Control Phase 1.

That “boring” moment is where experienced shops quietly protect their profit.

What the video shows (core actions):

• Open the Richardson shipment box.
• Confirm you’ve got the right blanks before you start hooping.

The Expert Upgrade (The "60-Second Sanity Check"): Don't touch the hooping station until you perform a physical audit. Caps are notorious for batch variances. A "Richardson 112" from Factory A might have a stiffer bill than one from Factory B.

My Shop Rule:

1. Check the Bills: Are they crooked? If the bill is sewn on crooked, your straight embroidery will look crooked, and the customer will blame you.
2. Check the Sweatbands: Are they sewn flat or bunched? A bunched sweatband creates a lump that will break needles.
3. Hidden Consumable Check: Do you have your lint rollers and temporary adhesive spray ready? You cannot pause a run to find these later.

Warning: Box cutters and utility knives are production tools, not toys. Cut away from your body, keep your off-hand out of the blade path, and never open boxes directly on top of your fresh inventory—one slip creates a "second" that comes out of your pocket.

Pro tip: Treat every run like a paid job, even if it's a sample. Your habits under low pressure become your safety net under high pressure.

The Cap Hooping “Make-or-Break” Moment: Mechanical Cap Frame + Hooping Gauge Done the Calm Way

This is the heart of the video and the source of 90% of embroidery frustration: the mechanical cap frame (strap/buckle style). The operator places backing inside the crown, slides the cap onto the gauge driver, smooths the sweatband, and fights the latch tension to lock the buckle.

If you’ve ever thought, “Why does this feel like a wrestling match?”—it is because standard mechanical frames rely on brute force. You are using manual leverage to stretch fabric against steel.

One sentence I want you to remember: Your cap frame doesn’t just hold the hat—it creates the surface tension that replaces the missing fabric stability.

The “Hidden” prep that makes hooping faster (and prevents puckers)

Before you clamp anything, you must remove the variables. If you fight the hat and the backing and the clip at the same time, you will lose.

Prep Checklist (Verification Required):

• Backing Size: Pre-cut your SEWTECH cap stabilizer (tearaway or cutaway) to the exact width of the frame—no overhangs to catch on the driver.
• Sweatband Memory: Flip the sweatband out and "crease" it with your thumbnail. You want it to want to stay out.
• Hardware Inspection: Run your finger along the metal strap of your cap frame. Any burrs? Sand them down. A tiny burr will snag a $20 hat instantly.
• Staging: Layout your binder clips in the exact same spot for every hat. Muscle memory relies on consistent positioning.

What the video shows, rebuilt into a repeatable hooping sequence

1. Place backing inside the cap crown.
   • The sensory check: Don't just stuff it in. Ensure it curls with the cap. If you hear a "crunching" sound later, your backing folded over.
2. Slide the cap onto the gauge driver.
   • The visual anchor: Align the center seam of the cap exactly with the red mark/notch on your gauge. This must be perfect to the millimeter.
3. Smooth the sweatband.
   • The tactile check: Slide your fingers under the band. It must feel flat against the gauge cylinder. If you feel a lump, stop. That lump is a needle breaker.
4. Clamp and latch the metal strap/buckle over the bill area.
   • The friction point: This requires force. You are compressing the bill base.
   • Success Metric: It should feel tight like a drum skin. If you tap the front panel, it should sound hollow, not dull.
5. Secure the bottom with binder clips.
   • Why we do this: The mechanical strap creates tension left-to-right (horizontal). The binder clips maintain tension top-to-bottom (vertical). You need both.

Why hooping feels “too tight” on trucker caps (the physics in plain English)

A trucker cap is a nightmare of mixed densities: a rigid buckram front panel glued to a flimsy mesh back. When you clamp the crown, the force wants to escape to the path of least resistance—the mesh. This causes the front to bubble.

The "Hoop Burn" Reality: To get a trucker cap tight enough in a mechanical frame, you often have to overtighten the strap. This leaves permanent pressure marks ("hoop burn") on delicate bills or foam fronts.

If you are running a generic cap hoop for embroidery machine, your goal is the "Goldilocks Zone"—tight enough to prevent flagging (bouncing fabric), but loose enough to avoid crushing the cap structure.

Upgrade path (only when the clamp becomes the bottleneck)

If you are doing 5 hats a week, use the mechanical frame and build your grip strength. But if you are doing 50+ hats, the manual latch becomes a liability. Your wrists will fatigue, your clamping force will drop, and your registration will drift.

The Commercial Solution Logic:

• Scenario Trigger: You end the day with sore thumbs/wrists, or you are rejecting caps because of hoop burn marks.
• Judgment Standard: Is your hooping time (>2 mins) eating into your profit margin?
• Option: This is where professionals switch to SEWTECH Magnetic Hoops.
  • Why? Instead of a mechanical latch that crushes the bill, strong magnets self-align the hoop.
  • Benefit: It drastically reduces hoop burn and eliminates the "wrestling match" with the buckle. Many shops explore magnetic embroidery hoops specifically to double their throughput and save their carpal tunnel.

Warning: Magnetic Hoop Safety. Industrial magnetic hoops are incredibly powerful. They can pinch skin severely causing blood blisters. Never place fingers between the magnet rings. Keep them at least 12 inches away from pacemakers or sensitive electronics.

The First Stitches on a Barudan Cap Driver: What You Should Watch in the First 10 Seconds

The video shows the machine engaging. The nervous energy here is palpable. The cap driver rotates, and the needle descends toward the hardest part of the cap—the center seam.

What the video shows (core action): The Barudan begins the stitch sequence on the hooped cap.

Setup checkpoints that prevent “mystery” problems later

Do not press "Start" and walk away. That is how machines get damaged.

Setup Checklist (Verification Required):

• Clearance Check: Rotate the handwheel manually (if applicable) or use the "Trace" function. Watch the bill. Does it hit the needle bar? Does it hit the presser foot?
• Bobbin Check: Is your bobbin full? Running out of bobbin thread on a cap is painful because re-aligning a cap after removing it is nearly impossible.
• Needle Integrity: Are you using a fresh SEWTECH Titanium Needle (Sharp, Size 75/11 or 80/12)? A dull needle cannot penetrate buckram; it will deflect and break.
• The "Thump" Test: Listen. A smooth run sounds like a sewing machine. A run with issues sounds like a rhythmic thump-thump. That sound is the cap frame hitting the needle plate. Stop immediately.

Sensory feedback: the fastest “machine health” diagnostic you already have

You must learn to "hear" the tension.

• Birdnesting Sound: A rapid, shredding velcro sound usually means thread is gathering underneath (birdnesting).
• Clicking: If you hear a sharp metallic click, your needle is slightly deflecting off the rotary hook guard. This means your cap is too loose or your flagging involves too much movement.

If you’re running a barudan embroidery machine or a similar high-end multi-needle, the tolerances are tight. Trust your ears.

Vertical “BBQ” Lettering on a Cap: How to Keep Small Text From Looking Wobbly

The video covers vertical lettering. This is the ultimate stress test. Vertical satin columns on a curved surface want to "lean" or "sawtooth" because the cap is pushing back against the needle.

What you can control (without changing the design file)

You cannot rewriting the physics of the cap, but you can control the stabilization.

• Hooping Consistency: If the cap is loose, the letters will look like steps on a ladder.
• Stabilizer Choice: This is where beginners fail. They use tearaway because it's "easy."

Stabilizer decision tree for Richardson-style trucker caps

Use this logic to select your SEWTECH Stabilizer/Backing.

Decision Tree (Fabric + Design -> Stabilizer):

• Scenario A: Structured Cap + Simple Text
  • Choice: Heavyweight Tearaway (2.5oz - 3oz).
  • Why: The cap creates the structure; the backing just adds friction.
• Scenario B: Unstructured/Soft Cap + Dense Logo
  • Choice: Cutaway (2.5oz).
  • Why: The cap has no skeleton. The Cutaway BECOMES the skeleton. You cut the excess away later.
• Scenario C: High Detail / Small Lettering (The "BBQ" Text)
  • Choice: Specialty Cap Backing (often a stiff tearaway/cutaway hybrid).
  • Technique: Use a SEWTECH Temporary Adhesive Spray to fuse the backing to the cap. This prevents "shifting" between the layers.

If you are shopping for a hooping station for embroidery machine setup, ensure you have a designated spot for precut backing sheets to keep this workflow fast.

The Flag Element Reality Check: Why One Digitizing Mistake Can Cost You an Hour

Midway through, the video shows a flag graphic. We see a text overlay joking about "firing the digitizer."

This is funny, but in a commercial shop, it is tragic. A bad design file doesn’t just look bad; it breaks production.

What “digitizing mistakes” usually mean in cap production

Caps require specific digitizing rules. You cannot just use a "flat" file (like for a polo shirt) on a hat.

• Center-Out Method: Designs must sew from the bottom-center and move up and out. This pushes the fabric "bubble" away from the needle.
• Pull Compensation: Caps shrink more than shirts. You need to over-compensate your column widths.
• Underlay: You need a strong "edge run" underlay to lock the fabric to the backing before the detail stitching starts.

Expert Advice: If your thread breaks constantly on a specific segment, it is likely the file, not the machine.

The "why" behind the slowdown: stitch physics meets production math

Every time your machine stops for a trim or a color change, you lose momentum.

• Manual Single-Needle: You have to stop, unthread, rethread, and start. (Time cost: 2-3 minutes).
• Multi-Needle (SEWTECH/Barudan): The machine does it automatically in 5 seconds.

If you are serious about caps, you will eventually hit the wall of the single-needle machine. The SEWTECH Multi-Needle Machines are the logical upgrade here simply because they allow you to run complex 12-color logos without acting as the manual thread changer.

Also, consider your thread. Cheap thread shreds against the rough buckram of a hat. Using high-tensile SEWTECH Embroidery Thread minimizes breaks on rough materials.

If you’re running barudan embroidery machines, you have the horsepower, but you need the fuel (thread/file) to match it.

Switching to Red/White Richardson Caps: How to Keep Your Second Batch From Getting Sloppy

The video moves to a Red/White cap run.

The "Second Batch Syndrome": Human beings get lazy. The first hat is hooped with fear and precision. The tenth hat is hooped with arrogance. That is when the sweatband gets bunched or the center line drifts.

Batch discipline: repeat the same hooping “anchors” every time

• Check alignment: Look at the red mark on the gauge every single time.
• Check the bill: Is it centered in the clamp?
• Check the tightness: Tap the front panel. Does it still sound like a drum?

If you use multiple hooping stations, ensure they are calibrated identically.

“Holley’s” Vertical Text on Red Caps: The Quick Check That Prevents a Whole Box of Rejects

The video shows "Holley's" text. Red cap, white thread. High contrast means zero place to hide mistakes.

The "Registration Test" (Action Step): After the first cap comes off:

1. Look at the outline. Is the white fill visibly separated from the black outline (gapping)?
2. If yes, your hooping was too loose, or your "Pull Comp" setting in the software is too low.
3. Fix it now. Do not run the next 11 hats hoping it will fix itself. It won't.


High-Speed Barudan Needle Head Work: When “Fast” Is Fine—and When It’s Asking for Trouble

The machine is running fast in the video. But speed is a double-edged sword.

Beginner Sweet Spot vs. Pro Speed:

• Pro (Barudan/Tajima): 900 - 1000 stitches per minute (SPM).
• Beginner/Intermediate: 600 - 750 SPM.

Why slow down?

1. Flagging: At high speeds, the cap bounces up and down. This causes loop-outs and skipped stitches.
2. Heat: High speed melts polyester thread against the friction of the thick cap, causing breaks.
3. Deflection: Slower speeds give the needle time to find a path through the buckram rather than bending against it.

What to do when you hear or feel something “not normal”

If you see the cap frame "shaking" violently:

1. Reduce speed to 600 SPM immediately.
2. Check if your presser foot is too high (allowing the cap to bounce).

Warning: Mechanical Hazard. If a needle breaks on a cap, the tip often flies off with high velocity or gets buried inside the hat construction. Always wear eye protection. Always find all pieces of a broken needle before continuing. You cannot sell a hat with a needle tip hidden in the foam—that is a lawsuit waiting to happen.

Unhooping Without Distorting the Crown: The Clean Release That Protects Your Stitch-Out

The video shows the release. This looks trivial, but it's the final quality gate.

What the video shows (core action): Release the metal latch tension and remove the cap.

The Expert nuance: Do not yank the hat off. The stitches are still warm and the backing is stressed.

1. Pop the latch.
2. Gently slide the cap off the driver.
3. Reform the Bill: The clamp flattens the bill curve. Immediately gently reshape the bill with your hands to its natural curve. This makes the hat look "retail ready" and not "factory crushed."

Operation checklist for a smooth production rhythm

Operation Checklist (Post-Run):

• Trimming: Snip the jump threads immediately. Don't leave them for later; you'll miss one.
• Backing Removal: Tear the backing away gently. Support the stitches with your thumb so you don't distort the letters while tearing.
• Lint Check: Use the lint roller now.
• Reset: Return the mechanical frame to "Open" position, ready for the next load.


The Finished Holley’s BBQ Hats: What “Good” Looks Like—and the Upgrade That Pays Back Fastest

The video shows the clean, finished product. This is the payoff.

What the video proves (and what it quietly teaches)

Success on caps is 20% machine, 40% digitizing, and 40% hooping technique.

The most practical “tool upgrade path” for cap production

If you are struggling with caps, or looking to move from "hobby" to "business," here is the logical progression of investment to solve your pain points:

Level 1: The Basics (Solve Quality Issues)

• SEWTECH Titanium Needles: Stop deflection and breaking.
• SEWTECH Cap Stabilizer: Get the right foundation (Cutaway/Tearaway) so stitches don't sink.

Level 2: The Efficiency Upgrade (Solve Hooping Pain)

• Pain Point: Wrists hurt, hoop burn marks, slow hooping (3+ mins).
• Solution: SEWTECH Magnetic Hoops (compatible with Barudan, Tajima, Ricoma, Brother, etc.).
• Why: The magnetic bond is self-adjusting. It holds thick caps securely without the physical crushing force of a mechanical buckle. mighty hoops for barudan are a common term in the industry, and SEWTECH offers high-performance magnetic frames (MaggieFrame) that fit the same industrial needs.

Level 3: The Production Upgrade (Solve Volume Pain)

• Pain Point: You are spending all day changing thread colors on a single-needle machine.
• Solution: SEWTECH Multi-Needle Embroidery Machines.
• Why: Set up 15 colors, press start, and go prep the next boxes. This is how you scale from 10 hats a day to 100.

Final reality check

Cap embroidery is a game of repeatability. The machine does the work, but you set the conditions. Standardize your hooping, slow down your speed until you are confident, and don't be afraid to upgrade your tools when physical fatigue starts to limit your income.

Standardize the hooping routine first. Then, optimize the file. That is the path to the perfect cap.

FAQ

• Q: How do I perform a Richardson 112 cap incoming QC check to prevent crooked-looking embroidery before hooping?
  A: Do a 60-second physical audit before any hooping so the cap blank does not sabotage straight stitching.
  • Check: Inspect the bill for crooked attachment; reject or separate any cap with a visibly off-center bill.
  • Check: Run fingers under the sweatband; flatten any bunching because lumps can cause needle breaks.
  • Stage: Prepare lint rollers and temporary adhesive spray at the station so the run does not pause mid-batch.
  • Success check: The bill looks visually centered and the sweatband feels smooth with no hard ridges under your fingertips.
  • If it still fails: If “straight” designs still look crooked, re-check center-seam alignment on the hooping gauge before blaming the stitch file.
• Q: How do I hoop a trucker cap in a mechanical strap/buckle cap frame with a hooping gauge without puckers or seam hits?
  A: Remove variables first, then follow a fixed sequence so the cap frame creates stable surface tension instead of distortion.
  • Prep: Pre-cut cap backing to the exact frame width (no overhang) and crease the sweatband outward so it stays out of the way.
  • Align: Match the cap center seam precisely to the gauge red mark/notch before latching the strap.
  • Secure: Latch the strap firmly, then add binder clips to hold bottom tension top-to-bottom.
  • Success check: Tap the front panel— it should feel tight “like a drum skin” and sound hollow, not dull.
  • If it still fails: If the front panel bubbles or shifts, re-check sweatband lumps and confirm the backing is not folded inside the crown.
• Q: Why does a mechanical strap/buckle cap frame feel “too tight” on Richardson-style trucker caps, and how do I reduce hoop burn marks?
  A: Trucker caps mix stiff buckram fronts with mesh backs, so the clamp force escapes toward the mesh and you may overtighten, causing hoop burn.
  • Adjust: Tighten only to the “Goldilocks zone”— tight enough to prevent flagging, not so tight it crushes the cap structure.
  • Support: Use binder clips to stabilize vertical tension so you do not keep cranking the strap for control.
  • Standardize: Keep the same hooping anchors every cap (center seam to gauge mark, bill centered in clamp, same clip positions).
  • Success check: The cap holds firm without permanent pressure lines on the bill/foam after unhooping.
  • If it still fails: If hoop burn or wrist fatigue keeps happening at volume, consider switching from a mechanical latch to a magnetic hoop system for cap work.
• Q: What should I check in the first 10 seconds of a Barudan multi-needle cap driver run to prevent cap frame strikes and birdnesting?
  A: Stay at the machine and verify clearance, thread supply, and sound immediately—early seconds prevent expensive damage.
  • Trace: Use handwheel rotation (if applicable) or a trace function to confirm the bill and frame do not contact the needle bar/presser foot area.
  • Verify: Start only with a full bobbin and a fresh sharp needle suitable for buckram penetration (the blog references 75/11 or 80/12 as typical choices).
  • Listen: Stop instantly if you hear rhythmic “thump-thump” (frame contact), shredding/Velcro-like noise (birdnesting), or sharp metallic clicking (needle deflection).
  • Success check: The machine sound stays smooth and consistent, with no impacts and no sudden drag noises.
  • If it still fails: If the same segment repeatedly breaks thread, treat it as a stitch-file/digitizing issue before changing machine parts.
• Q: How do I choose stabilizer/backing for small vertical cap lettering like “BBQ” on Richardson trucker caps so the text does not look wobbly?
  A: Match backing to cap structure and design density, then lock layers so the cap and backing cannot shift during stitching.
  • Choose: Use heavyweight tearaway for structured caps with simple text; use cutaway for unstructured/soft caps with dense logos.
  • Upgrade: For high-detail/small lettering, use specialty cap backing and apply temporary adhesive spray to bond backing to the cap.
  • Control: Prioritize consistent hooping tension—loose hooping is a common cause of “step-like” vertical satin wobble.
  • Success check: Vertical columns look straight (not stair-stepped) when viewed from normal wearing distance.
  • If it still fails: If outlines gap from fills on the first cap, tighten hooping consistency and review pull compensation in the design workflow.
• Q: What safety steps should I follow when a needle breaks during high-speed cap embroidery on a Barudan cap frame?
  A: Treat broken needles as a flying/sharp-part hazard and a product-liability risk—stop and account for every fragment.
  • Stop: Halt the machine immediately and reduce speed before resuming if vibration/flagging is present.
  • Protect: Wear eye protection and assume the tip may have launched or embedded into the cap structure.
  • Search: Find and remove all needle pieces before continuing or shipping the hat.
  • Success check: All fragments are physically recovered and the next slow test run sounds normal with no clicking or impacts.
  • If it still fails: If needles keep breaking at the seam/buckram, slow to a safer operating speed range and re-check hoop tightness and clearance.
• Q: What are the safety rules for using industrial magnetic embroidery hoops for cap work, and how do I avoid pinched fingers?
  A: Keep hands out of the magnet closing path and treat the magnets as a pinch hazard strong enough to blister skin.
  • Keep clear: Never place fingers between the magnetic rings when seating the hoop.
  • Control: Set the hoop down flat and let the magnets self-align instead of “catching” the ring mid-air.
  • Separate: Keep magnetic hoops at least 12 inches away from pacemakers or sensitive electronics.
  • Success check: The hoop closes cleanly without hand repositioning inside the gap and without sudden snap-pinches.
  • If it still fails: If alignment feels unpredictable, slow down the loading motion and verify the cap/backing are flat before bringing the magnets together.
• Q: When should a shop upgrade from a mechanical cap frame to magnetic hoops or to a SEWTECH multi-needle embroidery machine for cap production?
  A: Upgrade when physical fatigue or cycle time becomes the bottleneck, not when a single cap looks imperfect.
  • Diagnose: Track hooping time—if hooping regularly takes over 2 minutes or wrists/thumbs are sore, the clamp method is limiting consistency.
  • Option 1: Move to magnetic hoops when hoop burn marks and “wrestling match” latching are slowing throughput.
  • Option 2: Move to a multi-needle machine when thread/color changes on a single-needle workflow are consuming the day on multi-color cap logos.
  • Success check: Output increases without rising reject rate, and hooping/registration stays consistent deeper into the batch.
  • If it still fails: Standardize hooping anchors first, then correct the stitch file (center-out, underlay, pull compensation) before assuming the machine is the root cause.
