Batch Like a Pro on the SmartStitch Control Panel: Combine Designs, Add Text, and Fill the Hoop Without Re-Hooping

If you’ve ever stared at your SmartStitch screen thinking, “I know this machine can do more than one logo at a time—why am I still re-hooping like it’s 2009?”, you’re exactly who this workflow is for.

As an educator who has watched thousands of operators transition from "hobbyist" to "production shop," I can tell you that the biggest bottleneck isn't usually the stitch speed—it's the downtime between hoops. Belinda (a SmartStitch trainer) demonstrates a clean, on-panel method to combine multiple embroidery designs, arrange them to maximize hoop space, add custom text, and then save the whole layout as one file you can run again and again. This is the kind of small operational skill that quietly turns a hobby setup into a production workflow.

Don’t Panic—The SmartStitch Control Panel Is Built for On-Screen Combining (Even If You’ve Never Tried It)

SmartStitch can feel intimidating the first time you start moving objects around on the canvas—because one wrong tap and suddenly your layout is “somewhere else.” That anxiety is normal. It stems from the fear of the unknown: "If I break the file structure, will I ruin the machine?"

Here’s the reassuring part: the process Belinda shows is reversible and forgiving. The operating system is designed with a "sandbox" logic. If you bump something out of place, you can simply nudge it back with the arrow keys. The goal isn’t perfection on the first touch—it’s building a repeatable layout you can save and reuse.

And yes, one of the most common questions is already answered in the comments: you can add multiples of the same design directly from the control panel. That means you can build a patch sheet or logo grid without going back to your computer every time. When you tap the screen, listen for the distinct digital "chirp"—that auditory feedback confirms your command is locked in.

The “Hidden” Prep Before You Touch Multi-Select Mode: Files, Hoop Reality, and a Quick Sanity Check

Before you start combining designs, take 60 seconds to set yourself up for success. Most layout problems aren’t “screen problems”—they’re hooping and production problems that show up later as misalignment, edge hits, or wasted space.

If you’re planning to batch patches or logos, you’re really doing two jobs: 1) arranging artwork on a screen (pixels), and 2) arranging real-world items inside a hoop boundary (physics).

That’s why I like to treat the hoop boundary as a physical constraint, not a suggestion. In production, the hoop is your “print bed.” If you over-pack it, you’ll pay for it in thread breaks, trims, and rework.

This is also the moment to diagnose your current hardware limitations. A practical upgrade path many shops take once they start batching is moving to magnetic embroidery hoops—not because it’s trendy, but because consistent clamping pressure and faster re-hooping reduce the human variability that ruins repeat runs. Traditional screw-tightened hoops rely on your wrist strength, which varies throughout the day. Magnetic systems provide constant force, eliminating the dreaded "hoop burn" on delicate fabrics and securing thick items like canvas totes without the struggle.

Prep Checklist (do this before you start selecting designs)

• Check the Bobbin: Open the hook cover. Is the bobbin area clean? A quick blast of air or a brush can prevent a birdnest later. Ensure your bobbin has enough thread for a full batch run (look for at least 70% full).
• Consumables Audit: Do you have your temporary spray adhesive (use lightly!), your water-soluble marking pen for centering, and fresh needles (Size 75/11 is the universal "sweet spot" for standard weight fabrics)?
• File Hygiene: Confirm the designs you want are in the same folder and easy to identify by thumbnail.
• Spacing Strategy: Mentally reserve "breathing room" (at least 10-15mm) between items; don’t pack designs edge-to-edge.
• Stitch Order Plan: Dense items close together can increase vibration and thread stress. Plan to stitch them in a logical sequence (e.g., left to right) to maintain fabric stability.

Warning: Mechanical Safety. Keep fingers, tools, and loose sleeves away from the needle area when you move from on-screen layout to stitching. A layout that looks “done” on the panel can still require physical checks at the machine before you press start. Never perform maintenance or reach near the needle bar while the machine is in "Active" mode (green light).

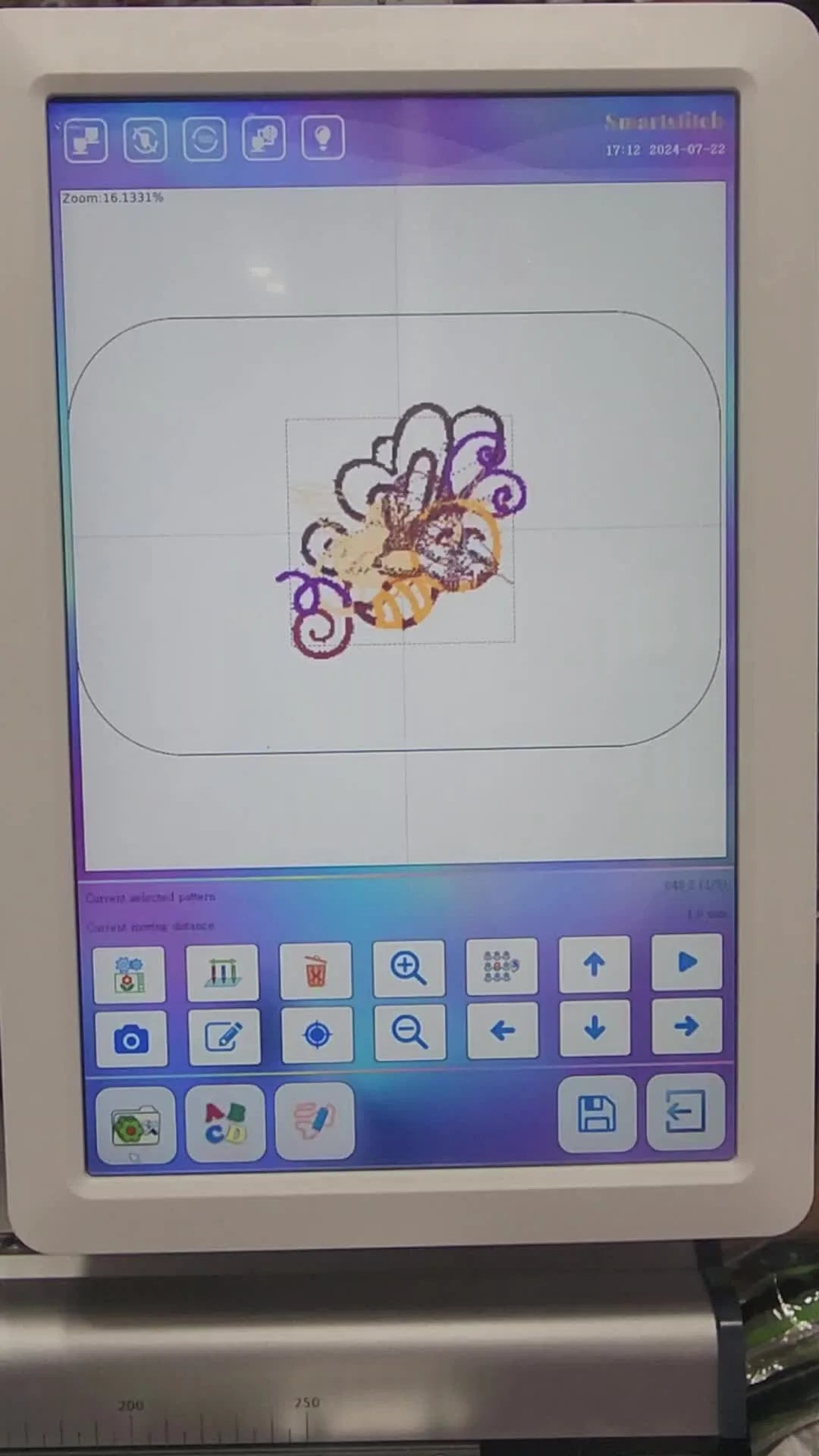

Flip the Multi-Select Switch on SmartStitch: The 3-Check Icon That Changes Everything

Belinda’s key move happens inside the file folder. This is a UI element that often blends into the background until someone points it out.

You’ll see an icon that looks like a box of squares with one checkmark. Tap it, and it changes into a box with three checkmarks. When you see three checks, multi-select is enabled—meaning you can choose multiple designs in one pass.

This is the moment most users miss, then assume SmartStitch “can’t do it.” It can—you just have to put the folder screen into the right selection mode. Think of this switch as changing your cursor from a "single-click" to a "drag-select" tool on a desktop computer.

Select Multiple Designs (or Multiples of the Same Design) Without Losing Track

With multi-select enabled, tap the design thumbnails you want. SmartStitch shows a colored highlight box around each selected file.

Belinda demonstrates selecting different designs (like a butterfly and swirls), but the comment Q&A confirms you can also add multiples of the same design from the control panel. That’s huge for patch sheets and repeat logos.

If you’re building a production sheet, think like a shop owner: duplicates are your friend. They simplify thread changes, reduce decision fatigue, and make your run time more predictable.

• Pro Tip: If you are running 6 patches, your color stops are multiplied by 6. If you have a single-needle machine, this is tedious. If you have a multi-needle machine, you can program the colors once for the whole set.


Import Everything to the Canvas: Use the “Three Flowers” Button to Load the Batch

Once your designs are selected, press the button at the bottom left that Belinda calls the “Three Flowers” button (the multiple-choice confirmation button). SmartStitch then loads all selected designs onto the main working canvas.

Expect them to appear stacked or overlapping at first. That’s normal. This is the "dumping the Lego bucket" phase. Your next job is to separate and place them.

Pack the Hoop Like a Production Shop: Move Each Object with Arrow Keys (and Aim for 6–7 Patches, Not 2–3)

This is where the workflow becomes a money-saver.

On the canvas, select a design and use the directional arrow keys to move it. To move to the next design, tap again or use the cycle behavior Belinda demonstrates (she describes pressing the button to change to the next design).

Belinda’s real-world payoff: when you arrange odd-shaped patches efficiently, you can often fit six or seven instead of two or three. That difference is not cosmetic—it’s throughput. It means loading the hoop once every 40 minutes instead of every 15 minutes.

If you’re doing vendor events or swag bags, she points out a perfect use case: put multiple company logos on one layout and “knock them out at one time” instead of re-hooping and resetting for each logo.

One keyword you’ll see people search when they’re trying to optimize this workflow is the smartstitch embroidery frame capabilities. While the frame (hoop) defines the maximum area, the software defines the usable area. The truth is, the frame is only half the story. The other half is repeatable physical placement and consistent clamping so your physical items match your on-screen coordinates. If your hoop holds the fabric successfully but you can't align it, the large frame is useless.

Setup Checklist (after import, before you add text)

• Selection check: Confirm every design is selectable individually on the canvas.
• Overlap Audit: Separate overlapping designs so you can see boundaries clearly.
• Safe Zone: Leave intentional spacing between items. Experience Rule: Keep designs at least 15mm away from the absolute edge of the hoop to avoid the presser foot hitting the plastic frame (a costly mistake called a "hoop strike").
• Movement Granularity: Move slowly when fine-tuning; small taps beat big jumps. Watch the screen coordinates update to ensure precision.
• Fabric Stability: Do a quick "drum test" on your hooped stabilizer. Flick it with your finger—it should sound like a tight drum. If it's loose, your carefully placed designs will pucker and shift.

Add Custom Text on SmartStitch: Type “Angels and fairies” Using the ABC Menu and QWERTY Keyboard

Belinda adds text directly on the panel. This eliminates the need to go back to PC digitizing software for simple names or monograms.

She navigates to the text input menu (the ABC icon), then types “Angels and fairies” using the on-screen QWERTY keyboard and confirms.

After the text is created, she moves it into position and mentions that moving it allows you to choose which letters you want to work with.

Make the Text Look Intentional: Font “ABC 1”, Letter Height 23.0, and Spacing That Won’t Stitch Like a Brick

Once the text is on the canvas, Belinda changes the font and adjusts settings.

• She selects the font “ABC 1” in the font menu.
• She adjusts text properties including spacing and size.
• The screen shows a letter height of 23.0 in the text parameter input.

A subtle but important behavior she calls out: after you change text settings, SmartStitch may move the text back to where it was—so don’t panic if it “jumps.” Just re-position it.

Expert Note on Text Density: If you are shrinking text, be hyper-aware of density. Standard embroidery fonts are digitized for heights around 10mm-25mm.

• The Danger Zone: If you shrink text below 5mm-6mm height on the screen, the stitches may become too dense, creating a hard "bulletproof" lump of thread or causing needle breaks.
• The Fix: If you need tiny text, increase the spacing between letters (kerning) slightly to let the fabric breathe. Additionally, ensure you are using a Cutaway stabilizer for text to prevent distortion.

If you’re trying to keep lettering clean across batches, remember that small text is where stabilization and hooping consistency show up first. In general, thin fabrics or flexible blanks may require more stabilization than you expect, and you should always defer to your machine manual and material testing.

The “Trainer Makes Mistakes” Moment: Fixing an Accidental Move Without Starting Over

Belinda demonstrates the most relatable part of the whole lesson: she hits the wrong button and moves something by mistake.

SmartStitch troubleshooting here is refreshingly simple:

• Symptom: A design shifts to the wrong position.
• Cause: You hit the wrong directional button or alignment tool.
• Fix: Use the arrow keys to move it back manually.

This is why I teach operators to move in small increments when they’re doing final placement. The faster you move, the more likely you’ll overshoot and then “chase” the correct position.

Save the Combined Layout: The Floppy Disk Icon Is the Step People Forget (and the Comments Called It Out)

After arranging the graphics and text, Belinda saves the new combined design.

She presses the floppy disk icon to save the combined file to memory.

One viewer comment nailed a common failure point: people do the whole layout, then forget to save it. If you don’t save, you’ve only built a temporary canvas—not a reusable production file. If you power cycle the machine, your work is gone.

This is also where batching becomes a business tool: once you save a proven layout, you can run it again for the next order with minimal setup time.

Operation Checklist (before you stitch the saved layout)

• Visual Verification: Confirm the final layout looks correct on the canvas (graphics + text).
• Save Protocol: Save the combined file (floppy disk icon) and verify it’s stored in memory. Re-open the saved file once to confirm it loads exactly as expected.
• The "Trace" Check (Critical): Run the perimeter trace function instructions on your machine. Watch not just the screen, but the needle bar. Does the needle bar stay safely inside the hoop edges?
• Alignment: If you’re batching patches, confirm your physical placement method matches the on-screen spacing.
• Thread Path: If you’re running a multi-needle machine, confirm thread paths and spool seating before starting. Give each thread a gentle tug near the needle—you should feel smooth resistance (like flossing teeth), not jerking or snagging.

When You’re Batching Patches or Logos, Hooping Speed Becomes the Bottleneck—Here’s the Upgrade Logic

Belinda’s method reduces digital setup time by combining designs. But once you start doing real volume (50+ items), the next bottleneck is physical: getting the shirts or fabric into the hoop straight, every single time.

This is the "Pain Point" where raw skill isn't enough, and tooling becomes necessary. Many production-focused shops eventually add a standardized workflow—often with hooping stations—to make placement repeatable across operators and across days.

If you’re comparing options, a specific hooping station for machine embroidery can help you load blanks typically 30-40% faster. However, speed isn't just about the station; it's about the hoop itself. This is where the SEWTECH Magnetic Hoops (or similar quality magnetic frames) change the game. By using magnets instead of screws, they reduce wrist strain and allow you to "float" materials without wrestling with inner and outer rings.

If you are struggling with "hoop burn" (the shiny ring left on fabric) or crooked placement, consider this upgrade hierarchy:

1. Level 1 (Skill): Use a water-soluble marker to mark crosshairs on every garment.
2. Level 2 (Tooling): Switch to Magnetic Hoops to eliminate burn marks and speed up clamping.
3. Level 3 (System): Integrate a hoopmaster hooping station logic or similar alignment rig to guarantee that every logo lands in the exact same spot, regardless of who is operating the machine.

Warning: Magnetic Hazard. If you upgrade to magnetic hoops, treat the magnets with extreme respect. They are industrial-strength. Keep them away from pacemakers, implanted medical devices, and sensitive electronics (phones, credit cards). Pinch Hazard: These magnets snap together with immense force—keep fingertips clear of the closing zone to avoid painful blood blisters or injuries.

A Simple Decision Tree: Choose Stabilizer Strategy Based on What You’re Hooping (Patches vs Bags)

Because this video focuses on on-screen combining, it doesn’t go deep into stabilizers—but in real production, stabilizer choice is what keeps your “perfect” layout from shifting.

Use this decision tree as a practical starting point (and test on scraps, because materials vary):

Decision Tree (Fabric/Substrate → Stabilizer Approach) 1) If you’re stitching standalone patches (Twill/Felt) → Use Cutaway (2.5oz or 3.0oz). Keep the patch flat. Tearaway is too weak for the dense satin borders of a patch. 2) If you’re stitching on a bag (Canvas/Denim) → Use Tearaway (Medium weight). Canvas is stable on its own; the stabilizer just adds crispness. 3) If the bag fabric is soft/stretchy (Polyester/Nylon) → Use Cutaway + Temporary Spray Adhesive. You must bond the shifting fabric to the stable backing to prevent registration errors. 4) If you’re trying to batch multiple logos in one hoop → Prioritize Consistency. Use a single large sheet of stabilizer. Do not try to "patchwork" small scraps of stabilizer together behind the hoop—this causes uneven tension and puckering.

For shops scaling up, pairing stable backing with faster, repeatable hooping is where the time savings stack. That’s also where a multi-needle platform like the smartstitch 1501-class machines starts to shine—because the machine can run continuously (changing its own 15 colors) while your workflow keeps feeding it consistently.

Thread Spools on Multi-Needle Machines: Yes, Small Spools Can Work—But Watch the Feed Path

A viewer asked whether small spools of thread can be used on this machine, and the channel reply confirms: yes, you can.

From a technician’s perspective, the practical caution is that small spools (often 1000m or 500m kinds) have a tighter curl memory. They can behave differently depending on how they unwind and how your thread path is set up.

• Guidance: If you use small spools, ensure you use the spool caps or nets provided with your machine. This prevents the thread from catching on the notch of the spool or puddling at the base.
• Troubleshooting: If you notice inconsistent tension or looping after switching spool size, slow your machine down (from 850 SPM to 650 SPM) and verify the thread is feeding vertically without drag.

The “Doodle” Feature Mention: Extra Space Can Be Decorative, But Production Space Is Usually Profit Space

At the end, Belinda mentions that you can add a doodle, set the doodle size, and draw in the extra space.

That’s a fun creative option, but if you’re running batches for events, that empty space is also an opportunity: another small logo, a name line, or a second patch—if (and only if) you can keep spacing safe and hooping consistent.

The Real Result: Fewer Resets, More Output, and a Clear Upgrade Path When Orders Grow

Once you can combine designs on the SmartStitch panel, you stop treating every item like a one-off. You start thinking in layouts, batches, and repeatable files.

If you’re still re-hooping constantly, the fastest wins usually come in this order: 1) Consolidate: Combine and save layouts on-screen (what Belinda taught). 2) Standardize: Use tools like magnetic frames to make the physical loading process match the speed of your digital layout. 3) Scale: When single-needle thread changes kill your profit margin, look toward multi-needle solutions like SEWTECH backed systems or SmartStitch 1501 models to handle the complex color swaps automatically.

If you want to scale beyond “a few items,” the goal is simple: make your setup time predictable. That’s how you protect your margins and your sanity.

FAQ

• Q: How do I enable multi-select mode on the SmartStitch embroidery control panel so multiple designs can be combined in one layout?
  A: Enable multi-select by tapping the folder-screen icon that changes from a box with one checkmark to a box with three checkmarks.
  • Tap the checkbox icon until the three-check version is visible (multi-select ON).
  • Tap each design thumbnail you want; confirm each one shows a colored highlight box.
  • Press the confirmation button Belinda calls the “Three Flowers” button to load the batch onto the canvas.
  • Success check: Multiple thumbnails stay highlighted, and multiple designs load to the canvas (often stacked/overlapping).
  • If it still fails… return to the folder screen and confirm the icon shows three checkmarks before selecting files.
• Q: Can the SmartStitch embroidery control panel add multiple copies of the same embroidery design for a patch sheet without using a computer?
  A: Yes—SmartStitch can add multiples of the same design directly from the control panel using multi-select and thumbnail selection.
  • Enable multi-select (three-check icon) in the design folder.
  • Tap the same design thumbnail multiple times as needed (per the comment Q&A behavior described).
  • Import the selection to the canvas with the “Three Flowers” button, then separate duplicates with arrow keys.
  • Success check: The canvas shows repeated instances of the same design that can be selected and moved individually.
  • If it still fails… save and re-open the layout to confirm the duplicates were actually created and not just temporarily displayed.
• Q: What prep checks should be done before combining designs on the SmartStitch embroidery screen to prevent birdnesting and wasted batch runs?
  A: Do a 60-second preflight: clean the bobbin area, verify bobbin thread volume, confirm consumables, and plan spacing before touching layout tools.
  • Open the hook cover and clean lint; verify the bobbin is roughly 70% full for a full batch.
  • Gather essentials: light temporary spray adhesive, a water-soluble marking pen, and a fresh needle (75/11 is a common starting point for standard fabrics).
  • Confirm designs are easy to identify in the same folder and reserve 10–15 mm breathing room between items.
  • Success check: The machine runs the first minutes of stitching without looping/birdnesting, and the layout has visible spacing between designs.
  • If it still fails… slow down and re-check thread path/tension behavior after changing spool size or after long idle time.
• Q: How do I prevent a SmartStitch hoop strike when arranging multiple designs on the SmartStitch embroidery canvas?
  A: Leave a hard safety margin and always run a perimeter trace before stitching to keep the needle bar inside the hoop edges.
  • Keep designs at least 15 mm away from the hoop’s absolute edge when placing objects.
  • Separate overlaps and fine-position with small arrow-key taps instead of big jumps.
  • Run the machine’s perimeter trace and watch the needle bar, not just the screen.
  • Success check: During trace, the needle bar stays clearly inside the hoop boundary with no near-misses at corners.
  • If it still fails… reduce the packed density (fewer patches per hoop) and re-arrange to create a wider edge buffer.
• Q: How do I fix an accidental design move on the SmartStitch embroidery control panel without restarting the entire combined layout?
  A: Nudge the misplaced object back using the directional arrow keys—SmartStitch layout edits are reversible and forgiving.
  • Select the specific design on the canvas (confirm it is the active object).
  • Use small arrow-key moves to “walk” it back into position rather than making large jumps.
  • Re-check nearby spacing so the corrected design does not overlap others.
  • Success check: The design boundary returns to the intended position and spacing looks consistent across the sheet.
  • If it still fails… cycle/select objects carefully to ensure the correct design is active before moving.
• Q: How do I save a combined multi-design layout on the SmartStitch embroidery machine so it can be reused after power-off?
  A: Use the floppy disk icon to save the combined layout, then re-open the saved file once to verify it actually stored correctly.
  • Tap the floppy disk icon after arranging all designs and text.
  • Re-open the saved file from memory to confirm the layout loads exactly the same.
  • Run the perimeter trace again on the saved file before stitching the first production run.
  • Success check: The saved file reloads with the same object positions (graphics + text) and traces safely inside the hoop.
  • If it still fails… assume the layout was only temporary and repeat the save step before exiting the canvas or power cycling.
• Q: What mechanical safety rule should be followed when switching from SmartStitch on-screen layout to stitching on a multi-needle embroidery machine?
  A: Keep hands, tools, and loose sleeves away from the needle area, and never reach in or perform maintenance while the machine is in Active/green mode.
  • Step back before pressing start; remove scissors, tweezers, and any tools from the needle zone.
  • Verify the layout physically (trace/perimeter check) before running at speed.
  • Only clean or adjust the machine when it is stopped and not in Active mode.
  • Success check: No part of the body crosses the needle bar area during motion, and the start sequence is performed with clear clearance.
  • If it still fails… pause the job immediately and reset the workspace (remove tools, secure sleeves/hair) before resuming.
• Q: What is the safest way to upgrade from screw hoops to magnetic embroidery hoops for faster batching, and what magnetic hoop safety hazard must be avoided?
  A: Magnetic hoops can reduce hoop burn and speed loading, but the magnets are a pinch and medical-device hazard—handle them like industrial magnets.
  • Keep magnetic hoops away from pacemakers/implanted medical devices and sensitive electronics (phones, credit cards).
  • Keep fingertips out of the closing zone; let magnets “meet” in a controlled way to avoid pinch injuries.
  • Use magnetic hoops when repeat clamping pressure and faster re-hooping are the bottleneck after on-screen combining.
  • Success check: Fabric clamps evenly without shiny hoop-burn rings, and re-hooping time drops while placement stays consistent.
  • If it still fails… step back to Level 1: mark crosshairs with a water-soluble pen and standardize placement before adding faster tooling.
