Before You Power Up: How to QC-Test, Unbolt, and Install a YunFu 4-Head 15-Needle Embroidery Machine Without Costly Shipping Mistakes

When a multi-head machine arrives at your dock, the anxiety is real. You aren’t just looking for a "working machine"; you are looking for the future of your business inside a wooden crate. The biggest risk isn’t usually “Can it stitch?”—it’s a small shipping detail ignored during unboxing that turns into permanent vibration, frame misalignment, or a cracked chassis table the moment you start production.

This guide rebuilds the exact workflow shown in the video: final flat test → final cap test → the critical transportation screw removal → accessory verification → crating. However, as your Chief Embroidery Education Officer, I am adding the missing “shop-floor reality” that experienced operators do automatically. We will cover what to check before you run at speed, the sensory cues of a healthy machine, and where new owners lose hours (or break needles) in the first week.

Start Calm: What a YunFu 4-Head, 15-Needle Machine Test Is Really Proving (and What It’s Not)

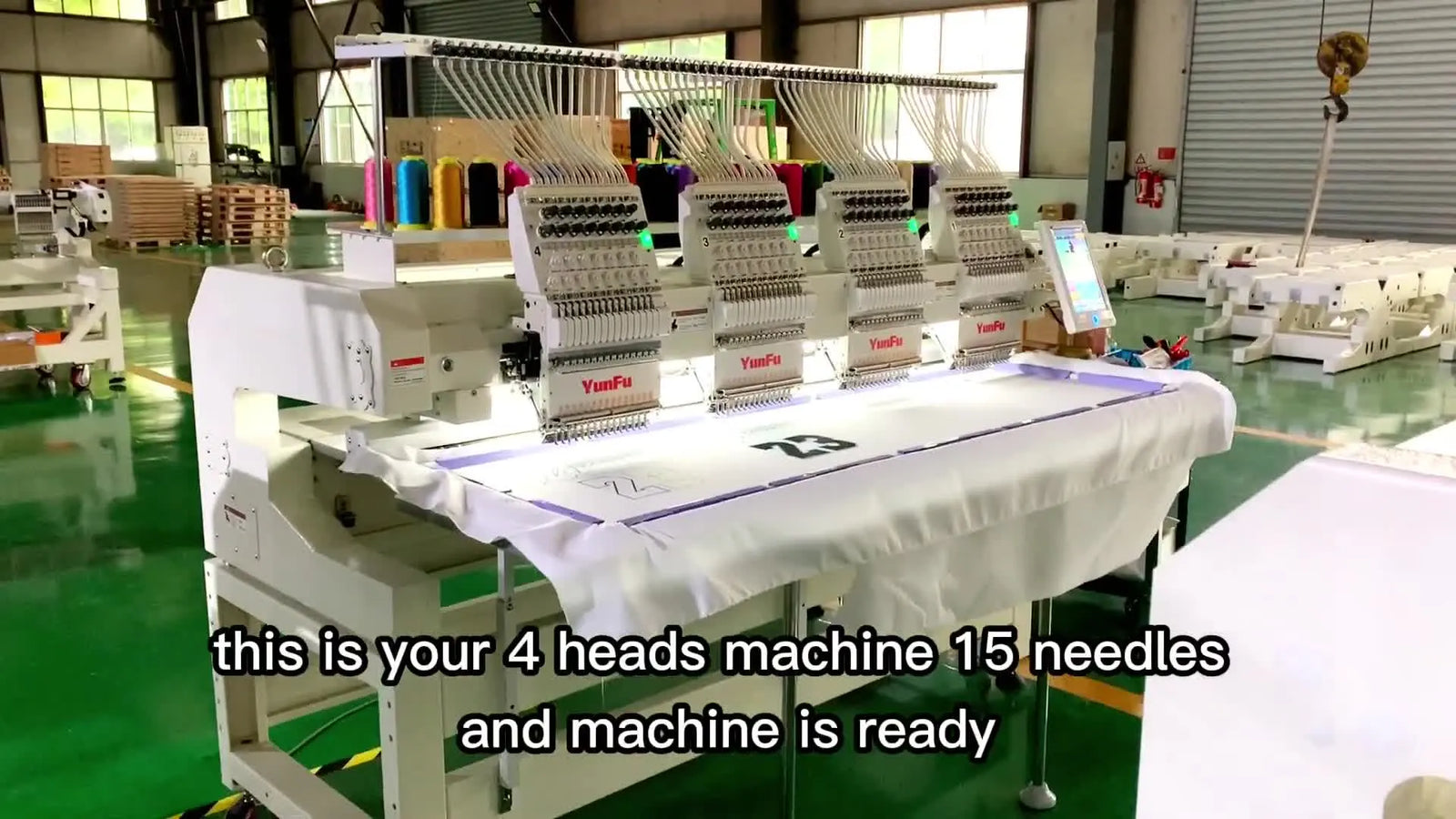

The video opens with a wide shot of the YunFu machine already threaded and ready. It’s a 4-head machine with 15 needles per head, and the operator is demonstrating that all heads can run the same design cleanly and in sync.

A final factory test like this is proving three practical things:

1. Synchronization across heads: All four heads track the same stitch path without drifting.
2. Stitch formation quality: No obvious looping (birdnesting), skipped stitches, or thread shredding during a real design.
3. Basic system readiness: The Dahao control panel, color change mechanisms, and pantograph motion systems behave normally.

The Education Gap: What it’s not proving is how the machine interacts with your environment. It doesn’t guarantee your local power is clean, your floor is level, or your thread brand behaves like the factory’s bulk thread. Those variables often cause the “my machine was perfect at the factory” frustration.

If you are currently evaluating a commercial embroidery machine, treat this factory testing as a strong baseline—but plan your own "Acceptance Protocol" before you commit to your first rush order.

The Flat-Test Reality Check: Reading the “Lakers 23” Stitch-Out Like a Technician

In the video, the operator runs a multi-color flat design (“Lakers 23”) on white fabric using a large aluminum border frame. The Dahao A15 Plus screen shows the design preview and machine status, and the color changes are shown running in automatic mode.

To the untrained eye, it just looks like sewing. To a pro, this is a diagnostic readout. Here is how to “read” a flat test the way a production shop does:

• Density Consistency: Look at the solid fill areas across all four heads. If Head 1 looks solid but Head 3 shows fabric peeking through, you have a tension variance.
• The "Harp" Test: Touch the top thread while it stitches (carefully, above the needle bar). It should vibrate like a guitar string but not feel rigid. If it feels slack, you'll get looping; if it feels like a tight wire, you'll snap threads.
• Corner Sharpness: Check the edges of satin columns. Bulging corners indicate the machine isn't compensating for the push-pull of the fabric—a sign you may need to adjust your software density or physical tension.

Expert Calibration - The "1/3 Rule": While the video doesn't show the bobbin, this is your first check. Flip the fabric over. On a perfectly tuned machine, you should see a white strip of bobbin thread occupying the center 1/3 of the satin stitch width, with the colored top thread hugging the sides.

• Too much white? Top tension is too tight.
• No white? Top tension is too loose.

Pro tip from the field: On multi-head machines, one “slightly off” thread path (a cone snag, a rough guide, or a mis-seated thread in a tensioner) can make only one head misbehave. When you receive the machine, do a quick thread-path feel test head-by-head—your fingertips will catch burrs faster than your eyes.

Cap Testing on Dahao A15 Plus: Why 750 RPM Is a Stress Test (Not a Flex)

After the flat test, the operator installs the cap drivers and runs a cap design (a red maple leaf) on black structured caps. The Dahao A15 Plus control system is visible during the run, and the video shows the machine operating at 750 RPM for the cap test.

Stop right here. Caps are where new owners get humbled. The cap front is curved, layered with buckram, and often stiff. At high speeds, tiny setup issues become needle breaks. The video shows 750 RPM to prove capability, not to recommend a daily habit for beginners.

The Beginners' Sweet Spot: If you are new to this, do not run your first cap order at 750 RPM. Start at 550–600 RPM.

• Why? At lower speeds, "flagging" (the fabric bouncing up and down) is reduced, and you have more reaction time if a sound changes. Speed comes with confidence; quality comes with control.

What the cap test is validating:

• Driver smoothness: No jerky indexing that causes the needle to deflect off the center seam.
• Penetration power: The needle punches through the structured front without hesitation.
• Registration: The outline matches the fill, even as the cap rotates.

If you are dialing in your own cap workflow, selecting the right cap hoop for embroidery machine matters—but so does how you load it. A cap can be “in” the hoop and still be wrong if the bill angle is flat or the sweatband isn't tucked correctly.

Warning (Safety First): Keep hands, sleeves, and tools away from the needle area during high-speed cap runs. A multi-head machine pantograph moves with enough force to break bones. If you need to trim a thread, stop the machine completely.

The hidden physics: why caps break needles when flats don’t

On flats, the fabric is supported evenly by the frame table and backing. On caps, you are stitching in "mid-air" supported only by the cylinder arm.

1. Deflection: The needle hits the curved, hard buckram at a slight angle.
2. Flagging: Without a needle plate flush against the fabric, the cap pulls up with the needle.
3. The Result: If the needle bends even 1mm, it hits the metal throat plate. Snap.

The Solution: Use a fresh #75/11 Sharp needle (titanium coated preferably), ensure your cap backing is stiff (tearaway is usually robust enough for structure, but production shops often double up), and keep the speed in the "Sweet Spot."

The Two-Bolt Mistake That Wrecks Installs: Removing the Transportation Screws on the Wooden Pallet

This is the most important “don’t skip it” moment in the entire video.

The operator points to yellow-painted metal brackets at the machine feet, bolted to the wooden pallet. The instruction is clear: remove the two bolts/screws first, then take the machine out from the wooden plate.

Why this matters in real life:

• Chassis Torque: If you try to lift or roll the machine while it’s still bolted down, you can twist the base frame. This misalignment can make it impossible to level the heads later.
• Vibration Transfer: If you power up while constrained (even for a test), vibration travels into the pallet and reflects back into the electronics, potentially shaking connectors loose.
• Physical Damage: Yanking against these bolts can crack the casting of the leveling feet.

Treat those two bolts like the "shipping pin" on a grenade—handle with care, remove before action.

Expected Outcome: Once the bolts and brackets are removed, the machine should sit freely on its feet. It will still be heavy, but it will be mechanically "neutral" and ready for leveling.

Warning (Lifting Hazard): Use a pallet jack or forklift and trained help when moving a multi-head machine off a pallet. Never lift by the sewing heads or the control panel arm. The risk isn’t only back injury—an uncontrolled tilt can bend the pantograph rail, costing thousands in repairs.

The “Hidden Prep” Pros Do Before First Power-On: Inventory, Consumables, and a No-Surprises Bench Setup

The video transitions into accessory verification by opening a yellow plastic tool case and a blue tool bag, then showing the bobbin winder and multiple frames/attachments.

This is where experienced shops quietly prevent 80% of first-week downtime: they stage everything before they ever run a customer file. If you are setting up hooping for embroidery machine workflows for high-volume production, your first goal is not speed—it’s repeatability.

Prep Checklist (Do this BEFORE you assemble tables)

• The Essentials: Confirm presence of the yellow tool box and blue tool kit.
• The Cap Swap: Locate the replacement needle plate for cap embroidery (usually inside the yellow case). You cannot stitch caps without swapping this plate.
• The Brain: Confirm you have the USB drive and the owner’s manual/menu.
• Power: Identify the plug suitable for your country (check voltage: 110V vs 220V).
• Support: Confirm the high-speed bobbin winder is present (critical for multi-head efficiency).
• Cap Hardware: Confirm the cap station (the jig for hooping) and cap hoops (video shows four).
• Table System: Lay out the table pieces, holders, and supports like a puzzle to ensure no brackets are missing.
• Frames: Identify the large aluminum frame (flat frame) and the T-shirt frame sets.
• Consumables: Verify the white backing and verify the thread count.
• HIDDEN ITEMS (Buy these if not included): Machine Oil (clear sewing oil), Spray Adhesive (for applique/backing), Disappearing Ink Pens, and Snips.




Accessory Breakdown You Should Photograph on Day One (Because “Missing Parts” Emails Waste Weeks)

The operator does a floor layout and opens boxes so you can see what’s included. This is exactly what I recommend you document the moment the crate is opened.

From the video, the accessory set includes:

• Yellow plastic tool case (The delicate parts: needle plates, USB, Manuals).
• Blue tool kit (The muscle: wrenches, screwdrivers, pliers).
• High-speed bobbin winder.
• Cap station & 4x Cap hoops.
• Table components.
• Tape holder and thread holder parts.
• Large aluminum border/flat frame.
• T-shirt frames (various sizes).
• Bulk order of 300 rolls of embroidery thread.

Pro Tip: If you are building a shop around precise embroidery machine hoops, take 10 minutes to photograph every box opened, every label with size markings, and any small parts bag. Those photos become your “truth” if a claim is needed later.

Stabilizer and Thread Planning: Don’t Let 300 Cones Trick You Into Bad Habits

The video shows a large thread order—300 rolls—being packed with the machine. That’s a serious production signal (likely SEWTECH or similar commercial grade), but it can also create a beginner trap: people assume “more thread” means they can run anything at any speed.

In reality, thread performance depends on matching the backing (stabilizer) to the fabric. The video shows white backing, but fails to distinguish type.

Here’s a practical decision tree you can use on day one. Print this out.

Decision Tree: Fabric Type → Backing Choice → Risk Control

1. Is the fabric stable woven (Dress shirt, Canvas, Denim)?

• Backing: Tearaway (Medium weight) or standard Cutaway.
• Why: Fabric holds its own shape; backing just prevents shifting.
• Result: Crisp edges.

2. Is the fabric stretchy knit (T-shirt, Polo, Hoodie)?

• Backing: Cutaway (No-Show Mesh or 2.5oz). Mandatory.
• Why: Knits stretch. If you use tearaway, the stitches will pull the fabric into a hole. Cutaway locks the fibers.
• Result: No "bullet hole" marks or wavy text.

3. Is it a Structured Cap?

• Backing: Cap Tearaway (thick/stiff).
• Why: Use 2 layers if the cap is flimsy. It needs to fight the rotation of the driver.

4. Is the fabric slippery or plush (Silk, Velvet, Towel)?

• Backing: Cutaway + Water Soluble Topping (Solvy) on top.
• Why: Topping prevents stitches from sinking into the pile.

If you’re running a 15 needle embroidery machine in production, the fastest way to lose time is to fight puckering after the fact. High-quality backing (like the stabilizers offered by SEWTECH) is cheaper than ruining a $20 polo shirt.

Packing and Crating: What “Good Protection” Looks Like When Shipping a Multi-Head Machine

The video shows the machine being wrapped in clear shrink wrap, then enclosed with OSB wood panels to form a crate. Accessories are boxed and placed under the machine table area. The crate is secured using metal corner clips hammered into place, and a shipping label is applied (“Ready to Spain”).

This matters to you as the receiver because it tells you what to look for upon delivery:

• Shrink Wrap: Should be intact. Rips imply the machine shifted or was inspected by customs.
• Metal Clips: Should be seated fully. Loose clips mean the wood flexed significantly.
• Moisture: Check the bottom of the shrink wrap for condensation signs if it traveled by sea.






Setup That Saves Your First Week: Hooping Workflow, Ergonomics, and When Magnetic Frames Pay for Themselves

The video shows standard plastic hoops and cap fixtures being included. These are the industry standard and work well. However, in real shops, the bottleneck quickly becomes hooping time and human fatigue, especially when you’re doing repeats of 50+ shirts.

The Symptom: You struggle to force a thick hoodie into a plastic hoop. Your wrists hurt. You get "hoop burn" (shiny rings) on the fabric. The Fix: This is where you upgrade your toolkit.

If you are using hooping stations, consider the progression:

• Level 1 (Learning): Use the included standard hoops. Master the technique.
• Level 2 (Production): Upgrade to Magnetic Hoops (such as those fully compatible with SEWTECH/Dahao systems).

Why Magnetic Hoops? Instead of forcing an inner ring into an outer ring, magnets slap the fabric flat.

• Speed: Hooping time drops from 45 seconds to 10 seconds.
• Quality: No hoop burn. No forcing thick seams.
• ROI: If you are asking about magnetic embroidery hoops, the math is simple. If hooping takes longer than stitching (common on small logos), magnets pay for themselves in one large order.

Warning (Magnet Safety): Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They snap shut instantly. Keep fingers clear.
* Health: Keep them away from pacemakers/medical implants.
* Tech: Do not place them on top of credit cards, hard drives, or the machine's control screen.

The Setup Checklist That Prevents “It Ran Fine at the Factory” Problems

The video focuses on testing and packing, but your success depends on what happens after delivery. Use this setup checklist to bridge the gap between factory QC and your shop floor.

Setup Checklist (Post-Uncrating, Pre-Production)

• Constraint Removal: Confirm the machine is fully released from the yellow shipping brackets.
• Cap Driver Assessment: The video notes the cap driver is left on. Remove it if you plan to do flats first. Do not run flats with the cap driver engaged—you will crash the frame.
• Power & System: Confirm the Dahao A15 Plus panel powers on, boots up, and the emergency stop button works.
• Table Stability: Install the table components. Push down on the table—it should not wobble.
• Bobbin Prep: Wind 20 bobbins using the high-speed bobbin winder. Test the tension (The "Yo-Yo" drop test: holding the thread, the bobbin case should slide down a few inches when you twitch your wrist).
• The "Scrap Run": Run a short flat test design on denim or felt. Do not use a customer's shirt.
• The "Slow Cap" Run: Run a short cap test at 500 RPM. Increase speed only if the registration is perfect.

If you are building a repeatable machine embroidery hooping station workflow, label your hoops by size (e.g., "15cm - Front Left Chest") and dedicate a staging area. Operators waste surprising amounts of time hunting for the “right green frame.”

Operation Habits That Keep Multi-Head Production Smooth (Thread Breaks, Noise, and “Feel”)

Multi-head machines reward operators who pay attention to sensory feedback. Even when everything is “technically correct,” you can often hear or feel a problem before it becomes downtime.

The Sensory Diagnostic:

• Auditory: Listen for a rhythmic thump-thump (good) vs. a sharp click-clack (bad—needle hitting plate?) vs. a grinding noise (motor strain).
• Visual: Watch the thread uptake levers. They should dance in unison. If one is sluggish, that head has a tension issue (check for lint in the tension disks).
• Tactile: Feel the machine table during a run. Excessive vibration means the leveling feet aren't distributing weight evenly.

Specialty Applications: Also, keep your hooping workflow consistent. If you are doing sleeves or narrow pant legs later, plan ahead for specialty frames like an embroidery sleeve hoop. It is better to use the right tool than to struggle with a standard hoop and get crooked results.

Operation Checklist (End of Daily Shift)

• Stitch Review: Inspect stitch quality across all four heads. Are they identical?
• Cap Driver check: Ensure rotation remains smooth and no screws have vibrated loose.
• Inventory: Confirm no accessories are missing; store tools in the yellow/blue kits immediately.
• Maintenance: Add one drop of oil to the rotary hook of each head (consult manual for frequency).
• Log: Note any recurring thread breaks by Head # and Needle # to pattern-match issues.

“Price?” Comments and the Real Buying Question: What You Should Ask Before You Pay

The comments under the video repeatedly ask “Price,” and the channel replies with a reference price: a 4-head, 12-needle machine is quoted at 7800 USD, with a request to contact for delivery cost and details.

The Guru's Perspective: 7800 USD for a 4-head machine is an attractive entry point, but price is only one variable. A cheap machine that sits idle because you lack support is the most expensive machine in the world.

Rather than chasing a number alone, ask the questions that protect your business investment:

1. Configuration: Is this a stripped-down model, or does it include the advanced Dahao computer and servo motors?
2. The "kit": Does it include the cap system and frames, or are those extra? (The video implies they are included).
3. Support: Is there a technician who speaks your language? Are parts (reciprocators, rotary hooks) standard and available locally or from trusted suppliers like SEWTECH?

The Upgrade Path After You’re Stable: Where to Spend Next for Speed and Profit

Once you can run flat and cap tests reliably using the steps above, your next gains usually come from workflow upgrades, not “mystery settings.” In many shops, the biggest wins are found in:

• Consumables: Switching to premium thread (polyester for strength, rayon for sheen) and specific stabilizers.
• Ergonomics: Faster, more repeatable hooping mechanisms.
• Scale: Moving from single-piece thinking to batch staging.

If your goal is higher throughput, a high-value path is pairing a cost-effective multi-head platform like this YunFu/SEWTECH with the right accessories. For high-volume flat work, magnetic hoops are the industry secret to keeping operators happy and production lines moving fast.

The video shows a machine that’s tested, packed, and ready for international shipping. Your job is to receive it like a pro: unbolt it correctly, verify every accessory, and build a safety-first workflow. Do that, and this machine will be a money printer, not a headache generator.

FAQ

• Q: What must be removed from a YunFu/SEWTECH-style multi-head embroidery machine pallet before moving the machine off the wooden base?
  A: Remove the two transportation bolts/screws and yellow-painted shipping brackets at the machine feet before any lifting or rolling.
  • Stop: Locate the yellow brackets bolted into the wooden pallet at each foot.
  • Unbolt: Remove the two bolts/screws fully, then confirm the machine is no longer mechanically tied to the pallet.
  • Move: Use a pallet jack/forklift with trained help; never lift by sewing heads or the control panel arm.
  • Success check: The machine sits freely on its leveling feet and can be leveled without “springing” or twisting.
  • If it still fails… If the base feels stressed or the machine rocks oddly, pause and re-check for any remaining brackets/bolts before powering on.
• Q: What is the correct bobbin tension “Yo-Yo drop test” check for a multi-head embroidery machine bobbin case before first production?
  A: Use the Yo-Yo drop test: the bobbin case should slide down a few inches when you twitch your wrist—neither free-fall nor locked tight.
  • Wind: Wind multiple bobbins first (many shops prepare a batch, such as 20) so testing does not stop production.
  • Test: Hold the bobbin case by the thread tail and give a small wrist twitch.
  • Adjust: If it free-falls, tighten slightly; if it barely moves, loosen slightly (follow the machine manual if the bobbin case type differs).
  • Success check: The bobbin case drops a short distance smoothly and stops, feeling controlled.
  • If it still fails… If stitch balance is inconsistent across heads, re-check upper thread path seating and tension disks on the specific head showing issues.
• Q: How do operators verify correct upper thread tension on a 4-head, 15-needle Dahao A15 Plus embroidery machine using the “1/3 rule” on satin stitches?
  A: Flip the sample over and look for bobbin thread showing as a strip in the center 1/3 of the satin stitch width.
  • Stitch: Run a small satin-column test on stable scrap fabric first (not a customer garment).
  • Inspect: Turn the fabric over and examine multiple satin columns from each head.
  • Correct: If too much bobbin thread shows, upper tension is likely too tight; if no bobbin thread shows, upper tension is likely too loose.
  • Success check: The underside shows a consistent center bobbin strip across all heads, and the topside looks clean without looping.
  • If it still fails… If only one head looks different, check that head’s thread path for a snag, rough guide, or mis-seated thread in a tensioner.
• Q: What is a safe starting speed for cap embroidery on a Dahao A15 Plus multi-head machine, and why can 750 RPM cause needle breaks on caps?
  A: Start cap runs at 550–600 RPM (and as low as 500 RPM for a short test) because caps are curved and can cause needle deflection and flagging that lead to needle breaks at high speed.
  • Set: Begin with a short cap design test at 500 RPM, then increase toward 550–600 RPM only after clean results.
  • Prep: Use a fresh #75/11 Sharp needle (titanium coated is often preferred) and stiff cap backing; many shops double up backing if the cap is flimsy.
  • Watch: Confirm smooth cap driver indexing and correct registration between outline and fill as the cap rotates.
  • Success check: No needle deflection sounds (no sharp click-clack), no flagging bounce, and the design stays registered on the cap curve.
  • If it still fails… If needle breaks persist, stop and check cap loading (bill angle and sweatband tucked), plus throat plate/needle plate setup for cap embroidery per the manual.
• Q: What must be verified in the accessory kit before assembling tables on a YunFu/SEWTECH multi-head embroidery machine to avoid first-week downtime?
  A: Verify the critical accessories and “hidden” consumables before assembly so missing parts do not stop cap work, hooping, or maintenance.
  • Confirm: Yellow tool box and blue tool kit are present, plus USB drive and manuals.
  • Locate: The replacement needle plate for cap embroidery (caps cannot be stitched without the correct plate swap).
  • Stage: High-speed bobbin winder, cap station, cap hoops, frames, and all table brackets/supports laid out to spot missing hardware.
  • Add: Machine oil, spray adhesive, disappearing ink pens, and snips if they are not included.
  • Success check: Every cap/flat attachment needed for the first test run is physically in hand and can be installed without “pause and order parts.”
  • If it still fails… If something is missing, photograph the entire layout and box labels immediately to speed up claims and parts resolution.
• Q: What stabilizer choice prevents puckering and “bullet hole” marks when embroidering stretchy knits on a commercial multi-needle embroidery machine?
  A: Use cutaway stabilizer (often No-Show Mesh or around 2.5 oz) for stretchy knits because tearaway can let stitches tunnel and distort the fabric.
  • Identify: Confirm the garment is a knit (T-shirt, polo, hoodie) that stretches.
  • Use: Choose cutaway as the default for knits; avoid relying on tearaway for stretch fabrics.
  • Add: For plush fabrics (towel/velvet), add water-soluble topping on top to prevent stitch sink.
  • Success check: Text stays flat (no waves), and the knit does not show pulled holes around dense areas after removal.
  • If it still fails… If puckering remains, slow down, re-check hooping stability, and test on scrap with a different stabilizer weight before running customer garments.
• Q: What are the key safety rules for running high-speed cap embroidery on a multi-head machine and for handling magnetic embroidery hoops?
  A: Keep hands and tools away from the needle area during runs and stop the machine fully before trimming; treat magnetic hoops as pinch hazards and keep them away from medical implants and sensitive electronics.
  • Stop: Never reach near the needle or pantograph while the machine is moving; fully stop before trimming threads.
  • Clear: Keep sleeves, tools, and loose items away—multi-head motion force can cause severe injury.
  • Handle: Keep fingers clear when closing magnetic hoops; they snap shut instantly.
  • Protect: Keep magnetic hoops away from pacemakers/medical implants and away from credit cards, hard drives, and the machine control screen.
  • Success check: Thread trims and adjustments happen only at a complete stop, and no one’s hands enter the motion zone during stitching.
  • If it still fails… If operators keep “quick-fixing” mid-run, set a strict shop rule: stop-first, then intervene, and retrain before increasing speed.
