Bitmap vs SVG Digitizing in EL Digitizer: Build a Clean Satin Leaf, Then Kill Jump Stitches Before They Cost You

The Master Class: From Digital Chaos to Perfect Stitches on Pique Knit

Digitizing is not just computer work; it is engineering with string. It is one of those skills that feels mysterious—until you watch a design sew cleanly and realize it’s mostly about control: control of size, control of stitch direction, and control of travel (jumps/trims).

I have spent over 20 years in this industry, and I’ve seen thousands of beginners quit because their software looked perfect, but their machine chewed up the shirt. In this white paper, we will recreate a simple leaf logo two ways inside EL Digitizer: first from a bitmap (raster) image, then from an SVG (vector) file.

But we are going further. We aren’t just "getting stitches." We are building a commercial-grade file designed to run smoothly on a real garment—specifically a pique knit golf shirt, which is notoriously unforgiving.

1. Start Calm: The Geometry of Scaling (And Why Your Screen Lies)

The process begins exactly where most digitizers stumble: they bring in artwork, and immediately discover it is massive. In our case study, the presenter loads a backdrop image and checks the properties—the original artwork is about 7 inches tall.

If you digitize at this scale and shrink it later, the density will compress, causing needle breaks and bullet-proof embroidery. The presenter immediately types 2 inches into the height field. That single move prevents a cascade of downstream disasters (density looking “wrong,” satin columns becoming too wide, and underlay behaving unpredictably).

The "Sweet Spot" for Stitch Density

New digitizers often ask, "What is the correct density?" Software defaults are often too dense for modern knits.

• Standard Auto-Density: Often set to 0.40mm.
• The Safety Zone: For Pique Knit, I recommend easing this to 0.42mm - 0.45mm.
• Why? Thread has volume. If you pack stitches too tightly on a soft knit, the fabric will pucker. Give the thread room to breathe.

A Veteran Note on Zoom

The presenter digitizes at 6:1 and toggles between 3:1 and 6:1. You may see odd zoom values (like 58% or 518%).

• The Trap: At 600% zoom, a generic 0.5mm gap looks like the Grand Canyon. You will be tempted to close it. Don't.
• The Fix: Keep the grid on. The grid is your ruler. It allows you to visually judge scale—because your eyes will absolutely trick you when you’re zoomed in.

Pro Tip: If your 3D preview looks "more raised" on one leaf than another, don't panic. This is a light-based simulation engine. If the stitch structure is the same, the physical result will be identical.

2. The “Hidden” Prep Pros Do Before the First Stitch

Before you draw a single object, you must define the physical reality. In the software, the fabric setting is set to Pique Knit.

Why does this matter? "Pique" is a textured, stretchy fabric. It eats stitches.

• Physics: The fabric has valleys and peaks. Without proper underlay, your top stitches will sink into the valleys, disappearing.
• Software Action: Setting this to "Pique" tells the engine to automatically increase Underlay (likely a Center Run + Zigzag) and create Pull Compensation (making stitches slightly wider to account for fabric shrinkage).

**Decision Tree: The Fabric Recipe**

Use this logic flow before you start:

1. Is the fabric textured (e.g., Pique, Towel)?
   • Yes: Heavy Underlay is mandatory (Edge Run + Zigzag).
   • No: Standard Center Run is sufficient.
2. Is the fabric stretchy?
   • Yes: High Pull Compensation (0.35mm - 0.40mm).
   • No: Standard Pull Compensation (0.20mm).

Prep Checklist (The "Save Your Sanity" List):

• Target Size: Confirm height is 2 inches (do not digitize at 7 and shrink).
• Visual Aid: Grid is ON (set to 10mm or 1 inch squares).
• Physics Engine: Fabric profile set to Pique Knit.
• Goal: Satin objects with clean angles, not "auto-fill chaos."
• Hidden Consumable: Do you have Water Soluble Topping? (Essential for Pique to keep stitches on top).

3. The Sensory Guide to Manual Digitizing

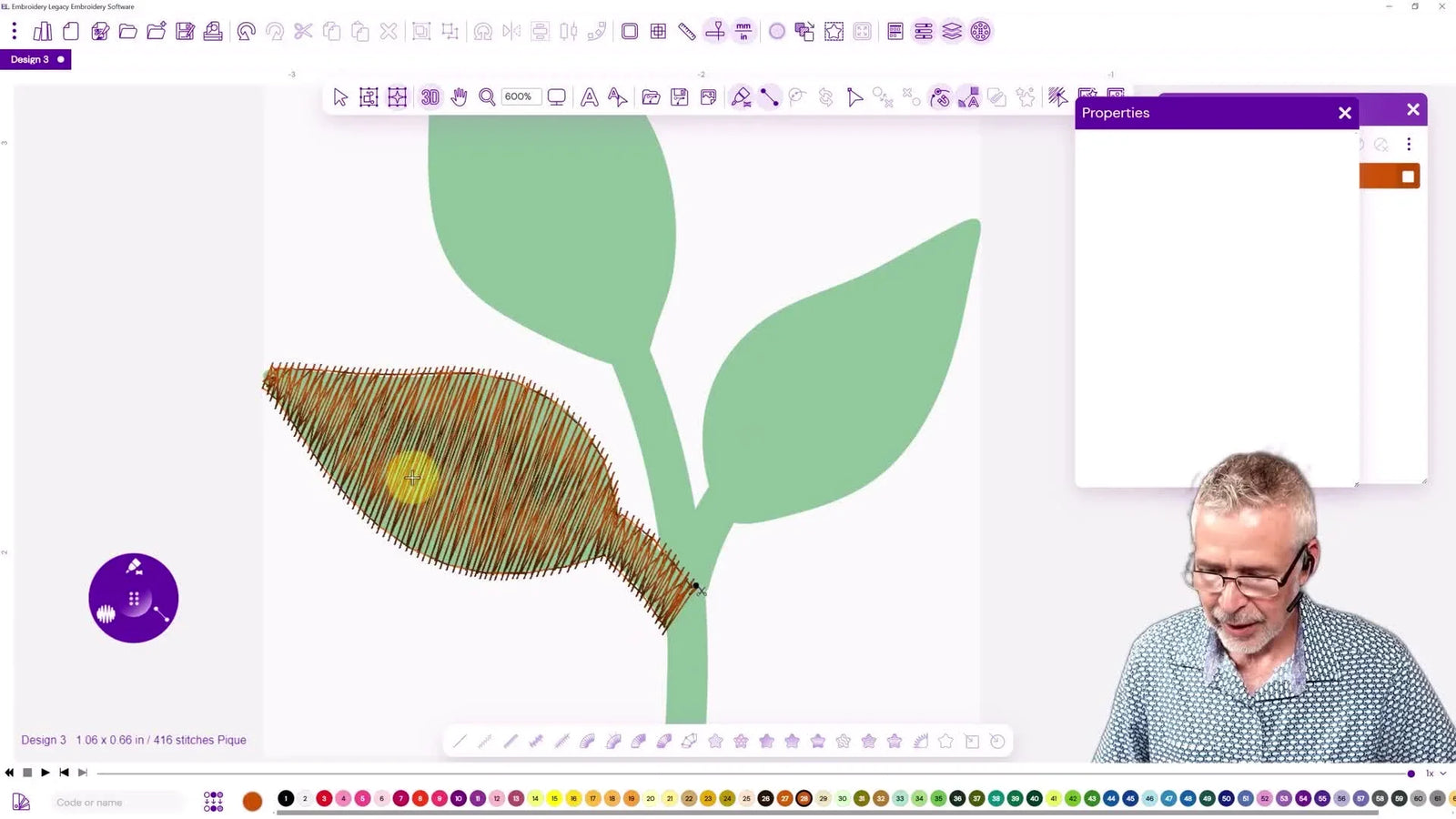

For the first leaf, the presenter uses the Classic Satin tool—a point–counterpoint approach. This relies on rhythm.

The Rhythm of the Mouse: You are defining the width of the column. Click Left, Click Right.

• Left Click: Sharp Corner (hard points). Think: "Stop."
• Right Click: Curve (soft points). Think: "Flow."

What you do (The Sequence):

1. Select Classic Satin.
2. Place points alternating from one side of the leaf to the other (point–counterpoint).
3. Listen to your clicks: A "Click-Click" rhythm defines straight segments; a softer usage for curves.
4. Press Enter to generate the satin object.

Checkpoint: When you press Enter, the object should generate cleanly without gaps. The satin should look like it “belongs” to the leaf shape. If it looks twisted, you crossed your points (put a left point on a right wall).

4. The Outline Method: Trace First, Steer Later

For the second leaf, the workflow changes to the Satin tool (Outline Method). You trace the shape first, then tell the machine the angles. This separates the "Shape" task from the "Flow" task.

What you do:

1. Select the Satin tool.
2. Trace around the perimeter of the leaf.
3. Press Enter to close the shape.
4. Add inclination points/lines (The Steering Wheel).
5. Press Enter again to confirm.


The Truth About Inclination Lines

A viewer asked, “Would you explain inclination points?” Here is the sensory explanation: Inclination lines are the steering wheel of your embroidery.

• Without them, stitches run perpendicular to the shape, looking stiff and robotic (like a fence).
• With them, stitches sweep and curve, catching the light dynamically.

Expert Rule: Satin stitches reflect light. By changing the inclination angle, you change how the logo shines. This is why a simple green leaf can look "3D" without foam—it is purely light reflection managed by inclination.

5. Speed Tools: Fast Draw & The Spacebar Secret

For the stem, the presenter uses Fast Draw. But the real lesson here is ergonomic workflow. You will notice the presenter panning the screen without stopping.

The Workflow:

1. Select Fast Draw.
2. Place points along the stem.
3. The Secret: Hold Spacebar + Click/Drag to pan the screen. This prevents you from "dropping" the tool or losing your mental place in the design.
4. Press Enter, add inclinations, confirm.


Setup Checklist (Mid-Point Review):

• Backdrop: Turn OFF image visibility. Judge the stitches, not the art.
• Size Check: Is it still 2 inches?
• Profile: Is it still Pique Knit?
• Flow: Run the "Slow Redraw" player. Watch for jumps.
• Angles: Do all satin columns curve with the geometry?

6. The SVG Workflow: Speed vs. Risk

Now we switch to the "Modern" method: SVG Import. The presenter imports a vector file, scales it to 2 inches, and unchecks Fill.

The Hard Truth: SVG files are not embroidery files. They are "Raw Materials." Just as you wouldn't put raw cotton in a machine, you cannot put raw SVG nodes in without refining them. If you treat a hooping station for machine embroidery as a precision tool for physical alignment, you must treat vector nodes as precision tools for digital alignment. Don't assume "Ready-Made" means "Ready-to-Sew."

The Slice Tool: Surgical Separation

The SVG arrives as one giant outline. We need to separate the leaves from the stem to control their stitch angles independently.

The Action:

1. Select Slice.
2. Draw a cutting line across the junction (where leaf meets stem).
3. Right-click to execute.
4. Visual Check: You should see a physical gap. The "One" has become "Two."

Edit Path: The "Janitorial" Phase

After slicing, the geometry is often messy. We enter Edit Path mode.

Cognitive Relief: The video shows a zoom of 526%.

• Do not obsess at this level. At 100% size, a 0.1mm gap is invisible.
• Focus on Logic: Are the shapes closed? Are there weird loops?
• Pro Tip: If you see a "double line" artifact, it’s often overlapping paths from the original SVG. Delete the rogue nodes immediately.


7. Converting to Satin & The "Jump Stitch Tax"

Once cleaned, we convert vectors to Satin Stitches and add our inclination lines.

The Commercial Reality of Jumps

The presenter runs the "Redraw" player and catches a "Jump"—a dotted line where the machine stops, trims, moves, and starts again.

• The Cost: Every trim takes 6-10 seconds of machine time and risks a "bird nest" (thread tangle) or a pull-out.
• The Fix: Move the Stop Node (Red Square) of the first object to the Start Node (Green Diamond) of the second object.


Step-by-Step Fix:

1. Identify the jump line in the simulator.
2. Select Object A -> Move Stop to the junction.
3. Select Object B -> Move Start to the same junction.
4. Success Metric: The dotted line disappears. The machine will now flow like water from one leaf to the next without stopping.


8. The Physical Execution: Where Software Meets Steel

You have a perfect file. Now, you must put it on a shirt. This is where 60% of beginners fail. Pique knit is unstable; it stretches if you look at it wrong.

The Problem: Hoop Burn & Distortion

Traditional hoop rings rely on friction and high pressure. On a delicate pique polo:

1. You have to pull the fabric to get it taut (Bad: distorts the weave).
2. You have to tighten the screw massively (Bad: leaves "hoop burn" or shiny crushed fabric rings).

The Solution: Tooling Up

If you struggle with hoop burn or hand fatigue, terms like magnetic embroidery hoop are your gateway to professional results.

• Why Upgrade? Unlike friction hoops, a magnetic system clamps straight down. It holds the fabric firmly without crushing the fibers or requiring "tug-of-war" stretching.
• The Result: Your 2-inch logo stays 2 inches. It doesn't shrink to 1.8 inches when un-hooped.

Decision Tree: Physical Setup for Pique Polo

1. Fabric: Pique Knit (Stretchy & Textured).
2. Stabilizer: Cutaway (Mesh). Never use Tearaway on knit. The stitches will tear the paper and the design will collapse in the wash.
3. Hooping:
   • Option A (Standard): Hoop loosely, tighten screw, float a layer of topper.
   • Option B (Pro): Use a magnetic embroidery frame. Lay the magnetic top ring over the fabric. Zero distortion. Zero burn.
4. Machine:
   • Single Needle: Slow down to 600 SPM.
   • Multi-Needle: These machines handle tension better. You can run at 800-900 SPM.

Warning: Magnetic hoops contain neodymium magnets. They are incredibly powerful. Pinch Hazard: Keep fingers clear when snapping them shut. Safety: Keep them away from pacemakers and sensitive electronics.

9. The Commercial Mindset: From Hobby to Production

The Jump-Stitch removal we discussed earlier is the first step in "Production Thinking." The second step is physical efficiency.

If you are stitching one shirt, manual hooping is fine. If you are stitching 50 shirts for a corporate order:

• Efficiency: A magnetic hooping station allows you to pre-measure the logo placement. You slide the shirt on, snap the magnet, and you are done in 15 seconds with perfect alignment every time.
• Capacity: If your digitized file is optimized (no trims) and your hooping is instant (magnetic), your bottleneck becomes the machine itself. This is often the clear signal to upgrade to SEWTECH Multi-Needle Machines. The ability to preset 15 colors and stage the next hoop while the first one sews is how you double your profit per hour.

Warning: Sewing Machine Safety. Needles move at blur speeds. Never reach near the needle bar to trim a thread while the machine is active. Use tweezers. A needle through the finger is a career-ending injury.

10. Operation Checklist: The Final "Pre-Flight"

Before you export that DST or PES file, run this final check. This list prevents the "Walk of Shame" to the trash can with a ruined shirt.

Operation Checklist (Execute sequentially):

• Scale Safety: Design is 2 inches tall (Double check!).
• Physics Check: Satin inclination lines follow the curve (no "fence post" sticking up).
• Path Hygiene: No "double lines" from bad SVG conversion.
• Connectivity: Start/Stop points aligned (Trims minimized).
• Stabilizer: Cutaway Mesh loaded in the hoop.
• Needle: New Ballpoint Needle (Size 75/11) installed. (Ballpoint slides between knit fibers; Sharp cuts them).
• Test Run: Sew on a scrap piece of similar fabric first.

Digitizing is a conversation between you and the machine. The software is just the translator. By mastering the manual entry, cleaning up your SVGs, and upgrading your physical holding tools, you ensure that conversation ends with a perfect, profitable stitch-out.

FAQ

• Q: In EL Digitizer, how can a beginner prevent “bullet-proof” embroidery on pique knit when resizing a logo from 7 inches to 2 inches?
  A: Set the final design size (2 inches) before digitizing so stitch density and satin geometry are built for the real stitch-out.
  • Type the target height (2 inches) in the Properties/Size field before creating any objects.
  • Avoid digitizing at 7 inches and shrinking later, because density compresses and satin columns become too wide.
  • Keep the grid ON while scaling so visual judgment matches real size.
  • Success check: The 3D preview looks balanced (not overly raised or packed), and satin columns look proportionate at normal zoom.
  • If it still fails: Ease density slightly for pique knit (use a safer starting range like 0.42–0.45 mm instead of tighter defaults).
• Q: In EL Digitizer, what stitch density is a safe starting point for satin embroidery on pique knit polo shirts?
  A: For pique knit, a safe starting point is often 0.42–0.45 mm density to reduce puckering while keeping coverage.
  • Set the fabric profile to Pique Knit first so underlay and pull compensation behave more predictably.
  • Increase spacing slightly if the knit puckers or feels “boardy” after stitching.
  • Pair the file with water-soluble topping so stitches stay on top of the textured knit.
  • Success check: The stitched area lies flatter, and the satin doesn’t look “crushed” into the fabric valleys.
  • If it still fails: Re-check that the design was digitized at final size (not resized down after).
• Q: In EL Digitizer, how can a digitizer reduce jump stitches by aligning Start Node and Stop Node between satin objects?
  A: Remove unnecessary trims by moving the Stop Node of Object A to match the Start Node of Object B at the junction.
  • Run the Redraw/slow player to visually locate the dotted jump line.
  • Select Object A and move the red Stop Node to the connection point.
  • Select Object B and move the green Start Node to the same connection point.
  • Success check: The dotted jump line disappears in the simulator, and the sew sequence flows continuously.
  • If it still fails: Re-check object order and confirm the shapes are truly separate (not overlapping as one combined path).
• Q: In EL Digitizer, how can a digitizer clean messy SVG nodes after using Slice and avoid “double line” artifacts?
  A: Use Edit Path to delete overlapping/rogue nodes after slicing, focusing on closed shapes rather than tiny gaps at extreme zoom.
  • Slice the SVG into separate parts (leaf vs. stem) so each can get its own stitch angles.
  • Enter Edit Path and remove duplicate/overlapping paths that create “double line” geometry.
  • Stop obsessing at extreme zoom; prioritize clean, closed outlines and logical curves.
  • Success check: The path shows one clean outline (no stacked lines), and the satin conversion previews without strange ridges.
  • If it still fails: Turn OFF the backdrop image and judge only the stitch objects to spot geometry problems faster.
• Q: On a pique knit polo shirt, how can an embroiderer reduce hoop burn and fabric distortion when hooping a 2-inch logo?
  A: Reduce distortion by minimizing stretch and pressure during hooping, and consider a magnetic embroidery frame if hoop burn is recurring.
  • Use cutaway mesh stabilizer (avoid tearaway on knit) and add water-soluble topping on top.
  • Hoop without “tug-of-war” stretching; the goal is stable, not drum-tight.
  • If hoop burn persists or hands fatigue: Switch to a magnetic embroidery hoop/frame to clamp down without crushing fibers.
  • Success check: After unhooping, there is minimal shiny ring mark and the logo measures the intended 2 inches.
  • If it still fails: Slow the machine speed (especially on single-needle) and verify the fabric profile and pull compensation are appropriate.
• Q: What needle type should be used for embroidering a pique knit golf shirt, and what is the quickest pre-flight needle check before stitching?
  A: Use a new ballpoint needle (75/11) for knit so the needle slides between fibers instead of cutting them.
  • Install a fresh ballpoint 75/11 before the final run, especially if thread breaks or the knit looks damaged.
  • Test stitch on a scrap of similar knit with the same stabilizer and topping.
  • Watch the first minute of stitching closely to confirm the needle isn’t punching holes or snagging loops.
  • Success check: The knit surface stays smooth with no runs/snags, and stitches form cleanly without frequent breaks.
  • If it still fails: Re-check density and underlay for pique knit and confirm the design was not scaled down after digitizing.
• Q: What safety precautions should embroiderers follow when using a magnetic embroidery hoop/frame and when trimming threads near the needle area?
  A: Treat magnetic hoops as pinch hazards and treat the needle area as a no-hand zone while the machine is active.
  • Keep fingers clear when closing magnetic hoops; neodymium magnets can snap shut suddenly.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Never reach near the needle bar to trim thread while the machine is running; use tweezers and stop the machine first.
  • Success check: Hoop closes without finger contact, and thread trimming is done only with the machine fully stopped.
  • If it still fails: Slow down, reset your workflow, and prioritize safety over saving a few seconds.
