Brother PE800 Towel Monograms That Don’t Sink or Pucker: The Stripe-Straight Hooping Method I Trust

If you’ve ever tried embroidering a towel and ended up with letters that look like they fell into a shag carpet—or a monogram that’s mysteriously drifting off the stripe—you’re not alone. Terry cloth is forgiving in daily life (it hides stains well), but it is brutally honest under a needle. It is a three-dimensional minefield where loops catch toes and shadows hide errors.

This workflow is built around one simple goal: a crisp three-letter monogram that "floats" on top of the towel loops, lands dead-center on the stripe, and comes out of the hoop without the dreaded "hoop burn."

The “It’s Not Ruined” Moment: What a Brother PE800 Can Do on Terry (If You Control the Nap)

A towel feels thick, but the thickness isn't the primary enemy—the looped surface (nap) is. Those loops act like quicksand. Without intervention, your stitches will sink effectively disappearing into the fabric. The result is a ragged, uneven look, especially on the edges of satin columns.

The video’s solution is the classic, non-negotiable towel recipe: tear-away stabilizer on the back + water-soluble film on top.

The "topper" (water-soluble film) acts as a temporary suspension bridge. It pushes the loops down and provides a glass-smooth surface for the thread to lay upon. If you are currently fighting towels with only backing, this is the missing piece. Backing supports the fabric structure, but the topper controls the surface texture.

Cognitive Shift: Towels are bulky. Your success here isn't about finding a "magic button" in the software. It is about physical handling—precise marking, non-destructive hoop tension, and rigorous clearance checks.

The “Hidden” Prep That Keeps Stripes Straight: Tape Measure + One Dot (Not a Whole Cross)

The video uses a striped towel to make alignment easier, but this trick works on solids too. The goal is to place the monogram exactly where the eye naturally falls—which, by industry standard, is usually the bottom center third.

The "One Dot" Method (Copy this exact workflow):

1. Measure: The instructor measures 6 inches up from the bottom edge. This is the "sweet spot" visual center for hand towels.
2. Locate: Choose the center white stripe (or the exact vertical center for solid towels).
3. Mark: make ONE dot with a purple air/water-soluble fabric pen.
4. Cover: Plan the design so the stitching covers this dot, just in case the ink is stubborn (though purple pens usually vanish instantly with water).

Why just one dot? On deep-pile towels, drawing a full crosshair is messy. The ink bleeds into the loops, creating a "ghost" cross that is hard to wash out later. One dot is your anchor; the machine handles the rest.

Prep Checklist (Do this before you even touch the hoop)

• Flatten: Tape measure ready and towel laid flat on a hard surface (don't measure on your lap).
• Measure: Confirm the placement is 6 inches from the bottom edge.
• Mark: Place a single center dot with a purple dissolving pen.
• Mise en place: Have your consumables ready: medium-weight tear-away for the back, water-soluble film (Sol-U-Film) for the top, and a fresh 75/11 Ballpoint needle installed (ballpoint navigates loops better than sharps).


The Towel “Sandwich” Hooping Stack: Tear-Away + Towel + Pellon Sol-U-Film (In That Order)

Structure prevents disaster. Here is the exact layering anatomy shown in the video:

1. Bottom (The Foundation): Medium-weight tear-away stabilizer.
   • Expert Note: For standard monograms, tear-away is sufficient. However, if your design has a very high stitch count (over 10,000 stitches), consider switching to cut-away to prevent the towel from tearing under the weight of the thread.
2. Middle (The Substrate): The towel (terry cloth).
3. Top (The Shield): Pellon Sol-U-Film (water-soluble topper).

The topper does the cosmetic heavy lifting. It looks like heavy-duty plastic wrap. It creates a barrier so the needle penetrations form a stitch above the towel loops rather than inside them.

If you are researching options, this specific layering is often what professionals refer to when discussing the best water soluble stabilizer for towels—it is essential for text legibility.

The Drum Test on a Brother 5x7 Hoop: Tight Enough to Bounce, Not Tight Enough to Warp

This is the physical skill gap where most towel projects fail. You are asking a plastic hoop to clamp a thick, spongy material.

The Hooping Protocol:

1. Loosen the hoop screw significantly to accommodate the thick sandwich.
2. Align the grid marks on the inner hoop with the towel's vertical center.
3. Align the purple dot to the hoop’s center reference.
4. Press the inner hoop down.
5. Tighten the screw—but do not distort the fabric.

The Drum Test (Sensory Check): Gently tap the hooped towel with your fingers.

• Success: You hear a dull, taut "thud." The fabric bounces back slightly.
• Fail (Too Loose): The fabric sags or moves.
• Fail (Too Tight): The vertical stripes look like hourglasses.

The Hoop Burn Danger: If you have to use superhuman strength to turn the screw, you are crushing the towel loops. This leaves "hoop burn"—a permanent flat ring that ruins the towel's texture.

If you find yourself constantly wrestling thick items and dealing with wrist pain, researching proper techniques for hooping for embroidery machine is vital, but often the solution lies in upgrading your tool (see the Magnetic Hoop section below).

Warning: Pinch Hazard & Needle Safety. When tightening hoops, fingers can slip. Also, never reach under the presser foot while the machine is running. Trimming or repositioning should only happen when the machine is stopped and the needle is fully at rest.

Brother PE800 On-Screen Positioning: Move the Needle to the Dot, Then Resize to the Hoop Limit

Once the towel is mounted, do not trust your eyes alone. Use the machine's absolute coordinates.

1. Load Design: Select your monogram font.
2. Safety First: Ensure your design fits within the 5x7" (130x180mm) field.
3. Needle Alignment: Use the arrow controls on the touchscreen to move the hoop until the needle is hovering exactly over your purple dot.
4. Resize: Once centered, resize the monogram letters to the maximum size the hoop allows (or your preference).

The brilliance of the "One Dot Method" is that the physical mark drives the digital placement. On a striped towel, even a 2mm drift is visible to the naked eye. Take the extra minute to micro-adjust.

The Trace/Box Button Saves Towels: Use Brother PE800 Trace Function Before You Stitch

Never press "Start" without a dry run. The instructor presses the trace/box icon (it looks like a dotted square with an arrow).

Watch for two things during the trace:

1. Stripe Alignment: Does the needle stay centered on the white stripe as it travels to the top and bottom of the H?
2. Hoop Crash: Does the foot get dangerously close to the plastic edge of the hoop?

If you are new and searching for how to use the Brother PE800 trace function, know that this is your primary insurance policy. It confirms that what you see on the screen matches the physical reality of the bulky towel.

The Clearance Check That Prevents a Heartbreak: Don’t Stitch the Back of the Towel to the Front

Thick towels have a habit of folding under the hoop unnoticed. If you stitch the excess towel tail to the embroidery area, the project is fatal—unpicking it usually destroys the terry loops.

The "Under-Hoop" Sweep:

1. Lift the front of the hoop slightly.
2. Run your hand under and around the back of the stitching arm.
3. Feel for bulk.
4. Use hair clips or clamps to roll up the excess towel and secure it away from the embroidery field.

Decision Tree: Pick the Right Stabilizer Stack for Towels

Use this logic flow to avoid rework:

• Is the towel terry cloth (looped nap)?
  • Yes → Tear-away backing + Water-soluble topper. (Crucial for definition).
  • No (Waffle weave / Flour sack) → Tear-away backing only. (Topper optional for complex satins).
• Is the design density high (10,000+ stitches or dense fill)?
  • Yes → Switch backing from Tear-away to Cut-away (mesh) for stability.
  • No (Open monogram/outline) → Tear-away is fine (easier cleanup).
• Is the pile very deep (Plush bath sheet)?
  • Yes → Use a heavyweight topper or double layer of Sol-U-Film.
  • No (Standard hand towel) → Single layer topper.

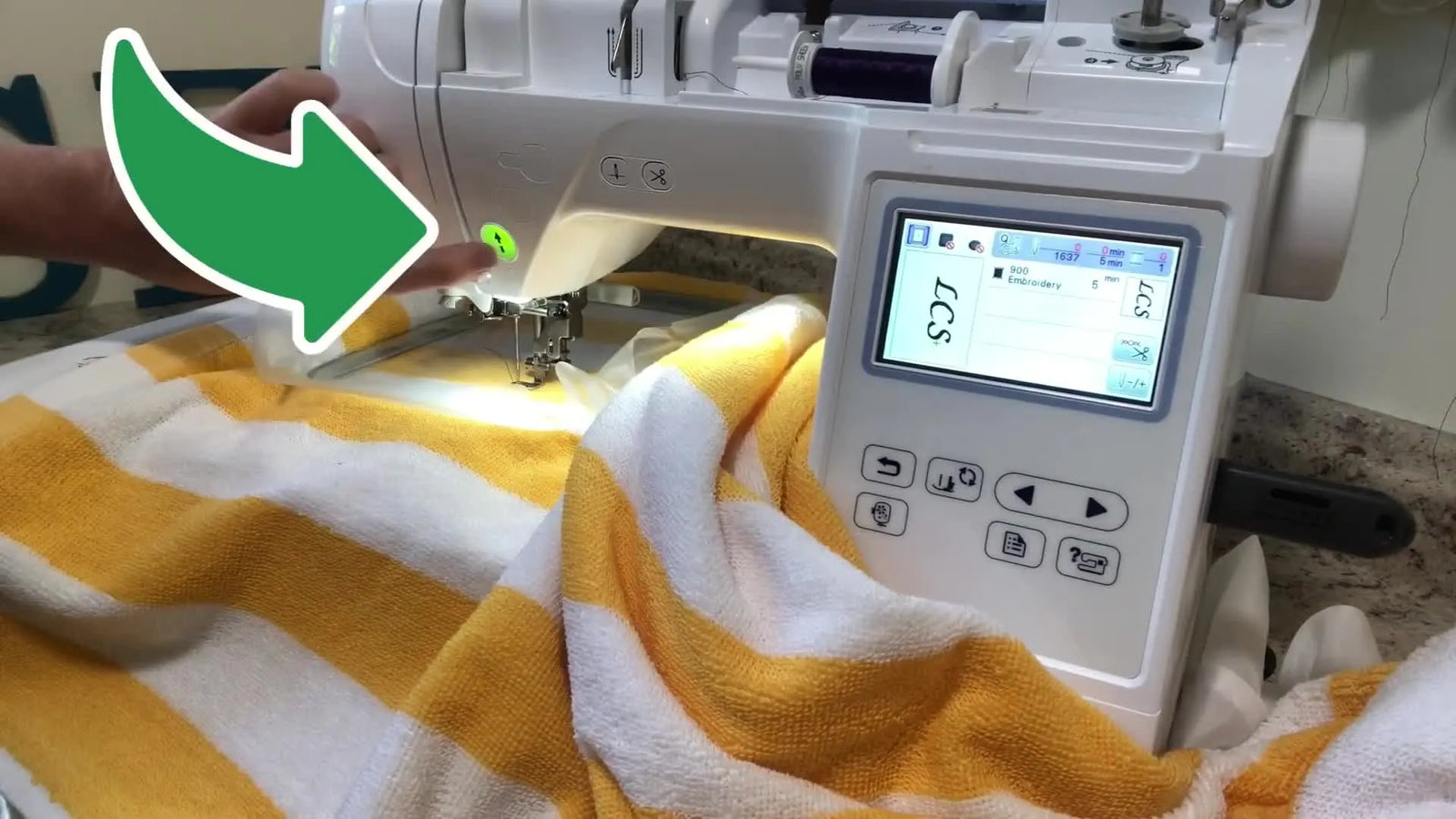

Start Stitching on the Brother PE800: Speed Settings and Monitoring

Once placement and clearance are affirmed, lower the presser foot and press green.

Expert Speed Tip: While your machine might be capable of 650 SPM (Stitches Per Minute), slow it down for towels. The foot has to travel over speed bumps (loops). High speeds can cause the foot to catch a loop and distort the fabric.

• Recommended: Drop speed to 400-500 SPM (if your machine allows speed control) for the cleanest satin edges.

Do not walk away. Towels are heavy. The weight of the hanging towel can drag the hoop if it’s not fully supported. Stand guard to ensure the fabric feeds smoothly.

Setup Checklist (The "Pre-Flight" Confirmation)

• Center: Needle is physically aligned over the purple dot.
• Trace: Trace/box function ran successfully; no hoop collision, stays on stripe.
• Clearance: Hand sweep under the hoop confirms no folded fabric.
• Clips: Excess towel utilized clips to keep bulk away from the needle bar.
• Foot: Presser foot is down.


Clean Finishing Without Washing (Sometimes): Kai Scissors for Jump Stitches + Tear Away the Backing

The finish determines if it looks "boutique" or "homemade."

1. Jump Stitches: Use small, curved embroidery scissors (like Kai or Snip-Eze) to trim the jump threads between letters. Get close, but don't cut the knot!
2. Unhoop: Unscrew allowing the towel to pop out.
3. Backing: Tear away the stabilizer from the back. Support the stitches with your thumb while tearing to avoid distorting the letters.
4. Topper: Peel the large chunks of water-soluble film off the top.

To Wash or Not to Wash?

• Standard: Tear off the big pieces. Small bits trapped inside the letters will dissolve in the first laundry cycle.
• Gift: If giving as a gift immediately, use a damp Q-tip or a wet paper towel to dissolve the remaining bits so it looks perfect upon delivery.


Why Towels Pucker or Sink (and How to Stop It Next Time)

If your result isn't perfect, here is the diagnosis based on the physics of embroidery.

1. Stitches Sinking (The "Balding" Look)

• Symptom: You can see towel loops poking through the satin stitches; edges look ragged.
• Cause: No topper, or the topper tore too early.
• Fix: Use a quality water-soluble film (like Pellon Sol-U-Film) every time.

2. Hoop Burn (The "Ring of Death")

• Symptom: A flattened, shiny, or crushed ring of fabric where the hoop sat.
• Cause: The plastic hoop had to be tightened aggressively to hold the thick fabric.
• Fix: Try to float the towel (hoop only stabilizer, stick towel on top) or upgrade to a magnetic hoop system.

3. Distortion (The "Wavy" Monogram)

• Symptom: The fabric around the letters ripples.
• Cause: The fabric was stretched while hooping. When released, it snapped back.
• Fix: Do not pull the towel like a drum skin before tightening. It should be neutral.


The Upgrade Path When You’re Tired of Fighting Plastic Hoops: Faster Hooping, Fewer Marks

If you are doing one towel a month, the standard PE800 friction hoop is acceptable. But if you are doing a set of 8 bridal towels, the physical strain of tightening screws and the risk of hoop burn becomes a production bottleneck.

The "Game Changer": Magnetic Hoops

Professionals rarely use screw-tightened hoops for thick items. They use Magnetic Hoops.

• Why? They clamp straight down using magnetic force, rather than forcing an inner ring inside an outer ring.
• Result: This virtually eliminates "hoop burn" because the fabric isn't being crushed sideways. It also holds thick terry cloth much more securely without human effort.

Many embroiderers eventually switch to magnetic embroidery hoops because they allow for faster, pain-free hooping. For specific compatibility, PE800 users often search for a magnetic hoop for brother pe800 to solve the thickness struggle.

The Upgrade Logic (Trigger → Scale → Solution):

• Trigger: You dread hooping towels because your wrists hurt, or you are ruining 1 in 10 towels with hoop burn.
• Scale: You have an order for 20 bath sheets.
• Solution: A magnetic hoop pays for itself by saving the cost of ruined blanks and reducing hooping time from 5 minutes to 30 seconds.

The Production Assistant: Hooping Stations

If you simply cannot get your alignment straight (the "crooked stripe" issue), a Hooping Station is the answer. This board holds the hoop and standards for you, ensuring every towel is marked and hooped in the exact same spot. People researching hooping station for embroidery or a magnetic hooping station are usually looking to professionalize their workflow and guarantee consistency.

Warning: High-Power Magnet Safety. Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. Pacemaker Warning: Keep these magnets at least 6-12 inches away from implanted medical devices. Keep away from credit cards and mechanical watches.

Quick Troubleshooting Map: Symptom → Likely Cause → Quick Fix

Keep this chart handy when things go wrong mid-stitch.

Operation Checklist (After stitching, before unhooping)

• Completeness: Verify the design finished completely (no missing parts).
• Back Check: Look under the hoop—ensure the bobbin thread looks balanced (1/3 white strip in center of satin column).
• Trim First: Trim jump stitches before removing from hoop (fabric is taut, easier to cut safer).


The Finished Look: What “Good” Should Look Like on a Striped Towel

A professional-grade towel monogram has three hallmarks:

1. Loft: The stitches sit proudly on top of the pile, not buried in it.
2. Geometry: The baseline of the letters is perfectly parallel to the woven stripe.
3. Texture: The surrounding towel is fluffy, not flattened by the hoop pressure.

The workflow—Measure & Dot → Stabilizer Layering → Drum Test → Trace → Clearance Check—creates a safety net around your project.

By mastering the "Topper" technique and respecting the bulk of the fabric, you turn a terrifying project into a routine one. And when that routine eventually becomes high-volume production, you know that tools like magnetic hoops are there to take the physical labor out of the equation.

FAQ

• Q: What stabilizer stack should a Brother PE800 use for terry cloth towel monogramming to prevent stitches from sinking into the loops?
  A: Use medium-weight tear-away stabilizer on the back plus a water-soluble film topper on top to keep satin stitches floating above the towel nap.
  • Hoop in this order: tear-away backing → towel → water-soluble film topper.
  • Replace the topper if it tears early or shifts before stitching.
  • Success check: satin columns look smooth and “sit on top,” with minimal towel loops poking through.
  • If it still fails… switch to a heavier topper (or double the topper) for very deep pile towels, and confirm the design is not overly dense for the towel.
• Q: How do you mark and center a striped towel for a Brother PE800 monogram so the letters land dead-center on the stripe?
  A: Mark one center dot (not a full cross) and move the Brother PE800 needle position to that dot before resizing or stitching.
  • Measure 6 inches up from the bottom edge, then choose the center white stripe (or true center on a solid towel).
  • Mark ONE dot using a purple air/water-soluble fabric pen and plan stitches to cover the dot.
  • Success check: after needle alignment, the needle hovers exactly over the dot with no “eyeballing.”
  • If it still fails… redo the dot placement on a hard flat surface (not on your lap) and re-align using the on-screen arrow controls.
• Q: How tight should a Brother 5x7 embroidery hoop be on a terry cloth towel to avoid hoop burn and warped stripes?
  A: Tighten the Brother 5x7 hoop to “taut thud” tight—secure enough to hold, but not so tight that stripes hourglass or loops get crushed.
  • Loosen the screw more than usual before inserting the thick towel sandwich.
  • Tighten only until the towel stops shifting; do not force the screw with excessive strength.
  • Success check: the drum test gives a dull, taut “thud,” and vertical stripes stay straight (not pinched inward).
  • If it still fails… consider floating the towel (hoop stabilizer only, attach towel on top) or move to a magnetic hoop to reduce crushing pressure.
• Q: How do you use the Brother PE800 Trace/Box function to prevent the design from hitting the hoop on a bulky towel?
  A: Run the Brother PE800 trace/box before pressing Start to confirm both alignment and hoop clearance.
  • Press the trace/box icon and watch the full boundary path.
  • Confirm the needle path stays centered on the stripe as it travels to top and bottom of the letters.
  • Success check: tracing completes with clear space from the hoop edge and the design stays visually centered on the stripe.
  • If it still fails… cancel the stitch-out, re-center by moving the hoop with arrow controls, then trace again before restarting.
• Q: How do you prevent stitching the back of a towel to the front when embroidering a towel on a Brother PE800?
  A: Do an under-hoop hand sweep and clip the excess towel bulk away before stitching.
  • Lift the front of the hoop slightly and feel under/around the stitching arm for any folded towel layers.
  • Roll and secure excess towel with hair clips or clamps so nothing can drift under the needle area.
  • Success check: the area under the hoop feels flat and free of hidden bulk all the way around the stitch field.
  • If it still fails… stop immediately when you see fabric pulling; re-clip and re-check clearance before continuing.
• Q: What should a balanced bobbin look like on the back of a Brother PE800 towel monogram, and when should you adjust if white thread shows on top?
  A: A balanced Brother PE800 stitch shows a centered bobbin “stripe” on the back of satin columns; if white bobbin thread shows on top, first re-seat the bobbin and then slightly lower top tension.
  • Check the bobbin is seated correctly before changing any settings.
  • Inspect the back of the embroidery before unhooping to confirm stitch balance.
  • Success check: on the back, the bobbin appears as a narrow strip in the center of the satin (not pulled hard to one side).
  • If it still fails… re-thread the upper thread with the presser foot UP and consider changing the needle before making bigger tension changes.
• Q: What safety rules should beginners follow when tightening hoops and using magnetic embroidery hoops for thick towels?
  A: Treat hooping as a pinch-and-needle hazard, and treat magnetic hoops as high-power magnets that can injure fingers and affect medical devices.
  • Keep fingers clear when tightening a screw hoop; never reach under the presser foot while the Brother PE800 is running.
  • Stop the machine and wait for the needle to fully rest before trimming or repositioning.
  • Success check: hands never enter the needle area during motion, and fingers stay out of pinch points during hooping.
  • If it still fails… switch to a safer routine (machine fully stopped before any handling) and follow the magnetic hoop pacemaker warning by keeping magnets 6–12 inches away from implanted medical devices and away from credit cards/mechanical watches.
