Brother PR670E: The 5 Features That Actually Save Time (Plus a Clean Way to Hoop Tote Bags Without Fighting the Clamp Frame)

If you’ve ever stared at a multi-needle machine and thought, “This looks amazing… but will it actually make my day easier?”—you’re asking the right question. The Brother PR670E is popular for a reason: it’s built around speed, repeatability, and fewer “stop-and-fix” moments.

In this post, I’m going to rebuild the video lesson into a shop-floor workflow you can follow: what the five standout features really do, how Pat programs a simple name design (“Kelsey”) on the screen, how she fixes the dreaded frame-size pop-up, and how to use the LED crosshair to land a design exactly where you marked it.

Along the way, I’ll add the missing “old hand” details—especially around hooping physics, stabilizer choices for tote bags and faux leather, and what changes when you’re stitching one gift vs. fifty paid orders.

The Brother PR670E “Calm Down” Primer: What This 6-Needle Head Is Really Buying You

Pat’s first point is the one that matters most in real life: the PR670E is a 6-needle machine. This means you can keep six thread colors loaded simultaneously, avoiding the constant “stop-snip-rethread” cycle of single-needle machines.

If you’re coming from a flatbed or single-needle background, here is the mental shift:

• Hobby Mode: You tolerate thread changes because you are “crafting.”
• Production Mode: Thread changes are where profit leaks out—3 to 5 minutes at a time.

Expert Reality Check: While this machine can technically run around 1,000 stitches per minute (SPM), speed does not equal quality.

• Beginner Sweet Spot: Set your machine to 600-700 SPM. At this speed, friction is lower, thread breaks are rare, and you have more time to react if a hoop snags.
• Pro Zone: Only push to 900+ SPM on stable fabrics (like denim or canvas) with premium polyester thread.

If you’re researching the brother pr670e embroidery machine, understand its core value: it keeps the needle moving while you prep the next item, rather than forcing you to babysit the current one.

Six Needles, Six Colors: The “Downtime Tax” You Stop Paying on Multi-Color Jobs

Pat mentions that a huge portion of commercial jobs use six colors or fewer. This allows you to load your palette once and run all day.

Here’s the practical takeaway I teach in professional studios:

1. Standardize Your Palette: Keep your essentials (Black, White, Red, Navy) on needles 1-4.
2. Rotate Specials: Use needles 5-6 for the unique colors required by the specific job.

Pro Tip (The Sound of Efficiency): A multi-needle machine should have a rhythmic, consistent hum. If you hear a sharp slap or inconsistent clatter, your thread path is likely twisted, or your tension is too loose. Stop immediately—do not “hope” it fixes itself.

The 8" x 12" Brother Hoop Area: Why Bigger Isn’t Just “Bigger”—It’s Fewer Rehoops

Pat’s second feature is the large embroidery field: 8" x 12".

A bigger field does three things for your workflow:

1. Eliminates Splitting: You rarely need to split designs for jacket backs or large totes.
2. Forgiving Placement: You have "white space" to nudge a design if your physical hooping was slightly off-center.
3. Batching: You can layout multiple small items (patches) in one hoop run.

If you specifically want a brother embroidery machine with 8x12 hoop, you are buying the ability to say “Yes” to varsity jackets and large home decor projects without the nightmare of aligning two separate hoopings.

The “Hidden” Prep Before You Touch the Screen: Stabilizer, Marking, and Hooping Physics

Pat demonstrates embroidery on a tote and shows the tubular arm with a faux leather bag. These substrates behave strictly differently under tension.

The Physics of Hooping: Hooping is not just holding fabric; it is suspending tension. You want the fabric to feel like a "drum skin"—taut but not distorted.

• The Tap Test: Tap the hooped fabric. It should make a dull thump. If it ripples, it’s too loose (puckering risk). If it sounds high-pitched or the weave looks warped, it’s too tight (burn risk).

Prep Checklist (Do this BEFORE touching the screen)

• Hidden Consumables: Do you have your spray adhesive (for floating) and water-soluble pen?
• Physical Integrity: Check the needle tip. Run your fingernail down the needle—if you feel a catch, throw it away. A burred needle ruins faux leather instantly.
• Stabilizer Match:
  • Canvas Tote: Tearaway is okay, but Cutaway is safer for density.
  • Faux Leather: Cutaway only. Perforations weaken the material; cutaway provides the permanent skeleton it needs.
• Hoop Burn Check: On delicate items (velvet/performance wear), place a layer of water-soluble topping or scrap fabric under the hoop ring to prevent crushing fibers.

Warning (Physical Safety): Keep fingers, loose sleeves, and lanyards away from the needle area during test positioning and stitching. A multi-needle head moves laterally very fast. A finger in the hoop path can result in severe injury.

The Tubular Arm on the Brother PR670E: Loading Bags Without Crushing Seams

Pat’s third feature is the tubular arm. She demonstrates sliding a finished tote bag onto the free arm using a specialized clamp frame.

The "free arm" allows the bulk of the bag to hang underneath the machine bed, preventing you from sewing the front of the bag to the back of the bag (a rite of passage for every beginner).

Decision Tree: Which Hooping Method Should I Use?

Use this logic flow to choose your tool:

1. Is the item tubular/closed (T-shirt, Tote, Sleeve)?
   • Yes: Use the Tubular Arm.
   • No: Standard flat table mode is fine.
2. Does the fabric bruise easily (Velvet, Performance Wear, Leather)?
   • Yes: Avoid standard friction hoops. Use Magnetic Hoops (Zero friction burn).
   • No: Standard hoops are acceptable.
3. Is the material thick or handled (Carhartt Jacket, Thick Seams)?
   • Yes: Standard hoops may pop off. Use Magnetic Hoops or Heavy Duty Clamps.
   • No: Standard hoops work well.

If you’re exploring a magnetic hoop for brother setup, realize that this isn't just about "ease." It is about profit protection. A magnetic hoop removes the friction that creates "hoop burn" (shiny rings on fabric), saving you from having to steam garments or replace ruined stock.

The 10-Inch Brother PR670E LCD Screen: Editing That Saves a Trip to the PC

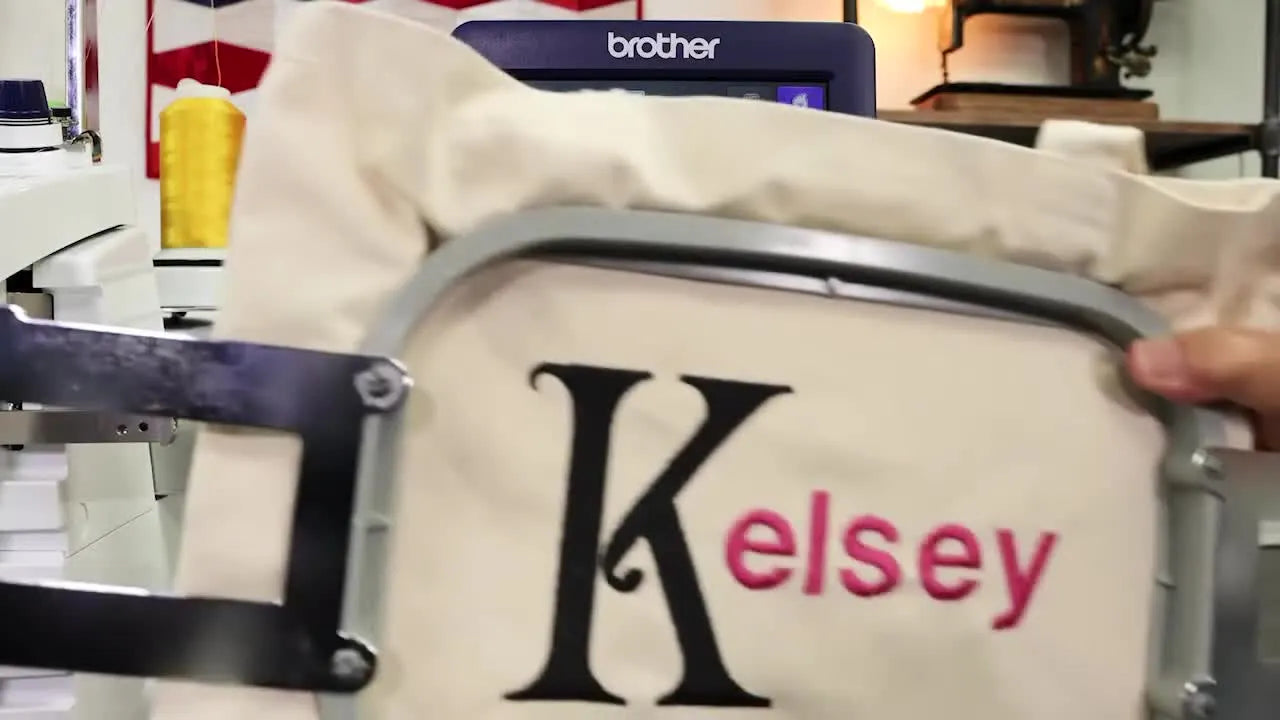

Pat’s fourth feature is the 10-inch HD LCD screen. She builds a name design directly on the machine.

This creates a Zero-Computer Workflow for simple personalization. You don't need to fire up digitizing software just to add a name to a bag.

The “Kelsey” Build: Resizing and Density Physics

Pat selects a Serif "K", realizes it’s too big, and uses the machine to resize it to 60%.

Expert Theory (Why Density Matters): When you shrink a 4-inch letter to 2 inches, you are cramming the same number of stitches into half the space. This creates a "bulletproof vest" effect—hard, stiff, and prone to breaking needles.

• The Fix: Pat activates the Density Recalculation feature. The machine subtracts stitches so the distance between stitches (density) stays constant (usually ~0.4mm). Never resize more than 20% without ensuring density correction is ON.

If you’re comparing machines, this on-board calculation is what people mean when they discuss multi needle embroidery efficiency. It handles the math so you don't break needles.

Aligning Text: Dragging vs. Nudging

Pat adds the rest of the name ("elsey"), changes it to lowercase, and aligns it.

Sensory Tip: Do not rely on your finger for the final millimeter. Use the Directional Arrows on the screen. Tap... tap... tap.

• Why? The parallax error from looking at a touchscreen angle can make you think it's aligned when it's technically 2mm off. The arrows are absolute.

Setup Checklist (The "Pre-Flight" Check)

• Hoop Selection: Does the screen show the exact hoop you have attached? (e.g., 5x7 vs 8x12).
• Orientation: Is the "Top" of the design pointing to the "Top" of the physical hoop?
• Obstruction: Look under the hoop. Is a strap or sleeve handle tucked underneath?
• Bobbins: Do you have enough bobbin thread to finish the run? (Check the sensor or visually inspect).

Fixing the “Change to a Larger Embroidery Frame” Pop-Up

Pat hits “Edit End,” and the machine yells: “Change to a larger embroidery frame.”

Do not panic. This usually means the design center is just slightly nudged outside the printable boundary.

Troubleshooting: The Frame Size Error

The Reality of Pricing: Time & Stitch Count

The machine estimates 19 minutes and 9,922 stitches.

Commercial Context:

• 19 minutes of stitching + 5 minutes of hooping/trimming = 24 minutes total.
• If you charge $10, you are earning $25/hour gross (before counting overhead).
• The Upgrade Trigger: If you are doing 50 of these bags, that 5-minute hooping time is your enemy. This is where tools like SEWTECH magnetic hoops pay for themselves—if you can cut hooping to 1 minute, you gain 3.5 hours of production back on a 50-piece order.

The Brother PR670E LED Drop-Light: No More Guesswork

Pat’s fifth feature is the LED Crosshair Pointer. It projects a visible (+) onto the fabric.

Expert Insight: On faux leather (as shown), you have zero margin for error. Needle holes are permanent.

1. Mark your center on the bag with a water-soluble pen or chalk.
2. Use the arrow keys to move the LED crosshair until it sits perfectly on top of your chalk mark.
3. Trace Feature: Run the "Trace" function. Watch the LED light travel the perimeter of the design to ensure it doesn't hit the hoop manufacturing or fall off the edge of the leather patch.

Magnetic Hoops: The Smart Upgrade Path

Pat uses standard frames, but the comments section is always full of questions about magnets. Here is the industry consensus: Magnetic hoops are the single biggest efficiency upgrade you can buy for a multi-needle machine.

If you are learning how to use magnetic embroidery hoop systems, the benefit is simple: Speed and Grip.

• The Pain: Traditional hoops require unscrewing, shoving, struggling with thick seams, and tightening—often causing wrist strain (Carpal Tunnel is a real risk in this industry).
• The Cure: Magnetic hoops (like SEWTECH or other brands) simply snap onto the fabric. They hold thick jackets that standard hoops spit out, and they lay flat on tote bags.

Warning (Magnet Safety): Industrial embroidery magnets are extremely powerful.
* Pinch Hazard: Never put your fingers between the two magnet frames. They snap together with enough force to bruise or break skin.
* Medical: Keep them at least 6 inches away from pacemakers.

If you are comparing high-end options like the snap hoop monster magnetic hoop against other magnetic systems like SEWTECH, look at the internal dimensions. Ensure the magnet frame gives you the actual sewing area you need for your typical logos.

The System: Fabric + Stabilizer + Thread

Pat’s demo works because her system is balanced. If yours fails, check the "Holy Trinity":

1. Needle: 75/11 Ballpoint for knits; 75/11 Sharp for wovens/caps.
2. Thread: 40wt Polyester is the industry standard. Rayon is beautiful but snaps easily at high speeds.
3. Stabilizer: If in doubt, over-stabilize. You can trim extra backing, but you cannot fix a distorted design.

Operation: Running the Job Like a Pro

Once you hit "Start," your job is observation.

Operation Checklist

• The First 100 Stitches: Watch the machine like a hawk. This is when bird-nesting (thread bunching underneath) usually happens.
• Sound Check: Listen for that rhythmic "thump-thump."
• Tension Check: Look at the back of the embroidery. You should see 1/3 bobbin thread (white) in the center of the column. If you see only top color, your top tension is too loose.

Conclusion: Turning Features into Profit

Pat’s walkthrough proves the Brother PR670E is a powerhouse.

• 6 Needles = Less babysitting.
• 8x12 Field = Bigger jobs.
• Screen Editing = Faster setup.

But remember the Growth Logic:

1. Level 1: Master the machine and standard hoops.
2. Level 2 (Transformation): When your wrists hurt or you get "hoop burn" rejects, upgrade to Magnetic Hoops. This is the cheapest way to double your efficiency.
3. Level 3 (Scaling): When 1,000 SPM isn't fast enough, or you have more orders than hours in the day, that is the trigger to look at industrial multi-head solutions or dedicated production workhorses like SEWTECH multi-needle machines.

Embroidery is a journey of managing variables. Control your hoop, control your stabilizer, and let the machine do the heavy lifting.

FAQ

• Q: What stabilizer should be used on a canvas tote bag vs. faux leather when embroidering with a Brother PR670E?
  A: Use cutaway for faux leather and treat cutaway as the safest default for dense tote designs; tearaway may work on some canvas totes but is less forgiving.
  • Choose Cutaway only for faux leather to prevent weakening from perforations.
  • Prefer Cutaway on canvas totes when stitch density is medium-to-high or the tote feels stretchy/soft.
  • Add a protective layer under the hoop ring on delicate surfaces if hoop marks are a concern.
  • Success check: The tote stays flat after stitching and does not “bubble” or ripple around the design.
  • If it still fails: Slow the Brother PR670E down to the 600–700 SPM range and re-check hoop tension (too loose causes puckers fast).
• Q: How can embroidery hoop tension be checked on a Brother PR670E to prevent puckering and hoop burn?
  A: Aim for “drum-skin” tension—taut but not distorted—then confirm with a simple tap test before stitching.
  • Tap the hooped fabric and listen/feel for a dull “thump” (not a ripple, not a high-pitched tightness).
  • Re-hoop if the fabric ripples (too loose) or the weave looks warped/shiny (too tight).
  • Add a scrap layer or water-soluble topping under the hoop ring on crush-prone fabrics to reduce hoop burn.
  • Success check: The hooped area looks smooth with no visible distortion, and the fabric does not shift when lightly pushed.
  • If it still fails: Switch from standard friction hoops to a magnetic hoop to reduce clamp pressure and fabric bruising.
• Q: What does the “Change to a larger embroidery frame” error mean on a Brother PR670E, and how can it be fixed?
  A: Don’t worry—this usually means part of the design is just outside the hoop’s sewable boundary, even if it looks close on screen.
  • Select the exact hoop size on the Brother PR670E screen that matches the physical hoop installed.
  • Press the Center function to pull the design back into the safe sew zone, then nudge in small steps.
  • Resize the text slightly (for example, reduce about 5%) if a letter is crossing the boundary.
  • Success check: The warning disappears and the design sits fully inside the sewable area (not in the grey/no-sew zone).
  • If it still fails: Reconfirm the physical start/center position using the LED pointer and run a Trace to verify clearance.
• Q: How should the Brother PR670E LED crosshair pointer and Trace function be used for accurate placement on faux leather?
  A: Mark the center first, then move the LED crosshair onto the mark and trace the perimeter before stitching—faux leather has no “undo.”
  • Mark the placement center with a water-soluble pen, chalk, or another removable marker.
  • Use the on-screen directional arrows to align the LED crosshair precisely to the mark (avoid finger-dragging for final millimeters).
  • Run Trace to confirm the full design path stays inside the hoop and does not collide with frame hardware.
  • Success check: The traced outline stays fully on the target area with safe clearance from hoop edges and clamps.
  • If it still fails: Stop and re-hoop or choose a larger hoop; do not “send it” on faux leather.
• Q: What is the safe speed range for new operators on a Brother PR670E to reduce thread breaks and hoop snags?
  A: A safe starting point is 600–700 SPM on the Brother PR670E; higher speed is not automatically better quality.
  • Start at 600–700 SPM to lower friction and give more reaction time if the hoop catches.
  • Increase toward 900+ SPM only after the setup is stable and the fabric is firm (often denim/canvas) with good polyester thread.
  • Stop immediately if the machine sound becomes sharp/slappy or inconsistent—treat that as a setup warning.
  • Success check: The machine runs with a steady, rhythmic hum and completes the first section without breaks.
  • If it still fails: Re-check thread path for twists and confirm tensions before trying to speed up.
• Q: How can bobbin/top tension be judged on a Brother PR670E by looking at the back of the embroidery?
  A: Use the “1/3 rule” on the back: about one-third bobbin thread should show in the center of satin columns.
  • Stitch a short test and flip the item to inspect the back before committing to a full run.
  • Adjust if the back shows mostly top thread color (top tension often too loose).
  • Watch the first 100 stitches closely because bird-nesting typically shows up early.
  • Success check: The back of columns shows a balanced look with bobbin thread centered rather than flooding the edges.
  • If it still fails: Re-thread the machine path carefully and verify the bobbin is correctly installed and feeding smoothly.
• Q: When should a shop upgrade from standard Brother PR670E hoops to magnetic hoops or to a SEWTECH multi-needle machine for production work?
  A: Upgrade in layers: optimize technique first, add magnetic hoops when hooping time/hoop burn becomes the bottleneck, and consider a SEWTECH multi-needle machine when orders exceed available hours.
  • Level 1 (technique): Standardize thread colors, slow to 600–700 SPM, and perfect hoop tension to cut stops and rejects.
  • Level 2 (tool): Move to magnetic hoops when thick seams pop standard hoops off, wrist strain builds, or hoop burn causes rework.
  • Level 3 (capacity): Step up to a SEWTECH multi-needle machine when demand outpaces time—even after hooping and workflow are optimized.
  • Success check: Hooping time drops (often from minutes to about a minute per item) and rejects from hoop marks/shift reduce noticeably.
  • If it still fails: Time a 10-piece batch end-to-end (hooping + stitch + trim) to find whether hooping, thread changes, or placement is the true limiter.
