Brother Stellaire Wi-Fi + My Design Snap Connection: The Calm, No-Guesswork Setup That Actually Pairs

The Wireless Handshake: Mastering Connection on the Brother Stellaire XJ1/XE1

If you’ve ever stared at a perfectly good Brother Stellaire screen and thought, “Why won’t this thing just connect?”, you’re not alone. In my twenty years of teaching embroidery, I have seen more frustration caused by the "invisible thread" of Wi-Fi than by actual thread breaks. Wi-Fi pairing feels like it should be one tap—until it isn’t.

The reality is that modern embroidery is a hybrid of mechanical precision and digital networking. When you are trying to send a complex design from your iPad to your machine, a dropped connection stops production just as effectively as a broken needle.

In this post, I’m going to walk you through the exact connection flow shown in the video for Brother Stellaire Innov-is XJ1/XE1: turning Wireless LAN on, joining your router, confirming the machine name, and pairing inside the My Design Snap app. Along the way, I’ll add the small “old hand” checks—the sensory details and physical preps—that prevent 90% of the repeat attempts.

The Panic-to-Progress Primer: What “Connected” Really Means on a Brother Stellaire Innov-is XJ1/XE1

A Stellaire can look “fine” and still not be ready for the app. Novice users often confuse "Enabled" with "Connected." In the machine embroidery world, precision is visual. Just as you look for the bobbin thread to show 1/3 on the back of a satin stitch, you must look for specific visual proofs here.

In the video, the machine gives you two very specific visual truths:

1. Wireless LAN is enabled: The ON button turns distinctively blue in the Wireless LAN Enable screen.
2. The machine is actually connected to your router: The small Wi-Fi icon in the top-left header turns from grey to blue immediately after the “Connected to Wireless LAN” message appears.

The Golden Rule: Until you see that blue Wi-Fi icon, do not touch your phone. Don't waste time on the app side. You cannot force a handshake if the machine isn't reaching out.

And one more thing that trips up busy shops: if you have multiple Brother units in the same space, the app will list multiple machines. In this scenario, the machine name becomes your “serial number for pairing.” If you’re running a brother sewing and embroidery machine in a shared studio, verifying that name is the difference between a 2-minute setup and a 20-minute headache where you accidentally send a design to the machine across the room.

The “Hidden” Prep Cheryl Mentions (and Pros Never Skip): Paper Guide, Stylus, and a Clean Wi-Fi Moment

Before you touch the Wi-Fi icon, set yourself up so you don’t have to backtrack mid-wizard. We call this "Pre-Flighting" in commercial embroidery. You wouldn't start a 50,000-stitch design with half a bobbin; don't start a network setup without your credentials.

The video shows a physical instruction sheet that came with the machine—use it as a quick reference if you get interrupted.

Hidden Consumables for Setup:

• The Stylus: Do not use your finger. Your fingertip has oil, and the contact point is too broad for typing complex passwords. Use the machine's distinct white stylus.
• A "Clean" Network: Ensure your phone is not on 5G/LTE data, but on the exact same Wi-Fi band you intend to put the machine on.


Prep Checklist (do this before you open the Wireless LAN menu)

• Password Security: Confirm you have your router password written down (Case Sensitive: A is different from a).
• Tool Readiness: Have a stylus in hand (the on-screen keyboard is small; accuracy beats speed).
• Network Match: Verify your phone/iPod is currently connected to the exact Wi-Fi network (SSID) you plan to use for the machine.
• Traffic Control: If you’re in a studio with multiple routers or extenders, decide which SSID is the primary production network before you start.
• Time Allocation: Give yourself 3–5 uninterrupted minutes—most pairing failures are just “I got pulled away and forgot what I tapped.”

Warning: Use the stylus carefully around the screen and machine. The LCD is the brain of your Stellaire. Do not poke aggressively—use a gentle, rhythmic tap. Keep sharp tools (needles, snips, seam rippers) at least 6 inches away from the LCD to avoid scratches and catastrophic accidental damage.

Tap the Top-Left Wi-Fi Icon: Opening Brother Stellaire Wireless LAN Enable Without Hunting Menus

In the video, Cheryl starts exactly where most owners overlook: the small Wi-Fi icon in the top-left header bar.

Many beginners try to dig through the main 'Settings' page (the paper icon), which is cluttered with machine parameters.

• Action: Take your stylus.
• Target: Tap the small grey Wi-Fi icon in the top header.
• Result: The "Wireless LAN Enable" page opens automatically.

This is faster than digging through deeper settings, and it keeps you in the correct “Brother-approved” flow. It reduces cognitive load—one tap, one screen.

Flip Wireless LAN Enable to ON: The Blue Button Test That Saves You a Full Restart

On the Wireless LAN Enable screen, you are interacting with the machine's internal radio.

• Visual State: You’ll see OFF highlighted initially (usually in grey/white).
• Action: Tap ON.
• Success Metric: In the video, the ON button turns blue.

This color change is your confirmation that the Wireless LAN hardware is active. It is similar to hearing the "clunk" of a solenoid engaging.

Expert Note: If you tap ON and it stays grey for more than 5 seconds, or flashes and returns to OFF, your machine may require a restart to reset the internal network card. If you don’t see the blue state, don’t proceed to the wizard yet—tap again with the stylus and confirm the selection actually changed.

Run the Wireless LAN Setup Wizard: Picking the Right SSID (and Why Your Screen Won’t Match the Video)

Next, Cheryl taps the arrow next to Wireless LAN Setup Wizard.

• Action: Tap the arrow button.
• Wait: The machine will display "Searching..." This can take 5-10 seconds.
• Select: Choose your Wi-Fi network (SSID) from the list.

The video calls out an important reality: your SSID list will not match theirs because available routers differ by location. That’s normal.

Critical Technical Nuance: Most embroidery machines, even advanced ones, prefer 2.4GHz networks over 5GHz networks due to signal wall-penetration capabilities. If you see two versions of your home network (e.g., HomeWiFi and HomeWiFi_5G), choose the standard HomeWiFi (2.4GHz) for the most stable connection.

Setup Checklist (right before you select an SSID)

• Consistency: Choose the SSID you can also join on your phone in the same room.
• Signal Strength: Look for the signal bars next to the name. Do not pick a network with only 1 bar; packet loss will cause design transfer failures later.
• Clarity: If you see multiple similar names (common with extenders), pick the one you trust for stability.
• Patience: Don’t rush the search screen—wait for the list to fully populate before scrolling.


Enter the Wi-Fi Password on the Brother Stellaire Keyboard: a/A and 123 Are the Two Buttons That Matter

Password entry is where 90% of failures occur. People swear their password is "correct," but they missed a capital letter.

In the video, the Stellaire uses an on-screen QWERTY keyboard with two critical toggles that function like the "Shift" key on a computer, but they are toggles, not holds:

• a/A button: Toggles between uppercase and lowercase.
• 123 button: Toggles to the number/symbol layer.

Cheryl demonstrates peck-typing with the stylus and explicitly warns to respect case sensitivity.

Practical pro habit: Treat typing this password like threading a needle—slow is smooth, smooth is fast. Watch the character appear in the text box before you move your hand to the next letter. One wrong character means the machine will attempt to connect for 30 seconds, fail, and force you to repeat the whole wizard.

The Three-OK Rhythm: Apply Settings, Wait for “Connecting…”, Then Confirm “Connected to Wireless LAN”

Embroidery is about rhythm. The setup process has a specific cadence. After entering the password:

1. Tap OK to close the keyboard.
2. The Prompt: The screen asks Apply Settings?.
3. Tap OK immediately.
4. The Pause: Wait for the Connecting… spinner. Do not touch the screen.
5. The Confirmation: When you see Connected to Wireless LAN, tap OK again.

This “OK, OK, OK” rhythm is exactly what the video shows—don’t exit early. If you hit "Cancel" or "Back" during the spinner phase, you break the handshake.

Don’t Close the Menu Yet: The Machine Name (SewingMachine168) Is Your Pairing Key

Before you leave the Wireless LAN page, Cheryl points to the Machine name field—example shown: SewingMachine168.

You must remember this name. Why? Because the My Design Snap app defaults to searching for any compatible machine. If you are in a class or a shop, you might see SewingMachine168, SewingMachine170, and SewingMachine192.

Two real-world tips from the field:

• Label It: If you have more than one machine nearby, write the name on a piece of painter's tape and stick it to the side of the machine.
• Future Proofing: If you ever reorganize a studio, the machine name is the fastest way to avoid pairing to the wrong unit.


The Blue Wi-Fi Icon Check: Your Brother Stellaire’s “Green Light” Before You Touch the Phone

Cheryl closes the menu and returns your attention to the top-left header.

• Visual Confirmation: The Wi-Fi icon that was used to open settings is now blue.

That blue icon is your quick “connected” verification. It signifies that the machine has an IP address. If it’s not blue (if it's grey or has a red 'X'), go back to the beginning. Do not move to the app. The app cannot find a machine that isn't broadcasting.

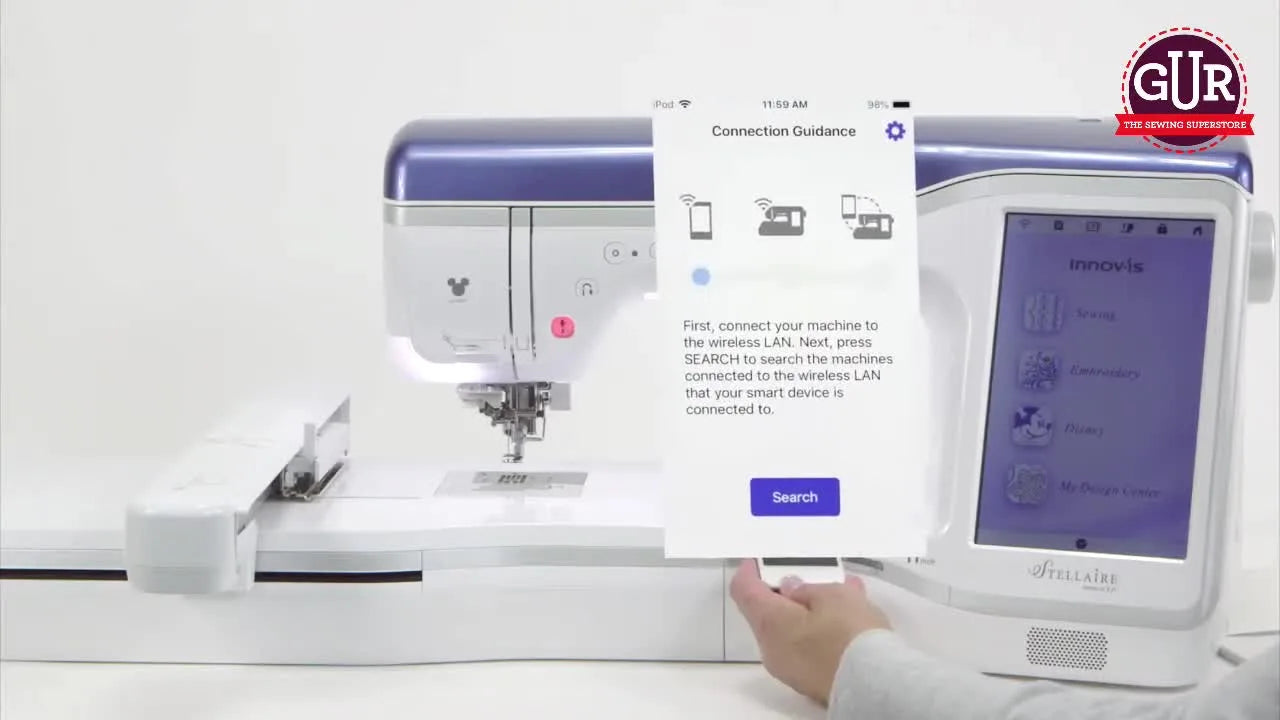

Pair My Design Snap on iPhone/iPod: Search, Select the Exact Machine Name, Then Tap the Line Again for the Checkmark

Now—and only now—you move to the mobile device.

In the video:

1. Tap the My Design Snap blue icon on your iOS/Android device.
2. The app opens to a Connection Guidance screen.
3. Tap Search.
4. When the machine appears, select the correct machine name (the one you memorized).

The Crucial Micro-Step: Here’s the subtle step that many beginners miss (and Cheryl calls out clearly):

• After you see the machine name in the list, tap that line again so a checkmark appears next to the name.

That checkmark is the app’s confirmation that you didn’t just “highlight” the machine—you actually selected it for active pairing. Without the checkmark, the "Next" or "Finished" button often remains greyed out.

When My Design Snap Can’t Find the Machine: The One Fix Cheryl Gives (and It’s Usually the Whole Problem)

The video’s troubleshooting is refreshingly direct and follows a logical "Symptom-Cause-Fix" structure.

The Primary Fix: Go into the phone/iPod Wi-Fi settings and connect the device to the same router/network the machine is connected to.

This aligns with what I see in shops: people connect the machine to “StudioWiFi” but the phone is still on “GuestWiFi” or cellular data. The app defines your local network universe; it can’t discover what it can’t reach.

A comment under the video asks: “what brother embroidery machines connect to wifi”. The safe, non-guessy answer is: this video demonstrates the process on Brother Stellaire Innov-is XJ1/XE1, and other Brother models may have different menus or capabilities—always confirm in your specific model’s manual and firmware notes.

The “Why” Behind These Steps: Network Pairing Is About Identity + Same-Router Visibility

The video gives you the how. Here’s the why—so you can diagnose issues without random tapping.

• Wireless LAN Enable ON: Powers up the machine's internal antenna.
• SSID + Password: Authenticates the machine onto your home network (gives it an address).
• Machine Name: Acts as the "Nametag" for the app to identify the unit.
• App Search: Scans the local network room for that specific Nametag.

If any one of those pieces is missing, pairing fails. That’s why the workflow is strict: machine first, then phone.

The Upgrade Path After You Connect: Turn Wireless Convenience Into Real Embroidery Throughput

Once My Design Snap is talking to the machine, most people immediately think about design placement and transfers. That’s great—the ability to snap a photo of a tote bag and align text perfectly is a game-changer.

But as a Chief Education Officer, I must warn you: Setup is only 10% of the battle. Hoop loading is the other 90%.

If you’re trying to increase output (or reduce frustration), the next bottleneck is almost never Wi-Fi. It is the physical act of hooping.

If you are doing frequent re-hooping—logos, left chest placements, repeat orders—your time disappears at the frame. This is where you must analyze your workflow.

The "Pain Point" Trigger List

When should you look for better tools?

1. Scenario trigger: You spend 5 minutes hooping for a 2-minute stitch out.
2. Judgment standard: If hooping is physically hard on your hands/wrists (Carpal Tunnel is real in this industry), or you see hoop burn (shiny rings) on your fabric from over-tightening.
3. The Solution: Many professionals upgrading from standard hoops move to a magnetic hoop for brother setup.

Why? Magnetic hoops remove the "unscrew-tighten-pull" friction. You simply lay the fabric, drop the top ring, and the magnets clamp it instantly with even pressure. This is essential for delicate fabrics where traditional hoops leave "burn marks" that ruin the garment.

Warning: Magnetic hoops use industrial-strength magnets (Neodymium). Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep them away from pacemakers/implanted medical devices. Store magnets away from phones, credit cards, and machine screens.

A Quick Decision Tree: Stabilizer Choice Before You Chase “App Accuracy”

If your design placement looks perfect on-screen (thanks to the App) but the stitches shift on the fabric during the actual run, the issue is Stabilization, not Wi-Fi.

Decision Tree for New Users:

• Is the fabric Stable Woven (Canvas, Denim, Twill)?
  • Recommendation: Medium Tear-away. It supports the stitches but tears off cleanly.
• Is the fabric Stretchy Knit (Tees, Performance Wear, Jersey)?
  • Recommendation: Cut-away Stabilizer. Mandatory. Knits stretch; if you use tear-away, the design will distort into a ball. You must "Cut away" the excess backing.
• Is the fabric Textured (Towels, Velvet, Fleece)?
  • Recommendation: Water Soluble Topping (on top) + Tear-away/Cut-away (on bottom). The topping prevents stitches from sinking into the pile.
• Are you doing High-Density Logos (15,000+ stitches)?
  • Recommendation: Use a heavier backing to prevent "Pull Compensation" issues where the fabric puckers inward.

Make It Production-Friendly: The Hooping Workflow That Pairs Well With Stellaire Features

Once connectivity is solved, your next win is repeatability.

• If you’re a hobbyist doing one-off gifts, you can afford slower alignment.
• If you’re taking orders, you need a repeatable system.

That’s where a hooping station for machine embroidery acts as a practical bridge. It creates a physical template that holds your hoop in the exact same spot for every shirt. It standardizes placement (e.g., "Left Chest is always 3 inches down from the collar") and drastically reduces re-hoops.

And if you’re scaling beyond occasional runs, pairing a station with magnetic embroidery hoops for brother is often where the real time savings show up—less wrestling, fewer hoop burns, and faster load/unload cycles. This combination allows you to hoop the next garment while the machine is stitching the current one via Wi-Fi.

Operation Checklist (End-to-End Summary)

• Power Up: Tap the top-left Wi-Fi icon and confirm Wireless LAN Enable = ON (blue).
• Network Entry: Run the Wireless LAN Setup Wizard, select the correct SSID (2.4GHz preferred).
• Authentication: Enter the password using a/A and 123 carefully.
• Confirmation: Tap OK through Apply Settings and wait for Connected to Wireless LAN.
• Verification: Confirm the top-left Wi-Fi icon on the home screen is blue.
• Identification: Note the Machine name (example shown: SewingMachine168).
• App Pairing: Open My Design Snap, tap Search, select the correct machine name.
• Final Lock: Tap the line again in the app to ensure the checkmark appears.

If You’re Shopping for Hoops After This: What to Look For on Brother Stellaire Hoops

People often search for terms like brother stellaire hoops right after they get the digital side working—because now they’re ready to actually stitch and they realize the standard hoops limit them.

A few practical buying filters that keep you out of trouble:

1. Compatibility First: Confirm the hoop/frame is made for the XJ1/XE1 specific mount. Not all Brother hoops fit all machines.
2. Repeatability: If you do the same placement often, prioritize systems that help you load consistently without measuring every time.
3. Operator Fatigue: If hooping hurts your hands, that’s not “normal”—it’s a workflow problem.

If you’re currently using a brother embroidery machine for frequent logo work and you’re feeling the hooping bottleneck, that’s the moment to consider whether a hooping station or magnetic frame is the right next step.

The Last Word: Connect Once, Then Build a Workflow You Can Repeat

The video’s method is solid: enable Wireless LAN, use the wizard, enter the password carefully, confirm the machine name, then search and checkmark inside the app.

Do it once with focus, and you’ll rarely have to revisit it—unless you change routers, passwords, or studio networks.

And when you’re ready to move from “it connects” to “it produces,” that’s when workflow tools—like a hoop master embroidery hooping station or upgraded magnetic hoops—stop being accessories and start being essential upgrades for your throughput and sanity.

FAQ

• Q: How do I know Brother Stellaire Innov-is XJ1/XE1 Wireless LAN is truly connected before using the My Design Snap app?
  A: Do not open My Design Snap until the Brother Stellaire Innov-is XJ1/XE1 shows a blue Wi-Fi icon on the top-left header.
  • Tap the top-left Wi-Fi icon and confirm Wireless LAN Enable is set to ON (the ON button turns blue).
  • Run the Wireless LAN Setup Wizard and finish the OK → OK → OK confirmations until “Connected to Wireless LAN” appears.
  • Success check: The top-left Wi-Fi icon changes from grey to blue after the connection message.
  • If it still fails: Re-run the wizard and re-enter the password slowly with the stylus (case sensitivity is a common miss).
• Q: Why does Brother Stellaire Innov-is XJ1/XE1 Wireless LAN Enable switch to ON but not stay blue?
  A: If the ON button does not stay blue within a few seconds, stop and reset the connection flow before continuing.
  • Tap ON again using the Brother stylus (avoid finger taps that mis-register on small buttons).
  • Wait about 5 seconds to confirm the selection stays on the ON (blue) state.
  • Success check: ON remains blue and the Wireless LAN Setup Wizard can search for networks.
  • If it still fails: Restart the Brother Stellaire Innov-is XJ1/XE1 to reset the internal wireless state, then repeat the enable step.
• Q: Which Wi-Fi network should Brother Stellaire Innov-is XJ1/XE1 use if my router shows both 2.4GHz and 5GHz SSIDs?
  A: A safe starting point is to connect Brother Stellaire Innov-is XJ1/XE1 to the 2.4GHz SSID for better stability and wall penetration.
  • Select the SSID that does not indicate “5G/5GHz” when you see two similar network names.
  • Choose a network with stronger signal bars; avoid 1-bar networks to reduce dropouts during design transfer.
  • Success check: The machine displays “Connected to Wireless LAN,” and the top-left Wi-Fi icon turns blue.
  • If it still fails: Move closer to the router or pick the more stable SSID (extenders can create confusing duplicates).
• Q: How do I enter the Wi-Fi password correctly on the Brother Stellaire Innov-is XJ1/XE1 on-screen keyboard?
  A: Use the stylus and actively manage the a/A and 123 toggles, because one wrong character forces a full reconnect attempt.
  • Tap a/A to match uppercase/lowercase exactly (passwords are case-sensitive).
  • Tap 123 for numbers/symbols, then return to letters as needed (these are toggles, not “hold” keys).
  • Success check: After OK → Apply Settings OK, the machine reaches “Connected to Wireless LAN” without failing after a long “Connecting…” pause.
  • If it still fails: Re-run the Wireless LAN Setup Wizard and retype the password slowly, watching each character appear before moving on.
• Q: Why does the My Design Snap app keep spinning or cannot find Brother Stellaire Innov-is XJ1/XE1 during Search?
  A: The most common cause is the phone/iPod is not on the same Wi-Fi network as the Brother Stellaire Innov-is XJ1/XE1.
  • Open phone Wi-Fi settings and connect the phone to the exact same SSID the machine joined (avoid Guest Wi-Fi and avoid cellular data for pairing).
  • Confirm the machine’s top-left Wi-Fi icon is blue before pressing Search in My Design Snap.
  • Success check: The machine name appears in the app’s list during Search.
  • If it still fails: Reboot the router (some networks block device-to-device visibility), then run Search again.
• Q: In My Design Snap, why is the Brother Stellaire Innov-is XJ1/XE1 name visible but not actually selected for pairing?
  A: In My Design Snap you must tap the machine name line again until a checkmark appears, not just highlight it once.
  • Search for devices and locate the exact Brother Stellaire machine name shown on the machine (example format: SewingMachine###).
  • Tap the same list entry a second time to force the checkmark selection.
  • Success check: A checkmark appears next to the chosen machine name and the app can proceed to the next step.
  • If it still fails: Verify you selected the correct machine name (multiple Brother machines in one room is a very common confusion).
• Q: What safety precautions should I follow when using the stylus on the Brother Stellaire Innov-is XJ1/XE1 LCD during Wi-Fi setup?
  A: Use gentle stylus taps and keep sharp tools away, because the LCD is critical and scratches/damage are expensive and disruptive.
  • Tap lightly and rhythmically; do not poke or press hard when toggling Wireless LAN settings.
  • Keep needles, snips, and seam rippers at least 6 inches away from the screen while setting up.
  • Success check: The screen registers taps accurately without visible marks, and menus open reliably (Wireless LAN Enable page opens from the top-left icon).
  • If it still fails: If taps do not register well, clean your hands/stylus tip and slow down—mis-taps often look like “Wi-Fi problems” but are actually input issues.
• Q: After Brother Stellaire Innov-is XJ1/XE1 Wi-Fi pairing works, what is the fastest way to reduce hooping time and prevent hoop burn in a small production workflow?
  A: If hooping takes longer than stitching or leaves shiny rings, first optimize technique, then consider magnetic hoops and a hooping station for repeatability.
  • Level 1 (technique): Reduce over-tightening and focus on consistent loading so fabric is held evenly rather than crushed.
  • Level 2 (tool): Use magnetic hoops to clamp fabric quickly with even pressure, which often reduces hoop burn on delicate fabrics.
  • Level 3 (capacity): If frequent re-hooping is limiting throughput, a multi-needle workflow is often the next step once the bottleneck is confirmed.
  • Success check: Hooping time drops and fabric shows fewer shiny hoop marks while placement remains consistent across repeats.
  • If it still fails: If placement looks perfect in the app but stitches shift during sewing, treat it as a stabilization issue (choose cut-away for knits; add water-soluble topping for textured fabrics).
