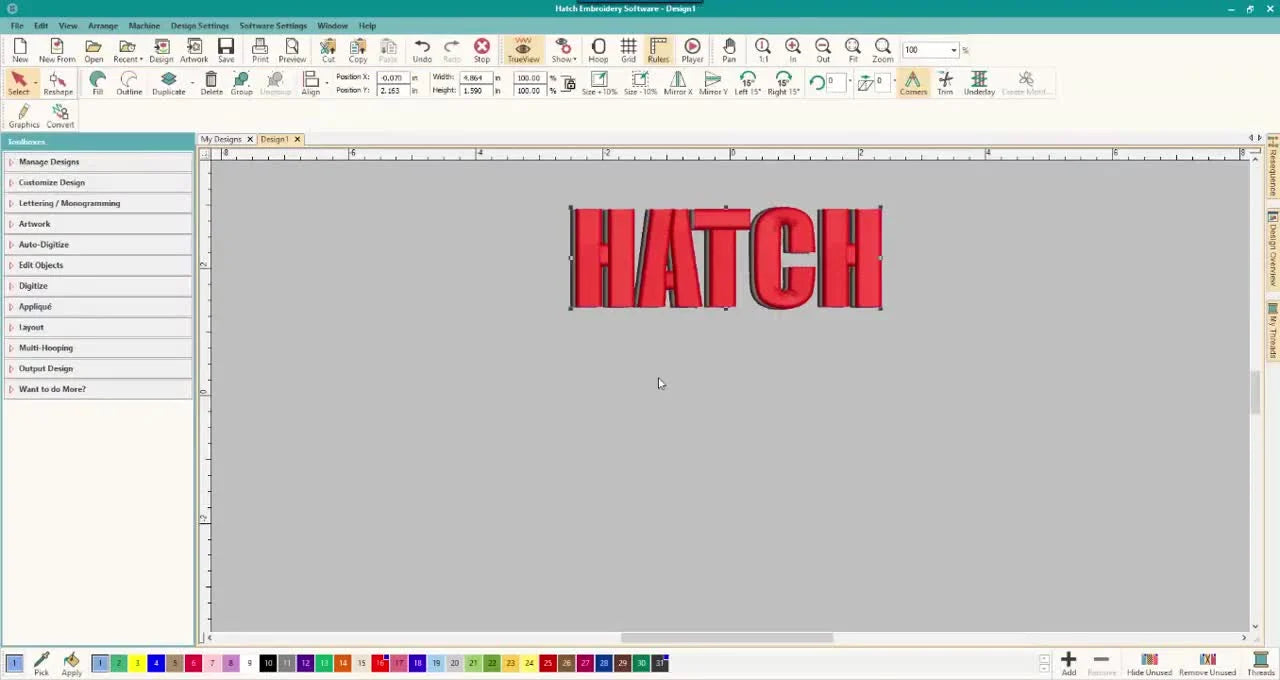

Clean 3D Drop Shadow Lettering in Hatch + CorelDRAW X6: The Trim Trick That Stops “Mushy” Fonts

The "Mushy Text" Cure: A Pro's Guide to Drop Shadow Lettering in Hatch & CorelDRAW

If you’ve ever digitized lettering that looked bold on-screen but stitched out flat, fuzzy, or "mushy," you’re not alone. We call this the "Screen vs. Reality Gap." Drop shadows are one of the fastest ways to make simple text look premium and readable—if you build the vectors cleanly before a single stitch is generated.

In this tutorial, based on insights from OML Embroidery, we break down a reliable workflow using Hatch Embroidery Software and CorelDRAW X6 integration. The goal? Create text, duplicate it as a shadow, offset it for physical depth, trim the hidden overlaps to prevent needle breaks, and convert it back to stitches.

Don’t Let CorelDRAW Version Confusion Waste Your Afternoon

Let's clear up the biggest barrier to entry immediately. Sue from OML points out a critical software reality: only CorelDRAW X6 Essentials and X6 Studio integrate directly inside the Hatch interface (the "Switch to Corel" button).

Newer versions (V7/V8/2020+) are powerful, but they usually function as standalone programs.

The Expert Takeaway: You do not need the integrated X6 version to master this technique.

• Integrated X6: You click a button to toggle between Hatch and Corel.
• Newer Versions: You export your compiled vector file as .CDR or .EPS and import it into Hatch.
• The Result: Identical. Don't let software versions stop you from learning the design logic.


Warning: Before chasing a "software fix," confirm your installation. If you are using standalone CorelDRAW V7 or newer, simply plan to use the Import/Export workflow. It adds 30 seconds to the process but yields the exact same quality.

The "Hidden" Prep Pros Do Before Touching the Text Tool

Drop shadows fail for two physical reasons: the font is too skinny (causing thread breakage), or the proper stabilization isn't planned for the density.

What we are setting up:

1. Create vector text in Corel.
2. Duplicate the object.
3. Offset the duplicate to create the shadow.
4. Critical Step: Trim overlaps to reduce density.
5. Convert to stitches.


Prep Checklist (Do this *before* typing)

• Software Check: confirm you are in Corel mode (if integrated) or have your vector program open.
• Font Strategy: Select a "Fat" font (e.g., Impact, Arial Black). Avoid serifs thinner than 1.5mm, as they won't hold a satin stitch well.
• Shadow Direction: Plan your light source (Down-Right is the industry standard).
• Consumables Check: For heavy lettering, ensure you have Cutaway Stabilizer (not Tearaway) ready to prevent the text from distorting the fabric.

Fat Fonts Are a Survival Strategy (The Physics of "Impact")

Sue types HATCH in all caps using Impact. This isn't just an aesthetic choice; it's an engineering one.

When vectors convert to embroidery:

• Thin lines (<1mm): Become run stitches (look cheap).
• Medium lines (1.5mm - 7mm): Become Satin stitches (The "Sweet Spot").
• Wide lines (>7mm): Become Tatami fills (to prevent snagging).

By scaling the text up using corner handles, you ensure the letter columns are wide enough to support clean satin stitches.

Sensory Check: When sizing your text on screen, if a letter stroke looks thinner than a standard toothpick, it will likely cause thread breaks or disappear into the fabric pile. Go bolder.

The "Copy Here" Move: Building the Shadow Layer

Speed matters. Here is the exact friction-free move Sue uses to duplicate the text:

1. Select the text.
2. Right-click, hold, and drag slightly away from the original.
3. Release the button.
4. Select Copy Here from the popup menu.

Crucial Visual Step: Immediately change the copy's color (e.g., make the shadow RED). If you leave both black, you will lose track of which layer is the shadow and which is the face.

Offsetting: The "Arm's Length" Rule

Manually drag the top layer to offset it. This determines the apparent height of the letters.

How to judge a "Good" Offset:

• Too Close: Looks like a blurry halo or printing error.
• Too Far: Reads as two separate words (double vision).
• Just Right: The shadow connects to the letter but clearly recedes.

Sit back at arm's length from your monitor. If your eye instantly registers "Depth" rather than "Blur," you have nailed the position. This consistency is vital if you start creating templates for machine embroidery hoops, as you want the production run to look uniform across different shirt sizes.

The Secret Weapon: Trim Tool (Arrange -> Shaping -> Trim)

This is the difference between an amateur "overlap" and a professional "shadow." If you just stack layers, the machine stitches the shadow under the top letter. This creates a "hump" of thread, increases density, and breaks needles.

We want to Cut the shadow shape out of the top layer (or vice versa, depending on the look).

1. Select both objects (Marquee select).
2. Go to Arrange → Shaping → Trim.




Why trimming matters (The Physics): By trimming, you ensure the machine isn't trying to push a needle through 4 layers of thread plus fabric and stabilizer. This reduces "flagging" (fabric bouncing) and keeps your design crisp.

Decision Tree: When should I Trim vs. Overlap?

Use this logic flow to make the right decision for your project:

1. Is the shadow offset very small (tight shadow)?

• YES: Use Trim. A small offset means massive overlap. Stacking stitches here will cause a hard lump.
• NO: Go to step 2.

2. Is the font extremely bold (Massive Stitch Count)?

• YES: Use Trim. Avoid adding more density to an already dense font.
• NO: Go to step 3.

3. Is this a quick "one-off" test on denim or canvas?

• YES: Overlap is okay. Heavy fabrics hide the "hump" of overlapping stitches better than thin t-shirts.

Conversion: The Hatch Hand-Off

Select your vectors and click Convert Graphics to Embroidery. The interface toggles back to Hatch, and the software calculates the stitch paths.

Setup Checklist (Pre-Conversion):

• Vectors are clean: No stray nodes or accidental double-lines.
• Colors are distinct: Red shadow, Black text (helps Hatch assign different stitch angles).
• Final Review: Does the shadow logic hold up? (Light source is consistent).

Note regarding machine embroidery hoops: If you are designing for a specific hoop size (e.g., 4x4 or 5x7), ensure your vector art fits within the safety margins before converting. Scaling stitch files later reduces quality; scaling vectors maintains quality.

Texture Analysis: Satin vs. Tatami

Sue inspects the result. In her example, Hatch intelligently assigned:

• Shadow: Satin Stitch (Shinier, continuous).
• Face: Tatami Fill (Texture, matte look).


This contrast is gold. The human eye perceives the shiny Satin as "receding" or catching light differently than the flat Tatami. Always check your Object Properties to ensure these stitch types are different. If both are Tatami, the 3D effect is lost.

Second Demo: "OML LOVES HATCH" (Swis721 Blk BT)

Sue repeats the process with a longer phrase and a different font, Swis721 Blk BT.

She follows the exact same sensory workflow:

1. Duplicate (Right-click drag).
2. Color Change (Light Gray shadow for a subtle look).
3. Offset.
4. Trim.
5. Convert.






This confirms the workflow is universal, regardless of the text.

Troubleshooting Guide: Failure is Data

If your result looks wrong, use this diagnostic table.

Operation Checklist (The "Pre-Flight" Check)

Before you press the start button on your machine:

• Visual Zoom: Zoom in to 600%. Do you see long satin stitches or short, choppy ones? (Long is better).
• Underlay Check: Ensure "Edge Run" underlay is on to stabilize the borders.
• The "Hidden" Consumable: Have you changed your needle? A fresh 75/11 Sharp needle creates crisper text than an old ballpoint.
• Stitch Simulator: Run the player on screen. Does the shadow stitch before the text? (It must).

Warning: Safety First. Densely digitized text creates high resistance. If you hear a rhythmic "thumping" sound, your needle is struggling to penetrate. Stop immediately. Check for thread nests or bent needles. Flying needle shards can cause serious eye injury—never put your face close to the needle bar while running dense files.

The Upgrade Path: From Software Perfection to Production Speed

You have mastered the digital side (clean files, proper trim). Now, let's talk about the physical bottleneck.

If you are stitching these designs on multiple shirts (e.g., a team order), the standard plastic hoops that come with your machine can be a nightmare. They struggle to clamp over seams, leave "hoop burn" marks on delicate fabrics, and cause wrist fatigue.

The Professional Solution: Many embroiderers create perfect files but ruin the output with poor hooping. Upgrading to magnetic embroidery hoops solves three problems:

1. Speed: You can hoop a garment in 5 seconds vs. 45 seconds.
2. Quality: The strong magnetic force holds thick fabrics (like hoodies with drop shadow text) without popping out.
3. Consistency: Easier to align text straight every single time.

If you find yourself spending more time fighting the hoop than designing in Corel, it refers to a need for tool evolution. For those scaling up to commercial production, pairing these techniques with a hooping station for machine embroidery allows you to place that perfect drop shadow logo in the exact same spot on 50 shirts in a row.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely (blood blisters are common for newbies). Keep them away from pacemakers, credit cards, and hard drives. Always slide the magnets apart; never try to pry them directly up.

High-quality digitizing deserves high-quality execution. Fix the file in Hatch, fix the workflow with embroidery magnetic hoops, and your results will stop looking "homemade" and start looking "high-end."
