Clean Wu-Tang Appliqué on a Sweatshirt: Magnetic Hooping, Hatch Digitizing, and a Cutter Workflow That Actually Stays Centered

Streetwear appliqué looks simple—until you’re staring at a crooked chest logo on a thick sweatshirt, your hoop won’t clamp evenly, and the garment bulk keeps smacking the machine arm.

This post rebuilds the exact workflow from Romero Threads’ Wu-Tang symbol project on a white Gildan Heavy Blend sweatshirt: magnetic hooping on a station, manual digitizing in Hatch, cutting adhesive-backed twill on a Brother ScanNCut DX, then stitching placement → tackdown → satin and heat pressing at the end.

I’ll keep the steps faithful to what’s shown, but I’m also going to add the “20-years-in-the-trenches” checkpoints that prevent the most common appliqué failures: off-center placement, edge lift, corner bunching, and that dreaded sweatshirt-throat-plate wrestling match.

Don’t Panic: A Big Sweatshirt Appliqué Is Manageable When You Control Centering and Bulk

A large chest appliqué feels high-risk because you can’t hide mistakes—especially on white fabric with black twill. The good news is the video’s workflow is built around two stabilizers of success:

1) A physical centerline on the garment. 2) A hooping station that forces repeatable alignment.

If you’re using magnetic embroidery hoops, the “snap” can feel aggressive, but that consistent clamping pressure is exactly what helps thick garments stay put—provided you prep correctly. Before we begin, gather your "hidden consumables"—the items pros use that often get left out of basic tutorials:

• 75/11 Ballpoint Needles: Sharp needles can cut the knit loops of a sweatshirt; ballpoints slide between them.
• Temporary Spray Adhesive (e.g., KK100 or 505): Vital for floating stabilizer to ensure it doesn't shift under the hoop.
• Teflon Pillow: For the heat press stage to prevent zipper/seam impressions.


The Hidden Prep Pros Do First: Marking, Stabilizer Choices, and a Clean Work Surface

Mark the centerline the same way every time

In the video, the sweatshirt is folded vertically to find the natural center, then a long ruler and a water-soluble blue pen are used to draw a straight guide line down the chest. That physical line is your truth—more reliable than eyeballing a collar seam on a bulky hoodie.

Pro Sensory Check: When folding the sweatshirt, use your fingers to feel the side seams. Match the seams, not just the shoulders, to ensure the fold is true to the garment's grain.

Stabilizer: why cutaway is the safe default here

The tutorial uses cutaway stabilizer floated over the bottom ring before the sweatshirt is placed. On a cotton/poly sweatshirt with a large satin border, cutaway is the conservative choice because it resists distortion during the dense finishing stitch.

The Physics of Stability: Heavier garments tempt people to “go light” on stabilizer because the fabric feels thick. That’s backwards. Thick knits possess "elastic memory"—they want to stretch and snap back. If you use tearaway, the satin stitches will perforate it, leaving you with zero support and a wavy border.

Prep Checklist (do this before you touch the hoop)

• Verify Material: Confirm sweatshirt is washed (if personal) or steam-pressed to remove shrinkage/creases.
• Mark Center: Fold sweatshirt; draw a 10-inch+ centerline with a water-soluble pen (short lines get hidden by hoops).
• Prepare Stabilizer: Cut a sheet of 2.5oz (or heavier) Cutaway stabilizer. It should extend 2 inches past the hoop edge on all sides.
• Check Needles: Run your fingernail down the installed needle tip. If you feel a "catch" or burr, replace it immediately.
• Clear Zone: Ensure your table space allows the sweatshirt body to drape freely without pulling on the hooped area.


Lock In Perfect Placement with a Mighty Hoop Station (and Stop Fighting Thick Knits)

The hooping sequence in the video is very specific and designed to mechanically enforce straightness:

1) Seat the bottom ring: Place the bottom magnetic ring onto the station fixture. 2) Float the backing: Lay your cutaway stabilizer over the ring. Tip: A light mist of spray adhesive helps it stick to the ring. 3) Slide the garment: Pull the sweatshirt over the station. 4) Align the Truth Line: Match your drawn blue centerline to the station/hoop registration marks. 5) Snap: Place the top magnetic ring and let it lock down.

The key tip given: match the dot on the hoop to the screw/center reference on the station to guarantee centering.

If you’re running a hooping station for embroidery, treat it like a caliper, not just a holder. The station doesn’t magically center garments—you still have to feed it a true centerline and align it to the station’s reference points using your eyes and hands to smooth the fabric tension.

Warning: Magnet Safety & Pinch Hazards
Magnetic hoops generate industrial-strength clamping force.
* Never place fingers between the rings during alignment. Hold the top ring by the outer tabs.
* Electronics: Keep pacemakers, phones, and credit cards at least 12 inches away from the magnets.
* The "Snap": Listen for a solid, singular "CLACK" sound. A muffled sound indicates fabric bunching or a ring that isn't fully seated.

Why thick sweatshirts shift (and how magnetic hooping helps)

Generally, thick knits shift for two reasons:

• Uneven compression: Traditional screw-tightened hoops often clamp tighter on the "thin" parts of a garment and looser on seams or pockets, causing rotation.
• Stored stretch: If you pull the sweatshirt too tight ("drum tight") while hooping, it relaxes during stitching. This relaxation causes the satin border to ripple or "pucker."

Magnetic hooping tends to apply vertical, uniform pressure around the ring. This "stamp" action traps the fabric without dragging it, reducing micro-slippage during the placement and tackdown stitches.

Setup Checklist (end this section with a “ready to stitch” confirmation)

• Station Check: Bottom ring is seated flat; stabilizer is smooth with no wrinkles.
• Alignment Check: The drawn centerline passes directly through the top and bottom registration dots of the hoop.
• Texture Check: Run your hand over the hooped area. It should feel taut but not stretched (like a well-made bed, not a trampoline).
• Obstruction Check: Ensure the hoodie pocket or drawstrings are not trapped under the magnetic ring.
• Gravity Check: The weight of the sweatshirt body is supported so it isn't torquing the hoop connection.


Hatch 2 Digitizing: Trace Once, Then Build the Three Appliqué Layers That Stay Sharp

Comments asked what software is used—the creator confirms Hatch 2 from Wilcom. The workflow is manual, deliberately avoiding "auto-digitize" features to maintain control over node placement.

1) Import Artwork: Load the logo image. 2) Lock Object: Press K to freeze the image so you don't accidentally drag it. 3) Trace Perimeter: Use the "Digitize Closed Shape" tool. Left-click for sharp points (corners), Right-click for curves. 4) Refine: Press H (Reshape) to adjust nodes until the curve is fluid.

If you’re new to manual tracing, here’s the principle that prevents 80% of ugly appliqué borders: your first outline must be the best outline, because every later stitch (placement, tackdown, satin) is a clone of this master shape.

The corner-bunching fix (straight from the video, with the reason behind it)

The tutorial calls out a classic issue: sharp corners can bunch or look rounded if nodes are too tight. The solution shown is to slightly over-extend the corner node so Pull Compensation works for you, not against you.

The Expert's Why: Satin stitches are tensioned springs; they naturally pull the fabric inward, shortening the shape. By extending the corner point slightly outward in the digitization, the stitch tension pulls it back into a perfect, sharp point on the garment.

Build the three stitch layers exactly as demonstrated

The video duplicates the outline object three times to create a standard appliqué scaffolding:

1. Placement Stitch: Run stitch (Length: 2.5mm). Purpose: Shows you where to put the fabric.
2. Tackdown Stitch: Zigzag (Width: 3.0mm, Spacing: 3.0mm). Purpose: Holds the fabric down without cutting it.
3. Finish Stitch: Satin Column (Width: 4.0mm, Spacing/Density: 0.36mm). Purpose: The cosmetic border.

Note on Speed: For production runs on ricoma embroidery machines, you might be tempted to run these fast. However, for the Satin Finish, cap your speed at 600-700 SPM (Stitches Per Minute). High speeds on wide satins can cause "lag" where the bobbin thread doesn't catch properly, leading to loose loops.

Export an SVG Cut File the Clean Way (So Your Twill Fits the Placement Stitch)

The tutorial’s cutter workflow is smart: it copies the raw placement stitch vector into a new file and exports it as an SVG specifically for the cutting machine.

That matters because the placement stitch is the true sewn boundary on the garment. When your cut shape is derived from that same outline, your twill drops into place with less fiddling.

Budget Tip: If you don't have Hatch, Inkscape (free) can also trace vectors for SVG export, though it requires a steeper learning curve.

Brother ScanNCut DX + PSA Twill: Settings That Cut Clean Without Chewing the Carrier

The video loads black adhesive-backed twill onto the cutting mat. The goal is a "Kiss Cut"—cutting the fabric but leaving the release paper backing intact.

Settings Snapshot:

• Cut Speed: 1 (Slow is smooth, smooth is fast).
• Cut Pressure: -4 (With the auto-blade).
• Material: PSA (Pressure Sensitive Adhesive) Twill from Twill USA.






No cutter? The video’s fallback method

You can hand-cut the fabric after the tackdown stitch. Technique: Use double-curved appliqué scissors (duckbill scissors). Lift the fabric slightly and rest the "bill" of the scissors on the stitches to glide around the shape. Leave about 1mm of fabric outside the tackdown stitch for the satin to grab onto.

The “Bulk Management” Trick on a Ricoma: Flip the Design to Keep the Hoodie Body Out of the Throat

This is a non-negotiable step for sweatshirt success.

In the embroidery section, the creator emphasizes rotating the design 180 degrees. This ensures the hood and bulk of the garment hang off the front of the machine table, rather than bunching up between the needle bar and the machine body (the "throat").

When using a heavy mighty hoop for ricoma, gravity is your biggest variable. If the heavy sweatshirt body hangs off the back, it pulls the hoop backward, causing registration errors. By flipping the design, you let gravity work evenly off the front.

Placement → Appliqué Drop-In → Tackdown → Satin: The Exact Stitching Sequence (with Checkpoints)

Here is the tactical execution. Treat this like a surgery—confirm each step before proceeding.

1) Run the placement stitch

Action: Run the first color stop (Run stitch). Sensory Check: Ensure the machine sounds smooth and the outline is clearly visible on the white fabric. Verify it aligns with your blue centerline.

2) Remove the hoop and place the pre-cut twill

Action: Remove hoop from the machine. Peel the backing off the PSA twill. Align it precisely inside the stitched outline. Press firmly. Sensory Check: Rub your palm over the twill. The heat and friction from your hand help the pressure-sensitive adhesive grab the sweatshirt fibers.

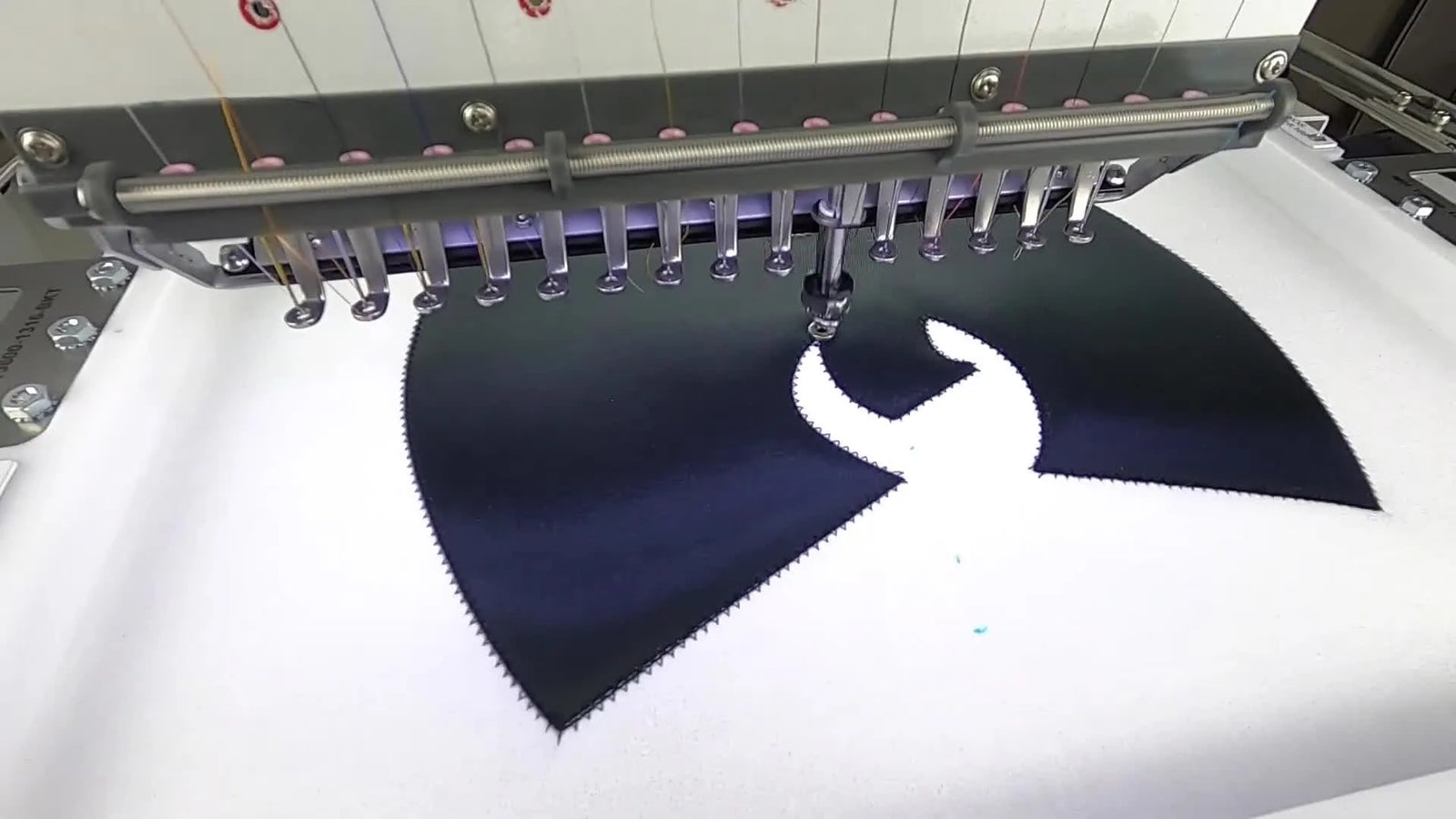

3) Run the zigzag tackdown

Action: Re-attach hoop. Run the Zigzag stitch. Checkpoint: Keep your finger near the "Stop" button. If the foot catches the edge of the twill and flips it up, stop immediately. Use a turning tool or tweezers to push it back down before continuing.

4) Run the satin border

Action: Run the final satin column which covers the raw edges. Checkpoint: Watch the bobbin tension. A wide (4mm) satin stitch should show about 1/3 white bobbin thread on the underside of the garment. If you see top thread looping on the bottom, your tension is too loose.

Warning: Mechanical Safety
When managing bulk on a running machine:
* Do not let sleeves or drawstrings dangle near the moving pantograph arm.
* Keep your face away from the needle path—if a needle breaks on a thick seam, the tip can fly at high velocity.

Operation Checklist (The "Don’t Ruin It Now" List)

• Hoop Clearance: Verify the hoop can travel to all four corners of the design without hitting the machine arms or the garment bunching.
• Placement Confirm: Twill is seated inside the run stitch line, not overlapping it.
• Adhesion: Twill corners are pressed down firmly.
• Bobbin Check: Bobbin has enough thread to complete the satin stitch (running out mid-satin looks terrible).
• Final Inspection: Loose threads are trimmed before the satin stitch runs over them.

Heat Press Finishing: Lock the Adhesive and Remove Marks Before You Set Them Forever

The finishing step in the video isn't just for looks; it's structural.

The Workflow:

1. Behead the threads: Trim all jump stitches close to the surface.
2. Clean the crime scene: Remove the tearaway stabilizer and mist the blue centerline with water to dissolve it. Crucial: Do this BEFORE heating, or the heat might set the ink permanently.
3. The Bond: Cover with a Teflon sheet. Press at 340°F (170°C) for 20 seconds with medium pressure.


Why pressing matters

The embroidery stitches hold the edges, but the heat activates the PSA glue across the entire back of the logo. This prevents the center of the appliqué from bubbling "puffing out" after the sweatshirt goes through a washing machine.

Troubleshooting: The Decision Tree

If things go wrong, use this logic flow to diagnose the issue before blaming the machine.

The Upgrade Path: When a “Cool Project” Turns Into a Repeatable Product

Once you can center reliably and your satin borders stay clean, appliqué becomes a high-margin product. But scaling up requires identifying your bottlenecks.

Phase 1: The Struggle (Physical Pain)

• Trigger: Your wrists hurt from tightening screws on thick fleece, or you struggle to get consistent tension.
• Judgment: If hooping takes longer than the actual stitching (5+ minutes per shirt).
• Solution (Tool Upgrade): Adopt mighty hoop technology. The magnetic clamping eliminates the physical strain and automatically adjusts to different sweatshirt thicknesses.

Phase 2: The Bottleneck (Time)

• Trigger: You have orders for 50 sweatshirts due in 3 days.
• Judgment: A single-needle machine requires you to baby-sit every thread change.
• Solution (Capacity Upgrade): Moving to a multi-needle platform. A machine like a SEWTECH 15-needle allows you to set up the entire appliqué sequence (Stop commands included) and walk away while it stitches.

Phase 3: The System (Consistency)

• Trigger: You hire help, and their hooping is crooked.
• Solution (Process Upgrade): A complete system like a ricoma mighty hoop starter kit (Station + Hoops) creates a mechanical standard. It removes "talent" from the alignment equation—if the dots match, the shirt is straight.


Quick answers from the comments (Fact Checked)

• Software: Hatch 2 (Wilcom).
• Twill: PSA Twill from Tw

FAQ

• Q: How do I prevent hoop burn (a shiny ring mark) on a thick sweatshirt when using a magnetic embroidery hoop?
  A: Use just-enough clamping and finish with steam/pressing—shiny rings are common on fleece blends.
  • Mark and align first, then snap the hoop once (avoid repeated re-hooping in the same spot).
  • Keep the hooped area taut but not stretched; do not “drum-tight” the knit during hooping.
  • Steam the ring area after stitching; use a Teflon pillow/sheet during pressing to avoid impressions.
  • Success check: The fabric surface looks matte again and the pile “lifts” back up after steaming.
  • If it still fails: Reduce handling time in the hoop and consider changing the hooping method to more uniform vertical clamping (magnetic hooping is often better than screw hoops on thick knits).
• Q: What is the fastest way to verify correct hooping alignment on a hooping station for embroidery using a drawn centerline?
  A: Treat the drawn centerline as the only truth and match it to the hoop’s top/bottom registration marks before snapping.
  • Draw a long (10-inch+) centerline so it stays visible during hooping and stitching.
  • Align the line through the hoop’s top and bottom dots/registration points on the station.
  • Smooth the fabric flat under your palms before snapping the top ring—do not pull and stretch.
  • Success check: The centerline passes directly through both registration dots and the hooped area feels “like a well-made bed,” not a trampoline.
  • If it still fails: Re-fold using side seams (not shoulders) to re-establish a true garment centerline.
• Q: How do I know bobbin tension is correct for a 4mm satin border on sweatshirt appliqué?
  A: Aim for about one-third bobbin thread showing on the underside during the satin stitch.
  • Run the placement and tackdown first, then watch the underside during the satin border.
  • Stop if you see top thread looping on the underside; that indicates top tension is too loose.
  • Keep satin speed conservative (often 600–700 SPM is safer for wide satins) to reduce looping/lag.
  • Success check: Underside shows a balanced stitch with roughly 1/3 bobbin thread and no loose top-thread loops.
  • If it still fails: Re-thread, replace a suspect needle, and verify the bobbin is inserted correctly per the machine manual.
• Q: How do I stop gaps between the satin stitch border and the twill edge on sweatshirt appliqué?
  A: Prevent twill movement first, then adjust pull compensation if the shape is shrinking.
  • Press the PSA twill firmly after placement; rub with your palm to improve adhesion before tackdown.
  • Use a light mist of temporary spray adhesive when floating stabilizer if shifting is a repeat issue.
  • Increase pull compensation in the digitizing software (the example range shown is 0.17 mm to 0.30 mm) if stitches are pulling inward.
  • Success check: After the satin finishes, the twill edge is fully covered with no daylight gaps around the perimeter.
  • If it still fails: Re-check that the cut file was derived from the placement stitch outline so the twill matches the sewn boundary.
• Q: What causes wavy or puckered satin borders on a cotton/poly sweatshirt appliqué, and what is the safest stabilizer fix?
  A: Use heavier cutaway and avoid stretching the knit in the hoop—thick knits still need strong support.
  • Float a 2.5 oz (or heavier) cutaway stabilizer extending ~2 inches past the hoop edge on all sides.
  • Hoop taut-not-stretched; do not “over-tighten” the fabric to look flat before stitching.
  • Support the garment weight so it doesn’t torque the hoop during stitching.
  • Success check: The satin border lies flat with no ripples after the hoop is removed and the garment relaxes.
  • If it still fails: Step up to heavier cutaway (the example suggests 3.0 oz) and re-check that the garment bulk is not pulling from behind the machine throat.
• Q: Why does thread breakage happen more often when stitching appliqué with PSA (adhesive-backed) twill, and what should I check first?
  A: PSA adhesive can build up on the needle—clean or replace the needle before chasing bigger problems.
  • Stop the machine and inspect the needle for sticky residue; wipe with alcohol if residue is present.
  • Switch to an appropriate needle for sweatshirts (a 75/11 ballpoint is used in the workflow) and replace if there’s any burr/catch.
  • Confirm the bobbin has enough thread to finish the satin (running out mid-satin can look like tension failure).
  • Success check: The machine stitches the tackdown and satin without snapping thread or skipping during direction changes.
  • If it still fails: Slow the satin stitch speed and verify threading/tension settings against the machine manual.
• Q: What are the key safety rules for using industrial-strength magnetic embroidery hoops and managing bulky sweatshirts near the moving embroidery arm?
  A: Keep fingers out of the pinch zone, keep magnets away from sensitive items, and control loose garment parts around the pantograph.
  • Hold the top ring by the outer tabs only; never place fingers between the rings during the snap.
  • Keep phones, credit cards, and pacemakers at least 12 inches away from the magnets.
  • Tie back or secure drawstrings/sleeves; do not let fabric dangle near the moving pantograph arm.
  • Success check: You hear a clean single “CLACK” when the hoop seats fully, and nothing loose can contact the moving arm during a full design travel.
  • If it still fails: Stop immediately and re-hoop—muffled snaps or partial seating often mean trapped fabric or misalignment.
• Q: When sweatshirt appliqué orders increase, how do I decide between optimizing technique, upgrading to magnetic hoops, or moving to a multi-needle embroidery machine like a SEWTECH 15-needle?
  A: Use a simple trigger-and-timing test: fix process first, then remove hooping pain, then remove thread-change time.
  • Level 1 (Technique): Standardize centerline marking + station alignment and cap satin speed for consistency.
  • Level 2 (Tool): Move to magnetic hoops if screw-hooping causes wrist pain or hooping takes longer than stitching (5+ minutes per garment).
  • Level 3 (Capacity): Move to a multi-needle machine when order volume forces constant babysitting of thread changes and you need repeatable unattended runs.
  • Success check: Hooping time drops, placement stays centered, and you can complete batches without rework from shifting/puckering.
  • If it still fails: Add a hooping station + repeatable alignment references so results don’t depend on operator “feel.”
