DesignShop v12 Shop Talk, Rebuilt for Real Production: Safe Chenille Couching, Puff Fills, EXP Satin Fixes, and Hat-Seam Starts That Don’t Break Needles

When a design looks “simple” on screen but turns into a safety hazard, a broken needle, or a registration nightmare on the machine, that’s not bad luck—it’s usually a workflow gap. Machine embroidery is an experience-based science: the software provides the map, but the physics of thread, needle, and stabilizer dictate the terrain.

This post rebuilds Samantha’s DesignShop v12 Q&A into a shop-floor playbook you can actually run. We will cover heavy chenille yarn couching without special attachments, puff fills that don’t collapse, widening satin stitches inside an expanded (.EXP) file, clearing a needle bar bind after a thread break, and the hat center-seam start strategy that saves you from stalled inching stitches.

Don’t Panic: When “Advanced Digitizing” Turns Into Real Needle Risk on a Melco Embroidery Machine

If you’re staring at a moving needle bar while trying to guide a thick yarn, you’re not being “too cautious”—you’re being smart. Couching-style work (laying yarn down and stitching over it manually) is one of the fastest ways to get hurt if you digitize it like normal lettering.

Samantha’s core message is blunt and correct: you cannot run a continuous script path and expect to safely reposition yarn mid-stitch. The design has to be built to force controlled stops.

One more reality check: even if you’re confident, your body will eventually do the wrong thing under pressure—reach in, pinch the yarn, and attempt to “just hold it for one second.” That micro-second is where injuries happen. That’s why the digitizing must create safe pauses, removing human reflex from the safety equation.

Warning: CRUSH/PUNCTURE HAZARD. Never guide yarn, trim thread, or clear a snag with your bare fingers near a moving needle or needle bar. Always use a tool (like a stylus or smudger) and use machine stops. One needle strike is enough to cause serious physical injury and mechanical damage.

The “Hidden” Prep That Makes Chenille Couching Behave (Yarn, Tools, and a Hooping Mindset)

Before you touch DesignShop, set yourself up like a production operator, not a hobbyist. Couching fails are often blamed on “digitizing,” but the real culprit is usually a messy prep: unstable fabric, inconsistent yarn handling, or hooping that lets the substrate shift.

A practical hooping note: thick yarn designs amplify any fabric movement. You need the fabric to be "drum-tight." When you tap on the hooped fabric, it should sound taut, not dull. If your hooping is inconsistent, your tack-down line will wander off the yarn, leaving it loose and sloppy.

If you’re working with standard frames, keep your process consistent. If you’re doing this frequently (especially on caps, bags, or awkward items), proper hooping for embroidery machine usage becomes a time-and-quality issue, not just a “setup step.” Poor hooping leads to "flagging" (fabric bouncing), which ruins couching precision.

What Samantha used (and why it matters)

• Chenille yarn as the “cord” being laid down.
• A bean stitch (triple run) / walk stitch to tack it.
• A plastic electronics smudger tool to hold yarn in place safely.

The smudger detail is not a gimmick: plastic is sacrificial. If the needle hits it, you hear a "crack" and replace a $0.50 needle—not a finger.

Prep Checklist (Pre-Flight Safety)

• Yarn Consistency: Confirm the yarn thickness. If it changes, your digitizing width is invalid.
• Tool Staging: Stage a plastic smudger (or similar non-metal, pointy plastic tool) within easy reach of your dominant hand.
• Body Position: Plan your operator position so you are viewing the needle clearly but are not forced to reach behind the needle bar.
• Hooping Tension: Verify the fabric is taut and stable; shifting fabric = missed yarn tacks.
• Machine Speed: Lower your machine speed to the "Sweet Spot" (400-600 SPM) to give yourself reaction time.

Digitize Chenille Yarn Couching in DesignShop v12: The Centerline “110-Point” Visualization Trick

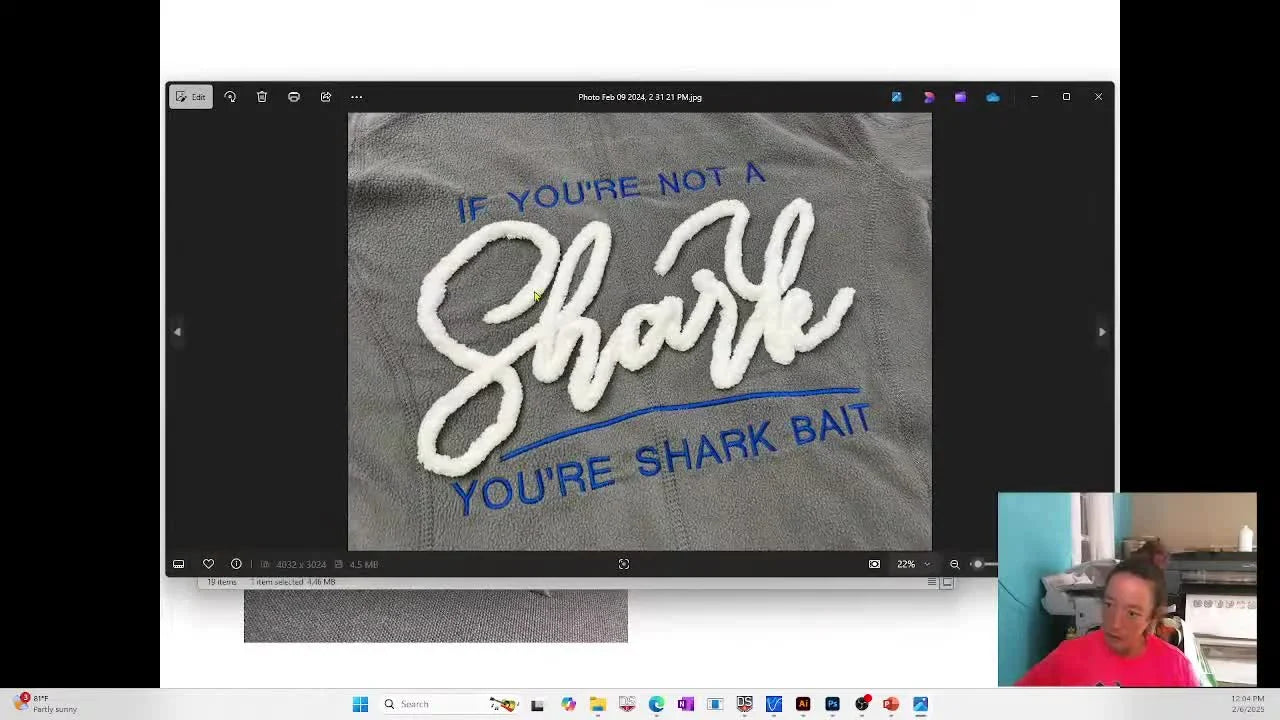

Samantha’s first move is the one most people skip: she creates a visual reference that matches the physical yarn width.

In her example, she drew the lettering path and set the vector line width to 110 points (approx. 3.9mm) so the on-screen “stroke” behaves like the real yarn. That lets you see collisions, spacing problems, and readability issues before you ever stitch.

This is especially important for script fonts. Script looks elegant as a thin line, but chenille yarn is chunky—if you don’t preview it at true width, loops and "e"s will merge into an unintelligible blob.

If you’re building this for a shop that runs repeat orders, treat that 110-point reference as a standard: it becomes your internal spec for that yarn type. Pro-tip: Measure your specific yarn diameter with calipers and convert to points ($1 mm approx 28 points$) for your own custom reference.

The Safety-First Pathing Rule: Segment Every Sharp Turn So the Machine Must Stop

Here’s the key technique: break the continuous centerline into multiple segments at every sharp direction change.

Samantha’s reasoning is pure operator safety:

• Each segment forces a machine stop (hold), giving you time to reposition the loose yarn for the next curve.
• You avoid the instinct to reach in while the needle is moving.

She also recommends digitizing “top down” / “front to back” so you’re not forced to reach behind the needle bar. That’s not just comfort—it’s risk management. You never want your arm crossing the active sewing field.

A production-minded note: segmentation also reduces scrap. If something goes wrong, you often catch it at a segment boundary instead of ruining the entire word.

Sewing the Couching Stitch Without Special Attachments: Walk/Bean Stitch + Smudger Control

Samantha’s execution is straightforward:

1. She uses a walk stitch as a placement/guide to show where to lay the yarn.
2. She converts to a bean stitch for a stronger tack-down.
3. She uses the plastic smudger to hold yarn in place while the stitch tacks it.

The important nuance is not the stitch type—it’s the operator control created by segmentation and safe tooling.

If you’re trying to scale this for repeat jobs, consider how much time you spend on hooping and repositioning. When you’re doing one sweatshirt, you can “muscle through.” When you’re doing 30, you need a system.

That’s where hooping stations can become a real throughput upgrade: consistent hooping + staged tools + repeatable stops = fewer slowdowns and fewer rejects. In a production environment, eliminating the variable of "crooked hooping" is half the battle.

Setup Checklist (Digital & Physical)

• Path Safety: Confirm your segmented path order moves “front to back” to keep hands out of danger zones.
• Stop Commands: Verify each segment has a planned stop/hold command where you will reposition yarn.
• Visual Audit: Run a quick on-screen simulation (Slow Draw) using the true-width yarn reference to check for overlap.
• Tool Check: Ensure the smudger tool is clean and not damaged.
• Needle Stock: Be ready to replace a needle if the plastic tool is struck.

Puff Embroidery in DesignShop v12: Pattern Fill Over Foam (And Why It Won’t Look Like Satin Puff)

Samantha answers a common puff question: can you sew a fill over puff foam? Yes, but manage your expectations.

Her example is a “C” patch where:

• The black border is sewn first as regular embroidery (flat).
• A pattern fill is sewn over puff to add height across a filled area.




The expert reality: a fill over foam will lift, but it won’t look as tall or crisp as classic satin puff. Satin columns compress and “cut” foam more dramatically, creating that sharp 3D edge. Fills tend to smash the foam down more uniformly.

Samantha’s sequencing logic is the masterclass here: Build the structure, then add layers. She describes a workflow like:

1. Sew base embroidery areas (flat).
2. Stop and lay down puff foam.
3. Sew the fill (tacking the foam).
4. Sew borders/satins that help define edges and cut the foam locally.

Sensory check: When tearing away the foam, it should perforate cleanly at the satin borders like a stamp. If you have to rip it with force, your density is too low or your needle is dull.

Expanded (.EXP) Files: The Only Reliable Way to Widen Satin Stitch Is Pull Compensation

This is one of the most useful “real world” answers in the session for anyone handling client-supplied files.

A user received a bow design as an expanded file (.EXP). Samantha explains the limitation clearly: you don’t have the same freedom as a native object file (like OFM). An .EXP file is just a list of X/Y coordinates; the machine doesn't know it's a "satin stitch"—it just knows "move here, drop needle." You can't just type a new width.

Her recommended workaround inside DesignShop is to add pull compensation. In her example, she adds 2 points of pull compensation to widen the satin stitch.

This is a classic “save the job” move. By artificially telling the software to compensate for pull, you force it to extend the coordinates outward, effectively widening the column.

A business-minded rule: if you’re repeatedly fixing expanded files, your real fix is upstream—ask for native files or set a vendor standard. Otherwise, you’re paying twice: once for digitizing, and again in operator time tweaking X/Y points.

Waterproof Jackets With Loose Lining: Registration Strategy and the Hard Truth About Needle Holes

Samantha’s advice on large back logos is grounded in physics:

• Sewing center-out is generally a good idea to push fabric bulk away.
• More importantly, finish as you go. Don’t sew all background fills and then come back 20 minutes later for outlines—registration drift accumulates as the design grows, especially on slippery linings.

This is where overlap and underlay choices matter. If you’re doing adjacent elements, Samantha prefers overlap because line-to-line often creates gaps. She mentions a typical overlap range of 4–7 points (0.4mm roughly).

And she drops a truth many shops avoid saying out loud: Embroidery destroys waterproofing. If you stab a waterproof jacket with tens of thousands of needle penetrations, it’s not truly waterproof anymore.

The Fix: If water resistance is critical, use spray adhesive to minimize shifting (reducing the need for heavy density) or stick to seam-sealed locations if possible. Otherwise, simply manage expectations with customers.

Clean Satin Edges Without “Bumps”: Edge Walk Underlay as the Primer Coat

When satin edges look bumpy, jagged, or messy, Samantha points to foundation, not thread brand.

Her fix: use an Edge Walk underlay. She describes it like priming a wall—your top satin stitches need a "rail" to sit on so the edge stays crisp and doesn't sink into the fabric grain.

She also answers an underlay question with real numbers:

• For a satin column around 30 points wide (approx 1mm+), she considers edge walk sufficient and does not recommend adding extra center runs, as it adds unnecessary bulk.
• She notes that underlay is practically mandatory for quality, and she only considers removing it when things get extremely small (she references going to a 60/8 needle and very thin satins).

This prevents the common beginner mistake: removing underlay to “reduce bulk,” then wondering why the satin looks like a twisted rope.

Hat Center Seam Embroidery: Start Off-Center and Walk Into the Seam at Full Speed

If you’ve ever watched a cap design fail on the first few stitches, you already know the villain: the center seam. It is thick, hard, and often destabilizes the presser foot.

Samantha’s troubleshooting is specific and brilliant:

• The seam can be too thick for the machine to penetrate during slow inching start stitches (the slow ramp-up speed).
• Her solution is to digitize the start point off-center, then use a walking stitch (underlay) to run into the seam so the machine is at full momentum/RPM when it hits the thickest area.

This utilizes the machine's inertia to punch through the buckram and seam allowance without stalling or deflecting the needle.

If you’re running caps regularly, your hoop choice matters as much as digitizing. A stable cap setup—whether you’re using a standard melco hat hoop or a specialized clamping system—reduces shifting. If the cap driver bounces, even the best digitizing won't save the registration.

Needle Bar Stuck Down After a Thread Break or Bird’s Nest: The Bind-Clearing Ritual

A stuck needle bar after a break and nest is scary because it feels like a catastrophic failure. Samantha frames it as a likely jam/bind caused by thread or lint wedged in the needle bar channel or hook area.

Her sequence (follow this strictly):

1. E-Stop the machine immediately.
2. Clearing Check: Do NOT force the hand wheel. Try to manually rotate the Z-axis shaft gently.
3. If it won’t move, you have a hard bind.
4. Locate & Extract: Find the physical obstruction (thread/lint) around the needle case/reciprocator or in the rotary hook area. Use tweezers/hooks.

This is where patience beats force. Forcing rotation against a thread lock can snap a reciprocator or throw off timing.

If you’re running a melco embroidery machine in production, build “bind checks” into your daily routine: clean, inspect, and don’t ignore early warning signs like unusual "clicking" sounds or resistance during manual color changes.

Lettering Spacing in DesignShop: Auto-Kerning, Word Spacing (25%), and Manual Nudge Handles

Samantha shows two ways to fix spacing without dragging letters one by one:

• Turn on auto-kerning in the Spacing tab (uses font metrics).
• Adjust word spacing; she demonstrates setting it to 25% as a baseline for legible separation.




She also demonstrates manual kerning handles—small diamond-shaped nudge markers between letters—to fine-tune spacing visually on screen.

This matters more than people think: spacing issues are one of the fastest ways to make a professional logo look “homemade.” Visual Check: Squint at the screen. If the white space between letters looks uneven, the embroidery will look uneven.

“Long Tie Stitches” Showing Up Mid-Run: Treat It Like a Bobbin/Tension Cleanliness Problem First

A viewer reports long tie stitches appearing on the fourth hat without changing the file. Samantha’s first diagnostic is practical: Check the machine, not the file.

In real shops, this is common: the file didn’t change, but lint buildup under the tension spring, bobbin case contamination, or tension drift did.

Diagnostic Step: Check your bobbin tension. Pull the bobbin thread; it should feel smooth but firm, like pulling a spiderweb that won't break—some say it should feel like the resistance of flossing your teeth. If it slides with zero resistance, or jerks, clean the case and re-tension.

Stabilizer Decision Tree: Pick Backing Like a Pro (Especially for Caps and Jackets)

The video focuses on digitizing and machine behavior, but stabilizer choice is the silent partner that decides whether your results match the screen.

Use this decision tree to make the right call before you hoop.

Decision Tree (Fabric → Stabilizer/Backing Strategy):

1. Is the substrate a cap with a thick center seam?
   • YES: Prioritize firm tear-away (specifically cap backing) + consistent tension. Avoid setups that allow shifting.
   • NO: Go to 2.
2. Is the fabric waterproof-coated with a loose lining (e.g., Windbreaker)?
   • YES: Stabilize to control shifting (Cutaway usually safer), but remember needle holes compromise waterproofness. Use "Center-Out" digitizing.
   • NO: Go to 3.
3. Is the design heavy/raised (Chenille yarn couching or Puff)?
   • YES: Use stabilization that resists distortion (Heavy Cutaway); heavy top structures act like anchors and will pull lightweight fabric if not backed properly.
   • NO: Go to 4.
4. Is the design large (jacket back) with detailed outlines?
   • YES: Stabilize for long-run registration (Cutaway + Spray Adhesive to bond backing to fabric). Use "finish as you go" sequencing.
   • NO: Standard tear-away or light cutaway is often sufficient.

If you’re frequently fighting hoop marks ("hoop burn"), slippage, or slow loading times on these difficult items, magnetic embroidery hoops can be a practical upgrade path. They hold fabric firmly without the friction-burn of traditional inner rings, which is vital for delicate waterproof coatings.

Warning: MAGNETIC FORCE HAZARD. Magnetic frames are incredibly powerful. Keep them away from pacemakers/medical implants (maintain 6-inch distance). Keep fingers clear of the mating surfaces when closing—they snap together instantly. Store them separated or with spacers so they don't lock together unexpectedly.

The Upgrade Path (Without the Hard Sell): Where Tools Actually Save Time and Scrap

If you only do one chenille sweatshirt a month, your biggest win is correct segmentation and safe handling techniques described above.

However, if you’re doing this weekly—or you’re running caps and jacket backs for customers—your bottleneck usually becomes hooping consistency and operator fatigue.

Here’s a practical framework to decide when to upgrade:

• Scenario trigger: You look at the clock and realize you spend more time hooping and fixing "hoop burn" marks than actually sewing.
• Judgment standard: If hooping time and spoilages (ruined garments) are costing you more than 2-3 jobs per month, you are already paying for better equipment—you just don't have it yet.
• Options:
  1. Home/Hobby Workflow: Magnetic hoops can solve the "hoop burn" on sensitive fabrics and make re-hooping faster.
  2. Industrial Workflow: For multi-needle machines, magnetic frames reduce repetitive strain injury (RSI) on wrists and ensure every shirt is hooped with identical tension.
  3. Scaling Up: If you cannot keep up with orders, moving to a high-productivity multi-needle platform (like SEWTECH machines) turns "busy work" into profit. These machines handle the momentum of caps and heavy fills far better than single-needle units.

And if you’re already in the Melco ecosystem, choosing the right frame size—whether it’s standard melco embroidery hoops for left-chest work or something larger like the melco xl hoop for big backs—should be driven by your most common job type, not just what came in the box.

Operation Checklist (Final "Go" Confirmation)

• Couching: Is the path segmented? Is the tool plastic? Are fingers clear?
• Puff: Is the sequence Base -> Foam -> Fill -> Border?
• .EXP Files: Did you apply Pull Compensation (e.g., 2 pts) to fix thin satins?
• Hats: Does the design start off-center and walk into the seam?
• Binds: If the machine jams, did you E-Stop and check manually before forcing it?
• Anomalies: If weird tie stitches appear, did you clean the bobbin case first?






FAQ

• Q: How can DesignShop v12 digitizing make chenille yarn couching safer on a Melco embroidery machine when the operator must guide yarn near the needle?
  A: Segment the couching path at every sharp turn so the Melco embroidery machine is forced to stop, then reposition yarn only during planned holds using a plastic tool (not fingers).
  • Break the centerline into multiple short segments at direction changes to create controlled stops.
  • Stage a plastic electronics smudger (or similar non-metal plastic tool) and use it to hold yarn in place while tacking.
  • Reduce machine speed to a safe starting point (about 400–600 SPM) to increase reaction time.
  • Success check: The machine stops at each segment boundary and yarn can be repositioned without reaching near a moving needle.
  • If it still fails: Re-check hooping tension and segment order (digitize “front to back” so hands never reach behind the needle bar).
• Q: What is the correct hooping tension standard for chenille yarn couching to prevent tack-down stitches wandering off the yarn?
  A: Hoop the fabric “drum-tight” because any fabric movement will cause the tack-down line to drift and leave the yarn loose.
  • Tap the hooped fabric and confirm it sounds taut (not dull) before stitching.
  • Stabilize the substrate firmly because thick yarn amplifies even small shifts.
  • Slow down and run a brief placement/guide stitch first so mis-hooping shows early.
  • Success check: The tack-down stitch consistently lands on top of the yarn instead of missing or riding alongside it.
  • If it still fails: Re-hoop for higher tension and verify the item is not “flagging” (bouncing) during stitching.
• Q: Why do long tie stitches suddenly appear mid-run on a Melco embroidery machine hat job even though the embroidery file did not change?
  A: Treat it as a bobbin/tension cleanliness issue first—lint or contamination in the bobbin case and tension area can cause inconsistent tie-offs even when the design is identical.
  • Stop the run and clean the bobbin case area and tension contact points.
  • Check bobbin thread pull: it should feel smooth but firm (many operators compare it to the resistance of flossing your teeth).
  • Re-seat the bobbin case and run a short test before continuing production.
  • Success check: Tie stitches return to normal length and stops/starts look consistent across multiple caps.
  • If it still fails: Inspect for ongoing lint buildup and re-check overall tension balance per the machine manual.
• Q: What is the safest way to clear a Melco embroidery machine needle bar stuck down after a thread break and bird’s nest jam?
  A: E-stop immediately and remove the obstruction—do not force rotation, because forcing a bound mechanism can cause mechanical damage or timing issues.
  • Press E-Stop and keep hands clear of the needle/needle bar area.
  • Gently try rotating the Z-axis shaft by hand; stop if there is resistance (that indicates a hard bind).
  • Locate and extract thread/lint around the needle case/reciprocator or in the rotary hook area using tweezers/hooks.
  • Success check: The mechanism rotates smoothly by hand before power is restored, with no grinding or “hard spots.”
  • If it still fails: Do not force the hand wheel—pause and follow the machine’s service guidance because a persistent bind may indicate a deeper jam.
• Q: How do you widen a satin stitch when the customer only provides an expanded .EXP embroidery file in DesignShop v12?
  A: Use pull compensation as the reliable workaround, because an expanded .EXP file is coordinate-based and does not behave like editable native satin objects.
  • Open the .EXP and apply pull compensation (Samantha’s example uses 2 points) to push the column wider.
  • Re-run an on-screen simulation to confirm the widened column still covers the intended edge.
  • Stitch a small test sample before committing to the final garment, especially on stretchy or slippery fabric.
  • Success check: The satin column visibly gains coverage and no longer looks too thin at the edges.
  • If it still fails: Request a native object-based file from the vendor for proper satin-width control instead of repeated coordinate fixes.
• Q: How can DesignShop v12 puff embroidery be sequenced so a pattern fill over foam doesn’t collapse and the foam tears away cleanly?
  A: Use the sequence Base embroidery → place foam → sew the fill → sew defining borders/satins, because structure-first layering improves hold-down and edge definition.
  • Sew the flat base elements first, then stop to lay down puff foam.
  • Sew the pattern fill over the foam, then add borders/satins that help define edges and cut foam locally.
  • Tear away foam only after the borders/satins have perforated it.
  • Success check: Foam perforates and removes cleanly at satin borders “like a stamp,” without aggressive ripping.
  • If it still fails: Treat it as a density/needle condition issue—low perforation or a dull needle can make foam removal messy.
• Q: What are the magnetic force safety rules when using magnetic embroidery hoops/frames for faster hooping and reduced hoop burn?
  A: Magnetic hoops are powerful—keep them away from medical implants and keep fingers out of the closing surfaces because they can snap together instantly.
  • Maintain at least a 6-inch distance from pacemakers/medical implants.
  • Keep fingertips clear when closing the frame; control the mating surfaces so they do not slam shut.
  • Store magnetic hoop halves separated or with spacers to prevent accidental locking.
  • Success check: The hoop closes without pinching incidents and can be handled without sudden uncontrolled snapping.
  • If it still fails: Slow down the handling routine and stage a safe “close zone” on the table so the frame halves align before contact.
• Q: When repeated hoop burn, slippage, and slow loading happen on caps and jackets, how should an embroidery shop choose between technique fixes, magnetic embroidery hoops, and upgrading to SEWTECH multi-needle embroidery machines?
  A: Use a tiered approach: fix technique first, add magnetic hoops if hooping is the bottleneck, and consider SEWTECH multi-needle embroidery machines when order volume exceeds what the current workflow can sustain.
  • Level 1 (Technique): Improve hooping consistency (“drum-tight”), slow to a controlled speed when needed, and use safer sequencing (finish-as-you-go on large pieces).
  • Level 2 (Tooling): Use magnetic hoops to reduce hoop burn on sensitive fabrics and speed up repeat hooping with consistent tension.
  • Level 3 (Capacity): Move to a multi-needle platform like SEWTECH when you are spending more time hooping/fixing rejects than sewing and cannot keep up with orders.
  • Success check: Hooping time drops and reject/re-hoop frequency decreases measurably across the same job type.
  • If it still fails: Track scrap and rework by job type for a month—if losses stay high, the constraint is likely equipment/workflow capacity rather than digitizing alone.
