Digitize the Adidas Logo in Wilcom EmbroideryStudio (Classic): Clean Satin Text, Stable Tatami Stripes, and Settings That Actually Stitch Out

Logos are where digitizers either look like pros—or get exposed fast.

If you’ve ever stitched a “simple” brand mark and watched the letters pinch, gaps open up, or the fills ripple like a cheap rug, you already know the truth: the design isn’t failing on the machine, it’s failing in the file.

In this Wilcom EmbroideryStudio (Classic interface) workflow, you’ll digitize the Adidas logo from scratch the same way the video does—manual satin text, a tiny ® that won’t turn into a thread knot, and three stripes that behave as fills. But I’m going to add the shop-floor logic the timelapse implies but doesn't say: the sensory checks, the safety margins, and the specific reasons why these settings keep your machine from eating the garment.

The “Don’t Panic” Primer: Why the Adidas Logo Is a Perfect Wilcom EmbroideryStudio Practice File

This logo is the perfect "dojo" for beginners because it forces you to solve three specific production problems in one design:

1. Small Satin Text: The letters "adidas" are narrow columns. If you don't manage push/pull physics here, the letters will look anemic or close up.
2. Micro-Detailing: The registered trademark (®) is the enemy of the standard needle. It requires a different stitch type entirely.
3. Wide Geometry: The stripes are too wide for satin (usually anything over 7mm–8mm risks snagging). You must use Tatami (Fill), but you have to make it look smooth, not like a textured carpet.

If you’re digitizing for customers (or your own shop), this is exactly the kind of file that gets reordered—so it’s worth building it correctly once.

The “Hidden” Prep Before You Click Input A: Image, Scale, and Measurement Discipline

Timelapse videos skip the boring part, but this is where most digitizers quietly lose accuracy. You cannot digitize in a vacuum; you need a "Truth Anchor."

What the video shows

The digitizer uses an on-screen ruler (press M) to measure key widths—like the column thickness and spacing—before committing to stitch objects.

What I want you to do (The "Truth Anchor" Method)

1. Import your reference image and lock it (K) so you don’t nudge it while digitizing.
2. Decide the target stitch size now. Are you stitching this on a cap (55mm wide) or a full chest (250mm wide)? Physics changes with size. A setting that works at 4 inches will fail at 2 inches.
3. Measure a specific element. The video measures a column width at 0.11 in (approx 2.8mm). This is your anchor. If your letter column is 2.8mm, your underlay needs to be centered.

Prep Checklist (The "Pre-Flight"):

• Reference image imported and Locked (cannot be dragged by accident).
• Hidden Consumable Check: Do you have the right needle? For this detail, a 75/11 sharp fits well; a thick 90/14 might punch holes in the small text.
• Target finished size decided (don’t digitize “random size”).
• At least one key width measured to establish scale (video uses 0.11 in).
• Plan: "adidas" = Satin; Stripes = Tatami; ® = Run Stitch.
• Save file as adidas_logo_v1_setup.emb.


Build the “a” First: Manual Satin Digitizing That Doesn’t Collapse at the Hole

The video starts with the lowercase “a” using Input A (manual digitizing) and creates the inner negative space (the hole) manually.

What to copy from the video exactly

• Use left clicks for corners (hard points) and right clicks for curves (smooth points).
• Define the outer boundary first.
• Define the inner boundary (hole removal) second.
• Press Enter to generate stitches.

The "Sensory Gap" Check

Beginners often create a "fake hole." It looks open on the screen, but when the thread pulls tight during stitching, the hole closes up.

• Visual Rule: In your software, the hole needs to look slightly too big.
• The Physics: Thread has volume. It occupies space. If you digitize the hole exactly as the image shows, the thread volume will encroach on it. Leave a 0.2mm buffer zone.

Warning: Mechanical Safety. Keep your hands clear of the needle bar and moving pantograph when you test-stitch later. Use long tweezers to trim threads near the presser foot. A quick “just one snip” with your fingers is how people get punctures.

The Fastest Way to Digitize “d i d”: Copy What’s Similar, Redraw What Must Be Unique

Effort management is a skill. The video copies the round portion of the “a” to build the base of the “d,” then draws the vertical ascender separately.

The key technique: The "Structural Overlap"

• Copy/paste the round element (Ctrl+D for duplicate).
• Digitize the vertical column separately.
• CRITICAL: Ensure the vertical column overlaps the round base by 2–3 stitches.

Why? If you just touch the edges together on screen, the fabric will pull apart as the needle penetrations weaken the fibers. You will end up with a visible gap (white fabric showing through) between the round part of the 'd' and the stick of the 'd'. Overlap is your glue.

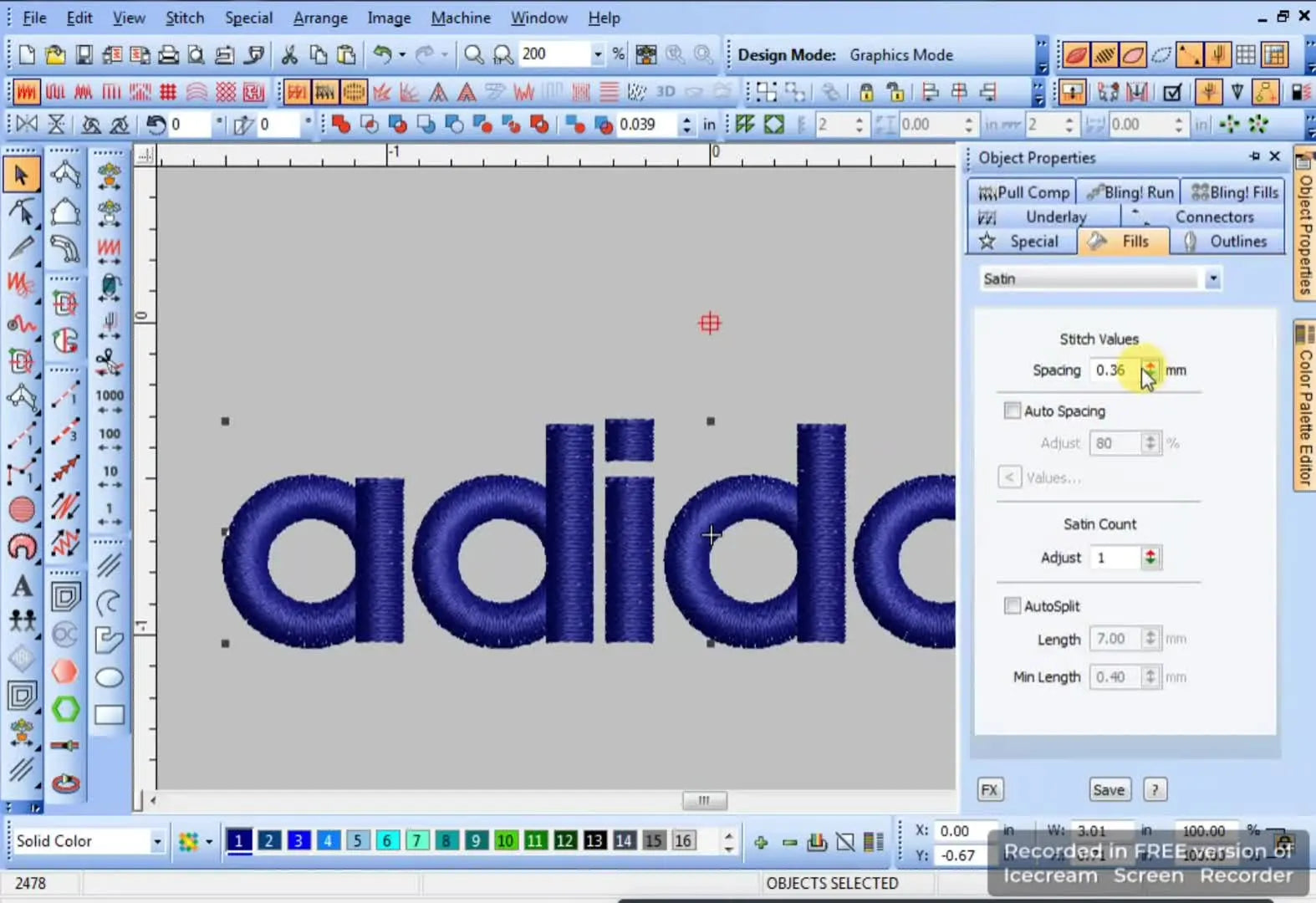

The Settings That Save Satin Text: Pull Compensation 0.17 mm + Zigzag Underlay

Here’s the massive difference between "amateur" and "pro." The digitizer selects all text objects and looks at the Object Properties.

What the video sets

• Pull Compensation: 0.17 mm
• Underlay Type: Zigzag
• Underlay Spacing: 1.50 mm


Why this works (The "Drum Skin" Analogy)

When embroidery stitches land, they tighten like a drum skin. This tightening pulls the fabric inward, making your columns narrower than you digitized.

• Pull Comp (0.17 mm): This tells the software, "Make the column wider than I drew it." It counteracts the shrinking. Note: For stretchy polos (piqué knit), you might even bump this to 0.20mm.
• Zigzag Underlay: This is the foundation. It lifts the satin off the fabric so it doesn't sink into the pile.

The Production Reality: You can dial in perfect settings, but they essentially multiply your hooping quality. If your hoop is loose, the fabric moves, and 0.17mm won't be enough. If you struggle with keeping equal tension on all sides, or if you are fighting "hoop burn" (the ring mark left on fabric), this is where technique meets tool. Understanding hooping for embroidery machine technique—making the fabric taut like a tambourine but not stretched—is a quality control step that allows these software settings to actually work.

Setup Checklist (Software & Bench):

• Select all Satin text objects (ensuring you don't accidentally select the ®).
• Set Pull Compensation to 0.17 mm (0.20 mm for knits).
• Enable Zigzag underlay (Spacing: 1.50 mm).
• Auditory Check: When hooping, tap the fabric. It should sound like a dull drum thud, not a loose flap.
• Visual Check: Look at the hoop inner ring—is it pushed in evenly all around?

The Tiny ® Symbol: Run Stitch Is the Professional Choice

The video creates the registered trademark symbol using a Run Stitch tool, tracing the circle and the “R” manually.

Why Satin fails here

If you try to satin stitch an element barely 2mm tall, the needle penetrations are too close.

1. The Sound: You will hear a clustered "thud-thud-thud" as the needle hammers the same spot.
2. The Result: A "bird's nest" (thread knot) on the back, or a hole in the shirt.

The Fix: Use a simple Single Run or Triple Run (Bean Stitch). It reads clearly and respects the fabric integrity.

The Three Stripes: Convert Over-Wide Satin to Tatami Fill

The video digitizes the stripes with Complex Fill, then switches the stitch type to Tatami.

What the video sets for Tatami

• Spacing (Density): 0.40 mm
• Stitch Length: 4.00 mm
• Min Stitch: 0.60 mm


The Real-World Limit

A standard embroidery machine needle plate has a hole. If you make a satin stitch wider than 10mm-12mm (depending on machine), the machine slows down, loops can snag on washers, and the thread becomes loose enough to catch on a finger.

• Rule of Thumb: If a column is wider than 7mm, switch to Tatami (Fill). It anchors the thread in the middle, creating a flat, durable surface.

Consistency Tip: Tatami stitches exert a lot of "push" force. This can bow the fabric. If you are doing this on production runs, ensuring your framing is rock-solid is key. Using a hooping station for machine embroidery ensures that your vertical alignment is perfect every time, so the geometric stripes don't look tilted on the final shirt.

Angle Lines Are Your Secret Weapon: Make Tatami Look Like Geometry, Not Carpet

The video uses the Reshape tool (H) to adjust stitch angle lines.

What to look for

Tatami has a "grain," like wood. Light reflects off it differently depending on the angle.

• Bad: Angles running vertically against a diagonal stripe (looks jagged/sawtoothed edges).
• Good: Angle running parallel to the stripe (looks smooth, sharp edges).

Use the Reshape tool to force the stitch angle to match the slope of the Adidas stripes. This creates that "liquid metal" sheen rather than a "fuzzy carpet" look.

TrueView Isn’t the Finish Line: Do a Wireframe Audit

The video ends by reviewing the full logo in wireframe and then in 3D TrueView.

The "Wireframe Audit" (Save money before stitching)

Don't trust the 3D view; it lies. It smoothes over mistakes. Switch to Wireframe view (T) and look for:

1. Connectors: Are there long travel lines across the design? (Add trims if needed).
2. Start/Stop points: Does the design jump from left to right to left? (Re-order efficiently).
3. Density Spikes: Do you see a solid block of color where lines overlap? That’s a needle break waiting to happen.

Decision Tree: Stitch Type & Stabilizer Logic

Before you press start, verify your logic. Use this tree to match your design to your reality.

1. Element Size Check

• < 2mm wide/tall (e.g., ® symbol): Use Run Stitch. (Satin will knot).
• 1.5mm - 7mm wide (e.g., "adidas" text): Use Satin Stitch. (Best gloss/lift).
• > 7mm wide (e.g., Stripes): Use Tatami/Fill Stitch. (Prevents snags).

2. Fabric Context Check

• Stiff Fabric (Denim/Canvas): Tearaway stabilizer is okay. Pull comp 0.17mm.
• Stretchy Fabric (Polos/T-shirts): Cutaway stabilizer is non-negotiable. Increase Pull comp to 0.20mm - 0.25mm.

The “Avoid These Painful Mistakes” Section: Troubleshooting

If you stitch this out and it looks wrong, don't guess. Use this diagnostic table.

The Upgrade Path (When to Stop Fighting Your Tools)

Digitizing is only 50% of the battle. The other 50% is physics. You can have a perfect file, but if your physical workflow is fighting you, you will still get rejected garments.

If you are just doing one-off hobby projects, take your time and adjust the software. But if you are moving into production or finding that hooping is hurting your wrists and slowing you down, you need to look at your hardware bottlenecks.

• The Problem: Traditional screw-hoops are slow and can leave "hoop burn" (crushed fabric rings) that are hard to steam out.
• The Solution (Level 1): Stabilize your process. Use a magnetic hooping station to guarantee that every chest logo is placed in the exact same spot, reducing the specific variability that ruins geometric logos like Adidas.
• The Solution (Level 2): Reduce strain. magnetic embroidery hoops allow you to clamp thick jackets or delicate moisture-wicking polos without the "tug-of-war" of tightening a screw. The magnet holds the fabric firm (essential for the Tatami stripes) without crushing the fibers.
• The Scale Up (Level 3): If you are running 50+ shirt orders, the constant re-hooping is your biggest cost. magnetic embroidery frames combined with a robust multi-needle machine like the SEWTECH series can turn a "weekend struggle" into a profitable afternoon.

Warning: Magnet Safety. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, insulin pumps, and credit cards. Handle with respect.

Operation Checklist (Final Go/No-Go):

• Test Stitch: Run the file on a scrap of the same material (with the same stabilizer).
• Visual Audit: Are the stripes straight? Is the "a" hole open?
• Tactile Audit: Rub the back of the embroidery. Is it a hard knot? (Bad tension). Is it smooth? (Good).
• Tools: Trim jump stitches.
• Notes: Write down the settings that worked (e.g., "Adidas Logo: 0.20mm Pull Comp, Cutaway, 75/11 Needle") for next time.

By combining the precision of Wilcom's software with a disciplined physical workflow, you stop crossing your fingers when you press "Start." You press it knowing exactly what will happen.

FAQ

• Q: In Wilcom EmbroideryStudio Classic, what pull compensation and underlay settings prevent narrow satin text like the “adidas” letters from pinching?
  A: Use Pull Compensation 0.17 mm with Zigzag underlay (1.50 mm spacing) as a proven starting point for small satin text.
  • Set: Select only the satin text objects and set Pull Compensation to 0.17 mm (knits may need 0.20 mm as a safe starting point).
  • Enable: Turn on Zigzag underlay and set Underlay Spacing to 1.50 mm.
  • Hooping: Hoop the fabric firm and even, because loose hooping multiplies pull/push distortion.
  • Success check: The stitched letters keep consistent width and the inner spaces do not close up after stitching.
  • If it still fails: Re-check hooping tightness and stabilizer choice, then re-test on scrap before changing density.
• Q: In Wilcom EmbroideryStudio manual satin digitizing (Input A), how can the hole inside the lowercase “a” stay open after stitching?
  A: Digitize the “a” hole slightly larger than the artwork and keep a small buffer so thread volume does not close the opening.
  • Digitize: Create the outer boundary first, then define the inner boundary (hole removal) second, then generate stitches.
  • Allow: Leave a small buffer (about 0.2 mm) so the hole looks slightly too big on-screen.
  • Test: Stitch on the same fabric and stabilizer you will use in production.
  • Success check: The “a” hole remains clearly open and does not pinch shut when the stitches tighten.
  • If it still fails: Reduce stitch crowding around the hole by enlarging the inner boundary and re-run the test stitch.
• Q: In Wilcom EmbroideryStudio, how do you prevent gaps between the round bowl and vertical column when building the “d” from duplicated parts?
  A: Overlap the vertical column into the round base by 2–3 stitches so fabric pull does not open a seam.
  • Duplicate: Copy/paste the round element, then digitize the vertical column separately.
  • Overlap: Ensure the column overlaps the round base (not just “touching” edges on screen).
  • Inspect: Check the join in wireframe before stitching.
  • Success check: No white fabric line appears at the join between the round and straight parts after stitching.
  • If it still fails: Increase the overlap slightly and confirm the fabric is hooped firmly with the correct stabilizer.
• Q: For a tiny registered trademark (®) in Wilcom EmbroideryStudio, why does satin stitch cause bird’s nests and what stitch type should be used instead?
  A: Do not use satin on a ~2 mm detail; use Single Run or Triple Run (bean stitch) to avoid thread knots and fabric damage.
  • Choose: Trace the ® circle and “R” using a Run Stitch tool.
  • Avoid: Do not satin-stitch micro details that force many needle penetrations into the same spot.
  • Monitor: Listen for clustered “thud-thud-thud” hammering sounds during stitch-out—this often signals trouble.
  • Success check: The ® is readable without a knot on the back and without punching a hole in the fabric.
  • If it still fails: Slow down and test again on scrap; verify needle size is appropriate for the detail (a 75/11 sharp is a common match for fine work—follow the machine manual).
• Q: In Wilcom EmbroideryStudio, what Tatami (fill) settings and width rule prevent snags when digitizing wide Adidas-style stripes?
  A: Switch any column wider than 7 mm to Tatami/Fill; a working setup is Spacing 0.40 mm, Stitch Length 4.00 mm, Min Stitch 0.60 mm.
  • Convert: Digitize the stripe shape, then set stitch type to Tatami (Fill).
  • Set: Use Spacing (Density) 0.40 mm, Stitch Length 4.00 mm, Min Stitch 0.60 mm.
  • Respect: Avoid very wide satin on stripes because long loops can snag and the machine may slow or destabilize tension.
  • Success check: Stripes stitch flat and durable with no long satin loops that can catch or pull.
  • If it still fails: Re-check framing stability and run a test on the same garment/stabilizer combination.
• Q: In Wilcom EmbroideryStudio, how do stitch angle lines (Reshape tool “H”) keep Tatami stripes from looking like “carpet” texture?
  A: Align Tatami stitch angles parallel to the stripe direction so the edge looks smooth and the fill reflects evenly.
  • Reshape: Use the Reshape tool to edit angle lines across each stripe.
  • Match: Force the stitch “grain” to run with the stripe slope, not against it.
  • Compare: Review in wireframe and then in TrueView, but trust wireframe for structure.
  • Success check: Stripe edges look clean (not sawtoothed) and the fill has an even sheen instead of a fuzzy look.
  • If it still fails: Reduce abrupt angle changes and confirm the stripe shape is cleanly digitized before adjusting angles.
• Q: What is a safe, step-by-step upgrade path if screw-hooping causes hoop burn and inconsistent Adidas-style geometric logos in production?
  A: Start by tightening process control, then upgrade clamping/placement tools, then scale production equipment only when volume justifies it.
  • Level 1 (technique): Standardize hooping and always test stitch on scrap with the same stabilizer; inconsistent hoop tension will distort satin text and Tatami stripes.
  • Level 2 (tool): Consider magnetic embroidery hoops to clamp thick or delicate fabrics without over-crushing fibers (a common cause of hoop burn).
  • Level 3 (capacity): If re-hooping time is the main cost at 50+ shirts per order, consider magnetic frames plus a multi-needle workflow to reduce handling.
  • Success check: Repeated shirts show the same placement and the stripes stay straight without constant rework.
  • If it still fails: Audit in wireframe for connectors, start/stop order, and density spikes before blaming the machine.
• Q: What safety rules should be followed when test-stitching near the needle bar and when handling industrial magnetic embroidery hoops?
  A: Keep hands away from moving parts during stitch-out and treat magnetic hoops as pinch hazards that can affect medical devices and cards.
  • Mechanical safety: Keep fingers clear of the needle bar/pantograph; use long tweezers for trimming near the presser foot.
  • Magnetic safety: Handle magnets slowly and deliberately to avoid severe pinches.
  • Medical/device safety: Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Success check: Trimming and hoop handling can be done without reaching into moving areas and without uncontrolled magnet snaps.
  • If it still fails: Stop the machine, power down before clearing threads, and review the machine manual’s safety section before resuming.
