Embrilliance Stitch Artist “Rhythm” That Finally Clicks: Fix Mode Confusion, Make Handles Visible, and Turn Vectors into Real Stitches

If you’ve ever sat in front of a screen, clicked a button in Embrilliance, and felt the crushing defeat of nothing happening—no stitches generated, no simulator running, just a dead vector line—you are not alone. In my 20 years of teaching digitization and running production floors, I have seen seasoned professionals from PE-Design and Hatch hit this exact wall.

Here is the truth: Embrilliance isn’t broken. It just has a very specific "modal rhythm." It separates the Artist (drawing) from the Engineer (stitching). Once you understand which "room" you are standing in, the panic subsides, and the software becomes an incredibly fast, logical extension of your creative mind.

This guide rebuilds the workflow from the Sue O'Very tutorial, but I am going to layer on the production-grade safety checks and parametic "sweet spots" that prevent needle breaks and ruined garments. We will move from basic lettering to advanced Bezier curves, and finally, to the physical reality of hooping that makes or breaks your digital file.

The calm-down moment: Embrilliance Essentials + Stitch Artist Level 3 isn’t “broken”—it’s usually a mode mismatch

The most common panic I hear in my workshops sounds like this: “Yesterday I could run the simulator and edit points, but today I can’t click anything. Am I going crazy?”

You aren’t crazy. You are just in the wrong context.

Embrilliance behaves like two different programs living in one house.

1. Selection/Utility Mode: This is for moving, resizing, and coloring finished objects.
2. Digitizing (Create) Mode: This is for drawing vectors and assigning stitch paths.

If you are stuck, look at your cursor and your toolbar. Embrilliance is strict about separating artwork creation from embroidery generation. You can draw a perfect shape—a beautiful vector—but until you explicitly tell the software “You are now a Satin Stitch,” it will remain invisible to the sewing machine.

This separation is a safety feature, not a bug. It prevents you from accidentally distorting stitch densities while just trying to move a logo.

Lettering that feels like cheating: kerning and slant with green handles (no “Break Apart” required)

In many legacy software suites, if you wanted to move one letter, you had to "Break Apart" the text object, which turned it into raw stitches and made it un-editable as text. Embrilliance solves this with "Smart Handles."

What you do on-screen (The Sensory Workflow)

1. Create/Select: Specific the text object.
2. Locate the Center Green Square: Look at the baseline of each letter. You will see a small green square handle in the center.
3. The Action: Click and drag that green square left or right to adjust Kerning (spacing).
   • Visual Anchor: Adjust until the white space between letters looks volume-balanced—imagine pouring water between the letters; the volume should feel equal, even if the distance isn't.
4. Locate the Top Green Triangle: Found at the top right of the lettering block.
5. The Action: Drag it horizontally to slant the text (italicize).
6. The Result: You have customized the look, but the text is still text. You can fix a typo later without starting over.

Pro Tip: Do not use the yellow corner handles for sizing unless you are making minor tweaks. Scaling lettering up by 20% or more often requires changing the underlay settings to support the wider columns.

The “Create Design” needle icon: the one button that makes tools disappear (and makes you doubt yourself)

This is the specific threshold where users get lost. Sue clicks the "Create Design" icon (it looks like a needle with thread) to enter the Stitch Artist environment.

Memorize this state change:

• Create Mode OFF: You are an Editor. You select whole designs. You merge files. You add lettering.
• Create Mode ON: You are a Digitizer. You select nodes (dots). You draw paths. You assign stitch properties.

If you cannot select an object that you know is there, stop clicking harder. Pause. Look at the "Create Design" button. Toggle it. 90% of user frustration vanishes with this one click.

The visibility hack that saves your eyes: Preferences → Display Settings → Handle Size ≈ 200%

Digitizing is a game of millimeters. If you cannot see the nodes (the little squares that define your shape), you will create messy, jagged shapes that result in thread breaks.

Sue demonstrates a critical setup step that I mandate for all my students:

1. Go to Menu → Edit → Preferences → Display Settings.
2. Locate Handle Size.
3. Slide it to 20 pixels (or roughly 200%).
4. Click OK.

Why this matters: When you are staring at a screen for 4 hours, tiny nodes cause eye strain. Big, visible nodes allow you to grab control points quickly and accurately. If you struggle to grab a specific point, your handle size is too small.

Prep Checklist (Do this BEFORE you drop the first node)

• Hidden Consumables Check: Do you have temporary spray adhesive (like 505) and a fresh water-soluble pen? Digitizing is only half the battle; marking your fabric is the other half.
• Module Verification: Confirm you actually own Stitch Artist (check your serial number window). Essentials alone involves editing existing files; creating requires Stitch Artist.
• Panel Discipline: Open the Object Tree (top right) and Properties (bottom right). You cannot digitize "blind"—you need these panels open to see what your data represents.
• Visual Calibration: Set Handle Size to ~20mm/200% so you aren't squinting.
• Input Rhythm Check: Decide your input style. Are you a "Click-Click-Curve" person or a "Ctrl-Click-Line" person? (See next section).

Warning: Physical Safety Alert. When test-stitching your new designs, never put your hands near the needle bar to perform "hot adjustments" or trim threads while the machine is running. If a digitization error causes the needle to hit the hoop, shrapnel can fly. Always hit STOP before hands go near the hoop.

Drawing in Embrilliance Stitch Artist: it defaults to curves, and CTRL is your straight-line switch

Unlike Adobe Illustrator which often defaults to straight lines, Stitch Artist assumes you are drawing organic shapes (flowers, animals).

The Logic Steps

1. Standard Left Click: Creates a Curve Node (Bezier). The line will bend smoothly between points.
2. CTRL + Left Click: Creates a Line Node (Corner). The line will make a sharp, angular turn.
3. Right Click: Ends the shape/object.

The Strategy: If you are digitizing a geometric logo, keep your finger glued to the CTRL key. If you are digitizing a rose petal, let go of CTRL.

Hardware Tip: If you are serious about production, consider a gaming mouse with programmable side buttons or a simple shortcut keypad. Mapping "CTRL" to a thumb button allows you to fly through complex shapes without contorting your left hand.

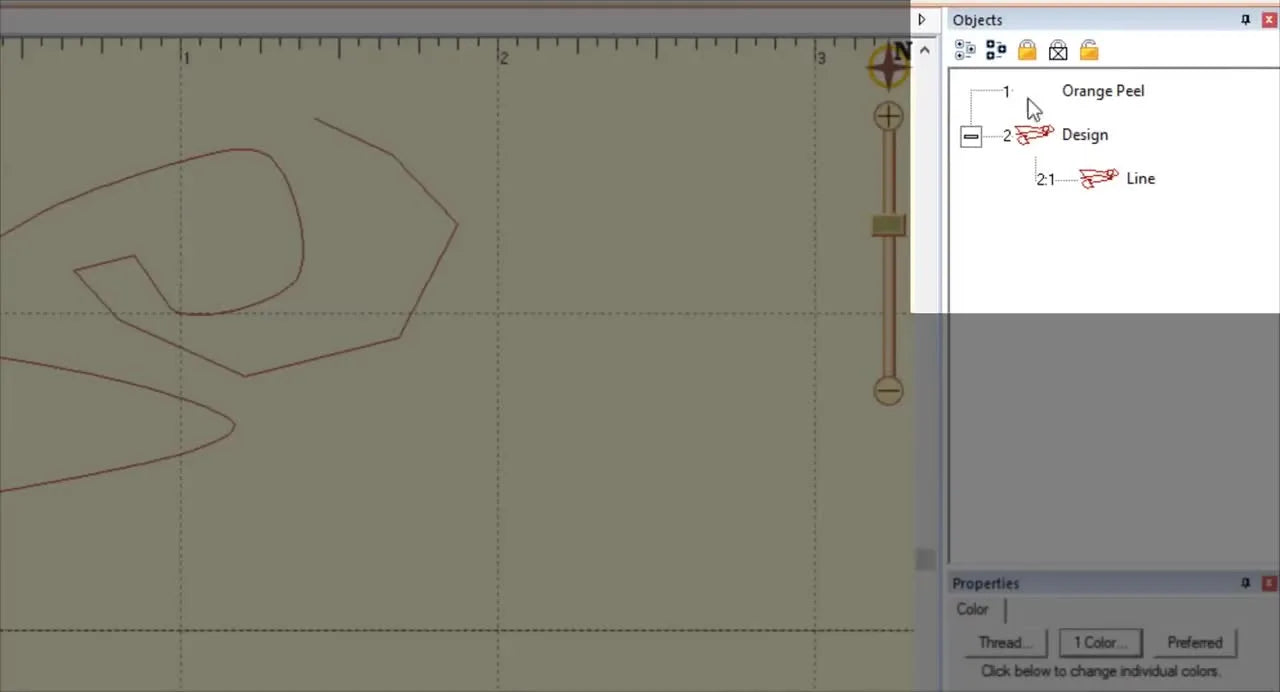

The “nothing has stitches” problem: your Object Tree is telling the truth

This is the single most important technical concept in modern digitizing.

When you draw a shape in Stitch Artist, it is just artwork. It is a vector ghost. It has no physical mass.

• You look at the screen: "I see a circle!"
• The machine sees: Nothing.
• The Object Tree lists it as: "Line" (Vector).

You must cross the bridge from "Vector" to "Embroidery." This gap is where production errors happen. If you save a file that contains only vectors, your machine will load a blank file.

Real-world application: This confusion wastes time. In a professional shop, we use a hooping station for machine embroidery to prepare garments rapidly. If the digitizer sends a file that is "all artwork, no stitches," the operator at the station has to stop, unclamp the garment, and wait for the file fix. It kills workflow momentum.

The fix (The Conversion Workflow)

1. Select: Click the vector/path object in the Object Tree.
2. Assign: Click a Stitch Type in the top toolbar (Run, Satin, or Fill).
3. Verify: Look at the Object Tree. The icon should change from a generic line to a specific stitch icon (e.g., a little zigzag for Satin).
4. Sensory Check: You should see the texture appear on the main canvas.

“Assigning stitches to stuff”: run stitch, satin stitch, motif run—and why this choice affects sew-out quality

Sue demonstrates switching types with a single click. Here is the Engineer's View on when to use which:

• Run Stitch (Single/Double/Bean):
  • Use for: Fine details, travel lines, and underlay.
  • Risk: Too many layers of run stitches in one spot can cut the fabric (cookie-cutter effect).
• Satin Stitch (Column):
  • Use for: Borders, text, and shapes between 1.5mm and 7mm wide.
  • Risk: Anything wider than 8mm-10mm will snag in the wash. Anything narrower than 1mm requires a 60wt thread and a smaller needle (75/11 or 65/9).
• Tatami/Fill Stitch:
  • Use for: Large areas (over 10mm wide).
  • Risk: High stitch count. Requires significantly more stabilizer to prevent the fabric from puckering ("barreling").


The “tight on a T-shirt” reality check (what the comments are really asking)

A YouTube commenter asked: "My T-shirt embroidery is too tight/stiff." This is the classic rookie struggle.

The "Tightness" usually comes from high Density.

• Standard Density: Embrilliance defaults to 4.0 points (0.4mm). This means there is 0.4mm between each thread line. This is standard for denim or twill.
• Knit/T-shirt Sweet Spot: For stretchy knits, 0.4mm is often too heavy—it creates a "bulletproof patch" on a soft shirt.
• The Adjustment: Select your Fill or Satin object. Go to Properties. Change density to 0.42mm or 0.45mm. This opens the spacing slightly, allowing the fabric to drape better.

Pro Tip: Do not just rely on software settings. "Tightness" is also a failure of specific physical supports. Using the wrong stabilizer allows the fabric to stretch during stitching, and when you un-hoop, it snaps back, puckering the design. (See the Decision Tree below).

Bezier curves without the spaghetti: pull handles in the direction of travel

Bezier handles control the slope of your curves. Managing them is a motor skill, like riding a bike.

The "Elastic Band" Analogy: Imagine the node is a thumbtack, and the handle is an elastic band pulling the line.

1. Rule 1: Pull the handle in the direction the line is travelling.
2. Rule 2: Never cross the handles (creating an "X"). Crossed handles create loops in the vector, which the machine interprets as "stuttering" needle penetrations. This causes thread shredding.
3. Rule 3: Keep handles short for tight curves, long for gentle slopes.


Closed shapes and fills: when Embrilliance auto-closes, it can help—or it can hide a mistake

Sue shows the "Close Shape" button. It instantly draws a straight line from your last point back to your first point.

The Trap: If you end your shape 0.5mm away from the start point and hit "Fill," the software might generate a tiny, distinct sliver of satin stitching to bridge that microscopic gap. This creates a hard lump in the embroidery. The Fix: Zoom in close (600%+). Drag your end node directly on top of your start node before clicking the Close Shape toggle to ensure a clean, seamless loop.

Setup Checklist (The "Pre-Flight" Safety Check)

• Vector-to-Thread Audit: Scroll through your Object Tree. Do you see any "Line" objects that should be "Satin" or "Fill"? Convert them now.
• Entry/Exit Point Review: Click each object. Look for the Green Bowtie (Start) and Red Stop Sign (End). Are they logical? Make sure the Red 'End' of Object A is close to the Green 'Start' of Object B to minimize long jump stitches (trims).
• Density Safety Check: Are you sewing on a T-shirt? If yes, have you lightened the density to ~0.45mm?
• Scale Verification: Put a ruler against your screen. Does the design size make sense? Sometimes we zoom in so much a 1-inch logo looks huge, and we lose perspective on detail.

The properties you saw on screen: Satin Density 4.0 points (0.4 mm) and Compensation 0.0 mm—how to interpret that safely

Sue’s screen shows Compensation: 0.0 mm. In the real world, "Pull Compensation" is non-negotiable.

The Physics of Embroidery: Thread has tension. When it stitches a column, it pulls the fabric in slightly, making the column narrower than you drew it.

• Without Compensation: Your 3mm column might sew out as 2.5mm, leaving gaps between the outline and the fill.
• The Fix: Set "Pull Compensation" (under Top Stitch tab) to 0.2mm (Minimum) or roughly 10-15%. This tells the software to "over-digitize" the width so it pulls back to the correct size.

The “Library” shortcut: using built-in shapes and AccuQuilt catalogs to practice faster

The Library is your training ground. Instead of struggling to draw a perfect heart or star, import one from the Library (click the Gear icon labeled "Merge Design").

Learning Drill:

1. Import a simple shape (e.g., Star) from the Library.
2. Convert it to a Run stitch.
3. Duplicate it.
4. Convert the copy to a Satin stitch.
5. Duplicate it.
6. Convert the copy to a Fill stitch.
7. Run the Simulator.

This drill builds the neural pathway: Input -> Assign -> Modify -> Verify.

The production-minded decision tree: from fabric to stabilizer (and when hooping tools actually matter)

A perfect digital file will still fail if your physical foundation is weak. Digitizing and Hooping must work in tandem.

Use this logic flow to make the right physical choices for your project:

Decision Tree: The Fabric-Stabilizer-Hoop Matrix

Warning: Magnet Safety. If you upgrade to magnetic frames for your multi-needle or single-needle machine, be aware: these are industrial-strength N52 magnets. They can pinch fingers severely. Warning: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards.

The “upgrade path” that doesn’t feel like a sales pitch: when tools pay for themselves

If you are doing this as a hobby, taking 20 minutes to hoop one shirt is fine. Enjoy the process.

However, if you are fulfilling orders—team jerseys, corporate polos, Etsy batches—time is your enemy.

• Pain Point: Wrist fatigue from screwing/unscrewing hoops 50 times a day.
• Pain Point: "Hoop Burn" markings that require washing/steaming to remove.
• Pain Point: Alignment errors (logos stitched crooked).

The Solution Hierarchy:

1. Level 1 (Technique): Use spray adhesive and floating techniques to speed up stabilization.
2. Level 2 (Tooling): Invest in magnetic embroidery frames. They eliminate hoop burn and "pop" onto the garment instantly. For bulk orders, combining these with a hoopmaster hooping station ensures the logo lands in the exact same spot on Shirt #1 and Shirt #100.
3. Level 3 (Capacity): If you are consistently backing up a single-needle machine, the jump to a Multi-Needle (like the SEWTECH 15-needle series) isn't just about speed—it's about not having to babysit thread colors.

The three Embrilliance mistakes that waste the most time (and how to avoid them)

Operation Checklist (The "Before You Export" Discipline)

• The Simulator Run: Watch the entire simulator run at high speed. Do you see jump stitches crossing the design? (Add tie-offs/trims). Do you see background filling over foreground? (Reorder objects in the Tree).
• Tie-Ins and Tie-Offs: Ensure every object has "Tie In" (Lock stitches) at the start and "Tie Off" at the end. Without these, your embroidery will unravel in the laundry.
• Color Sort: Go to Utility -> Color Sort. This combines identical adjacent colors to reduce unnecessary thread changes.
• Format Selection: Ensure you are exporting the correct language for your machine (DST for commercial/Tajimas, PES for Brother, JEF for Janome).

One last reassurance: if Embrilliance feels “right-brained,” that’s not a flaw—it’s a workflow you can train

Embrilliance feels different because it assumes you want creative control, not just automated robotic output. It is a "musical instrument," not a microwave.

Start small. Master the "Select -> Assign -> Adjust" rhythm. Once your digital files are clean, pair them with the right physical tools—quality stabilizers and reliable hoops—and you will see that "Consumer Level" software is capable of producing "Commercial Level" results.

FAQ

• Q: In Embrilliance Essentials + Stitch Artist Level 3, why does clicking objects select nothing and the tools feel “dead” after using the “Create Design” needle icon?
  A: This is usually a mode mismatch—toggle “Create Design” OFF to return to selection/editing.
  • Click the “Create Design” (needle/thread) icon to switch between Editor mode and Digitizing (Create) mode.
  • Watch the cursor/toolbar change before trying to select or edit anything.
  • Open the Object Tree and Properties panels so selection changes are obvious.
  • Success check: clicking an object highlights it and shows its properties; you can move/resize it without node dots.
  • If it still fails: verify the Stitch Artist module is actually installed/activated (Essentials alone is for editing, not creating).
• Q: In Embrilliance Stitch Artist, why does a shape I drew show as a vector “Line” and the embroidery simulator or machine output has no stitches?
  A: The shape is still artwork—assign a stitch type (Run/Satin/Fill) so it becomes real embroidery.
  • Select the vector/path in the Object Tree (it will be listed as “Line” when it is only artwork).
  • Click a stitch type on the top toolbar (Run, Satin, or Fill).
  • Re-check the Object Tree icon to confirm it changed from a generic line to a stitch-type icon.
  • Success check: stitch texture appears on the canvas and the simulator shows needle penetrations, not just outlines.
  • If it still fails: export a real stitch file via File → Save Stitch File (not only the working file).
• Q: In Embrilliance Stitch Artist, how do I draw straight edges for a box or geometric logo when the software keeps making wobbly curves?
  A: Hold CTRL while clicking to force line (corner) nodes instead of curve (Bezier) nodes.
  • Click normally for curve nodes when drawing organic shapes.
  • Hold CTRL + click for straight-line corners on geometric shapes.
  • Right-click to end/close the object cleanly when finished.
  • Success check: segments between points stay straight and corners look crisp at high zoom.
  • If it still fails: slow down and place fewer, cleaner points—too many nodes often makes shapes look unstable.
• Q: In Embrilliance, how do I make digitizing nodes easier to see and grab so I stop creating jagged shapes that can lead to thread breaks?
  A: Increase node visibility by raising Handle Size to about 20 pixels (~200%) in Display Settings.
  • Go to Edit → Preferences → Display Settings.
  • Set Handle Size to around 20 pixels (roughly 200%).
  • Keep Object Tree and Properties open while editing so you can confirm what you are changing.
  • Success check: nodes and handles are clearly visible and selectable without squinting or mis-clicks.
  • If it still fails: zoom in further before placing/moving points—digitizing is millimeter-level work.
• Q: In Embrilliance, why does T-shirt embroidery feel too tight or stiff, and what density setting is a safer starting point for knits?
  A: Density is often too heavy for knits—try lightening from 0.40 mm to about 0.42–0.45 mm and support the fabric correctly.
  • Select the Satin or Fill object and adjust Density in Properties to ~0.42–0.45 mm for stretchy knits.
  • Use the correct stabilizer strategy for knits (cut-away/no-show mesh is commonly required) and avoid stretching fabric while hooping.
  • Run the simulator to ensure stitch order and coverage still look correct after density changes.
  • Success check: the sewn area drapes more naturally and the design does not pucker sharply after un-hooping.
  • If it still fails: re-check hooping technique—stretching the shirt during hooping can cause recoil puckering even with correct density.
• Q: In Embrilliance Stitch Artist, why do satin columns sew out narrower than the digitized width, and what pull compensation value is a safe starting point?
  A: Thread pull is normal—add pull compensation (often around 0.2 mm minimum) so columns sew to the intended width.
  • Open the Satin object settings and find Pull Compensation under the Top Stitch tab.
  • Set Pull Compensation to about 0.2 mm as a starting point (then test-stitch and adjust as needed).
  • Check start/end points (green bowtie/red stop sign) to reduce unnecessary travel that can distort edges.
  • Success check: satin borders meet fills cleanly with fewer gaps and the column width matches the visual plan after stitching.
  • If it still fails: test on the real fabric/stabilizer combo—different materials may require small adjustments.
• Q: When test-stitching Embrilliance digitizing files, what is the safe way to handle thread trims and “hot adjustments” near the needle bar?
  A: Never put hands near a moving needle—always hit STOP before reaching into the hoop area.
  • Stop the machine completely before trimming thread, clearing a snag, or repositioning fabric.
  • Treat needle-to-hoop strikes as a real hazard; avoid “just one quick trim” while running.
  • Do a full simulator run first to catch jumps, mis-order, and trim issues before the machine runs.
  • Success check: hands only enter the needle/hoop zone when the machine is fully stopped and the needle is stationary.
  • If it still fails: pause the job, re-check design scale and object order—collisions often come from digitizing or placement mistakes.
