From PNG to PES Without Paying a Digitizer: A Clean InkStitch + Inkscape Workflow That Actually Stitches Out

The Digitizer’s Manifesto: Turning "Messy" Images into Clean Stitches with InkStitch

If you have ever downloaded a cute PNG, opened InkStitch, hit “export,” and watched in horror as your machine produced a terrifying bird’s-nest of loop-de-loops instead of a design—take a deep breath. Nothing is wrong with you. You haven't failed; you've just encountered the fundamental language barrier between pixels and thread.

Embroidery machines do not "see" pictures. They are blind robots that follow mathematical coordinates. When you feed a raw image into InkStitch, it’s like shouting instructions in a crowded room—confusing, overlapping, and messy. What’s wrong is usually the geometry: messy auto-trace paths, overlapping borders, or shapes that should be separate but are fused into one giant, density-heavy blob.

This guide rebuilds the workflow from Rowan Creates’ popular tutorial, but I am going to overlay it with 20 years of production floor experience. We aren't just going to click buttons; we are going to learn why we click them, how to set your canvas to match your physical reality, and how to verify your results using your eyes, ears, and fingertips before you ever ruin a garment.

Don’t Panic When InkStitch Says “No”: The Psychology of the Error Message

InkStitch is picky for a reason: it is trying to save your machine from destroying itself. When an embroidery machine hits a "fatal error" in a file—like zero-width columns or infinite density—it doesn't just crash the software; it can snap needles, shred thread, or throw the timing off on your hook assembly.

When InkStitch throws an error, thank it. It’s a safety mechanism.

The commenters on the original video often note that this was the "first tutorial that finally worked." That is because we aren't skipping the unglamorous part: Vector Cleaning. We must convert the pixels (dots of color) into vectors (math equations of lines and curves) that the machine can execute.

The Golden Rule of Digitizing: Treat your first export as a flight simulation, not a passenger flight. Your goal is a clean simulation and a messy test stitch on scrap fabric. Only amateurs stitch directly onto the final hoodie.

The “Hidden” Prep Pros Do Before Opening Inkscape: The Material Physics

Before we touch the mouse, we must address the physics. A digitized file is not universal; it is a set of instructions for a specific physical environment.

A viewer asked: “My artwork is offered as PNG and SVG—what should I use?”

• The Pro Answer: Always choose SVG if available. It is already a vector. It bypasses the "auto-trace" step that introduces noise and jagged edges.
• The Reality: Clients will often send you a low-res JPG. You must know how to trace it.

The "Pre-Flight" Material Check

You cannot digitize in a vacuum. You must know what you are stitching on before you place a node.

• Target Hoop Size: If you plan for a brother 4x4 embroidery hoop, you have a hard limit of 100mm x 100mm. Digitizing at 6 inches and shrinking it later will dangerously increase your stitch density, leading to needle breaks.
• Fabric Physics: Is it stable (denim/canvas) or unstable (t-shirt knit)? This determines your pull compensation (how much you "over-digitize" to account for fabric shrinking).

Hidden Consumables Checklist: To survive this tutorial, ensure you have these physical items ready:

• Scrap Fabric: Medium-weight woven cotton (like a bedsheet or quilting cotton) is the "standard truth" for testing.
• Stabilizer: Cut-away stabilizer (2.5oz or similar). Do not use tear-away for density testing; it gives false positives.
• Needles: A standard 75/11 Sharp or Ballpoint.
• Calipers (Optional but Recommended): To measure your actual stitch width versus screen width.


Match Inkscape Document Properties to Your Hoop (The "Container" Principle)

In the video, the first concrete step is setting the canvas to match the physical hoop area. This is critical for spatial awareness.

1. Open File > Document Properties.
2. Set the Units to Inches (or mm if you prefer, but know your hoop limits).
3. Set the width and height to 4.00 x 4.00 (for a standard 4x4 hoop).
4. Remove the "Checkerboard background" if it distracts you.

This prevents the "Scale of Regret." If you digitize a design to fill a computer screen, you might be creating a 10-inch design. When you shrink that down to 4 inches for a brother embroidery machine, the stitch count doesn't always reduce proportionally, resulting in a bulletproof, stiff patch of thread.

Import and Scale the Bitmap: The "Control Key" Discipline

Rowan imports the seagull image. Here is the habit you must burn into your muscle memory:

Never scale an image without constraints.

1. File > Import your image.
2. Zoom out using Control + Mouse Wheel.
3. Select the image.
4. HOLD THE CONTROL KEY while dragging the corner arrow.

If you skew the artwork (stretching it wider or taller), circles become ovals. In embroidery, a skewed circle isn't just ugly; it changes the angle of the thread, which changes how light reflects off it. We want to maintain the integrity of the original art.

Trace Bitmap: Converting "Dots" into "Shapes"

Auto-tracing is a blunt instrument, but it’s the fastest way to start. We use the Multicolor function to separate the image into layers of color.

1. Select your image.
2. Go to Path > Trace Bitmap.
3. Choose the Multicolor tab.
4. Set Detection Mode to Colors.
5. The "Sweet Spot" Adjustment: Watch the preview window. Increase the "Scans" number strictly until the details appear (e.g., the beak separates from the face). Do not go higher than necessary.

Expert Insight: Every extra "Scan" creates a new layer of vector paths. If you select 20 scans for a 3-color image, you are creating 17 layers of invisible junk that InkStitch will try to turn into thread. Keep this number as low as possible.

Layer Hygiene: Lock the Raster to Save Your Sanity

You now have two things on your canvas: the original "dumb" picture and the new "smart" vector group. They are sitting exactly on top of each other.

1. Open Object > Layers and Objects.
2. Find the original image (usually at the bottom of the stack).
3. Click the Eye Icon (Hide) and the Lock Icon.

This creates a safety barrier. You cannot accidentally click, drag, or edit the source image. You represent the "Source of Truth," and the vector is now your "Work in Progress."

The "Troubleshoot" Loop: InkStitch’s Diagnostic Tool

Before we edit nodes, we run a diagnostic. This is like plugging a car into a computer before picking up a wrench.

• Extensions > InkStitch > Troubleshoot > Troubleshoot Objects

You will likely see errors. The most common is “Borders crossing themselves.”

What this means physically: The vector line twists like a figure-8. The machine cannot physically stitch a figure-8 zero-width line without creating a knot.

InkStitch generates a "Troubleshoot" layer with text and arrows pointing to errors.

• The Trap: Beginners try to fix the arrows.
• The Fix: Delete the troubleshoot layer entirely. Now look at the geometry where the arrow was pointing. You will usually find a tiny loop or a twisted node. That is what needs surgery.


Warning: The "Delete-Happy" Risk. When editing nodes, do not just spam the Delete key. Removing a structural node (a corner) can collapse a shape. If a shape collapses, the software may recalculate the fill direction to be random, leading to long "jump stitches" that ruin the fabric.

Break Apart Fill Objects: The "Exploding" Technique

A common frustration: "I tried to edit the beak, and the whole bird deleted!"

This happens because the trace created a Compound Path. The beak, eye, and legs are chemically bonded into one "object" in the software's mind.

1. Select the bird.
2. Extensions > InkStitch > Tools: Fill > Break Apart Fill Objects.

Visual Check: Look at your Objects panel. What was once "Path 345" has now exploded into "Path 346, Path 347, Path 348."

Action: Immediately rename them. Click "Path 346" -> type "Beak". Click "Path 347" -> type "Eye". If you do not name your layers, you will be lost in a sea of data within 10 minutes.

Visibility Tricks: High Contrast Mode

Rowan deletes the background path (the square bounding box) because we don't want to stitch a white square on a white shirt.

But now, we have a white seagull on a white Inkscape canvas. Invisible.

1. File > Document Properties.
2. Change Background Color to a Checkerboard or a high-contrast Grey.

This is not just for looks. You need to see the edges. Fuzzy white edges on a white background hide "micro-nodes"—tiny stray points that cause the machine to slow down and create thread knots.

Node Surgery: Delete Noise, Keep Structure

This is the difference between an amateur file and a pro file.

Zoom in on the wing. You will see hundreds of tiny diamonds (nodes).

• Noise: Clusters of 5-10 nodes in a straight line.
• Structure: The single node at the sharp corner of the wing tip.

The Technique:

1. Select the Node Tool (F2).
2. Drag a box around the "Noise" nodes along a smooth edge.
3. Press Delete (or Backspace).
4. The line will smooth out.
5. Stop when you hit a corner.

Why this matters: Every node is a coordinate the machine must process. Fewer nodes = smoother curves and cleaner machine movement (less vibration).

The "Green Light": Validating Shapes

After cleaning, run Troubleshoot Objects again.

You are looking for the holy grail of messages: “All selected shapes are valid.”

Do not proceed until you see this. If you export a file with known errors, you are asking the machine to guess. Machines are bad guessers. They guess by making knots.

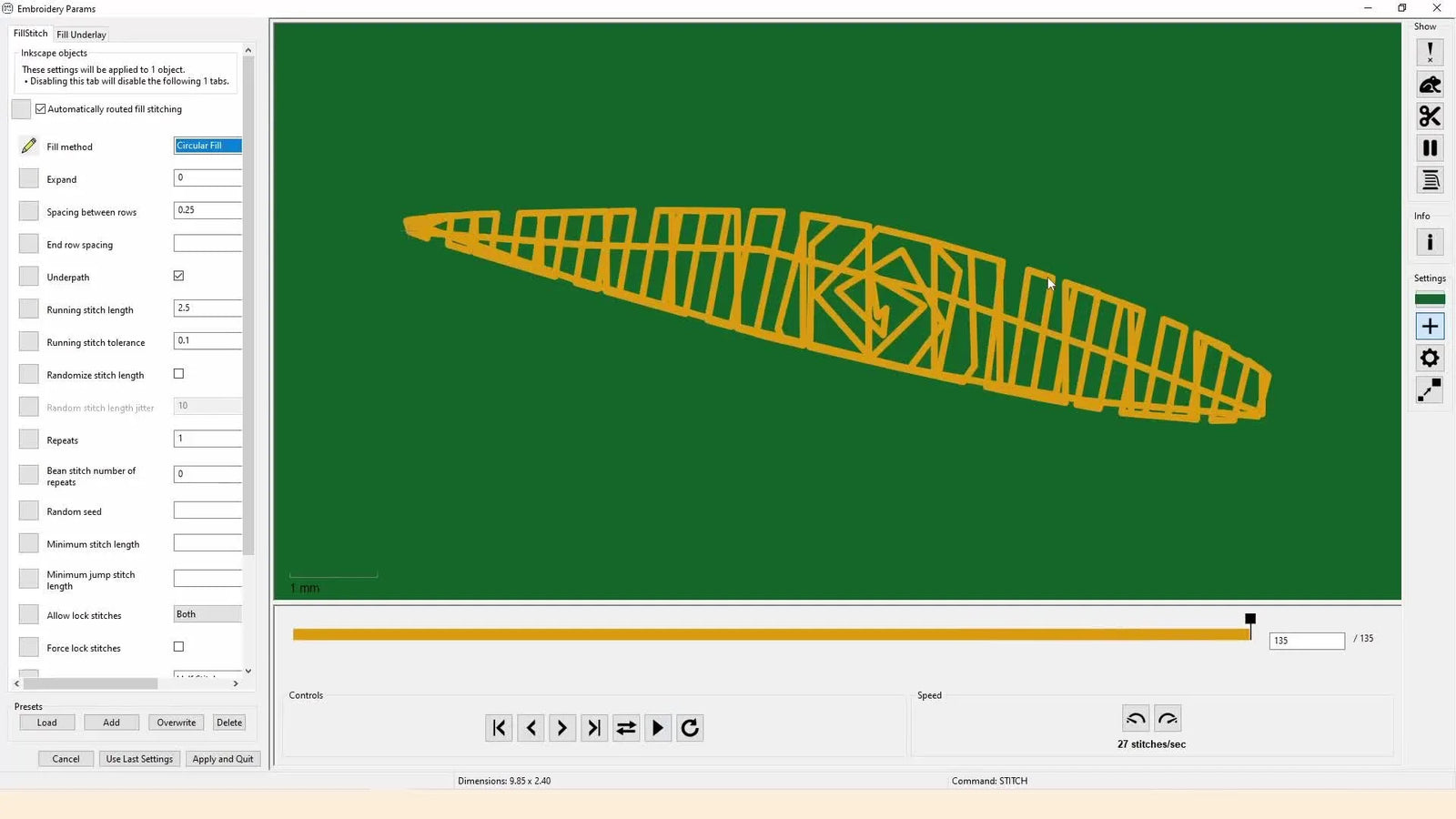

Parametrization: Turning Shapes into Textures

Now we apply the "physics" of thread.

The Eye (Circular Fill)

A standard fill goes left-right-left-right. On a tiny circle (like an eye), this looks blocky and square.

1. Select the Eye.
2. Extensions > InkStitch > Params.
3. Change Fill Method to Circular Fill.

Sensory Check: Look at the simulation. Does the thread spiral out from the center? This mimics the reflection of a real eye.

The Beak (Contour Fill)

1. Select the Beak.
2. Params > Contour Fill.

The Data Behind the Settings: In the Params window, you will see numbers. Here is your Beginner Safety Zone:

• Density (Spacing between rows): Default is 0.25mm.
  • For Standard Fabric: 0.25mm is safe.
  • For Thick Canvas: You can go to 0.20mm for solid coverage.
  • For Thin T-Shirts: Increase to 0.30mm to prevent bulletproof stiffness.
• Running Stitch Length: Default is 2.5mm. Keep this. Anything lower than 1.5mm causes thread breakage; anything higher than 4.0mm creates loops that snag on buttons.


Exporting: The Translation to Machine Language

1. File > Save As.
2. Choose the format your machine speaks.
   • Brother: .PES
   • Janome: .JEF
   • Bernina: .EXP
3. Crucial Step: Save the SVG first. The SVG is your "source code." The PES is just the "compiled program." You cannot easy edit a PES file; you must edit the SVG and re-export.


The Physical Interface: Hoop, Stabilizer, and Safety

You have a perfect file. Now you can still ruin it with bad mechanics. This is where the digital meets the physical.

Decision Tree: The "Hoop Burn" Dilemma

One of the biggest frustrations for beginners is Hoop Burn—that crushed ring of fabric left by standard plastic hoops. This happens because you are fighting to get "drum tight" tension.

The Solution Ladder:

1. Level 1 (Technique): Use "floating" technique (hoop the stabilizer, stick the fabric on top). Messy, but works.
2. Level 2 (Tool Upgrade): Switch to high-quality magnetic embroidery hoops. These use magnets to clamp the fabric without crushing the fibers. They allow for faster adjustments and zero "burn."
3. Level 3 (Production): If you are doing 50 shirts a day, standard hoops are a bottleneck. hooping station for embroidery machine setups combined with magnetic frames are the industry standard for speed.

Safety Warning (Magnets): If you upgrade to a brother magnetic hoop 4x4 or similar, be aware: these magnets are industrial strength.
* Pinch Hazard: They can snap together with enough force to bruise fingers.
* Medical Risk: Keep powerful magnetic hoops at least 6 inches away from pacemakers or insulin pumps.

Stabilizer Selection Cheat Sheet

• Stretchy Fabric (T-shirts): Cut-Away Stabilizer (Must encompass the design).
• Stable Fabric (Denim/Towels): Tear-Away is acceptable, but Cut-Away is always safer.
• Topper: If the fabric has "fluff" (towels, velvet), use a Water Soluble Topper (Solvy) to keep stitches from sinking in.

Setup Checklist: The "Pilot's Walkaround"

Perform these checks before pressing the green button.

• Needle Check: Is the needle straight? Run your fingernail down the tip—if it catches, it has a burr. Replace it.
• Bobbin Check: Is your bobbin full? Running out mid-design is a nightmare on beginners' machines.
• Thread Path: Re-thread the machine. Ensure the thread is seated deep in the tension disks. Use the "Dental Floss" technique—pull the thread back and forth to ensure it feels tight.
• Hoop Alignment: Confirm the design is centered. Use the machine's "Trace" or "Trail" button to see the needle run the perimeter of the design.

Operation Checklist: The Sound of Success

Press start. Do not walk away.

• 0-30 Seconds: Listen.
  • Good Sound: A rhythmic thump-thump-thump. Solid and low-pitched.
  • Bad Sound: Clack-clack-clack (Plastic hitting plastic) or High-pitched whining. Stop immediately.
• Visual Check: Watch the thread feed. Is it jerking? Or flowing smooth?
• Touch: Place your hand gently on the table (not the machine arm). Do you feel excessive vibration?

When to Upgrade: From Hobbyist to Professional

As you master digitizing, you will hit limits.

• The Limit of Friction: If you spend more time hooping than stitching, the hoopmaster hooping station is the industry solution.
• The Limit of Needles: If you are tired of manually changing thread colors for every seagull beak and eye, you have outgrown the single-needle machine. This is the moment to look at multi-needle solutions like SEWTECH or Ricoma, which automate color changes and allow for faster production speeds.

Troubleshooting: The "Why is it Ugly?" Table

Digitizing is a journey of iteration. Your first seagull might look like a pigeon that hit a window. That is okay. Check your nodes, check your stabilizer, check your machine sound, and try again. The perfect stitch is just one parameter adjustment away.

FAQ

• Q: What should a beginner prepare before digitizing in InkStitch for a Brother 4x4 hoop test stitch?
  A: Prepare the same “physical test kit” every time, because InkStitch settings only make sense when the fabric and stabilizer are consistent.
  • Use scrap medium-weight woven cotton as the test fabric.
  • Hoop with cut-away stabilizer (about 2.5oz); avoid tear-away for density testing because it can hide problems.
  • Install a 75/11 sharp or ballpoint needle and keep it consistent during testing.
  • Success check: the test stitch on scrap fabric looks similar to the simulator and does not feel “bulletproof” or overly stiff.
  • If it still fails, re-check stitch density and clean the traced vectors (extra scans and noisy nodes often create density-heavy blobs).
• Q: How do Inkscape Document Properties prevent wrong sizing for a Brother embroidery machine 4x4 hoop?
  A: Set the Inkscape canvas to the exact hoop size so the design is built inside the real physical boundary from the start.
  • Open File > Document Properties and set units (inches or mm) to match how the hoop is measured.
  • Set width and height to 4.00 x 4.00 for a 4x4 hoop plan.
  • Digitize inside that canvas instead of resizing later, because shrinking a big design can push stitch density too high.
  • Success check: the design fits fully inside the 4x4 page area without “surprises” at the edges.
  • If it still fails, re-check the final exported size on the machine screen before stitching and do a perimeter trace/trail.
• Q: How can InkStitch “Troubleshoot Objects” fix the InkStitch error message “Borders crossing themselves” before exporting a PES file?
  A: Run InkStitch’s diagnostic first, then fix the actual geometry where the arrow points—do not edit the troubleshoot arrows.
  • Go to Extensions > InkStitch > Troubleshoot > Troubleshoot Objects to generate the error markers.
  • Delete the troubleshoot layer after locating the problem area, then zoom in and remove the tiny loop/twisted node causing the self-crossing.
  • Re-run Troubleshoot Objects until InkStitch reports that the shapes are valid.
  • Success check: the troubleshoot result shows “All selected shapes are valid.”
  • If it still fails, simplify the traced artwork (reduce Trace Bitmap scans and remove micro-nodes on smooth edges).
• Q: Why does editing a traced bitmap in InkStitch delete the whole design, and how does “Break Apart Fill Objects” prevent that?
  A: The trace often creates a compound path, so one edit can affect everything; break the fill objects into separate paths before node edits.
  • Select the traced object and run Extensions > InkStitch > Tools: Fill > Break Apart Fill Objects.
  • Rename the exploded paths (for example: “Beak,” “Eye,” “Leg”) immediately to avoid editing the wrong part.
  • Edit nodes only on the specific part that needs cleanup, not the entire compound shape.
  • Success check: the Objects panel shows multiple separate paths, and editing the beak does not change the wing.
  • If it still fails, undo and re-check whether the correct object is selected and the source raster layer is locked.
• Q: How do embroidery “bird nesting” loops happen on a Brother embroidery machine, and what is the fastest fix?
  A: Bird nesting is usually top thread not seated correctly or top tension too loose—re-thread completely with the presser foot up.
  • Raise the presser foot, then re-thread the entire top path so the thread seats in the tension disks.
  • Confirm the thread passes the take-up lever correctly (missing it is a common cause of loops).
  • Do a short test stitch on scrap fabric before restarting the full design.
  • Success check: stitches lock in the middle of the fabric/stabilizer stack and the underside is not a pile of loose loops.
  • If it still fails, stop and check bobbin seating and lint in the bobbin area before increasing tension further.
• Q: What does “white bobbin thread showing on top” mean on a Brother embroidery machine, and what should be adjusted first?
  A: White bobbin showing on top usually means top tension is too tight or the bobbin is not seated correctly—start by easing top tension and checking the bobbin area.
  • Reduce top tension slightly rather than making big jumps.
  • Remove and re-seat the bobbin and clean lint from the bobbin case area.
  • Re-thread the top path to ensure the thread is routed correctly.
  • Success check: the top surface shows mostly top thread color, with bobbin thread not pulling up to the face of the design.
  • If it still fails, test again on stable scrap fabric with cut-away stabilizer to remove fabric variables.
• Q: What safety risks come with a Brother magnetic hoop 4x4, and how can magnetic embroidery hoops be handled safely?
  A: Magnetic hoops clamp with industrial force, so treat them like a pinch hazard and keep them away from medical devices.
  • Keep fingers clear when magnets snap together; separate and place magnets deliberately rather than letting them “jump” closed.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Store magnets so they cannot slam into tools or each other.
  • Success check: magnets are installed without finger pinches and the hoop closes in a controlled way.
  • If it still fails, pause and change handling technique—rushing magnetic placement is a common cause of injuries and mis-hooping.
