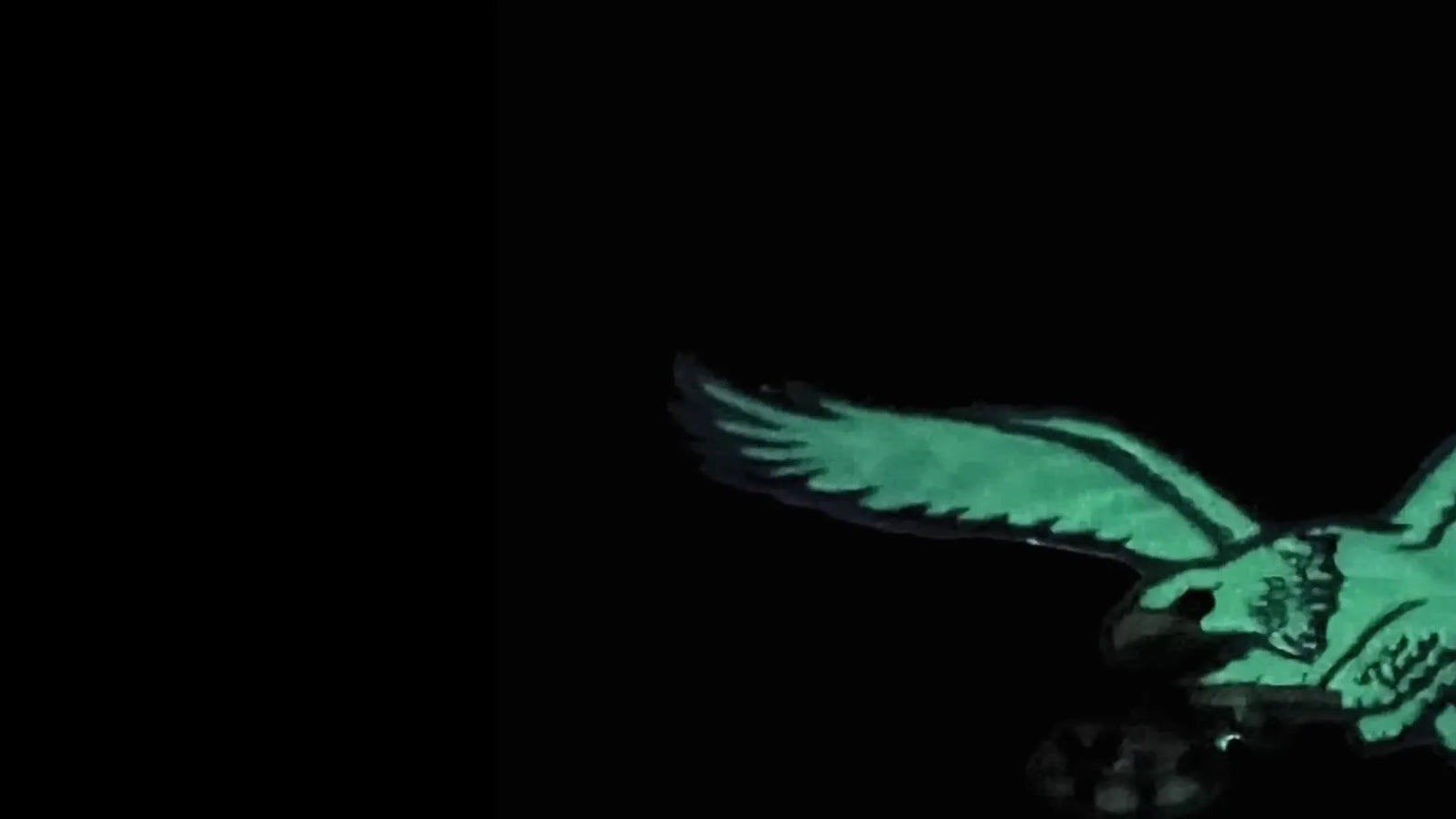

Glow-in-the-Dark Velvet Appliqué on the Smartstitch S1001: The Magnetic Hoop “Float” Method That Actually Stitches Clean

If you have ever watched a glow appliqué stitch-out and thought, “That looks amazing… but my polo will shift, my satin will sink, and I’ll ruin the shirt when I trim,” you are not overthinking it—you are thinking like a professional who has paid for their mistakes.

Machine embroidery is a discipline of physics and friction. When we introduce a stretchy knit polo, a plush velvet appliqué, and a high-speed needle, we are inviting chaos. But with the right engineering controls, we can turn that chaos into a premium product.

This guide rebuilds the workflow of a luminous velvet appliqué on a black polo using a multi-needle machine (like the Smartstitch S1001). We will move beyond the video’s speed-run and slow down to the production reality. I will outline the specific sensory cues (what to hear and feel), the safety margins for speed, and the critical “pre-flight” checks that keep your garments safe and your edges sharp.

Calm the Panic First: What This Smartstitch S1001 Appliqué Is (and Why It Works on a Polo)

The stitch-out shown represents about 14,000 stitches and roughly 35 minutes of run time. The machine in the demonstration is likely using a Needle #11 or #12 (75/11 Ballpoint is recommended for knits), and the run speed hits 750 SPM (Stitches Per Minute).

The Expert Reality Check: Those numbers matter. Polos are stable enough for commercial speeds, but only if your hooping and stabilization create a rigid foundation. If you are a beginner, 750 SPM is too fast for the tricky tack-down phase.

The "Sweet Spot" Strategy:

• Run Speed: Dial it back to 500-600 SPM for the placement and tack-down. You need precision, not speed, when the fabric is at risk of shifting. You can ramp up to 750 SPM for the final satin borders once the fabric is secure.
• The Physics: We are sandwiching stable mesh, stretchy knit, and plush velvet. The goal is to float the shirt so we don't stretch it, while using the stabilizer to bear the mechanical load.


The “Hidden” Prep Pros Do: Luminous Velvet + No-Show Mesh + Bobbin Choices That Prevent Rework

Before you even look at the machine, you must win the battle at the prep table. Most failures happen here, not under the needle.

Material Audit:

• Garment: Black polo shirt (Knit/Pique).
• Appliqué: Blue luminous velvet (requires a "Topper" so stitches don't sink).
• Stabilizer: Two layers of No-Show Mesh (Polymesh). Expert Note: One layer is rarely enough for a 14k stitch count on a knit. Two layers prevent the design from distorting after the first wash.
• Adhesion: Double-sided embroidery tape (or temporary spray adhesive).
• Topping: Water-soluble film (Solvy).
• Tools: Curved appliqué scissors (Duckbill scissors are safer for beginners).

The Consumable Logic: If you are chasing consistent tension on commercial runs, do not mix thread brands. Use a specialized polyester embroidery thread (like Simthread). Also, ensure your bobbin tension is calibrated—when you pull the bobbin thread, it should feel like the slight resistance of pulling a spiderweb, not a stuck zipper.

If you find yourself constantly fighting hoop marks ("hoop burn") or struggling to get consistent tension, this is where a magnetic hooping station can quietly change your day. By standardizing the force applied to the hoop, you eliminate the "human variable" of over-tightening screws.

Prep Checklist (Complete BEFORE Hooping):

• Needle Check: Are you using a Ballpoint (BP) needle? Sharp needles can cut knit fibers, leading to holes that appear after the customer washes the shirt.
• Stabilizer Count: Confirm you have two layers of mesh cut 2 inches larger than the hoop on all sides.
• Velvet Sizing: Pre-cut your velvet square 1 inch larger than the design. Don't try to use a massive bolt of fabric at the machine.
• Scissor Test: Are your curved scissors sharp? Damp fabric folds under dull blades, causing accidents.


Snap-In Success: Hooping Two Layers of No-Show Mesh in a Rectangular Magnetic Embroidery Hoop Without Ripples

In the video, the stabilizer is placed over the bottom magnetic frame, and the top frame snaps down. It looks easy, but there is a tactile technique to getting it right.

The Goal: You want the stabilizer to sound like a drum skin when tapped. If it sounds like a dull thud or feels spongy, your outline will not line up with your satin stitch.

The "Standardized" Magnetic Method:

1. Place the bottom frame on a flat surface.
2. Lay two layers of no-show mesh over it. Smooth them out with your palms.
3. Hover the top magnetic frame over the bottom to align the corners.
4. The "Click": Let the magnets snap down.
5. The "Pull": Gently tug the exposed mesh edges outward. Do not distort the mesh grid; just remove the slack.

If you are using a magnetic embroidery hoop for production, this process becomes much faster because the magnets hold the tension automatically without you needing to tighten a screw while holding the fabric. This reduces hand fatigue significantly on large orders.

Warning: Pinch Hazard. Magnetic frames are incredibly strong. Keep your fingers clear of the contact zone when snapping them shut. If you have a pacemaker, consult your doctor before handling industrial magnetic hoops.

Touchscreen Setup on Smartstitch S1001: Load from USB, Rotate 90°, and Lock Your Color Sequence Before You Stitch

The digital setup is your safety net. The video demonstrates loading the design, rotating it 90 degrees, and manually assigning colors.

Why Rotate? Most rectangular hoops are wider than they are tall relative to the operator. If you don't rotate the design on the screen, you will likely stitch the eagle sideways across the chest—a fatal error.

The Sequence Discipline:

1. Placement Line (Run Stitch): Assign a color you can see on the white stabilizer (e.g., Red).
2. Stop Command: The machine must stop here.
3. Tack-Down (Run Stitch): Assign a matching color.
4. Stop Command: The machine must stop here for trimming.
5. Satin/Detail: Final colors.

Expert Tip: On commercial machines like the Smartstitch or SEWTECH multi-needles, ensure you have programmed the "Frame Out" (or preset stop position) so the hoop moves toward you for the trimming stage. Trimming while reaching under the needle bars is dangerous and inaccurate.

The Placement Stitch Trick: Mark the Appliqué Zone on Stabilizer First So Your Polo Doesn’t Drift

Press start. The machine will stitch a rectangular box (or the shape of the bird) directly onto the bare stabilizer.

This is your "Truth Box." It tells you exactly where the design will live.

• Visual Check: Is the box centered in the hoop?
• Tension Check: Look at the stitch quality. Is the bobbin thread pulling up? If yes, adjust tension now before the expensive shirt is involved.


The Tape-Float Method on a Polo Shirt: Center Marking, Inside-Out Handling, and Zero-Wrinkle Smoothing

We are not hooping the shirt. We are "floating" it. This is the gold standard for knits because it prevents "hoop burn" (the shiny ring marks left by clamping frames).

The Workflow:

1. Apply Tape: Place strips of double-sided embroidery tape along the outside perimeter of your stitched "Truth Box."
2. Invert: Turn the polo shirt inside out. This keeps the bulk of the fabric away from the needle arm.
3. The Alignment: Locate the center mark on your polo (prep this with chalk or a water-soluble pen beforehand). Align it with the center of your stitched box.
4. The Smooth: Press the shirt onto the tape. Use a flat hand motion, moving from the center outward.

Sensory Check: Do not stretch the knit fabric like pizza dough. Just smooth it like you are ironing a bedsheet. If you stretch it now, it will snap back later, creating unsightly puckers around the embroidery.

This workflow is the primary reason professionals adopt the floating embroidery hoop technique—it separates the stabilization mechanics from the fabric handling.

Warning: Adhesive Drag. Double-sided tape can sometimes gum up the needle if stitched through repeatedly. If you hear a "popping" sound as the needle exits the fabric, clean the needle with alcohol or swap it out.

Appliqué Placement: Center the Luminous Velvet Square So the Tack-Down Has Full Coverage

Now, lay your pre-cut square of luminous velvet over the target area on the shirt.

Expert Nuance: Ensure the pile direction (the "grain" of the velvet) runs vertically (up and down). If you place it sideways, the light will hit it differently, making the color look inconsistent compared to other shirts in the order.

The Stop-and-Trim Moment: Tack-Down Stitching, Safe Pausing, and Cutting Velvet Without Nicking the Polo

Run the Tack-Down stitch. The machine will sew the outline of the bird to secure the velvet to the shirt.

The "Surgeon's Moment": The machine stops. The hoop moves out. Now you must trim the excess velvet.

1. Lift: Pull the excess velvet gently up and away from the stitches.
2. Snip: Slide your curved scissors flat against the fabric. The curve should face up (like a smile), keeping the sharp points away from your polo.
3. Margins: Aim to cut about 1mm to 2mm away from the stitch line. Do not cut flush to the thread—the satin stitch needs a little fabric lip to grab onto.

If you cut the polo shirt here, the project is dead. Take your time. Professional operators might do this in 20 seconds; beginners should take 2 minutes.

Velvet Satin That Doesn’t Sink: Add Water-Soluble Topping Before the Final Stitching Pass

Do not skip this step. Velvet eats stitches. If you sew satin directly onto velvet, the threads will disappear into the fluff, looking jagged and thin.

The Fix: Lay a piece of water-soluble topping (Solvy) over the entire appliqué area. You don't need to tape it; just wet your finger slightly and touch the corner to the stabilizer—it will stick.

Now, run the final satin borders and logic details. The topping acts like a snowshoe, holding the stitches on top of the velvet pile.

Watch the Machine Like a Mechanic: Tension Clues, Sound Changes, and Why 750 SPM Isn’t Always Your Friend

As the machine runs the final 10 minutes of satin stitching, use your senses.

• Listen: A rhythmic "thump-thump-thump" is healthy. A sharp "slap" or "clack" usually means the thread is catching on the cone or the needle is dull.
• Watch: Look at the path of the thread. Is it vibrating excessively?
• Speed Control: If you see the shirt bouncing (flagging) up and down with the needle, slow down. Reduce speed to 600 SPM. Flagging causes skipped stitches and broken needles.

Operation Checklist (Run-Time):

• Topping Security: Ensure the topping hasn't shifted and exposed raw velvet.
• Bobbin Alert: Keep an eye on your bobbin monitor. Running out of bobbin thread in the middle of a satin column leaves a visible seam when you restart.
• Garment Clearance: Ensure the back of the shirt isn't bunched up under the hoop. Stitching the front of the shirt to the back of the shirt is the most common rookie mistake.


Clean Finish, Clean Back: Peeling Topping and Trimming Stabilizer Without Weakening the Knit

Once the run is done:

1. Remove Topping: Tear away the large chunks of water-soluble film. Small bits will dissolve with a dab of water or a steam iron.
2. Un-Hoop: Release the magnets.
3. Trim Stabilizer: Turn the shirt over. Trim the No-Show Mesh/Cutaway stabilizer. Leave a smooth, rounded margin of about 0.5 inches around the design.
   • Why? If you cut it too close (square edges), the stabilizer will scratch the wearer's skin. Round edges are softer.


Decision Tree: Polo Fabric + Appliqué Material → Stabilizer and Topping Choices That Reduce Puckers

Use this logic to navigate future projects:

1. Is the base fabric a Knit (Polo/T-shirt)?

• YES: You Must use Cutaway or No-Show Mesh. Tearaway will fail and cause puckering.
• NO (Denim/Canvas): You can use Tearaway (2 layers).

2. Is the Appliqué fabric High-Pile (Velvet/Fleece/Terry)?

• YES: You Must use a Water-Soluble Topping.
• NO (Cotton/Twill): Topping is optional but recommended for crisp text.

3. Is your production volume high (10+ shirts)?

• YES: Consider floating with magnetic frames for embroidery machine. The time saved on screwing/unscrewing hoops pays for the upgrade in one job.


Troubleshooting the “Scary” Stuff: Shifting, Puckers, Ugly Satin, and Trim Accidents

Even masters have bad days. Here is your structured recovery plan.

Symptom: White gaps visible between the velvet and satin border.

• Analysis: The velvet shifted during the tack-down, or you trimmed too aggressively.
• The Fix: Use a matching fabric marker to color in the white stabilizer gap. In the future, use more tape or slow the machine down during tack-down.

Symptom: The shirt is puckering around the design (The "Halo" Effect).

• Analysis: The shirt was stretched during the hooping/floating process. When released, it snapped back.
• The Fix: Steam the area heavily; sometimes the fibers will relax. Next time, do not pull the knit fabric—only smooth it.

Symptom: Satin stitches look "rough" or "saw-toothed."

• Analysis: Tension is too tight, or no topping was used.
• The Fix: Loosen top tension slightly. Ensure you are using water-soluble topping.

Symptom: Needle breaks repeatedly on the adhesive tape.

• Analysis: The needle is gummed up or heat is melting the glue.
• The Fix: Use a Titanium-coated needle (resists glue) or wipe your needle with an alcohol pad every 5 shirts.

The Upgrade Path That Makes This Profitable: Faster Loading, Less Rework, and Safer Hands

This project demonstrates that professional embroidery is 20% art and 80% process management.

If you find yourself bottlenecked by the physical struggle of hooping, or if your wrists ache after a 50-shirt order, it is time to look at your infrastructure.

• For Consistency: An embroidery hooping station ensures that every logo is placed in the exact same spot on every shirt size (S to XXL), reducing the mental load of measuring.
• For Speed: Upgrading to magnetic embroidery hoops isn't just a luxury; it's a safety feature for your garments. They reduce "hoop burn" rejects and allow you to float garments faster than traditional screws allow.
• For Scale: If you are running these caps and polos on a single-needle machine, you are losing money on thread changes. A multi-needle platform (like the SEWTECH commercial line) allows you to queue this 14-step color change and walk away to prep the next hoop.

Final Safety Check: Before you ship, run your hand over the inside of the embroidery. If the backing feels rough, trim the corners again. Comfort is why customers come back.

By respecting the physics of the fabric and using the sensory checks outlined here—listening for the drum-tight hoop, feeling for the smooth float—you turn a "risky" velvet appliqué into a repeatable, profitable standard in your shop.

FAQ

• Q: What run speed should a Smartstitch S1001 multi-needle embroidery machine use for polo appliqué placement and tack-down to prevent shifting?
  A: Slow the Smartstitch S1001 down to 500–600 SPM for placement and tack-down, then only speed up after the fabric is fully secured.
  • Set speed to 500–600 SPM for the placement line and tack-down run stitch.
  • Increase up to 750 SPM only for the final satin borders once the appliqué is locked in.
  • Success check: The polo should not “bounce/flag” up and down under the needle, and the outline should stay perfectly aligned.
  • If it still fails: Add more holding support (tape placement) and re-check stabilizer layers before changing any tension.
• Q: How do I know two layers of No-Show Mesh (Polymesh) stabilizer are hooped correctly in a rectangular magnetic embroidery hoop without ripples?
  A: Hoop two layers and aim for “drum-tight” stabilizer tension—flat, crisp, and not spongy.
  • Lay two layers over the bottom magnetic frame and smooth outward with palms.
  • Snap the top frame down, then gently tug exposed mesh edges outward to remove slack (do not distort the mesh grid).
  • Success check: Tapping the hooped stabilizer should sound like a drum skin (not a dull thud), and the surface should look ripple-free.
  • If it still fails: Re-seat the frame on a flat table and re-snap; if the mesh keeps feeling spongy, replace the cut pieces with fresh, un-stretched stabilizer.
• Q: What needle type should be used for embroidering a knit polo on a Smartstitch S1001 to reduce post-wash holes?
  A: Use a ballpoint needle (often 75/11 ballpoint for knits is a safe starting point) to avoid cutting knit fibers.
  • Install a Ballpoint (BP) needle before stitching any placement line on the stabilizer.
  • Avoid sharp-point needles on knits because holes may appear after washing.
  • Success check: The placement stitches form cleanly without visible fiber cutting or runs around needle penetrations.
  • If it still fails: Confirm the correct needle system per the Smartstitch S1001 manual and swap to a fresh needle (dull needles can also cause damage).
• Q: How can I check bobbin/top tension before attaching a black polo shirt to avoid ugly satin and rework on a Smartstitch S1001 appliqué job?
  A: Stitch the placement line onto bare stabilizer first and use that as the tension “truth test” before the garment touches the hoop.
  • Run the placement line on stabilizer only, then inspect immediately.
  • Adjust tension if bobbin thread is pulling up during this test stage.
  • Use consistent embroidery thread supply (do not mix thread brands in production runs).
  • Success check: The placement line looks even and stable on the stabilizer with no obvious bobbin pull-up.
  • If it still fails: Re-check bobbin setup/tension calibration per the machine manual and confirm the thread path is not snagging or vibrating excessively.
• Q: How do I float a knit polo shirt on a magnetic hoop using double-sided embroidery tape to prevent hoop burn and puckering?
  A: Float the polo (do not clamp the knit) by taping outside the stitched placement box and smoothing—never stretching—the fabric into position.
  • Apply double-sided embroidery tape around the outside perimeter of the stitched placement (“truth box”) on the stabilizer.
  • Turn the polo inside out to keep bulk away from the needle arm, then align the garment center mark to the box center.
  • Smooth from the center outward with a flat hand motion (do not pull the knit).
  • Success check: The shirt lies wrinkle-free and relaxed (not stretched), and the fabric does not creep when lightly brushed.
  • If it still fails: Reduce stretching during placement and use more tape support; if adhesive drag starts, clean/swap the needle.
• Q: How do I trim luminous velvet appliqué after tack-down without cutting a polo shirt on a Smartstitch S1001 multi-needle embroidery machine?
  A: Pause at the tack-down stop, frame the hoop out toward you, and trim 1–2 mm outside the stitch line using curved appliqué scissors.
  • Program/use “Frame Out” (or a safe stop position) so trimming happens toward the operator, not under the needle bars.
  • Lift excess velvet up and away, then keep curved scissors flat with the curve facing up to protect the polo.
  • Leave a 1–2 mm margin; do not cut flush to the tack-down stitches.
  • Success check: No base garment nicks, and a small velvet “lip” remains for the satin border to cover cleanly.
  • If it still fails: Slow down and take more time; beginners should budget minutes, not seconds, for safe trimming.
• Q: What should I do if satin stitches sink or look rough on velvet appliqué when embroidering a polo on a Smartstitch S1001?
  A: Add water-soluble topping over the velvet before the final satin pass, and only then fine-tune tension if needed.
  • Cover the appliqué area with water-soluble film topping before stitching satin borders/details.
  • Lightly tack the topping corner so it doesn’t shift during the run.
  • If satin still looks saw-toothed, loosen top tension slightly (a safe starting adjustment) and re-test.
  • Success check: Satin columns sit on top of the velvet pile with crisp edges instead of disappearing into the fluff.
  • If it still fails: Slow the machine if fabric is flagging, verify the topping stayed in place, and re-check thread path for snags or “clacking/slapping” sounds.
• Q: What magnetic embroidery hoop safety precautions should be followed to avoid finger injuries and other risks during snap-in hooping?
  A: Treat magnetic hoops as pinch-hazard tools and keep fingers fully clear of the contact zone when snapping frames together.
  • Align corners while hovering, then let the magnets snap closed without guiding fingers between frames.
  • Use a flat work surface to prevent sudden shifts during closure.
  • Follow medical guidance if the operator has a pacemaker before handling industrial magnetic hoops.
  • Success check: The frame closes cleanly with a controlled “click,” with no finger contact near the closing edge.
  • If it still fails: Change handling technique (hands on outer edges only) and slow down the snap-in motion—rushing is the usual cause of pinches.
