Hatch Color Wheel Tool: Pick Better Embroidery Colors Fast—Then Match Them to Real Thread Without Regret

The "Don't-Ruin-Your-Original" Habit: How to Master the Hatch Color Wheel Without Regret

Color is where “nice design” becomes “people actually buy this.” However, the gap between what you see on a backlit computer monitor and what physically stitches out on fabric is the single most expensive learning curve in machine embroidery.

If you’ve ever perfected a palette in software, hit stitch, and ended up with a muddy, low-contrast mess—take a breath. The Hatch Color Wheel is a powerful tool, but it requires a "production mindset" to use effectively.

This guide upgrades the standard Hatch workflow with 20 years of shop floor experience. We will cover how to experiment safely, ensure readability on texture, and manage the critical translation from RGB pixels to physical thread cones.

The "Save As" Protocol: Protecting Your Digital Asset

The very first move is the one that saves you from heartbreak and lost billable hours: work on a duplicate.

1. Go to File > Save As.
2. Rename the design: Append a suffix like _v2_TEST or the client's name.
3. verify: Check the top bar to ensure you are editing the copy, not the master file.

Why this is non-negotiable: Color perception is subjective. Once you fall down the rabbit hole of "just one more tweak," it is dangerously easy to destroy a functional palette. A clean original file is your safety net if a client hates the new version.

**Prep Checklist: The "Before You Click" Protocol**

• File Safety: Duplicate created via Save As? (Yes/No)
• Visual Reference: Original design visible on screen (or physical sample on desk)?
• Lighting Check: Are you viewing your screen in neutral light? (Night shift mode/warm filters alter color perception).
• Consumables: Do you have your physical thread chart on the desk? (Software assumes perfect matching; reality does not).
• Target Substrate: Is the garment dark or light? (This dictates contrast needs).

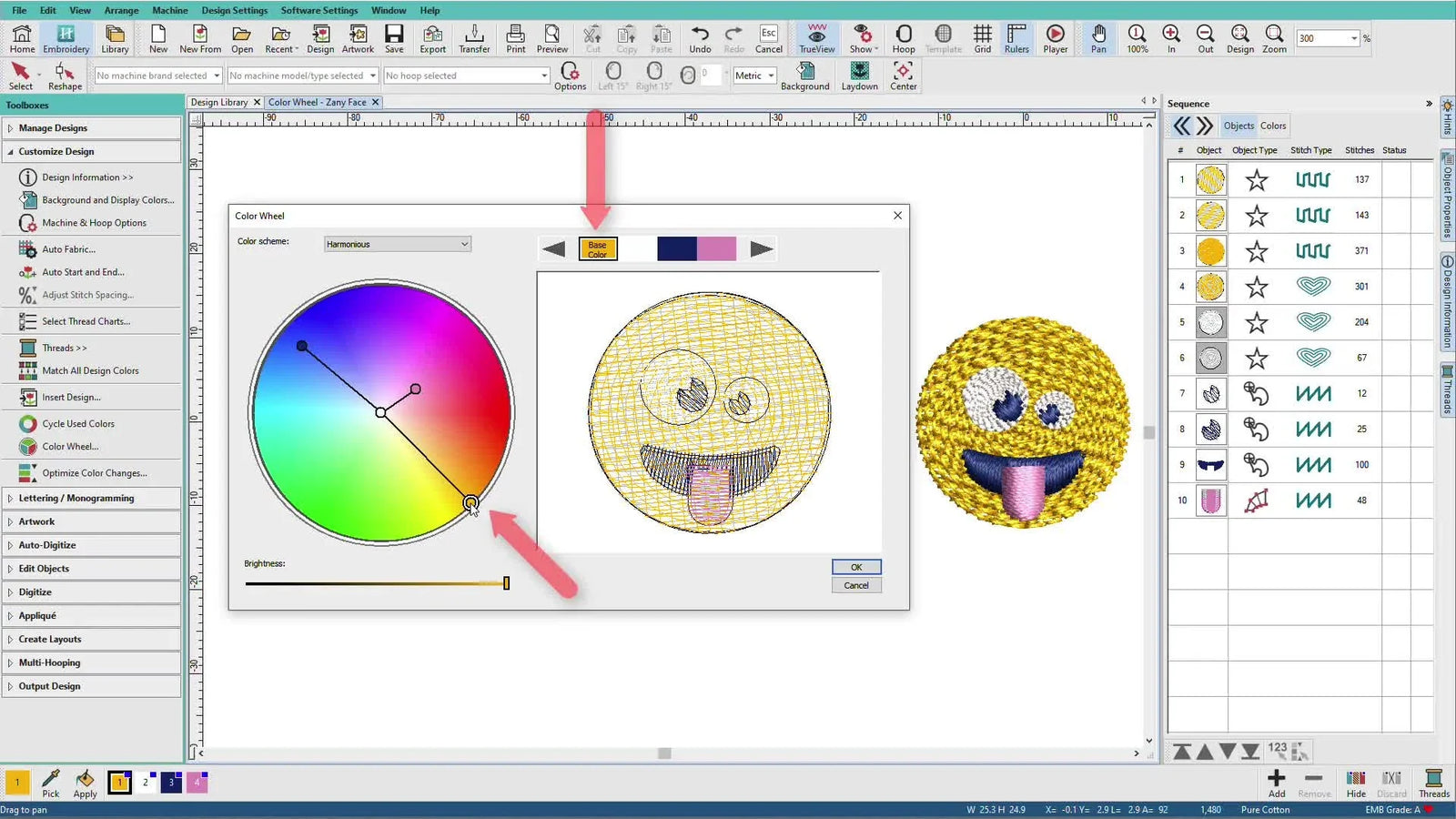

Visual Anchor: Open the Hatch Color Wheel Without Losing Context

A common novice mistake is letting dialog boxes cover the design. You cannot judge color harmony if you can't see the artwork.

1. Pan the Workspace: Move your design to the far left of the screen before opening tools.
2. Open Color Wheel: Click the icon in the toolbar.
3. Visual Check: Ensure the dialog box does not obscure any part of the design.


Base Color Node Control: Managing the Palette Core

Hatch automatically assigns a Base Color (usually the first color in the sequence), marked with a ring on the wheel.

The Action

1. Click and Drag the Base Color node around the wheel.
2. Observe the entire palette shifting in unison, maintaining their relative spacing (harmony).

The "Physics of Thread" Insight

The wheel teaches a rule that is critical for physical embroidery: Saturation = Distance from Center.

• Perimeter = High Saturation: Intense, pure color.
• Center = Low Saturation: Pale, washed-out, pastel.

Expert Note: Thread has a physical sheen. An "over-saturated" palette that looks great on a matte screen can look cheap or aggressive in shiny rayon thread. Conversely, highly desaturated (central) colors often disappear on textured fabrics like piqué polos.

If you are struggling with designs looking "muddy" or indistinct, the issue might not be color—it might be stability. Even high-contrast colors fail if the fabric shifts. This is why many professionals upgrade to machine embroidery hoops that hold fabric flatter than standard frames, allowing colors to sit side-by-side without gapping.

Re-Anchoring: Changing the Leader of the Pack

Sometimes the first color isn't the most important one. If your design features a specific brand color (like Coca-Cola Red) or a skin tone, that must be the anchor.

1. Identify the Hero: Find the node representing your non-negotiable color.
2. Action: Double-click that node. It is now the Base Color.
3. Result: When you drag this node, all other colors adjust around it.


The "Center vs. Edge" Reality Check: Fabric Eats Color

The tutorial demonstrates moving nodes toward the center (palar) or edge (bolder). Here is the safe zone for production:

• Small Lettering: Keep saturation high (Edge). Pale thin columns vanish visually against the fabric weave.
• Dark Garments: Avoid the exact center. White is fine, but "pale gray" or "pale yellow" often looks like a mistake or lint on a black hoodie.


Brightness Slider: The "Muddy" Fix

If your Harmony is correct but the design looks dirty or sickly (the "green in the gills" effect), do not change the hue yet. Change the light.

1. Select the problem node.
2. Slide the horizontal Brightness Bar (under the wheel).
3. Visual Check: Does the color "pop" or recede?

Sensory Anchor: You are looking for separation. If you squint your eyes and two colors blend into one blob, use this slider to darken one and lighten the other until they separate.

Color Harmony Algorithms: Choosing the Right Scheme

The Color Scheme dropdown provides mathematical formulas for harmony. Don't guess—use the right tool for the job geometry.

1. Analogous (The Blender)

Selects colors that are neighbors on the wheel.

• Use Case: tone-on-tone logos, floral elements, or when you want a "calm" look.
• Risk: Low visibility. Not recommended for safety gear or high-impact branding.


2. Complementary (The Popper)

Selects colors directly opposite each other (e.g., Red/Green, Blue/Orange).

• Use Case: Sports teams, university logos, patches.
• Action: Click Complementary.
• Adjustment: Often creates "vibrating" edges. Slightly desaturate one of the colors to calm it down.


3. Monochromatic (The Elegant Risk)

Variations of a single hue (Light Blue, Mid Blue, Dark Blue).

• Use Case: High-end boutique fashion, subtle corporate branding.
• Production Warning: If stitching on textured fabric (towels, fleece), monochromatic scales often lose definition. The thread texture merges with the fabric texture.


4. Triad (The Playground)

Three colors equidistant on the wheel.

• Use Case: Children's wear, abstract art, vibrant retail designs.
• Tip: Let one color be the "Boss" (60% coverage) and the others be accents (30% / 10%).


**Decision Tree: Which Scheme Matches Your Job?**

• Is readability from 10 feet away required?
  • YES: Use Complementary. Maximize contrast.
  • NO: Go to next step.
• Is the fabric highly textured (Fleece/Piqué/Towel)?
  • YES: Avoid Monochromatic. Use Triad or Analogous with high brightness contrast.
  • NO: Go to next step.
• Is the vibe "Luxury/Subtle"?
  • YES: Use Monochromatic or Analogous.
  • NO: Use Harmony (Default) to respect original intent.


The "OK" Threshold: Committing to the Palette

• Click OK to apply.
• Click Cancel to escape.

Commercial Context: Every unique color in a design equals a thread change (or a needle assignment on a multi-needle machine). If your color experiment increases the color count from 4 to 9, you have just doubled the run time.

Efficiency is a combination of smart digitizing and smart tooling. While you optimize colors here, consider your physical workflow. Repetitive strain from standard hoops slows you down just as much as unnecessary color changes. This is where magnetic hooping station setups become valuable for reducing fatigue during long production days.

The Great Lie: RGB vs. Thread Codes

Once you click OK, Hatch displays RGB squares. These are digital lights, not physical dyes.

The Conversion Step (Vital)

1. Click "Match All Design Colors" (Thread Spool Icon).
2. Select Your Brand: Choose the specific thread chart you stock (e.g., Madeira Polyneon, Isacord).
3. Verify: Hatch will map the RGB values to the closest mathematically available thread code.

The Trap: "Mathematically closest" doesn't mean "visually correct." A computer might match a pale skin tone to a "Peachy Beige" that looks pink in real life.

Warning: Physical Safety & Reality Check
* Needle Safety: When running thread color test swatches, keep fingers clear of the presser foot area. Never change threads while the machine is paused but still "Live"—always engage the safety lockout if your machine has one.
* Color Safety: Never promise a client a color based on your screen. Always match the code generated by Hatch to a physical thread book. If the software says "1832 - Majestica," find physical spool 1832 and look at it in daylight.

Undo: The Confidence Switch

If the Match All Colors result looks terrible, or the client hates the V2 draft:

• Action: Click Undo (Ctrl+Z).
• Why: Because you saved a copy (Step 1), you are safe. Because you know the Undo button works, you can be bold.

Production Logic: From Screen to Profit

Software is free to experiment with; machine time costs money.

1. Contrast is King

On a screen, pixels are perfect. On a shirt, stitches sink, twist, and reflect light. Always aim for more contrast than you think you need.

2. Physical Stability

You can pick the perfect colors, but if you have "hoop burn" (the shine left by tight frames) or outlining gaps, the colors won't save the garment.

• For standard production, proper stabilization is key.
• For difficult fabrics or high-volume runs, magnetic embroidery hoops eliminate the need for hand-tightening screws and reduce the "pinch" that causes hoop burn.

Warning: Magnet Safety
If you upgrade to magnetic hoops, be aware they use powerful industrial magnets. Pinch Hazard: Do not get fingers caught between brackets. Medical: Keep away from pacemakers. Data: Keep away from credit cards and phones.

**Operation Checklist: Ready for Output**

• RGB Converted: Have you run "Match All Design Colors"?
• Inventory Check: Do you actually own the thread numbers HATCH just selected? (Don't find out you're missing "Code 1902" while the machine is running).
• Reduction: Can you merge any similar colors? (e.g., Do you really need "Dark Blue" and "Navy Blue," or can one thread do both jobs?)
• Final Save: Save this file as a final machine format (DST/PES) ready for the drive.

By mastering the Hatch Color Wheel, you stop guessing and start engineering your embroidery visuals. Color is the first thing the customer loves, but smooth, efficient production is what keeps your business profitable. Upgrade your files here, and when you are ready to upgrade your efficiency, terms like magnetic frames for embroidery machine and multi-needle systems will be the next step in your professional journey.

FAQ

• Q: In Hatch Embroidery Software, how can a user prevent ruining the original design file when testing new palettes with the Hatch Color Wheel?
  A: Always edit a duplicate created with File > Save As, then test colors only in the copied version.
  • Use File > Save As, then rename the copy with a clear suffix like _v2_TEST or a client name.
  • Verify the file name in the top bar before changing any colors.
  • Keep the original design visible (on-screen or as a physical sample) while tweaking.
  • Success check: The original file remains unchanged and you can instantly compare “before vs. after.”
  • If it still fails… Close without saving and reopen the original master file to confirm it was not edited.
• Q: In Hatch Embroidery Software, how can a user keep the Hatch Color Wheel from covering the design while choosing thread colors?
  A: Pan the workspace first so the Hatch Color Wheel dialog opens without blocking the artwork.
  • Move the design to the far left of the screen before opening the Color Wheel tool.
  • Open the Color Wheel from the toolbar only after the design is positioned.
  • Reposition view as needed so every element stays visible during adjustments.
  • Success check: No part of the design is hidden behind the Color Wheel window while judging color harmony.
  • If it still fails… Zoom out slightly and pan again until the full design is visible next to the dialog.
• Q: In Hatch Embroidery Software, how can a user change the Base Color (anchor color) in the Hatch Color Wheel when a brand color must stay fixed?
  A: Double-click the “hero” color node to make it the Base Color before dragging for harmony changes.
  • Identify the node that represents the non-negotiable brand/skin-tone color.
  • Double-click that node to set it as the Base Color.
  • Drag the Base Color node to adjust the whole palette around the anchor.
  • Success check: The ring/indicator moves to the selected node and the palette shifts around that chosen color.
  • If it still fails… Undo the change and re-check that the correct node was selected before double-clicking.
• Q: In Hatch Embroidery Software, how can a user fix “muddy” or “dirty” looking colors using the Brightness Slider without changing hue?
  A: Adjust brightness first—darken one color and lighten the neighbor until the shapes separate clearly.
  • Select the problem color node on the wheel.
  • Slide the horizontal Brightness Bar under the wheel to lighten or darken.
  • Squint-check separation between adjacent areas before committing.
  • Success check: When squinting, two nearby colors no longer merge into one blob; edges read clearly.
  • If it still fails… Revisit saturation by moving the node slightly toward the edge (more saturation) or away from the center if the fabric is eating the color.
• Q: In Hatch Embroidery Software, how can a user convert Hatch RGB colors to real thread codes using “Match All Design Colors” and avoid wrong-looking matches?
  A: Use Match All Design Colors to map RGB to your actual thread chart, then confirm with a physical thread book in daylight.
  • Click the thread spool icon for Match All Design Colors.
  • Select the exact thread brand chart you stock (do not guess).
  • Compare the selected thread code to the physical spool/thread chart before promising a client.
  • Success check: The chosen thread codes are in your inventory and visually match your expectation under neutral/daylight lighting.
  • If it still fails… Use Undo (Ctrl+Z) and re-map using a different closest option, then re-check physically.
• Q: During machine embroidery thread color test swatches, what needle-area safety steps should operators follow to prevent finger injuries?
  A: Keep hands clear of the presser foot/needle area and never change thread while the machine is paused but still “live.”
  • Stop the machine fully before placing hands near the needle/presser foot area.
  • Engage the safety lockout if the embroidery machine has that feature (follow the machine manual).
  • Run test swatches without hovering fingers near moving parts.
  • Success check: Thread tests run without any need to reach near the presser foot area while the machine is capable of motion.
  • If it still fails… Power down and review the specific machine’s safety procedure in the operator manual before continuing.
• Q: When upgrading to magnetic embroidery hoops, what magnetic safety hazards should machine embroidery operators watch for during hooping?
  A: Treat magnetic hoops as industrial magnets—prevent finger pinch injuries and keep them away from pacemakers and sensitive items.
  • Keep fingers out from between magnetic brackets during placement (pinch hazard).
  • Keep magnetic hoops away from pacemakers and follow medical device guidance.
  • Keep magnetic hoops away from credit cards and phones to avoid data/device issues.
  • Success check: Hooping is completed without finger pinches and the hoop is handled in a clear, controlled motion.
  • If it still fails… Slow down the hooping motion, reposition hands, and hoop on a stable surface to maintain control.
