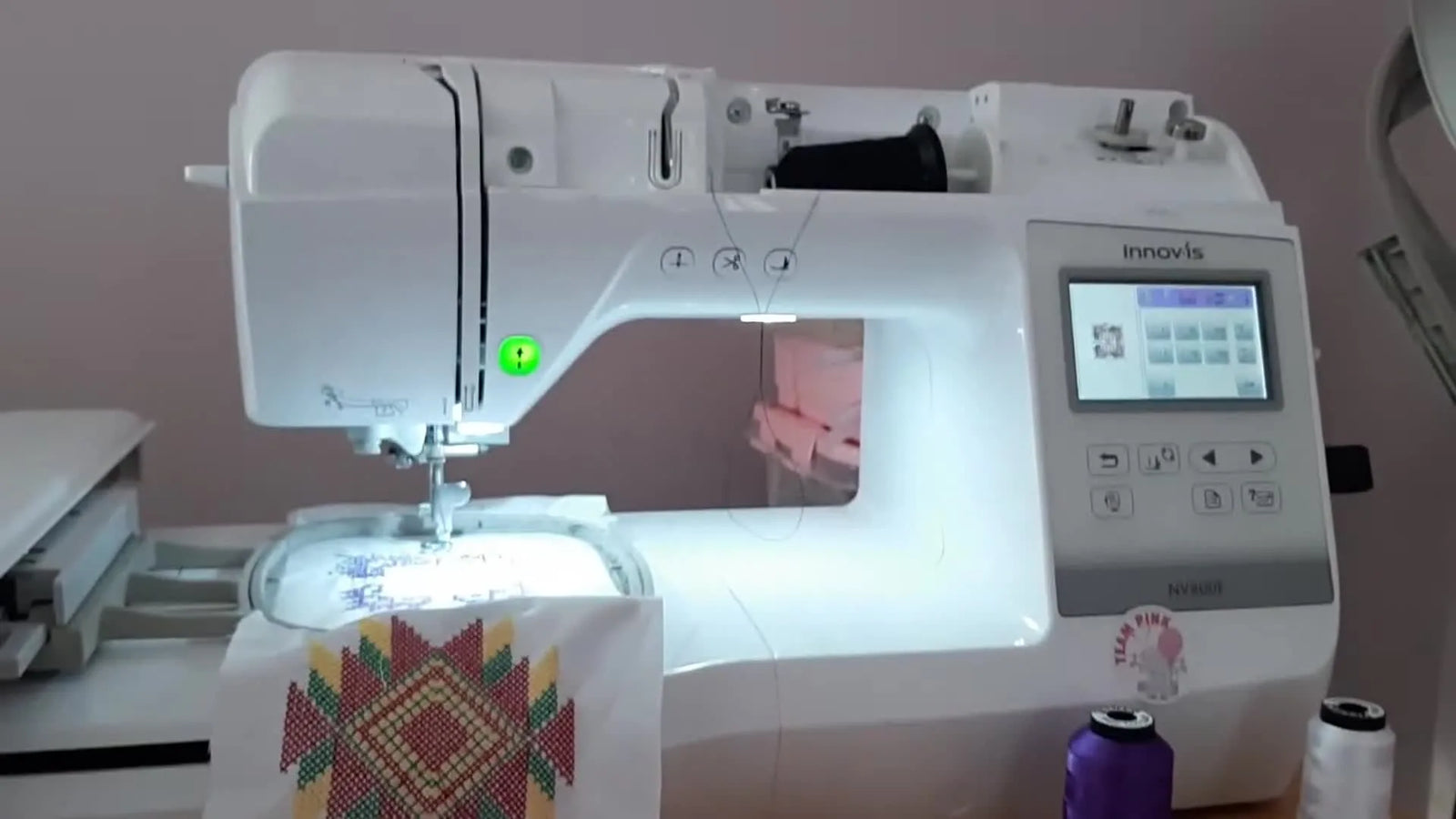

How to Change Needle on Brother Embroidery Machine Innov-is NV800E

Here is the comprehensive, expert-level guide to needle replacement and machine safety, calibrated for operational clarity and cognitive ease.

The $500 Mistake: Why Needle Replacement is Your Most Critical Skill

Embroidery needles don’t just “wear out”—they are the fuse in your machine’s electrical system. When they snap mid-stitch, that terrifying "CRUNCH" sound acts as a warning shot. The most dangerous part isn't the broken needle in your hand; it is the tiny, missing non-magnetic tip that may be lurking in your bobbin case, waiting to destroy your hook assembly.

In this walkthrough, we are not just changing a needle. We are performing a forensic reset of your machine. You will learn how to remove a broken needle without stripping screws, install a standard Schmetz 75/11 embroidery needle with "blind-fold" precision, and complete the critical safety sweep that separates amateur hobbyists from professional operators.

Tools You Need for Brother Needle Replacement

A clean, calm needle change is defined by having the right tools within arm's reach before you open the patient. If you are scrambling for a screwdriver while the clamp is open, you increase the risk of dropping parts into the machine.

For any standard brother embroidery machine, I recommend assembling a permanent "Crash Kit" kept directly beside the machine.

What the video uses (and why)

• Schmetz Embroidery Needle 75/11 (System 130/705 H-E): This is the industry "sweet spot." The 75 indicates the shaft thickness (sturdy enough for stabilizer, thin enough to not punch massive holes), and the "E" indicates a specialized scarf and eye designed to protect fragile rayon/polyester threads at high speeds (up to 800 SPM).
• Disc-shaped screwdriver: This offers better torque control than a long-handled screwdriver, preventing you from over-tightening the delicate aluminum clamp.
• Tweezers: Essential for surgical extraction of metal shards.
• A small magnet: Your metal detector for finding the dangerous missing tip.


Hidden Consumables & The "Pre-Flight" Check

The video focuses on the mechanical swap, but as an expert, I must tell you: a broken needle is usually a symptom, not the disease. Before you install a fresh needle, we must ensure the environment is safe.

• Extra Lighting: A standard room light is insufficient. Use a focused LED neck light or desk lamp aimed directly at the needle bar. You need to see the "stopper" inside the clamp.
• A "Safety Net": Pro Tip: Place a small sheet of plain paper or business card over the needle plate holes before loosening the screw. If the screw falls, it lands on the paper, not inside the machine.
• Scrap Fabric & Stabilizer: Never resume your main project immediately. You need a "sacrificial" scrap to test the new needle.

Warning: Mechanical Safety
Needles are sharp, but broken needles possess jagged, unpredictable edges. Handle the broken shank firmly. Ensure the machine is completely powered off or locked (if your model supports it). If the machine engages while your fingers are near the clamp, the needle bar can crush a finger in milliseconds.

Prep Checklist (Do this BEFORE touching the screwdriver)

• Power State: Machine stopped/locked (ideally powered off for beginners).
• workspace: "Safety Net" paper placed over the feed dog/bobbin holes.
• Inventory: Correct needle (Schmetz 75/11, 130/705 H-E) removed from packaging.
• Tools: Disc screwdriver, tweezers, and magnet placed on the right side of the machine.
• Lighting: Task light focused on the needle clamp—no shadows.
• Containment: A small "sharps jar" or trash bin ready for the broken pieces.


Removing the Broken Needle Safely

The video shows the broken needle still held in the clamp with the tip missing. This is a high-risk moment. If you loosen the screw too quickly, the broken shaft can drop straight down into the bobbin area.

Step 1 — Loosen the needle clamp screw

• Action: Take the disc screwdriver in your right hand.
• Sensory Check: Turn the screw towards yourself (counter-clockwise). You should feel a distinct release of tension.
• Constraint: You do not need to remove the screw entirely. Just loosen it enough to free the needle. A few half-turns are usually sufficient.

Step 2 — Pull the broken needle straight down

• Action: With your left hand, grip the needle shank and pull directly downwards.
• Observation: As you pull it out, look at the orientation. Was the flat side facing the back? (If not, that might be why it broke).
• Safety: Immediately place the broken shank in your sharps container. Do not leave it on the table.

Checkpoint: The needle clamp is empty, and the screw is loose but still attached to the bar.

Expected Outcome: You have a clear, empty path to install the new needle.

Identifying the Correct Needle Orientation (The "Flat Spot" Rule)

Needle orientation is the #1 reason a brand-new needle performs poorly. Home machines use needles with a flat spot on the shank. This isn't just for grip; it aligns the "scarf" (the indentation above the eye) with the machine's rotary hook.

If the scarf is even 5 degrees off, the hook cannot grab the top thread loop. The result? Skipped stitches, shredded thread, and "bird nesting."

Step 3 — Locate the flat spot and orient it

• Action: Pick up the new Schmetz needle. Roll it between your fingers until you feel the flat surface.
• Visual Check: Hold the needle up to your light. The flat side must face directly away from you (toward the back of the machine).
• Mental Anchor: "Round to the Front, Flat to the Back."

When you are swapping between different embroidery machine hoops for various projects, you might be rushing. Slow down here. A needle inserted backward will break immediately or jam the machine so badly you'll need a technician. It is part of the same discipline as checking that your hoop is secure.

Checkpoint: You can clearly identify the round front and the flat back of the needle shank.

Expected Outcome: You are holding the needle in the exact orientation required for the specific geometry of your machine.

Inserting the New Needle: The "Ceiling" Check

This is the step where most beginners fail. They push the needle up, think it's high enough, and tighten the screw. If the needle is even 1mm too low, it will strike the bobbin case during rotation.

Step 4 — Insert and Push into the "Stop"

• Action: Guide the needle up into the clamp hole, keeping the flat side strictly facing back.
• Sensory Check: Push effectively. You need to feel it hit a hard "ceiling" or stop. It shouldn't feel squishy; it should feel like metal hitting metal.

Step 5 — Verify via the Sight Window

The video demonstrates a critical pro technique: looking through the inspection window (stopper hole).

• Action: Peer through the small cutout in the needle clamp.
• Success Metric: You must see the metallic top of the needle butt up against the top of the sight window. If you see empty space above the needle, it is not seated.

Why this matters: An unseated needle effectively changes the "timing" of your machine. The hook arrives to catch the thread, but the thread loop is too low, causing a collision.

Optional: Making Space

If you have large hands or struggle with visibility, the presenter notes you can remove the presser foot or head cover bolts.

Warning: Magnet Safety
When using magnetic tools (or if upgrading to magnetic hoops later), awareness is key.
* Electronics: Keep strong magnets away from the machine's LCD screen and SD cards/USB drives.
* Health: High-power magnets (like those in industrial hoops) can pinch skin severely. If you have a pacemaker, consult your doctor before handling large magnetic accessories.

Checkpoint: The needle is touching the "ceiling" of the clamp, confirmed visually through the window.

Expected Outcome: The needle is mechanically aligned with the machine's timing.

Safety Tip: The CSI Shard Hunt

The video’s most valuable advice is this: If the tip is missing, the job is not done.

Step 6 — The Two-Stage Tightening

• Action 1: While holding the needle in place with your left hand, finger-tighten the screw with your right hand. This holds it in place.
• Action 2: Use the disc screwdriver to finish the job. Turn away from you (clockwise).
• Sensory Anchor: Tighten until you feel resistance, then give it a tiny 1/8th turn "snug." Do not crank it down. Over-tightening strips the soft aluminum threads of the clamp.


Checkpoint: Gently tug on the needle. It should not move.

Step 7 — Searching for the Shrapnel

The broken tip usually falls into one of two zones:

1. The Fabric/Hoop: Buried in the stabilizer.
2. The Belly of the Beast: Inside the bobbin case.


Use your magnet to sweep the area. Technique: Do not "whelm" the magnet around randomly. Move slowly. Listen for the "click" of the metal shard jumping to the magnet.

Step 8 — Opening the Bobbin Slide Plate

The presenter removes the slide plate to access the danger zone.

• Action: Slide the plastic bobbin cover off. Remove the bobbin case if necessary (consult your manual).
• Inspection: Shine your light into the hook assembly. Use tweezers to extract any debris.
• Logic: A floating shard acts like a wrench in the gears. If you skip this, your machine might run for 5 minutes and then lock up permanently when the gear teeth catch the metal.

Checkpoint: You have accounted for the missing tip, or verified the bobbin area is 100% clear.

Expected Outcome: The machine is clean, safe, and ready to re-initialize.

Workflow Upgrades: When is the *Hoop* the Problem?

You just fixed a broken needle. But why did it break?

Needles often break because the fabric moved, "flagged" (bounced up and down), or was too thick for the machine to penetrate cleanly. This is rarely a machine fault; it is usually a hooping fault.

If you are fighting against "Hoop Burn" (those ugly ring marks on fabric) or struggling to hoop thick items like towels or heavy fleece, your current tools might be the bottleneck.

1. The Stability Issue: Standard plastic hoops rely on friction. If you don't tighten them enough, fabric slips. If you tighten them too much, you damage the fabric.
2. The Solution: A magnetic embroidery hoop uses vertical magnetic force to clamp fabric. There is no friction dragging or pulling. This holds the fabric flatter, reducing "flagging," which in turn reduces needle deflection and breakage.
3. The Consistency Issue: If you are running a small business, re-hooping takes time. A hooping station for embroidery machine ensures every chest logo lands in the exact same spot, reducing the human error that leads to needle strikes on the hoop frame.

Decision Tree: Is it Time to Upgrade Your Toolset?

Use this logic flow to determine if you need new techniques or new tools.

• Scenario A: The Hobbyist
  • Volume: 1-2 items per week.
  • Issue: Occasional needle breaks.
  • Diagnosis: Likely technique. Focus on proper stabilizer selection (Cutaway for knits!) and ensure your needle is fresh (change every 8 hours of stitching).
  • Action: Stick with standard hoops; master the basics.
• Scenario B: The "Side Hustle"
  • Volume: 10-50 items per week (Etsy/Gifts).
  • Issue: Sore wrists from tightening screws; hoop burn on delicate velvet/performance wear.
  • Diagnosis: Tool limitation. Standard hoops are inefficient for batching.
  • Action: Consider a magnetic hoop for brother machines. It speeds up hooping by 60% and eliminates hoop burn.
• Scenario C: The Production Shop
  • Volume: 50+ items or thick jackets/bags.
  • Issue: Needles breaking on thick seams; inability to hoop pockets/backpacks.
  • Diagnosis: Machine limitation.
  • Action: A single-needle flatbed struggles here. This is the trigger point to look at multi-needle machines with tubular arms.

Note: If you own a PE800 or similar, searching for a brother 5x7 magnetic hoop is a common first step into the world of easier embroidery.

Operation Checklist (The "All-Clear" Signal)

• Clamp Check: Screw is snug (not stripped).
• Seating Check: Needle is visible in the sight window.
• Physics Check: Flat side of needle faces BACK.
• Debris Check: Slide plate removed, bobbin area swept for shards.
• Reassembly: Bobbin case and slide plate clicked back into position.
• Test Drive: Hand-wheel turned strictly toward you for one full rotation to check for metal-on-metal feeling.


Results

By following this disciplined protocol, you haven't just changed a needle; you have preserved the lifespan of your machine.

You have:

1. Safely extracted the broken shaft without dropping it into the gears.
2. Installed a fresh 75/11 needle with perfect scarf alignment.
3. Verified the vertical seating to prevent timing collisions.
4. Sanitized the bobbin area of dangerous metal debris.


Embroidery is a game of millimeters. Whether you are using a standard plastic hoop or have upgraded to a professional brother 5x7 magnetic hoop, the needle remains the primary contact point between your creativity and the fabric. Treat it with respect, change it often, and your machine will reward you with perfect satin stitches for years to come.

Setup Checklist (Ready to Stitch)

• Fresh Needle: Installed correctly (Flat to Back).
• Upper Thread: Rethreaded completely (often snaps out of tension disks during a break).
• Bobbin: Checked for "bird nesting" underneath.
• Speed: Machine speed reduced to 600 SPM for the first 100 stitches of the restart.
• Observation: Watch (and listen) to the first color pass. If it sounds rhythmic and smooth, you are cleared for takeoff.## FAQ
• Q: On a Brother embroidery machine, what should be prepared before loosening the needle clamp screw to prevent dropping parts into the bobbin area?
  A: Prepare a small “crash kit” and a paper safety net before touching the screwdriver to avoid losing screws or shards inside the machine.
  • Place a business card/plain paper over the needle plate holes before loosening the clamp screw
  • Set out a disc-shaped screwdriver, tweezers, a small magnet, and strong task lighting aimed at the needle bar
  • Power off or lock the Brother embroidery machine before hands go near the needle bar
  • Success check: The clamp screw is loosened with nothing falling into the needle plate/bobbin openings
  • If it still fails: Remove the bobbin slide plate and inspect the hook/bobbin area before running the machine again
• Q: On a Brother embroidery machine, how can the correct embroidery needle orientation be confirmed using the “flat side” rule to prevent skipped stitches and bird nesting?
  A: Insert the home-machine needle with the flat side facing the back of the Brother embroidery machine to align the scarf with the rotary hook.
  • Roll the needle between fingers to find the flat spot on the shank
  • Point the flat side directly toward the back of the machine before insertion (“Round to the Front, Flat to the Back”)
  • Reinsert if the needle was installed backwards or off-angle
  • Success check: Stitching restarts without skipped stitches, shredded thread, or immediate nesting after rethreading
  • If it still fails: Re-thread the upper thread completely and verify the needle is fully seated up into the clamp stop
• Q: On a Brother embroidery machine, how can a new Schmetz 75/11 embroidery needle be fully seated using the needle clamp sight window to avoid bobbin case strikes?
  A: Push the Schmetz 75/11 needle up until it hits the hard “ceiling,” then visually confirm seating through the clamp inspection window before tightening.
  • Guide the needle upward with the flat side facing back, then push firmly until metal hits metal
  • Look through the needle clamp sight/inspection cutout to confirm the needle butt is up against the top of the window
  • Tighten the clamp in two stages: finger-tight while holding the needle, then a small snug turn with the disc screwdriver (do not crank)
  • Success check: No empty space is visible above the needle in the sight window, and a gentle tug does not move the needle
  • If it still fails: Remove the presser foot or adjust access for visibility, then repeat the seating check before running any stitches
• Q: On a Brother embroidery machine, what is the safest method to remove a broken embroidery needle when the tip is missing to protect the hook assembly?
  A: Treat a missing tip as an active hazard and do a deliberate shard hunt before restarting the Brother embroidery machine.
  • Pull the broken needle shank straight down after loosening the clamp screw (do not remove the screw completely)
  • Sweep the hoop/fabric and the bobbin area slowly with a small magnet, listening for the “click” of metal
  • Slide off the bobbin cover and inspect the hook/bobbin case zone with focused lighting; extract debris with tweezers
  • Success check: The missing needle tip is found, or the bobbin/hook area is confirmed 100% clear before reassembly
  • If it still fails: Do not run the machine; re-check the bobbin case area again because a floating shard can lock the machine later
• Q: On a Brother embroidery machine, how tight should the needle clamp screw be tightened to avoid stripping the aluminum threads while still securing the needle?
  A: Tighten to firm resistance plus a tiny “snug” turn, not maximum force, to protect the aluminum clamp threads.
  • Hold the needle fully seated while finger-tightening the screw first to prevent needle drop
  • Finish with a disc screwdriver until resistance is felt, then add about a small extra snug turn (avoid over-torque)
  • Re-check by gently tugging the needle straight down to confirm it cannot slip
  • Success check: The needle does not move when tugged, and the screw feels secure without needing excessive force
  • If it still fails: Stop and inspect for stripped clamp threads or improper needle seating; consult the machine manual before forcing the screw
• Q: When using a magnetic embroidery hoop or strong magnets near a Brother embroidery machine, what magnetic safety steps prevent pinched fingers and electronics damage?
  A: Use magnets deliberately—keep strong magnets away from sensitive electronics and handle magnetic hoops as pinch hazards.
  • Keep strong magnets away from the Brother embroidery machine LCD area and SD/USB media
  • Open and close magnetic hoop contact points slowly to avoid sudden snap-and-pinch injuries
  • Use only the minimum magnet strength needed for the task and store magnets away from the machine when not in use
  • Success check: The magnetic hoop clamps securely without sudden snapping, and the machine electronics/media are kept at a safe distance
  • If it still fails: Stop using the accessory and follow the accessory and Brother machine manual guidance; seek medical guidance if a pacemaker is involved
• Q: If embroidery needles keep breaking on a Brother embroidery machine due to fabric movement or “flagging,” what is the step-by-step upgrade path from technique fixes to magnetic hoops to a multi-needle machine?
  A: Start by stabilizing technique, then upgrade hooping tools if hooping is the bottleneck, and consider a multi-needle machine only when the work volume/thickness exceeds a flatbed single-needle’s comfort zone.
  • Level 1 (Technique): Reduce speed for restart (a safe starting point is slower), confirm correct stabilizer choice, and change needles regularly (the blog suggests every 8 hours of stitching)
  • Level 2 (Tool): Switch from friction-based plastic hoops to a magnetic embroidery hoop to reduce flagging and needle deflection, especially on thick or delicate items prone to hoop burn
  • Level 3 (Capacity): Move to a multi-needle machine with a tubular arm when thick seams, jackets/bags, or high weekly volume repeatedly trigger needle strikes and hooping limits
  • Success check: Needle breaks drop noticeably after the first change (technique or tool), and the first test run sounds smooth and rhythmic
  • If it still fails: Hand-wheel one full rotation toward you to feel for metal-on-metal contact, then re-check needle seating and bobbin area cleanliness before stitching again
