Janome Continental M7 vs M17: The Real-World Differences That Matter (Space, Screens, Stitch Regulator, and That Giant RE46d Hoop)

Comparison Guide: Janome Continental M7 vs. M17 (And How to Master Them)

You’re not alone if this comparison makes your head spin—these are serious machines with serious price tags, and nobody wants buyer’s remorse sitting on their sewing table.

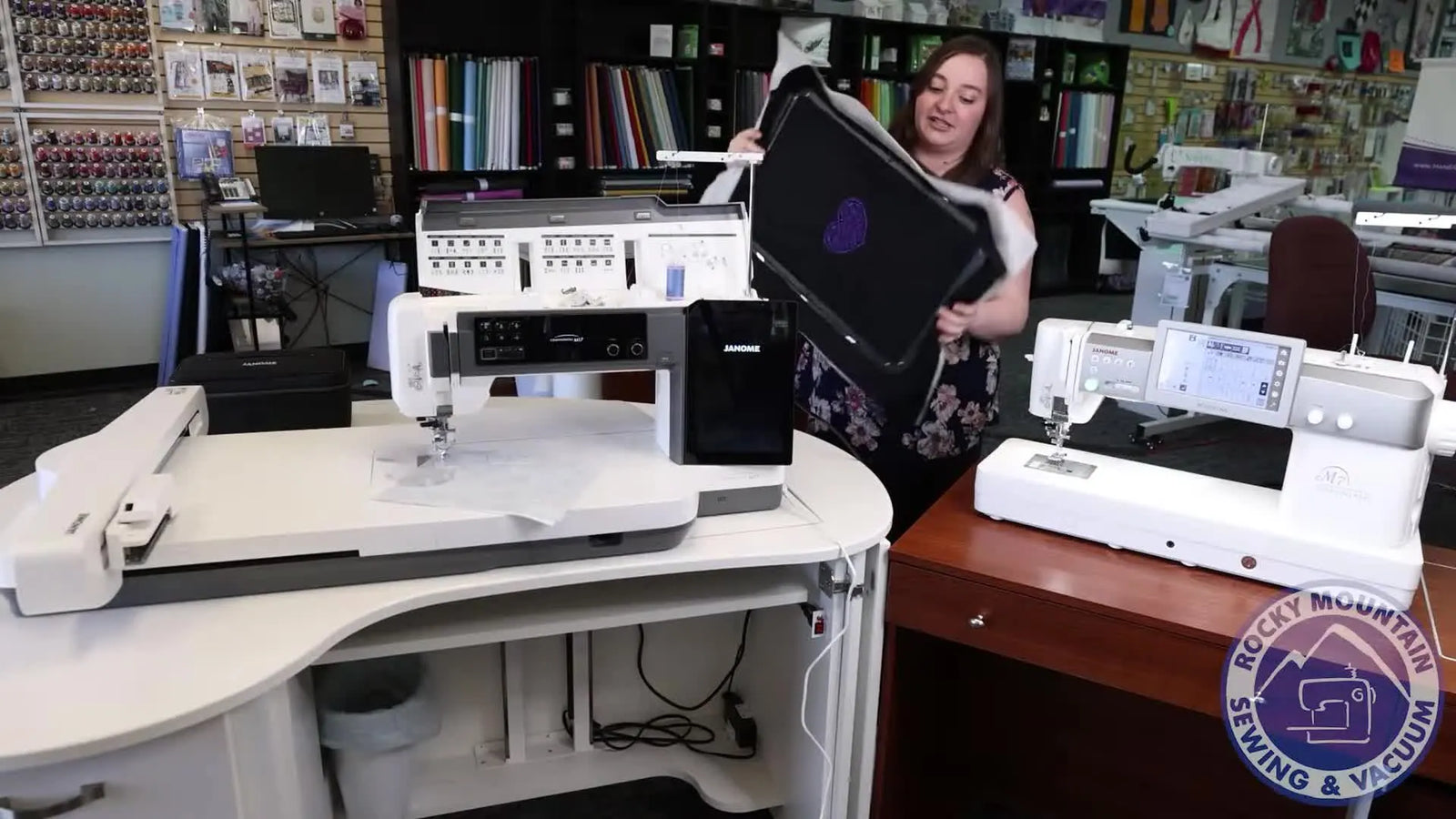

In the video, Megan from Rocky Mountain Sewing & Vacuum puts the Janome Continental M7 (sewing/quilting) next to the Janome Continental M17 (CM17) (sewing/quilting/embroidery). She focuses on the differences that actually change your day-to-day workflow: one-touch needle plate removal, throat space, dual screens, the AcuStitch Regulator, and the M17’s huge embroidery unit with an 18.1" x 11" hoop field.

Calm the “Did I Buy the Wrong Machine?” Panic

Both machines are positioned as high-end workhorses for people who sew a lot—especially quilters and anyone pushing thicker projects like bags. The shared baseline is solid:

• Brushless Motor: Provides quiet power. Sensory Check: You shouldn't hear a grinding gear noise; it should perform with a low, consistent hum.
• Easy Needle Plate Removal: No screws, no screwdriver struggle.
• AcuFeed Flex System: Janome’s dual-feed system that grips fabric layers from top and bottom.
• Capability: Both handle quilts, bags, and garments with ease.

One practical note from 20 years in shops: when you’re paying for a premium platform, you’re paying for repeatability—less fiddling, fewer do-overs, and fewer moments where you stop mid-project.

The One-Touch Needle Plate Removal: A Safety & Speed Upgrade

Megan demonstrates a feature that sounds minor until you’ve lived without it: the needle plate pops up automatically.

The Process:

1. Press the lock button on the screen (Safety First).
2. Press the release button.
3. Listen: You will hear a distinct mechanical click and see the plate pop up.

Why this matters: You’re not fighting screws or hunting a screwdriver. This encourages you to clean lint more often.

Warning: Always keep fingers clear when the needle plate releases and pops up. Ensure the machine is in "Lock" mode before reaching near the needle area—needles and sharp edges can bite fast.

Pro Tip (The "Hidden" Consumable): While the plate is off, use a micro-vacuum attachment or a small brush to remove lint. Never blow air into the machine (it pushes lint into the sensors).

Throat Space Reality Check: Ergonomics & Fatigue

Megan measures the workspace between the needle and the machine tower:

• CM17: ~13.8 inches
• M7: ~13 inches

That 0.8" difference might seem small, but in real quilting, throat space is a fatigue reducer.

• Visual: Can you see the entire block without scrunching expectations?
• Tactile: When you push a King-size quilt through, does your shoulder tense up? A larger space allows your shoulders to drop and your wrists to relax.


Dual Screens (CM17) vs. Single Screen (M7): Flow State

• M7: One main screen.
• CM17: Two screens—a main screen plus a smaller central screen above the needle area.

The Workflow Advantage: The secondary screen allows you to adjust stitch width, length, or foot pressure without looking away from your needle. This reduces "micro-interruptions" where you lose focus or alignment.

The AcuStitch Regulator (ASR): Solving the "Speed Match" Problem

Megan calls out a major difference: the CM17 includes a stitch regulator, while the M7 does not.

The Physics of the Problem: In free-motion quilting, your hands move the fabric while the needle moves up and down. If your hands move fast but the needle acts slow, you get giant stitches. If your hands are slow and the needle is fast, you get tiny knots.

The Solution: The AcuStitch Regulator (ASR) reads the movement of the fabric and adjusts the needle speed instantly. Sensory Check: You will hear the motor pitch change up and down as you move the fabric. This is the sound of the machine syncing with your brain.

Comment-driven reality check: The ASR is not compatible with the M7. If stitch regulation is central to your quilting identity, the CM17 is the only choice here.

The Embroidery “Moment of Truth”: CM17’s 18.1" x 11" Field

This is where the CM17 becomes a different category. Megan shows the RE46d hoop with its massive 18.1 x 11 inch field.

Real World Implication: You can stitch large logos or jacket backs in one go. However, a hoop this size introduces physics problems: Torque and Drag. The further the fabric is from the clamp, the more it wants to shift.

If you’re shopping specifically for embroidery capability, you’re likely searching for a janome embroidery machine that minimizes the need to re-hoop.

The “Hidden” Prep: Stabilizer, Hooping, and avoiding "The Pucker"

The video shows the machine running, but it doesn't show the prep work that makes it possible. Beginners often fail here because they rely on the machine to fix bad physics.

1. The Stabilizer Decision Tree

Don't guess. Use this logic:

• Is it Stretchy (T-Shirt/Performance Wear)?
  • Must Use: Cutaway Stabilizer. Tear-away will result in broken stitches when the shirt stretches.
• Is it Woven (Quilt Cotton/Canvas)?
  • Use: Tear-away (light) or Cutaway (dense designs).
• Is it Fluffy (Towel/Fleece)?
  • Must Use: Water Soluble Topper on top (prevents stitches sinking) + Stabilizer on bottom.

2. The Tactile Hooping Check

When you hoop, tight is right.

• Tactile: Tap the fabric. It should feel like a drum skin.
• Visual: The fabric grain should be perfectly straight, not bowed.

3. The Tool Upgrade: Magnetic Hoops

If you are doing production runs or struggle with wrist pain from tightening screws, this is where you upgrade your tools.

• Trigger: You see "hoop burn" (shiny rings) on delicate fabric, or your wrists hurt after 5 shirts.
• Solution: Magnetic Embroidery Hoops. They clamp automatically without twisting screws and hold thick items (like Carhartt jackets) securely.
• Search Intent: Many professionals look for magnetic embroidery hoops for janome to solve slippage issues on large fields like the CM17's.

Warning (Safety): Magnetic hoops use powerful Neodymium magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical: Keep away from pacemakers.

Prep Checklist (Do NOT Skip)

• Needle Check: Is the needle fresh? (Replace every 8 hours of stitching).
• Bobbin Check: Is the bobbin area clear of lint?
• Fabric/Stabilizer Match: Did you follow the decision tree above?
• Consumable Check: Do you have temporary spray adhesive (like KK100) or a glue pen to float the stabilizer?

Setup: Prevent Drag and Shift

Megan notes the large footprint of the CM17.

The Physics of Drag: If your heavy quilt or jacket hangs off the table while the hoop is moving, gravity pulls the hoop back. The motor pushes forward. The result? Layer shifting and gaps in your design.

The Fix:

1. Clearance: Ensure 2 feet of clear space behind and to the left of the machine.
2. Support: Pool the fabric on the table. Use books, pillows, or extension tables to keep the weight off the embroidery arm.

For consistent placement on repeat jobs (like team jerseys), a hooping station for embroidery machine is the standard tool to ensure every logo lands in the exact same spot.

Setup Checklist

• Clearance: Is the wall/furniture far enough away from the embroidery arm's max travel?
• Weight Support: Is the project weight supported, not dragging?
• Hoop Lock: Did you hear the "Click" when attaching the hoop to the carriage?
• Thread Path: Is the thread passing through the antenna correctly?

Operation: Speed vs. Quality

Megan states the sewing speed is 1300 Stitches Per Minute (SPM).

Expert Reality Check: just because the car can go 150mph doesn't mean you drive that fast in a parking lot.

• Beginner Sweet Spot: Set your speed to 600-800 SPM.
• Why? High speed generates heat (melting polyester thread) and friction (shredding metallic thread).
• When to speed up: Only when doing long satin columns or fills on stable fabric.

Sensory Monitoring:

• Sound: A rhythmic thump-thump is good. A dry clack-clack usually means the needle is dull or the bobbin is low.
• Sight: Watch the top thread tension. You should see a tiny bit of white bobbin thread (about 1/3 width) on the underside of the fabric.

Warning (Safety): Never reach into the hoop area while the machine is running. At 1000+ SPM, a needle strike can cause serious injury.

Operation Checklist

• First 500 Stitches: Watch the machine like a hawk. This is when birds-nests happen.
• Sound Check: Does it sound smooth?
• Speed: Is it capped at a safe limit (e.g., 700 SPM) for the complexity of the design?

Cost Justification: Who is this for?

The Hobbyist

You justify the CM17 through enjoyment. If the ASR stops you from crying over ugly free-motion stitches, it’s worth it.

The Small Business

You justify the cost through throughput.

• Scenario: You have an order for 50 polos.
• Bottleneck: If hooping takes you 5 minutes per shirt, your machine speed doesn't matter.
• Solution Level 1: Upgrade to embroidery hoops magnetic to cut hooping time in half.
• Solution Level 2: If you are consistently running orders over 50 pieces, consider moving from a single-needle flatbed (like the CM17) to a Multi-Needle Machine (like SEWTECH's multi-needle line). Multi-needles allow you to queue colors without changing threads manually, drastically increasing profit per hour.

Troubleshooting Guide

The M7 vs CM17 Final Verdict

• Choose M7 if: You are a pure quilter/garment sewer. You have zero interest in embroidery and want a dedicated, powerful sewing platform.
• Choose CM17 if: You want the "Studio in a Box." You need stitch regulation (ASR) and the ability to do jacket-back sized embroidery.

Compatibility Note: If you are looking for hoops for other models, terms like janome mb7 hoops, janome 300e hoops, janome 500e hoops, or janome mc400e hoops refer to different connector types. Always double-check your machine manual before buying accessories, as hoop connectors are rarely universal.

The Bottom Line: Pick the machine that removes your friction. If your friction is poor quilting stitches, get the ASR. If your friction is small embroidery fields, get the CM17. And if your friction is simply the pain of hooping, look at your tools before you blame the machine.

FAQ

• Q: How do I safely use the Janome Continental M7 or Janome Continental M17 one-touch needle plate removal without getting pinched or struck by the needle?
  A: Lock the machine first, then release the needle plate with fingers kept clear of the pop-up zone.
  • Press the on-screen Lock button before reaching near the needle area.
  • Press the release button and keep fingertips away from the plate edges as it pops up.
  • Clean lint using a micro-vacuum attachment or small brush—do not blow air into the machine.
  • Success check: You hear a distinct mechanical “click” and see the plate pop up cleanly, with no resistance.
  • If it still fails… Re-lock the machine and try again; if the plate feels stuck, stop and refer to the Janome manual before forcing anything.
• Q: What stabilizer should I use on the Janome Continental M17 embroidery unit to prevent puckering on T-shirts, woven cotton, and towels?
  A: Match stabilizer to fabric type: cutaway for stretch, tear-away/cutaway for woven, and topper + stabilizer for towels/fleece.
  • Choose cutaway stabilizer for T-shirts/performance wear (stretch fabrics).
  • Use tear-away for light woven projects, or cutaway for dense embroidery on woven cotton/canvas.
  • Add a water-soluble topper on top for towels/fleece, plus stabilizer underneath.
  • Success check: After stitching, the fabric lies flat without ripples around the design and the stitches look supported (not sinking into nap).
  • If it still fails… Re-check hooping tension (“drum tight”) and consider using a more supportive stabilizer choice for dense designs.
• Q: How tight should fabric be hooped for the Janome Continental M17 RE46d 18.1" x 11" embroidery field to avoid shifting and misalignment?
  A: Hoop “drum tight” and keep the grain straight—large hoops amplify any slack.
  • Tap the hooped fabric and tighten until it feels like a drum skin (firm, springy, not spongy).
  • Visually align fabric grain so it is straight, not bowed or skewed in the hoop.
  • Attach the hoop to the carriage and confirm it seats fully before starting.
  • Success check: The fabric stays taut when pressed lightly with a finger and the design outlines do not drift during the first stitches.
  • If it still fails… Upgrade stabilizer support (often cutaway helps) and reduce drag by fully supporting the project weight on the table.
• Q: How do I prevent fabric drag and design gaps when running large embroidery on the Janome Continental M17 embroidery arm?
  A: Create clearance and fully support the project so gravity is not pulling against the hoop movement.
  • Clear about 2 feet of space behind and to the left so the embroidery arm can travel freely.
  • Pool and support quilts/jackets on the table using an extension surface, books, or pillows to remove hanging weight.
  • Confirm the hoop is properly attached before stitching.
  • Success check: The fabric does not tug or “pull back” as the hoop moves, and outlines stay aligned without gaps.
  • If it still fails… Slow down and re-check hooping tightness and stabilizer security; shifting is usually a support/drag issue, not a speed issue.
• Q: How do I stop a Janome Continental M17 “bird’s nest” (tangle under the needle plate) at the start of embroidery?
  A: Completely rethread the upper thread with the presser foot raised so the thread seats in the tension disks.
  • Raise the presser foot (this opens the tension disks), then rethread from scratch.
  • Start again and watch the first 500 stitches closely, because nests usually happen early.
  • Check that the bobbin area is clear of lint before restarting.
  • Success check: Stitching begins smoothly with no sudden thread pile-up under the fabric and no jerky “snag” sounds.
  • If it still fails… Stop immediately, remove the hoop, clean out the tangle, and re-check the thread path through guides/antenna per the Janome manual.
• Q: What should the underside bobbin thread look like on the Janome Continental M17 or Janome Continental M7 to confirm embroidery tension is correct?
  A: Look for a small amount of bobbin thread on the underside—about one-third of the stitch width is a good visual target.
  • Stitch a small test area on the same fabric/stabilizer combination before the real job.
  • Inspect the underside and confirm you see a tiny bit of white bobbin thread showing through.
  • Listen for smooth running; a dry “clack-clack” often pairs with poor stitch formation.
  • Success check: The underside shows consistent bobbin “peek” (not all top thread, not all bobbin thread), and the surface stitches look even.
  • If it still fails… Re-thread and verify needle condition; inconsistent tension often starts with threading or a worn needle.
• Q: How do I reduce hoop burn and wrist strain when hooping delicate fabric for Janome Continental M17 embroidery, and when should I switch to magnetic embroidery hoops?
  A: If hoop burn or hand fatigue is recurring, switch from screw-tightened hoops to magnetic embroidery hoops or float the fabric on adhesive stabilizer.
  • Float delicate fabric on adhesive stabilizer (temporary spray adhesive or a glue pen) instead of over-tightening the outer ring.
  • Use magnetic embroidery hoops when hoop burn shows up as shiny rings or when wrists hurt after repeated hooping.
  • Keep production goals realistic: if hooping time is the bottleneck, tool upgrades usually beat speed increases.
  • Success check: After unhooping, fabric shows minimal ring marks and placement stays stable without slippage.
  • If it still fails… Re-evaluate stabilizer choice and support (cutaway often helps on tricky fabrics); if running frequent multi-color orders, consider whether a multi-needle machine is the next productivity step.
• Q: What magnetic hoop safety rules should I follow when using strong neodymium magnetic embroidery hoops on embroidery projects?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive medical devices.
  • Keep fingers out of the “snap zone” when magnets clamp down.
  • Separate and handle magnets slowly and deliberately to avoid sudden slams.
  • Keep magnetic hoops away from pacemakers and follow medical guidance if applicable.
  • Success check: The hoop closes without pinching skin, and the fabric remains firmly clamped without needing excessive force.
  • If it still fails… Stop and reset the hoop alignment; forcing magnets into place increases pinch risk and can mis-clamp the fabric.
