Metallic Thread on an Avancé 15-Needle Head: The Tube Hack That Stops Top-Side Jams (and Saves Re-Threading Time)

Metallic thread is the "diva" of the embroidery world. It glimmers, it shines, and it sells premium products—but it is also the material most likely to make a grown operator cry. When it goes wrong, it doesn't just break; it explodes. You get top-side bird nesting, sudden lockups at the first tensioner, and that dreaded "snap" sound which means you are about to spend 15 minutes rethreading the entire head.

Fred (running an Avancé multi-needle setup) nails the real-world problem: Metallic thread is a wire, not a string. It has "memory"—it wants to stay coiled. It is rougher, it "whips" violently during high-speed travel, and it loves to hook onto neighboring polyester cones like a grappling hook.

The good news? You don’t need a mystical prayer circle to fix it. You need physics. You need to control the thread’s physical space, use a needle that won’t shred the foil wrapping, and adopt a disciplined workflow.

Expert Insight: For beginners, speed kills. While standard polyester runs happily at 1000 SPM (Stitches Per Minute), your "Sweet Spot" for metallic thread is 600–750 SPM. Start slow. Gain confidence. Then speed up.

The Real Reason Metallic Thread Bunches at the Top Feeder (and Why It Feels So Random)

When metallic thread starts bunching "on top" or jamming at the pre-tensioner, it is rarely a tension knob issue. It is a pathing issue.

Fred’s observation is simple and painfully accurate: the "whipping" action of metallic thread allows it to snag adjacent polyester threads during rapid feed movement. Once it hooks another thread, it drags that foreign thread toward the first tensioner, creating a massive jam.

The Sensory Check: Watch the thread as it leaves the cone. Does it look like a smooth stream, or does it look like a vibrating, angry snake? If it's vibrating widely, it will eventually grab a neighbor.

This is why upgrading your equipment matters. A standard single-needle machine often lacks the thread stand real estate to separate cones effectively. A 15 needle embroidery machine works better not just because of color capacity, but because the physical distance between spool pins allows you to isolate "problem threads."

The $5 “Isolation Tube” Hack on an Avancé Thread Stand That Prevents Snags Before They Start

Fred’s best trick is also the most practical: physically isolate the metallic cone so it cannot whip around and grab neighboring threads. This is essentially building a quarantine zone for your metallic spool.

What Fred does (exactly)

1. Move the metallic cone to a corner position.
   • Why: A corner post has only one neighbor, instantly reducing snag risks by 50%.

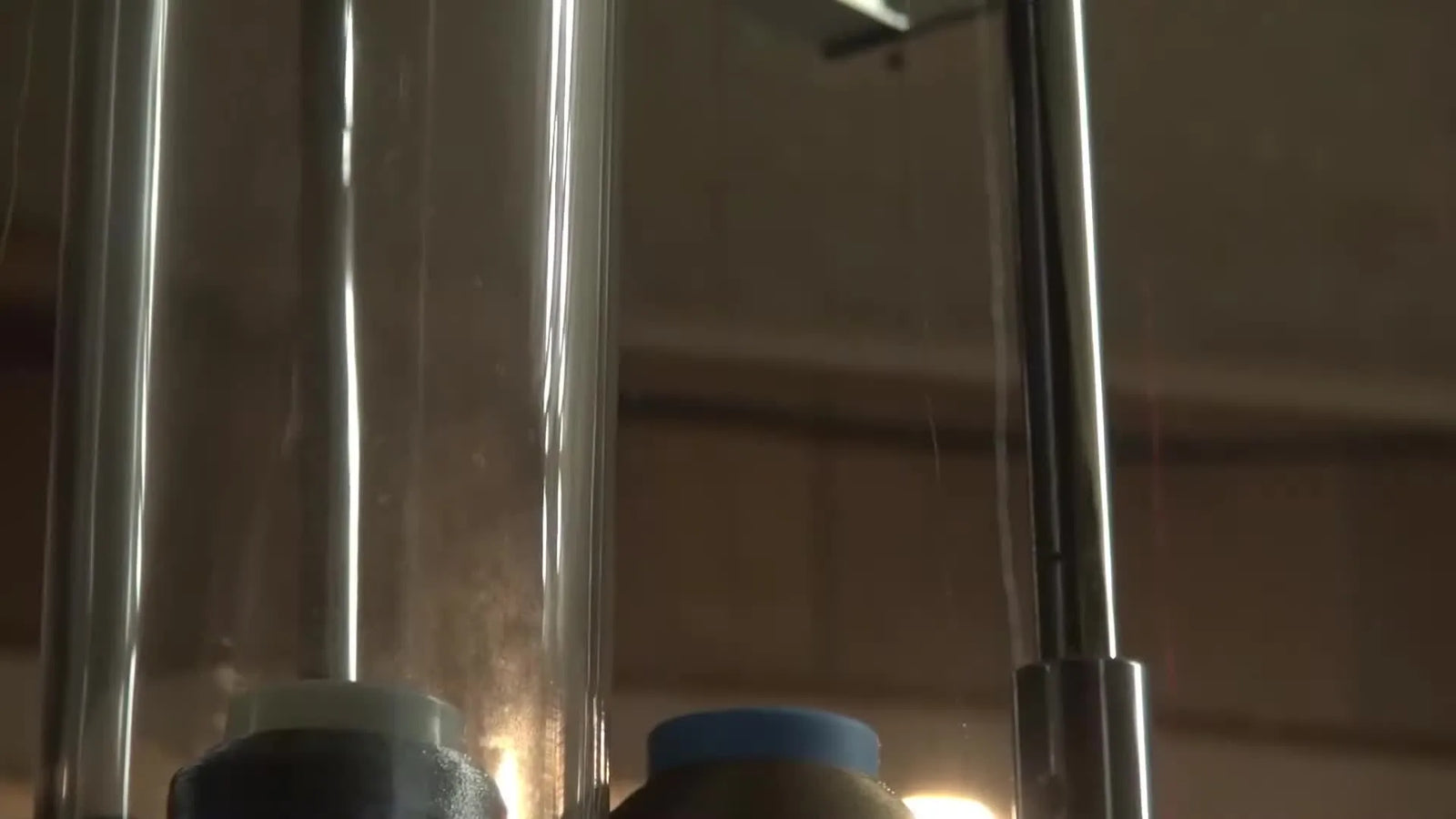

2. Place a clear plastic cylinder/tube over the metallic cone.
   • The Physics: This tube acts like a guardrail or a tunnel. The thread feeds upward through the tube, hitting the smooth plastic walls instead of whipping out to grab other cones.
3. Let the thread feed upward through the tube.
   • Auditory Check: In a quiet room, you might hear a rhythmic tick-tick-tick as the thread taps the inside of the tube. This is the sound of success—it means the tube is containing the energy.

Tube dimensions Fred calls out

Fred specifies a tube that allows clearance but restricts wild movement:

• Outer diameter: about 2.75 inches
• Inner diameter: just over 2.5 inches
• Height: Taller than your cone, but shorter than the guide bar.

Hidden Consumable: If you can't find a tube, a thread net is your backup option. However, nets add drag (friction), so you may need to loosen tension slightly. The tube is superior because it adds containment without friction.

Why this works (the shop-floor physics)

Metallic thread is "hairy" and springy. On a commercial stand, the thread accelerates and decelerates thousands of times per minute. That motion creates lateral energy.

The tube creates a controlled corridor. Instead of the thread exploring the whole stand, it is forced to stay inside a predictable cylinder.

Prep Checklist (Do this BEFORE you press Start)

• Isolation: Metallic cone is on a corner spool pin.
• Containment: Clear tube sits stable and vertical over the cone (no wobble).
• Clearance: Pull a short length by hand. Verify it does not snag on the edge or lip of the tube.
• Neighbors: Ensure nearby polyester cones are not leaning inward.
• Tools: Scissors and tweezers are placed within arm's reach (don't walk away!).


The “Hidden” Prep Pros Don’t Skip: Stabilizer, Thread Path, and One Quick Touch-Test

Fred demonstrates metallic thread on a hooped fabric swatch. He doesn't lecture on stabilizer, but we must. Metallic thread is unforgiving. If your fabric shifts even 1mm, the metallic stitching will distort, pucker, and break light reflection, making the design look cheap.

The "Floss Test" (Sensory Check): Before running, pull a yard of metallic thread through your fingers.

• It should feel smooth/wire-like.
• If you feel a bump, burr, or rough patch: That is a future thread break. Cut that section out now. Do not hope it will pass through the needle eye. It won't.


Set Up Metallic Thread Like You Mean It: A Simple Decision Tree for Fabric + Stabilizer

Use this decision tree to reduce distortion. Metallic thread is stiff; if your stabilization is weak, the thread will win, and the fabric will lose (pucker).

Decision Tree: Fabric Behavior → The Solution

1. Is the fabric stable (Canvas, Twill, Denim)?
   • YES: Use a firm Tearaway or Standard Cutaway.
   • NO: Go to #2.
2. Is the fabric stretchy or loose (Knits, Polos, Performance Wear)?
   • YES: You must use Cutaway Stabilizer (2.5oz or heavier).
   • PRO TIP: If you are getting "Hoop Burn" (shiny rings) on these fabrics because you are tightening the hoop too much to hold the metallic stable, Stop. This is a hardware problem.
   • Solution: Upgrade to Magnetic Hoops. They equalize pressure automatically, holding the fabric firmly without crushing the fibers. This is critical for metallic runs where fabric shift = disaster.
3. Is the fabric delicate (Silk, Satin)?
   • YES: Use a fusible stabilizer (iron-on) or No-Show Mesh/Poly-Mesh to reduce bulk. Again, Magnetic Hoops are safer here to prevent crushing delicate fibers.

The Commercial Reality: If you are doing production runs of 50+ shirts with metallic logos, standardize your backing. Don't guess.

Don’t Sew Through a Metallic Thread Kink—Clear It the Way Fred Shows (Even If It Wastes Thread)

Metallic thread kinks are not a "maybe it'll stitch out" situation. They are a "guaranteed shred" situation.

Visual Check: A kink looks like a tiny pigtail or a loop that has twisted back on itself.

The Protocol:

1. Stop immediately.
2. Locate the kink in the path.
3. Pull the thread manually through the needle until the kink is completely out of the machine.
4. Cut the thread. Yes, you are wasting 2 feet of thread. It costs $0.02. A machine jam costs $20.00 in labor time.
5. Rethread.


Warning: Mechanical Safety. Keep fingers clear of moving needle bars and the take-up lever when pulling thread through. Never wrap metallic thread around your finger and pull hard—it is strong enough to slice skin like a paper cut.

The “why” behind the kink rule

A kink effectively doubles the thread thickness. The needle eye (even a large one) cannot accommodate double thickness plus the friction of the wire wrapping. It will jam, and it will snap.

Needle Choice That Actually Matters: Organ DBx7ST 75/11 “Metallic Eye” for Fewer Shreds

Fred doesn’t hedge here. Do not use your standard 75/11 sharp. You need:

• Brand: Organ (or Groz-Beckert)
• System: DBx7ST (Or marked "MET")
• Size: 75/11 (Standard) or 80/12 (For thicker metallics)
• Feature: Large/Elongated Eye

The Physics: The "Metallic Eye" is significantly longer and wider (sometimes Teflon coated). It reduces the angle of entry and friction as the thread passes through the eye 800 times a minute.

Hidden Consumable: Keep a dedicated box of these needles. Do not mix them with your sharps.

Fred’s rule of thumb for needle replacement

If the thread shreds (the foil strips off the core), rethread once. But if you get THREE breaks in a row, stop guessing.

• The Rule: Change the needle immediately.
• The Reason: Metallic thread acts like a saw. It cuts grooves into the needle eye. Once a groove forms, it shreds everything.


The “3 Breaks in a Row” Rule: How to Diagnose a Worn Needle Eye vs. a Bad Thread Section

Here is a diagnostic hierarchy you can teach your newest employee:

1. Break #1: Random event. Check for a kink. Rethread.
2. Break #2: Suspicious. Check the thread path. Is it caught on a guide?
3. Break #3: System Failure.
   • Action: Change the needle.
   • Check: Is the Design Density too high? (Metallics hate density >5.0mm).

If you are researching equipment, looking up avance commercial embroidery machine reviews is useful, but pay attention to usability reviews: How easy is it to change a needle? How accessible is the thread path? When you are fighting metallic thread, easy access to the needle bar is more valuable than a shiny touch screen.

The “Door Open” Trick on the Avancé Tensioner Cover: When More Space Means Less Tangling

Fred shares an unconventional tip for the Avancé series: running with the tensioner door open.

Visual: He unlatches and swings open the blue transparent cover on the front of the thread tension assembly.

Why:

• Metallic thread is "wild." In a confined plastic case, it hits the walls, bounces back, and tangles on itself.
• Opening the door removes the walls. Infinite space = no bouncing.


Warning: Pinch Point Hazard. Running with covers open exposes moving parts (take-up levers). Only do this if your specific machine design allows it safely (like the Avancé). Keep long hair, jewelry, and loose clothing far away. If you are using a home machine, do not bypass safety sensors.

Setup Checklist (Ready to Burn?)

• Needle: Organ Metallic Eye (75/11) installed.
• Action: Old needle discarded (don't save it!).
• Path: Thread is routed cleanly; no crossing other threads.
• Tension: Slightly looser than polyester (Test: Pull should feel like flossing teeth, not pulling a brick).
• Cover: Open (Only if safety permits).


Troubleshooting Metallic Thread on a Commercial Head: Symptom → Cause → Fix (No Guessing)

Stop twisting knobs randomly. Use this logic flow.

The Production Reality: Metallic Thread Is a Workflow Problem, Not Just a Thread Problem

Metallic thread failures feel like bad luck, but in a commercial shop, they are usually workflow failures.

• Too many cones crowded together? That's workflow.
• Using an old needle to save $0.50? That's workflow.
• Stitching through a kink to save 2 feet of thread? That's bad workflow.

Fred’s tube hack is powerful because it imposes physical discipline on the material.

The Scaling Question: If you are doing one metallic monogram, you can babysit the machine. If you are doing 50 caps, you need a system. This is where the difference between a single-needle hobby machine and a commercial multi-needle unit becomes obvious. You need the spacing, the stability, and the speed control.

The Upgrade Path That Pays Off: Reduce Downtime First, Then Chase Speed

Once you master the technique, you will hit a new ceiling: Efficiency.

If you are spending more time hooping and re-threading than actually stitching, it is time to look at your tools.

When a “tool upgrade” is justified

1. The Hooping Bottleneck:
   • Pain Point: Traditional hoops require hand strength and often leave "hoop burn" marks that ruin expensive garments. Re-hooping slippery fabric for metallic runs takes forever.
   • The Fix: Magnetic Hoops. They slap on instantly, hold thick items (like Carhartt jackets) or delicate items (silk) with equal security, and reduce hooping time by 40%.
   • Research: Search for terms like hooping station or hoopmaster to see how professionals use jigs to align these hoops perfectly every time.
2. The Capacity Bottleneck:
   • Pain Point: You are turning down orders because your single-needle machine takes too long to change colors or set up.
   • The Fix: SEWTECH Multi-Needle Machines. These offer the commercial rigidity needed for metallic threads (less vibration = fewer breaks) and the needle capacity to keep production flowing.
   • Comparison: Many users looking at brother multi needle embroidery machines find that SEWTECH offers a compelling balance of industrial power and cost-effectiveness for growing shops.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Pacemaker Warning: Keep strong magnets at least 6 inches away from pacemakers or medical implants. Store them with spacers to prevent them from snapping together unexpectedly.

Operation Checklist (The "Run It Like a Pro" Final Pass)

• Tube Installed: Metallic cone isolated in corner.
• Path Clear: Visual trace from cone to needle—no crossovers.
• Kink Policy: Enforced (Cut it, don't sew it).
• Needle Rule: 3 breaks = New Needle. No arguments.
• Speed: Dialed down to 600-700 SPM for the first run.
• Hoop: Checked for "hoop burn" risk; switched to Magnetic Hoop if needed.

Finally, consistent results come from consistent setups. Whether you use a hoopmaster hooping station for placement or a simple tape mark on your table, standardizing your variables is the only way to tame the metallic beast. Use the tube, change the needle, and stop fearing the sparkle.

FAQ

• Q: Why does metallic embroidery thread bunch and jam at the Avancé pre-tensioner/top feeder on a multi-needle embroidery machine?
  A: Treat the issue as a thread-path spacing problem first—metallic thread can whip and snag a neighboring cone, then drag it into the first tensioner.
  • Move the metallic cone to a corner spool pin to reduce neighbors.
  • Install a clear isolation tube over the metallic cone to physically contain whipping (tube taller than the cone, shorter than the guide bar).
  • Route the thread straight up through the tube before it enters the guides.
  • Success check: the thread leaves the cone as a smooth stream (not a wide “angry snake” vibration); light tick-tick inside the tube can be normal.
  • If it still fails: switch to a thread net (expect added drag) and re-check that nearby polyester cones are not leaning inward.
• Q: What machine embroidery speed (SPM) is a safe starting point for metallic thread to reduce breaks and birdnesting?
  A: A safe starting point is slowing the embroidery machine down to about 600–750 SPM for metallic thread, then increasing only after stable runs.
  • Start the first test run at the lower end of the range.
  • Keep speed consistent during troubleshooting (don’t change speed and tension at the same time).
  • Success check: the machine runs without repeated snaps and the stitch formation stays consistent for several minutes.
  • If it still fails: inspect for kinks in the thread path and confirm the needle is a metallic-eye type.
• Q: Which embroidery needle should be used for metallic thread on a commercial multi-needle embroidery machine to stop foil shredding?
  A: Use a metallic-eye needle such as Organ (or Groz-Beckert) DBx7ST/MET in 75/11 (or 80/12 for thicker metallics) to reduce eye friction and foil shredding.
  • Install a fresh DBx7ST “Metallic Eye” needle before production runs.
  • Keep metallic needles in a dedicated box so they don’t get mixed with standard sharps.
  • Success check: the metallic thread runs without visible foil stripping or “fuzz” buildup near the needle after a short test.
  • If it still fails: follow the “3 breaks in a row” rule and change the needle immediately (a grooved eye can shred everything).
• Q: What should an embroidery operator do when a metallic thread kink appears in the needle path during a run?
  A: Stop and clear the kink completely—do not stitch through a metallic thread kink because it will almost always shred and snap.
  • Stop the machine immediately and locate the kink (pigtail/loop twist).
  • Pull the thread manually through the needle until the kink is fully out of the machine.
  • Cut off the kinked section and rethread.
  • Success check: the thread hand-pulls smoothly through the needle with no “catch” or sudden resistance.
  • If it still fails: look for a path obstruction at a guide and re-check cone isolation to prevent fresh kinks from forming.
• Q: How can embroidery top tension be adjusted for metallic thread when looping appears on top of the design?
  A: If looping shows on top, the top tension is usually too tight for metallic thread—loosen the top tension slightly and confirm the thread is seated correctly in the tension discs.
  • Rethread and “floss” the thread into the tension discs so it is fully seated.
  • Loosen top tension a small amount and test again (change one variable at a time).
  • Success check: loops on top disappear and the thread feed feels like flossing teeth—not like pulling a brick.
  • If it still fails: inspect the needle eye for wear and verify there is no kinked/rough thread section.
• Q: What prep checks should be done before running metallic thread embroidery to prevent random thread breaks?
  A: Do a quick “touch + path” prep: hand-feel the thread for defects, verify a clean thread route, and keep basic tools within reach so small issues don’t turn into jams.
  • Pull about a yard of metallic thread through fingers and cut out any rough/burred section before stitching.
  • Trace the thread path visually from cone to needle to ensure no crossovers or catches.
  • Place scissors and tweezers within arm’s reach before pressing Start.
  • Success check: the thread feels smooth/wire-like in the fingers and hand-pulls cleanly through the path without snagging.
  • If it still fails: slow down to the metallic “sweet spot” speed range and re-check cone isolation/containment.
• Q: What safety precautions should be followed when clearing metallic thread jams or pulling metallic thread through a needle on a commercial embroidery head?
  A: Keep hands away from moving needle bars and take-up levers, and never wrap metallic thread around fingers when pulling—metallic can cut skin and exposed mechanics can pinch.
  • Power down or ensure the machine is fully stopped before reaching near moving parts.
  • Pull thread with controlled, straight motion—do not yank.
  • Keep long hair, jewelry, and loose clothing away from exposed moving assemblies (especially if any covers are open).
  • Success check: the thread is cleared without the thread slicing the skin or fingers entering pinch-point areas.
  • If it still fails: stop and rethread from the cone to the needle rather than forcing thread through a jammed path.
• Q: When hoop burn happens on knits or delicate fabrics during metallic embroidery, should the fix be technique changes, magnetic hoops, or a multi-needle embroidery machine upgrade?
  A: Use a tiered approach: first stabilize correctly, then upgrade to magnetic hoops if hoop pressure is causing shine marks, and consider a multi-needle machine when spacing/stability becomes the production bottleneck.
  • Level 1 (Technique): use appropriate stabilizer (often cutaway for knits) so the fabric doesn’t shift and tempt over-tight hooping.
  • Level 2 (Tool): switch to magnetic hoops when hoop burn/shiny rings appear because magnetic pressure is more even and less crushing.
  • Level 3 (Capacity): move to a commercial multi-needle setup when repeated metallic downtime is driven by crowded thread stands, poor isolation space, and slow workflows.
  • Success check: fabric stays stable without shiny hoop rings and metallic stitches remain consistent without frequent re-hooping.
  • If it still fails: reassess thread isolation/needle choice and standardize the backing/hooping method across the whole run.
