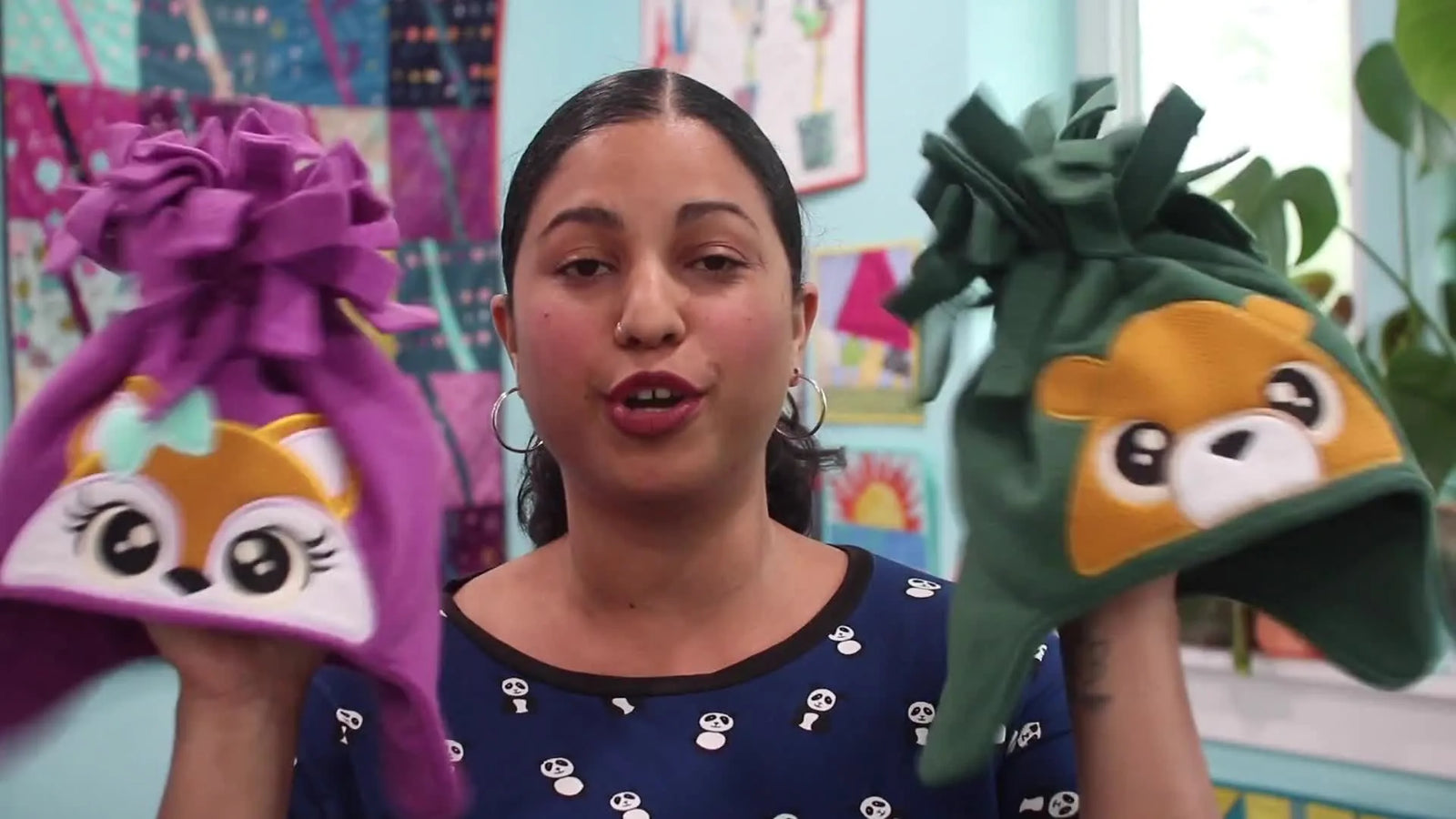

No Hoop Burn, No Guesswork: Embroider a Fleece Ear-Flap Hat with a Fringe Pom-Pom Top (5x7 Hoop Method)

If you’ve ever tried embroidering fleece and ended up with "hoop burn" (permanent crush marks), shifting fabric, or a design that gets swallowed by the seam allowance—take a breath. Fleece is deceptively difficult. It looks soft, but mechanically, it’s a sliding, stretching, pile-crushing variable that demands specific protocols.

This project looks fancy, but it is absolutely repeatable once you lock in two things: placement math and controlled fabric tension.

In this white-paper-style tutorial, we will reverse-engineer a standard fleece ear-flap hat pattern to add a “peeker-style” applique embroidery and a fringe pom-pom top. We will use a 5x7 hoop and the floating method (stabilizer hooped, fleece adhered on top). I will guide you through the tactile nuances of handling lofted fabric and call out the specific commercial upgrades that transition you from a struggling hobbyist to a production pro.

Phase 1: Resource Acquisition & Safety Calibration

You don't need a mountain of tools, but you need the correct physics. Fleece is forgiving regarding needle penetrations, but unforgiving regarding alignment.

Essential Supplies

• Fleece Fabric: Anti-pill fleece is preferred for durability (Exterior + Lining).
• Stabilizer: Medium-weight Cut-Away (2.5 - 3.0 oz). Do not use Tear-Away; stitches will pull through the fleece during wear.
• Embroidery Hoop: Standard 5x7 inch.
• Adhesive: Temporary spray adhesive (e.g., KK2000 or similar 505 sprays).
• Embroidery Thread: 40wt Polyester (recommended for hats due to UV/laundry resistance).
• Applique Fabric: For the "peeker" design face.
• Tools: Acrylic ruler, marking pen (air-erase or chalk), rotary cutter, sewing clips (better than pins for thick fleece).
• Sewing Machine: With a standard foot and a Walking Foot (crucial for feeding bulky layers).

The "Hidden" Consumables (The Expert’s Secret Stash)

Most tutorials skip these, but they are the difference between "homemade" and "pro":

• Water-Soluble Topping (Solvy): A thin film placed over the fleece before stitching. Prevents stitches from sinking into the pile.
• Needle Selection: 75/11 Ballpoint (BP). Sharp needles can cut the knit fibers of fleece, creating holes that expand over time. Ballpoints slide between fibers.
• New Rotary Blade Check: Fleece dulls blades fast. If you hear a "skipping" sound while cutting, change the blade.

Warning: Rotary cutters and machine needles are a rough combo when you are tired. Keep your non-cutting hand well away from the blade path (use a ruler guard if possible). Never reach under the needle area while the machine is running—embroidery machines move on X/Y axes unexpectedly.

Pro tip on Pattern Access: If using a "free" digital pattern, ensure you complete the checkout process (even at $0.00). If the email doesn't arrive, check Spam folders immediately. Gmail is often more reliable for these automated delivery systems than ISP-based emails.

A Note on Precision Tools

If you are building a repeatable workflow (especially for gifts, craft fairs, or donation batches), manual alignment is your enemy. A dedicated hooping station for machine embroidery can reduce alignment errors by physically locking your hoop in place while you align the fabric, ensuring your "peeker" isn't crooked.

Prep Checklist (Do this BEFORE cutting)

• Machine Check: Bobbin area cleaned of lint? (Fleece generates massive dust).
• Design Check: Confirm hoop size is set to 5x7 on screen.
• Materials: Two identical fleece pieces (Exterior + Lining) verified.
• Marking Test: Test your pen on a scrap. Does it vanish with heat/air/water? Does it ghost?
• Topping: Water-soluble topping cut and ready nearby.

Phase 2: The "Don’t Cut the Curve" Hack (Pattern Engineering)

This is where most beginners fail. They cut the standard beanie curve and then wonder why the fringe looks skimpy. We are modifying the geometry.

The Engineering Steps:

1. Use the ear-flap hat template piece (the bottom/ear flap portion).
2. Do not cut the original top curve of the PDF pattern.
3. Place the pattern on the fold as indicated so the front edge is seamless.
4. Cut the ear-flap shape, then extend vertically.
5. Measure 15 inches from the bottom tip of the ear flap straight up and create a straight, rectangular top edge.


Why this works (The Physics): Fleece has loft and stretch. A curved top gathers into a bunch, but fringe requires a straight "deck" so the strips gather evenly into a pom-pom. The rectangle ensures that the density of the fringe remains consistent around the circumference of the tie point.

Sizing Data:

• Child/Youth: 15 inches total height.
• Adult: Scale the entire printed template to 110%, or extend height to 17 inches while widening the circumference by 1-2 inches.

Phase 3: Hooping Strategy – The "Floating" Method

The Enemy: Hoop Burn. The Solution: Floating.

Hooping fleece directly between the inner and outer rings of a standard hoop compresses the air pockets in the fabric, damaging the texture (hoop burn). It also distorts the stretch, leading to puckered designs. We use the Floating Method to bypass this.

The Protocol:

1. Cut medium-weight cut-away stabilizer larger than the hoop.
2. Hoop only the stabilizer.
3. Sensory Check (Auditory/Tactile): Tighten the screw. Tap the stabilizer. It should sound like a drum—thump, thump. It should be taut with zero sag.


This technique is a cornerstone of hooping for embroidery machine mastery when dealing with velvet, fleece, or delicate knits.

Decision Tree: Consumable Selection Since you are working with Fleece (Stretch + Pile):

• IF standard fleece → USE Cut-Away Stabilizer + Soluble Topping.
• IF ultrastretch plush (Minky) → USE Heavy Cut-Away + Soluble Topping.
• IF making >50 hats → UPGRADE to Magnetic Hoops (see below).

Phase 4: Placement Math & The 3/4-Inch Safety Zone

The Risk: Sewing the hat construction seam right through your beautiful embroidery. The Fix: The Safety Zone.

The Execution Sequence:

1. Load design. Select 5x7 hoop.
2. Stitch the First Placement Line directly onto the hooped stabilizer (no fabric yet). This shows you exactly where the design lives.


3. Action: Draw a horizontal guideline 3/4 inch (approx 20mm) below the bottom edge of that stitched placement line.
   • Minimum clearance: 1/2 inch (Risk: High).
   • Recommended clearance: 3/4 inch (Risk: Low).


Visual Anchor: You now have a "Landing Strip." Your fleece edge must land on this line.

Expert Nuance: If your hat pattern has a curved bottom edge, your "Landing Strip" must mimic that curve. Do not use a straight line for a curved hem, or the embroidery will tilt visually when worn.

Phase 5: Floating the Fleece (Friction & Adhesion)

Now we bond the unstable fleece to the stable base.

1. Center Finding: Fold your fleece (ear flap to ear flap) to find the center. Mark with a pin.
2. Adhesion: Spray a light mist of KK2000 (or equivalent) onto the stabilizer, not the machine.
   • Safety: Do this away from the embroidery machine to prevent gumming up the gears.


3. Docking: Align your fleece center pin with the stabilizer center mark. Align the fleece raw edge with your 3/4-inch Safety Line.
4. Smoothing: Smooth the fabric up toward the machine arm.
5. Secure: Use clips to roll/hold excess bulk out of the way.


Warning: Do not roll the excess fleece too tightly under the machine head. Bulk creates drag. Drag causes layer shifting, which ruins registration. The fabric must be "floating," not "pulling."

The "Pain Point" & The Professional Solution

At this stage, you might struggle with the fleece popping loose or the sticky spray gumming up your needles. This is the friction point where professionals upgrade equipment.

Terms like magnetic hoops for babylock embroidery machines (or Brother/Janome/Ricoma) are your gateway to efficient production.

• The Problem: Traditional clamp hoops require hand strength and leave marks.
• The Fix: magnetic embroidery hoops. These use high-force magnets to sandwich the quilt/fleece without crushing the fibers inside the sewing field.
• The ROI: If you are running a small shop, magnetic hoops for embroidery machines reduce your "hooping time" from 2 minutes to 15 seconds per hat. This creates a standardized, residue-free hold that is superior for bulky items.


Warning: Magnetic Safety. These are not fridge magnets. They are industrial neodymium magnets. They can pinch fingers severely (blood blister risk) and must be kept at least 6 inches away from pacemakers and computerized machine screens/cards.

Operational Settings Check (Before Pressing Start)

• Speed (SPM): Lower your machine speed. Fleece creates friction. Drop from 1000 SPM to 600-700 SPM for cleaner results.
• Topping: Lay your water-soluble topping over the embroidery area now.
• Applique Step: If doing a peeker, watch the machine!
  1. Placement Stitch (Done).
  2. Tack Down Stitch (Stitches the fabric down).
  3. STOP. Trim the applique fabric close to stitches.
  4. Satin Stitch Cover (Final finish).

Phase 6: Construction – Managing Bulk and Seams

Embroidery is done. Now we construct.

1. The Bottom Seam

Method: Place Exterior and Lining Right Sides Together (RST). The embroidery is sandwiched inside.

• Tip: Fold the cut-away stabilizer back (out of the seam allowance) if possible to reduce bulk.
• Stitch Settings: Straight stitch, length 3.5mm – 4.0mm.
  • Why? Tiny stitches (2.0mm) perforate fleece, causing the seam to tear under stress. Longer stitches allow for stretch.


2. The Fringe Cut (The "Chaos" Phase)

Make sure the hat is open flat. We cut the fringe through both layers (Exterior + Lining) simultaneously.

• Strip Width: 1 inch (approx).
• Strip Depth: 3 inches down from the top edge.


3. The Side Seam with "The Stop"

This step separates the hat body from the fringe.

1. Fold the hat to match side seams.
2. Mark the Stop Point: Use chalk to mark exactly where the fringe cut begins.
3. Action: Sew from the bottom hem, up the side, and STOP at your mark (base of the fringe). Backstitch securely.
4. Do this for both sides of the hat tube. Do not sew the fringe strips together.


Setup Checklist (Sewing Mode)

• Stitch Length: Set to 3.5mm+.
• Needle: Universal or BP needle installed in Sewing Machine.
• Bulk Management: Walking foot installed (Highly Recommended).
• Fringe Safety: Confirm you are NOT about to sew the fringe strips shut.

Phase 7: The "Pom-Pom" Finish

Turn the hat right side out. Tuck the lining inside the exterior. You now have a tube with fringe at the top.

The Tie Protocol:

1. Cut a scrap fleece strip (12 inches long x 1 inch wide).
2. Gather the fringe base in your hand. "Puff" it to distribute the gathers evenly.
3. Tactile Step: Tie the strip around the base. Pull until you feel firm resistance—fleece compresses. Tie a single overhand knot.
4. Seat the Knot: Pull the ends separately to tighten the core. Tie a second knot.




Phase 8: The Walking Foot Topstitch (Optional but Pro)

Topstitching prevents the lining from rolling out.

The Symptom of Failure: Wavy, "lettuce-edge" hems. The Cure: A Walking Foot + Long Stitch.

• Machine Setting: Stitch length 4.5mm - 5.0mm.
• Technique: Sew 1/4 inch from the bottom edge. Let the feed dogs move the fabric; do not push or pull.


Operation Checklist (Final Inspection)

• Wash-Away: Remove excess topping. Dab with a wet Q-tip to dissolve small bits.
• Trim: Clip any jump threads inside the embroidery.
• Seam Check: Pull gently on the side seams. Do stitches hold?

Phase 9: Systematic Troubleshooting

If things go wrong, consult this matrix before ripping out stitches.

Commercial Evolution: From One Hat to One Hundred

If you’re making one hat for your child, floating with spray adhesive is acceptable. However, if this project triggers orders for 20 classroom hats or 50 shop items, your workflow has a bottleneck: The Prep Time.

To scale this project, consider this upgrade path:

1. Level 1 (Consistency): Use a physical template to mark your 3/4" line every time.
2. Level 2 (Speed): Adopt magnetic hoops. They eliminate screw-tightening and physical strain, turning a 3-minute hoop job into a 20-second "snap."
3. Level 3 (Scale): When you are ready to produce batches, multi-needle machines (like SEWTECH’s commercial line) allow you to queue up colors and run continuously without changing threads, while larger magnetic frames allow you to hoop the next hat while the current one stitches.

Expertise isn't just about talent; it's about controlling variables. By using the floating method, respecting the safety zone, and employing the right stabilizers, you turn a chaotic fleece project into a precision engineering task.

Now, go clear that 3/4-inch line and stitch with confidence.

FAQ

• Q: How do I prevent hoop burn when embroidering anti-pill fleece in a standard 5x7 embroidery hoop?
  A: Avoid clamping fleece in the hoop; hoop only cut-away stabilizer and float the fleece on top.
  • Hoop: Tighten the stabilizer until it is fully taut, then hoop only the stabilizer (not the fleece).
  • Adhere: Lightly spray temporary adhesive onto the stabilizer (away from the machine), then smooth the fleece onto it.
  • Control: Clip/roll excess fleece loosely so it does not drag under the machine head.
  • Success check: Tapping the hooped stabilizer sounds like a drum (“thump, thump”) and the fleece lies flat without being crushed.
  • If it still fails: Lower machine speed to 600–700 SPM and reduce bulk/drag by re-clipping the roll so nothing pulls.
• Q: What stabilizer and topping should be used for embroidery on fleece to prevent stitches from sinking into the pile?
  A: Use medium-weight cut-away stabilizer with a water-soluble topping over the fleece.
  • Choose: Medium-weight cut-away stabilizer (about 2.5–3.0 oz) for standard fleece; avoid tear-away for this use.
  • Add: Place water-soluble topping on top of the fleece before stitching to keep stitches from disappearing into the nap.
  • Prep: Cut topping in advance so it is ready right before pressing start.
  • Success check: Satin stitches sit on top of the fleece pile instead of looking “buried.”
  • If it still fails: Keep the topping on for the full stitch-out and verify the project is being floated (not hooped directly).
• Q: How can a 75/11 ballpoint needle reduce holes and damage when embroidering fleece on a home embroidery machine?
  A: Start with a 75/11 ballpoint needle because it pushes between fleece knit fibers instead of cutting them.
  • Install: Replace the needle before starting the project (a fresh needle matters on dense stitches).
  • Match: Use 40wt polyester embroidery thread for durability on hats.
  • Monitor: Stop if you hear popping/snapping sounds and change the needle again if needed.
  • Success check: The fleece surface shows no expanding holes around stitch penetrations after stitching.
  • If it still fails: Slow down to 600–700 SPM and re-check that topping is in place to reduce stress on stitches.
• Q: How do I know stabilizer tension is correct when hooping for the floating method on fleece in a 5x7 hoop?
  A: The stabilizer must be drum-tight in the hoop before floating fleece on top.
  • Tighten: Secure the hoop screw, then tap the stabilizer surface to confirm tension.
  • Inspect: Look for zero sagging or ripples before adding adhesive and fabric.
  • Align: Float the fleece only after the stabilizer passes the tension check.
  • Success check: The stabilizer makes a drum-like sound when tapped and does not deflect when pressed lightly.
  • If it still fails: Re-hoop with a larger stabilizer piece so the hoop grips clean, flat material without wrinkles.
• Q: How do I keep embroidery on a fleece ear-flap hat out of the construction seam using the 3/4-inch safety zone?
  A: Stitch the first placement line on stabilizer, then mark a 3/4-inch (20mm) clearance line and align the fleece edge to that line.
  • Stitch: Run the first placement line on the hooped stabilizer with no fabric to map the design location.
  • Mark: Draw a guideline 3/4 inch below the bottom edge of that stitched placement line (minimum 1/2 inch is higher risk).
  • Dock: Align the fleece raw edge to the safety line before starting the embroidery steps.
  • Success check: After sewing the hat seam, the seam allowance does not touch any part of the embroidery.
  • If it still fails: Rip and resew the seam with a smaller allowance only if the pattern allows, then re-verify the placement line step next time.
• Q: How do I fix “gaps in satin stitch” on fleece when the pile shows through the embroidery?
  A: Add water-soluble topping before stitching; if the design is already finished, a matching permanent marker can hide small gaps.
  • Prevent: Always lay water-soluble topping over the fleece right before starting the embroidery.
  • Verify: Make sure the topping stays covering the stitching area through the satin stitch pass.
  • Patch: For an already-finished hat, color tiny exposed fleece spots carefully with a matching permanent marker.
  • Success check: The satin stitch edge looks solid with minimal fleece color peeking through.
  • If it still fails: Re-run a test stitch with topping and confirm the fabric is floated (not stretched in the hoop).
• Q: What safety rules should be followed when using temporary spray adhesive and magnetic embroidery hoops on fleece projects?
  A: Spray adhesive away from the embroidery machine, and treat magnetic hoops as industrial pinch hazards.
  • Spray: Apply adhesive to the stabilizer away from the machine to avoid gumming up moving parts.
  • Protect: Keep hands clear of the needle area while the machine is running because embroidery heads move on X/Y axes.
  • Magnet: Keep magnetic hoops at least 6 inches away from pacemakers and be deliberate to avoid finger pinches.
  • Success check: No adhesive residue accumulates near the machine, and hoop handling causes no sudden snapping/pinching incidents.
  • If it still fails: Reduce adhesive amount (light mist only) and slow down handling steps—rushing is the common cause of injury and mess.
• Q: When should a fleece hat workflow upgrade from floating with spray adhesive to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: If hooping time, shifting, or repeat-order volume becomes the bottleneck, upgrade in levels: technique first, then magnetic hoops, then multi-needle production.
  • Diagnose: Time how long hooping/positioning takes per hat and note whether fleece pops loose or shifts during stitching.
  • Level 1: Standardize placement with a physical template and always use the placement-line + 3/4-inch safety zone method.
  • Level 2: Move to magnetic embroidery hoops to reduce hooping time and minimize clamp marks on bulky fleece.
  • Level 3: Use a SEWTECH multi-needle embroidery machine when batch work demands continuous runs without constant thread changes.
  • Success check: Hooping becomes fast and repeatable, and designs land consistently without rework.
  • If it still fails: Re-check bulk drag management (loose roll + clips) and keep speed in the 600–700 SPM range for fleece.
