No More Torn Paper: Embroidering an Appliqué Greeting Card on Cardstock with a Brother 5x7 Hoop (The Clean, Repeatable Way)

If you’ve ever tried to stitch on cardstock and watched it start to look like a perforated coupon, take a breath—you’re not alone. Paper embroidery feels “high risk” because unlike fabric, paper has zero memory. Every needle penetration is permanent; there is no “rubbing out” a mistake. However, the process is absolutely repeatable when you stop treating cardstock like fabric and start treating it like a delicate substrate where the stabilizer does the heavy lifting.

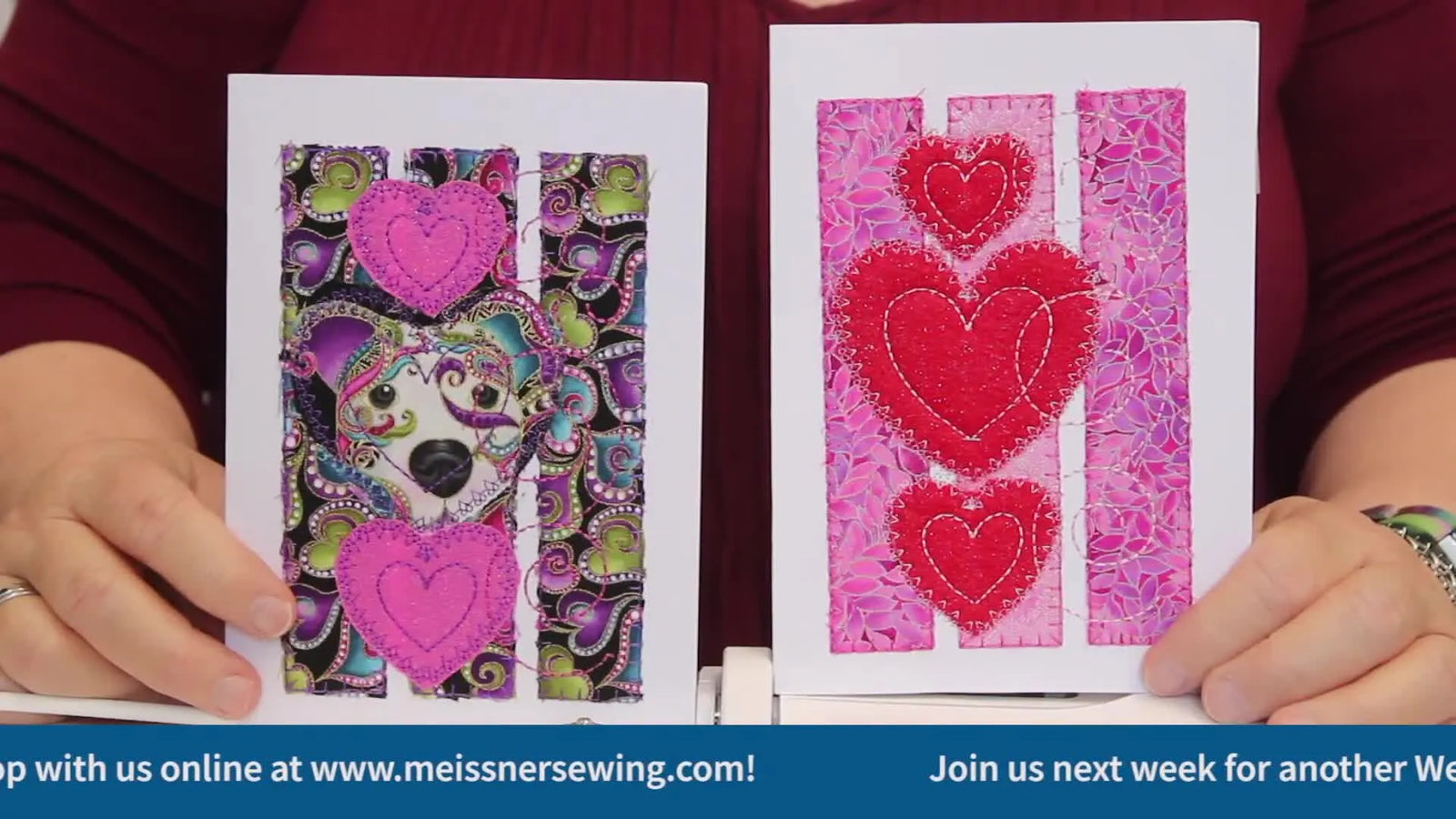

In this project, independent educator Dara demonstrates an appliqué greeting card stitched on cardstock using a Brother Essence VM 5200 and a standard 5x7 hoop. The core idea is simple but technically critical: hoop the stabilizer, not the card, then “float” the card on top after you stitch a specific placement line.

The calm-before-you-stitch: why cardstock embroidery feels scary (and why it doesn’t have to)

Cardstock doesn’t behave like fabric. Fabric can flex, absorb the shock of a needle entering at 600 stitches per minute (SPM), and recover. Paper is rigid fibers pressed together—it cannot stretch. That’s why dense designs can create the dreaded “punch card effect”—too many needle penetrations in a localized area sever the fiber web until the paper simply falls out.

To master this material, we need two fundamental mindset shifts:

1. Stabilization is the real hooping: The plastic hoop frame is merely a mechanism to hold the stabilizer taut. The stabilizer is the actual foundation that absorbs the mechanical energy of the embroidery arm. If your stabilizer is loose, the paper will tear.
2. Density is the enemy: Design choice matters more than machine speed. A lighter design with fewer penetrations (low stitch count) will look cleaner and last longer. You are essentially decorating the paper, not trying to pave over it with thread.

If you’re building cards for holidays, craft fairs, or small-batch custom orders, this technique scales nicely because the placement stitch gives you a consistent target every time, eliminating the manual measuring that leads to crooked results.

The “hidden” prep pros do first: cardstock, stabilizer, needle, and thread choices that prevent the punch-card effect

Before you touch the start button, set yourself up so the machine isn’t fighting the materials. The difference between a shredded card and a masterpiece usually lies in the consumables.

What the video uses (and why it works)

• Stabilizer: Tear-away stabilizer is the industry standard for paper because it provides rigidity during stitching but removes easily afterward. Dara notes that her favorite is a sticky tear-away (like Perfect Stick) because the card adheres directly without tape, reducing localized stress points. However, she demonstrates the standard non-sticky option secured with tape, which is accessible to everyone.
• Needle: A 75/11 embroidery needle is used. While some resources (like OESD) might recommend a smaller 60/8 to minimize the hole size, Dara avoids it for a practical reason: the automatic needle threader on many Brother machines (and others) often fails or bends the delicate hook when trying to pass through a 60/8 eye. A 75/11 is the "sweet spot"—large enough for reliable threading, small enough to not destroy the paper.
• Thread: Variegated thread is used for visual impact, but critically, 60wt thread is used for delicate lettering. Standard thread is 40wt. By switching to the thinner 60wt, you reduce the physical mass of the thread buildup, which helps prevent the paper from warping under the weight of the text.
• Appliqué backing: Steam-A-Seam is applied to the fabric before cutting. This essentially turns your fabric into a sticker, keeping edges clean and preventing fraying (which looks terrible against crisp paper).
• Adhesives for finishing: Glue Dots are used to attach a liner inside the card because wet glues (Elmer’s, PVA) introduce moisture that causes cardstock to cockle (wrinkle).

Expert reality check (what’s happening physically)

Paper fails when it’s asked to absorb too much stress in one area. Dense satin columns and heavy underlay can act like a perforation strip on a checkbook. That’s why Dara’s choice of a blanket stitch for the appliqué edge is so smart: it secures the fabric by piercing the paper every few millimeters, rather than hammering it with hundreds of stitches in a solid line.

Speed Tip: For cardstock, I recommend lowering your machine speed to 350–600 SPM. High speeds create more vibration, which can cause the needle to flex slightly and enlarge the holes in the paper.

One more practical note: the machine’s estimated stitch time is often optimistic because it doesn’t account for the manual labor of thread changes. If the screen says "15 minutes," plan for 25.

Prep Checklist (do this before hooping)

• Needle Check: Install a fresh 75/11 Embroidery or Sharp needle (Ballpoint needles can tear paper rather than piercing it cleanly).
• Stabilizer Prep: Cut tear-away stabilizer large enough to extend at least 1 inch past the hoop on all sides for proper tensioning.
• Card Inspection: Open the card flat and check the fold orientation. Mark "Top" lightly with a pencil if unsure.
• Fabric Prep: Fuse Steam-A-Seam to the back of your appliqué fabric, then cut the rough shape.
• Finishing Supplies: Have scrapbooking paper (liner) and dry adhesive (Glue Dots) ready.
• Thread Selection: Load 60wt bobbin thread and choose 40wt or 60wt top threads based on design density.


Hooping for the Brother Essence VM 5200: tighten the 5x7 hoop without warping anything

Here’s the part most people get wrong: they try to hoop the cardstock itself. Never hoop cardstock. The clamp pressure will crush the paper fibers, leaving a permanent "ring of death" that cannot be ironed out. Dara hoops only the stabilizer in the 5x7 hoop.

She also shares a small hack that’s worth stealing: adding a rubber pencil grip to the hoop screw gives you better leverage when tightening. This is crucial because single-needle hoops often require significant finger strength to get the stabilizer taut enough.

From a technician’s perspective, this is about controlled tension. You want the stabilizer to feel like a tuned drum skin. Tapping it should produce a rhythmic "thump," not a dull flop. With paper projects, if your stabilizer is loose, the paper "flags" (bounces up and down with the needle), which leads to misregistration and ugly gaps between the outline and the fabric.

If you’re searching for hooping for embroidery machine techniques that guarantee zero substrate damage, this “stabilizer-only hooping” approach is the foundation of all floating techniques. Additionally, if you find standard hoops difficult to tighten or if they pop open mid-stitch, this is often a trigger to look at upgraded hoop systems that use magnetism rather than friction.

Warning: Keep fingers, snips, and loose thread tails away from the needle area while the machine is running. A needle strike can break a needle and send sharp fragments flying at high velocity—always Pause the machine before trimming threads or repositioning tape.

The placement stitch trick: stitch the box first so your card lands perfectly every time

Dara runs the first color stop directly onto the bare stabilizer to create a placement outline. This is the moment that turns cardstock embroidery from “guesswork” into a repeatable engineering process.

Once that rectangle is stitched on the stabilizer, you have a physical guide. You can see exactly where the card front needs to sit. This eliminates the need to measure or mark the card itself with pens that might bleed.

This is also where production-minded makers can speed up: if you’re doing multiple cards, you can prep a stack of cards and apply tape to corners while the machine stitches the placement line on the next hoop.

If you’ve ever struggled with brother 5x7 hoop alignment—where the design ends up tilted just 2 degrees off-center—this placement-line method is the cleanest way to eliminate drift without over-handling the paper.

Floating the cardstock: secure the card without hoop burn, shifting, or torn corners

After the placement line stitches, Dara opens the card flat and positions the front panel of the card centered over the stitched box.

Because the stabilizer in the hoop is not sticky in this demo, she uses double-sided tape on the four corners, then burnishes (rubs) it down firmly so the card can’t creep.

Two critical details from the video explained:

1. Orientation matters: Check, double-check, and triple-check the fold. Make sure the inside of the card is facing UP and away from the needle bar, or you will stitch the card shut.
2. Burnish firmly: Light pressure isn’t enough. Use your fingernail or a plastic tool to rub the tape area. You should feel the heat of friction. Paper can “walk” or rotate under the vibration of the presser foot if it is not mechanically anchored.

This is the practical heart of floating embroidery hoop work: you’re letting the stabilizer carry the mechanical tension while the cardstock is simply adhered in the secure "sweet spot" of the stitch field.

Setup Checklist (right before you press start)

• Visual Confirmation: Is the placement line stitched clearly on the stabilizer?
• Card Position: Is the card opened flat? Is the front panel centered over the box?
• Clearance Check: Manually rotate the handwheel to ensure the needle won't hit the tape.
• Adhesion: Are all four corners taped and burnished (rubbed down)?
• Hoop Clearance: Confirm the edges of the card won't catch on the machine bed or throat plate as the hoop moves.


Appliqué on cardstock: Steam-A-Seam placement that stays put at an awkward angle

When the design calls for appliqué placement, Dara peels the backing off the pre-cut fabric piece (prepared with Steam-A-Seam) and places it inside the stitched placement line on the cardstock.

Steam-A-Seam performs two distinct engineering jobs here:

1. Tacky Positioning: It gives you a light “grab” (tackiness) so the fabric doesn’t slide while you’re positioning it, even if the hoop is attached to the machine vertically.
2. Fiber Stabilization: It fuses the fabric fibers together. Paper is unforgiving—it contrasts sharply with fuzzy edges. The fusible web makes the fabric rigid and crisp, matching the aesthetic of the paper.

If you skip the fusible and just stitch raw fabric down, you can still trim after the tack-down (the traditional appliqué method), but you are much more likely to pull threads and see frayed edges over time.

Blanket stitch vs satin stitch: the cardstock-friendly edge that won’t perforate your card

Dara’s design uses a blanket stitch (E-stitch) to secure the appliqué edge. That’s not just a style choice—it’s a structural preservation choice.

A satin stitch (the solid bar of thread) places needle penetrations side-by-side, hundreds of times per inch. On paper, this creates a "tear here" perforation line. Even if it survives the stitching, the card will fall apart when mailed.

A blanket stitch looks like a hand-sewn comb. It spaces the penetrations out, distributing the stress across a wider area of the cellulose fibers.

Expert Rule of Thumb: If you must use a satin stitch on paper, increase the stitch spacing (density) by 20–30% in your software, or use a significantly thinner thread (60wt or 75wt) to reduce the bursting force. But whenever possible, prioritize designs digitized specifically for "cardstock" or "mixed media."

Thread changes without damaging tension discs: stop back-pulling (your machine will thank you)

This is one of those habits that separates a casual hobbyist from someone who runs a profitable shop. Bad thread habits are the #1 cause of tension issues.

Dara’s method is the only correct method:

1. Clip the thread at the spool pin.
2. Pull the remaining tail forward through the needle eye.
3. NEVER pull thread backwards from the spool.


The Why: Thread—especially metallic or cotton—sheds lint. If you pull it backward, you are dragging that lint (and potentially a knotted end) against the grain into the delicate tension discs and check springs. This jams the discs, leading to "bird nesting" on your next project. Pulling forward follows the natural path of the machine.

If you’re building a workflow around frequent color changes (cards, logos, small motifs), this one technique reduces service bills and keeps stitch quality consistent.

Removing tear-away stabilizer from cardstock: support the stitches so the paper doesn’t rip

When the stitch-out is complete, Dara removes the hoop and then tears away the stabilizer.

Her key technique is exactly right for paper basics:

1. Place your thumb and fingers directly over the embroidery stitches to support the cardstock.
2. Tear the stabilizer away gently with the other hand, pulling away from the stitches, not up.

This prevents the shearing force of the tear-away from pulling on the stitch line and ripping the card. From a material-science standpoint, you’re clamping the paper fibers in place so the stress fracture occurs in the stabilizer, not the cardstock.

Finishing the inside like a pro: cover the back stitches without wrinkling the card

The inside of a stitched card can look messy—a "road map" of bobbin thread, stabilizer remnants, and knots. Dara finishes the card by covering the back stitches with a liner (scrapbook paper or fabric) attached with Glue Dots.

She specifically avoids wet glues like Elmer’s or Mod Podge because paper absorbs water and expands. As it dries, it contracts, causing the card to curl or wrinkle ("cockle").

• Glue Dots / Dry Runner Tape: 100% safe. Instant bond. No warping.
• Rubber Cement: Good alternative if applied thinly and allowed to tack up.

This is where your card stops looking like a craft experiment and starts looking like a product. If you’re making cards to sell, this finishing step is non-negotiable—customers judge the quality of the finish as much as the embroidery itself.

Fussy cutting and creative variations: make one design look like ten

Dara shows how the same design can look completely different just by changing the fabric and how you cut it (fussy cutting). "Fussy cutting" simply means strictly aligning the fabric pattern (like a dog's face or a flower) so it lands exactly in the center of your appliqué shape.

This is a powerful lever for makers who want variety without buying endless design packs:

• Novelty Prints: Use seasonal motifs (hearts for Valentine's, pumpkins for Halloween).
• Texture: Use Mylar behind a sheer fabric or open stitching for a subtle shine (as shown in some workshop examples).
• Fabric Rotation: Simply rotating a stripe or plaid can change the energy of the card.

Decision tree: cardstock + stabilizer + attachment method (pick the safest combo)

Use this quick decision tree to choose a setup that matches your materials and your tolerance for risk.

Start: Are you willing to use sticky stabilizer (e.g., Perfect Stick)?

• Yes (Best Hold) → Hoop sticky tear-away paper-side up. Score firmly with a pin (don't cut the stabilizer) and peel the paper. Stitch placement line. Stick card down directly.
  • Risk: Residue on back of card? Very low if quality stabilizer is used.
• No (Standard) → Hoop standard medium-weight tear-away. Stitch placement line.
  • Path A: Use double-sided tape on all 4 corners + center. Burnish well.
  • Path B: Use Painter's Tape/Masking Tape over the corners (safe, but needle must not hit tape).

Next: Is the design stitch-intensive (dense satin, heavy fill, lots of lettering)?

• Yes (High Risk) → STOP. Choose a different design digitized for cardstock, OR reduce density by 20% in software, OR increase design size by 10% (spreads stitches out). Use 60wt thread.
• No (Low Risk) → Proceed with blanket stitch, motif stitch, or running stitch appliqué.

The upgrade path when you’re tired of slow hooping (and want cleaner results)

Once you’ve made a few cards, you’ll notice the real "time sink" isn’t the stitching—it’s the handling: aligning, securing, taping, and re-taping delicate materials. This is "cognitive friction."

Here’s how experienced shops reduce friction without changing the craft:

1. Level 1: Consumable Upgrade. If you’re constantly fighting alignment, switch to Magnetic Hoops. Why? Traditional hoops rely on friction and forcing an inner ring into an outer ring—this is physically hard and can crush paper or leave "hoop burn" on velvet/fabric.
2. Level 2: Tool Upgrade. magnetic embroidery hoops utilize strong magnets to clamp the material flat. There is no "inner ring" distortion. You simply lay the stabilizer (and card, if floating) on the frame and snap the magnets down. It is faster, safer for delicate materials, and requires zero hand strength.
3. Level 3: Production Upgrade. If you’re running batches (team gifts, holiday card sets, 50-card corporate orders), a single-needle machine becomes the bottleneck because you have to change threads manually for every color. In that scenario, a productivity-focused platform like a SEWTECH multi-needle embroidery machine may be worth evaluating. These machines hold 10-15 colors at once and trim automatically, allowing you to walk away while the machine produces the entire batch.

If you’re exploring magnetic hoop for brother options to speed up your card or garment production, treat it like a compatibility decision: match the hoop style (brackets) to your specific machine model (e.g., SE1900, PE800, VM5200) and your most common hoop size (5x7 is the workhorse). Prioritize consistent holding power over marketing claims—you need the stabilizer to stay "drum tight."

Warning: Magnetic frames contain powerful neodymium magnets. They can affect pacemakers and fit-bits, and they can pinch skin severely if snapped shut carelessly. Keep magnets away from children, keep fingers clear when closing, and store them away from magnetic-stripe cards.

Quick fixes for the most common cardstock embroidery failures (symptom → cause → fix)

Operation Checklist (the “don’t-mess-this-up” list while the machine is running)

• First Pass: Run the placement line on bare stabilizer.
• Secure: Attach card 100% square to the box; confirm tape is burnished.
• Appliqué: Place Steam-A-Seam-backed fabric fully inside the lines.
• Thread Change: Clip at spool -> Pull forward -> Re-thread. NO back-pulling.
• Removal: Support the stitches with fingers while tearing stabilizer gently.
• Finish: Apply liner with dry adhesive only.

If you’re building a repeatable card workflow and want to reduce handling time, setting up a dedicated hooping station for embroidery (or simply an organized prep mat) can help keep tape, snips, pre-cut appliqué pieces, and liners organized so you’re not hunting tools mid-stitch. Embroidery on paper is high-stakes, but with the right tension, the right needle, and the right respect for the material, it is incredibly rewarding.

FAQ

• Q: How do I hoop cardstock for embroidery on a Brother Essence VM 5200 with a 5x7 hoop without leaving permanent hoop marks?
  A: Do not hoop cardstock; hoop only tear-away stabilizer and float the card after a placement line stitches.
  • Hoop: Tighten stabilizer in the 5x7 hoop until it is drum-tight (use a rubber pencil grip on the screw if needed).
  • Stitch: Run the first color stop (placement box) on bare stabilizer.
  • Attach: Tape the card corners onto the stabilizer and burnish firmly before continuing.
  • Success check: Tapping the hooped stabilizer makes a “thump” and the card does not bounce or creep during stitching.
  • If it still fails… Switch to sticky tear-away stabilizer for stronger hold or re-check stabilizer tension (loose stabilizer causes “flagging”).
• Q: What machine speed (SPM) is a safe starting point for embroidering cardstock on a Brother Essence VM 5200 to reduce tearing and hole enlargement?
  A: Slow the embroidery speed to about 350–600 SPM to reduce vibration and needle flex on paper.
  • Set: Lower speed before starting the placement line and keep it consistent through the design.
  • Choose: Prefer low-density designs (blanket/running stitches) instead of dense satin columns.
  • Support: Make sure stabilizer is drum-tight so the cardstock cannot “flag.”
  • Success check: Needle holes stay small and clean, with no wobble gaps or shredded paper around stitch points.
  • If it still fails… Stop and switch to a less dense design or reduce density in software (dense satin is the most common cause of the punch-card effect).
• Q: Which needle size works best for embroidering cardstock on a Brother Essence VM 5200 when the automatic needle threader struggles with a 60/8 needle?
  A: Use a fresh 75/11 embroidery needle as the reliability “sweet spot” for cardstock on Brother machines with auto-threaders.
  • Install: Replace the needle before the project (dull needles tear paper rather than pierce cleanly).
  • Avoid: Do not use ballpoint needles on paper (they can rip instead of making a clean hole).
  • Test: Thread once using the automatic threader before taping the card down.
  • Success check: The needle threader hooks cleanly and the stitches form without visibly tearing the cardstock fibers.
  • If it still fails… Keep the 75/11 but re-thread carefully by hand and confirm the needle is inserted fully and correctly oriented per the machine manual.
• Q: How do I prevent the cardstock “punch card effect” when using appliqué on a Brother Essence VM 5200 greeting card embroidery project?
  A: Avoid dense satin stitch edges; use a blanket stitch appliqué edge and lighter designs to reduce needle penetrations.
  • Select: Choose designs digitized for cardstock or mixed media whenever possible.
  • Stitch: Prefer blanket stitch (E-stitch) for appliqué borders instead of satin columns.
  • Thread: Use thinner 60wt thread for delicate lettering to reduce thread mass and stress on the paper.
  • Success check: The cardstock stays intact around edges and the stitched area does not weaken into a tear-off line.
  • If it still fails… Reduce stitch density in software (about 20–30% is a common adjustment) or scale the design up slightly to spread penetrations out.
• Q: How do I stop thread tension problems and bird nesting on a Brother embroidery machine when doing frequent thread changes for cardstock greeting cards?
  A: Never back-pull thread; clip at the spool and pull the tail forward through the needle to keep lint out of the tension discs.
  • Clip: Cut the thread at the spool pin first.
  • Pull: Draw the remaining thread forward out through the needle eye (follow the normal thread path direction).
  • Re-thread: Thread normally for the next color and keep tails controlled at the start.
  • Success check: The next color starts cleanly with no looping nests on the underside and no sudden tension swings.
  • If it still fails… Pause and re-thread completely (including take-up lever path) and inspect for lint buildup around the tension area (cleaning is often needed after heavy shedding threads).
• Q: What is the safest way to remove tear-away stabilizer from cardstock embroidery on a Brother Essence VM 5200 without ripping the card?
  A: Support the stitches with your fingers and tear the stabilizer away gently outward, not upward against the stitch line.
  • Hold: Place thumb and fingers directly on top of the stitched area to brace the paper fibers.
  • Tear: Pull stabilizer away from the stitches in small sections instead of one hard yank.
  • Finish: Remove remaining bits carefully so the paper surface does not delaminate.
  • Success check: Stitching stays flat and the cardstock does not crack, split, or lift along the outline.
  • If it still fails… Use a lighter design next time (less perforation) and confirm the stabilizer weight is appropriate (too heavy can stress the paper during removal).
• Q: What safety precautions should I follow when running a Brother Essence VM 5200 embroidery job on cardstock with taped corners and a floating method?
  A: Keep fingers, snips, and loose thread tails away from the needle area and always Pause before trimming or repositioning anything.
  • Pause: Stop the machine before touching tape, trimming threads, or adjusting the card.
  • Check: Manually rotate the handwheel to confirm the needle will not strike tape or thick adhesive zones.
  • Clear: Keep the card edges from catching the machine bed/throat plate as the hoop travels.
  • Success check: The machine runs without needle strikes and the taped corners remain secure without shifting.
  • If it still fails… Reposition tape farther from the stitch path and confirm the card is fully opened flat so it cannot get stitched shut.
