No-Software Luggage Tags on the Brother Innov-is XJ1: Clean Stamp Outlines, a Perfect Tab, and Stitch Order That Won’t Bite You

If you have ever stared at your Brother XJ1 screen thinking, “I just want a simple luggage tag with a name—why does this feel like rocket science?”—take a deep breath. You are not alone. Machine embroidery is an art of variables, and the interface can feel intimidating until you learn the "logic" behind the buttons.

On the Brother Innov-is XJ1, My Design Center is powerful enough to build a clean, stitch-ready tag shape without a computer, provided you follow a few veteran habits. These habits prevents the three most common disasters: ugly outlines, weak tabs that rip, and stitch order regrets that ruin your material.

This walkthrough recreates the exact on-screen workflow from the video, but with added safety protocols and sensory checks that only come from years of ruining vinyl. We will type a name, create a stamp outline, pull that outline into My Design Center, add a strap tab, merge the shapes with the eraser trick, assign a Triple Bean Stitch (for durability), and assemble the final layout.

The “Don’t Panic” Primer for Brother Innov-is XJ1 + My Design Center: You’re Not Digitizing, You’re Building a Clean Outline

The fastest way to get frustrated on the XJ1 is to treat My Design Center like a full desktop digitizing program. It isn't—and that is actually good news. It is a "shape builder." For a luggage tag, you only need four components:

1. A readable name (your text object).
2. A smooth perimeter (your stamp outline to hold the layers together).
3. A structural tab (strong enough to hold hardware).
4. A stitch type (Triple Bean) that stands out and won't saw through your material like a standard run stitch might.

If you are doing this on a brother embroidery machine, the win is speed and customization. You can create a custom tag while a customer is still messaging you, then stitch it immediately. The goal here is zero friction: we want you to look at the screen and see blocks, not barriers.

The “Hidden” Prep Pros Do Before Touching the Screen: Material, Stabilizer, and a Reality Check on Tag Size

The video focuses on the on-screen build, but in the real world, luggage tags live or die during the prep phase—especially if you utilize vinyl, faux leather, or stiff felt. You cannot just "hoop and hope" with these materials.

Pick your tag material like a production shop

Most luggage tags are constructed from substrates that behave differently than quilting cotton:

• Marine Vinyl / Faux Leather: Provides clean edges and a professional look. Risk: It shows every needle hole forever. If you make a mistake, you cannot steam it out.
• Stiff Felt: Very forgiving and beginner-friendly. Risk: It can stretch and "fuzz" at the edges if handled roughly.

Stabilizer Mindset (The Anchor)

For a perimeter-heavy project like this, the stabilizer’s job is to prevent the material from curling when the heavy bean stitch hits it.

• The Golden Rule: Use Cutaway Stabilizer (Medium Weight, approx. 2.5 oz).
• Why? Tearaway often fails on the corners of luggage tags, causing the outline to drift. Cutaway provides the permanent structure needed for a tag that will be thrown onto airport conveyor belts.

Hidden Consumables Checklist

Before you start, ensure you have these often-overlooked items:

• Calculated blank size: Don't guess. Measure your vinyl scrap first.
• Tape: Painter's tape or embroidery tape to float material if you aren't hooping it directly.
• 75/11 Sharp Needle: Universal needles can struggle with thick vinyl; a Sharp point punches cleaner holes.

Warning: Needles and blades do not forgive distractions. When you stitch outlines on thicker materials like vinyl, the machine works harder. Keep fingers clear of the needle area, and never trim thread “tails” near a moving needle—stop the machine fully first.

Prep Checklist (Do this BEFORE touching the screen)

• Measurement Check: Is your scrap piece at least 1 inch larger than your intended tag on all sides?
• Thread Choice: The video uses Madeira Poly Thread. Ensure your bobbin thread matches the vinyl backing color if possible, or use standard white if the back is hidden.
• Orientation Strategy: Decide now—are you stitching vertical or horizontal? The video rotates 90° to vertical.
• Hoop Mechanics: Loosen your hoop screw significantly if using thick vinyl to avoid "hoop burn" (permanent rings).


Type the Name in Brother Fonts, Then Group It First—Because Resizing One Letter Is a Classic Rookie Mistake

On the XJ1, start in the standard Embroidery screen. Go to Fonts, choose a script font ensuring it is thick enough to be readable, and type the name (the video uses “Mel”). After you hit Set, the machine displays the current size.

The video calls out a crucial habit: pay attention to the scale immediately. The initial text appears around 1.34" x 2.90".

Here is the move that saves you from a "broken text" disaster:

1. Go to Edit.
2. ACTION: Press the Group button (icon looks like interlocking squares/shapes).
3. Result: The machine now treats "Mel" as one single image, not three separate letters.
4. Edit: Resize the grouped text to your target size (the video resizes to roughly 1.54" x 3.35").
5. Save: Save this text into the machine’s Pocket memory.

Why I am strict about grouping: Script fonts have deliberate overlaps. If you accidentally resize only the "M" and not the "el," or if you move one letter by mistake, you destroy the flow of the script. Grouping locks the ratio and spacing.

The Stamp Tool “Sweet Spot”: Set Distance to 0.124" to Kill Tiny Holes Without Making a Blob

Now you will create the "cloud" outline that becomes the tag body.

On the text edit screen, tap the Stamp key (the flower/shield icon). This function draws a line around your design. The video increases the Distance (Offset) until it reaches 0.124" (approx. 3.1mm).

The Sensory Check: Ignore number for a second and look at the screen.

• Too Small (< 0.080"): The line dips into the gaps between letters. It looks like a lacy mess and will weaken the vinyl.
• Too Large (> 0.200"): The shape loses definition and looks like a shapeless blob.
• The Sweet Spot (0.100" - 0.150"): Watch the preview. You want the internal gaps (like the hole between the M and e) to close up. You are looking for one solid, continuous coastline, not an archipelago of islands.

Pro Tip: If stitching on vinyl, a slightly generous outline (like 0.124") is safer. Vinyl shifts. If your outline is too tight to the letters, a tiny shift will put the needle right on top of the letters. Give it breathing room.

Save the stamp into Design Center (the video notes it saves into My Design Center > Stamps), then exit and Delete the working screen object. Yes, delete it. We need a blank slate for the next phase.

Pull the Stamp into My Design Center (Shapes > Stamps) and Notice What’s Missing—That’s the Point

Navigate to My Design Center on the home screen.

1. Tap Shapes.
2. Go to Stamps (often a specific tab depending on firmware).
3. Select the stamp outline you just saved.

Visual Check: You will see the outline of the cloud, but the “Mel” text is gone. Do not panic. This is intentional. You are building the "container" (the tag shape) right now. You do not want the text inside My Design Center because we aren't editing the stitches of the letters, only the shape of the patch. You will add the text back later in the Embroidery Edit screen.

Rotate 90° and Park the Shape Low: A Simple Layout Habit That Prevents Tab Crowding

The presenter rotates the outline 90 degrees to the right so the tag stands vertically, then drags it toward the bottom of the stitching area.

Why do this? Spatial awareness. You are about to attach a long strap tab to the top of this shape. If you leave the cloud in the center, you will run out of hoop space at the top. Moving it down gives you the "headroom" necessary to build the strap.

Build the Strap Tab from a Primitive Square, Then Resize to 6.19" x 0.76" (and Don’t Guess the Length)

In My Design Center, go back to Shapes and choose a closed primitive square. Touch the screen to place it. Now, use the sizing arrows (Aspect Ratio unlocked) to stretch it into a long, thin rectangle.

The video lands on a tab rectangle around 6.19" x 0.76".

The Real-World Math: Why 6 inches? It isn't random.

• 0.75" - 1.0" creates the fold-over for the hardware (D-ring or snap).
• 2.5" is the front of the strap.
• 2.5" is the back of the strap.
• The width (0.76") accommodates standard 0.75" or 1" hardware.

If the tab is too short, your tag will look choked. If it is too long, it wastes material. If you are doing repeated tags for a business, this is where a hooping station for machine embroidery or a standardized template becomes vital—you want every tag to have the exact same strap placement relative to the grain of the vinyl.

The Eraser Trick That Makes It One Continuous Shape: Zoom to 400%–800% and Delete Only the Overlap Lines

This is the most critical technical step. You currently have a Cloud Shape and a Rectangle Shape overlapping. You need them to fuse into one object.

The Video’s Method:

1. Zoom In: Do not try this at 100%. Zoom to 400% or 800% focused exactly where the rectangle cuts into the cloud.
2. Tool Selection: Choose the Eraser tool.
3. Tip Selection: Start with the square eraser for bulk, but switch to the micro (pixel) eraser for the finish.
4. The Action: Carefully erase the horizontal line of the rectangle that is inside the cloud, and the curve of the cloud that is inside the rectangle.

Sensory Feedback: You are "opening the gates." When you erase the lines separating the two shapes, you create one continuous container.

The "Gotcha": If you erase a tiny pixel of the outer wall by mistake, you create a "leak." Later, when you try to fill the shape with color, the color will bleed out into the background. Move slowly. Tap, don't drag, if you are unsure.

Assign Triple Bean Stitch in Line Properties, Then Turn It Red So You Can See What Actually Got Applied

At this point, you usually just have a black wireframe line. You must tell the machine what that line represents.

1. Open Line Properties.
2. Select the Triple Bean Stitch (Icon often looks like a heavy running stitch or three lines).
   • Why Bean Stitch? Standard running stitch sinks into vinyl and disappears. Triple Bean (back-and-forth) sits on top, looks hand-stitched, and creates a perforation that makes cutting the finished tag out with scissors very easy.
3. Color: Change the line color to Red.

Visual Verification: Why red? It is a high-contrast verify. When you apply this property, the black line turns red. If a section stays black, you know you missed it.

Note on Stability: A Bean stitch puts 3x more holes in the fabric than a straight stitch. If you are comparing results, users of embroidery magnetic hoops often notice cleaner curves here because the powerful magnetic clamping prevents the stiff vinyl from micro-shifting under the heavy needle impact.

Bucket Fill Like a Technician: Tap Both Sections If They’re Still Separate, and Zoom Until the Line Isn’t “Awful Tiny”

Use the Bucket (Pour) tool to apply the Red Bean Stitch property to your outline.

The Common Pitfall: The video highlights a classic issue: even though you erased the lines, the machine might still see the "Tab" and the "Cloud" as two different zones.

The Fix:

1. Tap the cloud outline. It turns Red.
2. Did the tab turn red too? If not, Tap the tab outline separatey.
3. Zoom Warning: If having trouble hitting the line, zoom in again. Your finger is big; the line is small.

Success Metric: The entire perimeter (Cloud + Tab) is now a bold Red line. Preview to confirm it is one continuous path. Save this design to the Pocket.

Setup Checklist (Before Leaving Design Center)

• Continuity Check: Does the red line go all the way around without stops?
• Leak Check: Did the background turn red? If yes, you have a gap in the outline. Undo and fix the gap.
• Property Check: Is it definitely a Triple Bean Stitch? (Not Satin, not Zigzag).

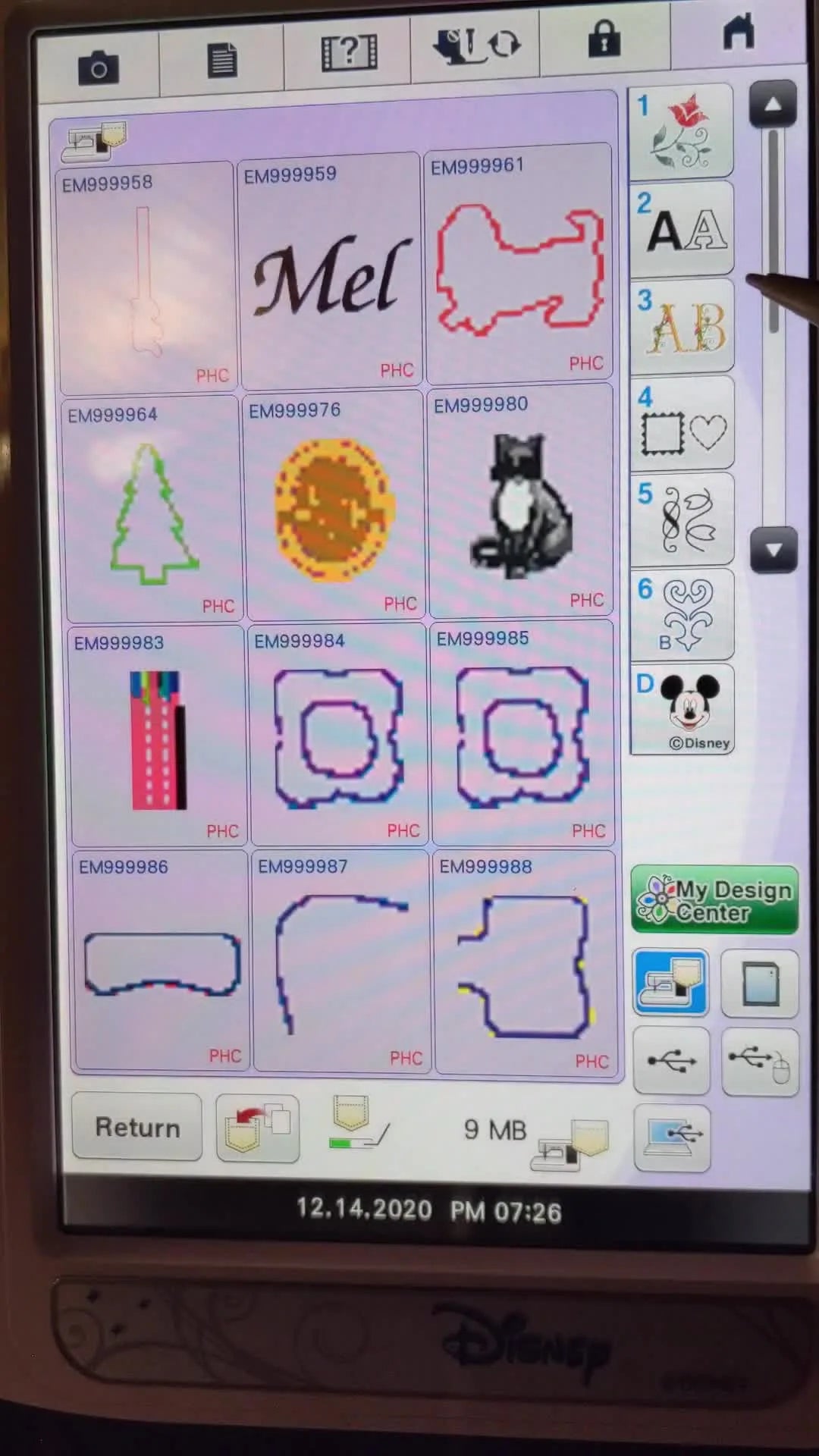

• Save: Is the outline design saved to Pocket?


Final Assembly in Embroidery Edit: Add the Name Back, Rotate 90°, and Decide Stitch Order on Purpose

Exit to the main home screen and go to Embroidery.

1. Add: Recall the Outline you just made from the Pocket.
2. Add: Recall the "Mel" text name from the Pocket.
3. Edit: Rotate the text 90 degrees right to match the tag.
4. Drag: Position the name inside the cloud.

The Stitch Order Debate: The video presenter notes that stitch order depends on what you add first.

• Scenario A: Add Outline, then Text -> Outline stitches first.
• Scenario B: Add Text, then Outline -> Text stitches first.

Expert Recommendation: For vinyl tags, Stitch the text first (Scenario B). Why? The text requires high precision. You want to stitch that while the stabilizer is fresh and unperforated. The outline comes last to seal the layers together. If you stitch the outline first, you perforate the vinyl, potentially causing it to distort slightly before the text lands.

A Quick Decision Tree: Stabilizer + Hooping Choices for Vinyl/Felt Tags

Use this logic flow to avoid ruined materials.

1. Identify Your Material

• Stiff Vinyl / Faux Leather: Proceed to Step 2.
• Soft Felt / Fabric: Proceed to Step 3.

2. For Vinyl/Leather (The "Hoop Burn" Risk)

Vinyl crushes easily. Standard screw-hoops can leave permanent "glowing" rings.

• Stabilizer: Medium-weight Cutaway.
• Tooling: If you struggle to hoop tight without marking the fabric, this is the prime use case for a magnetic embroidery hoop. The magnets hold the slick vinyl firmly without the "crush and twist" action of a standard inner ring.
• Speed: Slow down to 600 SPM (Stitches Per Minute) for the bean stitch.

3. For Felt (The "Stretch" Risk)

Felt is soft but unstable.

• Stabilizer: Heavy Cutaway or Sticky Stabilizer to prevent shifting.
• Tooling: Standard hoops work, but ensure you do not stretch the felt while hooping (drum-tight is good, stretched-out is bad).
• Speed: Standard speed (800 SPM) is usually fine.

Warning: Magnetic frames are powerful industrial tools. Keep fingers clear when snapping them shut (pinch hazard), and keep magnets away from pacemakers, implanted medical devices, and sensitive computerized areas of the machine (screen/boards).

If you are running a mix of home and small business work, a brother magnetic embroidery frame becomes a practical upgrade path when your bottleneck shifts from "designing" to "hooping 20 items in a row."

Troubleshooting the Two Scariest Moments: Stamp Holes and “Why Won’t the Bucket Fill?”

Symptom 1: The stamp outline has internal holes or looks jagged.

• Likely Cause: Stamp Distance is too low (< 0.080").
• Quick Fix: Increase Distance to 0.124" or higher until the internal island gaps disappear.
• Prevention: Always preview the stamp on a solid background color to see the white gaps clearly.

Symptom 2: You cannot select the line to erase it.

• Likely Cause: Finger error / Zoom level too low.
• Quick Fix: Zoom to 800%. Use a stylus, not a finger.
• Prevention: Never try to edit lines at 100% zoom.

Symptom 3: The Bucket Tool fills the entire background screen red.

• Likely Cause: "The Leak." You erased part of the outer wall, creating a gap.
• Quick Fix: Click Undo immediately. Use the Line Tool to draw a patch over the gap, then try filling again.
• Prevention: Use the pixel eraser for the final connections, not the large square eraser.

Symptom 4: The final stitch-out is wavy or the lines don't meet (Registration Error).

• Likely Cause: Material movement in the hoop.
• Quick Fix: Use spray adhesive to bond the vinyl to the Cutaway stabilizer.
• Systemic Fix: Review your hooping technique. If using stiff materials that resist standard hooping, consider whether hooping for embroidery machine needs an upgrade to a magnetic system that eliminates hoop drag.

Operation Checklist (Right Before You Press "Start")

• Needle Check: Is it a fresh 75/11 Sharp? (Ballpoints can struggle with vinyl).
• Bobbin Check: Do you have enough thread to finish the bean stitch? Running out mid-outline is a nightmare to fix on vinyl.
• Clearance: Is the design centered? Check the edges of your text relative to the outline—is there at least 3mm breathing room?
• Speed: Reduce machine speed to 600-700 SPM for the final heavy bean stitch phase.

The Upgrade Path: Fix the Bottleneck You Can Feel

Once you master this on-screen build, you will likely find that the design process isn't the slow part—the physical labor is.

• If your pain is hooping speed and "hoop burn" marks, magnetic hoops are the industry standard solution because they clamp flat and fast.
• If your pain is sheer volume (e.g., an order for 50 corporate tags), that is your signal that a single-needle machine has hit its ceiling. This is when multi-needle workstations begin to pay for themselves through efficiency.

The best upgrade isn't always a new machine; sometimes it's just the tool that stops your hands from hurting.

FAQ

• Q: On the Brother Innov-is XJ1, why does Brother My Design Center “Stamp” create tiny holes or a jagged outline around script text?
  A: Increase the Stamp Distance/Offset until the internal gaps close; 0.124" is a proven starting point on the Brother Innov-is XJ1 for this luggage-tag style outline.
  • Action: Re-open the Stamp tool and raise Distance if the outline dips into letter gaps (especially inside script overlaps).
  • Action: Use the preview as the judge: aim for one solid, continuous “coastline,” not islands between letters.
  • Success check: The stamp outline no longer shows little cut-ins between letters, and the perimeter looks smooth and continuous on-screen.
  • If it still fails: Increase Distance gradually and re-preview; very tight script fonts may need a slightly more generous offset to avoid weak, lacy edges.
• Q: On the Brother Innov-is XJ1 My Design Center, why does the Bucket (Pour) tool fill the entire background red when applying Triple Bean Stitch?
  A: The outline has a gap (“leak”); undo immediately and repair the outer wall before trying Bucket Fill again.
  • Action: Tap Undo as soon as the background floods.
  • Action: Zoom in (often 400%–800%) and find where the outer perimeter was nicked during erasing.
  • Action: Patch the gap using the Line tool, then try the Bucket tool again on the outline.
  • Success check: Only the intended perimeter turns red; the background stays unchanged.
  • If it still fails: Re-check the merge area between the cloud and tab—one missing pixel can keep the shape from being sealed.
• Q: On the Brother Innov-is XJ1 My Design Center, why won’t the Bucket tool apply the red Triple Bean Stitch to both the cloud and the strap tab?
  A: The machine still sees two separate zones; apply the Bucket fill to each section (or re-erase the overlap lines more cleanly) until both turn red.
  • Action: Tap the cloud perimeter with the Bucket tool first, then tap the tab perimeter separately if it stays black.
  • Action: Zoom in to hit the line accurately; fingers are bigger than the line.
  • Action: If one section refuses to fill, return to the overlap area and erase only the internal overlap lines (not the outer wall).
  • Success check: The entire perimeter (cloud + tab) is one continuous bold red line with no black segments.
  • If it still fails: Re-do the eraser step at higher zoom using the micro/pixel eraser to avoid leaving tiny divider fragments.
• Q: On the Brother Innov-is XJ1, why should Brother embroidery text be Grouped before resizing when making a name luggage tag?
  A: Group the text first so the Brother Innov-is XJ1 treats the name as one object and prevents accidental single-letter resizing or spacing damage.
  • Action: In Embroidery Edit, type the name, then press Group (interlocking-squares icon) before any resize.
  • Action: Resize only after grouping, then save the grouped text to Pocket.
  • Success check: The script letters keep their intended overlaps and spacing, and the name scales as a single clean unit.
  • If it still fails: Delete the broken text object and retype the name; trying to “nudge” individual script letters back often creates new spacing problems.
• Q: For a Brother Innov-is XJ1 vinyl or faux leather luggage tag with Triple Bean Stitch, what stabilizer and needle setup prevents shifting and ugly outlines?
  A: Use medium-weight cutaway stabilizer (about 2.5 oz) with a fresh 75/11 Sharp needle, and secure the material so it cannot micro-shift under the heavier bean stitch.
  • Action: Choose medium cutaway (tearaway often fails at corners on perimeter-heavy tags).
  • Action: Install a 75/11 Sharp needle for cleaner holes in vinyl; replace it if it’s not fresh.
  • Action: Bond vinyl to the cutaway (spray adhesive is commonly used) or tape/float carefully if not hooping directly.
  • Success check: The outline meets cleanly at corners, and the bean stitch line does not look wavy or mis-registered.
  • If it still fails: Slow the machine down (the blog’s safe target is 600–700 SPM for the heavy bean stitch phase) and re-check hooping/clamping for movement.
• Q: On the Brother Innov-is XJ1, which stitch order is safer for vinyl luggage tags: stitch the outline first or stitch the text first?
  A: Stitch the text first, then stitch the outline last to reduce distortion after the vinyl is perforated.
  • Action: In Embroidery Edit, add the text first (so it stitches first), then add the outline second (so it stitches last).
  • Action: Rotate and position the text inside the outline with at least a small breathing margin.
  • Success check: The text lands crisp and centered, and the outline finishes without pulling the name off position.
  • If it still fails: Re-check material movement (vinyl shifting in the hoop is the usual cause) and consider additional bonding to stabilizer before stitching.
• Q: What safety precautions should Brother Innov-is XJ1 users follow when stitching heavy outlines on vinyl and when using magnetic embroidery hoops?
  A: Stop the machine fully before trimming threads and keep fingers clear; if using magnetic hoops, treat magnets as pinch-hazard tools and keep them away from pacemakers and sensitive machine electronics.
  • Action: Never trim thread tails near a moving needle; stop the machine completely first.
  • Action: Keep hands out of the needle area during dense outline stitching on thick materials because the machine works harder and mistakes happen fast.
  • Action: Close magnetic hoops deliberately and keep fingertips away from the closing path; magnets can snap shut.
  • Success check: Hands stay clear during operation, no near-miss pinches occur, and thread trimming is done only when the needle is stopped.
  • If it still fails: Slow down and simplify the workflow—rushing is the common trigger for needle-area accidents and magnetic-frame pinches.
• Q: If vinyl luggage tags on a Brother Innov-is XJ1 keep getting hoop burn, slow hooping, or wavy registration, when should the workflow upgrade from technique to magnetic hoops to a multi-needle machine?
  A: Upgrade in layers: first optimize prep and speed (600–700 SPM for heavy bean stitch), then move to magnetic hoops if hoop burn/hooping time is the bottleneck, and consider a multi-needle machine when order volume exceeds what a single-needle workflow can comfortably sustain.
  • Action: Level 1 (technique): Use cutaway stabilizer, a fresh 75/11 Sharp needle, and secure vinyl to stabilizer to prevent shifting.
  • Action: Level 2 (tool): Switch to magnetic hoops if standard screw hoops mark vinyl or if consistent clamping speed is limiting production.
  • Action: Level 3 (capacity): Move to a multi-needle machine when repeated high-quantity runs (for example, dozens of tags) make thread changes and single-needle throughput the main bottleneck.
  • Success check: Hooping becomes fast and repeatable without permanent rings, and stitch-outs stay aligned from item to item.
  • If it still fails: Standardize strap placement and layout habits (parking the shape low to preserve headroom) to reduce re-hooping and prevent tab crowding near hoop limits.
