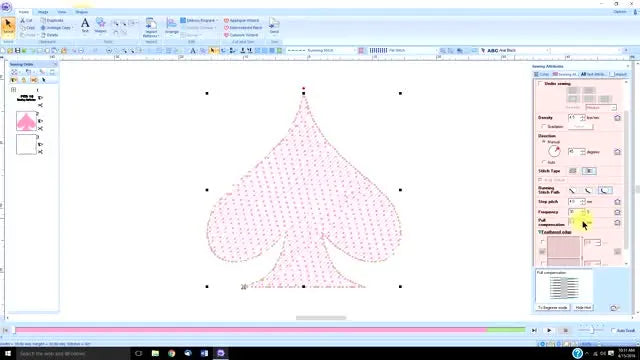

PE-Design 10 Sewing Attributes That Actually Change Your Stitch-Out: Pull Comp, Density, and the “Blank Pane” Fix

Mastering PE-Design 10 Sewing Attributes: The Blueprint for Flawless Stitch-Outs

If your PE-Design 10 "Sewing Attributes" pane suddenly looks "dead," blank, or completely missing, you are not alone—and you are certainly not crazy. This is the single most common panic moment for digital embroidery beginners.

Most of this anxiety stems from three specific scenarios: the pane is hidden by the interface, the software is locked in "Beginner Mode," or the file you loaded is a raw stitch file rather than an editable object file.

This guide rebuilds the workflow from the core PED 10 lessons but adds the 20 years of shop-floor reality that tutorials often miss. We aren't just clicking buttons here; we are engineering a physical product. Our goal is to prevent the "gap of death" between outlines and fills, eliminate visible travel lines, and stop that dreaded "why is my underlay showing?" look.

1. The Rescue Mission: Bring Back the Sewing Attributes Pane

In the heat of production, menus disappear. In the video, the fix is straightforward: go to the View tab and check Attributes to restore the Sewing Attributes pane.

However, here is the sensory check: Just because the pane is back, doesn't mean it's alive. The pane will remain gray and unresponsive until you select an object. Think of PE-Design 10 like a musical instrument—it makes no sound until you touch a key. PED 10 is waiting for you to click a specific line or region on your canvas.

Pro Tip (The "Phantom Click" Fix): If you followed the directions and the pane is still blank, physically click directly on a line or a fill in your design. If it still doesn't light up, you likely have a "Grouped" design or an imported "Stitch File" (like a purchased PES). We will address how to handle those later.

Warning: Do not troubleshoot software while you are tired or rushing a deadline. Mis-clicks lead to accidental edits. A single wrong "Delete" key press can remove underlay stitches you can't see on screen but will definitely notice when the fabric puckers. Always Save As a copy before opening the hood.

2. Decode the Visual Language: Yellow vs. Pink

When you select a simple shape, PED 10 divides the world into two distinct zones. Memorize these colors; they are your control roadmap.

• Yellow Box = Line Sew: This controls the skeleton (outlines, borders, running stitches).
• Pink Box = Region Sew: This controls the body (fills, density, patterns).


Why this fails for beginners: If you only see the Pink box active, it means your object technically has no outline property assigned. Look for the thread spool icon in the Yellow section. If "Not Sewn" is checked, the software ignores the outline. You must activate it to access controls like Zigzag or Run Pitch.

3. The "Toy" Filter: Flip to Expert Mode

If your Sewing Attributes pane looks overly simple—like it’s missing sliders or numeric inputs—you are likely in Beginner Mode.

Look for the button labeled “To Expert Mode”. Click it immediately.

The Mindset Shift: If you are trying to build a reputable business or even just consistent gifts, treat Beginner Mode as a "Guest Account"—fun to visit, but you can't live there. Consistency in embroidery comes from controlling density, direction, and compensation. You cannot rely on defaults.

4. Taming Outlines: Line Sew, Half Stitch, and Run Pitch

In the Yellow Line Sew area, you gain control over the structural integrity of your design.

The Zigzag & Half Stitch

For satin borders (Zigzag), you can toggle under-sewing and adjust density. But the secret weapon here is Half Stitch.

The Physics of the Turn: When a satin stitch goes around a tight corner, the inner needle points bunch up, creating a hard "knot" of thread. This can break needles. Half Stitch forces the software to shorten the inner stitches, relieving pressure.

• Sensory Check: Run your finger over a sharp corner of a stitched patch. If it feels like a hard pebble, you need Half Stitch. If it lays flat, you are good.

Run Pitch (The Stitch Length)

When you switch to a Running Stitch, the most critical setting is Run Pitch.

• Default: Typically 2.0 mm.


Increasing the Run Pitch makes the line smoother but "looser." Decreasing it makes the line tighter but can perforate the fabric like a stamp if you go too small.

Expert Safety Calibration: For standard cotton or twill, 2.0 mm - 2.5 mm is the sweet spot. If you go below 1.5 mm, you risk cutting the fabric. If you go above 3.5 mm, the stitches will loop and snag on buttons or zippers.

5. Controlling the "Body": Fill Coverage and Direction

In the Pink Region Sew area, you control the fill. The instructor highlights Density presets (Medium/Dense/Light) and Direction.

The "Underlay Showing" Nightmare: A common comment is: "Why can I see the white underlay through my colored top stitch?" This is rarely just a software density issue; it is usually a Fabric Control issue.

• Scenario A (Software): Your Top Stitch and Underlay are running at the same angle. Fix: Rotate the fill direction by 45° so they cross-hatch.
• Scenario B (Hardware): Your fabric is shifting in the hoop. No amount of software density fixes a loose hoop.

Commercial Reality Check: If you are fighting gaps on t-shirts or hoodies, your enemy is friction. Standard plastic hoops often struggle to hold bulky garments tight without leaving "hoop burn" (white friction marks). This is where professionals pivot: they switch from standard fixtures to machine embroidery hoops that use magnetic force. The clamp is instant, and the fabric doesn't drift, meaning your density settings actually work as intended.

6. Hide the "Runners": Pathing Logic

The instructor points out "Runners"—those ugly travel stitches that drag across a light yellow fill like a scar.

The Fix: Change the Running Stitch Path in the Region settings. This forces the travel stitches to hug the perimeter of the shape rather than cutting across the middle.

Business Impact: This is the difference between a "$5 patch" and a "$15 patch." Customers may not know why it looks cleaner, but they will perceive the quality difference immediately.

7. Step Pitch & Frequency: The Sheen Factor

• Step Pitch: Imagine this as the "length of the thread bridge." Default is 4.0 mm.
• Frequency: How the rows align (offset).


Sensory Insight:

• Higher Pitch (e.g., 5.0 mm): More sheen, looks silky (light reflects better). Risk: Snags easily on velcro or jewelry.
• Lower Pitch (e.g., 3.0 mm): Matte finish, very durable. Risk: Can look stiff or bulletproof.

Safety Zone: Stick to 3.5 mm - 4.5 mm for wearables. Only go higher for wall art that won't be touched.

8. The Golden Rule: Pull Compensation (0.3 mm)

If you take only one thing from this guide, let it be this: Set Pull Compensation to 0.3 mm.

The "Why" (Physics Simplified): Embroidery is violent. Thousands of needle penetrations pull the fabric inward ("The Pull"). The software screen assumes the fabric is rigid steel—it isn't. Without compensation, your circular logo will stitch out as an oval, and your borders will have a 1mm gap of white fabric showing between the fill and the outline.

Pull Compensation deliberately "over-stitches" the edges so that when the fabric inevitably shrinks back, the edge lands exactly where you wanted it.

• For Industrial Machines: 0.2 mm - 0.3 mm is standard.
• For Home Machines: If you are using a brother embroidery machine, consider bumping this to 0.3 mm or even 0.4 mm on knits. Home machines often have less clamp force than industrials, leading to more inherent movement.

9. Advanced Textures: Feathering & Programmable Fills

The instructor demonstrates the Feathered Edge for a fur effect and Programmable Fills for patterns.

The Hidden Cost: Programmable fills look amazing but often triple your stitch count. If you are quoting a job for a client, remember: Time is Money. A beautiful textured fill that takes 45 minutes to run might eat your entire profit margin compared to a standard tatami fill that takes 10 minutes.

Config Tip: Always check "Maintain Aspect Ratio" when scaling these patterns, otherwise your nice geometric bricks will look like squashed pancakes.

10. The "Blank Pane" Reality Check: Stitches vs. Objects

Many frustrated users comment: "I loaded a PES file and I can't change density—only color!"

The Hard Truth: Embroidery files come in two forms:

1. Object Files (.PEF, .BE): Math-based. Fully editable density, underlay, and compensation.
2. Stitch Files (.PES, .DST, .JEF): Coordinate-based. Just a list of X/Y movements.

If you buy a DST file online, PED 10 treats it like a "frozen" block. You cannot change the underlay because the software doesn't know what is underlay and what is top stitch—it just sees dots.

Workflow Adjustment:

• Resize Rule: Do not resize stitch files by more than 10-15%. The density does not recalculate; the stitches just get crammed closer together (bulletproof) or pulled apart (gaps).
• Solution: If a client needs a logo resized by 50%, you must re-digitize it or ask the original digitizer for a new size.

11. Decision Tree: The Troubleshooting Matrix

Use this logic flow when your screen looks good, but your finished product looks bad.

Decision Tree: Fabric → Stabilizer → Compensation

1. Is the fabric stable (Denim/Twill)?
   • Yes: Use Tear-away stabilizer. Set Pull Comp to 0.2 mm.
   • No (it's stretchy): Go to Step 2.
2. Is the fabric unstable (T-shirt/Polo)?
   • Action: Use Cut-away stabilizer (Mesh). Set Pull Comp to 0.3 mm - 0.4 mm.
   • Check: Are you using the smallest hoop possible? Excess space = excess vibration.
3. Is the fabric bulky (Hoodie/Jacket)?
   • Problem: The hoop keeps popping open or leaving heavy friction marks.
   • Action: Do not over-tighten standard hoops (you will break the screw). Float the garment or use a magnetic embroidery hoop.
   • Software: Increase Underlay density to tamp down the fleece before the top stitch runs.
4. Are travel lines showing through?
   • Fix: Adjust Running Stitch Path to perimeter. Increase Top Fill density slightly.

The Tool Upgrade: Many shops struggle with hoop burn on delicate items. Professionals simply move to a magnetic embroidery hoop because the magnetic force holds fabric flat without crushing the fibers against a plastic ring.

Warning: Magnetic hoops are industrial tools with powerful magnets. Keep them away from pacemakers and implanted medical devices. Keep fingers clear of the "snap zone" to avoid pinching.

12. Pre-Flight Prep: The Invisible Checklist

Before you touch a single slider in Sewing Attributes, perform this "Pre-Flight" check.

Prep Checklist

• Visual: Is the Sewing Attributes pane visible? (View → Attributes)
• Selection: Utilize the "Select" tool to click the specific object.
• Mode: Verify you are in Expert Mode.
• File Type: Is this an editable Object file, or a "frozen" Stitch file? (If frozen, Pull Comp won't work).
• Hardware: Is the needle fresh? (A burred needle ruins good digitizing).
• Safety: Save As a copy of your design (Design_v2.pes) before making edits.

Hidden Consumable Note: Keep a can of temporary adhesive spray and a fresh pack of 75/11 needles nearby. 90% of "bad digitizing" is actually just a dull needle or shifting fabric.

13. Setup: Your Baseline Configuration

Don't guess every time. Establish a "Shop Standard."

Setup Checklist

• Line Sew: Default Run Pitch 2.0 mm.
• Region Sew: Default Step Pitch 4.0 mm.
• Pull Compensation: ALWAYS ON. Start at 0.3 mm.
• Underlay: Active for all filled regions larger than 5mm.
• Hoop Selection: Choose the correct brother embroidery hoops sizes for your design. (Rule of thumb: The design should fill about 70-80% of the hoop. Too much empty space causes distortion).

14. Operation: Testing Without Wasting

Optimizing takes patience. Follow this protocol to save thread and time.

Operation Checklist

• The "One Variable" Rule: Change only ONE setting (e.g., density) at a time, then test.
• The Scrap Test: Always stitch a test on fabric similar to your final garment (e.g., stitch on an old t-shirt before the expensive Nike polo).
• Runners Check: Watch the sew-out. If you see travel lines, cancel, adjust Running Stitch Path, and retry.
• Hooping Efficiency: If you spend more time hooping than sewing, investigate how to use magnetic embroidery hoop videos to see how rapid-clamping changes workflow.

15. The Professional Upgrade Path

Understanding Sewing Attributes is Level 1. Level 2 is understanding that software can't fix physics.

If you find yourself constantly fighting with hooping alignment, or your hands ache from tightening screws on 50-shirt orders, the bottleneck is no longer your software settings—it is your hardware.

When to Upgrade:

• The Problem: inconsistent tension or "hoop burn" on customer text.
• The Hardware Fix: A magnetic hoop for brother or compatible machine provides consistent tension automatically across the entire field.
• The Problem: You are turning away orders because your single-needle machine takes too long to change colors.
• The Production Fix: Moving to a multi-needle platform (like SEWTECH models) isn't just about speed; it's about holding larger designs stable and running automated color changes while you focus on digitizing the next job.

Mastering PE-Design 10 gives you the map, but the right tools let you drive the car. Start with Pull Compensation at 0.3 mm, stabilize your fabric correctly, and build from there. Happy stitching!

FAQ

• Q: How do I restore the PE-Design 10 Sewing Attributes pane when the Attributes panel is missing from the View tab layout?
  A: Turn the panel back on in the interface, then “wake it up” by selecting an actual object—this is common and usually not a software failure.
  • Go to View → enable Attributes to show the Sewing Attributes pane.
  • Click the Select tool, then click directly on a line or fill region in the design (not empty canvas).
  • Save a safety copy using Save As before making edits to avoid accidental deletions.
  • Success check: The Sewing Attributes pane stops being gray/blank and shows editable controls after the object is selected.
  • If it still fails: The file may be a grouped design or a stitch-based file (PES/DST/JEF) that does not expose object-level attributes.
• Q: Why is the PE-Design 10 Sewing Attributes pane visible but blank or unresponsive after importing a PES or DST stitch file?
  A: PE-Design 10 cannot edit “frozen” stitch files like true objects, so the pane may not provide density/underlay controls—only limited info such as colors.
  • Confirm the file type: Object files are fully editable; stitch files are coordinate-based and limited.
  • Avoid resizing stitch files more than 10–15% because density will not recalculate.
  • Request the correct size from the digitizer or re-digitize if a large resize (e.g., 50%) is required.
  • Success check: An object-based design allows adjusting density/underlay/pull compensation per selected region; stitch files generally do not.
  • If it still fails: Import an object-format source when available, or rebuild the design as objects before expecting full Sewing Attributes control.
• Q: How do I switch PE-Design 10 Sewing Attributes from Beginner Mode to Expert Mode when sliders and numeric inputs are missing?
  A: Click To Expert Mode to unlock the full set of controls needed for consistent stitch-outs.
  • Locate and click the button labeled “To Expert Mode” in the Sewing Attributes area.
  • Re-select the target object after switching modes to refresh the available settings.
  • Make one change at a time and test-stitch on scrap to confirm the effect.
  • Success check: Numeric inputs and advanced controls (density, compensation, direction/path options) become available in the pane.
  • If it still fails: Re-check that a specific object (line or region) is selected, not the background.
• Q: What PE-Design 10 Run Pitch setting should be used for Running Stitch outlines to avoid fabric perforation or loose looping on cotton/twill?
  A: Use 2.0–2.5 mm as a safe working zone for standard cotton/twill; going too small can perforate, too large can snag or look loose.
  • Set Run Pitch to 2.0 mm as a baseline, then test on matching fabric.
  • Increase toward 2.5 mm if the line looks too tight; decrease carefully if detail is not holding.
  • Avoid going below 1.5 mm (risk of cutting/perforating) or above 3.5 mm (risk of looping/snags).
  • Success check: The running line looks smooth and stable, and the fabric does not show “stamp-like” perforation along the line.
  • If it still fails: Inspect hooping stability and needle condition, then re-test before changing more software settings.
• Q: How do I use PE-Design 10 Pull Compensation to prevent gaps between fill and outline, and why is 0.3 mm recommended?
  A: Turn Pull Compensation on and start at 0.3 mm to counter fabric pull so borders land cleanly—especially important on knits and less-rigid setups.
  • Enable Pull Compensation and set it to 0.3 mm as a baseline.
  • Use 0.2–0.3 mm as a typical range for industrial-style stability; consider 0.3–0.4 mm on knits for many home setups.
  • Test stitch and evaluate edge coverage before changing density.
  • Success check: The outline sits tight against the fill with no visible “white gap” around edges after stitch-out.
  • If it still fails: Re-check stabilizer choice and hoop hold (fabric movement will overpower software compensation).
• Q: Why can the underlay show through the top fill in PE-Design 10 Region Sew, and what is the fastest fix for underlay showing on t-shirts and hoodies?
  A: Underlay showing is usually caused by angle choices or fabric shifting; first change fill direction, then fix hoop stability because software cannot beat loose fabric.
  • Rotate the fill direction so top stitch and underlay do not run at the same angle (a 45° change is a common fix).
  • Stabilize correctly: use cut-away (mesh) on unstable knits; keep the hoop as small as practical to reduce vibration.
  • Improve fabric control if shifting persists; avoid over-tightening standard hoops (it can still slip and can cause hoop marks).
  • Success check: The top fill visually covers the underlay evenly with no “shadow” lines, and the fabric does not drift during sewing.
  • If it still fails: Treat it as a hooping/control problem first (consider magnetic clamping), then revisit density only after movement is solved.
• Q: What safety precautions should be followed when using magnetic embroidery hoops to reduce hoop burn and fabric drift on thick garments?
  A: Magnetic hoops clamp fast and evenly, but the magnets are powerful—keep fingers out of the snap zone and keep magnets away from medical implants.
  • Keep hands clear when closing the hoop to avoid pinching in the magnetic “snap zone.”
  • Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Practice on scrap fabric first to learn the closing force and alignment behavior.
  • Success check: The garment stays flat with minimal friction marks, and the hooping step becomes faster without over-tightening screws.
  • If it still fails: Stop forcing standard hoops tighter (risk of damage); switch to floating technique or reassess stabilizer plus clamping method before adjusting digitizing settings.
