Power Cut Mid-Design? The Safe HSW A15-PLUS “100° Reset + Reboot” Routine That Saves Your Stitch-Out

When a power cut hits mid-design, the panic is real: customers are waiting, expensive fabric is locked in the hoop, and you’re terrified that the stitch-out is ruined.

If you’re running a modern HSW machine, you have a powerful built-in recovery feature that can bring the frame back to the exact point where it stopped. However, this feature relies on one critical mechanical rule: never accept recovery until the machine recognizes the 100° main shaft position.

Ignore this, and you risk a needle crash or a "bird's nest" tangle that destroys the garment. Respect it, and you save the job.

This guide rebuilds the exact on-screen workflow from the video, enhanced with the "shop-floor" sensory checks and safety protocols I’ve learned over 20 years of embroidery production. We will turn a stressful outage into a controlled, professional recovery.

The Calm-Down Truth: HSW Power Failure Recovery Can Save the Job—If You Respect the 100° Main Shaft Position

HSW machines are designed to resume a design after an electricity failure by pulling the last known frame coordinate from memory. That is the software side.

The mechanical side is where operators get into trouble. If the machine boots while the needle or main shaft isn’t at the safe "neutral" reference point (Top Dead Center for the take-up lever), the control system cannot safely move the pantograph back to the stitch location. On the HSW interface, that safe harbor is the 100° main shaft position.

In the accompanying video, the presenter demonstrates a precise, repeatable pattern:

• First boot after outage: You see the recovery prompt, but the 100 icon is inactive (red or greyed out).
• The Action: You must cancel, manually set 100°, and then reboot.
• Second boot: The recovery prompt appears again, the 100 icon is active, and only then do you accept recovery.

If you are operating a complex 15 needle embroidery machine, this routine is one of those "memorize it once, profit forever" skills. It prevents the mechanical confusion that leads to broken needles and shifted outlines.

The “Hidden” Prep Before You Touch the Screen: Lock Down Fabric, Thread Path, and Risk Points

A power cut doesn’t just stop the computer; it creates physical chaos. The needle may stop down in the fabric, the thread tension discs may release, and the fabric in the hoop may relax. Before you touch a single button on the screen, take 60 seconds to perform these physical checks.

What you’re protecting (and why it matters)

• Needle Clearance: If the needle is buried in the fabric when the frame tries to move, you will tear the garment.
• Bobbin Integrity: A sudden stop often creates a loose loop of bobbin thread.
• Design Alignment: If you bump the hoop while inspecting, the machine will recover to the mathematical correct point, but your physical hoop is in the wrong place.

Prep Checklist (Do this *before* touching the screen)

• Visual Sweep: Ensure no scissors, trimmers, or spare bobbins were left on the pantograph arm or needle plate.
• Needle Check: Is the needle currently down? If yes, turn the main shaft knob manually (usually counter-clockwise, check your manual) to raise it to its highest point before turning on power.
• Tension Test: Gently pull the thread near the needle. It should feel smooth. If it feels stuck, check for a "bird's nest" under the needle plate.
• Hoop Stability: Press gently on the fabric. It should still feel tight, like a drum skin. If the fabric has slipped, recovery is pointless—you need to re-hoop.

This is where your underlying process shows its worth. If you find yourself constantly re-hooping after minor interruptions, utilizing a stable hooping station for embroidery machine can significantly reduce "human shift" errors, ensuring the fabric stays exactly where it needs to be, even when the power dies.

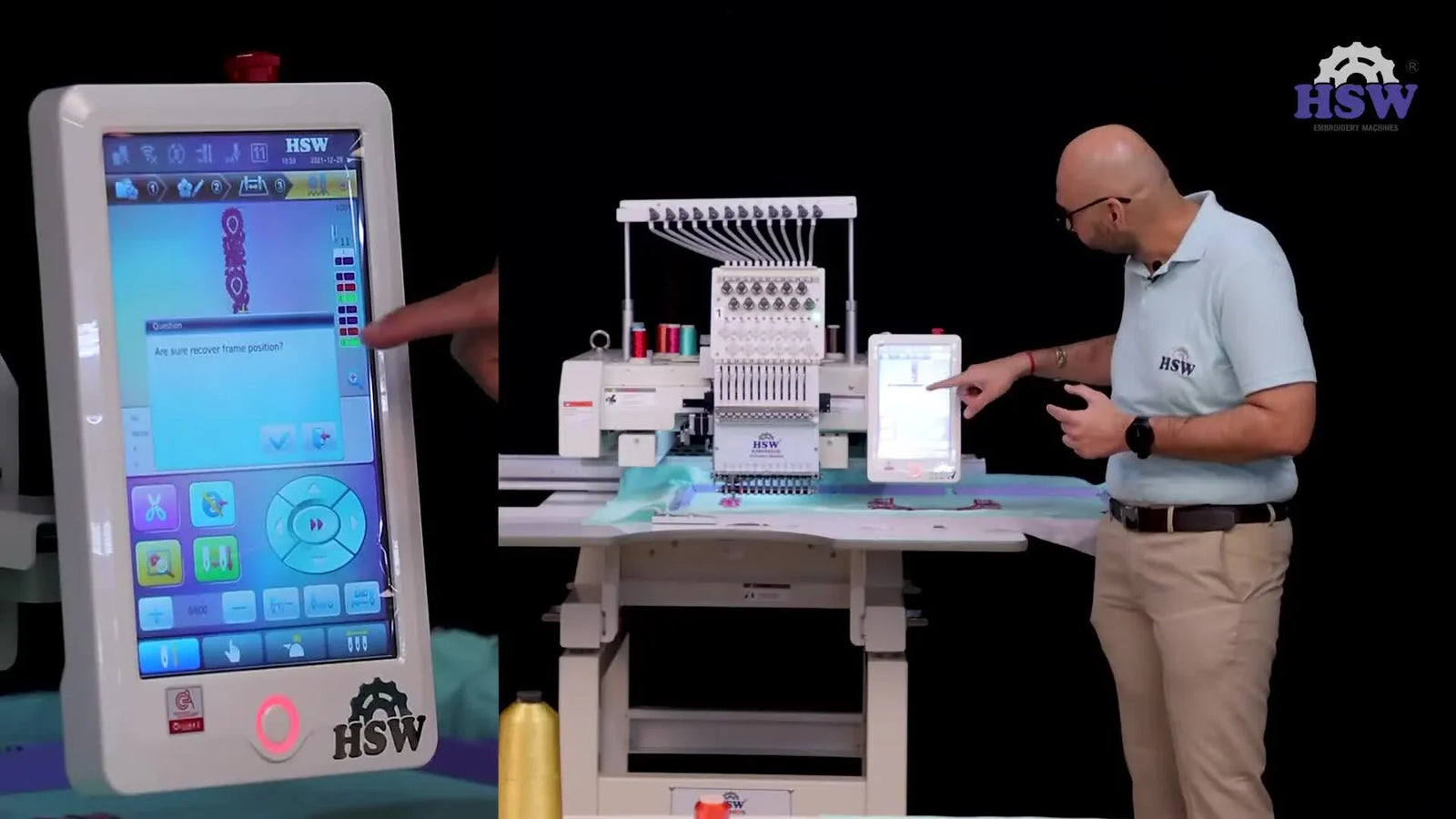

Read the Recovery Prompt Like a Pro: What the “Recover Frame Position?” Pop-Up Is Really Asking

After the first power-on, the HSW control panel displays a prompt asking: “Are sure recover frame position?”

Do not read this as "Click OK to fix everything." Read it as a question: "Is the machine mechanically ready to move the frame?"

Here is the Golden Rule from the video:

• Look at the 100° icon.
• If the icon is red, inactive, or greyed out, do NOT accept recovery.

Why? Because the machine is signaling that it does not know exactly where the main shaft is in its rotation cycle. Accepting recovery now forces the motors to engage without a safe reference, which is the primary cause of post-recovery layer shifting.

The Safe Fix, Exactly as Shown on HSW A15-PLUS: Cancel → Set 100° → Reboot → Recover

This is the core protocol. Perform these steps in order, and do not rush.

Warning: Keep hands clear! During Step 4 (Shaft Rotation) and Step 6 (Recovery), the machine parts will move automatically and with significant force. Keep fingers away from the needle bar and pantograph.

Step 1 — Power on the machine (first boot after the outage)

• Switch on the machine using the side panel power switch.
• Listen for the cooling fan and the initial beep of the control panel loading.


Step 2 — Evaluate the recovery prompt and the 100° icon

• The “Recover frame position?” prompt appears.
• Visual Check: Look at the 100 icon on the main dashboard behind the prompt.
• Decision: If the 100 icon is not active (red/inhibited), you must abort the recovery.

Expected outcome:

• You verify the machine is not yet in the ready state.


Step 3 — Cancel the recovery prompt (twice)

• Press Esc/Cancel on the prompt.
• As shown in the video, you may need to press it two times to fully dismiss the window and return to the main interface.

Expected outcome:

• The prompt disappears. You have full control of the main menu.


Step 4 — Set the main shaft to 100° using the on-screen 100 button

• Press the 100-degree button on the main interface.
• Sensory Check: You will hear a mechanical whir-click as the main motor engages and rotates the shaft to the 100-degree position.

Expected outcome:

• The needle bar rises to the correct height.
• The take-up lever moves to its highest position.
• The 100 icon turns active (green or blue, depending on your UI theme).


Step 5 — Power cycle (reboot) the machine

• Turn the side power switch off.
• Wait 10 seconds. (This allows the capacitors to discharge and the computer to fully clear its temporary cache).
• Turn the side power switch on again.

Why reboot? The computer needs to boot up detecting the 100° signal from the start to calculate the recovery vector correctly.

Step 6 — Accept recovery on the second boot

• After the reboot, the recovery prompt appears again.
• Verify: Confirm the 100 icon is now active.
• Action: Press Enter / the checkmark to confirm recovery.

Expected outcome:

• The pantograph (frame) moves rapidly to realign with the design coordinates.
• The machine is now "armed" and ready to stitch.


Setup Checklist (Before you press Start)

• Clearance: Ensure the frame did not hit the machine arms during movement.
• Thread Check: Pull the top thread manually—ensure it flows freely through the needle eye.
• Speed Limit: For safety, lower your max speed (SPM) to 400-500 SPM for the first minute.
• Hidden Consumable: If you suspect the fabric shifted, use a water-soluble marker to mark the current needle point and compare it to your design sheet.


What You Should See During Recovery: Frame Movement, Alignment, and the “First 10 Stitches” Test

Once you confirm recovery, the machine aligns itself.

Then, you press Start.

Here is the "Expert Operator" test: Watch the first 10 stitches like a hawk.

• Listen: You want to hear a clean, rhythmic thump-thump. If you hear a grinding noise or a sharp snap, hit the emergency stop immediately—your needle may be hitting the hoop or plate.
• Look: Check the registration. Does the new stitching line up perfectly with the old? If there is a gap of 1mm or more, your fabric likely shifted in the hoop during the outage.

Pro Tip: If you notice a misalignment, do not try to "push" the hoop while it runs. Stop, rip out the bad stitches, and adjust the design coordinates manually if your machine supports it.

When the Recovery Prompt Never Shows Up: Turn On “Boot Prompt Recovery Frame” in User Settings

The video addresses a common frustration: the power goes out, comes back on, and the machine sits there as if nothing happened—no prompt, no recovery. This happens because the feature is disabled in the settings.

Here is the navigation path to fix it:

1. Press the Hand icon (Manual Operations).
2. Press the Gear icon (User Settings).
3. Navigate to Page 3.
4. Locate option #5: “Boot prompt recovery frame”.
5. Toggle it to Yes.






Expected outcome:

• The machine saves this preference. The next time power is cut, the recovery prompt will trigger automatically.

Recommendation: Do not wait for a storm to test this. During a slow period, simulate a power cut (flip the switch mid-design on a scrap piece) to ensure your settings are correct.

Why the 100° Rule Works (and Why Skipping It Creates Expensive Problems)

Understanding the "why" helps you remember the "how."

In industrial embroidery, the 100° position is the mechanical "Zero Point." It is the moment in the rotation cycle where the needle is fully up, the thread take-up lever is at its apex, and the hook is disengaged.

If you attempt recovery when the shaft is at 45° or 200°:

1. Timing issues: The computer may miscalculate the distance required to move the frame.
2. Thread Snaps: The tension discs may be engaged, snapping the thread the moment the frame jerks.
3. Birdnesting: The hook routine starts out of sync, creating a knot under the plate immediately.

The "Cancel → Set 100° → Reboot" loop ensures the computer and the mechanics are speaking the same language before any movement occurs. This discipline is vital for any single head embroidery machine owner who wants to maintain consistent production quality.

Troubleshooting After a Power Cut: Symptoms → Likely Cause → Fix

Use this table to diagnose issues after you attempt the recovery process.

Decision Tree: Fabric Type → Stabilizer Strategy → Hooping Stability

Recovery software is amazing, but it cannot fix physics. If the power cut caused your fabric to bounce or loosen in the hoop, the design will be ruined.

Your best defense against power-failure damage is a rock-solid hooping strategy before the disaster happens.

1. Is the fabric stable (Denim, Canvas, Twill)?

• Risk: Low.
• Strategy: Standard Tearaway or Cutaway. Ensure hoop tension is drum-tight.

2. Is the fabric unstable (T-shirt knits, Performance wear)?

• Risk: High. Sudden stops cause the fabric to "relax" and shrink back.
• Strategy: Must use Fusible Cutaway Mesh. The adhesive helps hold the fabric shape even if the hoop loosens slightly.

3. Is the item bulky or difficult to hoop (Bags, Jackets)?

• Risk: Very High. The weight of the item drags the hoop during the stop.
• Strategy: You need maximum grip. A robust embroidery frame combined with a table support is essential to take the weight off the pantograph.

4. Are you experiencing "Hoop Burn" or frequent slippage?

• Risk: Critical. If the fabric slips, recovery is impossible.
• Strategy: Audit your hooping method. Consistent tension is key. Tools like a specialized hooping for embroidery machine station ensure every garment is clamped with equal pressure.

The Upgrade Path: Why "Better Holding" Reduces "Recovery Panic"

The best way to handle a power cut is to ensure your material never moves, no matter how abrupt the stop.

If you find yourself spending 20 minutes re-hooping every time there is a minor interruption, or if you struggle to keep the fabric aligned, it is time to look at your tools.

Level 1: Stability Upgrade For standard hoops, using a Hoop Master or similar hoop master embroidery hooping station provides mechanical consistency that human hands cannot match. This ensures that even if you have to re-hoop, you can hit the exact same spot again.

Level 2: Grip Upgrade (Magnetic) For professionals, the shift toward magnetic technology is the industry standard for efficiency.

• Why: A magnetic embroidery frame clamps the fabric instantly without forcing an inner ring into an outer ring. This reduces "hoop burn" and fabric distortion.
• The Power Cut Advantage: Because magnetic embroidery hoops use vertical magnetic force rather than friction, they hold thick or slippery garments more securely during the "jerk" of a machine stopping and starting.

Warning: Magnetic Safety
Professional magnetic hoops use neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Safety: Operators with pacemakers should consult a doctor before using strong magnetic devices.

Upgrading to magnetic frames is often the "tipping point" for shops moving from hobbyist chaos to streamlined production, primarily because it reduces the physical strain on the operator and the material.

Operation Checklist (Post-Recovery Execution)

Once you have recovered the position and verified the 100° status:

• Slow Start: Run the machine at 400 SPM for the first 500 stitches.
• Watch the Bobbin: Ensure the bobbin thread is catching (look for white 1/3 width on the back).
• Listen for Rhythm: The sound should satisfy you—a smooth, consistent hum.
• Stay Close: Do not walk away for at least 2 minutes.

The Real Win

The HSW recovery method is simple, but it requires discipline. By refusing to accept recovery until the machine is safely at 100°, you protect the machine from damage and the garment from ruin.

Mastering this recovery workflow is the mark of a professional. It allows you to look at a power outage not as a disaster, but as a minor operational hiccup. And when your skills outgrow your current setup, upgrading to precision tools like magnetic hoops or high-throughput SEWTECH multi-needle machines will be the logical next step in your business growth.

FAQ

• Q: What is the safe HSW A15-PLUS power failure recovery sequence when the “Recover frame position?” prompt appears but the 100° main shaft icon is red/grey?
  A: Do not accept recovery until the HSW A15-PLUS control shows the 100° main shaft icon active—use the Cancel → 100° → Reboot → Recover routine.
  • Press Esc/Cancel to dismiss the recovery prompt (often twice).
  • Press the on-screen 100° button to rotate the main shaft to 100°.
  • Power off, wait 10 seconds, then power on to reboot.
  • Accept “Recover frame position?” only after confirming the 100° icon is active.
  • Success check: the machine makes a clear motor “whir-click,” the needle bar rises, and the 100° icon becomes active before recovery is accepted.
  • If it still fails: stop and re-check that the needle is not down in the fabric and nothing is binding under the needle plate.
• Q: What physical checks should be done on an HSW multi-needle embroidery machine before touching the recovery screen after a power cut?
  A: Stabilize the fabric and clear mechanical risks first, because software recovery cannot prevent a needle crash if the setup is physically unsafe.
  • Remove tools and loose items from the pantograph area (scissors, spare bobbins, trimmers).
  • Raise the needle to the highest point by manually turning the main shaft knob if the needle stopped down (follow the machine manual direction).
  • Pull the top thread near the needle to confirm it moves smoothly and is not jammed.
  • Press the hooped fabric lightly to confirm it still feels drum-tight before attempting recovery.
  • Success check: no obstruction on the arms/needle plate area, thread pulls smoothly, and the fabric tension feels firm and unchanged.
  • If it still fails: if fabric slipped or feels loose, re-hoop instead of attempting recovery.
• Q: How can an operator confirm HSW embroidery recovery is successful after accepting “Recover frame position?” and pressing Start?
  A: Watch and listen through the first 10 stitches; alignment and sound reveal immediately if recovery is truly correct.
  • Reduce speed to 400–500 SPM for the first minute after recovery.
  • Observe the pantograph movement to ensure the frame clears the machine arms during repositioning.
  • Watch the first 10 stitches closely for perfect registration with the previous stitching.
  • Success check: the machine runs with a clean rhythmic sound (no grinding/snap) and the new stitching lands exactly on the prior stitch line (no visible gap around 1 mm).
  • If it still fails: stop immediately—do not push the hoop while running; remove bad stitches and check for hoop/fabric shift.
• Q: How do operators enable the missing HSW “Recover frame position?” prompt after a power outage using the “Boot prompt recovery frame” setting?
  A: Turn on “Boot prompt recovery frame” in HSW User Settings so the machine asks to recover automatically after power returns.
  • Tap the Hand icon (Manual Operations).
  • Tap the Gear icon (User Settings).
  • Go to Page 3 and find option #5 “Boot prompt recovery frame.”
  • Set it to Yes and save/exit.
  • Success check: after the next restart following an interruption, the “Recover frame position?” pop-up appears automatically.
  • If it still fails: power cycle the machine once more and re-check that the setting stayed on.
• Q: What should an operator do if an HSW embroidery machine makes a loud “clunk” on the first stitch after a power-cut recovery?
  A: Stop immediately—this often indicates a bird’s nest under the throat plate, and continuing can break needles or damage the job.
  • Hit emergency stop and do not continue stitching.
  • Remove the throat plate and clear the tangled thread buildup.
  • Oil the hook area as part of the restart routine (follow the machine’s standard maintenance guidance).
  • Restart with a slow speed limit for the first minute (a safe starting point is 400–500 SPM as used for post-recovery safety).
  • Success check: after clearing, the machine resumes with smooth stitch formation and no sudden impact sounds.
  • If it still fails: re-check top thread path and bobbin area for leftover debris or re-thread before attempting recovery again.
• Q: What are the main safety risks during HSW main-shaft 100° rotation and frame recovery movement, and how can operators prevent injury?
  A: Keep hands completely clear during automatic shaft rotation and recovery travel, because the needle bar and pantograph move with force.
  • Keep fingers away from the needle bar area when pressing the on-screen 100° button.
  • Stand clear of the pantograph travel zone when accepting recovery (the frame can move rapidly).
  • Confirm no tools are resting on the pantograph or needle plate before powering on.
  • Success check: recovery completes without any contact, snagging, or unexpected stops during movement.
  • If it still fails: shut down, remove the hoop if needed, and re-check clearance before repeating the recovery steps.
• Q: When frequent hoop slippage makes HSW power-cut recovery unreliable, what is a practical upgrade path from technique to magnetic hoops to a multi-needle production setup?
  A: Start by improving hooping consistency, then upgrade holding power with magnetic hoops, and only then consider a higher-throughput multi-needle setup if interruptions keep costing time.
  • Level 1 (Technique): standardize hoop tension and support bulky items so garment weight does not drag the hoop during stops.
  • Level 2 (Tool): switch to magnetic hoops when hoop burn or frequent slippage persists, because magnetic clamping often holds thick/slippery garments more securely during stop/start.
  • Level 3 (Capacity): consider a multi-needle production machine when recovery events and re-hooping time repeatedly disrupt output.
  • Success check: after upgrades, the fabric remains drum-tight and registration stays consistent after a stop-and-restart event.
  • If it still fails: review stabilizer choice for unstable fabrics (knits often need stronger support) and verify hoop/frame clips are fully seated before stitching.
