Reverse Hooping a Plastic-Lined Diaper Bag Pocket: The Pin-and-Window Method That Saves “Impossible” Jobs

If you’ve ever looked at a thick diaper bag pocket and thought, “Perfect—big flat area, quick name, easy money,” you’re not alone. It looks deceptively simple.

Then you try to hoop it. You hear the sharp snap of the outer ring popping off. The pocket fights back. That slick technical fabric inside acts like a slip-n-slide, and the padding makes the stack too thick for standard friction hoops to grip. Suddenly, you are questioning every life choice that led you to this order.

Here is the truth experienced embroiderers know: fighting physics is a losing battle.

When standard hooping fails, reverse hooping (often called "floating" via the window method) can absolutely save the job. But—and this is a big "but"—it only works if you treat it like a controlled engineering setup, not a lazy shortcut.

When a Mighty Hoop Won’t Hold: Why Thick Diaper Bag Pockets Defeat Magnetic Clamping

Joy’s first attempt in the video was the most honest diagnostic you can perform. She tried to insert a magnetic hoop into the pocket and immediately encountered the failure point: the pocket is too thick (padding + canvas-like outer + plastic lining).

You can feel this failure before it happens. If you bring the magnet down and don’t hear that reassuring, solid thud-click of full engagement, or if the top frame rocks back and forth like a wobbly table, the hold is compromised.

If you are using magnetic embroidery hoops, you must understand their physics: magnets generally do not "fail" randomly. They lose effective holding power exponentially when the material stack gets too tall or too stiff. The magnetic field cannot bridge the gap with enough force to resist the needle's drag.

That is why the technique below is best treated as a last resort method for hard placements. It is the "SWAT team" approach—you bring it out when standard protocols fail.

Warning: Never “muscle” a magnetic hoop into a thick pocket while it’s half-seated. If the magnets pinch while your finger is between the rings, it can cause injury. Furthermore, a sudden "pop-open" mid-stitch can break needles or ruin the garment instantly. If it doesn't click shut naturally, stop.

The Hidden Prep That Makes Reverse Hooping Work (Plastic Lining, Stabilizer Choice, and Zipper Control)

Reverse hooping is really two stabilizing systems working together:

1. Internal Support: Supporting the lining inside the pocket.
2. External Carrier: A hooped stabilizer frame that you "float" the bag onto.

Joy’s prep starts where most beginners forget: inside the pocket.

• She sprays a scrap of cutaway stabilizer with temporary adhesive.
• She inserts it inside the pocket, behind the plastic lining.

The "Why" Behind This Step: This is non-negotiable. Diaper bags often feature a waterproof plastic/vinyl lining. While it feels tough, mechanically, it acts like a brittle sheet. Once the needle perforates it (especially on dense letters like 'A', 'e', or 'g'), the "centers" of the plastic letters can simply detach and fall out over time. The cutaway acts as an anchor, holding that Swiss-cheese plastic together so the embroidery ages well.

Next, she deals with the biggest mechanical risk on bags: zippers and flaps.

• Because the pocket opening is tight, she pins the zipper flap up and out of the way using a safety pin.

Sensory Check: You should be able to run your hand over the entire embroidery area and feel nothing but the flat surface. If you feel a bump, a zipper pull, or a flap edge, the machine's presser foot will find it, and it will likely result in a collision.

Prep Checklist (Do this BEFORE you hoop anything)

• Consumables Ready: Do you have cutaway stabilizer, adhesive spray (like Spray n Bond), and long quilting pins?
• Internal Support: Cutaway stabilizer is adhered to the inside of the pocket (behind the lining).
• Obstruction Check: Zipper flaps and pocket flaps are safety-pinned up, high and outside the potential needle path.
• Size Reality Check: Is your design realistic for the pocket? Joy recommends a "Safe Zone" of 5.5–6 inches wide. Pushing beyond this on a floating setup invites distortion.

The Reverse Hooping “Window” Trick: Crosshairs + Cutout = Clean Alignment Without Sticky Stabilizer

Now, let's look at the core method. We aren't using sticky stabilizer here (which can sometimes gum up needles). We are using the Window Method.

Joy’s sequence is precise:

1. Hoop only the stabilizer (standard tearaway or cutaway) in the magnetic hoop. It should be drum-tight.
2. Mark it: Use a ruler and pen to draw crosshairs (center marks) directly on the hooped stabilizer.
3. Cut it: Slice a rectangular window in the center of the stabilizer—slightly smaller than the embroidery area.

That window performs two critical jobs:

• Visibility: It lets you see your placement marks on the bag and align them to the crosshairs on the hoop.
• Thickness Management: It prevents an extra layer of stabilizer from sitting on top of the bag. You want the needle engaging directly with the bag surface, while the inside cutaway supports the lining.

If you are learning how to use mighty hoop techniques or similar magnetic systems beyond "standard hoop and go," this is a vital mental shift: you are turning the hoop into a carrier frame, not a clamp.

Make It Stick, Then Make It Safe: Spray n Bond + Pins That Don’t Betray You Mid-Run

Because Joy didn’t have pre-sticky stabilizer, she used Spray n Bond basting spray on the remaining stabilizer perimeter in the hoop.

Important Nuance: The spray is not the primary hold. It is merely a "third hand" that keeps the bag from sliding while you perform the real work: pinning.

Her process:

• She places the bag pocket on top of the hoop (floating).
• She aligns the design center (chalk mark on bag) to the drawn crosshairs (on the hoop).
• She presses firmly around the edges to engage the adhesive.


Pinning: The Part People Under-do (And Then Fail)

Joy pins around the perimeter of the embroidery window—through the bag fabric and into the hooped stabilizer.

She calls out a critical safety detail: Do not pin through the plastic lining on the other side. You are trying to catch the outer canvas and padding, not punch extra holes into the waterproof lining you are trying to protect.

The Physics of Shift: If you are working on a floating embroidery hoop setup like this, gravity is your enemy. As the machine arm moves the bag, the weight of the bag drags against the pins.

• Beginner Mistake: Using 4 pins (one per corner). Result: Shifting/Registration errors.
• Pro Method: Use 8-10 pins. Think of it like rigging a tent—more anchor points distribute the load.

Troubleshooting Pin Issues: If pins keep falling out (common on heavy totes), check these variables:

1. Pin Length: Standard dressmaker pins are too short. Use long quilting pins with large heads.
2. Fabric Tension: You are pinning too close to the edge. Move pins in slightly.
3. Drag: The bag weight is physically pulling the pins out. You must support the bag (see next section).


Setup Checklist (Right before you go to the machine)

• Alignment: Crosshairs are visible, and the pocket center is aligned perfectly.
• Adhesion: Stabilizer perimeter is tacky and gripping the bag fabric.
• Anchoring: Pins are placed evenly around the window perimeter (every 1-2 inches).
• Lining Check: Run your hand inside the pocket—ensure you did NOT pin the pocket shut or pierce the lining.
• Clearance: The safety pin holding the zipper is miles away from the stitch field.

Warning: Pins and needles do not mix. A needle strike on a steel pin can shatter the needle, potentially sending metal shards towards your eyes or damaging the machine's hook timing. Keep pins strictly outside the trace path. Trace twice, stitch once.

The “Trace, Trace, Trace” Rule on a BAI Multi-Needle Machine (and Why Bag Weight Matters)

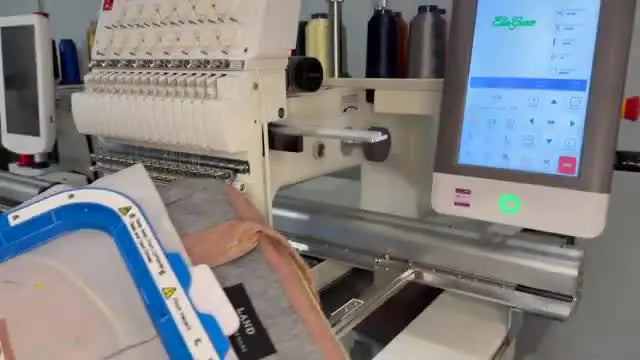

Joy loads the hoop onto the machine arms and immediately does what experienced operators do instinctively: she supports the bag’s weight.

Heavy bags create leverage. Even if the hoop is locked in, the bag acts like a pendulum. As the pantograph moves X and Y, a heavy bag can:

• Drag downward (Y-axis shift).
• Pull against the pinned stabilizer (causing puckering).

The Solution: Use a table attachment or simply hold the bulk of the bag gently with your hands (keeping them safe) during the run to relieve the tension on the hoop.

Joy runs a Trace (design outline check). She notices the needle bar is catching slightly near the zipper area—then identifies the safety pin in the corner as the culprit. This is the "Pre-Flight Check" saving the day. She confirms clearance.

Machine Setting Note: She had the design set to needle number 4. If you are using a bai embroidery machine or similar multi-needle, you are managing color sequencing manually or via software. Unlike home machines that might prompt you for "Red," commercial machines map to needle numbers.

Anxiety Reduction for New Users: One commenter shared they are struggling with confidence on their new multi-needle machine—test sews are fine, but "silly errors" ruin real garments. Joy’s mindset is the correct antidote:

• Start Simple: Don't start with a $50 diaper bag. Start with felt or cotton.
• Checklists: Stop relying on memory.
• Speed: Dial it down. For a setup like this, do not run at 1000 SPM (Stitches Per Minute). Drop it to 600-700 SPM. The lower speed reduces the violence of the direction changes, keeping the heavy bag more stable.


Stitching the Name Cleanly, Then Finishing the Inside Like a Pro (So It Doesn’t Come Back as a Complaint)

After the trace checks out, Joy stitches the name ("Ella Grace"). The stitchout runs smoothly because the prep work was solid.

Then she moves to finishing. This is where long-term durability and customer satisfaction live.

• She removes the pins carefully.
• She trims the extra cutaway stabilizer from inside the pocket window.

She shares a real-world fear many shop owners learn the hard way: she once had a diaper bag where the inside letter centers started pulling out after the customer used it for a few months. That is why she is extra careful now to trim neatly but not aggressively, leaving enough stabilizer inside to keep the integrity of the design.

Operation Checklist (What to verify during trace + stitch)

• Weight Support: Are you (or a table) supporting the bag's weight so it doesn't drag the hoop down?
• Auditory Check: Listen to the machine. A consistent thump-thump-thump is good. A sharp clack or grinding noise means stop immediately—you likely hit a hoop edge or pin.
• Visual Trace: Do not walk away during the trace. Watch the needle bar's proximity to the zipper pull.
• Speed Limit: Speed is reduced to 600-700 SPM for stability.
• Exit Strategy: After stitching, remove all pins before pulling the hoop off the machine to avoid scratching the paint/arms.

The “Why” Behind Reverse Hooping: Tension, Distortion, and Why This Method Has a Size Limit

Reverse hooping works because it changes the physics:

• Standard Hooping: The hoop clamps fabric and stabilizer together. The hoop provides the tension.
• Reverse Hooping: The fabric is not clamped. It is merely supported by the stabilizer. The fabric is relaxed.

This means you must manage distortion differently.

Joy mentions she personally felt comfortable with a design about 5.5–6 inches wide on that pocket. That is a practical, experience-based limit.

• Principle: The larger the design area, the more the fabric can flex between pins.
• Risk: If you try to stitch a 10-inch border on a floated bag, the center will be perfect, but the edges will likely pucker or register poorly because the fabric shifted millimeters during the process.

Practical Rule: If you plan to sell repeatable service (names on diaper bags), offer names and monograms (4-5 inches). avoid large, dense crests or full-front designs unless you can standard-hoop it.

A Simple Stabilizer Decision Tree for Plastic-Lined Pockets

Use this quick logic flow when you are staring into a pocket and deciding what goes behind it.

Start: Does the item have a plastic/vinyl/cooler lining?

• YES:
  • Q: Is the embroidery permanent (needs to last years)?
    • A: Use Cutaway stabilizer inside the pocket (Joy’s method). Adhere with spray.
  • Q: Is it purely decorative/one-time use?
    • A: You might get away with tearaway, but Cutaway is safer for waterproofing integrity.
• NO (Standard Fabric Lining):
  • Q: Is the outer fabric thick/padded and impossible to clamp?
    • A: Reverse Hoop (Window method + Pins).
  • Q: Can you crush it into a standard hoop without pain?
    • A: Standard Hoop is always preferred for stability.

The Upgrade Path: When to Switch Tools Instead of Fighting the Bag

Reverse hooping is a fantastic rescue technique—but it is slow. It takes time to measure, cut, spray, and pin. If you are running a business, time is inventory.

Here is how I advise shops to think about upgrades using a Scenario -> Diagnostic -> Solution model.

Scenario 1: You are doing thick bags weekly and "Hooping" is your bottleneck.

• The Pain: You spend 15 minutes prepping/pinning for a 5-minute stitch-out. You are losing money.
• The Diagnosis: Your tooling is mismatched to your product volume.
• The Solution (Level 1): Magnetic Hoops.
  • Terms like mighty hoops for bai or generic Magnetic Frames signify the solution. These hoops use vertical magnetic force to clamp thick seams instantly, often eliminating the need for reverse hooping entirely. You just slide the bag in and click.
  • For Home Machines: Look for Magnetic Hoops (4x4 or 5x7) compatible with your single-needle machine. They reduce "hoop burn" on delicate items too.
  • For Pros: Industrial magnetic frames are the industry standard for bags/Carhartt jackets.

Scenario 2: You want to scale, but single-needle thread changes are killing you.

• The Pain: You are babysitting the machine to change threads for every color. You can't multitask.
• The Diagnosis: You have outgrown the hobbyist workflow.
• The Solution (Level 2): Multi-Needle Platform.
  • Moving to a SEWTECH Multi-Needle Embroidery Machine allows you to set 12-15 colors at once. Combined with the tubular arm design (which slides into bags easily), you reduce friction in both setup and operation.

Warning (Magnet Safety): If you upgrade to commercial magnetic frames, treat them with respect. The magnets are incredibly powerful. Keep them away from pacemakers, implanted medical devices, and sensitive electronics (phones/Laptops). They create a pinch hazard—keep fingers clear of the "snap zone."

A Few “Watch Outs” From the Comments (Confidence, Pin Holes, and Colors)

• Pins Falling Out: As mentioned, if pins slide out, you aren't anchoring deep enough or your pins are too short. Sticky stabilizer (Peel & Stick) can replace the spray/pin combo if you are very worried about pinholes, but it gum up needles faster.
• Multi-Needle Anxiety: It is normal to feel shaky moving from a Brother PE800 to a 15-needle beast. The physics are the same, but the speed isn't. Slow down.
• DST Color Frustration: "Why are my colors wrong on the screen?" Commercial files (DST) often don't carry color data, just stitch commands.
  • Fix: Print a color sequence sheet from your software (like Embrilliance or Wilcom). Tape it to the machine. Manually assign Needle 1 to Blue, Needle 2 to Red, etc., matching your sheet.

The Bottom Line: Reverse Hooping Is a Rescue Skill—Make It Repeatable

Joy proved something important: You do not need expensive sticky stabilizer to floating a bag. You do need:

1. Inside Support: Cutaway behind the lining.
2. Precision: A windowed hoop with crosshairs.
3. Friction: Adhesive spray for placement.
4. Anchors: Pins for security.
5. Patience: A slow, careful trace.

If you are running a setup similar to a mighty hoops for bai workflow but hitting walls with specific items, this window method turns "unhoopable" into "deliverable."

However, monitor your time. If you find yourself doing this "rescue method" five times a day, that is your business signaling you to stop fighting the material and start upgrading the tooling—because the most profitable embroidery shops aren't the ones with the bravest pinning techniques... they are the ones with the smoothest workflow.

FAQ

• Q: Why does a Mighty Hoop magnetic embroidery hoop not “click” closed or feel wobbly when hooping a thick diaper bag pocket?
  A: The material stack (padding + outer fabric + plastic lining) is too thick/stiff for full magnetic engagement, so stop and switch to reverse hooping instead of forcing it.
  • Stop: Lift the top frame off—do not “muscle” the hoop into the pocket half-seated.
  • Check: Listen for a solid thud-click and feel for zero rocking; any wobble means the hold is compromised.
  • Switch: Hoop only stabilizer and use the window (floating) method with pins for this placement.
  • Success check: The magnetic frame closes naturally and sits flat without rocking; if not, do not stitch.
  • If it still fails: Treat the pocket as “unhoopable” and use a controlled floating setup (window + pins + bag support).
• Q: How do I prevent waterproof plastic/vinyl diaper bag pocket lining from tearing or letter centers falling out after embroidery?
  A: Add cutaway stabilizer inside the pocket behind the plastic lining before stitching to keep the perforated lining from breaking down over time.
  • Spray: Apply temporary adhesive to a scrap of cutaway stabilizer.
  • Insert: Place the cutaway inside the pocket behind the plastic/vinyl lining.
  • Stitch: Run the design with the lining supported, then trim the inside stabilizer neatly (not aggressively).
  • Success check: After stitching, the lining feels supported and the embroidery “centers” are not loose or popping free.
  • If it still fails: Reduce design density/size on plastic-lined pockets and prioritize cutaway as the safer backing.
• Q: How do I reverse hoop (window method) a thick diaper bag pocket without using sticky stabilizer and still get accurate alignment?
  A: Hoop stabilizer only, draw crosshairs, cut a window slightly smaller than the design area, then align the bag marks to the hoop crosshairs before pinning.
  • Hoop: Tension the stabilizer drum-tight in the magnetic hoop (stabilizer only).
  • Mark: Draw center crosshairs on the hooped stabilizer with ruler and pen.
  • Cut: Slice a rectangular window in the center, slightly smaller than the embroidery field.
  • Success check: The pocket placement mark is clearly visible through the window and aligns exactly to the crosshairs.
  • If it still fails: Re-cut a cleaner window and re-mark crosshairs; poor visibility usually causes placement drift.
• Q: How do I keep a floated diaper bag pocket from shifting during embroidery when using Spray n Bond basting spray and pins?
  A: Use the spray only as a “third hand,” then anchor with 8–10 long quilting pins around the window perimeter and support the bag’s weight.
  • Spray: Lightly coat the stabilizer perimeter in the hoop, then press the bag pocket firmly to tack it in place.
  • Pin: Place pins every 1–2 inches around the window (more than just four corners).
  • Avoid: Do not pin through the plastic lining on the other side—catch only outer fabric/padding.
  • Success check: The pocket cannot creep when gently tugged; pins stay seated and the bag feels “rigged” evenly.
  • If it still fails: Switch to longer quilting pins, pin slightly farther in from the edge, and add bag support to reduce drag.
• Q: What safety rules prevent needle strikes and injuries when pinning a floated diaper bag pocket for embroidery?
  A: Keep pins strictly outside the stitch trace path and never sew until a full trace confirms clearance—pins and needles must never meet.
  • Place: Pin around the perimeter of the window, not near where the needle will travel.
  • Trace: Run trace (outline) twice and watch needle-bar clearance around zippers, flaps, and any safety pins.
  • Stop: If any sharp clack/grind happens, stop immediately and re-check for pin/hoop contact.
  • Success check: The trace runs with clear space between needle path and all pins/zipper hardware.
  • If it still fails: Remove and reposition pins farther from the design boundary, then trace again before stitching.
• Q: What speed and handling settings help a BAI multi-needle embroidery machine stitch a heavy diaper bag pocket without distortion?
  A: Slow the BAI multi-needle embroidery machine to about 600–700 SPM and physically support the bag (or use a table) to prevent pendulum drag.
  • Slow: Reduce speed to 600–700 SPM for floated, heavy items to soften direction-change stress.
  • Support: Hold the bulk of the bag gently or rest it on a table attachment so the hoop is not carrying the full load.
  • Trace: Run a full trace and watch the zipper area closely before committing to stitches.
  • Success check: The machine sound stays consistent (steady thump-thump-thump) and the bag does not pull downward during movement.
  • If it still fails: Re-check for snags at zipper/flap areas and increase anchoring (more pins) before increasing speed.
• Q: When should an embroidery shop stop reverse hooping diaper bags and upgrade to magnetic hoops or a SEWTECH multi-needle embroidery machine for production?
  A: If reverse hooping prep takes far longer than the stitch-out and becomes a daily bottleneck, move from technique optimization to tooling or capacity upgrades.
  • Level 1: Standardize a checklist workflow (inside cutaway + window + spray + 8–10 pins + trace) to reduce “silly errors.”
  • Level 2: Upgrade to magnetic hoops/frames when thick items are frequent and hooping time is the constraint.
  • Level 3: Upgrade to a SEWTECH multi-needle embroidery machine when thread changes and multitasking limits throughput (set multiple colors at once).
  • Success check: Setup time drops and repeat orders run with fewer placement shifts and fewer restarts.
  • If it still fails: Track which step eats time (hooping vs. color changes vs. rework) and upgrade the part of the workflow causing the bottleneck.
