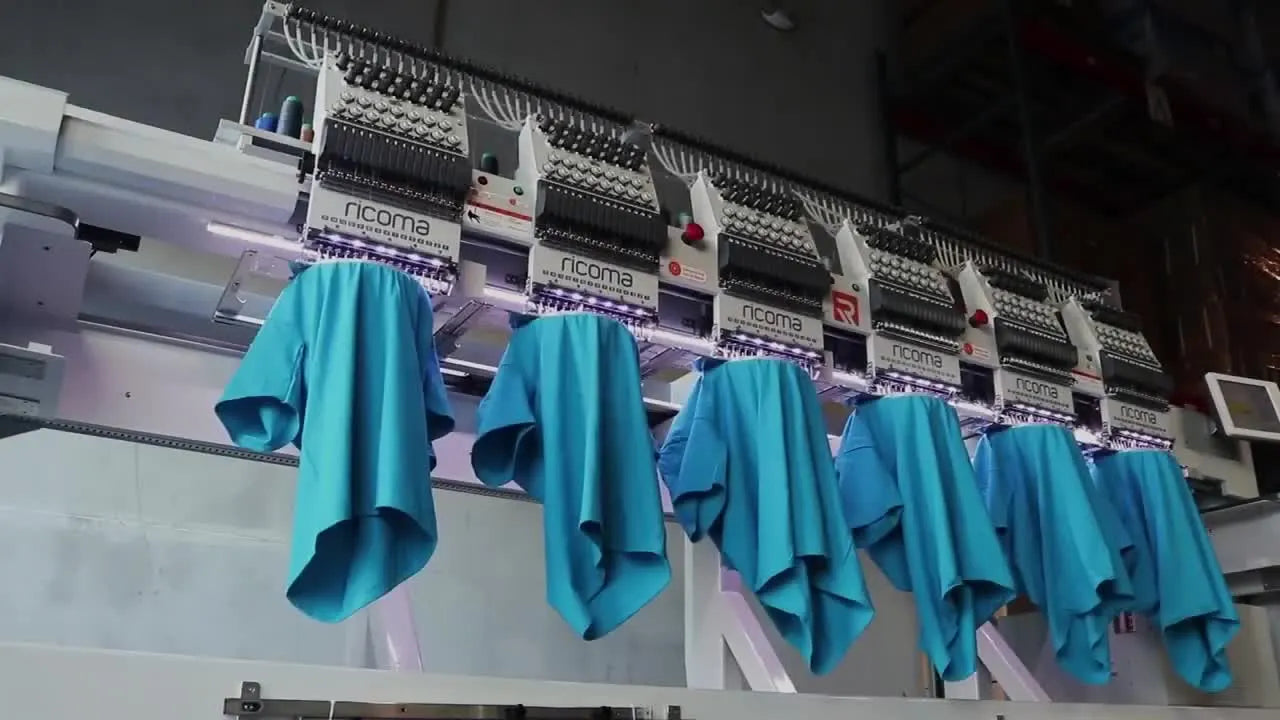

Ricoma CHT2 Multi-Head Embroidery Machine: The Calm, Repeatable Workflow That Keeps 12 Heads Sewing (Not Crashing Hoops)

When you’re staring down the barrel of a multi-head commercial machine operation, the anxiety isn’t usually about whether the machine can stitch. It’s about whether it can stitch all day, across 12 heads, without a catastrophic birdnester that ruins a client’s jacket. The Ricoma CHT2 is marketed as a production beast: up to 12 heads, a massive 16" x 18" field, and a top speed of 1000 SPM.

But let’s be real: High specs equal high stakes. If you are new to multi-head production, running at 1000 SPM is like learning to drive in a Formula 1 car.

This guide is your “Driver’s Ed” for the heavy machinery. I’m going to rebuild the standard video demo into a sensory, repeatable workflow. We will cover the tactile “clicks” that confirm safety, the visual checks that prevent crashes, and the business logic of when to upgrade your tooling to stop fighting the machine and start making money.

The “Don’t Panic” Primer for Ricoma CHT2 Multi-Head Embroidery Machine Runs: What This Platform Is Built to Prevent

The marketing video tells you the CHT2 is smoother and quieter. As an operator, here is what that actually translates to: Downtime Mitigation. In a single-head setup, a thread break is an annoyance. On a 12-head machine, one break pauses the entire production line.

Key capabilities you need to master:

• Scalability: Up to 12 heads running in sync.
• Field Size: 16" x 18" per head (perfect for jacket backs and tote bags).
• Speed Potential: 1000 stitches per minute (SPM). (Note: Just because you can, doesn’t mean you should. See my speed advice below.)
• Motion System: Dual timing belts and re-engineered X/Y drives designed to reduce the vibration that causes microscopic registration errors.
• Maintenance Access: Elevated drives designed to stop lint from grinding into the gears.
• Interface: A 10.4" HD touchscreen that is your primary defense against hoop strikes.

If you’re researching ricoma embroidery machines for a print shop or garment business, stop looking at the "max speed" and start looking at the "recovery speed." How fast can you fix a break? How fast can you switch from caps to flats? That is where the profit lives.

The “Hidden” Prep Before You Hit Start on a 6-Head or 12-Head Job: Thread Paths, Debris, and the Quiet Clues

The video highlights reduced breaks, but a machine is only as good as the path the thread travels. You cannot trust 12 heads to just "work" without a pre-flight check.

The Sensory Check: When checking tension, pull the thread through the needle eye (presser foot up).

• Feel: It should feel like pulling dental floss—smooth, consistent resistance. No jerks, no loose spots.
• Look: Turn the bobbin case over. You should see the white bobbin thread formed in a column taking up about 1/3 of the width in the center of the satin column on your test swatch.

The "Hidden" Consumables: Don't start a run without these within arm's reach:

• Temporary Adhesive Spray (505): For floating patches or stabilizing appliqué.
• Spare Needles (75/11 Sharp & Ballpoint): If a needle hits a hoop, change it immediately. Don't inspect it; trash it. Micro-burrs shred thread.
• Tweezers & Snips: You need one set per operator, not one per shop.

Warning: Mechanical Safety. Multi-head machines are unforgiving. A moving pantograph (X/Y arm) can break fingers or wrists if you are hooping one head while the machine moves to another position. Establish a strict "Hands Off / Step Back" rule before hitting the Start button.

Prep Checklist (The "Do Not Ski" Protocol)

• Thread Path: Walk the line. Is the thread seated deeply in the tension discs? (Listen for the faint clip sound as it slides in).
• Bobbin Check: Remove bobbins, blow out lint from the hook assembly, and reseat. Confirm the "pigtail" threading is correct.
• Needle Orientation: The groove of the needle must face the front. If it's twisted slightly, you will get shredded thread.
• Stabilizer Match: Cutaway staged for knits; Tearaway staged for woven caps.
• Oiling: One drop on the rotary hook race (if the manual calls for daily oiling)—excess oil ruins garments.


The Engineering That Actually Shows Up in Your Output: Dual Timing Belts, X/Y Drives, and Steel Guide Rails Under Load

The video showcases technical upgrades: dual timing belts, lighter X/Y drives, and steel rails. Why should you care?

Vibration = Registration Errors. When a machine vibrates at high speeds, the hoop shakes slightly. This causes outlines to miss the fill (the dreaded "white gap").

1. Dual Timing Belts: Distribute the torque more evenly. Sensory Check: Listen to the machine at 700 SPM. It should possess a rhythmic, low hum—a thump-thump. If you hear a high-pitched clatter or metal-on-metal slapping, your tension is likely too tight, fighting the drive system.
2. Steel Rails: Provide rigidity. This allows you to run heavier items (like Carhartt jackets or heavy canvas bags) without the weight of the garment dragging the pantograph down.

The Speed "Sweet Point": While the machine hits 1000 SPM, I recommend new operators set their "Cruise Speed" to 650-750 SPM.

• Why? At this speed, you can visually track the needle. If a loop forms, you see it. At 1000 SPM, by the time you see an error, you have ruined the garment.


Caps Without the Drama: Using the Enhanced Needle Plate to Reduce Flagging and Needle Breaks on Structured Hats

Caps are the nemesis of many embroiderers. The video claims the enhanced needle plate solves "flagging."

The Science of Flagging: When the needle pulls out of a structured cap (like a distinct Flexfit), the stiff fabric tries to lift up with the needle. This is called "flagging." It creates slack in the thread, leading to birdnests (giant thread knots) underneath.

• The Fix: The enhanced plate has a raised profile to physically hold the cap firmly against the needle plate hole, minimizing that bounce.

Effective Cap Strategy:

• The Sound of Success: When you snap the cap onto the driver, you must hear distinct clicks (usually three clips grabbing the precise points). If it feels "mushy," take it off and re-hoop.
• Backing is Non-Negotiable: Use Cap Backing (heavy tearaway). Never try to stitch a structured cap with no stabilizer; the structure of the hat is not enough.


The Fast Switch: Ricoma CHT2 Frame Positioning Board for Cap-to-Flat Mode (No Screw-Fighting)

Switching from flats (T-shirts) to caps is often a 20-minute nightmare involving screwdrivers and lost screws. The video shows the CHT2's tool-less transition.

The Workflow:

1. Slide: The operator slides the embroidery frame positioning board sash into the guide slots.
2. Tactile Lock: Use the thumb screws. Hand-tighten them until they stop. Do not use pliers to over-torque them; you will strip the threads.
3. Check: Wiggle the sash frame. It should be immovable.

Why this matters: If you switch modes daily, this feature saves you roughly 2.5 hours of labor per week. If you are evaluating any embroidery frame system, always ask for a demo of the "changeover." If it takes a toolbox, walk away.

The Touchscreen Habit That Prevents Hoop Strikes: Preset Hoops + One-Step Tracing on the 10.4" HD Panel

A "Hoop Strike" is when the needle creates a collision with the plastic hoop ring. It breaks the needle, can shatter the hoop, and can knock the machine out of timing (a $300+ repair).

The "Safety Net" Protocol: The video demonstrates the Preset Hoops feature. Here is how to weaponize it for safety:

1. Select Preset: On the 10.4" HD panel, tell the machine explicitly which hoop you are using (e.g., Hoop E).
2. Visual Confirmation: The screen projects a safety boundary wireframe around your design. If the design touches the line, DO NOT SEW.
3. The Trace (The Golden Rule): Press the Trace button. The pantograph will physically move the hoop to outline the design's extreme edges.
   • Watch: Does the presser foot get dangerously close to the plastic rim?
   • Listen: Is the fabric stretching or creaking?

Setup Checklist (The "Save Your Hoop" Protocol)

• Hoop Match: Screen preset matches physical hoop (Double-check! Selecting "Hoop A" while using "Hoop D" is a crash waiting to happen).
• Design Orientation: Is the design right-side up? (Crucial for caps).
• Trace Completed: Never hit "Start" without a clean trace.
• Head Clearance: Ensure no garment sleeves from Head 1 are draped over the arm of Head 2.


Onboard Lettering on the Ricoma CHT2: When “Good Enough Fast” Beats Waiting on Digitizing

The video shows typing "rcm" on the screen and stitching it immediately.

Real-World Application: Onboard lettering is perfect for:

• "Can you add a name to this?" requests.
• Simple monograms.
• Team naming (where the logo is digitized, but the names vary).

The Typographic limit: Do not use this for corporate logos or specific brand fonts. The onboard system recalculates stitches on the fly. For spacing (kerning) perfection, use software. But for speed? It’s a revenue generator.

Versatility Reality Check: Flats, Denim, Bags, and 3D Puff on Caps—What Changes (and What Shouldn’t)

The video jumps between denim, bags, and puff 3D caps. Here is the operational reality: The machine setup changes, but the physics do not.

The Stabilizer Decision Tree: You cannot use one roll of backing for everything. Use this logic gate:

The Hoop Factor: When moving to thick items like Carhartt jackets or heavy bags, standard plastic hoops often fail to grip. They pop open mid-stitch (the "pop of death"). This is when you look at ricoma embroidery hoops upgrades or magnetic options to hold thick uneven layers.

Decision Tree: Stabilizer/Backing Choices for Polos, Denim, Bags, and Structured Caps

(See table above for the condensed Decision Tree logic)

Pro Tip for 3D Puff: The video shows 3D Puff on a cap.

• Rule: Double your top tension (loosen it) slightly. You want the thread to lay over the foam, not slice through it.
• Needle: Use a larger needle (80/12) to punch a clean hole through the foam.


The Maintenance Angle Owners Miss: Elevated X/Y Drives, Less Debris Buildup, and Faster Access When Something Feels “Off”

Lint is the enemy. It soaks up oil and turns into "concrete" on your gears. The CHT2’s elevated drives help, but they don't eliminate the need for care.

The "Friday Afternoon" Clean: Once a week, take compressed air (or a vacuum—better) to the rotary hook area.

• Visual Check: Look at the felt pads near the needle bars. Are they dry? They should look slightly damp with oil, but not dripping.


Troubleshooting the Three Most Expensive Interruptions: Noise/Vibration, Debris, and Cap Flagging

When things go wrong, do not start changing software settings. Follow the Physical -> Mechanical -> Digital path.

1) Symptom: Thread Breaks / Shredding

• Likely Cause: Old needle, burr on the needle plate, or bad threading.
• Fast Fix: Change the needle (Cost: $0.20). Rethread the path completely.
• Don't: Adjust tension knobs immediately. Tension rarely changes on its own.

2) Symptom: The machine is noisy ("Clanking" sound)

• Likely Cause: Impact or lack of lubrication.
• Fast Fix: Stop. Check if a hoop is hitting the arm. Check if the rotary hook needs oil.
• Diagnosis: If the sound is rhythmic with the needle depth, you might have a bent needle hitting the plate.

3) Symptom: Cap Flagging / Birdnesting

• Likely Cause: Cap not hooped tight enough (air gap between cap and plate).
• Fast Fix: Re-hoop. Ensure the sweatband is pulled flat and held by the clip.
• Prevention: Use the enhanced needle plate shown in the video.


The Upgrade Path That Actually Pays Back: Faster Hooping, Less Wrist Strain, and More Consistent Placement in Bulk Orders

The video focuses on the machine, but the bottleneck in your shop is rarely the stitching; it is the hooping.

The Problem with Standard Hoops:

• Hoop Burn: The friction ring leaves a shiny circle on delicate polyesters that won't iron out.
• Wrist Strain: Tightening screws 100 times a day leads to repetitive strain injury (RSI) for operators.
• Failure on Thick Seams: You cannot physically shut the hoop over a thick zipper or seam.

The Solution: Magnetic Hoops When production ramps up, most shops switch to magnetic embroidery hoops.

• Efficiency: You simply lay the fabric over the bottom frame and snap the top frame on. It self-adjusts to thickness.
• Quality: No friction burn. Ideal for velvet, leather, and performance wear.

Warning: Magnetic Pinch Hazard. These magnets are industrial strength. They can crush fingers if you aren't paying attention. Do not use near pacemakers. Slide them apart; don't try to pry them.

Consistency Upgrade: If you have multiple employees, buying a magnetic hooping station ensures that "Employee A" and "Employee B" place the logo in the exact same spot every time. This standardization is how you scale from a garage to a warehouse.

The Production Operator Routine: What to Do During the First 2 Minutes (So the Next 2 Hours Are Boring)

The goal of a pro operator is a boring day. Excitement usually means breakage.

The First 120 Seconds Protocol:

1. Start Slow: Run the first 200 stitches at 600 SPM. Watch the thread catch.
2. Inspect the "Tie-In": Ensure the tails are pulled to the back.
3. Listen: Once the specialized sound of the machine settles into a rhythm, ramp speed up to 850 or 900.
4. Walk Away (But Listen): You can now stage the next round of garments.

Operation Checklist (The "Green Light" Protocol)

• First Layer Check: Is the coverage solid? No fabric showing through the stitches?
• Sound Check: No metallic clicking.
• Hoop Watch: As the design moves to the edges, verify one last time it isn't close to the rim.
• Next Job Staged: Backing cut and hoops ready for the next run.


The Bottom Line on the Ricoma CHT2: Specs Are Nice—Workflow Discipline Is What Makes You Money

The Ricoma CHT2 is a powerful platform that solves many mechanical headaches via its elevated drive system and reinforced belts. But a 12-head machine is only a profit multiplier if you treat it with respect.

Your Path to Profit:

1. Master the Prep: Check your thread paths and needles daily.
2. Use the Safety Features: Trace every design. Use the Preset Hoops.
3. Upgrade the Bottlenecks: When you are tired of hoop burn and slow changeovers, investigate items like a hooping station for embroidery machine and magnetic frames to match the machine's speed with your own human speed.

Production is a rhythm. Establish the habits, trust the sensory checks, and the speed will follow.

FAQ

• Q: What pre-run consumables should be within arm’s reach before starting a Ricoma CHT2 6-head or 12-head embroidery job?
  A: Keep the basics staged before pressing Start to avoid stoppages across multiple heads.
  • Stage temporary adhesive spray (505), spare needles (75/11 sharp and ballpoint), and one set of tweezers/snips per operator.
  • Walk the thread path on every head and re-seat thread into the tension discs before the run.
  • Clean lint from the hook area and confirm bobbin “pigtail” threading before loading production bobbins.
  • Success check: thread pulls through the needle eye (presser foot up) with smooth, consistent “dental floss” resistance—no jerks or loose spots.
  • If it still fails… change the needle immediately and fully rethread that head instead of touching tension knobs first.
• Q: How can a Ricoma CHT2 operator verify upper tension and bobbin presentation on a test swatch before running production?
  A: Use feel + the bobbin “column” look as the go/no-go standard before ramping speed.
  • Pull the thread through the needle eye with the presser foot up and confirm consistent resistance.
  • Stitch a quick test and flip the swatch to evaluate bobbin appearance in the satin column.
  • Adjust only after verifying correct threading and a fresh needle (tension rarely changes on its own).
  • Success check: the white bobbin thread forms a centered column about 1/3 of the satin column width on the test swatch.
  • If it still fails… stop and rethread the entire path and inspect for burrs or damage on the needle plate area.
• Q: What Ricoma CHT2 touchscreen steps prevent hoop strikes when using Preset Hoops and the Trace function on the 10.4" HD panel?
  A: Always match the hoop preset to the physical hoop and run a full trace before stitching.
  • Select the exact hoop preset that matches the hoop installed (do not guess).
  • Confirm the screen safety boundary wireframe does not touch the design.
  • Press Trace and watch the pantograph outline the extreme edges before pressing Start.
  • Success check: the traced path clears the hoop rim with safe distance and the fabric does not stretch or “creak” during tracing.
  • If it still fails… rotate/reposition the design or change to a larger hoop; do not sew when the design touches the boundary line.
• Q: What causes Ricoma CHT2 cap flagging and birdnesting on structured hats, and what is the fastest fix?
  A: Cap flagging usually means the cap is not held firmly to the needle plate—re-hoop for zero air gap.
  • Re-hoop the cap and pull the sweatband flat so the clips hold it securely.
  • Use heavy tearaway cap backing every time; do not stitch structured caps with no stabilizer.
  • Seat the cap on the driver until distinct clicks are heard (a “mushy” feel is a re-hoop signal).
  • Success check: the cap feels firmly locked with distinct clicks and stitches form without loops/birdnesting under the cap.
  • If it still fails… verify the enhanced needle plate is being used to reduce fabric lift at the needle hole.
• Q: How should a Ricoma CHT2 operator troubleshoot thread breaks or shredding without immediately adjusting tension knobs?
  A: Treat thread breaks/shredding as a physical-path issue first: needle, plate contact, and threading.
  • Change the needle immediately (do not “inspect and reuse” after any suspected impact).
  • Fully rethread the head from spool to needle to eliminate a missed guide or partial seating in the tension discs.
  • Check needle orientation (needle groove facing the front) before restarting.
  • Success check: after rethread + new needle, the machine runs several hundred stitches with no fuzzing or snapping.
  • If it still fails… inspect for burr contact points (needle plate area) and confirm the bobbin is correctly seated and threaded.
• Q: What should a new Ricoma CHT2 operator set as a safe running speed to reduce vibration-related registration errors and prevent ruined garments?
  A: Use 650–750 SPM as a safer “cruise speed” while learning, then increase only after the run sounds and looks stable.
  • Start the first stitches slower so problems show up early instead of at full speed.
  • Listen at moderate speed for a rhythmic, low hum rather than high-pitched clatter.
  • Watch edges of the design as it approaches hoop limits to catch issues before damage happens.
  • Success check: outlines align cleanly with fills (no “white gaps”) and the machine maintains a steady, low, rhythmic sound.
  • If it still fails… slow down and re-check hooping stability and the physical thread path before changing digital settings.
• Q: When hoop burn, wrist strain, or hoops popping open on thick seams becomes a bottleneck, what is the step-by-step upgrade path from standard hoops to magnetic hoops to higher production capacity?
  A: Start with technique fixes, then upgrade tooling if hooping is the limiter, and consider machine capacity only after workflow is stable.
  • Level 1 (technique): Reduce hoop pressure where possible, re-hoop carefully, and standardize placement steps across operators.
  • Level 2 (tooling): Switch to magnetic embroidery hoops when standard hoops slip on thick/uneven layers or cause hoop burn and slow screw-tightening.
  • Level 3 (capacity): If hooping and prep are no longer the limiter but volume still exceeds throughput, evaluate a production-focused multi-head setup.
  • Success check: hooping becomes repeatable (placement matches between operators) and garments stop showing shiny hoop rings or mid-stitch hoop “pop” events.
  • If it still fails… add a magnetic hooping station to standardize placement and reduce operator variability before pushing speed or volume.
• Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops in production?
  A: Treat magnetic hoops as pinch hazards and separate magnets by sliding, not prying.
  • Keep fingers clear of the closing path and train operators to “slide apart” magnets to remove frames.
  • Post a clear shop rule about pinch risk and slower handling during busy runs.
  • Avoid use near pacemakers and follow your facility safety policy for strong magnets.
  • Success check: operators can mount and remove magnetic hoops without sudden snapping or finger pinches, even at peak workload.
  • If it still fails… slow the hooping station pace and retrain handling technique before allowing new staff to hoop solo.
