SewTites Magnets on a Brother Luminaire XP2: Hold Vinyl Securely Without Pin Holes (and Avoid the Throat-Plate Trap)

If you’ve ever tried to secure vinyl, leather, foam, or thick batting for embroidery, you already know the sinking feeling in your stomach: pins leave permanent “bullet holes” in your expensive material, spray adhesive gums up your needle causing thread breaks, and tape inevitably shifts the moment the hoop starts moving. Your “perfect placement” becomes a registration nightmare.

Dawn from Creative Appliques demonstrates a solution that is standard in many professional shops but intimidating to beginners: SewTites magnetic pins. Used correctly, they hold layers firmly without piercing your material. However, they introduce a new risk: if you don't respect the physics of your machine, you risk needle collisions or motor burnout from drag.

This is not just a product review; it is an operational standard operating procedure (SOP). We will rebuild the demo into a high-safety workflow you can repeat on your own machine (whether it's a Brother Innov-is XP2 Luminaire or a commercial multi-needle), incorporating the "old hand" sensory details that prevent disasters.

SewTites Magnets for Machine Embroidery, Sewing, Quilting & Bag Making—Who They’re Actually For (and Why Pins Fail)

SewTites are magnetic “pins” designed to act as a localized clamping system. In the video, Dawn highlights why that matters most when you’re working with "unforgiving" materials.

In my 20 years of floor experience, we use these for two specific scenarios:

1. Non-Healed Materials: Vinyl, leather, cork, and oilcloth. Once a pin pierces these, the hole is permanent.
2. High-Loft Stacks: Foam, batting, or sandwiching quilt layers where pins distort the fabric wave.

In real production terms, magnets solve the "Surface Integrity" problem. There is no adhesive residue to gum up your rotary hook, and no holes to ruin the finish.

If you have been searching online for magnets for embroidery hoops, you are likely trying to move beyond basic cotton projects. The key mental shift is to treat these magnets not as "sticky pins," but as industrial clamps. Clamps have rules—specifically regarding clearance and friction.

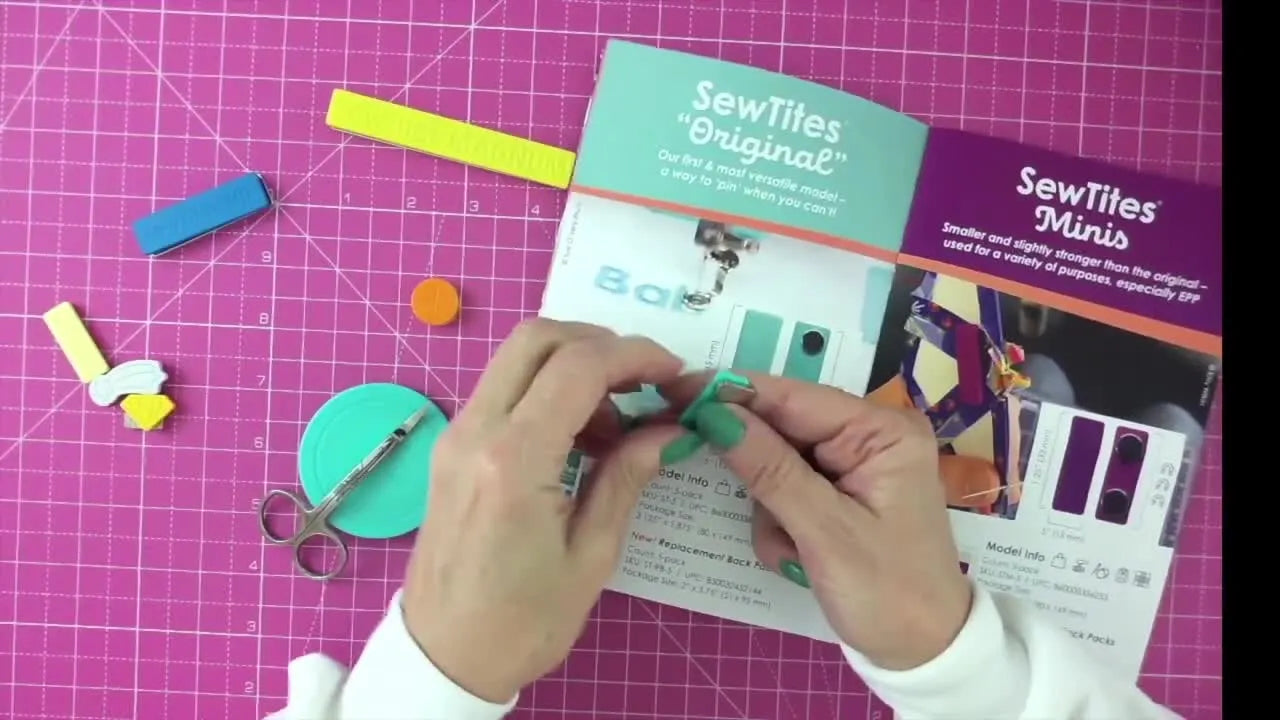

The “Strength Match” Rule: Choosing SewTites Original vs Magnum vs Mini Without Wrecking Registration

Dawn shows three sizes/strengths. Selecting the wrong one is the #1 cause of "Hoop Drag"—where the magnet sticks to the metal throat plate of your machine, causing the pantograph to skip steps.

• Original (Teal): The "Goldilocks" zone. Strong enough for vinyl+stabilizer, but usually not strong enough to grab the throat plate through a standard hoop.
• Magnum (Yellow): Industrial strength. Do not use this on thin stabilizer-only layers. It will lock onto your machine bed like a vice. Use only for thick foam/batting stacks.
• Mini (Purple): Low footprint. Perfect for tight corners.


Here is the "Sweet Spot" Rule I teach in studios:

• The Spacer Principle: Magnetic force drops off rapidly with distance. Your fabric and stabilizer are the "spacers."
• Thin Stack (Stabilizer + Cotton): Use Original or Mini. You want just enough grip to prevent sliding.
• Thick Stack (Puffy Foam + Vinyl): Use Magnum. The thickness of the foam pushes the magnet away from the machine bed, making it safe to use the stronger magnet.

Dawn’s warning is critical: Using a Magnum on a thin layer decreases the "spacer" distance, allowing the magnet to latch onto the metal throat plate below.

If you’re comparing different embroidery hoop magnets for production, remember: Stronger is not better; balanced is better.

The Throat-Plate Trap on a Brother Luminaire XP2: How Hoop Drag Happens (and How to Prevent It)

Dawn is specific: the magnets aren’t the problem—friction is.

Sensory Diagnostics: What Hoop Drag Feels Like

• Auditory: You hear a rhythmic thump-thump or a low grinding noise instead of the smooth whir of the pantograph.
• Tactile: If you lightly touch the hoop frame (safely away from the needle!) while it moves, it often feels "juddery" or vibrates excessively.
• Visual: The outline does not align with the fill (Registration Error).

The Physics of Failure: A strong magnet pulls the hoop downward toward the metal needle plate. This increases the coefficient of friction. Your stepper motors are calibrated to move a floating hoop, not one causing 5lbs of drag.

The "Paper Slide" Test (Pre-flight): Before stitching, slide a piece of standard printer paper under the hoop where the magnet is aimed.

• If the paper slides freely $\rightarrow$ Safe.
• If the paper gets pinched or trapped $\rightarrow$ Unsafe. Change to a weaker magnet or add layers.

If you are trying to build confidence using brother luminaire magnetic hoop setups (or any large flatbed machine), the safest mindset is: Zero Drag tolerance.

Warning: Projectile Hazard. A magnet struck by the presser foot can shatter or snap the needle. Always perform a "Trace" (position check) before hitting start to verify the needle bar and presser foot do not cross the magnet's path.

The “Hidden” Prep Pros Do First: Stabilizer, Vinyl Handling, and a Quick Clearance Test

Dawn’s demo uses a standard hoop with stabilizer and vinyl. Before you copy the technique, you must perform the "Hidden Prep" that prevents 80% of failures.

Prep Checklist (Materials + Sanity Checks)

• Needle Selection: Installed a fresh 75/11 Sharp needle (Ballpoint needles struggle to pierce vinyl cleanly).
• Hoop Tension: Stabilizer is "drum tight." Tap it—it should sound distinct, not thudding.
• Hidden Consumable: Use a non-fusible Cutaway stabilizer for unstable vinyls to prevent stretching.
• Magnet Check: Select "Original" (Teal) for standard vinyl work.
• Clearance Plan: Visually map where the magnets will sit (corners are safest).

Expert Note on Material Science: Vinyl has "memory." If you store it rolled, it will fight to curl back up. Pre-flatten your vinyl pieces under a heavy book for an hour before floating. This reduces the work the magnets have to do.

Floating Vinyl Under the Hoop with SewTites Original: The Clean In-the-Hoop Setup That Avoids Pin Holes

Dawn demonstrates an in-the-hoop (ITH) setup. This is the "Float" technique: hoop only the stabilizer, then magnetically clamp the material on top (or underneath).

The "Blind" Underside Challenge: Dawn secures vinyl to the back of the hoop. This is terrifying for beginners because you can't see if it shifted.

Setup Sequence (The "Tactile Pinch" Method)

1. Hoop the Stabilizer: Ensure it is perfectly flat.
2. Position the Vinyl: Place it against the back/underside.
3. The Tactile Pinch: Place your non-dominant hand under the hoop to hold the vinyl. Place the SewTites magnet on top, feeling for the "snap" as it connects to the backing plate in your hand.
   • Tip: Do not slide the magnets to adjust them—lift and replace. Sliding can wrinkle the vinyl.
4. Distribution: Use enough magnets to prevent "flagging" (where the fabric flaps). Usually, 4 points (corners) are sufficient.

If you have been experimenting with floating embroidery hoop techniques, magnets are superior to spray adhesive because they allow for infinite repositioning without leaving sticky residue on your frame.

Setup Checklist (Pre-Mount)

• Vinyl is flat with no bubbles or wrinkles between magnets.
• Magnets are at least 1 inch away from the embroidery design area.
• The Shake Test: Gently shake the hoop. If the vinyl shifts, use a stronger magnet or add one more clamp point.
• No magnet is positioned directly where the hoop attachment arm locks into the machine.


Stitching with Magnets in the Hoop: How to Keep the Presser Foot Clear and the Hoop Moving Smoothly

Dawn runs the machine with magnets inside the area. This is the danger zone.

Operational Discipline:

1. The "Hand-Crank" Verification: Before pressing start, lower your needle manually (using the handwheel) at the four corners of the design (or use the machine's Trace/Trial function).
2. Watch the Foot height: Ensure your embroidery foot height (Pressure Foot Height setting) is sufficient to glide over the vinyl, but remember—it will not clear the magnet.
3. Speed Limits: Production machines run at 1000 SPM (Stitches Per Minute). When floating vinyl with magnets, slow down to 600-700 SPM. The extra inertia of the heavy magnets requires gentler acceleration/deceleration to maintain accuracy.

Sensory Feedback: When a magnetic embroidery hoop (or a magnet-loaded standard hoop) is moving correctly, the sound should be consistent. A rhythmic "clicking" usually means the stabilizer is lifting up and slapping the plate—add a magnet to the loose edge.

Operation Checklist (During Stitching)

• Visual Scan: Keep eyes on the gap between the presser foot and the nearest magnet.
• Sound Check: Listen for friction/dragging noises (grinding).
• Pause & Check: After the placement stitch (running stitch), stop and confirm the vinyl hasn't bubbled.
• Emergency Stop: Keep your hand near the Stop button, not your coffee.


When Things Go Sideways: Hoop Drag, Misalignment, and the Fast Fix That Saves Your Project

Even with prep, physics happens. Here is a troubleshooting matrix based on 20 years of shop errors:

A lot of people blame digitizing when registration slips. Sometimes it is digitizing—but with magnets, the first suspect is almost always Drag.

Mini vs Original (and the “Footprint” Problem): Picking a Magnet Size That Doesn’t Crowd Your Stitch Field

Dawn compares the Teal Original and Purple Mini.

• Original: High holding power, large footprint. Best for borders and large hoops (5x7 and up).
• Mini: Lower holding power, tiny footprint. Best for 4x4 hoops or holding down small applique pieces inside a design.

If you are trying to optimize magnets for embroidery hoops for detailed in-the-hoop (ITH) stuffed animals or keyfobs, the Minis are essential. They allow you to pin tricky curves without blocking the embroidery foot.

A Simple Stabilizer Decision Tree for Vinyl & “Floating” Setups (So You Don’t Overbuild or Underbuild)

Beginners often over-stabilize, creating a "bulletproof" stiff patch, or under-stabilize, causing puckering.

Decision Tree: Optimized for Magnetic Floating

1. Is your material stretchy? (e.g., Knit Vinyl, soft Leather)
   • YES: Use Cutaway Stabilizer (Mesh or Medium Weight). Magnets hold the edge, Cutaway holds the core.
   • NO: Go to step 2.
2. Is the material thick/stable? (e.g., Marine Vinyl, Cork, Stiff Felt)
   • YES: Use Tearaway Stabilizer. It removes easily and the material supports itself.
   • NO: Go to step 3.
3. Are you stitching a dense design (15,000+ stitches)?
   • YES: Cutaway (Always). Dense stitches will perforate Tearaway, leading to separation.
   • NO: Tearaway is likely fine.

This decision process highlights where tool upgrades fit. If you are constantly fighting hoop burn on delicate items, searching for how to use magnetic embroidery hoop tutorials is a start, but eventually, the hardware itself dictates the limit.

Magnet Safety Isn’t Optional: Protect Your Hands, Your Machine, and Your Electronics

Magnets are deceptively friendly toys until they pinch a blood blister onto your finger.

Warning: Pinch Hazard & Medical Safety.
These rare-earth magnets snap together with extreme force.
* Pinch Point: They can bruise skin or break fingernails instantly. Slide them apart; don't pull.
* Medical: Keep away from pacemakers and insulin pumps.
* Electronics: Keep at least 6 inches away from computerized screens and USB drives.

Shop Hygiene:

• Never "park" magnets on your machine's screen or needle plate.
• Use a dedicated magnetic bowl or the SewTites wear-able holder Dawn shows. This prevents them from "jumping" onto your scissors or screwdrivers.


The Upgrade Path: When SewTites Are Enough—and When a Magnetic Embroidery Frame Pays for Itself

SewTites are excellent for fixing material inside a standard plastic hoop. But if you are doing this daily, you will hit a ceiling: Setup Time (ergonomics).

Traditional hooping requires wrist strength and time to tighten screws.

• Trigger: Are your wrists hurting? Are you spending more than 2 minutes hooping a shirt?
• Diagnosis: You are fighting the physical limitations of the "inner/outer ring" friction system.

The Solution Hierarchy:

1. Level 1: SewTites (The Fix): Great for floating occasional tricky items on a standard machine.
2. Level 2: Magnetic Hoops (The Tool Upgrade):
   For specialized tasks, professionals often switch to dedicated magnetic embroidery frames (like the SEWTECH Magnetic Hoops). These replace the inner/outer ring mechanism entirely with a top-clamping magnetic frame.
   • Benefit: Zero "hoop burn" (shiny marks) on velvet or dark fabric.
   • Speed: Hooping takes 5 seconds, not 60.
3. Level 3: Multi-Needle Machine (The Scale Upgrade):
   If you are running batches of 50+ items, the bottleneck isn't just hooping—it's thread changes. A multi-needle machine (like SEWTECH models) combined with a magnetic hooping station transforms embroidery from a hobby into a profitable production line.

If you find yourself constantly re-hooping or ruining garments with pressure marks, the ROI (Return on Investment) of a magnetic frame is usually less than 10 ruined shirts.

The Most Common Comment Questions—Answered Like a Technician (So You Don’t Learn the Hard Way)

“Will magnets mess up my Brother embroidery machine?”

• The Engineer's Answer: Generally, no—if kept away from the screen and mainboard (usually in the head or right side). The motors are shielded. The real risk is physical obstruction, not magnetic interference with the computer. Keep magnets on the hoop, nowhere else.

“Can you show more demos using them in real embroidery?”

• The Reality: Dawn has many videos, but the technique is universal. Once you master the "Float and Clamp" method, it applies to towels, bags, and baby onesies equally.

“Which size should I buy first?”

• The Professional Pick: Original (Teal). It covers 90% of use cases. Only buy Mini if you do tiny items; only buy Magnum if you do thick quilts or heavy autofloor mats.


The Clean Finish Standard: What to Check After the Stitching (So the Project Looks Professional)

The project isn't done when the machine stops.

Post-Production Quality Control:

1. Check for "Creep": Look at the edges of the vinyl. Did they pull inward? (Indicates stabilizer was too loose).
2. Impressions: Did the magnets leave a mark? (Rare, but possible on velvet). Steam usually lifts this.
3. Jump Stitches: Trim them immediately.

Hidden Consumable: Keep curved embroidery scissors and a lint roller nearby. Vinyl generates static and attracts dust; a quick roll makes the product presentation-ready.

The Bottom Line: Use Magnets Like a Clamp System, Not a Shortcut

SewTites magnets are a legitimate industrial solution for the "impossible to hoop" problems. Dawn’s demo proves the concept: float the vinyl, clamp it near the edge, and stitch with clearance.

Your success depends on two non-negotiable rules:

1. Physics Check: Use the weakest magnet necessary to hold the job (Original > Magnum for thin items) to prevent throat plate drag.
2. Safety Check: Perform a manual Trace before every single start.

Mastering this gives you the confidence to bid on high-value jobs like leather patches and bags—work that standard hoopers are too afraid to touch. And when your volume outgrows your manual hooping speed, remember that dedicated magnetic frames and multi-needle machines are waiting to take the load off your wrists.

FAQ

• Q: How do I prevent SewTites Magnum magnets from causing hoop drag on a Brother Luminaire Innov-is XP2 embroidery bed?
  A: Use the weakest SewTites magnet that holds the stack, because Magnum magnets can latch onto the Brother Luminaire XP2 throat plate and create drag.
  • Swap Magnum to SewTites Original (or Mini) for thin stacks like stabilizer + cotton.
  • Add “spacer” thickness (extra fabric/stabilizer layers) before choosing a stronger magnet.
  • Perform the printer “Paper Slide” test under the hoop where the magnet sits.
  • Success check: Printer paper slides freely and the hoop motion sounds smooth (no thump-thump or grinding).
  • If it still fails: Move the magnet farther from the machine bed contact zone and re-test before stitching.
• Q: What is the safest pre-flight clearance check when stitching with SewTites magnets inside a standard embroidery hoop?
  A: Always run a manual handwheel check or the machine Trace/Trial function to confirm the needle bar and presser foot will not strike a SewTites magnet.
  • Map magnet locations first (corners are usually safest) and keep magnets at least 1 inch away from the design area.
  • Lower the needle by hand at the design corners (or run Trace) before pressing Start.
  • Stop immediately if the presser foot path approaches any magnet footprint.
  • Success check: The traced path clears all magnets with visible gap and no contact risk.
  • If it still fails: Reposition magnets outward (lift and replace—do not slide) and re-run Trace.
• Q: How do I float vinyl under a hoop using SewTites Original magnets without the vinyl shifting during machine embroidery?
  A: Hoop only the stabilizer and clamp the vinyl with SewTites Original magnets using a lift-and-place method so the vinyl cannot creep.
  • Hoop stabilizer “drum tight,” then place vinyl on the underside and clamp using the “tactile pinch” (hand under hoop, magnet on top).
  • Lift-and-replace magnets to adjust; do not slide magnets across vinyl to avoid wrinkles.
  • Add enough clamp points to prevent “flagging” (often four corners is a safe starting point).
  • Success check: The “Shake Test” shows no vinyl movement and the vinyl surface stays bubble-free.
  • If it still fails: Add one more magnet or flatten curled vinyl first (vinyl memory can overpower weak clamping).
• Q: Which SewTites magnet size should I choose first for machine embroidery—Original, Mini, or Magnum—when clamping vinyl, foam, or batting?
  A: Start with SewTites Original for most embroidery floating jobs; use Mini for tight footprints and Magnum only for thick high-loft stacks.
  • Choose Original for standard vinyl + stabilizer where you need firm grip without excessive pull toward the bed.
  • Choose Mini when the design area is crowded (small hoops, tight corners, small applique pieces).
  • Choose Magnum only when thickness (foam/batting stacks) provides safe distance from the throat plate.
  • Success check: The hoop moves freely with consistent sound and the design outline aligns with fill (no registration drift).
  • If it still fails: Re-check “spacer” thickness and switch magnet strength before blaming digitizing.
• Q: What needle and stabilizer setup is a safe starting point for embroidering vinyl with a floating setup and SewTites magnets?
  A: Use a fresh 75/11 Sharp needle and match stabilizer to material behavior (cutaway for unstable/stretchy, tearaway for stable) to prevent shifting and ripples.
  • Install a new 75/11 Sharp needle (ballpoints often struggle to pierce vinyl cleanly).
  • Hoop stabilizer tight; tap-test for a crisp “drum” sound, not a dull thud.
  • Choose cutaway for stretchy/unstable vinyl or dense designs; choose tearaway for thick/stable materials when appropriate.
  • Success check: After the placement/running stitch, vinyl remains flat with no bubbling or rippling.
  • If it still fails: Add clamping points to stop flagging and confirm stabilizer tension before changing designs.
• Q: How do I troubleshoot misalignment and registration errors when using SewTites magnets with floating vinyl in an embroidery hoop?
  A: Treat friction and shifting as the first suspects—fix drag (too-strong magnets) or add grip (too-weak magnets) before adjusting the file.
  • If the hoop stutters or drags, downgrade magnet strength (Magnum → Original) or increase spacer thickness.
  • If the outline is off, add a second magnet at the slipping edge and address vinyl curl (pre-flatten the piece).
  • Pause after the placement stitch and confirm the vinyl is still seated and flat.
  • Success check: Outline and fill stay aligned with no visible “walk” between steps.
  • If it still fails: Perform the paper-slide drag test again and reposition magnets farther from any bed-contact zone.
• Q: What safety rules should I follow to prevent injuries and machine damage when handling SewTites rare-earth magnets for embroidery?
  A: Handle SewTites magnets like industrial clamps: avoid pinch points, keep them off machine electronics, and never let the presser foot strike a magnet.
  • Slide magnets apart—do not pull—to avoid sudden snap pinch injuries.
  • Keep magnets away from pacemakers/insulin pumps and away from screens/USB drives (store them in a dedicated holder/bowl).
  • Never “park” magnets on the needle plate or machine body; keep magnets only on the hoop during use.
  • Success check: Magnets are controlled (no unexpected snapping), and the Trace check confirms zero collision path.
  • If it still fails: Reduce the number of magnets inside the hoop area and move clamp points outward while maintaining hold.
