Shrink a 9" Built-In Design to a 5.5" Quilt Block on the Brother Luminaire (XP1/XP3): The Zigzag “Magic” Button, Seam Allowance Saves, and Material Reality Checks

If you have ever stared at a gorgeous built-in design on your Brother Luminaire and thought, “It’s perfect… except it’s way too big for my quilt block,” you are walking through a rite of passage for every machine embroiderer. The panic is real—especially when you are working to a strict quilt-block size (like 5.5 inches) and you can already see the seam allowance eating your artwork.

This guide rebuilds the exact workflow shown on a Brother Luminaire XP3 (and it also applies to a Luminaire XP1 with the upgrade kit). We won’t just tell you what buttons to press; we will explain the physics of why the machine fights you, and how to safely override it. We will take the built-in “Mushroom Gnome” design—originally about 9x9 inches—and shrink it to roughly 5.52 inches without turning your satin stitches into a bulletproof carpet that breaks needles.

The 20% Wall on Brother Luminaire Size Edit: Why the Shrink Arrow Turns Gray (and Why That’s Actually Good)

On the Luminaire, the standard resize arrows in Edit → Size act as a safety governor. When you try to shrink a design too far, the machine stops you—your shrink button goes gray and refuses to go smaller. In this case study, the original built-in design reads about 9.21" x 9.22", which obviously won’t fit a 6x6 hoop guide.

That “gray button moment” is the machine telling you: “If I let you keep shrinking without recalculating the stitch count, the density will become dangerous.”

The Sensory Check: Why Density Matters

Imagine taking a design with 30,000 stitches spread over a large area, then crushing those same 30,000 stitches into half the space.

• Touch: The resulting embroidery feels like a hard piece of plastic or a "bulletproof carpet."
• Sound: You will hear your machine laboring—a heavy, rhythmic thump-thump instead of a smooth purr.
• Visual: You may see the fabric puckering (gathering) around the edges because the thread is physically pushing the fabric fibers apart.

If you find yourself resizing constantly, the real time-saver isn’t just the on-screen trick—it’s the physical stability of your fabric. This is where mastering hooping for embroidery machine becomes the hidden skill that separates typical hobbyist results from professional production quality.

The Zigzag Stitch Recalculation Icon on Brother Luminaire: The “Magic” Toggle That Lets You Resize Past 20%

To safely bypass the 20% limit, we must change the data, not just the dimensions. Handlers of the Luminaire refer to this as the "Zigzag" or "Stitch Density" toggle.

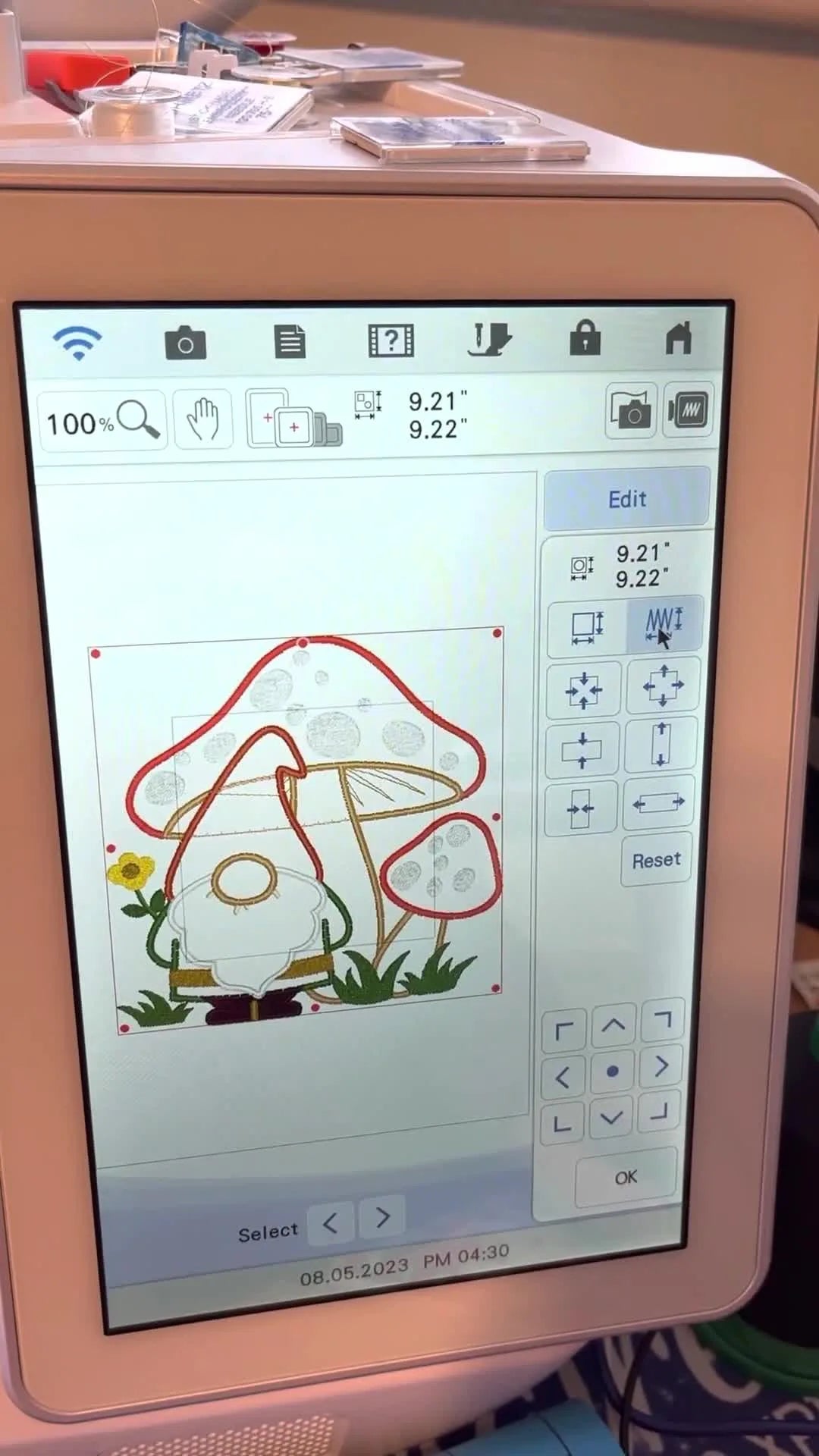

Here is the move: in Edit → Size, you tap the zigzag icon (Stitch Recalculation / Density). Once enabled, the Luminaire’s processor intercepts the design file and effectively says: "I will remove stitches mathematically so the density remains constant even as the size drops."

In the tutorial, the presenter checks the design stats before resizing:

• Original Stitches: ~30,630
• Original Time: ~50 minutes

After enabling Stitch Recalculation and shrinking the design to the 5.52-inch target, the stitch count drops significantly. This is why the zigzag icon matters: you are not just shrinking the picture—you are shrinking the stitch plan.

The “Hidden” Prep Before You Resize a Built-In Luminaire Design: Block Math, Seam Allowance, and Material Reality

Before you touch the screen, you must perform "Pre-Flight Checks" on your materials. A resized design behaves differently on fabric than the original.

1) Confirm your real usable space (The "Safe Zone")

A 6x6 hoop boundary is not your design limit if you are engaging in quilting. In this example, the target is a 5.5-inch finished block.

• The Math: 5.5" block + 1/4" seam allowance on all sides = 6" raw fabric.
• The Risk: If you embroider all the way to the 6" edge, your sewing machine foot will hit the embroidery when you try to piece the quilt later.

2) The "Sacrifice" Strategy

You must decide usually before digitization which elements can be lost. The presenter identifies the grass and a side flower as elements that will bleed into the seam allowance and plans to omit them.

3) Stabilization for Mixed Media

The finished sample uses deeply textured materials: glitter fabric, vinyl, and fuzzy upholstery fabric.

• The Physics: Fuzzy fabrics contain air. When you shrink a design, stitches pull tighter. If your stabilizer is too weak, the stitches will sink into the "fluff" and disappear.
• The Component: For stretchy or fuzzy blocks, standard tearaway is often insufficient. A Cutaway stabilizer (Mesh) provides the permanent skeleton needed for dense, resized designs.

If you struggle with "hoop drift"—where the fabric slips slightly during the process—consider the hardware. Using magnetic embroidery hoops allows for even clamping pressure around the entire perimeter, which is often superior to the single-point tightening screw of traditional hoops, especially when sandwiching thick vinyl or quilt batting.

Prep Checklist: The "Go / No-Go" Audit

(Do not proceed until all boxes are mentally ticked)

• Target Defined: Confirmed final block size (e.g., 5.5 inches) and marked seam allowances with a water-soluble pen or chalk.
• Baseline Data: Checked original design dimensions (~9.21" x 9.22") and stitch count.
• Hoop Match: Selected the correct hoop size on screen (6x6) to act as a visual guide.
• Consumables Ready: Fresh needle (Size 75/11 or 90/14 depending on fabric thickness), correct stabilizer (Cutaway for knits/textures), and temporary spray adhesive if floating the fabric.
• Hardware Check: Verify the bobbin area is free of lint—resized designs are sensitive to tension issues.


Resize the Mushroom Gnome Built-In Design on Brother Luminaire XP1/XP3: The Exact Screen Path and What You Should See

This is the clean, repeatable sequence. Follow this order to avoid software conflicts.

1) Select and Audit

• Navigate the built-in library and select the Mushroom Gnome.
• Visual Check: Compare the design against the 6x6 hoop outline on your screen. It should clearly exceed the boundary.

2) The "False Start" (To verify limits)

• Go to Edit → Size.
• Press the corner shrink arrows.
• Outcome: The arrow turns gray. The machine refuses to go smaller. This confirms you are in "Standard Mode."

3) Engage Stitch Recalculation

• Still in Edit → Size, locate the zigzag icon.
• Tap it. The machine may prompt you to revert to original size first—follow the prompt.
• Visual Check: The icon normally highlights or changes state to indicate "Density Maintenance" is active.

4) The "Deep Shrink"

• Use the shrink arrows again.
• Watch the live dimension readout.
• Stop point: When the width reads approximately 5.52 inches.

Setup Checklist: Ready for Ignition

• Design is centered and fully inside the 6x6 hoop guide on-screen.
• Stitch Count Check: The new stitch count should be significantly lower than the original 30,630. If it hasn't dropped, Recalculation failed—start over.
• Seam Plan: You know exactly which color stops (grass/flower) you intend to skip.

Warning: Mechanical Safety
When resizing, your machine may move the pantograph (embroidery arm) through a different range of motion. Keep fingers, hair, jewelry, and loose sleeves at least 6 inches away from the needle area. Do not reach into the hoop while the machine is calculating or moving to a start point.

When Brother Luminaire “No Sew” Won’t Isolate One Flower: How to Skip Linked Color Stops Without Ruining the Whole Design

A common frustration arises here: You want to delete just the grass, but the No Sew (Appliqué badge icon) removes the entire green group.

The Logic: Grouped Vectors

Built-in designs often group similar colors into a single "object" to save memory and reduce trim commands. If the grass and the gnome’s hat-band are the same green, the machine sees them as one entity.

The Workaround: Manual Skipping

Since we cannot delete the data, we must skip the physical action.

1. Initiate the stitch-out.
2. Watch the screen for the specific color block corresponding to the unwanted element (grass/flower).
3. Use the Forward/Back (needle +/-) keys to physically fast-forward through that section without stitching.

Pro Tip: If you desire faster, repeatable positioning for quilt blocks without the manual struggle of traditional hoops, look into a hooping station for machine embroidery. These tools allow you to pre-align your fabric and stabilizer perfectly every time, reducing the need for on-screen rotation adjustments.

Decision Tree: Quilt Block Fabric → Stabilizer Strategy

The video shows the screen work, but your result relies on the "Foundation." Use this logic flow to choose your consumables.

Start Here: What is your Top Fabric?

1. Is it a stable Quilting Cotton?
   • YES: Use Medium Tearaway (for soft blocks) or Cutaway (if heavy stitch density). Tension: Standard.
   • NO: Go to step 2.
2. Is it Textured/Fuzzy (Upholstery, Velvet, Fleece)?
   • YES: You need a Water Soluble Topper (Solvy) to keep stitches from sinking. Use a Cutaway backing for stability.
   • NO: Go to step 3.
3. Is it Slick/Dense (Vinyl, Faux Leather)?
   • YES: DO NOT use a dense fill stitch if possible—it perforates and tears vinyl. Use a Cutaway (Mesh) stabilizer.
   • CRITICAL: Avoid hoop burn on vinyl. This is a primary use case for magnetic hoops for brother luminaire, as they hold without crushing the material grain.
4. Is it Delicate (Glitter Fabric / Silk)?
   • YES: Use No-Show Mesh (Polymesh). It is soft against the skin but strong. Slow your machine speed down (e.g., 600 SPM).

Mixed-Media Reality Check: Glitter Fabric, Vinyl, and Fuzzy Upholstery on a Resized Design

The finished sample in this project is a stress test for your machine.

• Glitter Fabric (Beard): This is abrasive. It can dull needles quickly.
  • Tip: Use a Titanium Needle or a Topstitch 90/14 to punch through the glitter particles without deflecting.
• Vinyl (Mushroom Spots): If the needle creates a hole, it is permanent.
  • Prevention: Ensure your hoop tension is "drum tight" (tactile check: tap it, should sound like a drum) so the vinyl doesn't flag (bounce) and cause registration errors.
• Sparkle Thread: The presenter uses GS UK Poly Sparkle. Metallic/Sparkle threads are notorious for shredding.
  • Fix: If shredding occurs, lower your top tension slightly and reduce speed.








Troubleshooting Brother Luminaire Resizing: Symptoms & Cures

If things go wrong, do not panic. Follow this diagnostic table from Low Cost (User Error) to High Cost (Machine/File issues).

The Upgrade Path: From Struggle to Scale

If you are resizing a design once for a personal gift, the manual "Zigzag icon" and standard hoops are perfectly adequate. However, if you find yourself making 20, 50, or 100 quilt blocks, the friction of this workflow will hurt your profitability—and your wrists.

When to Upgrade Your Tools?

Use this "Pain-Point Diagnosis" to decide:

1. The Trigger: You are spending more time hooping and un-hooping than the machine spends stitching.
2. The Diagnosis: Your bottleneck is "Setup Time."
3. The Solution (Level 1): Upgrade to a brother luminaire magnetic hoop.
   • Why: It snaps on instantly. It does not require adjusting screws for different fabric thicknesses (like moving from cotton to vinyl). It prevents "hoop burn," saving you ironing time later.

If you are scaling beyond quilt blocks into volume orders (logos, team uniforms), standard single-needle machines hit a limit on color changes. This is where moving to a dedicated multi-needle platform (like SEWTECH solutions) becomes the logical business step, offering higher speeds and automatic color changes without the manual intervention required here.

Warning: Magnetic Field Safety
Magnetic Hoops rely on powerful neodymium magnets.
* Health: Individuals with pacemakers (ICD) must maintain a safe distance (usually 6-12 inches) or avoid handling them entirely.
* Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the contact zone to avoid painful blood blisters.
* Electronics: Keep them away from credit cards, smartphones, and computerized machine screens.

Operation Checklist: During the Stitch-Out

• Auditory Check: Listen for the smooth click-click-click of the needle. A loud thud indicates a dull needle or trying to penetrate too many layers.
• Visual Check: Watch the "Seam Risk" areas. Be ready to press the Stop button to manually skip the grass/flower sections.
• Tension Check: Check the back of the first color block. You should see 1/3 bobbin thread in the center. If you see only top thread, increase top tension.


The Finish-Line Test: The Final Audit

The video concludes with an inspection of the finished 5.5" block. Before you sew this into your cushion or quilt, perform this final quality control audit:

1. Clearance: Place your ruler over the block. Is there a clean 1/4" margin of fabric free of stitches for your seam allowance?
2. Drape: Hold the block up. Does it bend naturally, or is it stiff? (If stiff, note to use lighter stabilizer next time).
3. Definition: Are the vinyl spots crisp? Is the glitter beard defined?

By mastering the "Zigzag" icon and pairing it with proper stabilization techniques, you transform the Brother Luminaire from a simple sewing machine into a precision resizing tool.

FAQ

• Q: Why does the Brother Luminaire XP3 “Edit → Size” shrink arrow turn gray when resizing a built-in design like Mushroom Gnome?
  A: The Brother Luminaire XP3 grays out the shrink arrow because standard resizing is limited (about 20%) to prevent unsafe stitch density.
  • Open Edit → Size and confirm the shrink arrow stops in Standard Mode.
  • Tap the zigzag icon (Stitch Recalculation / Density) to allow safe resizing past the limit.
  • Re-try shrinking and watch the live size readout.
  • Success check: The new stitch count drops noticeably from the original (the machine is recalculating stitches, not just scaling the picture).
  • If it still fails: Return to original size when prompted, re-enable the zigzag icon, and start the resize again.
• Q: How do I resize a Brother Luminaire XP1/XP3 built-in design to about 5.52 inches without creating “bulletproof” dense embroidery?
  A: Use Stitch Recalculation (zigzag icon) before shrinking so the Brother Luminaire removes stitches to keep density safe.
  • Check the original stats (example shown: ~9.21" x 9.22", ~30,630 stitches) before changing anything.
  • Go to Edit → Size → tap the zigzag icon, then shrink to the target (example: ~5.52").
  • Confirm the stitch count is significantly lower after resizing.
  • Success check: The embroidery should feel flexible (not hard like plastic) and the machine should sound smooth—not heavy “thump-thump.”
  • If it still fails: Stop and restart the resize with the zigzag icon enabled, and switch to a stronger stabilizer (often Cutaway/PolyMesh for dense resized work).
• Q: What stabilizer and topper should be used on the Brother Luminaire when stitching a resized design onto glitter fabric, vinyl, or fuzzy upholstery fabric?
  A: Match stabilizer to the top fabric first, because resized designs pull tighter and reveal weak stabilization fast.
  • Use Cutaway backing (Mesh/PolyMesh) when the fabric is textured, stretchy, or the design is dense after resizing.
  • Add a water-soluble topper on fuzzy fabrics (upholstery/velvet/fleece) to prevent stitches from sinking.
  • Avoid overly dense fills on vinyl/faux leather to reduce perforation risk.
  • Success check: Satin stitches sit on top clearly (not disappearing into fluff) and the fabric edge shows minimal puckering.
  • If it still fails: Re-hoop for firmer support and reduce stitch stress by re-checking that Stitch Recalculation was actually active.
• Q: How do I verify correct hooping tension on a Brother Luminaire when stitching vinyl so the vinyl does not “flag” and cause registration problems?
  A: Hoop the vinyl “drum tight” so the material cannot bounce under the needle.
  • Tap the hooped surface and aim for a firm, drum-like feel.
  • Keep the design fully inside the selected hoop guide on-screen (example shown uses the 6x6 guide).
  • Stabilize with Cutaway (Mesh) so the hooping stays stable during the denser resized stitch plan.
  • Success check: The vinyl stays flat during stitching (no visible lifting/bouncing) and outlines land where expected.
  • If it still fails: Re-hoop with more even clamping pressure and slow down if needed; consider a magnetic hoop if traditional hoop screws are crushing or uneven on thick stacks.
• Q: Why does the Brother Luminaire “No Sew” function remove an entire green section when I only want to remove the grass or one flower from a built-in design?
  A: This is common—Brother Luminaire built-in designs often group same-color objects, so “No Sew” removes the whole linked color block.
  • Start the stitch-out instead of trying to delete the object.
  • Watch for the exact unwanted section (grass/flower) in that color block.
  • Use Forward/Back (needle +/-) to fast-forward through that section without stitching it.
  • Success check: The machine continues to the next desired stitches without sewing the skipped area.
  • If it still fails: Pause earlier, back up to confirm the correct segment boundary, then fast-forward in smaller steps.
• Q: What are the key pre-flight checks on a Brother Luminaire before resizing and stitching a quilt block design so the seam allowance is not stitched over?
  A: Define the usable “safe zone” first, then resize to fit that zone—not the hoop boundary.
  • Mark seam allowances on the fabric (water-soluble pen or chalk) and plan a clear 1/4" margin.
  • Select the correct hoop size on-screen (example uses 6x6) as a visual boundary guide, then size the design to the block plan (example target ~5.5" finished block).
  • Decide in advance which elements will be sacrificed (example shown: grass/side flower) and plan to skip them during stitch-out.
  • Success check: After stitching, a ruler shows a clean seam margin free of stitches around the block.
  • If it still fails: Re-center and re-size slightly smaller, or skip additional edge elements using Forward/Back during sewing.
• Q: What safety steps should be followed on a Brother Luminaire XP1/XP3 when resizing a design and when using magnetic embroidery hoops?
  A: Keep hands and loose items away during arm movement, and treat magnetic hoops as pinch-hazard tools with strong fields.
  • Keep fingers, hair, jewelry, and sleeves at least 6 inches away from the needle/hoop area while the Brother Luminaire is calculating or moving.
  • Stop the machine before reaching near the hoop to adjust fabric or to skip sections.
  • Handle magnetic hoops carefully: keep fingers out of the contact zone when the magnets snap together.
  • Success check: No reaching into the hoop path during motion, and magnets are brought together in a controlled, slow alignment (no sudden snap onto fingers).
  • If it still fails: Do not use magnetic hoops around pacemakers/ICD users and keep magnets away from phones/cards/screens; follow the machine manual and hoop maker guidance for safe handling.
• Q: If the Brother Luminaire workflow feels slow for making 20–100 quilt blocks, what is the best upgrade path from technique fixes to hardware upgrades?
  A: Use a tiered approach: optimize setup first, then upgrade hooping hardware if setup time is the bottleneck, and only then consider higher-capacity machines for volume work.
  • Level 1 (Technique): Standardize the resize process (enable zigzag icon, confirm stitch count drops) and lock in a stabilizer recipe for each fabric type.
  • Level 2 (Tool): If hooping/unhooping time dominates, switch to a magnetic hoop for faster clamping and reduced hoop burn on tricky materials.
  • Level 3 (Production): If frequent color changes and volume orders become the limit, move to a multi-needle platform for speed and automatic color changes.
  • Success check: Setup time drops and repeat blocks align consistently without constant re-hooping or seam-allowance surprises.
  • If it still fails: Identify the true bottleneck first (hooping drift, tension, skipped sections, or fabric distortion) and fix that before investing in larger upgrades.
