Stop Chasing Your Hoop: Use the Hoop Helper Mat Grid to Hoop Straight, Float Cleanly, and Avoid Hoop Wobble

Hooping is the "Hidden Variable" in Embroidery Quality

Hooping is the foundation of great embroidery—and it is also the source of 90% of "mystery problems."

If your design placement keeps drifting, your fabric looks slightly skewed after stitching, or you feel like you need three hands just to secure the frame, you are not alone. The frustration is real, but the solution isn't necessarily a new machine—it’s a repeatable Mechanical Process.

Consider this your Standard Operating Procedure (SOP) for stabilization and placement. In this guide, I am rebuilding Julie Hall’s methodology into a shop-ready workflow. We will cover how to align a hoop using a high-contrast grid, how to hoop a "sandwich" without the dreaded "table slide," and how to float fabric using sticky-back stabilizer for difficult items.

The Psychology of Hooping: Why You Struggle (It's Physics, Not Talent)

Most hooping frustration stems from two mechanical failures that beginners often internalize as "lack of skill":

1. Friction Failure: The hoop moves across the smooth table when you apply downward pressure, causing your center marks to drift relative to the needle.
2. Stability Failure: The hoop doesn't sit flat due to adjustment screws or cogs underneath, forcing you to fight a "rocking chair" effect while trying to keep fabric taut.

This introduces Cognitive Friction. You are trying to align, press, smooth, and tighten simultaneously. Julie’s solution uses a grippy rubber mat to act as a "third hand," providing the static friction necessary to lock the bottom hoop in place.

If you have been researching how to build a dedicated hooping station for machine embroidery, this mat represents the "Minimum Viable Product" (MVP) version of that concept: high-grip surface + visual alignment grid.

The Hardware: 8mm Rubber Mat Specs & Capabilities

Julie introduces the Hoop Helper Mat, but let’s look at why it works from an engineering perspective.

• Material: High-density rubber.
• Thickness: 8mm (This is the critical spec).
• Visuals: Bright yellow vertical/horizontal crosshairs.

Why 8mm? Standard table maps are 1-3mm. An 8mm mat provides compression depth. When your hoop has protruding hardware (screws, cogs, reinforcement ribs), a hard table turns those protrusions into pivot points, causing wobble. An 8mm rubber mat absorbs those protrusions, allowing the rim of the hoop to make full contact.

The Sensory Check: When you press your hoop down on this mat, it shouldn't slide. It should feel "planted." If you try to nudge it laterally with a finger, it should resist. That resistance is your insurance against crooked designs.

Phase 1: The "Pre-Flight" Protocol

Stop. Before you touch the hoop, you must secure your consumables and environment. Professional shops don't rely on luck; they rely on prep.

Necessary Consumables (The "Hidden" List)

• Temporary Adhesive Spray (Optional): If not using sticky stabilizer (e.g., KK100 or 505).
• Marking Tools: Air-erasable pen (purple) or water-soluble chalk. Do not use graphite; it smears.
• Ruler: Clear acrylic ruler for finding fabric centers.

Prep Checklist: The "Zero-Fail" Standard

• Surface Check: Table is clean and free of lint/thread (dust reduces mat grip).
• Hoop Inspection: Check inner hoop for rough edges or "burrs" that could snag fabric.
• Screw Reset: Loosen the outer hoop screw enough that the inner hoop fits with minimal force. (If you have to wrestle it, it's too tight).
• Fabric State: Fabric is pre-washed (if applicable) and pressed. Wrinkles pressed out now = no puckers later.
• Consumables: Stabilizer cut 1-inch larger than the hoop on all sides.

Warning: Mechanical Safety
Keep fingers clear of the "snap zone" between the inner and outer rings. When the hoop finally seats, it can snap shut with surprising force. Pinching the skin of your palm is a common, painful injury that stops production instantly.

Phase 2: The Alignment Lock

Objective: Align the Outer Hoop to the Grid.

Julie’s first technique solves the "Drift."

1. Deploy: Place the mat on your table. Ensure the yellow crosshairs are oriented comfortably.
2. Anchor: Set the outer hoop ring on the mat.
3. Align: Locate the molded center marks (notches/arrows) on your hoop's frame.
4. Register: Line up these notches precisely with the yellow vertical and horizontal lines on the mat.

The Result: Your hoop is now mathematically centered on the workspace. Because of the rubber friction, it will not move when you layer materials on top.

For users of various machine embroidery hoops, this static reference point is the difference between "eyeballing it" and "engineering it."

Phase 3: The "Sandwich" Method (Standard Hooping)

Scenario: Hooping Wovens, Cotton, or flat items.

The Procedure

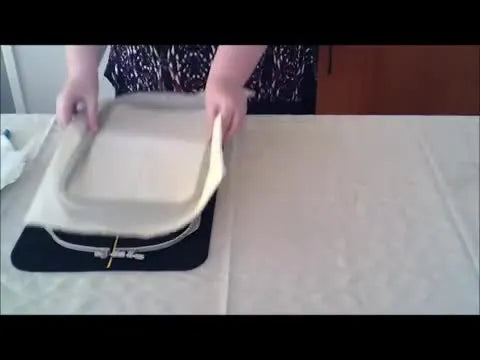

1. Layer 1: With the outer hoop locked on the grid, lay your stabilizer over the hoop.
2. Layer 2: Lay your fabric over the stabilizer.
3. Visual Verification: Ensure you can still see the faint shadow of the yellow grid lines through the stabilizer.
4. Fabric Alignment: Match your fabric's center marks to the yellow grid lines acting as your guide.
5. Execution: Press the inner hoop into the outer hoop.

Technique Tip: When pressing the inner hoop, do not push from one side (e.g., top to bottom). This pushes fabric like a bulldozer, creating a "wave." instead, place hands at 3 o'clock and 9 o'clock and press straight down.

Setup Checklist (The "Go/No-Go" Decision)

• Outer Hoop: Still aligned with appropriate Mat Grid lines?
• Fabric Tension: Taut like a drum skin? (Tap it—should sound like a dull thud, not a high-pitched ping. Ping means over-stretched).
• Grainline: Is the weave of the fabric straight, or does it look "bowed"?
• Hardware: Is the tightening screw accessible?

Sensory Tip: When you tighten the screw, do it with your thumb and finger. If you need a screwdriver to turn it, you are likely over-tightening, which leads to "Hoop Burn" (crushed fibers).

The "Shock Absorber" Effect: Handling Uneven Hoops

Julie highlights a massive pain point: Hoop Wobble.

Many hoops, especially OEM frames, have attachment arms, screws, or metal clips on the underside. On a hard table, these act like fulcrums.

• The Problem: When the hoop rocks, you cannot apply even pressure. You end up pressing harder on the "high" side, distorting the fabric bias.
• The Fix: The 8mm mat swallows these protrusions.
• The Physics: By compressing the rubber, the hoop rim makes contact with the "floor" of the mat.

If you are using a hoop for brother embroidery machine (often grey with bottom clips), this mat converts it from a rocking component to a stable platform.

Phase 4: The "Floating" Method (Sticky Stabilizer)

Scenario: Items that are hard to hoop (Velvet, Towels, Small items) or items prone to "Hoop Burn."

Floating removes the mechanical stress of clamping from delicate fabrics.

The Procedure

1. Hoop the Consumable: Hoop only the sticky-back stabilizer (paper side up).
2. Score: Use a pin or needle to lightly score the protective paper. Sound Check: You should hear a scratching sound, not a cutting sound. Do not slice the fibrous stabilizer underneath.
3. Peel: Remove the paper to reveal the adhesive.
4. Align: Place the hoop on the mat, aligning hoop notches to the yellow grid.

This transforms your hoop into a "Sticky Trap." This is the manual equivalent of using a dedicated sticky hoop for embroidery machine, offering high stability without the crush damage of a frame.

Phase 5: The Quarter-Fold Alignment Trick

Now that the "Sticky Trap" is set, how do you hit the center without marking the fabric?

1. Fold: Fold the fabric in half vertically, then horizontally (into quarters). crease the corner with your fingernail.
2. Target: The corner point is your exact center.
3. Drop: Place that fabric corner exactly on the intersection of the yellow crosshairs visible through the sticky stabilizer.
4. Unfold: Open the fabric onto the sticky surface.
5. Secure: Press firmly from the center outwards.

If you have tried using a floating embroidery hoop technique before but failed due to crooked placement, this "Grid + Fold" combo is the correction. It aligns the fabric to the World (the mat), not just the hoop.

Operation Checklist (Pre-Stitch)

• Adhesion: Run your hand flat over the fabric. Do you feel any bubbles?
• Clearance: Check the edges. Is any excess fabric bunched where it might hit the machine's needle bar or presser foot?
• Orientation: Is the top of the design actually at the top of the hoop? (A common error with floating).

Consumable Tip: If the sticky stabilizer isn't holding (e.g., on a fuzzy towel), add basting stitches (fixation stitches) in your machine settings to lock it down effectively.

Decision Tree: Choosing Your Method

Stop guessing. Use this logic flow to determine the safest method for your project.

Start Here:

1. Is the fabric fragile or thick (Velvet, Leather, Thick Towel)?
   • YES: FLOAT IT. Use Sticky Stabilizer or Tear-away + Adhesive Spray. Avoid Hoop Burn.
   • NO: Go to Step 2.
2. Does the item need precise geometric alignment (Stripes, Border)?
   • YES: HOOP IT. Use the "Sandwich" method on the grid for maximum friction and control.
   • NO: Go to Step 3.
3. Are you stitching a T-Shirt (Knit/Stretch)?
   • YES: FLOAT or MAGNETIC. Hooping knits often stretches them. Floating prevents the "waffle effect."
   • NO: Standard Hooping is acceptable.


The "Hoop Burn" Reality & The Upgrade Path

We must address the elephant in the room: Hoop Burn.

Hoop burn isn't just a mark; it is crushed fiber structure caused by the inner ring forcing fabric against the outer ring. The mat helps by preventing the "over-tightening" reflex, but for professional production, we need to talk about Contact Surface Area.

Standard hoops use Friction to hold fabric. Professional hoops use Force (Magnetism) to hold fabric.

The Commercial Upgrade: If you find yourself constantly battling hoop burn or struggling with wrist pain from tightening screws, this is the trigger to upgrade to a Magnetic Hoop System.

• For Home Users: A repositionable embroidery hoop with magnets eliminates the need to press an inner ring inside an outer ring. It simply snaps on top.
• The Benefit: Zero friction burn, faster hooping (5 seconds vs 45 seconds), and no adjustments for fabric thickness.

Warning: Magnetic Force Hazard
Industrial-strength magnetic hoops (like those from SEWTECH) are incredibly powerful.
1. Pacemakers: Keep at least 6 inches away.
2. Pinch Hazard: Never let two magnets snap together without a buffer. They can break fingers.

Logistics: What If You Can't Buy *This* Mat?

Viewers often ask about availability in the UK, EU, or US.

The Functional Equivalent: If you cannot source the specific "Hoop Helper" brand, do not panic. You are looking for two properties:

1. High-Grip Rubber: Look for distinct "silicone soldering mats" or "non-slip tool drawer liners" (check thickness!).
2. Grid System: You can draw your own crosshairs using a permanent marker and a T-square.

Checkout Troubles: If shipping calculators fail, clear your browser cache or try a mobile device. Small e-commerce sites often glitch with international postal codes. Contact the vendor directly—most in this industry are small business owners who will manually invoice you.

Scale Your Production: From "Mat" to "Maggie" to "Multi"

Your hooping method dictates your profitability.

1. Level 1: The Mat (Accuracy).
   Used for single-needle machines to stop sliding. Solves Quality issues.
2. Level 2: Magnetic Hoops (Speed).
   Used to reduce wrist strain and eliminate hoop burn. Solves Physical & Material issues.
3. Level 3: Hooping Stations + Multi-Needle. (Volume).
   Commercial shops don't just use a mat; they use calibrated hooping stations. They maximize throughput by using a SEWTECH High-Speed Multi-Needle Machine.
   • Why? You can hoop the next garment while the machine is stitching the current one.
   • The Math: Saving 3 minutes per hoop on an 50-shirt order saves 2.5 hours of labor.


Troubleshooting Protocol: Symptom -> Cure

Identify your failure mode and apply the fix immediately.

Final Verdict: Optimize Before You Buy

Julie’s mat demonstrates a crucial lesson: Control your variables. By controlling friction (rubber) and alignment (grid), you allow your machine to do its best work.

Start with the mat. Master the "Sandwich" and "Float" techniques.

• If you are still getting hoop burn? Upgrade to Magnetic Hoops.
• If you are too slow for your orders? Upgrade to a Multi-Needle Machine.

Great embroidery isn't magic; it's engineering. Treat your hooping process with the respect it deserves, and your stitch quality will reward you.

FAQ

• Q: What consumables and pre-flight checks should a SEWTECH multi-needle embroidery machine operator complete before hooping fabric to prevent crooked placement and hoop burn?
  A: Use a repeatable pre-flight checklist before touching the hoop to remove the most common “mystery variables.”
  • Clean: Wipe the work surface so lint/thread does not reduce rubber-mat grip.
  • Inspect: Check the inner hoop ring for burrs/rough spots that can snag fabric.
  • Reset: Loosen the outer hoop screw so the inner hoop fits with minimal force (no wrestling).
  • Prep: Press fabric flat and cut stabilizer at least 1 inch larger than the hoop on all sides.
  • Success check: The hooping process feels controlled (no sudden “snap fight”), and the fabric sits flat with no visible wrinkles before stitching.
  • If it still fails… Switch from standard hooping to floating with sticky-back stabilizer to reduce clamping stress on difficult fabrics.
• Q: How can Brother embroidery hoop users stop the outer hoop ring from sliding on a smooth table and causing design drift during alignment?
  A: Lock the Brother outer hoop ring onto a high-grip 8mm rubber mat and align the hoop’s center notches to a crosshair grid before layering fabric.
  • Place: Set the rubber mat on a clean table and orient the crosshairs comfortably.
  • Anchor: Put only the outer hoop ring on the mat first.
  • Align: Match the hoop’s molded center marks/notches precisely to the mat’s vertical and horizontal lines.
  • Success check: A finger nudge does not move the outer hoop laterally; it feels “planted,” not slippery.
  • If it still fails… Re-clean the table/mat (dust kills grip) or move to a weighted hooping station for more static friction.
• Q: What is the correct “drum-tight” fabric tension standard for standard hooping on a SEWTECH embroidery hoop to avoid puckers and hoop burn?
  A: Aim for taut-but-not-stretched tension: tight enough to stay flat, not so tight it “pings” or crushes fibers when tightened.
  • Tap: Test the hooped fabric like a drum—expect a dull thud, not a high-pitched ping (ping usually means over-stretched).
  • Tighten: Turn the hoop screw with thumb and finger only; needing a screwdriver often means over-tightening.
  • Check: Confirm the fabric grainline/weave looks straight, not bowed or skewed.
  • Success check: The fabric is flat and stable, with no ripples, and the screw tightens comfortably by hand.
  • If it still fails… Float the fabric on sticky-back stabilizer to avoid clamp pressure on sensitive materials.
• Q: How do Brother embroidery machine hoop owners avoid the “bulldozer wave” wrinkle when pressing the inner hoop into the outer hoop during the sandwich hooping method?
  A: Press the inner hoop straight down with balanced hand pressure, not from one side, to prevent pushing fabric into a wave.
  • Layer: With the outer hoop fixed in place, lay stabilizer first, then fabric, keeping alignment marks visible.
  • Position: Place hands at 3 o’clock and 9 o’clock on the inner hoop.
  • Press: Push straight down evenly rather than top-to-bottom or side-to-side.
  • Success check: The fabric surface stays smooth immediately after seating—no ridges, waves, or diagonal wrinkles inside the ring.
  • If it still fails… Re-loosen the outer hoop screw so the inner hoop seats with minimal force instead of forcing fabric to shift.
• Q: How should a SEWTECH magnetic hoop user handle magnetic pinch hazards and pacemaker safety during hooping for industrial embroidery?
  A: Treat industrial magnetic hoops as a pinch hazard and a medical-device hazard: control the snap and keep magnets away from pacemakers.
  • Keep distance: Maintain at least 6 inches from pacemakers and similar medical implants.
  • Control: Never allow two magnets to snap together without a buffer; guide the frame down deliberately.
  • Protect hands: Keep fingers out of the closing path before the magnet seats.
  • Success check: The magnetic frame seats without a sudden uncontrolled slam, and no fingers are near the snap zone at closure.
  • If it still fails… Slow the workflow down and stage the hoop parts so alignment is set before bringing magnets close together.
• Q: What is the safest way to float towels, velvet, or small items using sticky-back stabilizer on a Brother embroidery hoop to avoid hoop burn and crooked placement?
  A: Hoop only the sticky-back stabilizer, expose the adhesive correctly, then use a quarter-fold alignment to place the fabric on the grid intersection.
  • Hoop: Clamp only the sticky-back stabilizer (paper side up).
  • Score: Lightly scratch the paper with a pin/needle (hear scratching, not cutting) and peel the paper away.
  • Align: Set the hoop on the grid and align hoop center notches to the crosshairs.
  • Place: Quarter-fold the fabric, use the fold point as center, and drop it onto the crosshair intersection; unfold and smooth from center outward.
  • Success check: The fabric lies bubble-free on the adhesive and the center lands exactly on the grid intersection.
  • If it still fails… Add basting/fixation stitches in the machine settings to lock down fuzzy or resistant surfaces like towels.
• Q: When should a SEWTECH shop upgrade from standard hoops to magnetic hoops or a SEWTECH high-speed multi-needle embroidery machine for hooping-related problems and slow throughput?
  A: Upgrade in layers: optimize the hooping process first, move to magnetic hoops for hoop burn/wrist strain, and move to multi-needle production when hooping time becomes the bottleneck.
  • Level 1 (Technique): Use an 8mm high-grip mat + grid alignment to stop sliding, wobble, and crooked placement.
  • Level 2 (Tool): Choose magnetic hoops when hoop burn persists or screw-tightening causes wrist pain and slow changeovers.
  • Level 3 (Capacity): Add a hooping station and a SEWTECH multi-needle machine when orders require hooping the next item while the machine is stitching.
  • Success check: You can repeat placement accurately without re-hooping, and hooping time no longer dominates the job cycle.
  • If it still fails… Use the symptom table: match “slides/wobbles/wrinkles/crooked/hoop burn” to the specific fix before spending on the next upgrade.
