The Digital Thread: A Master Class in Transferring Embroidery Files Without Losing Your Mind

If you have ever loaded a USB drive into your embroidery machine, heard the startup chime, and then watched in horror as your designs appeared grayed out or—worse—the machine froze like a deer in headlights, you are not alone. In my 20 years on the shop floor, I have seen seasoned pros throw $10,000 machines into "panic mode" simply because of a bad file workflow.

Embroidery is an experience-based science. It is not just about clicking "Save"; it is about understanding the language your machine speaks. This guide rebuilds the exact process shown in the video, covering the transfer from Mac (via dongle) and Windows 10 PC, to importing on a Brother SE600 and an industrial multi-needle machine.

But we go deeper. We will cover the tactile "checkpoints" you need to feel and see to guarantee success, how to read a production worksheet like a blueprint, and when it is time to upgrade your tools from hobby-grade to professional-grade.

1. The File Format Reality Check: Why Your Machine "Ignores" You

When beginners download a design pack, they often panic when they see ten different files for the same image. This is not clutter; it is a Rosetta Stone. To a computer, a JPG is a picture. To an embroidery machine, a JPG is nothing. The machine needs a coordinate map—an X/Y axis plot that tells the pantograph exactly where to move.

Here is your field guide to the formats that matter:

• The Blueprint (.PDF): This is not a stitch file. It is your Production Worksheet. It contains the undeniable data: stitch count, true dimensions, and color sequence. Sensory Check: Print this out. Keep it by the machine. If the screen confuses you, the paper tells the truth.
• The Commercial Standard (.DST): Originally for Tajima machines, this is the universal language of the industrial floor. It does not store thread colors (it only knows "Stop" and "Trim"), so your screen might show weird colors. This is normal.
• The Home Native (.PES): The language of Brother/Babylock. It stores color data and hoop information.
• The Source Code (.EMB): Associated with Wilcom software. This is the editable "raw" file. You cannot stitch this; you must export it first.

The "Golden Rule" of Dimensions

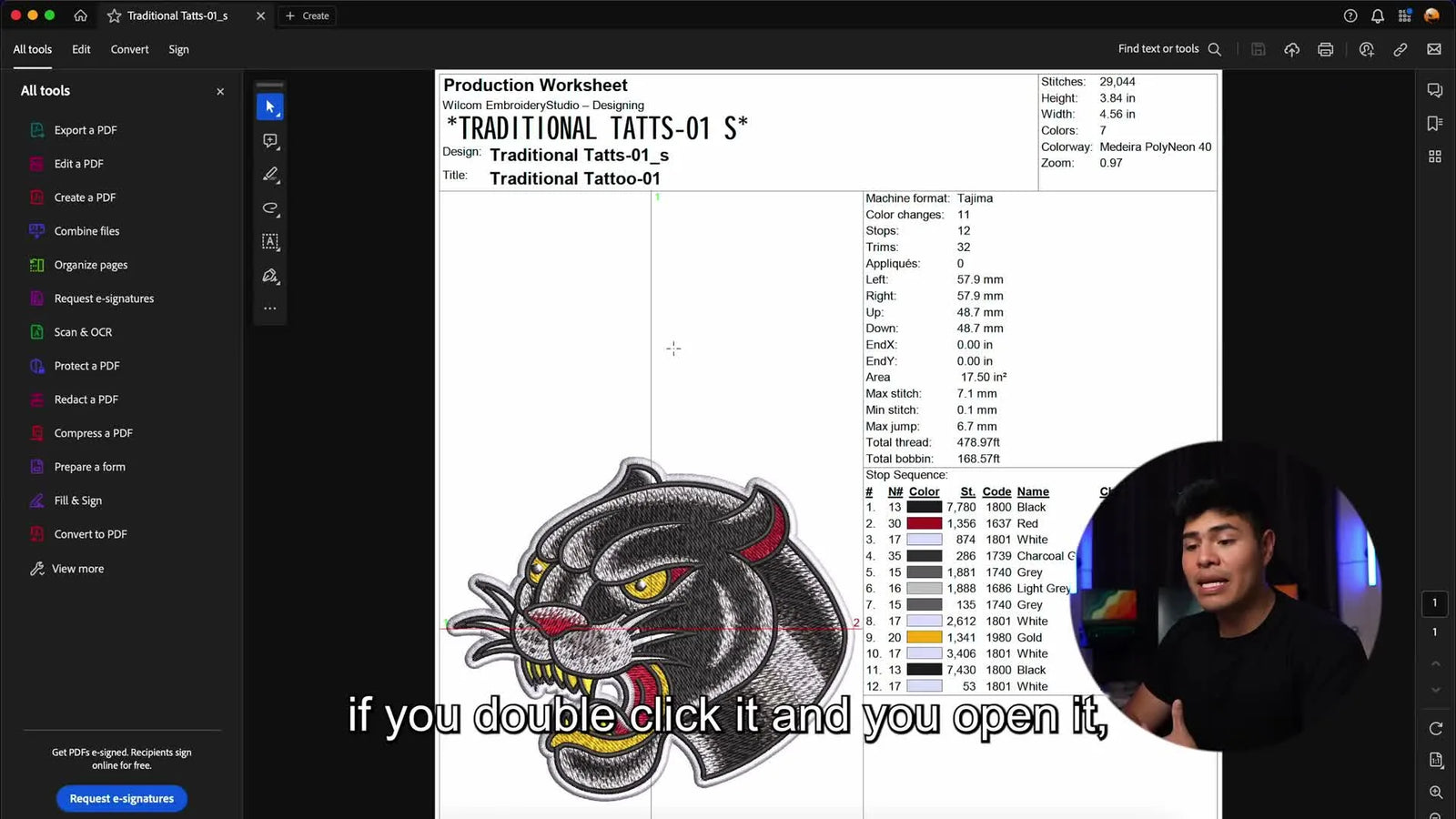

In the video’s worksheet example, the design data reads: 29,344 stitches, 3.84" height, 4.56" width.

Those numbers are your safety boundaries. If you are using standard machine embroidery hoops, you must check these stats against your physical hoop's "sewing field" (internal area), not just the outer plastic measurement. A design that is 4.01" wide will often be rejected by a 4.00" field, causing the dreaded "gray out."

2. The "Hidden" Prep: Digital Hygiene & Hardware Safety

Most "machine errors" are actually "storage errors." Modern embroidery machines are specialized computers with limited RAM. If you feed them a 1TB hard drive meant for gaming backups, they will choke trying to index the file structure.

The Sweet Spot: 8GB to 16GB

The video demonstrates using a Toshiba USB drive.

• The Rule: Stick to USB 2.0 drives between 8GB and 16GB.
• The Why: These drives format easily to FAT32 (the file system most machines prefer) and index almost instantly.
• The Sensory Check: When you plug the drive into the machine, the folder list should appear within 2–3 seconds. If you see an hourglass or spinning wheel for 10+ seconds, your drive is too big or too cluttered.

Hidden Consumables Checklist (Don't Start Without These)

Before you even touch a file, ensure your physical station is prepped. Development of a "Mise-en-place" (everything in its place) prevents mid-stitch disasters.

• Stabilizer: Do you have the right backing? (Cutaway for knits, Tearaway for wovens).
• New Needles: A fresh 75/11 needle prevents thread shreds.
• A "Clean" USB: A drive dedicated only to embroidery files. No family photos, no backups.

PREP CHECKLIST: The Digital Pre-Flight

• Verify Format: Open the download folder on your PC/Mac. Confirm you see .PES (for home) or .DST (for commercial).
• Consult the Oracle: Open the PDF worksheet. Note the Width and Height.
• Hardware Check: Select a USB drive (4GB–16GB capacity).
• File Hygiene: Create a folder on the USB named strictly for the job (e.g., JOB_001_LOGO). Avoid long names or special characters like # or &.

Warning (Mechanical Safety): USB ports on embroidery machines are soldered directly to the mainboard. They are fragile. Never bump the drive with your hip or a hoop while it is inserted. A snapped port often requires replacing the entire $500+ motherboard.

3. The Mac Workflow: Dongles, Dragging, and "Ghosting"

If you are on a modern MacBook Pro (or Air), you face the first hurdle: No USB-A port. The video addresses this with a dongle workflow. Do not rely on wireless transfers unless you are 100% properly configured; physical USB is the most robust method.

Step 1: Physical Connection

1. Plug your USB-A to USB-C dongle into the Mac.
2. Insert the USB drive firmly. Sensory Anchor: You should feel a distinct tactile resistance. A loose connection causes file corruption.
3. Look for the "removable drive" icon (like the "Toshiba" in the video) on your desktop.

Step 2: The Parallel Transfer

The most fail-safe method is the "Two Window" technique shown in the video:

1. Open your Downloads folder (Window A).
2. Open your USB Drive folder (Window B).
3. Drag and Drop the specific .PES or .DST file from A to B.

• Expert Tip: You can keep both formats on the same USB. Your Brother machine will simply ignore the DST, and the Tajima will ignore the PES. They filter what they can't eat.


Step 3: The "Ghost" Eject (Crucial)

Macs are notorious for "write caching"—telling you a file is copied even though it is still finishing up in the background.

• Action: Right-click the drive icon -> Eject.
• Visual Check: Do not pull the drive until the icon effectively "ghosts" (vanishes) from the screen. If you pull it while the icon is there, you create a "0kb file"—a file shell with no stitch data inside.

4. The Windows 10 Workflow: Native Ports and Safety Icons

Windows users often have the advantage of native USB-A ports, skipping the dongle requirement. However, the logic remains the same.

Step 1: Explorer Navigation

Plug in the drive. Open File Explorer (Win+E). Locate your USB drive letter (usually D: or E:).

Step 2: The Transfer

The video demonstrates dragging the .PES file to the drive.

• Validation: Once copied, click on the file in the USB drive window. Look at the "File Size" column. If it says "0 KB", the copy failed. It should show a number (e.g., 25 KB, 100 KB).

Step 3: The "Safely Remove" Ritual

Never just yank the drive. Windows background processes (like virus scanners) might be scanning the drive.

• Action: Click the arrow in the bottom-right taskbar -> Right-click the USB stick icon -> Eject Mass Storage.
• Auditory Check: Wait for the Windows system sound (the chime) or the notification "Safe to Remove Hardware."


5. Brother SE600 Import: The "Grayed Out" Panic

This is the single most common support ticket I see for the SE600 series. You did everything right on the computer, but the machine shows the file as a ghost—visible, but un-clickable.

The Scene

1. Turn on the Brother SE600.
2. Insert USB into the side port.
3. Tap the USB Icon on the touchscreen.




The Diagnosis: Physics vs. Digital

In the video, the files are grayed out. The presenter explains the cause: Hoop Size Mismatch.

• The Reality: The Brother SE600 has a maximum embroidery field of 4x4 inches (100mm x 100mm).
• The Trap: If your brother se600 hoop is physically 4x4, but your design is 4.01" (102mm), the machine's safety firmware locks the file. It knows that stitching outside the area will slam the needle bar into the plastic frame, shattering the needle and potentially timing out the machine.


• The Fix: Go back to the computer. Resize the design to 3.9" (99mm) or select the "Small" version provided by the digitizer. When the dimensions are safe, the gray thumbnail turns into a color button you can touch.

SETUP CHECKLIST (Brother SE600)

• Format Check: Is the file .PES?
• Size Check: Is the design strictly under 100mm x 100mm?
• Visual Check: Navigate to the USB tab. Is the design icon colored (active) or gray (inactive)?
• Physical Check: Ensure the hoop is locked into the carriage with a solid "Click." A loose hoop causes layer misalignment.

6. Industrial Multi-Needle Import: The Memory Buffer

Industrial machines (Tajima, Ricoma, Barudan, happy) operate differently. They do not like stitching directly from the USB stick because the vibration of the machine can rattle the connection, causing data loss mid-stitch.

The "Load to Memory" Workflow

1. Insert USB.
2. Press the USB/Data button on the panel.
3. Highlight the .DST file.
4. Copy to Memory: You typically press a "Set" or "Disk-to-Memory" icon.
5. Retrieve: Go to the machine's internal memory to select the file for sewing.






The Color Blindness of DST

The video highlights the color assignment screen. Remember: Note that .DST files do not carry color info—they only carry "Stop" commands.

• Action: Use your printed PDF worksheet.
• Process: Manually assign Needle 1 to Blue, Needle 2 to Red, etc., matching the PDF sequence. A mismatch here ruins the design instantly.


7. Field Notes: Answering the "Why" (FAQ)

Q: Can't I just plug the machine into my computer with a USB cable? A: On some home machines, yes. But the USB stick method is the "Gold Standard" for reliability. Cables add drivers and software compatibility issues. The stick is pure data transfer.

Q: Why do I need to "Unzip" files? A: A .zip file is a suitcase. The machine cannot stitch a suitcase; it needs the clothes inside. You must Right-Click -> "Extract All" on your computer to get the bare .PES or .DST files before putting them on the USB.

Q: Is there a wireless way for Mac? A: Unless you buy a high-end WiFi-enabled machine module or specific software bridges, no. The dongle + USB stick is the most reliable path for 99% of older and mid-range machines.

8. The Hoop Trap: When to Upgrade Your Tools

We established that if a design is too big for your brother 4x4 embroidery hoop, it grays out. But what if the design fits, but hooping the fabric is the nightmare?

The Psychology of "Hoop Burn"

Beginners often struggle with standard plastic hoops. You have to unscrew the outer ring, shove the inner ring in, and tighten it like a vice.

• The Pain: This leaves "hoop burn" (crushed velvet/fabric fibers) that won't iron out.
• The Struggle: getting thick items (like Carhartt jackets or towels) into a standard hoop can feel like wrestling an alligator.

The Professional Solution: Magnetic Hoops

When you move from hobby (1 shirt) to production (20 shirts), the standard plastic hoop becomes your bottleneck. This is where researching terms like magnetic embroidery hoops becomes vital for your sanity.

• How they work: Instead of friction/screws, two powerful magnetic frames snap together over the fabric.
• The Advantage:
  • Zero Hand Strain: No screwing/unscrewing.
  • No Hoop Burn: They hold fabric flat without crushing the fibers violently.
  • Speed: You can hoop a shirt in 5 seconds vs. 60 seconds.

If you are running a tajima hoop styled machine or a Brother multi-needle, switching to magnetic frames is often the single biggest productivity upgrade you can make short of buying a faster machine.

Warning (Magnet Safety): Commercial magnetic hoops adhere with immense force.
Pinch Hazard: Keep fingers clear of the mating surfaces. They will* pinch skin aggressively.
* Medical Devices: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place the magnets directly on your laptop or the embroidery machine's LCD screen.

9. Decision Tree: Your Pre-Transfer Logic

Use this logic flow before you even plug into the computer.

START

1. Which Machine?
   • Brother SE600 / Home: Use .PES
   • Industrial / Commercial: Use .DST
2. Check Dimensions (PDF vs. Hoop)
   • Example: Design is 3.9" x 3.9".
   • Home Hoop (4x4): Safe. (Proceed to Transfer)
   • Example: Design is 5.0" x 7.0".
   • Home Hoop (4x4): FAIL. (Do not transfer. Resize or Re-digitize first).
3. Fabric Type
   • T-Shirt/Stretchy: Use Cutaway Stabilizer + Ballpoint Needle.
   • Towel/Woven: Use Tearaway Stabilizer + Sharp Needle.

10. Troubleshooting the "Impossibles"

When logic fails, use this troubleshooting grid. We start with the cheapest/fastest fixes first.

Final Thoughts: The Upgrade Path

Start where you are. A Brother SE600 and a standard USB stick can produce award-winning work if you respect the physics of the machine.

However, if you find yourself spending more time fighting the hoop screws than stitching, or if you are rejecting orders because your 4x4 field is too small, that is the market telling you to evolve.

• Level 1: Better consumables (Quality thread, correct stabilizers).
• Level 2: Better tooling (Magnetic hoops to stop hoop burn and speed up prep).
• Level 3: Better capacity (Moving from single-needle flatbed to multi-needle tubular machines).

Master the file transfer first. once the data flows smoothly, the rest is just art.

OPERATION CHECKLIST: End-to-End

• Clean: USB drive is 8GB-16GB and empty of junk.
• Extract: ZIP files are unzipped; only .PES or .DST are moved.
• Eject: Drive was safely ejected from OS.
• Hoop: Stabilizer is tight (sounds like a drum when tapped).
• Import: Design is loaded to machine memory.
• Trace: Run a "Trace" or "Contour" check on the machine to ensure the needle won't hit the frame. (Do not skip this!)
• Stitch: Press Start and watch the first 100 stitches.

FAQ

• Q: Why does a Brother SE600 embroidery design show up grayed out and cannot be selected from the USB screen?
  A: The Brother SE600 is locking the file because the design exceeds the 4x4 in (100 mm x 100 mm) sewing field or the hoop data does not match.
  • Check the PDF production worksheet for exact width/height and compare to 100 mm x 100 mm.
  • Resize the design to a safe target like 3.9" (99 mm) on the computer, or choose the “small” version from the digitizer if provided.
  • Recopy the corrected .PES file to the USB (avoid long names and special characters).
  • Success check: the thumbnail changes from gray (inactive) to a colored, tappable icon on the Brother SE600.
  • If it still fails: confirm the file is .PES (not .ZIP or .PDF) and re-transfer using a clean, small USB drive.
• Q: What USB drive size and format is safest for transferring embroidery files to a Brother SE600 or an industrial multi-needle machine?
  A: Use a dedicated USB 2.0 stick in the 8GB–16GB range and keep it clean for embroidery files only.
  • Choose an 8–16GB drive (a safe working range shown) and avoid huge drives packed with other data.
  • Create a simple job folder name (example: JOB_001_LOGO) and avoid special characters like # or &.
  • Copy only the stitch files you need (.PES for home, .DST for industrial) to reduce indexing load.
  • Success check: the machine lists folders/files within about 2–3 seconds after insertion.
  • If it still fails: delete non-embroidery files from the drive and try another small-capacity USB known to work.
• Q: How do I prevent a 0KB embroidery file after copying designs from a MacBook to a USB drive for an embroidery machine?
  A: Always “Eject” the USB drive on macOS and wait until the drive icon disappears before pulling it.
  • Drag-and-drop the .PES or .DST into the USB drive window (two-window method).
  • Right-click the USB drive icon on the desktop and select Eject.
  • Wait until the icon vanishes (“ghost eject”) before physically removing the drive.
  • Success check: the file shows a real size (not 0 KB) and opens/imports normally on the embroidery machine.
  • If it still fails: recopy the file and verify the connection is firm (a loose dongle/USB fit can cause corruption).
• Q: How do I safely remove a USB stick in Windows 10 so an embroidery file does not corrupt before importing to a Brother SE600?
  A: Use “Safely Remove Hardware” in Windows 10 and confirm the system says it is safe before unplugging.
  • Copy the .PES file to the USB and then verify the “File Size” is not 0 KB in File Explorer.
  • Click the taskbar arrow, right-click the USB icon, and choose Eject Mass Storage.
  • Wait for the Windows chime or the “Safe to Remove Hardware” message.
  • Success check: the embroidery machine imports the design without freezing and the file is selectable.
  • If it still fails: try a clean dedicated USB (8–16GB) and avoid having antivirus or background scans running on the stick during removal.
• Q: What is the correct way to load a .DST design from USB on a Tajima-style industrial multi-needle embroidery machine to avoid mid-stitch data loss?
  A: Copy the .DST from USB into the machine’s internal memory and stitch from memory, not directly from the stick.
  • Insert USB, open the USB/Data screen, highlight the .DST file, and use the copy “Disk-to-Memory/Set” function.
  • Select the design again from internal memory before sewing.
  • Use the printed PDF worksheet to set the needle-to-color sequence because .DST does not store true thread colors.
  • Success check: the design is selectable from internal memory and runs without stopping from a USB disconnect.
  • If it still fails: reduce USB clutter and retry the copy-to-memory step with a smaller, faster-indexing USB drive.
• Q: Why do .DST embroidery designs show wrong thread colors on an industrial embroidery machine screen, and how do I assign colors correctly?
  A: .DST files are “color-blind” and usually only store stop/trim commands, so screen colors can look strange and must be assigned manually.
  • Print and keep the PDF production worksheet at the machine.
  • Match Needle 1, Needle 2, etc. to the worksheet’s color sequence before starting the job.
  • Double-check the stop points align with the worksheet’s color changes.
  • Success check: the first color sewn matches the worksheet and each stop/change aligns with the printed sequence.
  • If it still fails: confirm you are actually loading the correct .DST version for that machine/job and not a different variant from the download pack.
• Q: How can I avoid damaging an embroidery machine USB port when transferring designs on a Brother SE600 or industrial embroidery machine?
  A: Treat the USB port as fragile—insert straight, avoid bumps, and remove only after proper eject.
  • Insert the USB fully and keep it clear of hoops, arms, and hips during operation.
  • Eject properly on Mac (icon disappears) or Windows (“Safe to Remove”) before pulling the stick.
  • Keep one dedicated embroidery USB so you are not constantly swapping drives and stressing the port.
  • Success check: the USB connection feels firm, and the machine reads the drive consistently without intermittent disconnects.
  • If it still fails: stop using that port aggressively—loose ports can indicate board-level damage that may require professional service.
• Q: When hooping causes hoop burn or slow setup time, when should embroidery users switch from standard plastic hoops to magnetic embroidery hoops or upgrade to a multi-needle machine?
  A: If hoop burn, hand strain, or slow hooping becomes the bottleneck, start with technique/consumables, then consider magnetic hoops, and only then consider a capacity upgrade.
  • Level 1 (technique/consumables): Confirm correct stabilizer choice (cutaway for knits, tearaway for wovens) and use a fresh 75/11 needle as a common baseline.
  • Level 2 (tooling): Switch to magnetic hoops to reduce hoop burn and speed hooping (often ~5 seconds vs ~60 seconds for standard hoops).
  • Level 3 (capacity): If the 4x4 field or single-needle workflow limits orders, consider moving to a multi-needle production machine.
  • Success check: fabric holds flat without crushed fibers, and hooping time drops consistently job-to-job.
  • If it still fails: run a trace/contour check before stitching and reassess whether the design size vs hoop field is forcing excessive tension or repeated re-hooping.
