Stop Losing Colors in Wilcom EmbroideryStudio e4.2: Build Custom Motifs That Repeat Cleanly (and Stitch Like You Planned)

If you have ever spent two hours building a beautiful, multi-colored geometric motif in Wilcom e4.2, hit “Create Motif,” and watched in horror as it regenerated as a flat, single-color blob... you are not alone. That specific moment of frustration is a rite of passage for digitizers.

But here is the truth experienced digitizers know: A motif is not just a drawing; it is a stored behavior.

This guide does more than just recount the steps to create a motif. I am going to walk you through the full architectural workflow—from tracing a reference image to saving a reusable library asset. We will cover the specific “Shop-Floor” parameters that keep borders straight, spacing consistent, and your machine running smoothly.

Whether you are running a single-head machine in a spare room or managing a row of multi-needle workhorses, mastering motifs is the key to scaling your design output without scaling your effort.

The "Calm-Down" Concepts: Why Motifs Fail (and How to Fix Them)

Motifs are arguably the most powerful tool in Wilcom for creating necklines, borders, and complex fills. They allow you to turn a single design element (like a square or a leaf) into a repeating "brush" that follows any line you draw.

In the tutorial breakdown below, we are creating two specific assets:

1. Motif BB: A geometric square with an outline and a contrasting inner fill.
2. Motif ccc: A 3D-style folded ribbon effect using satin stitches.

The Goal: We want to save these so that when we use them next week or next year, they remember their colors, their layers, and their spacing logic. If you miss the specific settings below, you will end up fighting your machine every time you load the file.

The “Hidden” Prep: Stabilize Your Workspace Before You Stabilize Your Fabric

The video begins by importing a reference image (an ethnic neck embroidery design). Do not skip this. Digitizing “by eye” is the enemy of symmetry.

Prep Checklist (Do this BEFORE dragging a single node)

• Import Reference: Load your JPG/PNG pattern.
• Lock the Image: Select the image and press K (or right-click > Lock). This prevents the "drift" that happens when you accidentally click the background.
• Calibrate Size: Measure a known element in the image and resize it to real-world scale (e.g., if the neckline is 150mm wide, make sure the image is 150mm wide).
• Visual Hygiene: Set your background color to a neutral grey. Bright white backgrounds cause eye fatigue, which leads to sloppy node placement.
• Hidden Consumables: Have physical tools ready. A clear ruler and water-soluble fabric pen are essential for marking reference lines on your actual garment later.

Thinking about the end product now saves pain later. If you are planning to stitch this motif on a stretchy performance tee, you need to design with "air" in the stitches. If it is for a denim jacket, you can afford more density.

Tracing the Base: Column C vs. The World

The instructor digitizes the outer square using the Column C tool.

Why Column C? Unlike a simple running stitch, Column C has width and physical presence. It creates a defined border that sits on top of the fabric texture rather than sinking into it.

The Expert Adjustment: After tracing, the instructor manually reduces the column width.

• Beginner Mistake: Leaving default widths (usually 3.0mm+). This looks clunky and "cartoonish."
• Expert Sweet Spot: For delicate geometric motifs, aim for 1.5mm to 2.0mm width. This mimics the look of high-end hand embroidery.

Sensory Check: When placing nodes for square corners, listen to the rhythm of your clicks. Left-click for sharp corners, Right-click for curves. If you are making a square, it should be a sharp, staccato rhythm of Left-Clicks.

Warning: Mechanical Safety
Watch your corner density! When two satin columns meet at a 90-degree angle, the stitch count doubles at the overlap. If your Column C is too wide or too dense, this corner becomes a "hard spot" that can deflect the needle, causing it to strike the hook assembly or shatter. Always check your corner angles.

Complex Fills & The Two-Color Challenge

Next, we digitize the inner square using Complex Fill and assign it a contrasting color (green).

Now we have a scenario that breaks most beginners:

1. Object A: Purple Outline (Column C)
2. Object B: Green Inner Square (Complex Fill)

You are asking the software to group these into a single "brush stroke." This requires specific handling to ensure the machine knows to stop and ask for a thread change in the middle of a repeating border.

Pro-Tip: Ensure there is a tiny overlap (0.2mm - 0.4mm) between the inner fill and the outer border. If they just touch perfectly on screen, the physical "pull" of the thread during stitching will create a gap (white fabric showing through) on the final product.

The "Million Dollar" Checkbox: Create Motif Settings

This is the most critical step in the entire article.

1. Select both objects (Outline + Fill).
2. Navigate to Object > Create Motif.
3. Choose your destination library (e.g., Folder F).
4. Name the motif (e.g., "BB").

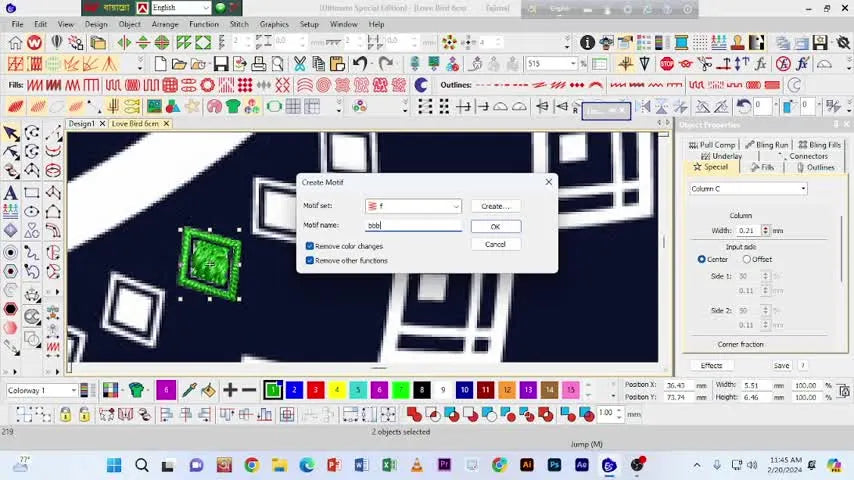

THE CRITICAL ACTION: In the dialog box, you will see a checkbox labeled "Remove Color Changes".

• Default: Checked (Bad).
• Your Action: UNCHECK IT.

If you leave this checked, Wilcom assumes you want a monotone shape. By unchecking it, you force the software to preserve the "Stop" commands between the purple and green objects.

Naming Convention: Do not just call it "Square." Use a system like Shape_Style_Size, for example: Sq_Geo_2Clr_15mm. Future-you will thank present-you.

Defining the "Seam": Reference Points

After clicking OK, Wilcom asks for Reference Points (Start and End).

Think of these as the "connectors" on a Lego brick.

• Start Point: Usually the bottom-left corner.
• End Point: Usually the bottom-right corner.

The Logic: The distance between these two clicks defines the default spacing of the repeat. If you click them too close together, your motifs will overlap by default. If you click them perfectly at the edges of your design, the motifs will touch "shoulder to shoulder."

The "Motif Run": Testing Your Creation

Now, select the Motif Run tool and draw a line. Wilcom should populate that line with your "BB" motif.

The Reality Check: Does the border look straight? On screen, yes. But on the machine, repeating borders are the ultimate test of your hooping technique. A long motif run (like down the front of a shirt) will magnify any fabric distortion.

If you struggle with borders looking "wavy" or "drunk" on the final garment, the issue is likely Fabric Shift. The hoop pulls the fabric in a circle, but you are stitching a straight line.

Tool Upgrade Path: For long, geometric runs, traditional screw-tight hoops can distort the grain of the fabric, leading to crooked repeats. This is where searching for terms like magnetic embroidery hoops becomes relevant. These frames clip the fabric flat without the "tug-of-war" distortion of inner/outer rings, effectively solving the "wavy border" problem at the hardware level.

Mastering Density: The Spacing Dial

In Object Properties, observe the Spacing value.

• 7.00 mm: Good separation.
• 5.00 mm: Overlap/Crowding.

The Physical Consequence: Decreasing spacing means packing more stitches into the same inch.

• The Sound: Listen to your machine. A rhythmic thump... thump... thump... is good. A harsh thud-thud-thud indicates the needle is struggling to penetrate dense areas.
• The Feel: The embroidered area should be flexible. If it feels like a piece of cardboard, your spacing is too tight (motif count is too high).

Rule of Thumb: Start with spacing equal to the width of the motif plus 1mm. Adjust down carefully from there.

Scaling: The Hidden Danger

The video creates a run at 6.00mm height, then scales it to 40.00mm and 80.00mm.

STOP. Before you hit start on the machine, you must understand what scaling does to stitch physics.

• Scaling Up: The distance between satin rails increases. If a column gets wider than 7mm-9mm (depending on the machine), the stitches become loose loops that snag on buttons and jewelry.
• Scaling Down: The density compresses. A 2mm gap can disappear, becoming a solid knot of thread.

Business Insight: If you find yourself constantly resizing designs to fit different shirt sizes (S, M, L, XL), you are wasting massive amounts of production time re-digitizing and test-stitching. Efficient shops solve this with better workflows. Using a hooping station for embroidery allows you to place the design in the exact relative spot on every shirt size, meaning you can often use a single "Master Size" design for a wider range of garments, reducing the need for risky scaling.

Advanced Technique: The 3D Satin Ribbon

Now, the tutorial moves to the "ccc" motif: a 3D folded ribbon effect.

1. Digitize a slanted rectangle (Input A or Satin).
2. Duplicate (Ctrl+D) and mirror/move it.
3. Change color to create the "Shadow" or "Fold."

The Fabric/Stabilizer Matrix Satin motifs are heavy. They pull the fabric. You need to match your consumables to your design choice.

Decision Tree: Motif vs. Stabilizer

• Is the fabric stretchy (T-shirt/Polo)?
  • Direct Stitching: Risk of puckering is HIGH.
  • Solution: Use Cutaway stabilizer. Do not use Tearaway. The heavy satin pull will rip tearaway paper during stiching.
• Is the fabric stable (Denim/Canvas)?
  • Direct Stitching: Low risk.
  • Solution: Tearaway is acceptable.
• Is the Motif wider than 8mm?
  • Action: Check your machine's "Jump Frame" or "Split Satin" settings, or you will get loose loops.

Saving "ccc" & The Logic of Interlocking

Save this new motif just like the first one (Uncheck "Remove Color Changes").

Critical Success Factor: When defining the Reference Points for this 3D shape, you aren't just measuring width. You are defining how the "shadow" of block 1 interacts with the "highlight" of block 2.

• Place points so the motifs nest together visually.

Spacing as a Creative Tool

When applying the "ccc" Motif Run:

• 10.00mm Spacing: Creates a tight, interlocking "Zipper" look.
• 15.00mm Spacing: Creates separated, floating islands.

Safety Warning: Magnetic Hoops

Warning: Magnetic Force
If you decide to upgrade to magnetic embroidery hoop systems to handle these heavy satin borders faster, handle them with respect. The magnets used in commercial-grade frames (like those compatible with SEWTECH or other industrial machines) are incredibly powerful. Never place your fingers between the magnets. They can pinch severely. Keep them away from pacemakers.

Troubleshooting: The "Why Is This Happening?" Guide

If your motif run isn't working, don't guess. Use this diagnostic table:

The Production Pivot: When to Upgrade

There comes a point where skill can no longer overcome physics.

If you are perfecting your motif designs but still struggling with hoop burn (those shiny ring marks left on dark fabric) or wrist fatigue from clamping hundreds of items, the clear solution is not "better digitizing"—it is better hardware.

Professionals eventually migrate to an embroidery hoop machine setup involving magnetic frames because it removes the variable of "hand strength" from the equation. Similarly, if your single-needle machine takes 30 minutes to stitch a motif border (changing colors 40 times), you are losing profit. A multi-needle machine handles those color swaps automatically, letting you walk away while the motif builds itself.

Final Checklists

Setup Checklist (Digital)

• [ ] Is the reference image locked and scaled?
• [ ] Did I check "Remove Color Changes" is OFF?
• [ ] Are my start/end points logical for the repeat?
• [ ] Did I save a backup of the original .EMB file?

Pre-Flight Checklist (Physical)

• [ ] Bobbin Check: Do I have enough bobbin thread for a density-heavy motif run? (Running out mid-border is a nightmare to patch).
• [ ] Needle Check: Is the needle fresh? Burred needles will shred satin columns.
• [ ] Path Check: trace the design border to ensure the motif doesn't hit the hoop frame.

Operation Checklist (The Start Button)

• [ ] Watch layer 1: Watch the underlay stitch. If it pulls the fabric, stop immediately and re-hoop.
• [ ] Listen: Listen for the "click" of the trimmer and the smooth rhythm of the satin stitch.
• [ ] Safety: Keep hands clear of the pantograph/arm movement.

By following this structure, you turn the "black magic" of Wilcom motifs into a repeatable, profitable science. Happy stitching.

FAQ

• Q: Why does Wilcom e4.2 “Create Motif” regenerate a two-color outline + fill motif as a single-color blob after saving?
  A: Uncheck Remove Color Changes when saving the motif, or Wilcom will collapse the motif into a monotone object.
  • Re-select both objects (e.g., Column C outline + Complex Fill).
  • Go to Object > Create Motif and UNCHECK “Remove Color Changes” before clicking OK.
  • Re-save the motif with a clear name (e.g., Sq_Geo_2Clr_15mm) to avoid reusing the wrong version.
  • Success check: Applying the Motif Run shows distinct color stops/changes instead of one flat color.
  • If it still fails: Verify the two objects are not already merged into a single object before creating the motif.
