The "Zero-Fail" Guide to Baby Lock File Transfer: Mastering USB Workflows & Production Efficiency

If you have ever stood in front of your Baby Lock machine, heart racing, wondering why the screen is blank even though you know you saved the design, you are experiencing a rite of passage. In my two decades of training embroidery operators—from home hobbyists to industrial floor managers—I have seen this specific panic more than any other.

Here is the truth: Your machine is likely fine. The design file is likely fine. The invisible breakdown is almost always in the File Handling Protocol.

Embroidery machines are not modern computers; they are industrial computers with specific, rigid rules. They do not forgive "messy" data. This guide will dismantle the fear of technology and replace it with a production-grade workflow. We will replicate the steps from the tutorial video, but we will layer on the expert safeguards that prevent file corruption, machine freezes, and wasted hours.

The root of the Panic: Why the Machine "Can't See" Your Files

When a student calls me saying, "My machine is broken, it won't read the USB," it is generally one of three user errors:

1. The Container Error: The design is locked inside a .ZIP file (the machine has no software to "unzip" it).
2. The Language Error: The drive is formatted incorrectly or the file name is too long/complex for the machine’s operating system to display.
3. The Corruption Error: The USB was pulled out physically before the computer finished writing the data standard.

We are going to build a routine that eliminates these errors. By the end of this, your transfer process will take 120 seconds, and it will work every single time.

Phase 1: The "Clean Room" Preparation (Hardware & Formats)

Before you download a single file, we must establish the physical and digital environment.

The Hardware: Choosing the Right USB Drive

Expert Rule: Bigger is not better. Modern computers love 128GB drives; embroidery machines hate them.

• Capacity Sweet Spot: Use a USB drive between 2GB and 8GB. Many older operating systems (like those on earlier Baby Lock models) struggle to index drives larger than 16GB, leading to slow load times or freezing.
• Format: Ensure your drive is formatted to FAT32. This is the universal language embroidery machines speak.

The Software: The ".PES" Standard

Baby Lock and Brother machines share a "brain." Their native language is .PES.

• While some high-end machines can read other formats (like DST), .PES contains color data and hoop information that makes your life easier. Always prioritize .PES.

The File Structure: Organizing for the Small Screen

The video demonstrates creating folders like "Test." This is good, but let's make it production-ready. Your machine’s screen is small. Long filenames get cut off.

• Bad Name: Flower_Design_Pink_Petals_Version2_Final.pes (Machine sees: Flower_De...)
• Good Name: Flwr_Pnk_V2.pes

Preparation Checklist

Execute these checks before touching the computer.

• USB Drive Check: Is the drive 16GB or smaller?
• Format Check: Is the drive empty or organized (not cluttered with non-embroidery PDF or JPG files)?
• Port Check: Insert the USB into the PC. Listen for the system chime or look for the drive icon to appear.
• Consumables Check: Do you have your stabilizer and spray adhesive ready for when the file loads? (Don't wait until the machine is ready to find out you are out of backing).


Phase 2: The Download Protocol (Avoiding the ZIP Trap)

In the tutorial, we see the user navigating to Embroidery Library. This is a critical moment where 90% of beginners fail.

The Mechanism of the Download

1. Select Design: The user chooses a design.
2. Select Size: The video selects 3.87" (w) x 3.62" (h).
   • Why this matters: You must know your Maximum Hoop Size. If your machine’s limit is 4x4 inches, and you download a 5x7 design, the machine will not display the file—it "protects" you by hiding files it cannot physically stitch.
3. Format Selection: MUST be .PES.

The "Unzipped" Rule

On the download screen, you are often given a choice: "Zipped" or "Unzipped."

• The Physics: A ZIP file is like a suitcase. The embroidery machine does not have hands to open the suitcase. It can only hold the shirt (the PES file) inside.
• The Action: Always choose Unzipped if available. If you must download a ZIP, you must right-click and "Extract All" on your computer before moving anything to the USB.


Phase 3: The Transfer (Drag, Drop, and Verify)

We do not simply "save to USB." We strategically place the file.

The "Two-Window" Technique

The most error-proof method, as shown in the video, is the side-by-side verification.

1. Open Source: Open your "Downloads" folder in one window.
2. Open Destination: Open your USB drive in a second window.
3. Create the Home: On the USB drive, Right-Click > New > Folder. Name it clearly (e.g., TEST_Nov2025).




Expert Note: Do not dump files into the "Root" (the main area) of the USB drive. If you have 100 files in the root, the machine's processor has to load all of them just to open the menu. Folders keep the machine running fast.

Renaming for Clarity

The video shows renaming a cryptic file like g5334.pes to Test Design.

• Action: Right-Click the file on the USB > Rename.
• Standard: Use "Noun_Adjective" format. e.g., Bird_Blue.
• Constraint: Avoid special characters like &, %, $, or #. These can sometimes confuse older machine operating systems. Stick to letters, numbers, and underscores.


Phase 4: The Safety Eject (Protecting Your Data)

This is the single most important habit for data longevity.

When you drag a file to a USB, Windows says it is done, but it often holds the data in a "cache" buffer to write it efficiently. If you yank the drive out immediately, that file is cut in half. The result? Your machine freezes or crashes when you try to sew.

The Ritual:

1. Go to the System Tray (bottom right of screen).
2. Click the USB Icon.
3. Select Safely Remove Hardware.
4. Wait for the message: "Safe to Remove Hardware."
5. Sensory Check: Only pull the drive when the text balloon appears.


Warning: Never remove a USB drive while the LED light on the stick is flashing. Flashing means data is being written. Pulling it during a flash can permanently corrupt the USB stick, requiring a full reformat.

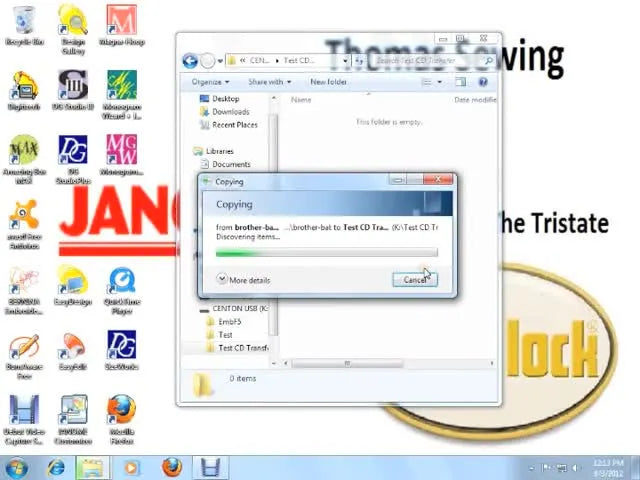

Phase 5: Batch Transfers (The CD Method)

If you are moving libraries from CDs (like the Anita Good Design example in the video) or backup drives, efficiency is key.

1. Navigate to the source folder: CD Drive > Design Files > brother-babylock-pes.
2. Verify the Path: ensure you are definitely in the PES folder. Getting DST or EXP mixed in will just clutter your machine's screen.
3. Selection: Click the first file, hold Shift, click the last file to select all.
4. Transfer: Drag the specific group into your New Folder on the USB.








Phase 6: Machine Operation (The Final Handshake)

You are now at the Baby Lock Ellisimo (or similar machine).

1. Insertion: Locate the USB port.
   • Tactile Check: Insert the drive gently. Never force it. If it resists, flip it over.
2. The "Wake Up": Tap the screen to ensure the machine is listening.
3. The Icon: Press the USB Symbol on the LCD screen.
   • Note: The machine initially looks at its internal memory. You must manually tell it to look at the external port.




Verification

You should see your folders (TEST, CD_Transfer). Touch a folder to open it.

• Success Metric: You see thumbnail images of your designs.
• Visual Check: Verify the colors look approximately correct (though screen colors vary).




Operation Checklist

• Port Selection: Did you tap the USB icon (not the mouse or PC icon)?
• Thumbnail Load: Did the images generate? (If you see generic icons instead of flowers, the file might be corrupt).
• Hoop Check: When you select the design, does the machine warn you to change the hoop? (Listen for the "beep").

Troubleshooting Matrix (Symptom → Cure)

When things go wrong, do not guess. Follow this logic path, starting from the cheapest fix.

Beyond the Screen: Upgrading Your Physical Workflow

Congratulations. You have mastered the digital side. Your files transfer flawlessly. Now, you will encounter the real bottleneck of embroidery: The Physical Setup.

As you move from doing one hobby project a week to multiple items a day, you will notice three things:

1. Hoop Burn: The standard plastic hoops leave shiny rings on delicate fabrics.
2. Wrist Fatigue: Constantly screwing and unscrewing the hoop lowers your stamina.
3. Alignment Panic: Standard hoops slip, making it hard to keep designs straight.

This is where beginners become pros—by upgrading their tooling.

The Decision Tree: Do You Need Magnetic Hoops?

Use this logic to determine if you are ready to upgrade your hardware.

Path A: The Hobbyist

• Volume: 1-3 items per week.
• Materials: mostly cotton, stable fabrics.
• Verdict: Stick with standard hoops. Use a hooping station for embroidery to help you align garments perfectly on your table before taking them to the machine. This adds precision without high cost.

Path B: The "Side Hustle" / Small Business

• Volume: 10+ items a week, or bulk orders (teams, uniforms).
• Materials: Polos, thick towels, jackets, knits.
• Pain Point: Re-hooping takes longer than stitching; hoop marks are ruining velvet or performance wear.
• Verdict: It is time to upgrade to magnetic hoops for babylock embroidery machines.

Why Magnetic Hoops?

In the professional industry, we rely on tools like the mighty hoops for babylock users often rave about. These utilize strong magnetic force to "sandwich" the fabric rather than squeezing it with friction.

• Benefit 1: Speed. You can hoop a shirt in 5 seconds vs 45 seconds.
• Benefit 2: No Burn. Because there is no friction ring, delicate fabrics are not crushed.
• Benefit 3: Thickness. Magnetic hoops easily clamp over zippers, seams, and thick towels that plastic hoops cannot grip.

Warning: Magnet Safety
Magnetic hoops (such as Sewtech or Mighty Hoops) use high-power neodymium magnets.
* Pinch Hazard: They snap together with extreme force. Keep fingers clear of the mating surfaces.
* Medical Safety: Keep these magnets at least 6 inches away from pacemakers.
* Digital Safety: Do not place them directly on top of your laptop hard drive, credit cards, or USB sticks.

Choosing Your Upgrade

When searching for a magnetic hooping station or frames, ensure you match the product to your specific machine arm width.

• Professionals typically start with a 5x5 inch magnetic frame for left-chest logos.
• Many users search for specific baby lock magnetic hoop sizes to find the exact fit for the Ellisimo or Meridian class machines.
• Brands like SEWTECH offer high-quality magnetic frames compatible with these machines, providing the industrial stability required for high-speed stitching.

The Professional Tool Ladder

1. Level 1: Master the .PES/USB workflow (You are here).
2. Level 2: Upgrade consumables (Use High-Yield Bobbins and specific Stabilizers like Cut-away for knits).
3. Level 3: Upgrade Workholding (Invest in a baby lock magnetic hoop to reduce prep time by 50%).
4. Level 4: Capacity Upgrade (When the single-needle machine cannot keep up, move to a Multi-Needle machine to eliminate thread-change downtime).

By securing your data workflow first, you clear the mental space to focus on what matters: the quality of the stitch and the efficiency of your shop.

FAQ

• Q: Why does a Baby Lock embroidery machine show an empty USB folder even though the design was downloaded?
  A: The most common cause is that the design is still inside a ZIP file or the file is not a .PES.
  • Extract: Right-click the download on the computer and choose “Extract All” so the .PES file is visible.
  • Verify: Confirm the file ends with “.PES” before copying it to the USB drive.
  • Recopy: Drag-and-drop the unzipped .PES into a clearly named folder on the USB drive.
  • Success check: The Baby Lock screen shows the folder contents with design thumbnails (not an empty list).
  • If it still fails… Re-download the design and choose “Unzipped” on the download page if that option exists.
• Q: Why does a Baby Lock embroidery machine grey out a .PES design file on the USB screen?
  A: The design size is likely larger than the Baby Lock machine’s maximum hoop field, so the machine hides/limits selection to protect stitching.
  • Check: Compare the downloaded design dimensions to the maximum hoop size the Baby Lock machine supports.
  • Redownload: Select a smaller size option when downloading the design.
  • Organize: Keep only compatible-size designs in the same USB folder to reduce confusion.
  • Success check: The previously greyed-out design becomes selectable and the machine prompts the correct hoop (often with a beep).
  • If it still fails… Test with a known small design that has stitched successfully before to confirm the USB workflow is OK.
• Q: What USB drive size and format works best for Baby Lock embroidery machine file transfer (to prevent freezes or “Cannot Read”)?
  A: Use a dedicated small USB drive formatted to FAT32; many Baby Lock systems often behave best with 2–8GB drives.
  • Choose: Use a USB drive 16GB or smaller (a safe starting point is 2–8GB).
  • Format: Format the USB drive to FAT32 on the computer (back up files first).
  • Clean: Keep the USB “embroidery only” (avoid PDFs/JPGs and clutter).
  • Success check: The Baby Lock loads folders quickly and thumbnails generate without delays.
  • If it still fails… Try a different small USB stick—some models are picky about specific drives even when capacity and format are correct.
• Q: How do I prevent Baby Lock embroidery machine freezing caused by a corrupted USB design file?
  A: Always use “Safely Remove Hardware” before unplugging the USB drive; unplugging during writing commonly corrupts files.
  • Eject: Click the system tray USB icon and select “Safely Remove Hardware.”
  • Wait: Do not pull the USB until the computer says “Safe to Remove Hardware.”
  • Watch: Never remove the USB while the drive’s LED is flashing (flashing usually means data is still writing).
  • Success check: The design opens on the Baby Lock without crashing, and thumbnails display normally.
  • If it still fails… Reformat the USB to FAT32 and recopy the design files using the safe-eject routine every time.
• Q: Where should .PES files be placed on a USB drive for a Baby Lock embroidery machine to load faster?
  A: Put .PES files inside clearly named folders instead of dumping everything in the USB root to reduce loading strain on the machine.
  • Create: Make a folder on the USB (example: “TEST_Nov2025”).
  • Sort: Store designs by project or source (example: “CD_Transfer,” “Hats,” “Logos”).
  • Limit: Avoid keeping hundreds of files in one place, especially in the root directory.
  • Success check: The Baby Lock opens the USB menu quickly and shows the folder list without lag.
  • If it still fails… Move older designs off the USB and test with one small folder containing only a few .PES files.
• Q: What Baby Lock embroidery machine filename rules prevent missing files or confusing file lists on the LCD screen?
  A: Use short, simple filenames with letters/numbers/underscores; long names and special characters can be rejected or hard to read on older systems.
  • Rename: Keep names short (example: “Flwr_Pnk_V2.pes” instead of a long sentence).
  • Avoid: Do not use special characters like & % $ # in the filename.
  • Standardize: Use a consistent pattern like “Noun_Color” (example: “Bird_Blue.pes”).
  • Success check: The full filename is readable (not heavily cut off) and the design appears consistently on the Baby Lock screen.
  • If it still fails… Copy one file with an extremely simple name (example: “TEST1.pes”) to isolate whether the issue is naming-related.
• Q: What safety rules should be followed when using magnetic hoops for Baby Lock embroidery machine workflows?
  A: Magnetic hoops are fast and reduce hoop marks, but the magnets can snap together forcefully—handle them like a pinch-hazard tool.
  • Protect: Keep fingers away from the mating surfaces when closing the magnetic frame.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Store: Do not place magnetic hoops directly on laptops, USB drives, or credit cards.
  • Success check: The hoop closes with controlled alignment (no sudden finger pinches) and the fabric is clamped evenly without shifting.
  • If it still fails… Pause and switch back to a standard hoop for that job, then revisit magnet handling technique and workstation layout before trying again.
