Stop Overwriting Your Embrilliance Designs: Save DST Stitch Files *and* .BE Working Files the Pro Way

The "Digital Twin" Workflow: How to Master Embroidery File Saving (And Stop Losing Work)

If you have ever watched hours of digitizing work vanish because you clicked Save instead of Save As, you are not "bad with computers." You are simply a victim of the most dangerous button in embroidery software.

In the world of professional embroidery, file management is not just housekeeping—it is the foundation of your production line. Whether you are running a single-needle home machine or a fleet of SEWTECH multi-needle workhorses, the rule is the same: If you lose the source file, you lose the ability to edit.

This guide transforms a simple Embrilliance tutorial into a robust "Industry Standard" workflow. We will cover the cognitive habits, the file structures, and the physical tools that separate the stressed hobbyist from the efficient producer.

The "Calm-Down" Truth: Save vs. Save As (Why Templates Vanish)

Imagine you have a Master Recipe for a vanilla cake.

• Save As is like copying that recipe onto a new index card to add chocolate chips. You still have the original vanilla recipe safe in the box.
• Save is like taking an eraser to your only original recipe card, writing "Chocolate Chips" over it, and throwing away the vanilla instructions forever.

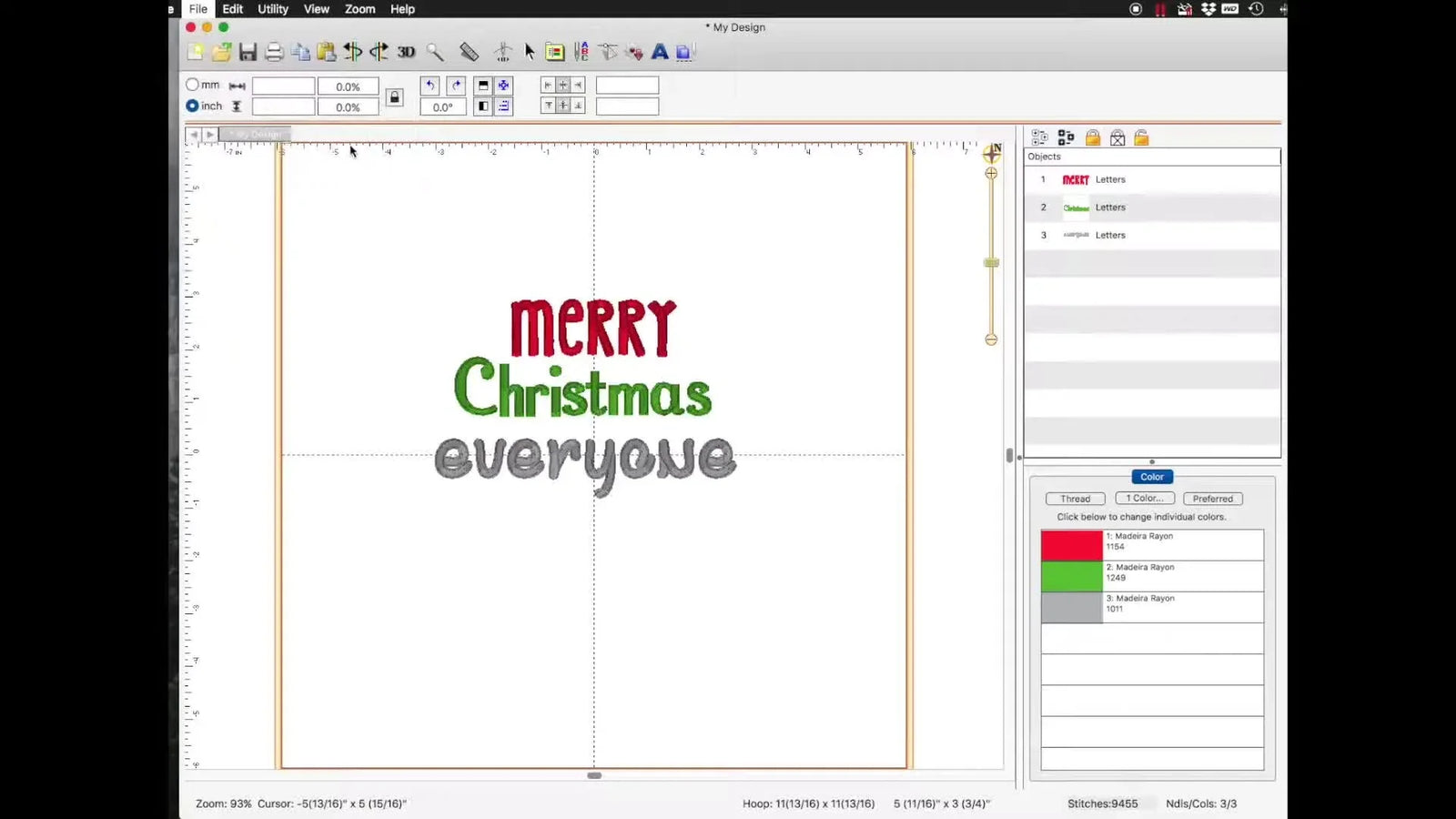

The input video begins with a finished design reading "Merry Christmas everyone." The terror scenario is simple: The software prompts you to save. You click "Save." You have now permanently overwritten your template.

The golden rule for your mental peace:

1. Save: Use this only when you are correcting a mistake in the current active project.
2. Save As: Use this every time you create a new version, a new size, or a new customer name. Treat "Save As" as your default setting.






Warning: The Overwrite Trap
Treat the standard "Save" button like a power saw—useful but dangerous. If you open a file named "Template" or "Base Design," physically remove your hand from the mouse before clicking Save. Always go to File → Save As to create a new instance (e.g., Template_Version2). Once a file is overwritten, it is often unrecoverable.

The "Hidden" Prep Pros Do Before Clicking Save (Folder + Naming Strategy)

Before you generate any files, you need a digital ecosystem that matches your physical studio. Just as you organize your embroidery threads and stabilizers by type, you must organize your data.

The "Find It in 5 Seconds" Naming Syntax

Don't use names like Christmas1.dst or Flower_final_final_REAL.pes. Use a descriptive syntax that tells you everything without opening the file.

Formula: [Theme]_[SpecificVariant]_[HoopSize]_[Date]

• Bad: MerryXmas.dst
• Good: Xmas_ScooterName_5x7_2025.dst

This defines What it is, Who it is for, and Which hoop fits it.

Prep Checklist: The Digital Foundation

• Create a "Master Source" Folder: Name it 01_Working_Files. This creates a safe home for your editable .BE files.
• Create a "Machine Ready" Folder: Name it 02_Stitch_Files. This is where your .DST/.PES files go.
• Enable File Extensions: Go to your computer's folder settings and "Show file extensions." You must see the difference between .be and .dst visually.
• Stock Essentials: Ensure you have multiple reliable USB drives (2GB - 8GB is the sweet spot for most machines; larger drives often crash older embroidery operating systems).


The Two-File Habit: The "Source" and The "Product"

The tutorial highlights a critical workflow feature in Embrilliance: "Save as Stitch and Working File."

This is the most important concept in digitization. You must understand the difference between the verify two file types:

1. The Working File (.BE): This is your "Source Code." It contains object data, font properties, and density settings. You can resize this, change spelling, and adjust density with perfect quality.
2. The Stitch File (.DST / .PES / .EXP): This is your "Executable." It is just a list of X/Y coordinates for the needle. It is "dumb" data. If you resize this by 20%, you ruin the density. If you try to change the text, you are just dragging stitches around, not letters.

The Professional Habit: You never save one without the other. You create a "Digital Twin" for every project.

Setup Checklist: The "Save As" Ritual

• Action: Go to File → Save As.
• Action: Select "Save as Stitch and Working File" from the options.
• Verify: Check the filename matches your naming syntax (e.g., MerryChristmas_Scooter).
• Verify: Ensure the file format matches your machine (e.g., DST for commercial, PES/VP3 for home).
• Success Metric: You do not see an error message, and the window closes cleanly.

The 10-Second Proof: Visual Confirmation

Never trust the computer blindly. After saving, open your file explorer.

You are looking for two files with the same name but different extensions:

1. Merry Christmas.be (The Icon usually looks like the software logo)
2. Merry Christmas.dst (The Icon often looks blank or like a generic sheet)

If you only see one, stop. Go back and re-save. This 10-second check prevents the heartbreak of opening a folder six months later to find you only have the uneditable stitch file.

workflow Simulation: Personalizing for a Client

Let’s walk through the actual editing process demonstrated in the video. This answers the question: "Why do I need the working file?"

Scenario: You stitched a sample that says "Everyone." Now a customer wants one that says "Scooter."

1. Open the .BE File: Do not open the DST. Open the Working File.
2. Select the Text: Because it is a working file, the text is still "alive." You can highlight "Everyone."
3. Type & Set: Type "Scooter" and click Set. The software treats it as text, automatically calculating the underlay, pull compensation, and density for the new letters.

If you had tried this with a DST file, the machine would have seen "Everyone" as a picture, not text. You would have had to delete the stitches and merge in new ones—a messy, amateur approach.

The Fork in the Road: Saving the Variant

Once "Scooter" is on the screen, you must protect your original.

1. File → Save As.
2. Change filename to MerryChristmas_Scooter.
3. Save.

Now you have MerryChristmas_Everyone.be AND MerryChristmas_Scooter.be. You have built a library of assets rather than destroying your past work.

Operation Checklist: Version Control

• Pre-Check: Did I open the .BE file, not the stitch file?
• Action: Make text changes (e.g., Name change).
• Action: Immediately use Save As.
• Verify: Rename the file to reflect the new variable.
• Success Metric: Check the folder. You should see four files total (Old BE/DST + New BE/DST).

Troubleshooting: When the Software Says "No"

Sometimes, the logic fails. Here are the two most common errors and how to solve them without panic.

Bridging Software to Reality: The "Physical Save As"

You have mastered the digital side. Your files are clean, organized, and ready. But efficiency doesn't stop at the computer screen. The biggest bottleneck in embroidery is rarely the software—it is the hooping process.

Just as Save As saves you time by preventing data loss, upgrading your physical tools saves you time by preventing fabric slippage and hoop burn.

The "Hoop Burn" Friction Point

Traditional screw-tightened hoops create friction. You have to wrestle the fabric, tighten the screw, and pray the tension is drum-tight. If you are doing personalization (like the "Scooter" example above), doing this 50 times a day is exhausting. It causes:

• Hoop Burn: Permanent rings on delicate fabrics (velvet, performance wear).
• Carpal Tunnel Fatigue: From constant unscrewing.
• Production Slowdown: It takes 2-3 minutes to hoop perfectly.

The Solution: Magnetic Efficiency

This is where professionals switch to magnetic embroidery hoops.

• Speed: They snap together in seconds. No screws.
• Safety: They hold thick items (towels) and slippery items (performance knits) without crushing the fibers.
• Consistency: The magnetic force is uniform all the way around, unlike a screw hoop which is tightest at the screw and looser opposite it.

If you are running commercial orders, searching for terms like magnetic embroidery frame will lead you to tools like the MaggieFrame or Sewtech magnetic series. These transform the "physical saving" of your garment into a snap-and-go process.

Warning: Magnet Handling Safety
Industrial magnetic hoops use Neodymium magnets that are incredibly powerful.
1. Pinch Hazard: Keep fingers clear of the mating surfaces. They snap with enough force to bruise or break skin.
2. Medical Devices: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place them directly on laptops or verify embroidery cards/USB drives, as the field can scramble data.

Scaling Up: When One Needle Isn't Enough

The tutorial uses a standard machine format like DST. If you are using a home machine, you are likely used to swapping threads manually for every color change.

As your file library grows (thanks to your new "Save As" habits), your print volume will likely grow too.

• Scenario: You have 20 "Scooter" shirts to do.
• The Bottleneck: A single-needle machine requires you to babysit it.
• The Upgrade: Moving to a multi-needle machine, such as the brother pr680w (or high-value alternatives from SEWTECH), allows you to set 6 to 10 colors at once.

When you upgrade to a multi-needle, file management becomes even more critical because you will be sending files to the machine via network or USB more frequently. You need a system that minimizes downtime.

Decision Tree: The "Optimization Path"

Use this logic flow to decide where to invest your energy next:

1. Is your frustration DIGITAL? (files lost, text uneditable)
   • Yes: Implement the "Save As" + "Working vs. Stitch File" habit immediately.
   • No: Proceed to 2.
2. Is your frustration MECHANICAL? (Hooping takes too long, fabric is marked)
   • Yes: Investigate hooping for embroidery machine upgrades, specifically magnetic hoops.
   • No: Proceed to 3.
3. Is your frustration VOLUME? (I can't stitch fast enough)
   • Yes: Look into hooping stations. A machine embroidery hooping station ensures that "Scooter" lands on the exact same spot on the chest for all 50 shirts.
   • Advanced: Professionals often pair a hooping station for brother embroidery machine (or generic equivalent like hoopmaster) with a magnetic frame to achieve "Factory Level" throughput.


Final Thoughts: The Professional Mindset

The difference between a hobbyist and a pro isn't just the machine—it's the workflow.

• Digital Workflow: Two files (Working + Stitch). Descriptive names. Organized folders.
• Physical Workflow: Fast hooping. Correct stabilizers. Magnetic frames.

By adopting the simple "Save As" habit shown in the video, you are taking the first step toward a scalable, stress-free embroidery business. You are securing your digital assets so you can focus on what matters: the beautiful stitching on the fabric.

Don't let a single click destroy your hard work. Prep, Save As, and Stitch with confidence.

FAQ

• Q: In Embrilliance, how can embroidery digitizers avoid overwriting a “Template” working file when the Save prompt appears?
  A: Use File → Save As every time a design is a new version, new size, or new customer name, and reserve Save only for correcting the current active project.
  • Action: Open the base file (e.g., “Template”) and pause before clicking any Save icon.
  • Action: Click File → Save As, then rename immediately (for example, Template_Version2).
  • Success check: The original template file still exists in the folder alongside the newly named version.
  • If it still fails: Stop working from the template directly—make a copy first, then edit only the copied file.
• Q: In Embrilliance, how do embroidery digitizers save both a Working File (.BE) and a Stitch File (.DST/.PES) in one step?
  A: Use “Save as Stitch and Working File” so every project has an editable source (.BE) and a machine-ready stitch file.
  • Action: Go to File → Save As.
  • Action: Choose Save as Stitch and Working File, then select the correct stitch format for the embroidery machine (DST/PES/EXP as needed).
  • Success check: The folder shows two files with the same name but different extensions (example: Name.be and Name.dst).
  • If it still fails: Re-save to a known good location (like the Desktop) first, then copy to USB afterward.
• Q: On Windows or macOS file browsing, how can embroidery machine owners confirm they did not accidentally save only a stitch file and lose the editable Embrilliance Working File?
  A: Always do a 10-second folder check for two matching filenames with two different extensions right after saving.
  • Action: Open File Explorer/Finder immediately after saving.
  • Action: Look for the pair (example: MerryChristmas.be and MerryChristmas.dst).
  • Success check: Two files exist, same base name, different extensions—one is .BE (editable), one is a stitch format (machine-ready).
  • If it still fails: Turn on “Show file extensions,” then repeat Save as Stitch and Working File so the .BE is created.
• Q: In Embrilliance, how can embroidery digitizers fix the error message “Elements are not licensed for saving” when saving a merged design with fonts?
  A: This usually happens in the Free/Demo (“Express”) level when saving merged compositions; upgrading to the paid standard level (Essentials) is typically required to save the merged result.
  • Action: Identify whether the project includes a purchased/merged stitch design plus native font text.
  • Action: Save what is allowed (fonts-only work) and avoid merging if staying on the free level.
  • Success check: The software saves without the licensing error and the saved files appear in the target folder.
  • If it still fails: Confirm the software edition/licensing status and retry saving after reopening the project.
• Q: In Embrilliance, how can embroidery digitizers fix “Cannot save as Stitch File” when exporting to a USB drive for an embroidery machine?
  A: Save to the Desktop first and remove filename problems—USB corruption/full storage and invalid characters in filenames are the most common causes.
  • Action: Save the stitch file to the Desktop (or another internal folder) to rule out the USB drive.
  • Action: Rename the file using only letters, numbers, and underscores (avoid / ? and other special symbols).
  • Success check: The stitch file saves cleanly with no error message and the save window closes normally.
  • If it still fails: Try a different USB drive (smaller, reliable drives are often more compatible) and re-test the save.
• Q: In Embrilliance, how can embroidery digitizers fix the warning “Design is too large for hoop” before exporting a DST/PES stitch file?
  A: Match the software hoop selection to the physical embroidery hoop size you actually own, then re-check the design boundary.
  • Action: Open the hoop settings/selection in the software and choose the correct hoop size (for example 5x7 or 200x300mm if that is the physical hoop).
  • Action: Reposition or adjust the design so it fits inside the hoop boundary shown in the software.
  • Success check: The design no longer crosses the hoop limit line and the export/save proceeds without the hoop-size warning.
  • If it still fails: Verify the physical hoop dimensions and software preferences match exactly before changing the design.
• Q: What are the key safety rules for handling industrial magnetic embroidery hoops to avoid finger injuries and device interference?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from medical implants and sensitive electronics.
  • Action: Keep fingers clear of the mating surfaces when bringing the magnetic rings together.
  • Action: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Action: Do not place magnetic hoops directly on laptops or on top of USB drives/cards.
  • Success check: The hoop closes without pinching skin, and nearby devices operate normally with no unexpected behavior.
  • If it still fails: Stop and change handling technique—separate and re-seat the hoop slowly with a controlled grip.
