Stop PVC Windows from Tearing in ITH Bags: Gauge, Needle, and “Open Satin” Stitch Fixes That Actually Hold

Clear PVC windows are one of those details that make an in-the-hoop (ITH) bag look instantly “pro”—phone pockets, yarn holders, zipper pouches, all of it. But if you’ve ever watched a beautiful window pop right out of the stitching (usually at the worst possible moment), you already know the truth: PVC doesn’t fail like fabric. It fails like a postage stamp—tiny holes become a tear line.

If you’re feeling frustrated because a bobbin bag window detached and you’re thinking “it must be too much stitching,” you’re not wrong. The fix is a combination of material thickness + stitch architecture + needle choice, and once you understand that triangle, PVC becomes predictable.

The PVC “Panic Moment” on ITH Bags: Why a Perfect Satin Border Can Still Destroy the Window

The most common PVC failure I see is exactly what the video demonstrates: a standard tight satin stitch looks clean, but it creates a row of punctures so close together that the vinyl behaves like it’s been pre-cut. Pull on the window edge and it separates cleanly—because you essentially made a perforation strip.

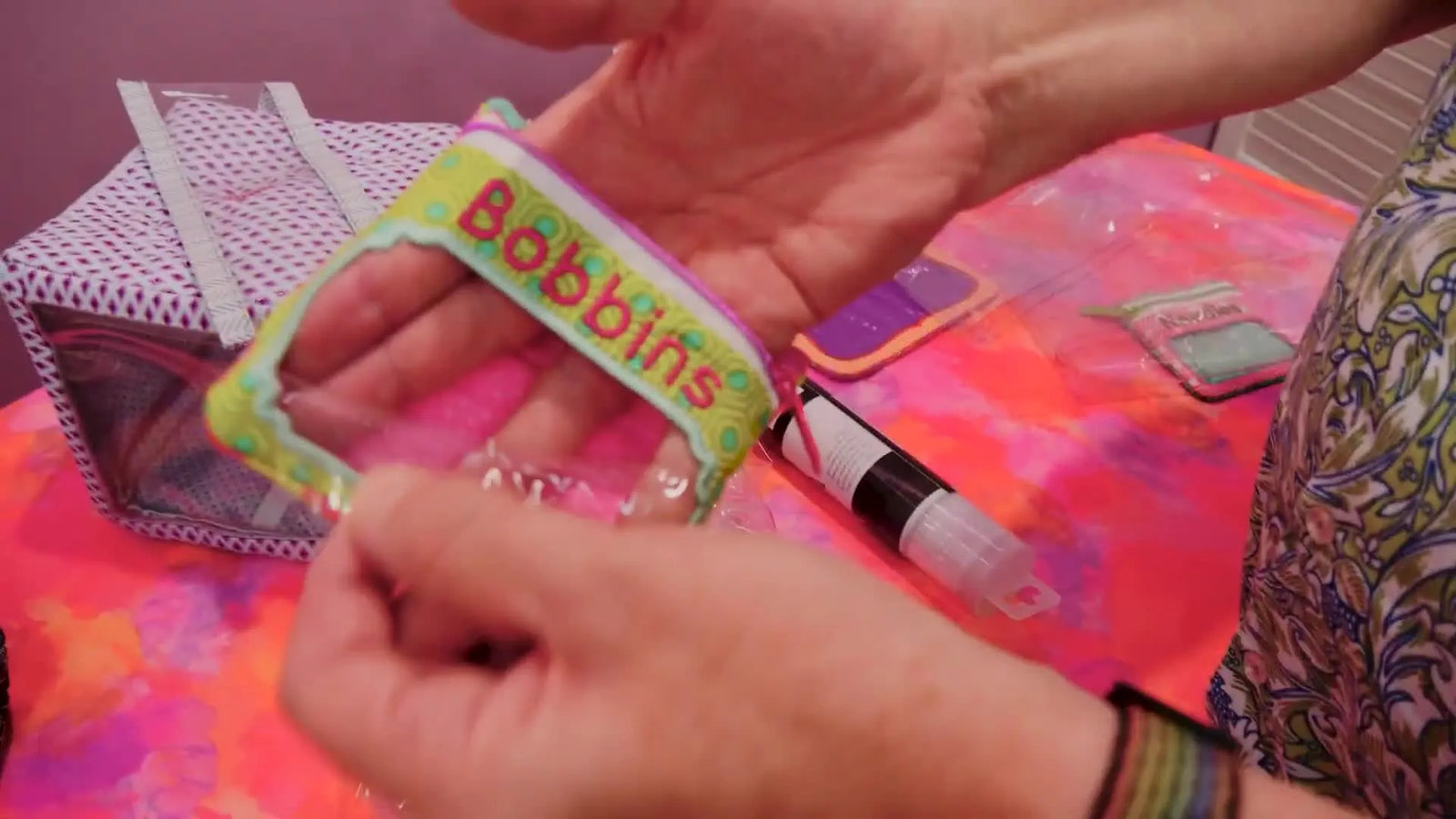

The failed sample shown (a pink “Bobbin” zip bag) is the classic symptom: the vinyl window has completely detached because the satin stitch was too dense for the vinyl that was used.

What’s really happening (in plain shop language):

• Fabric Geometry: Woven fabric allows fibers to shift aside when the needle enters. They “heal” around the thread.
• PVC Physics: PVC cannot heal. Every needle penetration is a permanent removal of material.
• The Failure Point: When those permanent holes are spaced too closely (high density), the remaining bridge of plastic between them becomes too thin to hold tension. It snaps like a perforated notebook page.

One viewer asked why not just modify the pattern. That’s the right instinct: if the file was digitized for fabric behavior, it may need a PVC-specific stitch strategy (more on that below).

The “Hidden” Prep Before You Stitch PVC Vinyl: Pick the Right Gauge, Avoid Milky Creases, and Test Like a Pro

PVC success starts before you ever hoop. The video compares branded embroidery vinyl (OESD clear vinyl) with hardware-store patio blind material and makes a key point: quality shows up when you crease it.

If you fold or hard-crease low-quality vinyl and it leaves a permanent cloudy stress mark (“milky line”), that area is already weakened. Put needle holes near that stress line and it’s far more likely to perforate and tear.

The presenter’s practical recommendation is to aim for 20 or 22 gauge (roughly 0.5–0.7 mm in the video’s approximation). Thinner tabletop-style vinyl (often 12-16 gauge) is too flimsy and will fail when you try to secure it with satin-style borders. Conversely, marine vinyl (40 gauge) creates too much drag for most home machines. 20 gauge is the "Sweet Spot."

Prep Checklist (do this before you even open the design)

• Gauge Check: Confirm your PVC is 20–22 gauge. It should feel substantial, like a heavy freezer bag, not like cling wrap.
• The "Stress Test": Take a scrap piece and fold it sharply. Unfold it.
  • Result A: It springs back clear? Safe to use.
  • Result B: It leaves a permanent white ("milky") crease? Discard. This vinyl is brittle and will tear at the stitch line.
• Project Mapping: Decide whether your project is straight-stitch only (more forgiving) or satin/zigzag border (needs stronger vinyl).
• Cut Clean: Cut PVC with sharp rotary scissors to ensure clean edges so it lays flat and doesn’t “fight” the stitch line.

If you’re building a repeatable workflow, this is where a hooping station for embroidery earns its keep—PVC projects punish sloppy alignment, and consistent placement reduces re-hooping and wasted windows.

Sewing Machine Stitch Length on PVC Binding: The 3.0 mm Rule That Prevents Perforation Tears

When attaching binding to PVC on a sewing machine, the video calls out a setting that matters more than people think: increase straight stitch length to at least 3.0.

Standard sewing length (usually 2.0mm - 2.5mm) puts holes too close together on plastic. Short stitches on PVC behave like a tear strip. Longer stitches reduce the “hole density,” increasing the distance between punctures so the vinyl keeps its structural integrity.

Video setting (sewing machine): straight stitch length 3.0 mm or greater.

Video note (embroidery machine): the stitch length used for securing the PVC was “a little bit longer than normal,” again to avoid creating a perforation line.

Setup Checklist (sewing + embroidery setup)

• Sewing Machine: Set straight stitch length to 3.0 mm - 3.5 mm when binding PVC.
• Visual Check: Look at your first few stitches. If they look like a continuous cut line rather than individual dashes, your length is too short.
• Embroidery Machine: If you have control (via software or machine settings), reduce density on satin borders intended for vinyl.
• Surface Check: Wipe the machine bed. Any grit or lint will scratch clear vinyl instantly.

Pro Tip: If you are pinning binding to PVC, stop. Pins leave permanent holes. Use Wonder Clips or a light spray adhesive. If you’re trying to speed up repetitive hooping for bag batches, a magnetic hooping station can reduce handling time and help keep PVC from shifting while you’re positioning layers without using destructive pins.

The Stitch Density Trap: How “Open Satin” Digitizing Keeps PVC Windows Locked In

The video’s most valuable lesson is this: you can’t have a tight, dense satin stitch and expect the window to stay in.

The presenter shows a successful sample where the satin-style border is intentionally more open—fewer punctures around the edge means the vinyl doesn’t tear out.

He also highlights a specific stitch concept: a zigzag underlay with left/right tilt satin (a clever structure designed to secure vinyl). It works beautifully in certain shapes (like a square) where the pull is predictable, but may look less ideal on more complex curves—so the “open” or "light density" approach becomes the more universal solution.

Why this works (expert insight you can apply to any file)

Generally, PVC behaves like a sheet material: it needs attachment stitches that distribute stress rather than concentrating it into a dense needle-hole line.

In practice, that means:

• Lower Density: Standard satin density is often 0.4mm spacing. For PVC, you want 0.6mm or wider.
• Fewer Penetrations: A stitch that “grabs” (like an E-stitch or blanket stitch) is safer than a stitch that "covers" (like a dense satin).
• No Distortion: A border that doesn’t force the vinyl to stretch or buckle.

If you digitize your own borders, think in terms of “secure with fewer holes,” not “cover the edge with more thread.” That mindset shift prevents most PVC heartbreak.

If you’re evaluating tools for cleaner holding power with less distortion, magnetic embroidery hoops are often a better match for PVC windows than aggressive clamping—especially when you’re trying to avoid permanent pressure marks (hoop burn) on the clear plastic.

Needle Selection for Clear Vinyl Embroidery: The Fastest Way to Stop Cutting the Plastic

Needles are the silent deal-breaker with PVC. A standard universal needle is often okay, but specialized needles can ruin your project instantly.

The video recommends:

• A standard 75/11 embroidery needle for most PVC work.
• Moving up to a Jeans Needle 80 if you have thicker areas or multiple layers (binding + vinyl + zipper).

The "Do Not Use" List:

• Do NOT use Leather Needles: These have a wedge-shaped cutting point (like a knife). They will slice the vinyl.
• Do NOT use Sharps/Microtex: These points are too acute and piercing; while great for silk, they weaken vinyl structure.

The Physics of the Right Needle: You want a needle that punctures and pushes material aside rather than slicing it—described in the video as a semi-ballpoint or ballpoint behavior. This leaves a round hole with reinforced edges (due to friction melting) rather than a slit that wants to run.

Warning: Needles can break when you hit thick transitions (binding + fabric + PVC). Keep fingers away from the needle path, slow your machine speed down (500-600 SPM), and stop immediately if you hear a sharp “tick” or “click” sound—this indicates needle deflection.

If you’re running a home single-needle machine and want easier hooping with fewer clamp marks on these tricky materials, an embroidery magnetic hoop can be a practical upgrade path—especially when you’re doing windows that must stay crystal-clear and scratch-free.

Removing Wrinkles from PVC Vinyl Without Melting It: Use Residual Heat, Not Direct Ironing

Wrinkled PVC is common—shipping folds, storage rolls, or just handling. You cannot iron it directly; it will melt to your iron's soleplate instantly.

The video demonstrates a safe "Residual Heat" method:

1. Heat: Iron your ironing board cover (or a pressing mat) until it is hot to the touch.
2. Remove: Take the iron completely away.
3. Place: Lay the wrinkled PVC onto the warm surface.
4. Smooth: Use your hands to smooth the vinyl flat. The warmth relaxes the polymers without melting them.




Alternative: A hair dryer on "Low" setting held 6 inches away can also work, but the ironing board method provides a flat reference surface which yields better results.

Stabilizer + PVC Decision Tree: Choose Backing Like a Production Shop (Even If You’re a Hobbyist)

The video focuses on PVC, stitch structure, and needles, but in real-world ITH work, stabilization is what keeps the whole sandwich from shifting while the PVC is being secured. If your stabilizer is too weak, the vinyl will drag, causing stitch alignment issues.

Use this decision tree as a practical starting point (always confirm with your machine manual and your project’s fabric requirements):

Decision Tree (Fabric Type → Stabilizer Choice)

• Scenario A: Bag exterior is stable woven cotton.
  • Recommendation: Medium Weight Tearaway (2-2.5 oz).
  • Why: The fabric supports the vinyl; stabilizer just needs to hold the frame.
• Scenario B: Exterior fabric is soft, stretchy, or loosely woven.
  • Recommendation: Cutaway Mesh (No Show Mesh).
  • Why: You need permanent stability. Tearaway will disintegrate under the satin border, leaving the vinyl unsupported.
• Scenario C: Project involves heavy layering (Vinyl + Binding + Zipper).
  • Recommendation: Firm Tearaway + Temporary Spray Adhesive.
  • Why: Reduces shifting during the heavy needle penetrations.
• Symptom Check: If you see puckering or the PVC edge looks stressed after stitching:
  • Diagnosis: The sandwich moved or was over-tensioned during hooping.

This is also where magnetic hoops for embroidery can help: they tend to distribute holding pressure more evenly around the entire perimeter, which reduces the "pull" distortion common with traditional inner/outer ring hoops.

Warning: Magnetic Safety.
Magnetic frames use industrial-grade magnets. They are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Interference: Keep them away from pacemakers, implanted medical devices, credit cards, and mechanical watches.

Troubleshooting PVC in Machine Embroidery: Symptoms, Causes, Fixes (No Guessing)

When PVC fails, it usually fails in repeatable ways. Here’s a clean symptom-to-fix map based on the video.

A lot of disappointed makers assume the pattern is “bad,” but most of the time it’s a mismatch between vinyl thickness + stitch density + needle point. Once you correct those, the same pattern often behaves completely differently.

The Upgrade Path for Cleaner PVC Windows and Faster Batch Runs (Without Turning This Into a Gear Shopping Spree)

If you’re making one bag for fun, you can absolutely succeed with careful prep and the right vinyl/needle/stitch strategy. But if you’re making ten, fifty, or trying to sell, the bottleneck becomes handling time and repeatability.

Here’s how I’d think about upgrades in a studio setting—Scene Trigger → Decision Criteria → The Solution:

1. The Slipping Trigger

• Scene: You are fighting to keep the clear vinyl, fabric, and zipper aligned. Just as you tighten the hoop screw, the vinyl slides 2mm out of place.
• Criteria: If you are re-hooping more than once per bag, you are losing profit.
• The Solution: Consider a magnetic hoop for brother (or your specific machine brand). The "snap-on" flat clamping mechanism holds slippery vinyl instantly without the "twist and drag" of screw hoops.

2. The Hoop Burn Trigger

• Scene: You finish a perfect bag, un-hoop it, and see a crushed white ring on your clear vinyl window that won't rub out.
• Criteria: If you are throwing away finished product because of pressure marks.
• The Solution: Magnetic frames provide even vertical pressure rather than horizontal friction, eliminating hoop burn on sensitive plastics.

3. The Volume Trigger

• Scene: You have orders for 50 ITH bags. Changing thread colors and cutting jump stitches manually is taking 45 minutes per bag.
• Criteria: When production time prevents you from taking new orders.
• The Solution: This is the entry point for Multi-Needle Machines (like SEWTECH's commercial line). They handle color changes automatically and offer much larger hoop areas for batching multiple items at once.

Operation Checklist (the “don’t let it fail at the last inch” list)

Before you press "Start" on that final border stitch, run this mental audit:

• Material: Is the PVC 20–22 gauge? (No thin table vinyl).
• Quality: Is the vinyl free of milky crease lines?
• Settings: Is the sewing machine stitch length 3.0 mm+?
• File: Is the embroidery border an open/light density stitch (not heavy satin)?
• Needle: Is a 75/11 Embroidery or Jeans 80 installed? (No Leather/Sharps).
• Surface: Is the work area flat? (No wrinkling during stitching).
• Prep: Did you remove wrinkles using residual heat only?

When you combine the right gauge, the right needle, and an attachment stitch that respects how PVC fails, your windows stop being “the risky part” of the project—and start being the feature that sells the bag.

FAQ

• Q: Why does a dense satin stitch border on a clear PVC window in an ITH embroidery bag tear the vinyl out like a perforated strip?
  A: Use a lighter, more open border stitch because dense satin holes are too close together and turn PVC into a tear line.
  • Reduce border density (often moving from ~0.4 mm spacing to ~0.6 mm or wider for PVC-style borders).
  • Choose a stitch that “grabs” with fewer penetrations (open satin, blanket/E-stitch style) instead of tight coverage.
  • Test the border on a scrap of the same 20–22 gauge PVC before committing to a full bag.
  • Success check: Tug the window edge firmly; the vinyl should stay locked in without the stitch line separating cleanly.
  • If it still fails: Change to better-quality 20–22 gauge vinyl and re-check needle choice (avoid cutting-point needles).
• Q: What PVC vinyl thickness (gauge) works best for machine embroidery clear windows on ITH zipper pouches and bobbin bags?
  A: Start with 20–22 gauge clear PVC because it balances strength and stitchability for most ITH window borders.
  • Confirm the package/label is 20–22 gauge before cutting windows.
  • Avoid very thin table-cover vinyl (often 12–16 gauge) for satin-style borders because it tears easily.
  • Avoid very thick marine vinyl (around 40 gauge) if the machine drags or struggles to feed.
  • Success check: The vinyl feels substantial (not cling-wrap thin) and stays flat while stitching without the edge tearing.
  • If it still fails: Re-evaluate border stitch density/structure—PVC failure is often stitch-architecture-related, not “too much stitching” alone.
• Q: How do I test clear PVC embroidery vinyl for “milky crease” stress marks before stitching an ITH bag window?
  A: Do a quick fold “stress test” and reject vinyl that turns permanently cloudy at the crease.
  • Fold a scrap sharply, then unfold it.
  • Keep vinyl that springs back clear; discard vinyl that leaves a permanent white/milky line.
  • Cut windows with sharp rotary scissors so the edge lays flat and doesn’t fight the stitch line.
  • Success check: After unfolding, the test crease area stays clear (no cloudy stress line).
  • If it still fails: Switch to a higher-quality embroidery vinyl and keep needle holes away from any pre-existing stress lines.
• Q: What sewing machine straight stitch length should be used to bind PVC vinyl so the stitch line does not perforate and tear?
  A: Set straight stitch length to at least 3.0 mm (often 3.0–3.5 mm) to reduce hole density in PVC.
  • Increase stitch length before sewing binding onto vinyl.
  • Inspect the first few inches and stop if the holes look like a continuous cut line.
  • Avoid pinning PVC (pins create permanent holes); use clips or light spray adhesive instead.
  • Success check: Stitches look like distinct dashes with space between needle holes, not a tear-strip row.
  • If it still fails: Re-check vinyl gauge (aim 20–22) and reduce any overly dense decorative stitching near the edge.
• Q: Which embroidery machine needle type should be used for clear PVC vinyl windows, and which needles should be avoided to prevent slicing the plastic?
  A: Use a 75/11 embroidery needle for most PVC work (Jeans 80 for thicker stacks), and avoid Leather needles and Sharps/Microtex because they can cut or weaken vinyl.
  • Install a fresh 75/11 embroidery needle; move to Jeans 80 when stitching binding + vinyl + zipper layers.
  • Do not use Leather needles (wedge/cutting point) on PVC.
  • Do not use Sharps/Microtex on PVC if the holes start behaving like slits that want to run.
  • Success check: Needle holes look round and stable (no visible “slit” cuts that start tearing).
  • If it still fails: Slow down and reassess stitch density—too many penetrations can defeat even the correct needle.
• Q: What should I do on a home embroidery machine if the needle starts “clicking” or breaking while stitching thick transitions like binding + fabric + clear PVC?
  A: Stop immediately and change the needle because the “click” usually signals deflection at thick layer transitions.
  • Stop the machine as soon as the sharp “tick/click” appears; keep fingers away from the needle path.
  • Replace the needle (often Jeans 80 is safer for thick stacks) and reduce speed (about 500–600 SPM was suggested).
  • Re-start with careful monitoring through the thickest points (binding corners, zipper ends).
  • Success check: The machine runs through the transition with no clicking and no visible needle flexing.
  • If it still fails: Reduce bulk where possible and confirm the project is not using a stitch structure that overloads the edge with penetrations.
• Q: When clear PVC windows keep slipping during hooping or “hoop burn” pressure marks ruin finished ITH bags, what is a practical upgrade path from technique fixes to magnetic hoops to multi-needle machines?
  A: Start with technique/material fixes, then consider magnetic hoops for consistent holding, and move to a multi-needle machine only when order volume is the real bottleneck.
  • Level 1 (Technique): Use 20–22 gauge PVC, avoid milky-crease vinyl, increase stitch length where applicable, and use open/light-density borders.
  • Level 2 (Tool): Switch to magnetic embroidery hoops if repeated re-hooping, shifting, or pressure marks are causing scrap or rework.
  • Level 3 (Capacity): Consider a multi-needle embroidery machine when manual color changes and cleanup time block production on batch runs.
  • Success check: You stop re-hooping mid-project, PVC stays aligned, and finished windows remain clear without permanent ring marks.
  • If it still fails: Audit the exact failure symptom (tear-out vs. marks vs. breaks) and correct the matching root cause before buying more equipment.
• Q: What safety precautions are most important when using magnetic embroidery hoops/frames and when stitching thick PVC stacks on embroidery machines?
  A: Treat magnets and needles as high-risk pinch/impact hazards: keep fingers clear, slow down on thick areas, and keep magnetic frames away from sensitive items and medical implants.
  • Keep hands out of the “snap zone” when magnets clamp; magnets can pinch hard.
  • Keep magnetic frames away from pacemakers/implanted medical devices, credit cards, and mechanical watches.
  • Slow the machine on thick transitions and stop on any sudden ticking/clicking to prevent needle break hazards.
  • Success check: Frames close without pinching incidents, and stitching completes without sudden impacts or needle break events.
  • If it still fails: Switch to a safer workflow (more controlled layer placement, slower speed) and re-check needle selection for the stack thickness.
