Stop Wasting Hoops: Confidently Edit Designs on a Brother-Style LCD (Size, Rotate, Mirror, Move, and Trial Trace)

If any sensation defines the early days of machine embroidery, it is the "Start Button Anxiety." You have spent twenty minutes hooping the fabric, you have loaded the thread, and your finger hovers over the button. You think: It looks centered on the screen… but is it actually going to hit the pocket? Or just ruin a $40 jacket?

You aren’t alone. After two decades in commercial shops and teaching hundreds of students, I can tell you this: 90% of embroidery disasters—crooked logos, broken needles, and ruined garments—happen before the first stitch is even formed. They don't stem from bad digitizing; they stem from skipping the "Golden Minute" of on-screen layout checks.

This guide transforms a standard manual into a masterclass. We will walk through the exact on-board edits: entering the Layout screen, resizing safely (knowing the density limits), rotating with mathematical precision, mirroring, and the critical X/Y nudges. More importantly, we will cover the physical "old hand" habits—from stabilizer choices to the tools that stop "hoop burn"—that separate amateurs from production pros.

Calm First: The Brother-Style LCD Layout Screen Is Your Safety Net (Not a Mystery Menu)

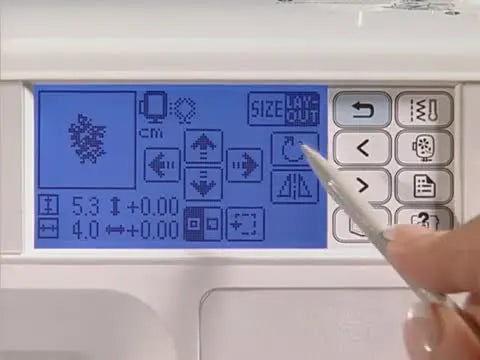

The Layout screen is not just a menu; it is your Control Center. It is where you translate digital intent into physical reality. Here, you make placement decisions before the commitment of thread, saving you from the heartbreak of unpicking hours of work.

In the video interface—common across many modern machines—you see your design in a preview box (upper left) surrounded by editing functions. To the beginner, this looks like a cockpit. To the pro, it looks like a checklist:

• Unit Switch (mm/inch): Know your language.
• Hoop Indicator: Your boundary lines.
• Size & Rotation: Fine-tuning tools.
• Mirror: Orientation control.
• Directional Arrows: The X/Y axis movers.
• Trial/Trace Key: The absolute most important button on the machine (we will get to why).

When you are working on a brother embroidery machine, understanding this screen is the difference between "close enough" and "factory-perfect placement."

The “Hidden” Prep Pros Do Before Touching the Stylus: Hoop, Stabilizer, and Clearance Checks

Before you even touch the screen, you must stabilize the physical variables. You cannot fix bad hooping with digital buttons. If your fabric is loose, skewed, or stretched like a drum that’s tight on one side and loose on the other, your on-screen edits are lying to you.

What to prep (and why it matters)

1. The Tactile Tension Check: Hoop your fabric and stabilizer. Now, gently run your fingers across the surface. It should feel taut, like a well-made bed, but not stretched like a rubber band.

• The Sound: Tap it gently. If it sounds like a hollow drum (thump-thump), it's good. If it's loose or ripples, re-hoop.
• The Sight: Look at the grain of the fabric. The weave should be perfectly straight, not bowing like a smile or a frown.

2. The Stabilizer Match: You must pair the stabilizer to the fabric logic.

• Stretchy fabric (T-shirts): Needs Cutaway stabilizer. No exceptions. Tearaway will allow stitches to distort.
• Stable fabric (Denim/Canvas): Can use Tearaway.

3. The Hidden Consumables: Pros always have these nearby:

• Temporary Spray Adhesive: To keep the fabric from shifting on the stabilizer.
• Water-Soluble Pen: To mark your center crosshairs physically on the fabric.

4. Clear the Travel Path: The hoop arm moves fast and with torque. Check for "snag hazards." Heavy jacket zippers, tote bag handles, or thick seams must be clipped or taped out of the way. If a handle catches the presser foot during a rapid travel move, it can knock the hoop out of alignment or shatter the needle.

Warning: Mechanical Impact Hazard. Keep fingers, scissors, and loose threading tools at least 6 inches away from the needle area and hoop path during setup. The frame moves suddenly during Trial/Trace. A collision between the moving arm and a pair of metal scissors can snap the drive belt or shatter the needle into flying shrapnel.

Prep Checklist (Do NOT proceed until all checked)

• Fabric Tension: Taut, even, and grain-line straight.
• Stabilizer: Correct type (Cutaway for stretch, Tearaway for stable) is secured.
• Hoop Match: The physical hoop size matches what is selected on the screen.
• Clearance: No bag handles, zippers, or workspace clutter in the arm's path.
• Needle: A fresh, sharp needle is installed (change every 8 hours of stitching).


Enter Layout Mode the Fast Way: The Third Icon → Layout (Needle + Arrow) on the LCD

Consistency builds speed. In the video, access is efficient:

1. Locate the Sidebar: Look at the right side of the LCD.
2. Select the Third Icon: Navigate to the edit sub-menu.
3. Select the "Layout" Option: Look for the icon resembling a needle with a directional arrow.

Once inside, the static image comes alive. The arrow keys illuminate, and the "Trial" button becomes active. You have now entered the "Live Zone."

Resize on the Machine (When It’s Available): Enlarge, Shrink, or Reset Without Guesswork

Resizing on-screen is convenient, but it comes with a massive asterisk that experienced digitizers know: The 20% Rule.

Most machines can scale a design up or down by 10-20%.

• The Danger Zone: If you shrink a design by 20% on the machine, the stitch count often remains the same (unless your machine has a specific stitch-processor). This increases the density.
• The Result: A bulletproof patch of thread that breaks needles and puckers fabric.

To resize effectively:

1. Tap the Size icon.
2. Use the arrows to adjust. Watch the preview.
3. Sensory Check: If the design starts looking like a solid blob of color in the preview, you have likely shrunk it too much.
4. If in doubt, use Reset to return to the digitizer's original intent.

Pro Tip: If you need to change a size by more than 20%, do not use the machine's screen. Go back to your computer software and resize it there, where the software can recalculate the stitch density properly.

Rotate Like a Pro: Use 90°/10°/1° Increments to Make Logos Look “Factory Straight”

It is nearly impossible to hoop a garment perfectly straight every single time. A variance of 2 or 3 degrees is human. Rotation is your correction tool.

Do not unhoop just because you are slightly crooked. Use the degrees:

1. Tap the Rotate icon.
2. 90° Usage: Perfect for changing a landscape design to fit a portrait hoop orientation.
3. 1° Usage (The Pro Move): Bring your needle down (using the handwheel) to hover just above your chalk line on the fabric. If the line of text looks slightly angled compared to your chalk line, tap the 1° rotate button until they run parallel.
4. Watch the value (e.g., 3°) so you know exactly how much correction you applied.

This micro-adjustment capability is what separates a "homemade" look from a professional finish.

Mirror Image (Horizontal Flip): The One Tap That Saves Left/Right Facing Designs

This simple triangle icon flips your design horizontally.

• The Use Case: You are embroidering birds on a shirt collar. You want them facing each other, not both looking left. Stitch the first one standard. For the second one, tap Mirror Image.
• The Trap: Text. Always double-check immediately after mirroring. If you mirrored a logo with text, the words are now backward.
• Visual Confirmation: Look at the preview box. Does the bird beak point the right way? Good.


Move the Design with Arrow Keys (and Trust the X/Y Values): Clean Placement Without Re-Hooping

This is the "Slide." You are moving the digital design to align with the physical fabric.

1. Use the four directional arrow keys.
2. Sensory Feedback: Listen for the beep or click with each nudge. hold it down for rapid movement, tap for fine tuning.
3. The X/Y Coordinate System:
   • X = Left/Right alignment.
   • Y = Up/Down alignment.
   • (0.0, 0.0) is the absolute center of the hoop.

The "Why" behind the coordinates: If you are doing a production run of 10 shirts, and you know the logo needs to be exactly 1 inch higher than center, you don't have to eyeball it every time. Just move the design until the Y value says "+25mm" (approx 1 inch) and use that number for every subsequent shirt. Numbers yield consistency; eyeballs yield variance.

The Trial/Trace Key: Preview the Sew Area Before You Commit Thread (and Before You Break Needles)

If you take only one thing from this guide: Never press "Start" without pressing "Trial" first.

The Trial (or Trace) function physically moves the hoop to trace the rectangular perimeter of the design.

How to Execute a Perfect Trace:

1. Lower the presser foot (visually, not the needle).
2. Press the Trial key (dashed box icon).
3. Watch the Needle Bar: As the hoop moves, visualize the needle painting a box on your fabric.
4. The Safety Check: Does the needle bar come dangerously close to the plastic edge of the hoop? Does it cross over a bulky zipper?
   • If yes: Stop. Nudge the design away from the danger zone.

Expected outcome: A confident confirmation that your design fits the space and hits no obstacles.

Starting Point Keys (Center vs Lower-Left): A Small Setting That Changes How You Think About Placement

Standard embroidery starts from the center out. However, sometimes you need to align a design to a specific corner—like the corner of a napkin or a specific point on a pocket.

• Center Start: Best for 95% of jobs (Caps, Chest logos).
• Lower-Left Start: Useful when you have marked the bottom-left boundary of where the embroidery must go and want to expand from there.

Advice for New Users: Stick to Center. Simply mark the center of your desired embroidery area on the fabric with a water-soluble crosshair, align the machine needle to that crosshair, and go.

The Non-Negotiable Safety Rule: Needle Up Before Any Frame Movement

The video displays a graphic warning, and we must underscore it. Physics wins every time.

If your needle is sunk into the fabric (Needle Down position) and you hit an arrow key to move the frame:

1. The frame motor engages with high torque.
2. The fabric pulls against the buried needle.
3. SNAP. The needle bends or breaks.
4. Worst case: The timing gear of the machine is thrown off, requiring a $200+ repair service.

The Golden Rule: Always look at your handwheel or needle position indicator. Ensure it is in the absolute highest position (needle point hidden inside the foot) before tapping any layout keys.

“Dispositivo de seguridad se ha activado” (Safety Device Activated): What This Comment Usually Means in Real Life

A viewer note in the source video asks about the terror-inducing error: "The safety device has been activated."

This is your machine's way of screaming "Ouch!" or "I'm Stuck!" It happens when the motor tries to move, but physics stops it.

Common Culprits & Fixes:

1. The Bird's Nest: A massive tangle of thread has formed under the throat plate, locking the bobbin.
   • Fix: Cut the nest carefully. Do not yank.
2. The Hoop Crash: The embroidery arm hit a wall, a coffee mug, or a pair of scissors left on the table.
   • Fix: Clear the workspace. Turn the machine off and on to reset the sensors.
3. Needle Drag: You tried to move the frame while the needle was down (see previous section).


Setup Checklist: The “No-Surprises” Screen Settings Before You Stitch

You are moments away from stitching. Run this mental flight check.

• Units: Set to your preference (mm vs inches) to avoid scale errors.
• Hoop Validated: Screen shows "100x100" (or similar) matching your actual hoop.
• Rotation Applied: Design is parallel to the fabric grain/chalk line.
• Mirror Check: Text is readable, not backward.
• Position: X/Y coordinates set.
• Needle Status: Up and clear.

A Simple Decision Tree: Choose Stabilizer and Hooping Method Before You Start Nudging X/Y

Sometimes, no amount of X/Y nudging works because the fabric itself is fighting you. Use this decision tree to determine if you need to upgrade your tools or your technique.

Decision Tree (Fabric → Stabilizer/Hooping Approach):

1. Assessment: Is the fabric slippery, bulky, or delicate (e.g., Velvet, Puffy Jacket, Silk)?
   • Yes: Traditional hooping (inner/outer rings) creates "Hoop Burn" (crushed fibers) or slips.
     • Action: Consider floating with adhesive or upgrading to Magnetic Hoops.
   • No (Cotton/Denim): Use Standard Hoop.
2. Assessment: Are you doing a production run (10+ items)?
   • Yes: Hand and wrist fatigue will set in with standard hoops. Re-hooping speed becomes the bottleneck.
     • Action: This is the trigger point to investigate tools like the magnetic hoop for brother to double your output speed.
   • No: Standard hoop is fine.
3. Assessment: Are you constantly re-hooping because the design is crooked?
   • Action: Stop. Use the Rotation function (1° increment) described above. Do not unhoop; adjust digitially.

The “Why” Behind Better Placement: Hooping Physics, Not Luck

Here is the physics of why placement fails: Fabric Memory. When you force fabric into a standard hoop, you stretch it. When the needle penetrates, the fabric tries to shrink back to its original state. This causes "puckering" or shifting.

Experienced operators know that the less you "manhandle" the fabric, the better the result. This is why the industry has shifted toward magnetic clamping.

If you find yourself searching for terms like magnetic hoop for brother, you are likely trying to solve one of two problems:

1. Marks: The pressure of standard hoops leaving permanent rings on sensitive dark fabrics.
2. Pain: The physical strain of tightening screws on heavy jackets.

Magnetic hoops hold fabric firmly without the torque-twisting distortion of standard hoops, allowing for flatter, cleaner placement results naturally.

The Upgrade Path That Actually Feels Like an Upgrade: Faster Hooping, Cleaner Fabric, Less Wrist Strain

Embroidery is a journey from "Making it work" to "Production Efficiency." You do not need to buy everything at once. Follow this logical upgrade path based on your pain points.

Level 1: The Essentials (Fix Quality)

• Pain Point: Thread breaks, white bobbin showing on top.
• Solution: High-quality Polyester Embroidery Thread (high sheen, high strength) and pre-wound bobbins.
• Pain Point: Puckered t-shirts.
• Solution: Fusible Poly-mesh Cutaway Stabilizer (soft on skin, bulletproof stability).

Level 2: The Workflow Optimizers (Fix Speed & Safety)

• Pain Point: Hoop burn, difficulty hooping thick items (towels, bags), wrist pain.
• Solution: Magnetic Embroidery Hoops.
  • For Brother owners, the brother magnetic hoop or specifically the brother 5x7 magnetic hoop (the most versatile size) allows you to "slap and go." No screws, no burns, just magnets.
  • Why: It allows for instant adjustments. If trial/trace shows you are crooked, you just lift the magnet and shift the fabric. Takes 3 seconds, not 3 minutes.

Level 3: The Scale Up (Fix Volume)

• Pain Point: You are turning away orders because you can't stitch fast enough on a single-needle machine. You hate changing thread colors manually 12 times per design.
• Solution: Multi-Needle Machines (SEWTECH/Brother options).
  • Moving from a flatbed to a free-arm multi-needle machine allows you to embroider caps, bags, and tubular items that represent high-profit margins.

Warning: Magnetic Field Safety. Commercial-grade magnetic hoops are extremely powerful.
* Pinch Hazard: Do not place fingers between the magnets; they snap together with force capable of causing blood blisters or bruising.
* Medical Devices: Individuals with pacemakers or insulin pumps should maintain a safe distance (consult device manual) from high-strength magnetic hoops.

Operation Checklist: The Last 60 Seconds Before You Hit Start

Do not rush the launch.

• Needle Clearance: Needle is confirmed UP.
• Trace Run: You have run the Trial/Trace and the tracking light/needle remained inside the fabric and hit no zippers.
• Consumables: The correct bobbin color is loading.
• Threading: The top thread is through the eye and the foot is clear.
• Environment: No obstructions behind the machine (wall spacing) for the hoop to hit as it moves back.

Exit Cleanly: Back Key, OK Prompts, and Returning to the Sewing Screen Without Losing Your Mind

When layout is perfect:

1. Press OK or the Start icon (depending on model) to lock in the settings.
2. The machine will ask usually prompt you to lower the presser foot or press the blinking green button.
3. Listen: The sound of the machine should be a rhythmic chug-chug-chug. If it sounds like a jackhammer, STOP immediately.

[FIG-14] [FIG-15] [FIG-16] [FIG-17]

Embroidery is a blend of art and engineering. The art is your design; the engineering is the layout and hooping. By mastering the Layout screen and upgrading your hooping workflow—perhaps eventually learning how to use magnetic embroidery hoop systems for speed—you move from "hoping it works" to "knowing it will."

Stitch with confidence. Your tools are ready.

FAQ

• Q: On a Brother embroidery machine Layout screen, what should be checked before pressing Start to avoid crooked placement and hoop crashes?
  A: Use the “Golden Minute”: confirm hoop selection, position, and run Trial/Trace before any stitching—this prevents most preventable disasters.
  • Verify the on-screen hoop size matches the physical hoop installed.
  • Confirm rotation and mirror settings in the preview box before locking them in.
  • Press Trial/Trace and watch the full travel path for zippers, handles, or hoop-edge proximity.
  • Success check: the traced perimeter stays inside the safe fabric area and clears all bulky obstacles.
  • If it still fails: stop and re-check fabric tension/stabilizer choice, because layout edits cannot correct unstable hooping.
• Q: How can a Brother embroidery machine operator confirm correct hooping tension and fabric grain before using X/Y arrow nudges?
  A: Re-hoop until the fabric is taut and even (not stretched), with the grain running straight—digital nudges assume the fabric is stable.
  • Tap the hooped fabric and listen for a hollow “thump-thump” rather than a loose ripple sound.
  • Look at the weave/grain and correct any “smile/frown” bowing before continuing.
  • Secure fabric to stabilizer with temporary spray adhesive if shifting is likely.
  • Success check: the surface feels like a well-made bed—smooth, even tension, no waves at the edges.
  • If it still fails: switch the stabilizer type to match the fabric (cutaway for stretch; tearaway for stable).
• Q: Which stabilizer should be used on a Brother embroidery machine for T-shirts vs denim to prevent distortion and puckering?
  A: Use cutaway stabilizer for stretchy fabrics like T-shirts, and tearaway can work for stable fabrics like denim/canvas.
  • Choose cutaway for any knit/stretch garment to resist stitch pull and shape distortion.
  • Choose tearaway for stable woven items when clean removal is desired.
  • Add a physical center crosshair mark with a water-soluble pen to reduce placement guesswork.
  • Success check: after stitching, the design lies flat without the surrounding fabric “drawing in” or warping.
  • If it still fails: reduce hoop distortion (often by improving hooping technique or considering a magnetic hoop for delicate/slippery fabrics).
• Q: On a Brother embroidery machine, how far is it safe to resize a design on the LCD without causing excessive stitch density?
  A: Stay within the common 10–20% on-screen scaling range and avoid shrinking until the preview looks like a solid blob, because density can become too high.
  • Tap the Size icon and adjust gradually, watching the preview as you change scale.
  • Use Reset to return to the original digitized size if the design begins to look overly packed.
  • Do larger size changes in embroidery software so stitch density can be recalculated properly.
  • Success check: the preview still shows clear spacing and detail rather than a “bulletproof” block of fill.
  • If it still fails: revert to original size and re-digitize/resize in software instead of forcing the machine to scale.
• Q: On a Brother embroidery machine, how do you prevent broken needles when moving the hoop in Layout mode with arrow keys?
  A: Always move the frame only with the needle fully UP—moving with the needle down can snap the needle and may knock timing out.
  • Check the needle position indicator/handwheel and raise the needle to the highest position before any X/Y movement.
  • Use taps for fine nudges and holds for fast moves, but only after confirming needle clearance.
  • Run Trial/Trace after repositioning to confirm the path is still safe.
  • Success check: frame moves smoothly with no needle deflection and no sudden “impact” sounds.
  • If it still fails: stop immediately and inspect for a snag hazard (zippers/handles/clutter) blocking the hoop path.
• Q: What does “Dispositivo de seguridad se ha activado” mean on an embroidery machine, and what are the first safe fixes to try?
  A: It usually indicates the machine motor sensed a jam or collision—clear thread nests, remove obstructions, and reset after fixing the cause.
  • Inspect under the throat plate area for a bird’s nest and cut it away carefully (do not yank).
  • Check for hoop crashes: scissors, mugs, bag handles, or zippers caught in the travel path.
  • Power cycle the machine after clearing the obstruction so sensors can reset.
  • Success check: after cleanup and reset, the machine moves the hoop freely during Trial/Trace without stopping.
  • If it still fails: re-check that the needle was not down when frame movement was commanded and inspect for remaining thread jams.
• Q: When should a Brother embroidery machine user switch from standard hoops to magnetic embroidery hoops or consider upgrading to a SEWTECH multi-needle machine for production efficiency?
  A: If hoop burn, thick-item hooping difficulty, or re-hooping time is the bottleneck, upgrade the hooping tool first; if thread color changes and speed limit orders, consider multi-needle capacity.
  • Level 1 (technique): use Trial/Trace + 1° rotation fixes instead of re-hooping for small crookedness.
  • Level 2 (tool): use magnetic hoops when standard hoops cause hoop burn, slipping, or wrist strain—especially on bulky or delicate items.
  • Level 3 (capacity): move to a multi-needle machine when single-needle color changes and throughput prevent taking more orders.
  • Success check: hooping becomes faster and more repeatable, and fewer garments are rejected for placement/marks.
  • If it still fails: reassess stabilizer and hooping tension first, because even upgraded tools cannot compensate for incorrect stabilization.
