The $130 Cap Embroidery Hack for Baby Lock & Brother: Setting Up a 5x7 Magnetic Hoop + Magnetic Hoop Clip (Without Buying a Multi-Needle)

Master the "Cap Hack": How to Embroider Hats on a Single-Needle Machine (Successfully)

If you have ever stared at a structured baseball cap and thought, "I am not buying a $7,000 multi-needle machine just to stitch one logo," you are not alone. The video you watched presents a very real-world, budget-minded workaround: pairing a generic cap clip attachment with a specific 5x7 magnetic hoop. This allows a standard home single-needle machine (like a Brother PE800 or Baby Lock) to hold a baseball cap in a flat, controllable state.

The Good News: The concept works. The Bad News: The margin for error is razor-thin. The most common failures aren't because "the machine can't do it"—they happen because of false securement, orientation errors, or treating a 3D cap like a 2D T-shirt.

Below is the "Shop-Tested" white paper on this method. We have added the missing safety protocols, the sensory checks, and the empirical data necessary to keep you from breaking needles or ruining hats.

Don’t Panic: A Baby Lock Embroidery Machine Can Handle Caps—If You Respect the Hold

The video starts with a familiar crossroads: skipping an expensive industrial machine purchase to try a "hack" on a home level. That is a smart financial instinct when your volume is low.

Here is the reality after 20 years in embroidery shops: A home single-needle machine can stitch a cap as long as the cap is held stable and flat enough for the needle path. The machine doesn't know it's sewing a hat; it only knows it's sewing fabric. The "Cap Clip + Magnetic Hoop" combo is simply a holding system designed to cheat geometry.

The Golden Rule: Caps fail from movement, not from thread. Movement comes from:

1. Poor Hooping Pressure: Maps sliding under the foot.
2. Wrong Stabilizer: The fabric flagging (bouncing) up and down.
3. Mechanical Collision: The bill hitting the machine arm.

If you are shopping for parts to attempt this, you are technically looking for a cap hoop for embroidery machine—but be aware, on a single-needle machine, this is a "flat hoop" simulation, not a true rotating cap driver.

The Sneaky Gotcha: The Magnetic Hoop Clip Box Doesn’t Include the Hoop Frame

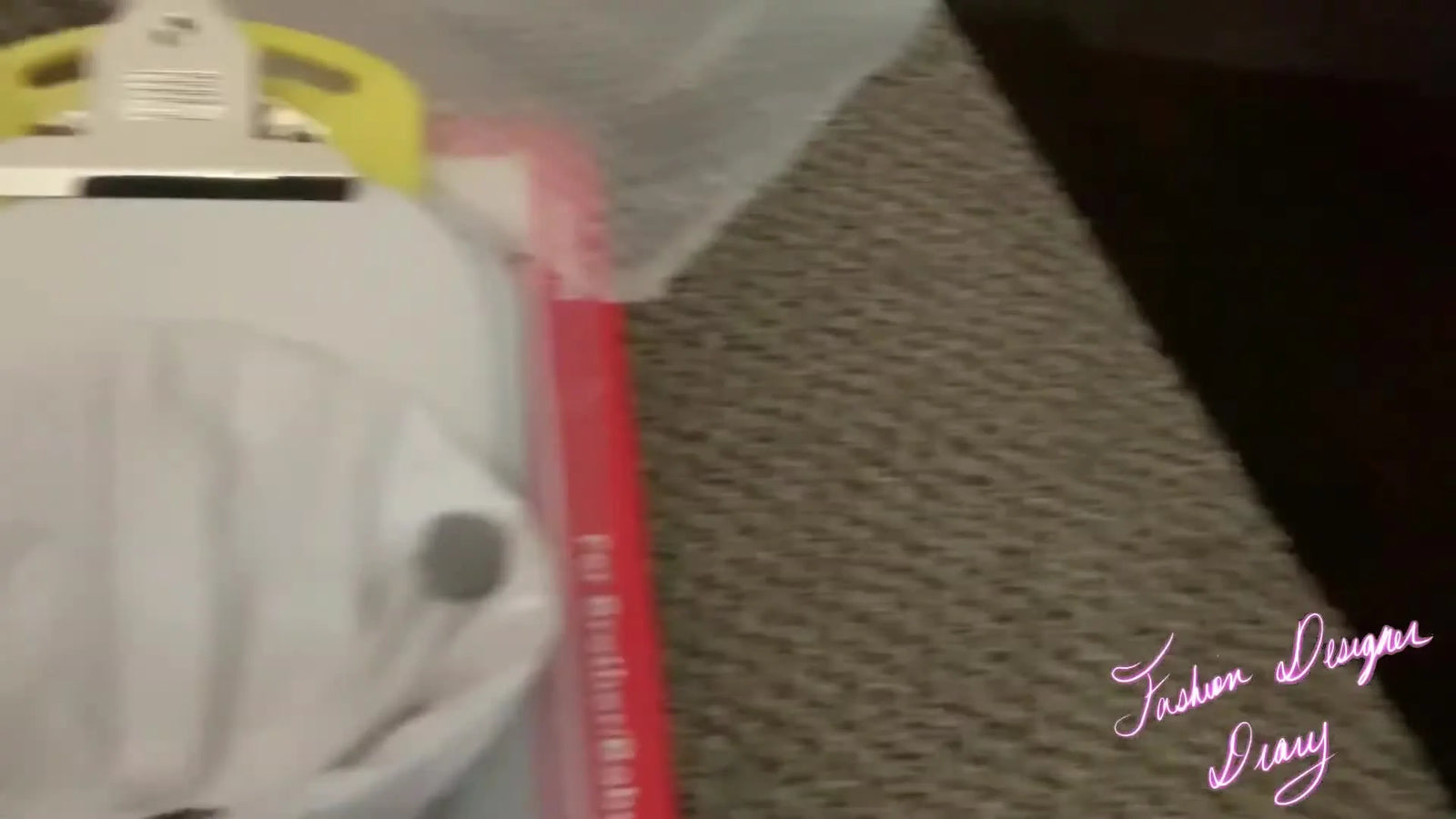

In the unboxing, the creator opens the "Magnetic Hoop Clip" package and finds:

• A white unstructured baseball cap.
• The yellow/metal clip assembly.
• Zero hoop frame.

This is the #1 Trap. Beginners assume "Cap Hoop Kit" implies a standalone functional unit. In this ecosystem, the clip is an accessory that must snap onto a specific magnetic base.

Expected Sensory Outcome: You should be holding a yellow clip mechanism that feels useless on its own because it has nowhere to snap. It requires a "host."

Warning: Physical Safety
Keep fingers clear when testing the clip and magnets. These are industrial-strength magnets. They do not "slide" together; they snap.
* Pinch Hazard: They will pinch skin instantly causing blood blisters.
* Shatter Hazard: Letting magnets slam together can chip the plastic casing or the magnet itself. A chipped magnet has sharp edges that will snag gentle fabrics later.

The Second Purchase That Makes It Work: A 5x7 Magnetic Hoop (SA439M-Style)

The video clarifies that you must make a second purchase: A 5x7 magnetic hoop (often in red/white packaging labeled for Brother/Baby Lock, model reference SA439M).

Tech Specs & Compatibility Check:

• Hoop Size: 5x7 inches (130 x 180 mm). This is the only size that typically fits these specific yellow clips.
• Attachment Style: You must verify the metal bracket on the side matches your specific machine (e.g., Brother PE series, Baby Lock specific mounts).
• Template: Must include the clear plastic grid.

This hoop is the foundation. Without this specific magnetic base, the clip is a paperweight. If you’re searching, the exact phrase many buyers use is brother 5x7 magnetic hoop.

The “Hidden” Prep Pros Do Before Any Cap Goes Near a Hoop

The packaging instructions in the video list a simple flow: Apply Stabilizer → Align Cap → Snap Clip → Embroider. That is the "Lego instruction" version. Here is the "Engineer's Version" to ensure success.

Prep Checklist: The "Zero-Failure" Protocol

• Inventory Check: Confirm you have the Clip Assembly AND the separate 5x7 Magnetic Hoop.
• Surface Hygiene: Wipe the magnetic faces with a lint roller or alcohol wipe. Dust creates a "slippery" layer that reduces holding force.
• Grid Integrity: Check that the clear grid template slides in/out smoothly. If it catches, file the burr down.
• Magnet Coating Check: The video notes a grey coating. Touch Check: Run your finger over it. It must differ from a raw magnet (which is gritty). The coating protects your machine bed from scratches.
• Hidden Consumable - The Spray: For caps, you almost always need Temporary Adhesive Spray (like 505) or sticky-back stabilizer. Friction alone is rarely enough for thick canvas.
• The "Sacrificial" Cap: Do not learn on a $25 branded cap. Buy a cheap thrift store cap for your first attempt.

Commercial Reality Check: This is where you decide your path.

• Hobby Mode: If you do 3 hats a year, this prep time is fine.
• Profit Mode: If you plan to stitch 50 hats, this 4-step prep will destroy your hourly wage. This is the "Trigger Point" where professionals upgrade to Production Magnetic Frames (quick snap) or Multi-Needle Machines (cylindrical frames) to skip the "cleaning and sticky backing" dance.


How to Inspect the 5x7 Magnetic Hoop: Grid Template, Top/Bottom Separation, and Bracket Fit

The video demonstrates sliding the clear grid template out. This is your targeting system.

The Inspection Pass:

• Top vs. Bottom: Separate the pieces. You should feel significant resistance.
• The Bracket: Look at the metal attachment point. Compare this visual to your current plastic hoops. If the metal bracket shape doesn't match your existing plastic hoops exactly, do not force it onto the machine.

If you’re shopping broadly, you’ll see listings like magnetic hoop for brother. The critical data point is not the brand name in the title, but the bracket geometry.

The Orientation Mistake Everyone Makes Once: Which Way the Yellow Clip Faces

In the video, the creator holds the yellow clip against the hoop box to simulate assembly and notes she is holding it upside down relative to the machine.

Why This Matters (Geometry & Clearance): On a single-needle machine, the embroidery arm is on the right (usually). The needle bar is in the center. The back of the machine is solid plastic. If you orient the clip so the Bill Clamp faces the back of the machine, the bill will hit the machine body before you finish stitch #1.

The "Dry Fit" Simulation:

1. Stand in front of your machine.
2. Hold the clip in your hands.
3. Orient the clip so the Bill Clamp faces YOU (or towards the open space to the left, depending on your hoop driver orientation).
4. Ensure there is a clear "tunnel" for the cap material to float without hitting the embroidery arm.


Magnets Aren’t Just “Strong”—They’re a Pressure System (Use Them Like One)

The video highlights the grey circular magnets. It notes they are strong.

Expert Insight: Magnets are not just "holders"; they are pressure applicators.

• Too Little Pressure: The cap shifts. Stitch registration fails.
• Too Much Pressure: The magnets pinch the fabric so hard it distorts the weave. When you un-hoop, the logo shrinks, and you get "puckering."

Sensory Check: When you place the magnet, listen for a solid THUD, not a rattle. If the magnet wobbles, there is a seam or multiple layers of buckram underneath preventing a flat seal. Move the magnet slightly to a flatter spot.

If you’re new to this, you’ll see people casually say magnetic hoop as if all setups behave the same. In practice, magnet placement strategy is the difference between a round circle and an oval one.

Warning: Medical & Electronic Safety
Magnetic components generate strong fields.
* Pacemakers/ICDs: Keep these hoops at least 6-12 inches away from the chest area.
* Electronics: Do not place phones, credit cards, or digital USB sticks directly on the magnets. They can wipe data or damage screens.

The Actual Assembly Flow (Video-Based), With Checkpoints That Prevent Wasted Caps

The box instructions are overly simple. Here is the operational workflow re-sequenced for safety.

1. The Stabilizer Foundation

The packaging says "place adhesive stabilizer on frame."

• Action: Hoop a piece of Sticky Self-Adhesive Tearaway (or Cutaway with spray). Peel the paper to expose the sticky side facing UP.
• Checkpoint: It must be tight, like a drum skin. No wrinkles.

2. Cap Alignment

• Action: Place the cap onto the sticky stabilizer. Press the spine of the cap firmly onto the center line.
• Sensory Check: Run your knuckles inside the cap. Is the sweatband caught under? Pull it out.

3. The Clip Engagement

• Action: Snap the yellow clip over the cap brim and onto the frame.
• Checkpoint: The clip should sit flush. Give the brim a gentle tug. It should not slide.

4. The "Float" Check (Crucial)

• Action: Use the side magnets to pin the sides of the cap down to the stabilizer.
• Constraint: Do not pull the sides so hard that the cap crown flattens completely—this will distort your design.


Positioning the Cap Like a Pro: Flatten the Panel Without Warping the Crown

The video shows the creator using side magnets to secure the material. This is the hardest part of the process: The "3D to 2D" Conflict.

When you force a curved cap flat, excess fabric has to go somewhere.

• Bad Technique: Pulling the sides until the front panel screams. This causes the design to "smile" (curve upwards) when released.
• Pro Technique:
  1. Secure the center (brim clamp).
  2. Gently smooth the fabric outward from the center seam.
  3. Place magnets to hold the fabric, not to stretch it.

Visual Check: Look at the center seam of the cap. Is it a straight line? If it looks like a wavy snake, you have over-stretched the fabric.

Stabilizer Decision Tree for Caps (So the Design Doesn’t Shift or Pucker)

The video glosses over stabilizer choice. This has to be precise.

Decision Tree: What Goes Under the Cap?

1. Is the cap "Unstructured" (Floppy, like a dad hat)?
   • YES: You need structure. Use 2.5oz or 3.0oz Cutaway Stabilizer + Temporary Spray. The sticky backing alone is not enough; the needle will push the fabric into the throat plate.
2. Is the cap "Structured" (Hard buckram front)?
   • YES: You can use Sticky Tearaway. The cap supplies its own rigidity. The stabilizer just stops it from sliding.
3. Is the design dense (10,000+ stitches)?
   • YES: Floating Method. Hoop Heavy Cutaway. Spray it. Stick cap on top. Use the magnets. Do not rely on tearaway for high stitch counts.

If you’re building a reliable cap workflow, learning how to use magnetic embroidery hoop systems correctly is 80% about stabilizer selection and only 20% about the magnets.

Setup Checklist (Right Before You Put It on the Machine)

Do not skip this. This is the "Pre-Flight" check that saves your machine.

• Clearance Check: With the machine OFF, manually move the embroidery arm. Does the yellow clip or bill hit the needle bar housing?
• Orientation: Is the bill pointing away from the machine body?
• Magnet Height: Are any magnets stacked on top of each other? (This can be too high for the presser foot to clear).
• Sweatband Management: Is the sweatband flipped out or taped back? If it's folded under the embroidery area, you will stitch the hat shut.
• Needle Choice: Are you using a Sharp 75/11 or Titanium needle? Caps are thick; ballpoint needles will struggle.


The “Why It Works” (and Why It Sometimes Doesn’t): Hooping Pressure vs. Consistency

Magnetic systems feel magical because they remove the wrist strain of traditional screws. But the trade-off is consistency.

Common outcomes:

• Design leans left: You pulled the left side tighter than the right during hooping.
• Hoop Burn: Actually, magnetic hoops are great for solving this. Traditional plastic rings crush fabric fibers (hoop burn). Magnetic hoops distribute load, making them ideal for velvet, corduroy, or sensitive cap fabric.

The "Tool Upgrade" Logic: If you start seeing inconsistency, it's often not your skill—it's the tool. The "Clip Hack" is harder to repeat perfectly every time compared to:

1. Dedicated Magnetic Hoops: (Like those we sell at Sewtech) which have stronger, fixed magnets for flat goods.
2. Multi-Needle Machines: Which use a cylindrical arm to enter the hat naturally, requiring zero distortion.

For many home users, the search phrase that leads them here is magnetic embroidery hoop. The real win is finding a tool that allows repeatable setup without pain.

Troubleshooting the Top 3 "Cap Hack" Failures

The video covers the missing frame issue. Here are the three issues that happen during sewing.

The Upgrade Path: When to Stick With This Hack vs. Move Up

This clip + 5x7 hoop approach is a solid "Proof of Concept." It allows you to enter the hat market for under $100.

The Decision Matrix:

• Volume: 1–5 caps/month: Stay here. The time cost of 10 minutes per hat setup is acceptable.
• Volume: 20+ caps/month: You are losing money on labor. The "Hack" is too slow.

Your Upgrade Options:

• Level 2 (Speed & Safety): SEWTECH Magnetic Hoops. For flat production (patches, backs of jackets), these reduce hooping time by 50% and eliminate "hoop burn."
• Level 3 (Scale & Profit): Multi-Needle Machine. If you want to do hats professionally, a machine with a free arm (cylindrical bed) allows you to sew 270 degrees around a cap without flattening it.

If you’re specifically running a Baby Lock-style home setup, look for systems described as magnetic hoops for babylock embroidery machines—and always prioritize systems with strong, high-grade magnets (N52 rating is the industry gold standard).

Operation Checklist (The Final "Don't Ruin the Cap" Pass)

• Speed Limit: Turn your machine speed DOWN. Start at 400-600 SPM (Stitches Per Minute). The heavy hoop combo has high inertia; high speeds will cause layer shifting.
• The Trace: Run the design trace function. Watch the foot closely. Does it clear every magnet by at least 5mm?
• The Listen: Start the machine. Listen for the rhythmic thump-thump. If you hear a sharp click-click, the needle is deflecting off the buckram lining. Change to a fresh #90/14 Sharp needle.
• The Watch: Do not walk away. Caps on single-needle machines require supervision.

If you want the simplest takeaway: The creator successfully builds a cap-holding system by combining a clip with a 5x7 magnetic frame. It is not automatic. It requires you to be the "engineer" of the hold. Respect the magnets, slow the machine down, and you can achieve retail-quality hats at home.

FAQ

• Q: Why does a cap clip attachment not work by itself without a 5x7 magnetic hoop frame (SA439M-style) on Brother PE-series or Baby Lock embroidery machines?
  A: The cap clip attachment is only an accessory—the cap clip must snap onto a separate 5x7 magnetic hoop base to hold the hat securely.
  • Confirm the box contains two separate items: the yellow/metal cap clip assembly and the standalone 5x7 magnetic hoop frame.
  • Match the hoop’s metal side bracket to the exact bracket shape of the machine’s original plastic hoop before mounting.
  • Install the clear grid template so alignment is repeatable.
  • Success check: The clip “locks” onto the hoop and sits flush; it should feel useless when held alone but solid when snapped to the frame.
  • If it still fails: Do not force the hoop onto the machine—re-check bracket geometry or use the correct hoop model for the mount style.
• Q: What prep supplies are usually required to embroider hats using a 5x7 magnetic hoop and cap clip on a Brother PE800 or Baby Lock single-needle embroidery machine?
  A: A stable hold usually requires sticky stabilizer and/or temporary adhesive spray—friction alone often is not enough for caps.
  • Clean the magnetic faces with a lint roller or alcohol wipe to prevent “slip” from dust.
  • Hoop sticky self-adhesive tearaway (or use cutaway with temporary adhesive spray) as the foundation.
  • Keep a “sacrificial” practice cap for the first runs to dial in placement and clearance.
  • Success check: The stabilizer is drum-tight with no wrinkles, and the cap does not slide when gently tugged after clipping.
  • If it still fails: Switch to heavier cutaway (especially for floppy caps) and add more controlled adhesive spray coverage.
• Q: How do you prevent the baseball cap bill from hitting the machine body when using a cap clip with a 5x7 magnetic hoop on a home single-needle embroidery machine?
  A: Do a dry-fit orientation test first—cap failures often come from clip orientation and clearance, not stitching.
  • Hold the assembled hoop/clip in front of the machine before mounting and orient the bill clamp toward open space (not toward the solid back of the machine).
  • With the machine OFF, manually move the embroidery arm through its range to confirm no collision points.
  • Reposition the clip so the cap can “float” without the bill striking the needle bar housing or machine body.
  • Success check: The hoop traces freely by hand with no bumping, rubbing, or hard stops.
  • If it still fails: Reduce magnet height (do not stack magnets) and re-run the trace function to confirm at least a small visible clearance around all hardware.
• Q: What stabilizer should be used for structured vs. unstructured hats when embroidering caps with a cap clip and 5x7 magnetic hoop?
  A: Match stabilizer to hat structure and design density—wrong stabilizer causes shifting, flagging, and puckering.
  • Use 2.5oz–3.0oz cutaway stabilizer plus temporary adhesive spray for unstructured (floppy) caps that need added support.
  • Use sticky tearaway for structured caps with buckram fronts, because the cap supplies rigidity and the stabilizer mainly prevents sliding.
  • Use a floating method (hoop heavy cutaway, spray, then stick cap on top) for dense designs (often 10,000+ stitches) instead of relying on tearaway.
  • Success check: The cap panel stays flat enough to stitch without bouncing, and the center seam remains straight (not wavy) after securing.
  • If it still fails: Increase support (heavier cutaway) and reduce speed to minimize inertia-related shifting.
• Q: How can you tell if the magnetic hoop pressure is correct when embroidering a cap with side magnets (so the design doesn’t pucker or distort)?
  A: Treat magnets as a pressure system—place magnets to hold fabric, not to stretch the crown flat.
  • Secure the center first (brim clamp), then smooth outward from the center seam before placing side magnets.
  • Listen/feel for a solid “THUD” when magnets seat; reposition if magnets wobble due to seams or stacked layers under the magnet.
  • Avoid pulling the sides so hard the crown collapses—over-stretching causes “smiling” distortion when the cap releases.
  • Success check: The center seam looks straight (not like a wavy snake), and the cap fabric is held without being visibly stretched.
  • If it still fails: Reduce side tension, move magnets to flatter zones, and add adhesive support so magnets don’t have to “over-clamp.”
• Q: What should you do if a Brother or Baby Lock single-needle embroidery machine breaks a needle with a loud “bang” while embroidering a cap using a magnetic hoop and cap clip?
  A: Stop immediately—this symptom usually means the presser foot hit a magnet or the clip hardware.
  • Power down and inspect the stitch area for any magnet or clip component inside the presser foot clearance zone.
  • Run the machine’s trace function and watch the foot path closely before restarting.
  • Move magnets farther away from the design boundary and ensure no magnets are stacked (stacking increases height).
  • Success check: The trace completes with visible clearance around every magnet/clip part and no contact sounds.
  • If it still fails: Re-check cap orientation and bill clearance, then slow the machine down to reduce inertia and sudden deflections.
• Q: What are the key safety precautions for strong magnetic hoops and cap clip systems used with home embroidery machines?
  A: Handle magnets like industrial parts—they snap, pinch, and can damage electronics if treated casually.
  • Keep fingers clear when bringing magnets together; allow magnets to meet in a controlled way to avoid pinch injuries and chipped housings.
  • Keep strong magnets away from pacemakers/ICDs and avoid placing phones, credit cards, or USB drives directly on the magnets.
  • Inspect magnet coating by touch; a damaged/chipped magnet can snag delicate fabrics later.
  • Success check: Magnets seat without uncontrolled slamming, and there are no chipped edges or sharp points contacting fabric.
  • If it still fails: Replace damaged magnets/components and slow down handling—do not continue using chipped parts near fabric or hands.
• Q: When does the cap clip + 5x7 magnetic hoop method become too slow for hat orders, and what is the practical upgrade path for higher volume?
  A: If setup time is dominating your workflow, upgrade based on volume—this is common when moving from hobby to profit mode.
  • Stay with the cap clip + 5x7 magnetic hoop method for low volume (often 1–5 caps/month) where 10 minutes of setup per hat is acceptable.
  • Move to faster, repeatable holding tools (dedicated magnetic hoops/frames) when consistency and speed become the bottleneck.
  • Step up to a multi-needle machine with a cylindrical/free arm when you need professional hat throughput without flattening/distorting caps.
  • Success check: The chosen setup produces repeatable placement with fewer re-hoops and less “engineering” time per cap.
  • If it still fails: Track where time is lost (cleaning, sticking, re-aligning, collision checks) and upgrade the specific bottleneck first before changing everything.
