The Mid-Stitch “Save Point” on the Happy Japan HCS3 Voyager: How to Pause a Job, Run an Urgent Order, and Resume Without Losing Alignment

Don’t Panic: The Happy Japan HCS3 Voyager Mid-Stitch Save Is Made for Real Production Interruptions

In the heat of a production run, the most terrifying sound isn't the machine breaking—it's the front door opening. You are 15,000 stitches into a complex 40,000-stitch back jacket design, and your most important VIP client walks in needing a single name dropped onto a polo shirt right now.

On lesser machines, you’re forced to make a painful choice: ruin the jacket by un-hooping it (losing alignment forever), or tell the VIP to wait two hours (risking the relationship).

But on the Happy Japan HCS3 Voyager, this panic is optional. The "Mid-Stitch Save" isn't just a pause button; it is a coordinate-locking system that freezes the machine's brain in time. You can stop, save the exact needle drop position, stitch the urgent polo, and return to the jacket later with sub-millimeter precision.

This guide rebuilds the workflow tailored for the high-stakes environment of a commercial shop. We will move beyond the buttons to discuss the physics of saving a design—because the software can save the coordinates, but only you can save the registration.

Don’t Panic: The Happy Japan HCS3 Voyager Mid-Stitch Save Is Made for Real Production Interruptions

Lauren’s video example illustrates the classic "Interruption Scenario": she is stitching a long run of patches, and an urgent order forces a changeover.

If you are transitioning from a domestic single-needle background to a commercial multi-needle environment, this requires a fundamental mindset shift. On a hobby machine, a mistake cost you $5 in fabric. On a commercial platform, downtime costs you dollars per minute.

When we talk about workflow efficiency on a 12 needle embroidery machine, we aren't just talking about stitching speed; we are talking about agility. The ability to "context switch" between bulk orders and one-offs is what separates a profitable shop from a struggling one. This feature is your safety net.

The “Hidden” Prep Before You Touch the Screen: Hoop Stability, Thread Discipline, and a Clean Stop

The touchscreen is the easy part. The physics of embroidery is where things go wrong. A software "save" is useless if the physical hoop shifts by 2mm while it's sitting on the shelf.

What you’re protecting when you “save current status”

When you hit save, the machine remembers the X/Y coordinates. But it cannot track the fabric. You must protect three physical variables:

1. Hoop Integrity (The "Drum Skin" Test): Before you un-attach the hoop, tap the fabric. It should sound like a dull thud or a drum. If the fabric has loosened during the first half of the stitch-out, resuming later will cause registration errors (gaps between outlines and fills).
2. The Thread Path: Do not cut your threads wildly. A messy trim now means a bird's nest when you resume.
3. The Stop Point: Try to pause the machine at a logical transition point—ideally during a color change or trim command. Stopping in the middle of a dense tatami fill is risky because "start/stop marks" can be visible even with perfect alignment.

Warning: Mechanical Safety. Before you reach near the needle area to trim threads or check the hoop, treat the machine as "live." Keep fingers clear of the needle bar and take rail. Never perform a "blind reach" behind the needle case while the machine is powered on.

Prep Checklist (Do this BEFORE you tap save)

• Design Audit: Note the design name currently on screen (e.g., “NOWORDS”) and the current color block number.
• Visual Snapshot: Verify the stitch count (e.g., 71,381 stitches) and current speed (800 SPM).
• Physical Stability: Gently press the inner ring of the hoop. If it pops or shifts, your fabric is already loose. Do not un-hoop; standard clamping hoops rely on friction that fades over time.
• Consumables Check: Ensure you have temporary adhesive spray or masking tape nearby to secure any loose stabilizers on the removed hoop while it waits.
• The "Parking" Spot: Clear a flat, safe surface to store the removed hoop where nothing will stack on top of it.


The Exact Screen Path: Using the Happy Japan HCS3 “Frame Move!” Menu to Save Current Status

This procedure must be muscle memory. Follow these steps exactly to ensure the data is locked.

1. Open the Stitch Navigation Menu:
   • On the main operations screen, look for the icon typically used to fast-forward or rewind through a design (the "Position" or navigation icon).

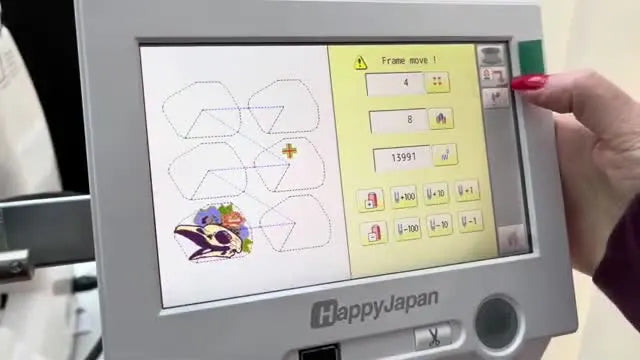

   • Tapping this changes the screen to a yellow-themed menu titled “Frame move !”.
2. Locate the "Save State" Icon:
   • Look for the icon depicting a Flower with an arrow pointing into a File Tray.
   • Action: Tap it once perfectly. Avoid double-tapping.
3. Confirm the Command:
   • The machine will prompt: “Save current status of the work?”
   • Action: Tap OK.
4. The Visual Receipt (Crucial Step):
   • Look: The icon must change appearance. It will transform from a "Flower entering Tray" to a "Tray with a Blue Arrow exiting toward a Printer".
   • Sensory Check: If you do not see this icon change, the machine has not saved. Do not turn it off or change designs until you see this visual confirmation.






The Urgent-Order Swap: Loading a New Design on the Happy Japan Machine Without Losing Your Saved Job

Now comes the "Interruption." You have saved the big job. It's time to run the small one.

1. Return to Home: Tap the Home icon to exit the Frame Move menu.
2. Load Urgent Design: Select your urgent file (e.g., “SMALLCOW”) from the memory.
3. The Maintenance Check:
   • You might see a popup: “Cleaning of rotary hook.”
   • Reality Check: While you can press Later (as shown in the demo) to survive the rush, listen to your machine. If the rotary hook sounds dry (a metallic hissing or clacking sound), a 30-second drop of oil is better than a 30-minute thread break fix.

Hidden Variable: The Hooping Strategy For urgent swaps, you are often dealing with "hard-to-hoop" items like a finished cap or a collar. This is where traditional screw-tightened hoops fail—they take too long to adjust and leave "hoop burn" (crushed fibers) on delicate urgency items. This is often the trigger point where professionals switch to a hooping station for embroidery to ensure the urgent item is hooped perfectly on the first try, reducing the stress of the interruption.

Setup Checklist (For the Urgent Job)

• Needle Check: Does the urgent design require a specific needle (e.g., a 75/11 Ballpoint for a knit polo) that contradicts the sharp needle you used for the jacket?
• Speed Limit: Don't run the urgent job at 1000 SPM just because you are in a rush. If it's a small, detailed crest, cap it at 800 SPM.
• Thread Path: If you change thread colors for the urgent job, ensure the tails are trimmed short (3-5mm) so they don't get caught when you eventually reload the big job.

The “Come Back Like Nothing Happened” Moment: Restoring the Saved Design on the Happy Japan HCS3

The urgent job is done. The client is happy. Now, you must surgically graft the second half of the original design onto the first half.

1. Re-enter the Menu: Tap the stitch navigation icon to return to the Frame move ! screen.
2. Tap the Restore Icon: Tap the Tray with Blue Arrow icon (the one that appeared when you saved).
3. Execute the Load: A popup asks: “Load back the saved data or delete?”
   • Action: Select OK. (Do not touch Delete).
4. The Calibration Dance:
   • Sensory Check: The pantograph (the X/Y arm) will move efficiently to the exact coordinate of the last stitch. You should hear the distinct electrical "whir-stop" of the motors locking into position.




Operation Checklist (The "Soft Start" Protocol)

• Visual Alignment: Before hitting start, manually lower the needle bar (with power OFF or using the hand wheel if applicable/safe) to visually verify the needle point is hovering exactly over the last penetration hole.
• Speed Reduction: For the first 100 stitches of the resumed design, drop your speed to 500-600 SPM.
• Listen: Listen for the "thump-thump" of the needle penetrating the existing stabilizer. If it sounds hollow or loose, stop immediately—your stabilizer may have shifted.
• Bobbin Check: Did the urgent job use up most of your bobbin? Check it now. running out of bobbin thread 2 minutes after resuming is a frustration you don't need.

Make It One Tap: Customizing the Happy Japan HCS3 i-CUSTOM Quick Select Toolbar for Save/Restore

In a high-production shop, every menu dive costs money. The Happy Japan interface allows you to surface the "Save" button to the main screen.

The Workflow:

1. Navigate: Main Menu → i-CUSTOM.
2. Select Slot: Tap one of the top five shortcut slots (e.g., replacing "Back one stitch").
3. Assign Function: Locate the Save Design icon in the grid below and tap it.
4. Lock It In: Press OK.

You now have a dedicated "Panic Button" on your home screen. This psychological advantage is huge—knowing you can pause and save instantly makes you more willing to accept urgent work.

The “Why It Works” (and How to Avoid the Two Most Expensive Mistakes)

The software works perfectly. It's the humans and the physics that fail. Here are the two main failure modes I see in shops:

Mistake #1: The "Hoop Drift"

While the hoop is sitting on the shelf waiting for the urgent job to finish, the backing relaxes, or someone places a coffee cup on it.

• Symptom: When you resume, the outline is 1mm to the right of the fill.
• Prevention: Store interrupted hoops hanging up or flat. Never leaning.

This is also a prime reason pro shops upgrade to Magnetic Hoops. Unlike screw hoops that rely on friction (which relaxes over time), a magnetic embroidery hoop maintains constant vertical pressure. The fabric cannot "creep" while it waits, ensuring that when you reload the frame, the tension is identical to when you took it off.

Warning: Magnetic Hazard. Magnetic hoops are industrial tools with crushing force.
* Never leave them where they can snap together unexpectedly.
* Keep away from pacemakers and sensitive electronics.
* Pinch Point: Keep fingers clear of the mating surfaces when snapping the hoop onto the fabric.

Mistake #2: The "Blind Resume"

Hitting "Start" at 1000 SPM the second the design reloads.

• Symptom: Bird's nesting or immediate thread break because the top thread wasn't tensioned correctly after the swap.
• Prevention: Hold the top thread tail for the first 3 stitches of the resumed design to ensure the knot catches securely.

Quick Decision Tree: Stabilizer + Hooping Choices for Patch Runs vs. Urgent One-Offs

When you are constantly swapping jobs, your choice of stabilizer determines if the Resume feature will be accurate.

Expert Insight: If you find yourself pausing a job on a stretchy knit fabric, do not un-hoop it. Knits relax instantly when removed from machine tension. Even with the "Save" feature, the fabric physics will likely ruin the alignment. This feature works best on stable fabrics (jackets, bags, patches).

Comment-Driven Reality Checks: Screen Freezes, Error Codes, and Thread Color Expectations

Let's address the confusion found in the comments section with verifiable facts.

1. The "Freezing Screen" Issue: A viewer mentioned the screen freezes when changing custom sizes. This is often a data overload issue or corrupt memory segment.

• Fix: Don't force it. Perform a memory clear (after backing up designs) or contact your Happy Japan tech for a firmware update. A freezing screen in a production environment is a liability.

2. Error "E-114 Id over": This cryptic error usually relates to ID limit overflows in the machine's memory or a main shaft index issue.

• Action: Do not guess. Record the error, the design name, and the needle position. Contact support.

3. Thread Colors on Screen: Lauren notes the colors are generic (Yellow, Red).

• Pro Tip: Ignore the screen colors. Build a "Thread Map" on a physical whiteboard next to the machine. Assign Needle 1 to Color X, Needle 2 to Color Y. Trust your physical map, not the digital simulation.

The Upgrade Path That Actually Makes Sense: Speed Up Hooping, Reduce Fatigue, and Protect Delivery Dates

The "Mid-Stitch Save" solves the software side of interruptions. But if your shop is constantly stopping for urgent jobs, your bottleneck is likely mechanical.

Here is how to diagnose if you need to upgrade your toolset:

• Trigger: You dread accepting urgent orders because hooping the new item takes 15 minutes of wrestling with screws and backing.
• The Diagnosis: Your hooping process is too slow and physically demanding.
• Level 1 Solution (Technique): Use a hooping for embroidery machine station to standardize placement.
• Level 2 Solution (Tooling): Switch to Magnetic Hoops. They self-adjust to different fabric thicknesses instantly. You can go from hooping a thin t-shirt to a thick Carhartt jacket without adjusting a single screw. This speed makes "pausing" a job financially viable.
• Level 3 Solution (Scale): If you are pausing the machine more than 3 times a day, the "Pause" feature isn't the solution—capacity is. This is the indicator to look at adding a second commercial machine like the happy voyager embroidery machine or a dedicated multi-head unit.


Final Takeaway: The Happy Japan HCS3's save feature is a professional tool that turns a potential disaster into a manageable delay. But remember: the machine saves the coordinates; you save the quality. Keep your hoops tight, your threads trimmed, and your nerves steady.

FAQ

• Q: How do I confirm the Happy Japan HCS3 Voyager “Mid-Stitch Save” actually saved the job before powering off or loading another design?
  A: Use the icon-change confirmation—if the Save icon does not change, the Happy Japan HCS3 Voyager did not save.
  • Tap the stitch navigation icon to enter the yellow “Frame move !” screen.
  • Tap the Flower → File Tray Save icon once, then tap OK on “Save current status of the work?”
  • Watch for the “visual receipt”: the icon must change to a Tray with a Blue Arrow (printer-style arrow).
  • Success check: The Save icon has changed appearance; if it has not changed, do not switch designs.
  • If it still fails: Avoid double-tapping, try again once, and do not proceed until the icon changes.
• Q: What physical prep is required before using “Save current status” on the Happy Japan HCS3 Voyager to prevent registration errors after an interruption?
  A: Lock the fabric physics first—saved coordinates are useless if the hoop or stabilizer relaxes while waiting.
  • Tap-test the hooped fabric for the “drum skin” feel before removing the hoop.
  • Press the inner ring gently; if it pops or shifts, do not un-hoop because the fabric is already losing tension.
  • Secure loose stabilizer edges with temporary adhesive spray or masking tape before shelving the hoop.
  • Success check: The fabric stays drum-tight and the hoop does not shift when lightly pressed.
  • If it still fails: Store the hooped job flat or hanging (never leaning) and avoid placing anything on top of the hoop.
• Q: What is the safest way to trim threads and handle the needle area on a Happy Japan HCS3 Voyager during a mid-stitch interruption?
  A: Treat the Happy Japan HCS3 Voyager as “live” around the needle area—avoid any blind reach near moving parts.
  • Keep fingers clear of the needle bar and take-up rail before trimming or checking the hoop.
  • Trim deliberately (do not cut wildly) to avoid messy tails that can cause nesting on resume.
  • Pause at a logical transition (ideally a color change or trim command) to reduce visible start/stop marks.
  • Success check: Hands never enter the needle zone unexpectedly, and trimmed thread tails are controlled (not tangled).
  • If it still fails: Stop and re-position for visibility—never reach behind the needle case while powered on.
• Q: How do I restore a saved design on the Happy Japan HCS3 Voyager and restart without bird’s nesting after stitching an urgent order?
  A: Restore from the Tray-with-Blue-Arrow icon, then do a slow “soft start” to stabilize thread and tension.
  • Re-enter “Frame move !” and tap the Tray with Blue Arrow restore icon.
  • Choose OK on “Load back the saved data or delete?” (do not select Delete).
  • Reduce speed to 500–600 SPM for the first ~100 stitches, and hold the top thread tail for the first 3 stitches.
  • Success check: The pantograph moves back to position with a clean motor “whir-stop,” and the first stitches form cleanly with no nesting.
  • If it still fails: Re-check top thread path and bobbin supply before attempting another restart.
• Q: What are the best stop points for pausing with Happy Japan HCS3 Voyager Mid-Stitch Save to avoid visible start/stop marks?
  A: Pause at a controlled transition—stopping mid dense tatami fill is risky even if alignment is perfect.
  • Aim to stop during a color change or a trim command when possible.
  • Avoid stopping in the middle of dense tatami fill where a restart line may show.
  • Note the design name and current color block number before saving so you can verify you resumed the correct segment.
  • Success check: After resuming, there is no obvious “start/stop” seam line in the filled area.
  • If it still fails: Reduce restart speed and inspect needle position over the last penetration point before starting.
• Q: Why does the outline shift 1–2 mm after restoring a saved job on the Happy Japan HCS3 Voyager, and how do I prevent “hoop drift” during interruptions?
  A: The most common cause is hoop drift while the hoop sits off-machine—prevent movement and tension loss during storage.
  • Store interrupted hoops flat or hanging up; never leaning where gravity can creep the fabric.
  • Keep the hooped job protected from pressure (no tools, cups, or garments stacked on it).
  • Prefer constant-pressure hooping methods when drift is a repeat issue; screw hoops can relax over time.
  • Success check: After restore, outlines land exactly on prior stitch holes with no offset against fills.
  • If it still fails: Do not un-hoop stretchy knits for pauses; knit relaxation can defeat perfect coordinate saves.
• Q: What magnetic hoop safety rules should shops follow when using magnetic embroidery hoops to reduce hoop drift and hoop burn during urgent swaps?
  A: Magnetic hoops can improve consistency, but the crush force is a real hazard—handle like an industrial tool.
  • Keep fingers clear of mating surfaces when snapping the hoop together (pinch-point risk).
  • Store magnetic hoops so they cannot snap together unexpectedly.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: The hoop closes without pinching, and the fabric stays evenly compressed without shifting during storage.
  • If it still fails: Slow down the hooping motion and re-train handling—rushing magnetic closure is when injuries happen.
• Q: If a shop pauses the Happy Japan HCS3 Voyager multiple times per day for urgent orders, what is the “pain point → diagnosis → solution” upgrade path to protect delivery dates?
  A: Start with technique, then tooling, then capacity—frequent interruptions usually mean hooping speed and machine availability are the real bottlenecks.
  • Diagnose the trigger: If urgent hooping takes ~15 minutes of screw-wrestling and causes hoop burn, the process is too slow and stressful.
  • Level 1 (Technique): Standardize placement with a hooping station so urgent items are hooped right the first time.
  • Level 2 (Tooling): Use magnetic hoops to reduce adjustment time and maintain constant pressure across fabric thickness changes.
  • Level 3 (Capacity): If pausing more than ~3 times per day is normal, consider adding another commercial machine so urgent work doesn’t cannibalize production time.
  • Success check: Urgent jobs can be inserted without ruining registration on paused work or missing promised ship dates.
  • If it still fails: Track downtime by interruption type (hooping, thread changes, cleaning prompts) to identify the true constraint before investing.
