The No-Heat-Press Faux Leather Patch Beanie: A Multi-Needle Method That Stays Put (and Saves Your Fingers)

The Definitive Guide to Faux Leather Patch Beanies: A "Zero-Distortion" Method for Knit Headwear

If you have ever attempted the trendy "leather patch beanie" project only to end up with a patch that sits crooked, a cuff that looks wavy, or stitches that sink into the abyss—stop. You are not lacking talent; you are fighting physics.

Embroidering on chunky ribbed knits introduces differential stretch: the beanie wants to move, but the faux leather vinyl is rigid. When these two opposing forces meet under a needle moving at 800 stitches per minute, disaster is the default outcome unless you control the environment.

This guide moves beyond "hope for the best" and breaks down the industrial standard for applying raw-edge vinyl patches directly to beanies. We will focus on the "float and stitch" method which integrates the patch into the hat structure, rather than gluing it on later.

The Physics of Failure: Why Knits Ruin Geometric Shapes

A beanie cuff is a mechanical nightmare for embroidery. It is designed to stretch around a human head. When you force a square vinyl patch onto this elastic surface using a traditional hoop, you often over-stretch the fabric during the hooping process.

The "Rubber Band Effect":

1. You stretch the beanie to fit the inner ring of a traditional hoop.
2. You stitch a perfectly square patch.
3. You un-hoop the beanie.
4. The fabric snaps back to its original size (rebounds), causing your perfect vinyl square to buckle and the text to tilt.

The Solution: You need a workflow that holds the beanie stable without stretching it open. This requires specific material choices and, ideally, a clamping system rather than a friction ring.

Phase 1: Materials & Diagnostic Check

Before you digitize a single stitch, ensure your physical inputs are compatible.

Essential Build Materials:

• The Beanie: Standard acrylic or cotton ribbed knit.
• Faux Leather Vinyl: A "raw edge" viable vinyl. Sensory Check: It should feel like cardstock—stiff enough to hold a shape, but soft enough for a needle to piece.
• Stabilizer: Cutaway (2.5oz or 3.0oz). Do not use tearaway. Knits require permanent support.
• Adhesion: Painter’s tape or Scotch tape (critical for the "float" method).

The Tool Kit (Standard vs. Pro):

• Machine: Brother 10-needle (shown), but concepts apply to single-needles (like the SE1900) or SEWTECH multi-needles.
• Hooping Tech: A station-based setup using a magnetic hooping station.
• Safety: Chopsticks or a stiletto.


The "Hidden" Consumables Pro Checklist

• 75/11 Sharp Needles: Vinyl cuts cleaner with a sharp point than a universal ballpoint.
• Tempo Spray / fabric adhesive: (Optional upgrade from tape for better hold).
• Water Soluble Pen: For marking centers if you don't have a camera scanner.

Phase 2: The "Invisible" Prep Work

80% of embroidery failures happen before the machine starts.

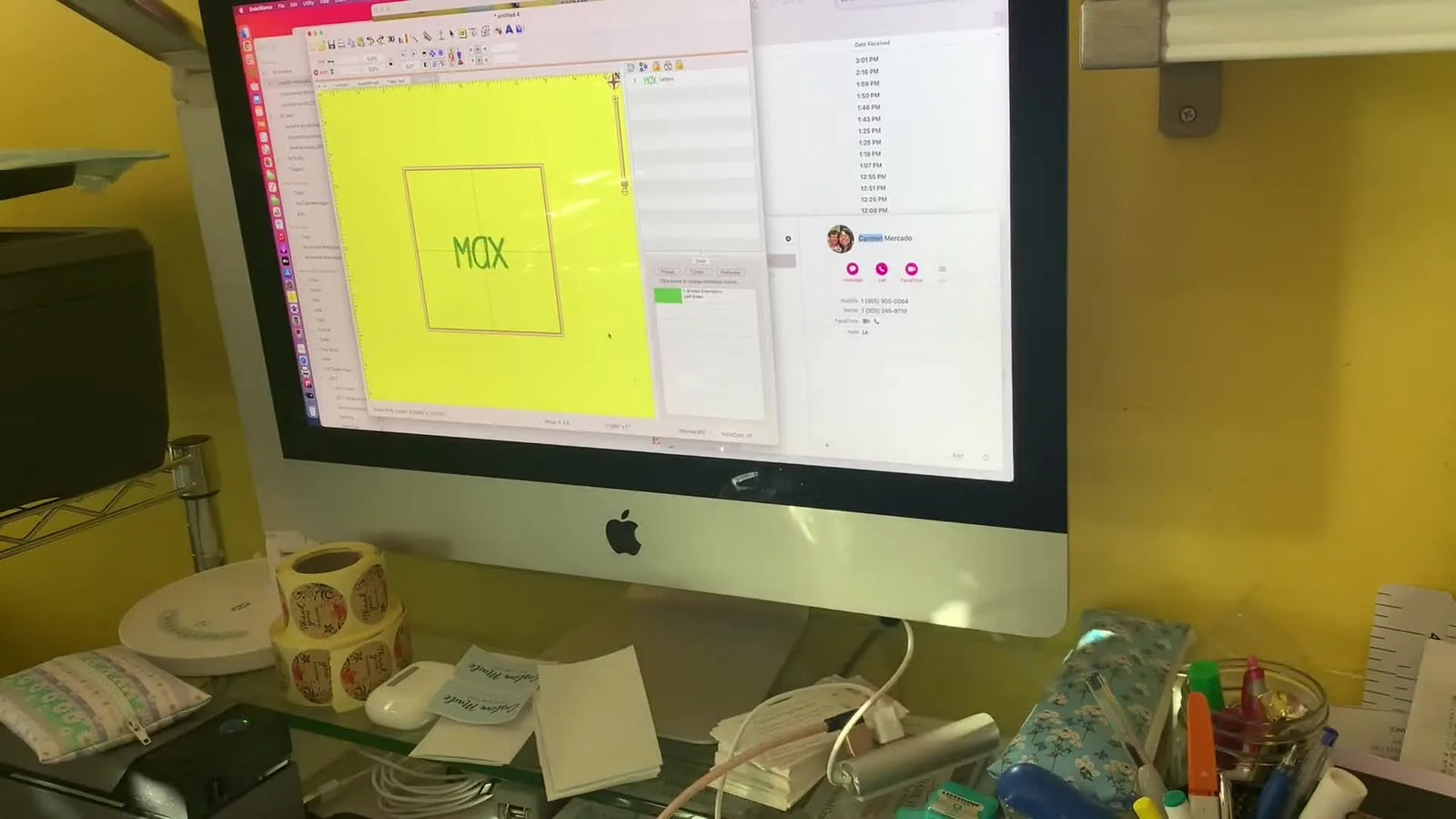

1. Digitizing for Vinyl (The "Swiss Cheese" Rule)

Vinyl does not heal. Every needle penetration is a permanent hole. If your density is too high, you will perforate the patch until it falls out like a stamp.

• Font Choice: Use a "sketch" or "bean stitch" style font (e.g., Baxter Scribble used in the video).
• Size: The creator uses 1 inch height for the text.
• Density: Keep stitch counts low. Avoid complex tatami fills.


2. Physical sizing

Measure your beanie cuff. If the cuff is 2 inches high, cut your vinyl square slightly smaller (e.g., 1.75 inches) or exactly to fit, depending on the look.

3. Orientation Insurance

The Mirror Trap: You will be embroidering the beanie inside out (flipped up). This is spatially confusing.

• Action: Pin a paper marker on the beanie cuff while wearing it or holding it upright. Mark "UP."
• Verification: When you flip the beanie inside out to hoop, that paper marker will tell you exactly how to rotate your design.

⚡ Prep Checklist (Pre-Flight)

• Design density check: Is it a light sketch style? (Dense satin fills = risk of cutting vinyl).
• Cuff measured: Vinyl cut square to fit perfectly within the ribbed area.
• Orientation marked: "Up" arrow placed on the cuff before turning inside out.
• Correct Stabilizer: Cutaway backing selected (Standard 2.5oz).

Phase 3: The "No-Stretch" Hooping Technique

This is the single most critical step to prevent the "Rubber Band Effect." We need to secure the beanie without expanding the ribbing.

The Magnetic Advantage

The video demonstrates using a magnetic hooping station (specifically the Mighty Hoop system).

Why this matters: Traditional hoops require you to shove an inner ring inside the garment, creating friction that distorts knits. A magnetic system "sandwiches" the fabric vertically. There is zero friction drag, meaning zero distortion.

Step-by-Step:

1. Invert: Turn the beanie inside out.
2. Base Layer: Place Cutaway stabilizer on the station fixture.
3. Glide: Slide the beanie over the fixture. Sensory Check: The beanie should sit loosely. Do not pull it taut. It should look "relaxed."
4. Clamp: Place the top magnetic ring and let it snap down.




Warning: Magnetic Force Hazard
Powerful magnets (like Mighty Hoops) snap together with up to 10lbs of force instantly.
Pinch Hazard: Keep fingers on the handles*, never under the rim.
* Medical Safety: Keep magnets 6+ inches away from pacemakers.

Tool Upgrade Path: If you struggle with hoop burn (shiny rings left on fabric) or hand fatigue, upgrading to magnetic embroidery hoops is the industry standard solution. For owners of specific machines, searching for a compatible magnetic hoop for brother or a hoop for brother embroidery machine can drastically reduce setup time and ruined garments.

Phase 4: Machine Loading & Orientation

Mount the hoop onto the machine.

Crucial Geometry:

• The machine arm must go INSIDE the beanie.
• The "bulk" of the hat hangs down or sits back.
• Ensure the name/design is oriented to face YOU (the operator).




Phase 5: The "Float and Tape" Placement (The Cheat Code)

Instead of stitching the vinyl twice (tack-down + satin border), this method floats the raw vinyl on top.

1. Position: Place the cut vinyl square onto the hooped cuff.
2. Secure: Use Painter’s tape on at least two sides.
   • Tip: Tape top and bottom to create a "tunnel" for the needle.
3. Scan: Use the machine’s built-in camera (if available, like on Brother multi-needles) to scan the background.
4. Verify: Overlay the digital design onto the live video of the vinyl square.




The "Intentional Imperfection" Strategy: If your patch isn't perfectly straight, don't fight it. Rotate the design slightly to match the patch, or tilt the text intentionally for a "hand-stamped" aesthetic.

Phase 6: The Stitching Process (Safe Operations)

1. Thread Logic

The video highlights a production trick: The design file says "Green," but the black thread is on Needle 10.

• Don't re-thread: Simply reassign the color in the screen settings to Needle 10.
• Production Note: This efficiency is why growing shops eventually upgrade from single-needle machines to SEWTECH multi-needle ecosystems—stops are for coffee breaks, not for changing thread colors.

2. Speed Control (The Safety Zone)

Drop your speed. The video suggests slowing down initially.

• Expert Metric: Aim for 500-600 SPM (Stitches Per Minute). High speeds (1000+) can cause the vinyl to flag (bounce) and shift under the tape.

3. The "Chopstick Hold"

As the machine takes the first few stitches, the vinyl is most vulnerable to shifting.

Warning: Needle Safety
NEVER put your fingers near the reciprocating needle bar. A multi-needle machine does not have a sensor to stop if it hits bone.
* Use a tool: A chopstick (as shown), unpicking tool, or stiletto.
* Action: Gently press the vinyl down 1 inch away from the needle path until the design is anchored.

⚡ Setup Checklist (Before Pressing Start)

• Hoop Check: Beanie is relaxed (not stretched) in the magnetic frame.
• Obstruction Check: Excess beanie fabric is clipped back/held away from the needle bar.
• Tape Check: Vinyl is taped securely on opposite sides (no flapping).
• Speed Check: Machines speed lowered to <600 SPM.
• Safety Tool: Chopstick in hand.

Phase 7: Finishing & Clean Up

The difference between a DIY craft and a sellable product is in the trimming.

1. Interior Trim

Remove the beanie from the hoop. Turn it inside out. Use curved applique scissors to trim the Cutaway stabilizer close to the stitches.

• Comfort Tip: Round the corners of the stabilizer. Sharp stabilizer corners will itch the customer's forehead.




2. Exterior Trim (The Raw Edge)

Remove the tape. The vinyl is now stitched, but the edges are raw.

• Technique: Fold the vinyl slightly away from the stitch line to get your scissors in position. Trim clean and straight.
• Goal: You want an even margin of vinyl around the text.




Decision Tree: Troubleshooting & Logic

Use this logic flow to solve problems before they happen.

Quick Troubleshooting Guide

Symptom: "The patch is crooked after I un-hoop it."

• Cause: You stretched the beanie while hooping.
• Fix: Use a specific mighty hoop 5.5 or similar magnetic fixture. Do not pull the knit tight; let it lay flat.

Symptom: "The vinyl is perforated and falling out."

• Cause: Stitch density is too high (Satin measuring < 0.4mm spacing).
• Fix: Change to running stitch, sketch stitch, or bean stitch.

Symptom: "Interface Glitches / Screen Frozen."

• Cause: Static or software hang.
• Fix: Restart the machine. (Simple, but effective).

The Upgrade Path: Moving from Hobby to Production

If you are making one beanie for a nephew, a single-needle machine and tape is fine. But if you encounter the "pain points" below, it is time to upgrade your tools to match your ambition.

1. Pain Point: Wrists hurt from forcing hoops closed.
   • Solution: Invest in a hooping station for embroidery. It uses leverage and magnets to do the work.
2. Pain Point: Beanie cuffs have shiny rings (hoop burn) that won't steam out.
   • Solution: Switch to magnetic embroidery hoops. The flat clamping mechanism prevents fabric crushing.
3. Pain Point: Changing threads takes longer than the actual embroidery.
   • Solution: This is the trigger to move to a SEWTECH Multi-Needle system.

Consistency is the product. Tools like magnetic hoops and stabilizing stations aren't just for speed—they are for mechanical consistency that human hands cannot replicate on stretchy knits.

Follow this workflow, respect the stretch, and keep your fingers safe. Happy stitching.

FAQ

• Q: Which stabilizer should be used for faux leather patch beanies on ribbed knit cuffs (cutaway vs tearaway)?
  A: Use cutaway stabilizer (2.5oz or 3.0oz); do not use tearaway for ribbed knit beanie cuffs.
  • Choose: Cutaway as the permanent support layer under the knit.
  • Hoop: Place the cutaway down first, then lay the beanie on top without stretching.
  • Trim: After stitching, trim stabilizer close and round the corners for comfort.
  • Success check: The cuff stays flat after unhooping, and the inside backing feels smooth (no sharp corners).
  • If it still fails: Re-check hooping technique—knits usually distort from being stretched during hooping, not from the stabilizer choice.
• Q: What needle type works best for stitching faux leather vinyl patches on beanies in a multi-needle embroidery machine?
  A: Start with a 75/11 sharp needle because vinyl typically pierces cleaner with a sharp point than a universal ballpoint.
  • Install: Put in a fresh 75/11 sharp needle before running the patch job.
  • Test: Stitch a small sample first if the vinyl feels unusually soft or unusually rigid.
  • Monitor: Watch the first few stitches for clean penetrations without dragging.
  • Success check: Needle holes look crisp (not torn), and the vinyl does not pucker around the stitch line.
  • If it still fails: Reduce design density (running/bean/sketch stitches) because vinyl damage is often from too many penetrations, not just the needle.
• Q: How do you hoop a ribbed knit beanie cuff with a magnetic embroidery hooping station to prevent crooked faux leather patches after unhooping?
  A: Hoop the beanie “relaxed” (not stretched) using a magnetic clamping system to avoid the rubber-band rebound that twists the patch.
  • Invert: Turn the beanie inside out before hooping.
  • Lay: Place cutaway stabilizer on the station fixture, then slide the beanie over it without pulling it taut.
  • Clamp: Let the magnetic ring snap down vertically—do not “work” the knit around a friction ring.
  • Success check: The cuff looks relaxed in the frame (no stretched ribs), and the patch stays square/level after unhooping.
  • If it still fails: Mark “UP” orientation before flipping the beanie inside out to eliminate rotation mistakes during loading.
• Q: How can you prevent faux leather vinyl from shifting during the “float and tape” method on a beanie cuff?
  A: Tape the vinyl on at least two opposite sides and slow the machine down so the patch cannot flag and walk.
  • Position: Place the vinyl square on the hooped cuff, then tape top-and-bottom (or left-and-right) to lock it.
  • Start: Use a chopstick/stiletto to gently hold the vinyl down about 1 inch away from the needle path during the first stitches.
  • Slow: Run about 500–600 stitches per minute as a safer zone for initial anchoring.
  • Success check: The vinyl edge does not lift or flutter, and the first letters land exactly where previewed.
  • If it still fails: Add stronger temporary adhesion (often spray adhesive may hold better than tape) and re-check that the tape is not placed where the needle will strike it.
• Q: Why is faux leather vinyl getting perforated and falling out when stitching text on a raw-edge beanie patch?
  A: The design is too dense for vinyl—switch to low-penetration lettering like running/bean/sketch stitches and avoid dense fills.
  • Change: Use a sketch/bean-stitch style font and keep stitch counts low.
  • Avoid: Skip complex tatami fills and very tight satin spacing that acts like a perforation line.
  • Size: Keep text readable (the example workflow uses about 1 inch text height).
  • Success check: The vinyl stays intact when flexed lightly, and the stitch line doesn’t “tear like a stamp edge.”
  • If it still fails: Test a different vinyl with a cardstock-like stiffness; overly soft vinyl can tear even with light stitching.
• Q: What needle and hand safety steps should be followed when holding down a vinyl patch during embroidery on a beanie?
  A: Never put fingers near the needle bar—use a tool (chopstick, stiletto, or unpicking tool) to control the vinyl safely.
  • Hold: Press the vinyl gently with the tool, staying at least 1 inch away from the needle path.
  • Control: Keep excess beanie fabric clipped back and away from the reciprocating needle area.
  • Start: Watch the first few stitches closely until the vinyl is anchored.
  • Success check: The vinyl stays put without any need to “reach in” near the needle.
  • If it still fails: Stop the machine, re-tape the vinyl, and restart at a slower speed rather than trying to stabilize it with your hands.
• Q: What magnetic safety precautions are required when using strong magnetic embroidery hoops for beanie cuff hooping?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers—always handle by the hoop handles, not under the rim.
  • Handle: Keep fingers on the handles when the top ring snaps down.
  • Avoid: Never place fingertips between the rings while aligning the hoop.
  • Separate: Keep magnets at least 6 inches away from pacemakers.
  • Success check: The hoop closes without finger contact under the rim and without sudden “caught” pinches.
  • If it still fails: Use a station/fixture to control alignment so the magnets close predictably instead of snapping unexpectedly.
• Q: When should a beanie patch workflow be upgraded from traditional hoops to magnetic hoops, and from a single-needle machine to a multi-needle system like SEWTECH?
  A: Upgrade in layers: fix technique first, move to magnetic hoops for distortion/hand strain, and move to a multi-needle system when thread changes become the main bottleneck.
  • Level 1 (Technique): Hoop the beanie relaxed, use cutaway, tape the vinyl on two sides, and run 500–600 SPM.
  • Level 2 (Tool): Switch to magnetic hoops/hooping station if hoop burn, knit distortion, or wrist fatigue keeps ruining cuffs.
  • Level 3 (Production): Move to a multi-needle setup when re-threading and color changes take longer than the stitching itself.
  • Success check: Patch alignment stays consistent across multiple beanies, and setup time per hat drops noticeably.
  • If it still fails: Standardize one proven beanie + vinyl + stabilizer combination and document the exact hooping steps before changing machines.
