The Two-Hook Trick on a Brother PE800: A Clean “AUNT” Appliqué Sweatshirt with the 5x12 Multi-Position Hoop

Big appliqué lettering on a thick sweatshirt is one of those projects that looks simple—until you’re staring at a design that’s bigger than your machine’s field, a hoodie that won’t sit flat, and a hoop that suddenly feels like it needs three hands.

This project solves that exact problem: stitching a split appliqué word (“AUNT”) on a Brother PE800 using the 130 x 300 (5x12) multi-position hoop workflow. The video’s method is solid. Below, I’m going to make it repeatable—with checkpoints, expected outcomes, and the little “don’t learn this the hard way” details that keep sweatshirts from puckering, shifting, or getting accidentally snipped.

The Calm-Down Moment: Why the Brother PE800 Can Stitch “Too-Big” Designs (If You Respect the Hoop)

If you’re feeling nervous because your Brother PE800 is a 5x7-class machine, you’re not wrong to be cautious—but you’re not stuck. The multi-position hoop workflow works because you’re not magically expanding the stitch field; you’re stitching two separate files in two physical hoop mounting positions.

The key is discipline. You are essentially tricking the physics of the machine by moving the frame, not the fabric.

• The software must match the physical hoop dimensions exactly.
• The garment must be hooped under consistent tension (no shifting between parts).
• The hoop must be mounted on the correct set of hooks (pegs) for each file.

When those three things line up, the seam between sections becomes invisible to the eye.

Make Embrilliance Behave: Setting “130 x 300 Jumbo Hoop” So the Split Lines Are Actually Trustworthy

In Embrilliance, the video starts by setting the hoop style to Multi-Position so the program shows the split sections. This is the blueprint step; if this is wrong, no amount of careful stitching will save you.

What to do (exactly as shown):

1. Open Preferences: Go to Edit > Preferences.
2. Select Style: Click Multi-Position on the right sidebar.
3. Define Dimensions: Choose 130 x 300 Jumbo Hoop (often colloquially called the 12x5).
4. Confirm: Click OK.

Checkpoint: Look at your digital canvas. You should see a red dashed frame dividing the area. This line represents the physical overlap zone.

Expected outcome: When you add your letters, the design sits inside that split frame, and Embrilliance offers to split it into specific files.

One detail that matters more than people think: if you pick the wrong hoop size in software, the split boundary won’t match the real hoop travel. That’s how you end up with a “perfect” preview and a real-life misalignment.

If you are just starting out and ensuring your equipment matches your software, take a moment to confirm your brother pe800 hoop size capacity in your manual before committing to this split workflow.

The “Hidden” Prep That Stops Fraying and Puckers: Heat n Bond Lite + Stabilizer Choices for a Thick Hoodie

The video uses floral cotton fabric for the appliqué letters and Heat n Bond Lite to keep edges from fraying. On sweatshirts, that fusible layer is mandatory—it turns floppy cotton into a crisp, paper-like material that cuts cleanly.

Prep the appliqué fabric (as demonstrated)

1. Flatten: Iron the floral fabric flat to remove any storage wrinkles.
2. Cut & Orient: Cut a rectangle of Heat n Bond Lite. Place the rough/textured side of the adhesive against the wrong side (back) of the fabric.
3. Fuse: Iron for 2-3 seconds at medium heat (no steam). You are looking for a quick bond, not a deep melt yet.
4. Cool & Peel: let it cool off. Peel off the paper backing.

Checkpoint: Run your thumb over the back of the fabric. It should feel smooth, shiny, and slightly plastic—not sticky to the touch, but visibly coated.

Expected outcome: The appliqué fabric won’t fray when your scissors hit it, and the edges will remain sharp under the satin stitch.

Warning: Keep fingers clear of the iron edge and don’t rush the peel—hot adhesive can burn skin instantly. Also, pulling the paper while the glue is hot can stretch the bias of the fabric, distorting your letters.

Stabilizer reality check (expert add-on)

The video shows a stabilizer roll and cuts enough to cover the hoop area. On thick sweatshirts, stabilization is less about “supporting thin fabric” and more about preventing the knit from stretching under stitch tension.

The Physics of the Stitch: Satin stitches pull inward. A stretchy sweatshirt wants to pucker. To stop this fight:

• Recommended: Use a Cutaway stabilizer. It provides permanent structural support that won't give way during the thousands of satin stitches.
• Adhesion: Use a temporary spray adhesive (like 505) to bond the sweatshirt to the stabilizer before hooping. This creates a single, unified layer.

Prep Checklist (do this before you touch the hoop)

• Heat n Bond Lite fused to appliqué fabric; paper removed.
• Appliqué fabric cut large enough to cover the entire outline of each letter with margin.
• Stabilizer (preferably Cutaway for sweatshirts) cut larger than the hoop.
• Hidden Consumable: Temporary spray adhesive applied to stabilizer (if using).
• Curved embroidery scissors ready (essential for the trim step).
• Flash drive loaded with the split files (usually labeled "Top" and "Bottom").

Hooping a Hoodie Without Regret: Center Crease Alignment on the 5x12 Multi-Position Hoop

The video’s hooping method is simple and correct: fold to find center, crease it, then align that crease to the hoop’s molded center marks.

What to do (as shown):

1. Mark the Garment: Fold the sweatshirt in half vertically to find the center chest. Press a crease down the middle with an iron (or use a water-soluble pen/chalk).
2. Sandwich: Place the outer hoop ring down. Lay the stabilizer over it. Lay the sweatshirt over that, aligning the crease.
3. Press: Push the inner ring into the outer ring.
4. Align: Before tightening, verify your crease line runs perfectly through the arrow marks at the top and bottom of the hoop.

Checkpoint: Run your hand over the hooped area. It should feel taut, but not stretched. Tapping it should sound like a dull thud, not a high-pitched drum ping (which means you over-stretched the knit).

Expected outcome: Your word lands centered on the chest, and the fabric grain is straight.

A tension-and-distortion note (expert add-on)

Hooping thick items like hoodies is physically demanding. If you pull too hard, you distort the knit columns; when you unhoop, the fabric relaxes and your perfect circle becomes an oval.

If hooping thick garments is where you lose time—or if you simply lack the hand strength to force the plastic rings together without "hoop burn" (those shiny crush marks)—this is a primary trigger to upgrade your tools. Many professionals switch to magnetic embroidery hoops for this exact reason. They slap shut automatically on thick fabric without forcing you to unscrew and wrestle the frame, reducing wrist strain and fabric damage.

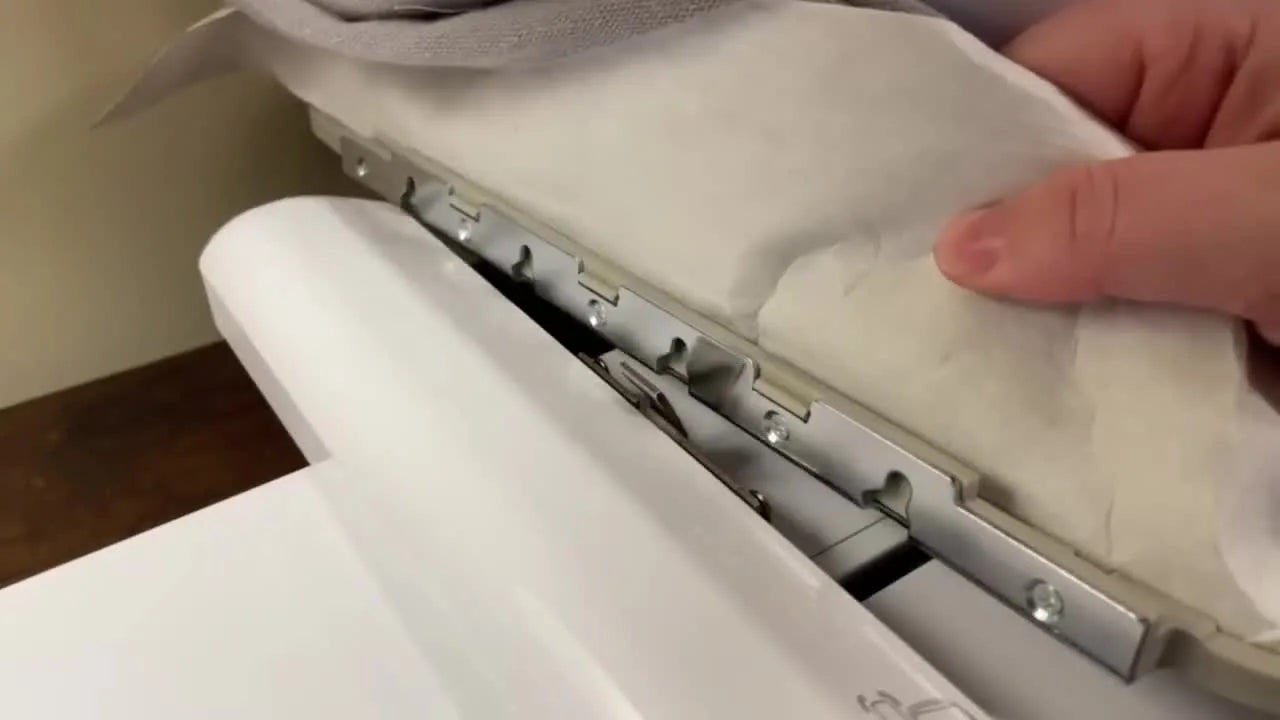

The First Hook Position: Mounting the 130x300 Multi-Position Hoop on the Brother PE800 Without Misalignment

This is where most people mess up. It feels distinctive from a standard hoop because of the multiple attachment points.

The Logic: The carriage arm on the PE800 doesn't move far enough for a 12-inch design. So, we stitch the top half, then physically move the hoop to let the machine reach the bottom half.

What to do:

1. Transport: Bring the hooped sweatshirt to the machine. Ensure the bulk of the hoodie is supported (hold it up) so it doesn't drag the carriage.
2. Engage Top Hooks: Attach the hoop using the top two metal slots on the side of the hoop.
3. Listen: You should hear/feel a solid click or engagement as the hoop lock lever secures it.

Checkpoint: Wiggle the hoop gently. It should be firm. Look at the side of the hoop: the bottom two slots should be empty and visible.

Expected outcome: The machine is positioned to stitch the "Top" file (in the video, the letters "AU").

Setup Checklist (before you press Start)

• Hoop mounted on the top two hooks.
• Correct file loaded (the "Top" split section).
• Design rotated 90 degrees on the machine screen (vertical).
• Design moved all the way to the right on the screen controls (which corresponds to the “top” of the hoop in this specific workflow).
• Bobbin thread supply checked (nothing worse than running out mid-satin).

Clean Appliqué on a Sweatshirt: Placement Stitch → Fabric Down → Tack-Down → Trim → Satin

The video runs appliqué in the classic sequence. Do not skip steps here. The order protects your garment.

Letter workflow (repeat for each letter in the section)

1. Placement Stitch: Press start. The machine runs a simple running stitch outline.
   • Sensory Check: Ensure you can clearly see this line against the sweatshrit texture.
2. Fabric Placement: Spray the back of your appliqué fabric lightly with adhesive (optional but helpful) and place it over the outline.
   • Checkpoint: The fabric must cover the line completely with at least 0.5 inches of excess on all sides.
3. Tack-Down Stitch: Run the next color stop. This is usually a zig-zag or double run.
   • Expected outcome: The fabric is deeply secured to the hoodie.
4. The Trim: Remove the hoop from the machine (keep the garment in the hoop!) or trim carefully while attached. Cut the excess fabric close to the stitches.
5. Final Satin: Return/Resume. The machine stitches the dense column over the raw edge.








The trimming move that saves hoodies (from the video, plus a pro refinement)

The video calls out the danger zone: trimming inside closed shapes (like the triangle inside an “A”). The safe method is to pinch the fabric to separate it from the sweater base.

Warning: The "Fatal Snip" Risk. Curved scissors are sharp. When cutting inside a letter, never cut with the scissor blades flat against the sweatshirt. Angle the tips upward slightly. If you cut the sweatshirt fabric, the project is ruined.

Checkpoint: Run your finger over the trimmed edge. It should be close (1-2mm) to the tack-down stitch. If it's too long, the satin won't cover it (you'll get "whiskers"). If it's too close, you might clip the thread.

Operation Checklist (end-of-section sanity check)

• Placement stitch was fully covered by appliqué fabric.
• Tack-down is secure; no fabric is bubbling.
• Trimmed edge is clean; no "whiskers" sticking out more than 2mm.
• Satin stitch is solid; no bobbin thread showing on top (tension check).
• Section Finish: Machine indicates the "Top" color stops are done.

The Make-or-Break Shift: Loading the “NT” File and Using the Bottom Hooks on the Repositionable Hoop

This is the critical mechanical step. You are repositioning the hoop on the carriage, NOT re-hooping the fabric.

What to do (as shown):

1. Unlock: Release the hoop lever. Remove the hoop from the carriage.
2. Load Next File: Load the "Bottom" file (the letters "NT").
3. Adjust Screen: Rotate the file 90 degrees. Move it all the way to the right on the screen.
4. Re-Attach: Mount the hoop using the bottom two slots on the side of the hoop.

Checkpoint: Look at the hoop mounting arm. The top slots on the hoop should now be empty. The hoop sits physically higher on the arm, allowing the needle to reach the lower fabric area.

Expected outcome: The needle is now positioned over the lower half of your center crease, ready to stitch.

If you are new to this concept, you are utilizing the mechanics of a repositionable embroidery hoop. The software did the math to split the file; your job is simply to move the frame to the coordinates that match that math.

When the Design Looks Sideways: Fixing Brother PE800 Rotation and “Move to the Right” Placement Before You Waste Thread

The video explicitly rotates the design 90 degrees. This is non-negotiable.

Symptom: You load the file, but the machine says the hoop is too small, or the design looks like it wants to stitch off the edge. Likely Cause: The PE800 assumes a vertical orientation for the multi-hoop. The Fix:

1. Rotate the design 90 degrees.
2. Use the arrow keys on the screen to push the design to the designated limit (usually Top/Right).

This logic scales. Once you master this rotation, you will understand the fundamentals of multi hooping machine embroidery patterns, allowing you to tackle jacket backs and banners that far exceed your machine's native 5x7 field.

A Stabilizer Decision Tree for Appliqué Sweatshirts (So Satin Edges Don’t Ripple)

Use this quick decision tree to choose your materials. Don't guess.

Decision Tree: Sweatshirt Fabric → Stabilizer Strategy

• 1. Is the sweatshirt thick and stretchy (standard hoodie)?
  • Yes: use Fusible Mesh or Cutaway. Avoid Tearaway (it will crack and allow the satin to distort).
• 2. Is the appliqué satin border wide/dense (>3mm)?
  • Yes: You need strong support. Use Medium Weight Cutaway (2.5oz).
• 3. Are you seeing "Hoop Burn" (shiny rings) on the fabric?
  • Yes: You are over-tightening the plastic hoop. Solution: Float the fabric carefully or upgrade to a magnetic frame.

If you struggle with hoop burn on thick/delicate items, a magnetic hoop for brother pe800 is a strategic solution found in professional shops. It uses magnetic force rather than friction, eliminating the "crush" marks on velvet or fleece.

The Upgrade Path That Actually Matters: Time, Consistency, and Less Hooping Fatigue

If you are sticking "AUNT" on one hoodie for a family gift, the standard plastic multi-position hoop is perfectly adequate.

However, if you are fulfilling orders for a local team (e.g., 20 hoodies), the plastic hoop becomes a bottleneck. The friction of tightening screws, the pain in your wrists, and the risk of hoop burn increase with every unit.

When to Upgrade:

1. The Trigger: You dread the "hooping" step more than the sewing step.
2. The Criteria: If you spend more than 3 minutes wrestling a thick garment into a hoop, you are losing money on labor.
3. The Solutions:
   • Level 1 (Tool Upgrade): For the PE800, a brother pe800 magnetic hoop removes the friction. You just lay the fabric and snap the magnet.
   • Level 2 (Machine Upgrade): If you need to stitch faster and avoid the "Split File" dance entirely, a multi-needle machine (like SEWTECH models) offers a larger continuous field and automatic color changes.

Note on compatibility: Enthusiasts often search for the mighty hoop for brother pe800, looking for the industry-standard magnetic frames. While intended for industrial arms, comparable magnetic solutions exist for flatbed home machines that offer similar "snap and go" speed.

Warning: Magnet Safety. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely if snapped shut carelessly. Keep them 6+ inches away from pacemakers or embroidery machine screens/hard drives to prevent interference.

The “Looks Pro” Finish: Final Check Before You Call It Done

The video does a smart final check while the project is still hooped: confirm you don’t need to stitch over any other letters again.

Final quality scan (30 seconds):

1. Gap Check: Look closely at the split point (between AU and NT). Is the spacing even?
2. Edge Check: Did the satin stitch catch all the raw edges of the fabric?
3. Thread Salad: Are there any loose jump stitches caught under the appliqué? Snip them now.
4. Dissolve: Use a dab of water to remove your center crease mark.


If you want to keep improving results on thick garments, focus on the fundamentals: proper stabilizer (Cutaway!), precise rotation, and disciplined hooping. Once those become second nature, the fear of the "big hoop" disappears, and you're ready to tackle full-back designs.

FAQ

• Q: How do I set the correct Embrilliance hoop option for a Brother PE800 130 x 300 (5x12) multi-position hoop so the split alignment is accurate?
  A: Set Embrilliance to Multi-Position and select the 130 x 300 Jumbo Hoop before splitting, or the split boundary may not match the real hoop travel.
  • Open Edit > Preferences and choose Multi-Position
  • Select 130 x 300 Jumbo Hoop and confirm
  • Verify the red dashed split frame appears on the canvas before saving split files
  • Success check: The design sits inside the split frame and previews as two sections that match the hoop’s split zone
  • If it still fails: Reconfirm the hoop selection and compare the machine/hoop orientation requirements in the Brother PE800 manual before stitching
• Q: How do I hoop a thick hoodie for Brother PE800 appliqué so the fabric is taut but not stretched and the design stays centered?
  A: Use a center crease and hoop with “taut, not stretched” tension to avoid distortion and off-center results.
  • Fold the hoodie to find center chest and press a crease (or mark with washable pen/chalk)
  • Align the crease to the hoop’s molded center arrows before tightening
  • Smooth the hooped area by hand instead of pulling hard on the knit
  • Success check: The fabric feels taut but not drum-tight (a dull “thud” when tapped, not a high-pitched ping)
  • If it still fails: Reduce pulling force and consider switching methods (floating carefully) or upgrading to a magnetic hoop to avoid over-tightening
• Q: What stabilizer setup prevents puckering and ripples when stitching dense satin appliqué letters on a thick sweatshirt with a Brother PE800?
  A: Use cutaway-style support and bond layers before hooping so the sweatshirt knit cannot stretch under satin stitch tension.
  • Choose Cutaway for hoodies (tearaway often cannot hold dense satin well on stretch knits)
  • Apply temporary spray adhesive to bond the sweatshirt to the stabilizer before hooping (light, even coat)
  • Cut stabilizer larger than the hoop so the entire stitch area is supported
  • Success check: After stitching, satin edges look smooth with no wavy “ripple” and the fabric around letters stays flat
  • If it still fails: Re-check hooping tension (over-stretching can cause distortion) and confirm the appliqué fabric is fused and trimmed cleanly
• Q: How do I mount a Brother PE800 130x300 multi-position hoop correctly for the “Top” file versus the “Bottom” file to avoid misalignment?
  A: Stitch the top section on the top hook slots, then re-mount the same hooped garment on the bottom hook slots—do not re-hoop the fabric.
  • Mount the hoop on the top two metal slots for the “Top” split file
  • After finishing, remove the hoop from the carriage, load the “Bottom” split file, then mount using the bottom two slots
  • Support the bulk of the hoodie so it does not drag on the carriage during stitching
  • Success check: The unused pair of slots is clearly empty each time, and the hoop locks in with a solid, firm engagement (no wobble)
  • If it still fails: Confirm the correct split file is loaded for the hook position and re-check on-screen rotation/placement before restarting
• Q: Why does a Brother PE800 say the hoop is too small or show the split design sideways when using the 130 x 300 multi-position hoop, and what is the fix?
  A: Rotate the split file 90 degrees and move the design all the way to the right on the Brother PE800 screen before stitching.
  • Load the correct split file (“Top” or “Bottom”) on the machine
  • Rotate the design 90° on the PE800 display
  • Use the arrow controls to push the design fully to the right as required in this workflow
  • Success check: The machine no longer warns that the hoop is too small, and the design preview sits within the hoop boundary
  • If it still fails: Stop and re-check that the software hoop size and machine hoop selection match the 130 x 300 multi-position setup
• Q: What is the safest way to trim appliqué letters on a sweatshirt in a Brother PE800 hoop without cutting the hoodie fabric (“fatal snip”)?
  A: Trim with curved scissors while lifting the appliqué fabric away from the sweatshirt and angling scissor tips slightly upward—never cut flat against the garment.
  • Pinch the appliqué layer to separate it from the hoodie before trimming, especially inside closed shapes (like the center of an “A”)
  • Trim close to the tack-down stitches while keeping the blades off the sweatshirt surface
  • Work slowly around curves; stop and reposition hands instead of forcing one long cut
  • Success check: The trimmed edge is clean and close (about 1–2 mm), with no fabric “whiskers” sticking out beyond the tack-down
  • If it still fails: If whiskers remain, re-trim carefully; if stitches were clipped, re-run the tack-down/satin only if the file allows and the placement is still secure
• Q: When should embroidery users upgrade from a Brother PE800 plastic hoop workflow to a magnetic hoop or to a multi-needle machine for thick hoodie appliqué production?
  A: Upgrade when hooping time, hoop burn, or repeatability becomes the bottleneck—fix technique first, then improve tools, then increase capacity.
  • Level 1 (Technique): Reduce over-tightening, use cutaway support, and keep split-file discipline (correct hook slots + correct file)
  • Level 2 (Tool): Choose a magnetic hoop when hooping thick garments causes hoop burn, shifting, or wrist strain during repeated setups
  • Level 3 (Capacity): Consider a multi-needle machine when split-file stitching and manual repositioning slows down order fulfillment
  • Success check: Hooping becomes consistent and fast, alignment across split sections stays even, and redo rates drop
  • If it still fails: Track where time is lost (hooping vs trimming vs re-stitching) and address that specific step before investing further
