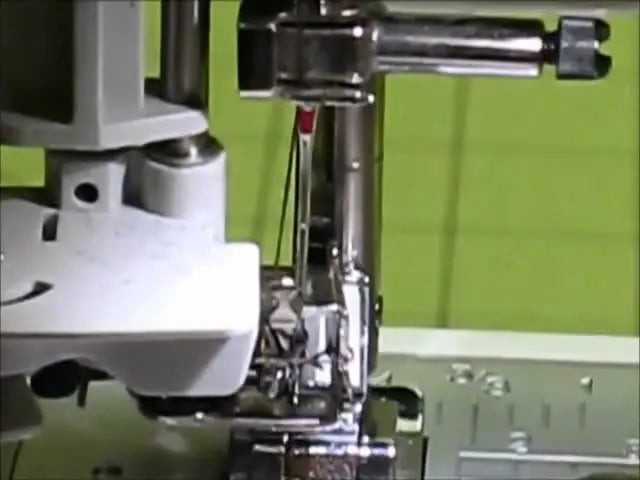

Threading the Brother SE-400 Without Tears: The 9-Step Path That Stops Breaks, Birdnests, and “Why Won’t It Thread?!”

If you’re staring at your Brother SE-400 thinking, “I swear I followed the diagram… why is it still not working?”—take a breath. You are dealing with a machine that relies on physics, not just instructions. This machine really is straightforward once you understand two things the printed numbers don’t fully teach: how the thread is supposed to behave (tactile tension control), and where beginners accidentally skip a guide.

The video you watched breaks threading into nine numbered points. Below, I’m going to rebuild that into a practical routine you can repeat under real-life conditions—poor lighting, stiff neck, shaky hands, and all.

The Calm-Down Truth About the Brother SE-400 Threading Diagram: It’s Not You, It’s the Slack

The Brother SE-400 is a brother sewing and embroidery machine that rewards one habit more than any other: keep gentle control of the thread while you route it.

A lot of new owners feel overwhelmed because the path looks “busy,” and the machine is computerized so it feels like it should be foolproof. But upper threading is a mechanical system: if the thread misses one guide, or if it never seats between the tension discs, you’ll see the classic symptoms—birdnesting (loops underneath), thread popping out near the needle, or the needle threader refusing to cooperate.

Here’s the reassuring part: when you thread it correctly, you’ll feel it. The thread will “snap” into guides, sit neatly in channels, and feed with a resistance similar to pulling a loose tooth—gentle but distinct.

The “Hidden” Prep Before You Touch Step 1: Spool, Cap, and a 10-Second Sanity Check

Before you follow the printed numbers, set yourself up so the thread can’t sabotage you.

Spool orientation (the detail the diagram doesn’t say)

Load the spool so the thread comes toward you from the bottom front. Imagine the spool is a roll of toilet paper—you want it dispensing “over,” not “under,” but relative to the horizontal pin, it ensures the thread doesn’t catch on the spool’s rough edges.

Spool cap size (small/medium/large)

Use a spool cap that matches the spool’s diameter so the spool sits snugly and doesn’t “wiggle.”

• Small Cap: For narrow spools (like Kingstar or Isacord mini-cones).
• Medium/Large Cap: For standard sewing spools.
• Visual Check: If the cap is smaller than the spool rim, thread will snag behind it, causing a snap.


Pro tip from the video that saves beginners a lot of confusion

The spool usually does not spin while sewing; the thread “ropes off” the side in a spiral. So don’t chase a spinning spool problem that isn’t actually a problem.

Warning: Physical Safety Hazard. Keep fingers, hair, and loose sleeves away from the needle area when the machine is powered on. A needle striking a finger at 400 stitches per minute can cause serious injury. Always turn the power off when changing needles.

Hidden Consumables Setup

Before starting, ensure you have these often-forgotten essentials ready:

• New Needle: A dull needle causes 50% of threading issues. Use a 75/11 for standard embroidery or a Ballpoint for knits.
• Bobbin Thread: Ensure you are using 60wt or 90wt bobbin thread (thinner than top thread), not standard sewing thread, to prevent bulk.

Prep Checklist (do this every time)

• Machine is on a stable surface; vibration can affect thread feed.
• Spool is loaded feeding from the bottom front.
• Spool cap covers the spool rim completely without being too large.
• Use a sharp pair of snips/scissors (dull scissors fray the end, making threading harder).
• Thread tail is at least 10 inches long to route comfortably.


The Upper Threading Path on the Brother SE-400 (Steps 1–5): Where Tension Starts to Matter

This is the “main highway” of the thread path. Most thread issues come from one of these: missing the first guide, not seating into the channel, or letting slack build up before the take-up lever.

Step 1: Snap under the rear metal thread guide (right to left)

Hold the thread with both hands (floss style) and push it under the rear metal guide clip from right to left using firm pressure.

Sensory Check (Auditory): You must hear a distinct metallic small “click”. If you don’t hear it, it’s not seated.

Step 2: Slide under the thread guide cover into the right vertical channel

Feed the thread under the plastic plate/cover and guide it forward into the right-hand channel.

Expected outcome: The thread disappears under the cover and sits in the groove.

Step 3: The U-turn at the tension hub (marked “3”)

Bring the thread straight down the right channel, wrap it under the hub at the bottom (the area labeled step 3), then bring it up the left channel.

Sensory Check (Tactile): This is where the tension discs live. As you pull up the left channel, you should feel a slight increase in drag.

Step 4: Hook the take-up lever (right to left)

Guide the thread into the take-up lever slot until it hooks into the lever’s eye. This is the "arm" that moves up and down.

Crucial Note: If the lever isn't visible, turn the handwheel toward you until the silver lever pops up to its highest position.

The video’s best habit: Keep a finger on the thread near the spool to maintain light tension so slack doesn’t fall out of the lever.

Expected outcome: The thread travels Right -> Back -> Left -> Forward inside the lever eye.

Step 5: Bring thread back down the left channel

After the take-up lever, route the thread down the left channel toward the needle area.

Common “I did it 6 times” mistake (from comments): Everything looks right, but the machine creates a birdnest. In my experience, this happens because the thread missed the Take-Up Lever (Step 4) entirely. Without this lever pulling the slack up, the machine creates a giant loop under the fabric.

Setup Checklist (end of Steps 1–5)

• Heard the "click" at the rear guide (Step 1).
• Thread is visible in the right channel (Step 2).
• U-turn is wrapped cleanly around the tension hub (Step 3).
• Critical: Thread is visibly inside the eye of the take-up lever (Step 4).
• Thread is taut (no loops) running down the left channel (Step 5).


The Needle-Area Guides on the Brother SE-400 (Step 6–8): The “Needle Bar Thingy” Everyone Misses

If you’ve ever said, “I’m in tears at step 6,” you’re not alone. Step 6 is small, easy to miss, and absolute critical for the auto-threader to work.

Step 6: Behind the needle bar wire guide (above the needle clamp)

Slide the thread behind the small wire guide directly above the needle clamp.

Why it matters (expert reality): This guide acts as an anchor. It holds the thread close to the needle bar so it feeds straight into the needle threader system. If you skip it, the thread will miss the tiny hook in Step 9.

Step 7: Into the groove labeled “7” near the needle

Route the thread into the plastic guide groove to the left of the needle area.

Sensory Check (Tactile): It should feel like it “locks” or wedges into place when you pull it into the groove.

Step 8: Use the side cutter to trim to the correct length

Bring the thread up from 7 to the cutter at 8 and pull downward to cut.

Expected outcome: You now have the exact tail length (approx. 1 inch implied) needed for the needle threader to grab reliably.

Comment-based watch out: “My thread keeps coming out from under the guide above the needle.”

When thread pops out, it’s usually because:

• Slack: You stopped holding tension near the spool while routing.
• Missed Lock: The thread wasn’t pulled firmly enough into the Step 7 groove.

The Automatic Needle Threader on the Brother SE-400 (Step 9): Make It Work Even When It’s Being Stubborn

The video demonstrates the needle threader clearly: push the lever, rotate, hook passes, loop pulls through. But in reality, it requires mechanical precision.

The video’s visibility note vs. Practice

The host shows the presser foot down for visibility. However, most experts recommend threading with the presser foot UP.

• Why: When the foot is UP, the tension discs are open, allowing thread to seat deep inside.
• The Compromise: Thread Steps 1-8 with the foot UP. You can lower it for Step 9 if you need to see better, but ensure hands are clear.

Step 9: Push the needle threader lever down firmly

• Ensure the needle is at its highest position (turn handwheel toward you).
• Push the lever on the left side of the machine all the way down.
• Rotate it backward (away from you) if it doesn't do so automatically.


Expected outcome: A small hook passes through the eye, grabs the thread held by Guide 7, and pulls a loop back through.

Action: Pull the loop (from the back of the needle) until the tail comes through. Place the tail under the presser foot and toward the back.

When Step 9 suddenly stops working (Diagnostic)

If the threader was working and stopped, check these three things in order:

1. Needle Position: Is the needle at the absolute highest point? Use the "Needle Up/Down" button to reset it.
2. Needle Straightness: Is the needle slightly bent? Even a microscopic bend prevents the tiny hook from passing through the eye. Change the needle.
3. Step 6 Skipped: Did you miss the wire clamp?

The “Why” Behind These Steps: Thread Control, Tension Seating, and Preventing Birdnesting

Threading isn’t just “routing.” It’s seating the thread into a controlled path.

Slack control is the hidden skill

The video’s finger-on-thread trick effectively simulates the "Pre-Tension" a professional machine would have. By holding the thread at the spool while your other hand works the take-up lever, you force the thread deep between the tension discs.

Presser foot position changes how the thread behaves

• Foot Up = Discs Open: Thread enters easily.
• Foot Down = Discs Closed: Thread is "pinched."
• Rule of thumb: Always thread with the foot UP. Always sew with the foot DOWN.

Comment-based pro tip about the red/green indicator

The "Start/Stop" button turns Green when ready and Red when not (e.g., presser foot is up). Never force the machine to start if the light is Red or flashing Orange (bobbin winding mode).

Quick Troubleshooting on the Brother SE-400: Symptom → Cause → Fix

Use this table to diagnose issues before calling a repair shop. Always fix the "Low Cost" items first.

Decision Tree: Fabric Type → Stabilizer Choice (So Your First Embroidery Doesn’t Pucker)

Threading is only half of embroidery success. The other half is stabilization. Embroidery places thousands of stitches in a small area; without a "foundation," the fabric will distortion.

Use this logic flow to choose the right consumable:

1. Is the fabric Stretchy? (T-shirts, Polo shirts, Hoodies, Knits)
   • YES: You need permanent structure. Use Cutaway Stabilizer (or No-Show Mesh).
     • Why: Tearaway will disintegrate under the needle, and the shirt will stretch, causing gaps.
   • NO: Go to step 2.
2. Is the fabric Woven/Stable? (Cotton, Denim, Towels, Canvas)
   • YES: You need temporary support. Use Tearaway Stabilizer.
     • Why: The fabric supports itself; the stabilizer just keeps it flat in the hoop.
3. Does the fabric have a "Pile" or Fluff? (Towels, Velvet, Fleece)
   • YES: You need a "Topper." Place Water Soluble Stabilizer (Solvy) on TOP of the fabric.
     • Why: Prevents stitches from sinking into the fur.

Mastering hooping for embroidery machine technique combined with the right stabilizer is the difference between a professional crest and a wrinkled mess.

The Upgrade Path (When You’re Ready): Faster Hooping, Cleaner Results, and Less Hand Strain

Once you can thread confidently, the next bottleneck is almost always hooping—especially if you’re doing multiple items, gifts, or small paid orders.

If you’re currently using standard embroidery hoops for brother machines (the plastic ones with screws), you may encounter specific frustrations. Here is a practical way to diagnose if you need a tool upgrade.

Level 1: The "Hoop Burn" Frustration

• The Pain: Tightening the screw creates "shininess" or ring marks on delicate fabrics (velvet, performance wear) that won't iron out.
• The Fix: Professionals minimize this by using floating techniques or upgrading to Magnetic Hoops.
• The Upgrade: Magnetic frames clamp fabric flat without the friction of an inner ring, virtually eliminating hoop burn.

Warning: Magnetic Safety. Magnetic hoops contain strong industrial magnets. Keep them away from pacemakers, ICDs, and other medical implants. Do not let fingers get pinched between the magnet and the frame—the snap force is high.

Level 2: The "Production" Frustration

• The Pain: "I have to embroider 20 shirts for a family reunion, and hooping takes longer than sewing."
• The Fix: You need consistency.
• The Upgrade: A Magnetic Hoop allows you to slide garments in and adjust them instantly without undoing a screw. Combining this with a hooping station for embroidery machine ensures every logo is placed in the exact same spot on every shirt.

Level 3: The Scaling Frustration

If you are consistently running orders of 50+ items, the Brother SE-400 (a single-needle machine) is likely slowing down your profit. At this stage, searching for phrases like brother 4x4 embroidery hoop limits implies you might be outgrowing the platform.

• The Solution: Look into SEWTECH multi-needle solutions or compatible high-durability hoops to push your current machine to its limit before buying a commercial 6-10 needle machine.

About hoop size compatibility

Always verify compatibility. Professionals searching for brother se700 hoop size or SE-400 hoops must note that while the connectors look similar, the embroidery field limits (4x4 inches for SE-400) are hard-coded into the machine. A larger hoop generally requires a multi-position hoop mechanism or a machine upgrade.

Operation Checklist (Right before you press Start)

• Thread Tail: Pulled through needle and tucked under the presser foot (prevents tangling at start).
• Take-Up Lever: Visually confirmed thread is still in the eyelet (didn't pop out during hooping).
• Hoop Clearance: Nothing is behind the machine that the hoop will hit when it moves (wall, coffee cup, cat).
• Bobbin: You have enough thread to finish the color block (sound check: no rattling).
• Presser Foot: Lowered (Light is Green).

If you’re still fighting the machine after all this, don’t assume you’re “bad at sewing.” 90% of the time it is one missed guide, one slack loop, or a dull needle. Reset, re-thread with tension, and let the machine do the work.

FAQ

• Q: How do I correctly thread the Brother SE-400 so the upper thread seats in the tension discs (and stops birdnesting)?
  A: Thread the Brother SE-400 with the presser foot UP and keep gentle tension on the thread as the thread is routed so the thread seats between the tension discs.
  • Hold: Keep a light “finger-on-thread” tension near the spool while routing Steps 1–5.
  • Re-thread: Snap the thread under the rear metal guide until a clear “click,” then complete the U-turn at the tension hub and hook the take-up lever.
  • Set: Keep the needle at the highest position when checking the take-up lever path.
  • Success check: Feel a slight, distinct drag when pulling up the left channel after the U-turn (tension area), and visually confirm the thread is inside the take-up lever eye.
  • If it still fails: Fully remove the top thread and re-thread from Step 1; most repeat failures come from missing the take-up lever or not clicking into the rear guide.
• Q: What is the most common Brother SE-400 threading mistake that causes “birdnesting” (giant knot under the fabric)?
  A: The most common cause is missing the Brother SE-400 take-up lever (Step 4), which leaves excess slack that dumps underneath.
  • Stop: Remove the hoop and cut away the nest—do not keep stitching through it.
  • Re-thread: Thread the upper path again and explicitly hook the thread into the take-up lever eye (right-to-left).
  • Control: Keep gentle tension on the thread near the spool while threading so slack does not fall out of the lever.
  • Success check: Visually see the thread traveling through the take-up lever eye before it comes down the left channel.
  • If it still fails: Re-check the rear metal guide “click” and confirm the presser foot was UP during threading.
• Q: Why does the Brother SE-400 automatic needle threader fail even when the upper thread looks correct?
  A: Brother SE-400 needle threader failure is usually caused by the needle not being at the absolute highest point, a slightly bent needle, or skipping the small wire guide above the needle clamp (Step 6).
  • Raise: Turn the handwheel toward you until the needle is fully up (or use the Needle Up/Down button if available).
  • Replace: Install a fresh 75/11 needle if there is any doubt about bending or dullness.
  • Route: Ensure the thread is behind the wire guide above the needle clamp (Step 6), then seated in the guide groove near the needle (Step 7).
  • Success check: When the needle threader lever is pushed down fully, the tiny hook passes through the needle eye and pulls a loop through.
  • If it still fails: Trim the thread using the side cutter step so the tail length is correct for reliable pickup.
• Q: What Brother SE-400 needle, bobbin thread, and basic prep items should be checked before re-threading?
  A: Start with a new needle, correct bobbin thread weight, and clean cutting—these low-cost checks prevent many Brother SE-400 “threading problems.”
  • Change: Use a fresh 75/11 for standard embroidery or a ballpoint needle for knits.
  • Verify: Use 60wt or 90wt bobbin thread (not standard sewing thread) to reduce bulk and tension fighting.
  • Prepare: Cut a clean thread end with sharp snips and keep a 10-inch tail for routing.
  • Success check: The thread routes smoothly without fraying, and the machine feeds with gentle, consistent resistance during threading.
  • If it still fails: Re-check spool orientation and spool cap fit to stop snagging before the thread even reaches the guides.
• Q: How do I fix Brother SE-400 top thread snapping right after starting to stitch?
  A: Brother SE-400 thread snapping is often caused by a spool cap snag or upper tension set too tight; correct the spool setup first, then reduce tension to a safer starting point.
  • Inspect: Confirm the spool cap matches the spool diameter and covers the rim so thread cannot catch behind it.
  • Re-thread: Thread again with the presser foot UP to seat the thread properly.
  • Adjust: Lower the upper tension dial to 3–3.5 as a beginner sweet spot (then fine-tune as needed).
  • Success check: Stitching begins without an immediate “ping,” and the thread pulls smoothly off the spool without jerks.
  • If it still fails: Replace the needle and confirm the thread was fully clicked into the rear metal guide.
• Q: What should the Brother SE-400 Start/Stop button color indicate before sewing, and what should be checked if the light is red?
  A: Brother SE-400 should be started only when the Start/Stop button is green; a red indicator commonly means the presser foot is up (not ready to sew).
  • Lower: Put the presser foot DOWN before pressing Start.
  • Confirm: Keep the needle thread tail under the presser foot and toward the back to prevent startup tangles.
  • Clear: Check hoop clearance so nothing blocks the hoop movement path.
  • Success check: The Start/Stop button turns green and the machine starts without hesitation or thread tangling at the first stitches.
  • If it still fails: Re-check that the machine is not in bobbin winding mode (orange/flashing) and re-thread if the take-up lever popped out during hooping.
• Q: What magnetic hoop safety precautions should be followed when upgrading from standard Brother-style screw hoops to magnetic hoops?
  A: Magnetic hoops are generally safer for fabric (less hoop burn) but require strict magnet handling because the snap force can pinch fingers and magnets must be kept away from medical implants.
  • Keep away: Do not use magnetic hoops near pacemakers, ICDs, or similar medical implants.
  • Protect: Keep fingers clear of the closing gap—let the magnets clamp down deliberately, not “slapped” together.
  • Control: Place the hoop on a stable surface before attaching magnets to avoid sudden shifts.
  • Success check: Fabric is clamped flat without ring marks and magnets close without pinching incidents.
  • If it still fails: If consistent hoop burn or slow hooping is the core pain point, consider Level 1 technique changes first, then magnetic hoops, and only then a multi-needle production upgrade if volume demands it.
