Threading the Brother SE400 Without Tears: The Bobbin “P-Shape” Trick, the Take-Up Lever Catch, and a Calm First Stitch

If you’re staring at your Brother SE400 and thinking, “I just want it to stitch—why does threading feel like a test?”, you’re not alone. The machine embroidery learning curve is steep, but the physics behind it is consistent. The SE400 is a workhorse, but it is notoriously unforgiving about two things: bobbin orientation and the take-up lever.

As someone who has trained operators on everything from single-needle home units to 15-needle industrial giants over the last 20 years, I can tell you that 90% of "machine repairs" are actually just "threading corrections."

This guide rebuilds the exact workflow shown in the video, but with added sensory checkpoints and safety margins. We will cover connecting to a laptop, powering up safely, loading the bobbin (the "P-shape" rule), threading the upper path with tactile verification, manual needle threading, pulling up the bobbin thread to prevent birdnesting, and dialing in your tension.

Connect the Brother SE400 to a Laptop by USB (So Your Designs Actually Transfer)

The video starts with a simple but essential step: connectivity. Embroidery machines are essentially specialized printers; if the data stream is interrupted, the machine freezes.

Plug the square end of the USB cable into the side port of the Brother SE400, and the rectangular end into your laptop.

The Technician’s Insight: Don’t just "plug it in." Feel for the seat. These older USB-B ports can wear out if cables are yanked. gentle push until you feel a firm stop. If the connection feels loose or "wobbly," try a different cable immediately. A vibration-induced disconnect mid-stitch ruins the garment instantly.

Workflow Optimization: If you are serious about efficiency, you aren’t just plugging in a cable; you are setting up a production environment. Many users arranging their workspace will position their laptop next to a hooping station for brother embroidery machine or a clear table area. Treat the USB connection as part of your "pre-flight" ritual—connect first, boot laptop second, power machine third. This sequence ensures the computer's drivers recognize the machine instantly.

Respect the SE400 Start-Up Warning: The Carriage Will Move (Keep Fingers Clear)

After you power on the machine, the LCD displays a standard safety message: “The carriage of the embroidery unit will move.” In the video, the operator presses the Needle Position button (or touches the screen) to acknowledge this.

This isn’t just a legal disclaimer. The machine is calibrating its X and Y axes—the "home" position. It slams the carriage to the limits to find zero.

Warning: Mechanical Pinch Hazard
Keep hands, scissors, coffee mugs, and loose thread tails away from the embroidery arm during initialization. The carriage moves with high torque and speed. It can pinch fingers against the machine body or knock over tools, which may fall into the bobbin area and cause a jam before you’ve even started.

Expected Outcome:

• Visual: The screen illuminates clearly.
• Auditory: You hear a distinct mechanical whirring sound followed by a solid "thud-thud" as the axes lock into place.
• Physical: The carriage is now rigid and resists movement.

Load a Brother SE400 Drop-In Bobbin the Right Way (The “P-Shape” Orientation That Prevents Nests)

This is the single most common failure point for beginners. If you get this wrong, no amount of upper tension adjustment will fix the mess.

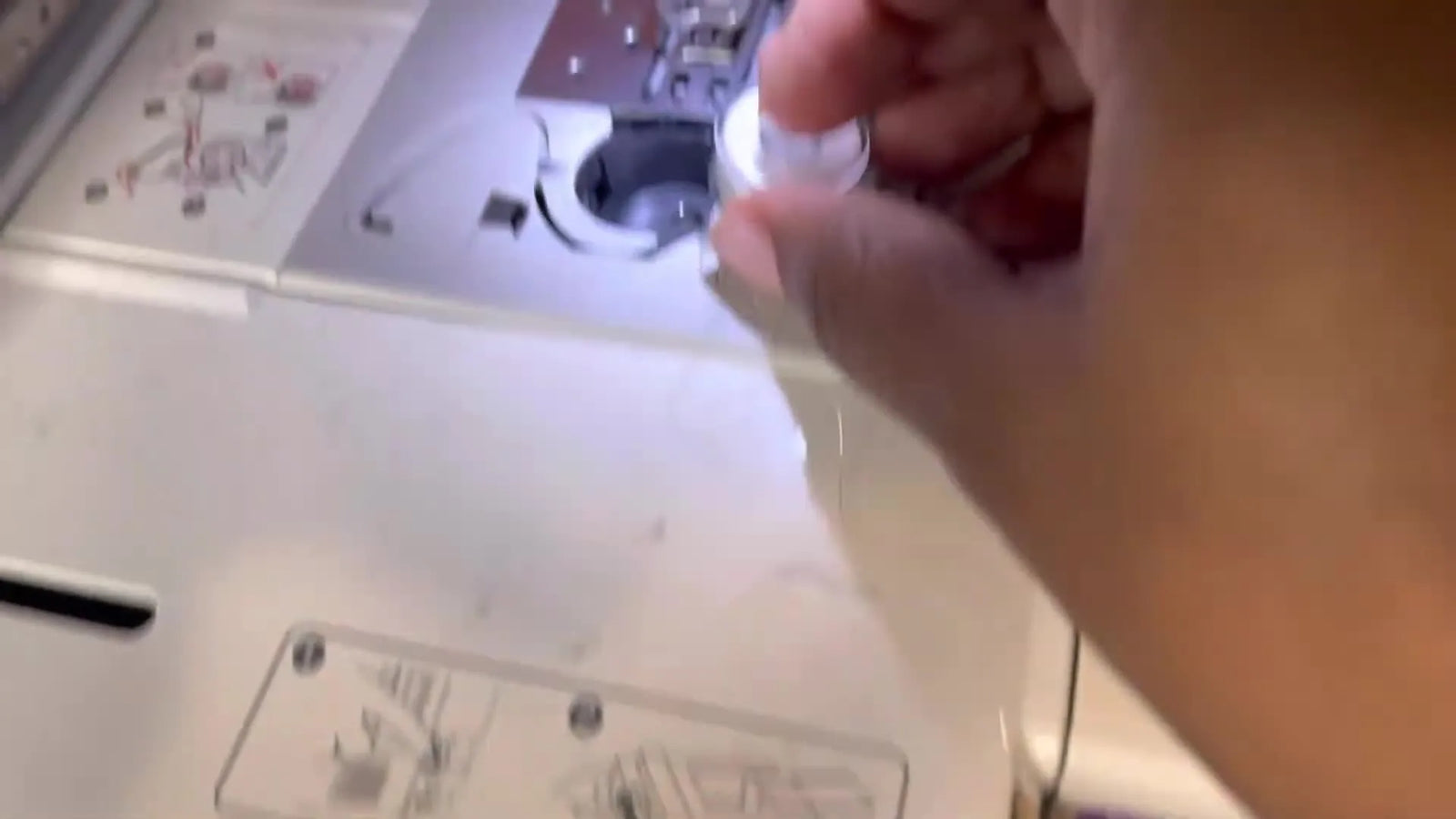

In the video, a pre-wound bobbin (white) is installed. The clear plastic bobbin cover is removed, and the bobbin is prepared. Here is the golden rule used by pros: Hold the bobbin so the thread hangs down from the left side. It should look like the letter "P" (for Perfect). If it looks like a "Q" (for Quit), flip it over.

The operator points out the built-in diagram on the machine plastic, which confirms this counter-clockwise rotation.

Drop the bobbin into the race. Do not just leave the tail loose. You must guide the thread through the front slit (the tension spring) and pull it back toward the rear.

The Physics of the "Click": When you pull the thread through that front slit, you should feel a tiny bit of drag. That is the bobbin tension spring engaging.

• Sensory Check: Pull the thread gently. It should not pull out freely like loose spaghetti; it should have a slight, consistent resistance, similar to pulling dental floss from a dispenser.

Why this matters: A top-loading rotary hook relies on this resistance to form a tight knot with the top thread. If the direction is wrong, the thread bypasses the tension spring. This causes:

1. Birdnesting: A giant wad of thread under the fabric.
2. Ejection: The bobbin case rattling or jumping out of place.

If you are currently doing detailed hooping for embroidery machine projects on thin fabrics like satin, an incorrectly loaded bobbin will look like a "puckering" issue. You might blame your stabilizer, but the culprit is actually zero bobbin tension.

The “Hidden” Prep Before You Thread: Clean, Seat, and Set Yourself Up for Success

The video mentions the machine was in storage and “a little dirty.” This is a critical observation. Dust and lint are the enemies of precision.

Before you thread the upper path, you need to perform a "Clean and Seat" drill. This prevents the frustration of breaking your thread five seconds after hitting start.

Hidden Consumables You Need:

• Compressed Air (Canned Air): Use sparingly to blow out the bobbin race.
• Small Lint Brush: To sweep the feed dogs.
• Fresh Needle: If you don't know how old the needle is, change it. A 75/11 embroidery needle is your standard baseline.

Prep Checklist (The "Green Light" Protocol):

• Connectivity: USB cable firmly seated; laptop recognizes device.
• Clearance: Embroidery arm area is free of obstructions; warning acknowledged.
• Hygiene: Bobbin area inspected for "lint bunnies" or broken needle tips.
• Bobbin Orientation: Loaded in "P-Shape" (counter-clockwise unwinding).
• Bobbin Seat: Thread is properly engaged in the tension spring slit (felt resistance).
• Closure: Bobbin cover plate clicked flat (no bulging).

Thread the Brother SE400 Upper Path Using the Numbered Guides (Don’t Miss the Take-Up Lever)

Threading is a sequence of tension checkpoints. In the video, the pink thread spool is placed on the spool pin and secured with a spool cap that matches the spool size. Note: If the cap is too small, the spool flies off. If too big, the thread snags on the cap rim.

Follow the numbered path strictly:

1. Under the top guide (1): Snap it in.


2. Down channel (2) and U-turn (3): This is the tension disc assembly.

   • Sensory Check: When you pull the thread up from channel 2 to 3, hold the thread near the spool with your right hand and pull with your left. You should feel the thread "floss" into the tension discs deep inside the machine. Without this tension, you get loops on the back of your fabric.
3. The Critical Moment: The Take-Up Lever (4): Hook the thread into the metal eyelet of the take-up lever inside the slit.

   • Expert Insight: This lever jerks the thread tight after every stitch. If you miss this eyelet, the thread does not retract, and you get a massive jam instantly. Look inside the slit—ensure the thread is inside the metal hole, not just resting near it.
4. Down through channel (5): easy pass.
5. Behind the needle bar guide (6): This is the small metal hook right above the needle clamp.

A detail from the video that I love is the operator correcting a mis-routing. Real embroidery involves constant micro-corrections.

Pro tip regarding hoops: If you are running production with embroidery machine hoops, you will be re-threading frequently during color changes. Develop muscle memory: Spool -> Tension -> Lever -> Needle. Always visually verify the lever.

Manually Thread the Needle Front-to-Back (Even If You Have an Auto Threader)

The video intentionally bypasses the automatic threader to show manual threading. While auto-threaders are convenient, they are prone to bending. Knowing how to do it manually is a survival skill.

Pass the thread through the needle eye from front to back.

Why Manual? Auto-threaders often shred low-quality metallic or rayon threads. Manual threading ensures a clean, unfrayed tip enters the eye.

Warning: Needle Safety
When threading manually, ensure your foot is off the foot pedal (if connected) or the machine is effectively idle. Do not put your fingers behind the needle while turning the handwheel. If the machine cycles, the needle can sew through a fingernail. Yes, it happens.

Expected Outcome: The thread passes cleanly. There is no "fuzz" balling up at the eye. Pull about 4 inches of tail through the eye.

Pull Up the Bobbin Thread on the Brother SE400 (Handwheel Toward You, One Clean Loop)

This is the hallmark of a pro operator. Many beginners just hit "Start" and hope for the best. This often leads to the top thread getting sucked down into the machine.

In the video, the operator performs the "Bobbin Pickup":

1. Hold the upper thread tail gently with your left hand. Do not pull tight; just hold the slack.
2. Turn the handwheel with your right hand.
3. Crucial Direction: Turn the wheel TOWARD YOU (counter-clockwise). Never turn it away from you; that messes up the timing.


4. Watch the needle go down and come back up. It will catch the bobbin thread.
5. Gently pull the top thread, and a loop of white bobbin thread will pop up through the needle plate hole.


Un-loop it and pull both tails (top and bottom) toward the back of the machine.

Why this prevents birdnesting: By pulling the bobbin thread to the top before you start, you guarantee that the first stitch is formed on the fabric, not under the throat plate. It creates a clean, anchor-knot free start.

Finish Like the Video: Set Upper Tension to 3 and Use the Speed Slider Intentionally

Calibration is the final step before the machine runs. The video sets the Upper Tension Dial to 3.

Expert Calibration: Standard tension on many machines is 4, but for the SE400 and similar models, 3 to 4 is the "Sweet Spot" for standard 40wt embroidery thread (Rayon or Polyester).

• If you see white bobbin thread on top: Tension is too tight (High number) -> Dial down to 2 or 3.
• If you see loops on top: Tension is too loose (Low number) -> Dial up to 4 or 5.

Speed Control: The video explains the speed slider.

My Recommendation for New Users:

• Start Slow: Set the slider to 50% or the "single arrow" setting.
• Why? At lower speeds (around 350-400 SPM), friction is lower, and the thread is less likely to shred. It gives you time to hit the stop button if you hear a "crunch." Once you trust your threading, slide it to max.

Workflow Upgrade: Threading and settings are only half the battle. If you find yourself spending 5 minutes hooping for a 2-minute stitch-out, your process is unbalanced. This is where tools like magnetic embroidery hoops become relevant. They don't change the threading, but they drastically reduce the physical strain of the setup phase, allowing you to focus on the machine settings.

Setup Checklist (Ready to Launch):

• Thread Path: Upper thread passed through all guides, specifically the Take-Up Lever eyelet.
• Needle: Threaded front-to-back; no fraying.
• Tails: Bot top and bobbin threads pulled to the surface and routed under the foot to the back.
• Dial: Tension set to 3-4.
• Speed: Slider set to 50% (Middle position).

The “Why” Behind Smooth Stitching: Hooping Tension, Stabilizer Choices, and Feed Consistency

The video setup is perfect, but if you hoop a T-shirt improperly, the SE400 will sew a perfect design on a distorted shirt.

Machine embroidery is a "push and pull" game. The needle pushes fabric down; the thread pulls it up. Your hoop and stabilizer must fight these forces.

The Stabilizer Decision Tree: Use this logic to avoid ruining blanks.

1. Is the fabric stretchy (T-shirt, Polo, Knit)?
   • YES: You must use Cut-Away Stabilizer. It provides permanent support.
   • NO: Go to step 2.
2. Is the fabric unstable/sheer but not stretchy (Silk, Rayon)?
   • YES: Use Fusible Mesh or lightweight Cut-Away.
3. Is the fabric stable and thick (Denis, Canvas, Towel)?
   • YES: You can use Tear-Away Stabilizer.

The Role of Equipment: Standard plastic hoops require you to screw a thumb-nut tight while pulling fabric. It requires "three hands" and often causes "hoop burn" (permanent friction marks). This pain point drives many users toward a hooping station for embroidery to hold the hoop while they work, or to upgrade to a magnetic hoop for brother. Magnetic hoops clamp flat instantly without the friction-drag of inner rings, preserving the fabric grain.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial neodymium magnets.
1. Pinch Hazard: They snap together with force. Do not get skin caught between the magnets.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place them directly on top of the SE400 LCD screen or your laptop hard drive.

Troubleshooting the Scary Stuff: What to Check When Thread Breaks or Stitches Look Wrong

Even masters get thread breaks. The video shows a real break happening. The key is not to panic, but to diagnose.

Use this "Low Cost to High Cost" troubleshooting hierarchy.

The Upgrade Path That Feels Natural: When Better Hoops and a Multi-Needle Machine Actually Pay Off

Starting with a Brother SE400 is the perfect way to learn the mechanics. But as you get better, you will hit a wall. That wall is usually speed and hooping fatigue.

Here is how to assess if it is time to upgrade your toolkit:

Level 1: The "Hobbyist" Optimizer

• Pain: Hooping marks (burn) and wrist pain from tightening screws.
• Solution: Upgrade to a brother magnetic hoop.
• Benefit: Faster loading, no screw tightening, better fabric care.

Level 2: The "Side Hustle" Producer

• Pain: Configuring multiple shirts exactly the same way.
• Solution: Dedicated embroidery hoops for brother machines combined with a alignment station.
• Benefit: Repeatability. Every logo lands on the exact same spot on the left chest.

Level 3: The "Business" Owner

• Pain: The machine is too slow (400 SPM), and changing threads manually for 6-color designs takes forever.
• Solution: This is when you look at SEWTECH Multi-Needle Machines or converting your workflow to commercial standards.
• Benefit: You press start, walk away, and it sews 1000 stitches per minute with auto-color changes.

Final Operation Checklist:

• Test Sew: Always run a scrap fabric test (with the same stabilizer) before the real garment.
• Listen: A rhythmic "chug-chug" is good. A grinding noise or "clack-clack" means stop immediately.
• Watch: Keep an eye on the thread feed for the first 200 stitches.
• Enjoy: Once the rhythm is set, let the SE400 do the work.

Embroidery is 20% art and 80% preparation. Master the threading, respect the physics, and the machine will respect you back.

FAQ

• Q: How do I load a Brother SE400 drop-in bobbin to prevent birdnesting under the fabric?
  A: Load the Brother SE400 bobbin in the “P-shape” orientation and seat the thread into the front slit tension spring before closing the cover.
  • Hold the bobbin so the thread hangs from the left side (counter-clockwise unwind) before dropping it in.
  • Pull the thread into the front slit, then route it toward the rear as shown on the machine diagram.
  • Close the bobbin cover plate flat (no bulging).
  • Success check: Feel slight, consistent drag when pulling the bobbin thread (not free-spooling).
  • If it still fails… Remove the bobbin and re-seat the thread in the slit; lint in the bobbin area may prevent the tension spring from engaging.
• Q: How do I thread the Brother SE400 upper path correctly so the take-up lever does not get missed?
  A: Rethread the Brother SE400 from the spool through the numbered guides and confirm the thread is inside the take-up lever eyelet, not just near it.
  • Follow the numbered path exactly: top guide → down channel → U-turn through tension area → take-up lever → down channel → needle bar guide.
  • “Floss” the thread into the tension discs by holding near the spool and pulling firmly but smoothly through the channel.
  • Hook the thread into the metal take-up lever hole inside the front slit before going down to the needle.
  • Success check: The thread visibly sits inside the take-up lever eyelet and retracts cleanly when you turn the handwheel.
  • If it still fails… If birdnesting happens underneath, assume the upper path lost tension and rethread again (this is common).
• Q: How do I pull up the bobbin thread on a Brother SE400 to avoid a jam at the start of embroidery?
  A: Use the Brother SE400 handwheel toward you to catch the bobbin thread and bring both tails to the top before pressing Start.
  • Hold the upper thread tail lightly with the left hand (do not pull tight).
  • Turn the handwheel TOWARD you (counter-clockwise) until the needle goes down and returns up.
  • Pull the upper thread to bring up a bobbin-thread loop, then pull both tails under the foot toward the back.
  • Success check: A clean bobbin loop pops up through the needle plate hole and both thread tails are on top.
  • If it still fails… Recheck bobbin orientation and make sure the bobbin thread is in the front slit tension spring.
• Q: What is a safe Brother SE400 upper tension dial setting for 40wt embroidery thread, and how do I read the stitch symptoms?
  A: Set Brother SE400 upper tension to 3–4 as a safe starting point, then adjust based on where bobbin/top thread shows.
  • Lower the dial to 2–3 if white bobbin thread is showing on the top surface.
  • Raise the dial to 4–5 if there are loose loops appearing on the top surface.
  • Re-seat the upper thread into the tension discs if loops persist (thread may not be “flossed” into the discs).
  • Success check: Stitches look balanced with no obvious bobbin thread on top and no top-thread loops.
  • If it still fails… Inspect the bobbin case area for lint stuck near the tension spring, which can mimic tension problems.
• Q: What prep items should be checked on a Brother SE400 that was in storage before threading and stitching?
  A: Do a quick “Clean and Seat” prep on the Brother SE400: clean lint, verify bobbin seating, and start with a fresh needle.
  • Brush out lint around feed dogs and inspect the bobbin area for debris or broken needle tips.
  • Use canned air sparingly to clear the bobbin race (avoid blasting debris deeper).
  • Install a fresh 75/11 embroidery needle if needle age is unknown.
  • Success check: The bobbin cover closes flat, the carriage initializes smoothly, and thread pulls through with consistent resistance (no sudden snags).
  • If it still fails… If thread breaks quickly after start, recheck spool cap size and the needle for burrs.
• Q: What safety steps should be followed when powering on a Brother SE400 and manually threading the needle?
  A: Keep hands and tools clear during Brother SE400 carriage initialization, and never place fingers behind the needle while turning the handwheel.
  • Clear the embroidery arm area before powering on because the carriage moves fast during calibration.
  • Acknowledge the startup warning only after confirming no scissors, cups, or thread tails can get caught.
  • When threading manually, keep the machine idle and keep fingers in front of the needle (not behind it).
  • Success check: You hear normal whirring and “thud-thud” homing sounds, and the carriage finishes rigidly without hitting anything.
  • If it still fails… If anything binds or clacks on startup, power off and remove obstructions before re-initializing.
• Q: When should a Brother SE400 user upgrade from standard screw hoops to magnetic embroidery hoops or a multi-needle machine for efficiency?
  A: Upgrade based on the bottleneck: fix technique first, then reduce hooping fatigue with magnetic hoops, and only then consider a multi-needle machine if speed and manual color changes limit output.
  • Level 1 (Technique): If birdnesting and breaks happen, correct bobbin “P-shape,” take-up lever threading, and pull up bobbin thread first.
  • Level 2 (Tooling): If hoop burn, wrist pain, or slow hooping is the main pain, magnetic hoops often reduce setup time and fabric marking.
  • Level 3 (Capacity): If 400 SPM speed and manual multi-color threading are the limiter, a multi-needle machine is the logical productivity step.
  • Success check: The current bottleneck is identified (threading stability vs hooping time vs stitch speed), and improvements show measurable time saved per garment.
  • If it still fails… If repeat placement is the issue (logos landing inconsistently), add a consistent alignment/hooping routine before changing machines.
