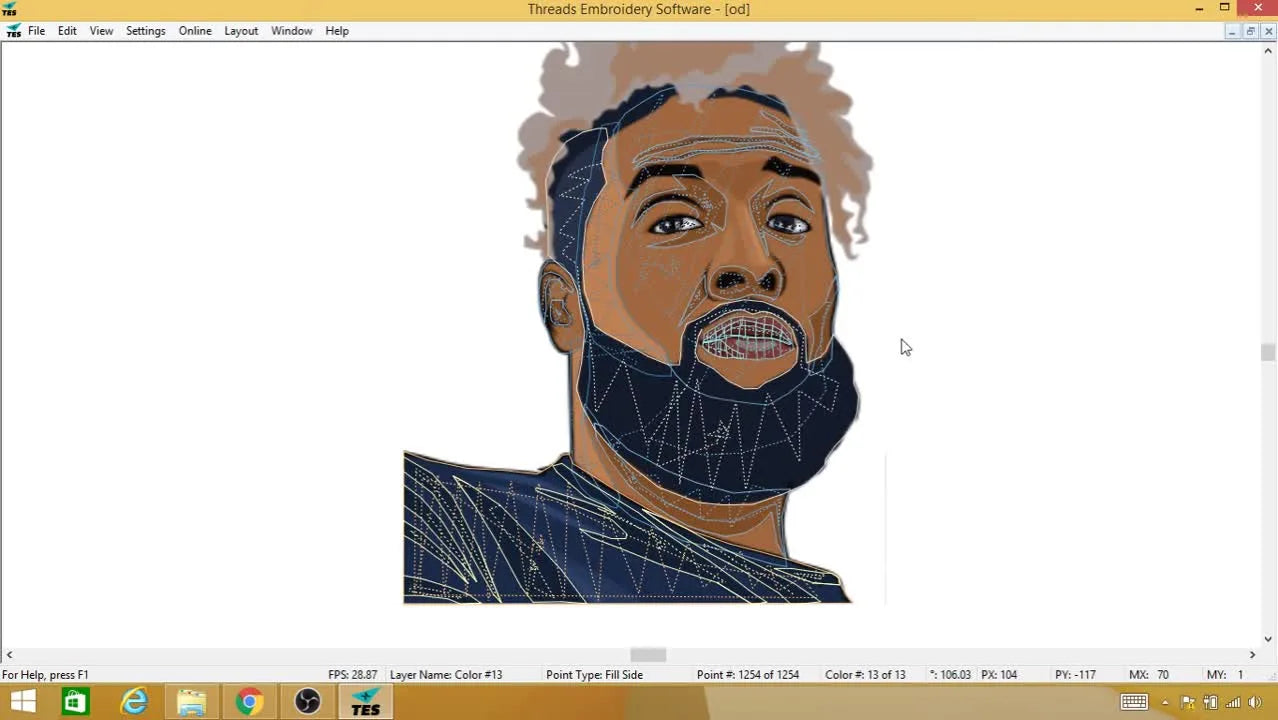

Threads Embroidery Software: Manually Digitizing a Shirt & Collar Without Color Chaos (Plot–Fill–Trim Done Right)

When you look at a digitizing screen, a shirt collar might seem like a simple shape to fill. But as any veteran operator knows, fabric is not paper.

When you manually digitize a portrait, the garment area is deceptive. It looks easy until you run it on a machine. That’s when you hear the dreaded thump-thump-thump of a needle struggling through density, or you take the hoop off and see the collar edge wobbling like a wave.

This guide rebuilds the workflow from the Threads Embroidery Software video, but crucially, I am going to overlay shop-floor physics onto the software clicks. We will move beyond just "clicking points" to understanding how to build a file that runs smoothly at 800 SPM (Stitches Per Minute) without breaking thread or ruining a $20 polo shirt.

Don’t Panic: Threads Embroidery Software “Wire Mode” Is Where Clean Digitizing Actually Happens

If you open a design and your screen looks like a confusing pile of 3D thread simulations, you are suffering from cognitive overload. You cannot engineer a structure if you are looking at the façade.

In the video, the creator immediately controls the environment using keyboard shortcuts. This is not just a preference; it is a safety requirement for precision.

The "Clean View" Protocol:

1. Press S: Hides the 3D Real-Time Stitches. You need to see the "skeleton" (the wire vectors), not the thread.
2. Press B: Toggles the Background Image. This confirms you are tracing the source truth.
3. Engage Wire Mode: This reveals the nodes and entry/exit points.

Why this matters physically: When you digitize in 3D view, you often miss small "crossovers" where lines intersect. On the machine, these intersections create "bulletproof" knots that snap needles. Working in Wire Mode prevents physical jams before they happen.

Warning: Mechanical Safety Check. When you are zoomed in on your screen plotting points, it is easy to lose track of your physical surroundings. If you are running a test stitch on a machine next to you, keep your non-dominant hand strictly on the desk, not near the needle bar. "Digitizer's Trance" is a real phenomenon that leads to finger injuries.

The “Hidden” Prep Pros Do First: Reference Image, Navigation, and a Realistic Color Plan

Before you place a single point, you must act like a construction manager. You are about to decide the sew path.

In the video, the creator navigates to the shirt area and makes a critical tactical decision: Start at the bottom and build upward.

The Gravity Rule: On a vertical embroidery machine (especially multi-needles like SEWTECH), gravity pulls fabric down. By digitizing from the bottom up, you are pushing the fabric "up" against the hoop, keeping it taut. If you sew top-down on a heavy fill, you often push a "wave" of loose fabric downward, resulting in puckering at the hem.

The Dark Base Strategy: The video demonstrates changing the base color to a dark shade immediately:

• Right-click to open the context menu.
• Go to Other → Color Change.
• Choose the darker shade for the shirt foundation.


Why this is a Commercial Decision: In a production environment, contrast kills coverage. A light shirt with dark shading requires high density to look solid. A dark base absorbs light and hides the inevitable tiny gaps between threads.

If you are setting up a workflow for a small shop, terms like machine embroidery hoops often dominate the conversation, but your color plan is the silent efficiency killer. A poor color plan forces you to use higher stitch counts (slowing production) just to get decent coverage. Efficient digitizing starts with selecting colors that do the heavy lifting for you.

Prep Checklist (Do this BEFORE dragging the mouse)

• Visual Logic: Can you see the "Wire" outlines clearly? (Press S).
• Source Truth: Is the background image toggled ON and scaled correctly?
• Gravity Check: Are you planning to sew Bottom → Top or Center → Out? (Avoid Top-Down for fills).
• Color Strategy: Have you selected a forgiving base color (darker is usually safer)?
• Consumable Check: Do you have the right bobbin thread? (Black bobbin for dark garments, white for light).


Lockdown + Underlay in Threads Embroidery Software: The Foundation That Saves Your Shirt Fill

In the video, the creator explicitly executes a Lockdown and Underlay before the main fill. This is non-negotiable.

What happens on screen:

• He manually plots points to create a stabilizing path.
• Dotted path indicators appear, showing the machine where to lay the "foundation."


The Physics of Underlay: Embroidery is literally a "push and pull" act.

• Satin stitches pull the fabric in (narrowing the shape).
• Fill stitches push the fabric out (lengthening the shape).

Lockdown anchors the fabric to the stabilizer. Without it, your shirt fill will "float" on top of the fabric, leading to registration errors (where the outline doesn't match the fill). Underlay lifts the top thread up. Think of it like a lattice under a deck. It prevents the smooth top thread from sinking into the texture of the pique knit or cotton.

Empirical Tip: For standard shirt fills, a Tatami underlay at 45 degrees offset from the top stitch is the industry "sweet spot" for coverage.

The Repeatable Loop That Makes Manual Digitizing Fast: Plot → Fill → Trim (Then Do It Again)

Speed in digitizing comes from rhythm. The core workflow in the video is a disciplined loop:

1. Plot Points: Define the shape.
2. Fill (Right-click): Generate the density.
3. Trim (Right-click → Other → Trim): Cut the thread physically.

You can see this clearly as multiple polygon sections accumulate across the garment.

What “Fill” is doing here

The creator isolates the shirt into panels. He does not create one giant massive fill.

• Why? A fill that is too large (over 20,000 stitches) can cause the fabric to warp due to the sheer tension of the thread buildup. Breaking it into panels relieves stress on the fabric.


What “Trim” is doing here

Between unconnected areas, he inserts a trim command.

The "Trim Tolerance" Rule: Trimming takes time (about 5-8 seconds per trim on many machines).

• Short Jump ( < 2mm): Do not trim. Let the machine jump; you can snip it later or bury it.
• Long Jump ( > 5mm): MUST TRIM. A long thread tail on the back of a shirt is a snag hazard for the wearer.

If you are running production, excessive trims add up. If a design has 50 unnecessary trims, that's 4-5 minutes of lost production time per run. Plan your path to minimize travel, but use the Trim command faithfully when jumping between distinct islands of color.

The Collar Curve Problem: Plotting Points Cleanly Without Over-Pointing

The collar area is a high-risk zone. The human eye is drawn to curves. If a collar edge looks jagged, the whole embroidery looks cheap.

The mistake: Novices click 50 times to make a curve (Micro-clicking). The result: A jagged, "sawtooth" edge because the machine slows down and accelerates at every single node.

The Master Technique (3-Point Logic): To define a smooth curve, you usually only need three points:

1. Start of curve.
2. Apex of curve (the highest/deepest point).
3. End of curve.

Allow the software to calculate the arc. In the video, notice how the creator uses fewer points to define the collar. This results in fluid, high-speed machine movement and a creamy, smooth satin edge.

The Shift-Key Trick in Threads Embroidery Software: Straight Vectors That Don’t Drift

At roughly 02:01 in the video, the creator holds the Shift key while clicking.

Why this is critical for garments: Clothes have structure—seams, pockets, plackets. These are manufactured with straight lines. If your digital embroidery line is slightly "organic" or wobbly next to a crisp machine-sewn placket, it looks like a mistake.

Sensory Check: When digitizing a shirt placket or hem line, hold Shift. The line must be mathematically straight. On the finished product, this creates a visual anchor that makes the embroidery look integrated with the garment, rather than a sticker pasted on top.

Color Limits Are Real: The Smart Move Is Often to Delete a Shade (Yes, Really)

The video highlights a truth that separates artists from digitizers: You must edit for the medium.

The creator makes a strategic decision to eliminate a lighter color layer on the collar, merging it into the base color.

The Commercial Reality:

• Thread Break Risk: Every color change involves a tie-off, a trim, a needle change, and a tie-in. These are the 4 moments where a thread break is most likely to occur.
• Visual Noise: On a textured shirt, a 1mm highlight often disappears into the fabric grain anyway.

By simplifying the palette, you increase machine uptime (efficiency) and often get a cleaner look. If you are struggling with complex setups, using magnetic embroidery hoops can speed up the physical swap time, but simplifying the digital file is what speeds up the run time. Combine fast hooping with smart color reduction for maximum throughput.

Setup Choices That Prevent “Why Did My Shirt Pucker?” (Fabric + Stabilizer Decision Tree)

The software is only half the battle. You can have a perfect file, but if you pair it with the wrong stabilizer, the shirt will pucker. Use this decision tree before you stitch.

Decision Tree: Stabilizer Strategy for Shirt Fills

• Scenario A: Stretchy Knit (T-shirt, Performance Polo)
  • Stabilizer: Cutaway (2.5oz minimum). Never use Tearaway on knits.
  • Topper: Soluble film (top) prevents stitches sinking into pique mesh.
  • Needle: 75/11 Ballpoint (BP).
  • Hooping: Do not stretch! It should be "drum tight" but not distorted.
• Scenario B: Stable Woven (Denim Shirt, Canvas)
  • Stabilizer: Tearaway (Firm) is acceptable, but Cutaway is always safer for dense fills.
  • Needle: 75/11 or 80/12 Sharp.
• Scenario C: Unstable/Slippery (Rayon, Silk, Thin Poly)
  • Stabilizer: Fusible No-Show Mesh. Iron it on to temporarily turn the slippery fabric into a stable one.
  • Hooping: magnetic embroidery hoop is highly recommended here to avoid "hoop burn" (crushing the delicate fibers) while maintaining grip.

The Final Review Ritual: Ctrl+F, Background Off, Stitches On (Catch Problems Before You Save)

In the video, the final review is a ritual. Do not skip this.

The Action Sequence:

1. Ctrl+F: Fit to Screen. See the whole picture.
2. B: Background OFF. Remove the distraction of the photo.
3. S: Stitches ON. See the simulation.






Sensory Audit:

• Look for Whitespace: Do you see white gaps between the outline and the fill? (If yes, increase Pull Compensation to 0.40mm).
• Check Entry/Exits: Do the trims happen in logical places (between islands), or randomly in the middle of a fill?

Troubleshooting the Shirt & Collar: Symptoms → Likely Cause → Fix

If your stitch-out fails, use this diagnostic table. Always fix the Physical first, then the File.

The Upgrade Path That Actually Matches This Workflow: From “One-Off Portrait” to Repeatable Production

Manual digitizing is a craft, but production is a system. Once you master the Plot–Fill–Trim rhythm in software, the bottleneck will move to your hardware.

If you find yourself spending 15 minutes digitizing a shirt, but 20 minutes struggling to hoop it straight, your business is bleeding time.

Level 1: The Workflow Upgrade If you are fighting "hoop burn" (ring marks) or struggling to hoop weird locations (collars, cuffs):

• Consider upgrading to embroidery hoops magnetic. These allow you to float the stabilizer and clamp the garment instantly without adjusting screws. This is the single fastest way to improve consistency on knits.

Level 2: The Volume Upgrade If you are doing batches of 20+ shirts:

• Standardizing your placement with hooping stations ensures every logo is exactly 3 inches down from the collar.
• If color changes are eating your day (e.g., stopping every 2 minutes for a thread swap), this is the trigger point to move to a Multi-Needle Machine (like SEWTECH). The ability to load 10+ colors at once turns a manual chores list into an automated production run.

Warning: Magnet Safety. Magnetic frames use industrial-strength neodymium magnets. They can pinch fingers severely. Never place them near pacemakers, and keep credit cards/phones at least 12 inches away. Store them with the provided spacers to prevent them from snapping together permanently.

Setup Checklist (Pre-Production)

• Needle Check: Is the needle fresh? (Replace every 8 hours of running time).
• Bobbin Check: Is the bobbin case free of lint? (Blow it out).
• Consumables: Do you have temporary adhesive spray (e.g., 505) and snippers ready?
• File Check: Did you save as the correct machine format (DST/PES) onto a clean USB?

Operation Checklist (During the Run)

• Listen: Listen for the first "click" of the lock stitch. It should be sharp.
• Watch: Watch the underlay. If the fabric ripples before the top stitch hits, STOP immediately. Re-hoop.
• Touch: Lightly touch the hoop frame (not near the needle) to ensure it isn't vibrating loose.
• Review: After the first shirt, check the back. Is the bobbin tension balanced (1/3 white in the center)? If not, adjust before running the next 49 shirts.

FAQ

• Q: How do I use Threads Embroidery Software Wire Mode (S and B shortcuts) to prevent needle jams caused by line crossovers in shirt fills?
  A: Switch to Wire Mode and hide 3D stitches before placing points so intersecting paths are visible and can be fixed early.
  • Press S to hide real-time stitches and work from the “skeleton” vectors.
  • Press B to toggle the background image on/off to confirm the trace is accurate.
  • Zoom in and remove/redirect any tiny crossovers where lines intersect.
  • Success check: Wire view shows clean, non-overlapping travel with clear entry/exit points (no “piled-up” intersections).
  • If it still fails: Simplify the shape by reducing nodes in curves and avoid “micro-clicking” that creates short, knot-prone segments.
• Q: What stabilizer, topper, and needle setup prevents puckering when embroidering dense shirt fills on stretchy knit T-shirts or performance polos?
  A: Use cutaway stabilizer (2.5oz minimum) with a soluble topper and a ballpoint needle, and avoid stretching the garment while hooping.
  • Choose Cutaway (2.5oz minimum); avoid tearaway on knits.
  • Add soluble film topper to stop stitches sinking into textured knit/pique.
  • Install a 75/11 Ballpoint (BP) needle.
  • Success check: The fabric stays flat during underlay and the finished fill does not ripple or tunnel after unhooping.
  • If it still fails: Stop and re-hoop (do not over-stretch); consider a magnetic hoop for delicate/slippery knits to maintain grip without crushing.
• Q: How do I set Threads Embroidery Software Trim commands to avoid long jump stitches on shirts without wasting production time on excessive trims?
  A: Use a trim only when the travel gap is long enough to create a snag risk; skip trims for very short jumps to save cycle time.
  • Insert Trim via Right-click → Other → Trim between separate “islands.”
  • Skip trim for short jumps (< 2 mm) and allow a jump stitch you can snip or bury later.
  • Use trim for long jumps (> 5 mm) to prevent long tails on the back of a shirt.
  • Success check: The back of the garment has no long floating threads across open areas, and the run time is not inflated by unnecessary stops.
  • If it still fails: Re-plan the sew path to reduce travel between islands and group nearby areas to minimize trims.
• Q: How do I fix gaps between outline and fill on a shirt collar by adjusting hooping tension and pull compensation (0.40–0.50 mm) correctly?
  A: Tighten hooping first, then increase pull compensation so the outline still covers after fabric pull-in.
  • Re-hoop so the fabric is taut (avoid distortion); aim for a “drum” feel.
  • Increase Pull Compensation to about 0.40 mm and up to 0.50 mm if gaps remain.
  • Re-run a test stitch focusing on the collar curve where gaps are easiest to see.
  • Success check: No visible white space appears between the outline and the fill along the collar edge.
  • If it still fails: Check stabilizer choice (knits need cutaway) and reduce over-pointing on curves that can create uneven pull.
• Q: How do I stop thread nesting (birdnesting) on a multi-needle embroidery machine by correcting threading and removing “micro-click” short stitches in the digitizing file?
  A: Fix the physical threading first, then simplify the digitizing so the machine is not forced into too many tiny stitches and nodes.
  • Re-thread the machine and confirm the thread is seated in the tension discs.
  • Clean the bobbin area and remove lint before restarting.
  • In the file, reduce excessive nodes (“micro-clicks”) and avoid very short stitches created by over-pointing.
  • Success check: The underlay and first stitches run cleanly with no thread ball forming under the needle plate.
  • If it still fails: Stop immediately and re-check bobbin insertion and thread path; then re-digitize problem curves with fewer points.
• Q: What needle and bobbin-area pre-production checklist prevents run failures when stitching shirt fills at production speed (including replacing needles every 8 hours)?
  A: Treat needle condition and bobbin cleanliness as mandatory consumables checks before running a batch.
  • Replace the needle at least every 8 hours of running time.
  • Blow out/clean the bobbin case area to remove lint buildup.
  • Prepare snippers and temporary adhesive spray (for controlled fabric/stabilizer handling).
  • Success check: The first lock stitch sounds sharp, and the machine runs the underlay without rippling or hesitating.
  • If it still fails: Stop after the first garment, inspect the back for tension balance, and correct threading/hooping before running the remaining batch.
• Q: What are the key safety rules for avoiding finger injury during test stitching near an embroidery machine needle bar when focusing on digitizing in Threads Embroidery Software?
  A: Keep hands away from the needle area during any test run, because “digitizer focus” makes people forget physical proximity to moving parts.
  • Keep the non-dominant hand on the desk, not near the needle bar, while watching stitches.
  • Stop the machine before making any adjustment near the hoop or needle area.
  • Maintain awareness when switching between screen zoom work and live machine operation.
  • Success check: No hand enters the needle zone during motion; adjustments happen only when the machine is fully stopped.
  • If it still fails: Move the test machine farther from the digitizing station or pause testing until the design edit session is complete.
• Q: What magnetic embroidery hoop safety rules prevent pinch injuries and device damage when using neodymium magnets in embroidery hooping?
  A: Handle magnetic hoops like industrial tools: control snap force, protect fingers, and keep magnets away from sensitive devices.
  • Keep fingers out of the closing path to avoid severe pinches when magnets snap together.
  • Keep magnetic hoops away from pacemakers and keep credit cards/phones at least 12 inches away.
  • Store magnetic hoops with the provided spacers so the magnets do not snap together permanently.
  • Success check: The hoop closes under control without sudden snapping, and the garment is held firmly without crushing marks.
  • If it still fails: Slow down the closing motion and re-train the handling sequence before using magnetic hoops in production.
