Two-Color Butterfly Embroidery on a Home Single-Needle Machine: Cleaner Layers, Fewer Puckers, Better Results

A two-color butterfly looks “simple” on screen—until you try it on real fabric and end up with ripples, shifting, or that slightly wavy satin that screams home hobby machine.

This stitch-out is a clean example of what most home single-needle users run every week: a long base fill in one color (magenta), then a contrast layer (teal) that sits on top and instantly shows every hooping mistake. The good news: you don’t need fancy settings to get a crisp result—you need a repeatable setup and a couple of veteran checkpoints.

The Calm-Down Check: What You’re Seeing in This Home Embroidery Machine Stitch-Out (and Why It Matters)

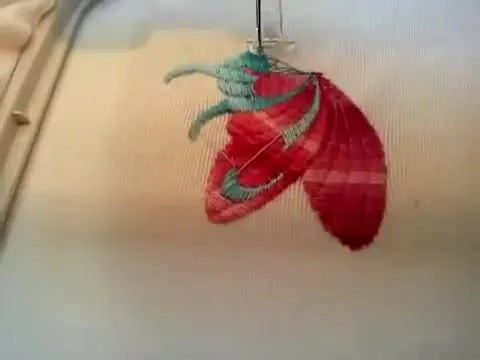

The video is a close-up, real-time run on a home single-needle embroidery machine using a standard plastic hoop on white cotton fabric with stabilizer underneath.

The design builds in two main passes:

• Magenta first: a large area fill stitch (tatami) creates the wing base. This is the structural foundation.
• Teal second: after a manual thread change, teal stitches decorative swirls over the wings, then forms the butterfly body and antennae with denser satin/column stitching.

If you’ve ever had a design look great in the first color and then “go sideways” (literally) when the second color starts, that’s not bad luck—it’s physics. The first layer pulls the fabric toward the center. The second layer is basically a stress test for hooping stability and fabric control. If your prep was 90% good, the gap between the magenta and teal will reveal that missing 10%.

The “Hidden” Prep Pros Do Before the First Stitch: Fabric, Stabilizer, and Tension That Won’t Betray You

This video doesn’t show the prep, but the stitching behavior tells us the project is stabilized and hooped firmly enough to handle a long fill. When the needle penetrates, the fabric doesn't "flag" (bounce up and down).

Here’s the prep I’d do for this exact butterfly on white cotton so the teal swirls land cleanly on top of the magenta.

Stabilizer + fabric pairing (The "Safe Zone")

• Fabric: White woven cotton (quilt weight or similar). It has low stretch, making it the perfect learner canvas.
• Stabilizer Choice: For dense fill stitches like these wings, a Medium Cutaway (2.5 oz) is the professional choice.
  • Why not Tearaway? Tearaway perforates. After 5,000 needle hits, it creates a giant hole behind your butterfly, leaving the fabric unsupported for the second layer. Cutaway stays solid.

Hooping tension: “Drum-tight” is a dangerous myth

Visualizing a drum skin leads to hoop burn (permanent friction marks) and elongated fabric. The sensation you are looking for is tautness without distortion.

1. Tactile Test: Run your fingers over the hooped fabric. It should feel firm, like a starched shirt collar, not like a trampoline.
2. Visual Test: Look at the weave of the cotton. The vertical and horizontal threads should form perfect 90-degree squares. If they look like diamonds, you pulled too hard.

If you are constantly fighting hoop marks or struggling to get that perfect tension without hurting your wrists, that’s where magnetic embroidery hoops become a practical upgrade. They clamp the fabric using vertical magnetic force rather than friction, which eliminates the need to "tug" the fabric after hooping—a major cause of alignment errors.

Warning: Keep fingers, hair, and loose sleeves away from the needle area while the machine is running. A single-needle machine operating at 600-800 stitches per minute (SPM) can puncture skin instantly. Never reach inside the hoop while the start button is lit green.

Prep Checklist (Do this twice so you only stitch once)

• Needle Check: Install a fresh 75/11 Embroidery Needle. (Dull needles push fabric down rather than piercing it, causing registration issues).
• Bobbin Check: Ensure you have a full bobbin of 60wt or 90wt bobbin thread. You don't want to run out mid-wing.
• Field Check: Confirm the design fits your hoop field (common home sizes are 4x4 or 5x7) without hitting the plastic edges.
• Ironing: Press the fabric flat with steam. You cannot hoop out a hard crease.
• Stabilizer Sizing: Cut your stabilizer at least 1 inch larger than the hoop on all sides.
• Consumables: Have temporary spray adhesive (optional but helpful) and sharp curved snips ready.

Lock In the Hoop Like a Production Shop: Plastic Hoop vs Magnetic Hoop (and When Each Wins)

The video uses a standard plastic hoop. It works, but it has a steep learning curve for consistency.

If you’re using a Brother-style home machine and you’re constantly re-hooping because the inner ring popped out, or the fabric slid, it’s worth knowing what you’re optimizing for:

• Plastic hoop: Included with the machine. Good for one-offs. Requires significant hand strength to tighten the screw while keeping fabric straight.
• Magnetic hoop/frame: The industry standard for production. It allows for faster loading (seconds vs. minutes) and applies consistent clamping pressure across the entire frame.

When professionals or serious hobbyists search for a magnetic hoop for brother, the real decision point is not just about "ease"—it's about repeatable tension. Plastic hoops rely on how hard you tighten the screw; magnetic hoops rely on the calibrated strength of the magnets, meaning your 1st shirt and your 50th shirt are hooped with identical pressure.

Warning: MAGNETIC HAZARD. Magnetic hoops are incredibly strong. Keep them away from pacemakers, implanted medical devices, and credit cards. Pinch Hazard: Do not let the two frame parts snap together near your fingers; control them until they connect.

A Quick Decision Tree: Stabilizer Choice for This Butterfly

Use this logic flow to stop guessing. (Always test on scraps first).

• Q1: Is the design fill-heavy (like these butterfly wings)?
  • Yes: You need structural support.
  • No (Open lines/text): You need stability.
• Q2: Is the fabric stretchy (T-shirt/Knit)?
  • Yes: MUST USE Cutaway + Spray Adhesive. (Tearaway will result in a distorted image).
  • No (Woven Cotton/Twll): Go to Q3.
• Q3: Will the item be worn or washed frequently?
  • Yes: Use Cutaway. It stays forever to support the stitches during laundry.
  • No (Wall art/Decor): You can use Heavy Tearaway (2 layers if needed).

The Magenta Base Layer: How the Fill Stitch Builds the Wings Without Warping the Fabric

The first phase in the video is a long magenta run that does two jobs:

1. Creates the wing base: A Tatami fill (running stitches that go back and forth).
2. Adds texture: Borders and inner details are overlaid immediately.

The Physics of the Fill: As the needle creates thousands of stitches, it acts like a cinch, pulling the fabric inward. This is called "Pull Compensation." If your hoop isn't tight, the fabric moves inward with the thread.

• Result: When the machine moves to the other side to do the second wing, the fabric is no longer where the machine thinks it is.

If you’re using a common home size like a brother 4x4 embroidery hoop, you’ll feel the difference between a stable hooping job and a marginal one instantly. On a small 4x4 field, even a 1mm shift makes the outline look like it "missed" the fill.

Micro-checkpoints during the magenta run (What “Good” Looks and Sounds Like)

• Sound: Listen for a rhythmic "thump-thump-thump." If you hear a sharp "slap" sound, the fabric is bouncing up and hitting the presser foot (Flagging). Stop and re-hoop tighter.
• Sight: The fabric should stay flat. If you see a "wave" of fabric moving in front of the presser foot, your stabilizer is too light.
• Edges: Watch the edges of the fill. They should be crisp. If they look ragged or loopy, your top tension might be too loose.

If you see ripples forming immediately, do not wait for the teal layer. Stop. It will not fix itself. Take it off, press the fabric, and add a second layer of stabilizer.

The Color Change Moment: Switching from Magenta to Teal Without Creating Loops, Nests, or Ugly Starts

At about the midpoint, the video clearly shows the stitch-out after a color change. The machine stops, and the operator swaps to Teal.

The "Bird's Nest" Trap: This is where the dreaded "bird's nest" (a tangle of thread under the throat plate) happens. It usually occurs because the top thread wasn't held during the first stitch, allowing the uptake lever to yank the thread end down into the bobbin case.

Veteran Move: When you restart for the second color, hold the teal thread tail gently for the first 3-5 stitches. Once the lock knots are formed, you can let go.

If you are learning how to use magnetic embroidery hoop systems, you'll find that one of the biggest workflow wins is the ability to quickly pop the hoop off to check the bobbin or clear a small nest, and click it back on without losing your center position.

Setup Checklist (Right before you hit Start for the Teal layer)

• Thread Path: Re-thread the machine entirely. Don't just tie a knot and pull it through (this creates tension issues).
• Tail Control: Hold the thread tail with your left hand.
• Presser Foot: Ensure the foot is DOWN. (Rookie mistake: starting with the foot up causes instant jamming).
• Scan: Look at the hoop. Is the fabric still tight? Did the previous stitching cause puckering?
• Speed: For the detail layer, consider lowering your speed (e.g., drop from 700 to 500 SPM) for better precision on curves.

Teal Swirls Over Magenta: How Layering Exposes Hooping Errors (and How to Prevent “Shadowing”)

The teal layer stitches decorative swirls over the upper wings. Because it’s a high-contrast color, any gap between the magenta fill and the teal outline is visible.

This is the moment of truth. If your fabric shifted during the magenta fill, the teal swirls will land 1mm to the left or right, creating an ugly white gap (Shadowing) or overlapping where they shouldn't.

The Fix is in the Station: If you find you are consistently crooked, or your layers are drifting, it's often a mechanical issue with how you hoop. Using a hooping station for embroidery machine forces the hoop to stay square while you apply the top frame. It acts as a "third hand," ensuring your fabric grain remains perfectly straight while you lock it in.

Pro Tip: Alignment is a Curve, Not a Dot

On swirl details, the first few stitches can look slightly “off” relative to the fill. Do not panic stops instantly. Allow the machine to complete the curve. Often, the fill stitches have pushed the fabric slightly, but the digitizer may have accounted for this with "Pull Comp." Wait for the full shape to form before judging alignment.

Watch Out: Tension on Top

Teal on Magenta is unforgiving.

• Too Loose: The teal loops will look sloppy and snag easily.
• Too Tight: You will see the white bobbin thread pulling up to the top (especially on the thin satin columns).
• The Sweet Spot: You should see no bobbin thread on top. On the back, you should see 1/3 white bobbin thread in the center of the satin column.

The Body and Antennae: Why Dense Satin Columns Need Extra Respect

Near the end, the machine stitches the butterfly’s body in the center with a denser satin/column stitch.

Why this breaks needles: Satin stitches (Column stitches) place many needle penetrations in a very small area. If the thread tension is too tight, or the needle is dull, the needle can deflect off the previous threads, hit the needle plate, and snap.

Safety Protocol:

1. Reduce Speed: Drop to 400-500 SPM for tight satin columns.
2. Stable Hoop: If you’re running a larger field like a brother 5x7 magnetic hoop, the rigidity of the frame helps prevents the fabric from bouncing during these high-impact stitches. The magnetic frame holds the fabric flat all the way to the edge of the embroidery field, unlike plastic hoops which lose tension near the center.

The Finish That Makes It Look “Store-Bought”: Trim, Clean-Up, and Keeping the Fabric Flat

The video ends with the machine slowing down. But the job isn't done.

Post-Processing Protocol:

1. Jump Threads: Trim these first while the fabric is still in the hoop. Use curved snips to get close without cutting the knot.
2. Stabilizer Removal:
   • Cutaway: Lift the stabilizer and trim nicely around the design, leaving about 1/4 inch border. Do not cut the fabric.
   • Tearaway: Support the stitches with your thumb while tearing the paper away to prevent distorting your design.
3. The Final Press: Turn the garment over. Place a fluffy towel on your ironing board. Place the embroidery face down on the towel. Press the back. This pops the stitches out (making them look 3D) while flattening the puckers around them.

For those running a small business, consistency is your currency. If you have an order for 20 butterflies, a reliable magnetic embroidery frame ensures that Butterfly #1 and Butterfly #20 are positioned exactly the same, reducing your setup time by 50%.

Operation Checklist (Post-Stitch)

• Stop & Raise: Ensure the needle is fully up before unlocking the hoop.
• Underside Inspection: Check the back for "Bird's Nests" (bunched thread).
• Trim Jumps: Cut the connecting threads between the antennae and wings.
• Un-hoop: Release the magnet or screw.
• Clean: Use a lint roller to remove fuzz from the fabric.

When a “Pretty Demo” Turns Into Paid Work: The Upgrade Path for Repeatable Results

A two-color butterfly is more than a cute design—it’s a diagnostic tool. It tests your patience, your prep, and your gear.

Here’s a practical way to think about upgrades based on your frustration level:

1. Level 1: The "Hobby" Frustration (Hoop Burn / Wrist Pain)
   • Symptom: You hate hooping because it's hard to tighten the screw, or un-hooping leaves creases that won't iron out.
   • Solution: Magnetic Hoops. They protect the fabric and save your wrists.
2. Level 2: The "Side Hustle" Frustration (Slowness)
   • Symptom: You have orders for 10 shirts, and hooping takes longer than stitching. You are constantly re-checking alignment.
   • Solution: Hooping Stations + Magnetic Frames. Speed up the loading process to under 30 seconds per garment.
3. Level 3: The "Business" Frustration (Thread Changes)
   • Symptom: You can't walk away from the machine because you have to change threads manually every 5 minutes.
   • Solution: Multi-Needle Machine (like SEWTECH). Set up 12 colors, hit ensure, and go answer emails.

Quick Symptom Fixes: What to Check When the Butterfly Doesn’t Stitch as Clean as the Video

Even though the video shows a smooth run, real life is messy. Use this Rapid Response table.

The Finished Result: What “Good” Looks Like (So You Can Trust Your Eyes)

A clean final butterfly should show:

• Smooth Fills: The magenta area should look like a solid block of color, not rows of corn.
• Crisp Registration: The teal swirls should sit on the magenta, not drift off into the white fabric.
• Defined Satin: The body should look raised and glossy, not flat and fuzzy.
• Flat Fabric: The cotton around the butterfly should be as flat as the rest of the fabric, not drawn in like a drawstring bag.

If your result is close but not quite there, avoid the temptation to just crank the tension dial. 90% of quality issues are physical (Stabilizing and Hooping), not digital (Tension settings).

A Final Reality Check: This Is a Simple Design—Which Is Why It’s Such a Good Teacher

Because the design is only two colors, it acts as a controlled experiment:

• If the magenta looks great but teal looks messy, focus on your Color Change Protocol and Layering Stability.
• If both colors look wavy or puckered, focus on your Hooping Technique and Stabilizer Choice.

Run this butterfly a second time with one specific change—switch to a magnetic hoop, or try a heavier cutaway stabilizer. Compare the results side-by-side. That is how you move from "hoping it works" to "knowing it will work."

FAQ

• Q: For a two-color butterfly fill on a home single-needle embroidery machine, which stabilizer works best on white woven cotton fabric: Medium Cutaway or Tearaway?
  A: Use a Medium Cutaway (2.5 oz) as the safe choice for dense fills because it keeps supporting the fabric through the second color.
  • Choose Cutaway when the wings are fill-heavy and you want stable registration for the teal layer.
  • Avoid standard Tearaway for this type of design because repeated needle hits can perforate it and reduce support later in the stitch-out.
  • Success check: the fabric stays flat with minimal rippling while the long magenta fill runs.
  • If it still fails… add a second layer of stabilizer and re-test on a scrap before stitching the final piece.
• Q: How can a home single-needle embroidery machine user set hooping tension correctly to avoid hoop burn and fabric distortion on woven cotton?
  A: Aim for “taut without distortion,” not drum-tight, because over-tight hooping causes hoop burn and shifts alignment.
  • Feel the hooped fabric: it should be firm like a starched shirt collar, not bouncy like a trampoline.
  • Check the fabric grain: woven threads should remain square (90-degree grid), not pulled into diamonds.
  • Avoid tugging the fabric after tightening the hoop, because that stretching often shows up as gaps on the second color.
  • Success check: the fabric looks smooth in the hoop and stays stable without visible weave distortion.
  • If it still fails… consider switching to a magnetic hoop/frame to clamp evenly without friction pulling.
• Q: During a home single-needle embroidery machine color change, how can the operator prevent a bird’s nest thread jam at the start of the second color?
  A: Hold the new thread tail for the first 3–5 stitches to prevent the uptake from pulling the tail into the bobbin area.
  • Re-thread the machine fully for the new color instead of tying on and pulling through.
  • Hold the thread tail gently as stitching restarts, then release after the first lock stitches form.
  • Confirm the presser foot is down before pressing Start, because starting with the foot up often causes instant jamming.
  • Success check: the first teal stitches form cleanly with no looping or tangled thread under the fabric.
  • If it still fails… stop immediately, remove the hoop, clear the jam, and restart with the tail held again.
• Q: On a home single-needle embroidery machine butterfly, what causes teal outline gaps or “shadowing” over the magenta fill, and what is the fastest fix?
  A: Teal gaps usually mean the fabric shifted during the heavy magenta fill, so the second layer exposes the registration error.
  • Stop waiting for the teal to “fix itself” if you see early ripples during the magenta run; re-hoop and stabilize first.
  • Bond fabric to stabilizer (often with temporary spray adhesive) to reduce creeping during long fills.
  • Keep the hoop square during loading; a hooping station can help maintain straight grain and consistent placement.
  • Success check: teal swirls sit on top of the magenta without a visible white gap along the edges.
  • If it still fails… upgrade the holding method (magnetic hoop/frame) for more repeatable clamping pressure across projects.
• Q: What are the best “success standards” for thread tension on a home single-needle embroidery machine when stitching teal satin/columns over magenta fill?
  A: Adjust toward the sweet spot where bobbin thread does not show on top, and the underside shows about 1/3 bobbin thread centered in satin columns.
  • Inspect the top: reduce top tension slightly if white bobbin thread is pulling to the surface.
  • Inspect the back: look for a balanced satin where bobbin thread sits centered rather than overwhelming the edges.
  • Slow down for detail layers if needed (the blog example suggests reducing speed for precision on curves).
  • Success check: teal satin looks smooth and glossy with no white bobbin thread visible on the top surface.
  • If it still fails… re-thread the top path and confirm the bobbin is correctly seated and feeding smoothly.
• Q: What needle and speed steps reduce needle breaks on dense satin columns (butterfly body and antennae) on a home single-needle embroidery machine?
  A: Use a fresh 75/11 embroidery needle and reduce speed to protect the needle during dense satin penetrations.
  • Replace the needle before the run if satin looks rough or the needle has been used heavily; dull needles deflect and snap more easily.
  • Reduce speed for tight satin areas (the blog example suggests 400–500 SPM) to lower impact and improve control.
  • Keep the hoop stable so the fabric does not bounce (flag) during dense stitching.
  • Success check: the satin column forms without “rough” texture and the needle runs through the area without striking or snapping.
  • If it still fails… stop and re-check hoop stability and fabric support (stabilizer weight and bonding) before trying again.
• Q: What safety rules should beginners follow when running a home single-needle embroidery machine at 600–800 SPM, and what extra hazards exist with magnetic embroidery hoops/frames?
  A: Keep hands and loose items out of the needle area at all times, and treat magnetic hoops as a strong pinch and medical-device hazard.
  • Never reach inside the hoop while the machine is running or the Start light is on, because high-speed needle movement can puncture skin instantly.
  • Control thread tails from outside the needle area; stop the machine fully before making adjustments.
  • Keep magnetic hoops away from pacemakers/implanted medical devices and away from credit cards; avoid letting the frame halves snap together near fingers.
  • Success check: thread handling and checks are done with the machine stopped, and hoop loading is controlled with no “snap” contact near hands.
  • If it still fails… slow down, reset the work area (remove loose sleeves/hair), and follow the machine manual’s safety guidance before continuing.
