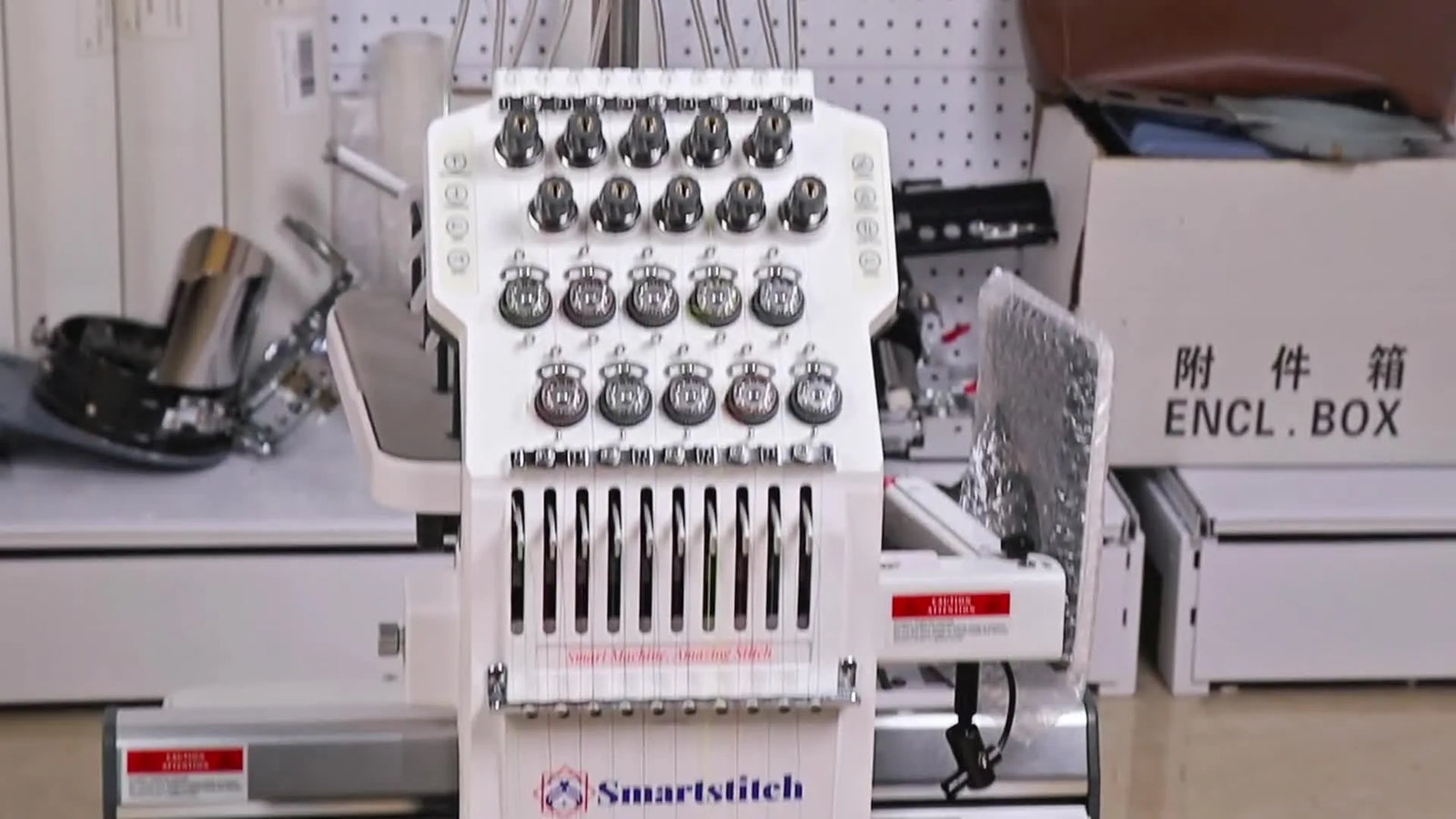

Uncrating the Smartstitch Multi-Needle Embroidery Machine Without Damage: The Buckle Trick, the Hidden Shipping Bolts, and a Clean First Setup

The Definitive Smartstitch S1501 Unboxing & Setup Guide: From Crate to First Stitch (Without the Heartbreak)

A new commercial-style embroidery machine arriving in a wooden crate is exciting—and a little nerve-wracking. If you’re staring at a Smartstitch crate and thinking, “One wrong move and I’ll scratch something or lose a part,” you’re not overreacting. In my twenty years of training shop technicians, I’ve found that the first 15 minutes of uncrating is where 80% of avoidable cosmetic and structural damage happens: slipped tools gouging the paint, rushed lifting straining the chassis, and forgetting the shipping fixation screws (the silent killer of calibration).

This post rebuilds the Smartstitch unboxing and installation flow into a clean, repeatable process you can follow in a real workspace. I’ll keep the steps faithful to the video, but I will overlay them with the "old hand" checkpoints and sensory cues that prevent headaches later. We are moving from "opening a box" to "commissioning a production asset."

Grab the Right Tools for the Smartstitch Wooden Crate (and Save Your Knuckles)

The video keeps it simple: you need a slotted screwdriver to open the metal buckles, and a #14 wrench to remove the shipping fixation screws underneath the palette base. However, if you are setting up a productivity machine like the smartstitch s1501 (or any similar multi-needle platform), you need to treat uncrating like a controlled mechanical task, not a birthday present unwrapping.

The Essential Tool Loadout (From the Video):

• Slotted Screwdriver (Large Head): For prying the metal crate buckles.
• #14 Wrench (Open-ended or Socket): Specifically for the yellow shipping bolts underneath.
• Your Hands: For lifting panels and unscrewing the long bolts manually after loosening.

The "Hidden Consumables" & Shop-Floor Add-ons (Expert Recommendations):

• Cut-Resistant Gloves: Plywood crates often have splinters, and the stamped metal buckles have razor-sharp edges. Protect your hands so you can thread needles delicately later.
• Magnetic Parts Dish: Drop the buckles and bolts here. If a buckle falls onto a concrete shop floor, it tends to slide under the heaviest cabinet in the room.
• A Phone Camera: Take "as received" photos of the crate before opening. If there is shipping damage, you need proof before you touch the bolts.
• White Lithium Grease or Sewing Machine Oil: To lubricate the stand wheels if they feel stiff immediately out of the box.

Warning: Mechanical Hazard. Metal crate buckles are under tension. When prying them open, they can "snap" upward with significant force. Keep your face away from the trajectory, and ensure your off-hand is not resting on the locking mechanism where it could get pinched.

Pop the Smartstitch Crate Buckles the Safe Way: Pry, Then Tap (Don’t Fight It)

The video’s key technique is exactly what I teach new staff: pry first, tap second. This is a sensory operation. You aren't just forcing metal; you are releasing tension.

The Protocol:

1. Insert & Pry: Wedge the tip of your slotted screwdriver under the buckle latch. Apply steady upward pressure.
2. Listen for the Pop: You should hear a distinct metal clack as the tension releases.
3. The "Tap" Technique: If it’s stubborn, do not lean your body weight into it. Instead, tap the buckle loose using the back end of the screwdriver handle.

Why the "Tap" Matters: When a buckle is tight (or slightly oxidized from sea freight), people tend to twist harder with the blade. This is where accidents happen—the screwdriver slips, gouging the wood, scratching the machine's enamel, or punching your own knuckles. A rhythmic tap dislodges the friction without sudden slips.

Checkpoint (Expected Outcome):

• Visual: The latch lifts cleanly and hangs loose.
• Tactile: The buckle feels loose in the housing; it should not require force to unhook from the top lid.


Strip the Crate Panels in Sequence (Top → Front → Left/Right → Rear) So Nothing Binds

The video removes panels in a controlled order. Follow it religiously. A crate is a tension structure; if you remove the side panels before the top, the remaining wood can twist, making the final buckles nearly impossible to open without a hammer.

The Sequence:

1. Top Board: Remove top buckles. Lift firmly. It may be heavy plywood—lift with your legs.
2. Front Board: Remove buckles in sequence (top to bottom). Pull the board away.
3. Left Board: Remove buckles. Lean the board against a wall.
4. Right Board: Remove buckles. Lean the board against a wall.
5. Rear Board: Remove buckles. Remove the board.

Checkpoint (Expected Outcome):

• You can see the machine inside, wrapped in a clear plastic dust cover.
• The machine is sitting on the wooden pallet base, completely accessible from 360 degrees.

Pro Tip: As each panel comes off, lean it against a wall in the same orientation it came off. Mark them with chalk if needed (e.g., "Left"). This makes reassembly (or return packing) dramatically faster because you won't be playing "Tetris" with plywood sheets later.

Do the Accessory Inventory Like a Production Shop: Confirm Every Box Before You Move the Machine

The video pauses to show what’s packed around the machine. Don’t skip this. Inventory is not "busywork"—it is your first line of defense against downtime. You do not want to discover you are missing the cap driver when you have a client order due in 48 hours.

The "Must-Have" List (Verify Physically):

• Toolbox: Open it. Check for SATA tools, screwdrivers, and snips.
• Rolling Wheels: Usually 4 heavy-duty casters.
• Bobbin Winder: A separate motorized unit in a box.
• Cap Station & Driver: Critical for hats.
• Alignment Tool: Often a plastic gauge.
• Hoop Set: Verify the sizes (usually circular, square, and perhaps a massive jacket back hoop).
• Operation Manual & USB: The brains of the operation.
• Starter Kit: Thread, bobbins, spare needles.
• Frame Holder & Support Bars: The structural metal beams for the table.
• Table Top: The flat workspace.

Commercial Context: If you’re planning to run caps or structured items soon, you’ll care a lot about the cap components. That’s where people start searching for a specific cap hoop for embroidery machine to ensure compatibility. If the box labeled "Cap Driver" feels empty or rattles incorrectly, flag it now.

Prep Checklist (Do this **before** you lift anything heavy)

• Tool Verify: Slotted screwdriver and #14 wrench are in your pocket or on a tray.
• Clear Zone: Create a 6x6 foot clear staging area for panels and boxes.
• Protection: Keep the machine wrapped in plastic. The dust cover protects the tension knobs from snagging on your shirt buttons.
• Safe Staging: Identify exactly where you will place the distinct boxes (toolbox, hoops, cap station, bobbin winder) so they are not trip hazards.
• Hardware Catch: Set aside a small bucket or magnetic dish for the metal buckles—unsecured buckles on the floor are tire-poppers.

The “Hidden” Step That Prevents Damage: Remove the Two Diagonal Shipping Fixation Screws Under the Palette Base

This is the most important technical moment in the video, and the one most often botched by excited new owners. The machine is legally married to the wooden base with two fixed screws located on the diagonal.

If you try to lift or shift the machine while these are still installed, you will torque the chassis. This can bend the frame, throw off the needle bar centering, or create a "mystery vibration" later that you might wrongly blame on digitizing.

The Procedure:

1. Locate: Find the two diagonal fixation screws painted yellow (usually) at the base of the machine feet.
2. Access: Reach underneath the wooden palette. You will feel the nut.
3. Execute: Use the #14 wrench. Apply force counter-clockwise ("Lefty-Loosey"). You will feel high resistance initially, then a sudden release.
4. Extract: Once loosening is done with the wrench, spin the long bolt out by hand to save time.

Checkpoint (Sensory & Visual):

• Visual: hold the two long bolts in your hand. If you only have one, you aren't done.
• Tactile: The machine should now slightly "float" or wiggle if you gently rock the upper arm. It is no longer a rigid part of the wood.






Why this matters (Expert Insight)

Shipping fixation hardware is designed to stop micro-movement during transport. That’s good for shipping, but it means the machine and base behave like one rigid unit. If you lift the machine while bolted, the weight of the heavy wooden palette hangs off the machine's precision leveling feet, potentially warping them. Always decouple the static base from the precision instrument before movement.

Unwrap the Smartstitch Machine Cleanly and Confirm the ‘Ready’ State Before You Build the Table/Stand

After the fixation screws are out, the video shows removing the plastic bag/wrap and revealing the machine.

At this stage, resist the urge to immediately mount hoops or install the cap station. Your goal is a calm, neutral baseline:

1. Machine is unwrapped.
2. Shipping hardware is removed.
3. Accessories are accounted for.

If you’re coming from a single-needle home setup and you’re excited to start ordering various hoops for embroidery machines, this is the moment to slow down. Verify the machine sits flat. Check the needle bars are straight. Ensure the pantograph (the moving arm) is not bent. Hooping and stitch quality problems often start with a rushed setup where a bent part was overlooked.

Reinstall the Smartstitch Crate Buckles Correctly (Long Side Bottom, Short Side Top) So Returns Aren’t a Nightmare

The video ends with a detail most people ignore until it’s too late: how to reinstall the crate buckles.

The Reassembly Code:

1. Bottom First: Place the longer side of the metal clip into the bottom slot.
2. Top Second: Hook the shorter side into the top slot.
3. Lock: Press down firmly to lock the wooden panels together.
4. Storage: Stack the panels flat in a dry corner or a storage unit.

This is not just "nice to have." If you ever need warranty shipping or to move your shop to a larger location, having the crate hardware organized saves you $300+ in crating fees. Creating a "System" for your packaging is a hallmark of a professional shop.

The Hooping Reality Check: Standard Plastic Hoops vs. Magnetic Hoops (The Efficiency Pivot)

The video shows a standard hoop set in the box. These are screw-tightened plastic or wood hoops. They are your starting point, and they are perfectly fine for learning the mechanics of tension and placement.

However, once you begin producing consistently—especially on a multi-needle machine designed for speed—manual hooping becomes the bottleneck. It is physically demanding on your wrists and time-consuming.

The Commercial Reality:

• Hobbyist Level: If you are doing one-off gifts, standard hoops are acceptable.
• Production Level: If you are doing 50 left-chest logos, the 2 minutes you spend wrestling with a screw hoop for every shirt adds up to hours of lost profit. Furthermore, standard hoops often leave "hoop burn"—a crushed ring of fabric fibers that is difficult to steam out.

The Upgrade Path: This is where professionals switch to Magnetic Hoops. In our shop context, we supply magnetic hoops for both home single-needle machines and industrial multi-needle machines because they slash hooping time to seconds and virtually eliminate hoop burn.

Warning: Magnetic Field Hazard. Magnetic hoops (like the Mighty Hoop or SEWTECH equivalents) use powerful Neodymium magnets. Do not use them if you have a pacemaker. They can pinch fingers severely if they snap together unexpectedly. Handle with respect.

If you are researching smartstitch embroidery hoops, looking for efficiency, the key is not "which hoop is cheapest," but "which hoop reduces rework."

Decision Tree: Choose Your Stabilizer + Hooping Approach

Use this decision matrix before your first run to avoid the common "birds nest" or broken needle errors:

• Scenario A: Structured, Curved Items (e.g., Baseball Caps)
  • Tool: Use the Cap Driver & Cap Frames included in the box.
  • Stabilizer: Heavy Tearaway (2.5oz minimum).
  • Action: Ensure you have the smartstitch hat hoop configured correctly in the machine's computer.
• Scenario B: Stretchy/Unstable Fabric (e.g., Performance Polos, T-Shirts)
  • Tool: Standard Hoop (Tighten carefully) OR Magnetic Hoop (Preferred for zero burn).
  • Stabilizer: Cutaway (No exceptions). Stretchy fabric needs permanent support.
  • Action: Don't pull the fabric drum-tight; let the stabilizer take the tension.
• Scenario C: Delicate/Deep Pile (e.g., Velvet, Towels)
  • Tool: Magnetic Hoop (To avoid crushing the pile).
  • Stabilizer: Tearaway on bottom + Water Soluble Topping on top.
  • Action: The topping prevents stitches from sinking into the fabric.
• Scenario D: High Volume Repetition (e.g., 100 Corporate Shirts)
  • Tool: Magnetic Hoop + Hooping Station.
  • Stabilizer: Pre-cut squares of suitable backing.
  • Action: Use a hooping station to ensure every logo is in the exact same spot without measuring every time.

Comment-Driven Reality: Stock Availability Changes—Plan Your Setup Timeline Like a Business

In the comments, multiple viewers ask when the machine will be back in stock on Amazon or the website. The channel replies that availability fluctuates.

The Takeaway: Don't schedule paid orders to start the same week your machine is "supposed to arrive." That is a recipe for stress. Build a buffer. Real logistics involves delays.

1. Week 1: Delivery & Uncrating.
2. Week 1.5: Stand Assembly & Leveling.
3. Week 2: Testing tensions and learning the interface.

Setup Checklist (Complete this **after** uncrating, **before** plugging in)

• Clean Panel Removal: All wooden panels are removed and stored; no bent buckles.
• Full Inventory: Toolbox, wheels, winder, cap station, hoops, manual, starter kit, and table parts are visually confirmed.
• Freedom of Movement: Both yellow diagonal shipping fixation screws are removed.
• Component Storage: Long bolts/nuts are stored in a labeled Ziploc bag taped to the manual.
• Machine Level: The machine is sitting flat on the palette (or moved to the stand) and not rocking.

Operation Checklist (Your first "Dry Run")

• Buckle Practice: Open and close a crate buckle once to build muscle memory for repacking.
• Workflow Layout: Arrange accessories: Hoops/Cap station on the left, consumables (thread/backing) on the right.
• Consumable Check: Do you have bobbin thread? Is the oil bottle full? Do you have temporary spray adhesive?
• Station Decision: Decide now—will you buy a hooping station or mark a table with tape for alignment?

The Upgrade Path I’d Use in a Working Studio (No Hype—Just Time Math)

Once your Smartstitch is uncrated and stable, the next question is productivity. In real shops, the first upgrades are rarely "fancy"—they are the ones that remove repetitive friction.

1. The "Schlepping" Fix: If hooping is slow, inconsistent, or marking your fabric, the smartstitch mighty hoop (or a compatible SEWTECH magnetic frame) is the industry standard upgrade. The math is simple: If a magnetic hoop saves 45 seconds per shirt, and you do 100 shirts, you just saved 75 minutes of labor.
2. The Volume Fix: If you are scaling beyond hobby volume, you might eventually outgrow a single 15-needle machine. The natural step up is adding a second machine or moving to a dedicated SEWTECH multi-head platform.
3. The Consistency Fix: Start with high-quality polyester thread and pre-wound bobbins. 90% of tension issues are actually "cheap thread issues."

Uncrate carefully. Remove the yellow screws. Respect the magnets. If you follow this process, you aren't just opening a box—you are opening a business.

FAQ

• Q: What tools are required to open a Smartstitch S1501 wooden crate and remove the shipping fixation screws safely?
  A: Use a large slotted screwdriver for the crate buckles and a #14 wrench for the two diagonal shipping fixation screws under the pallet base.
  • Wear cut-resistant gloves and keep a magnetic parts dish ready for buckles/bolts.
  • Photograph the crate “as received” before opening in case shipping damage must be documented.
  • Stage a clear 6×6 ft area so panels and boxes don’t become trip hazards.
  • Success check: The crate panels come off without forcing, and the two long fixation bolts are physically in hand.
• Q: What is the safest way to open Smartstitch S1501 metal crate buckles without slipping tools and damaging the machine?
  A: Pry the Smartstitch S1501 crate buckle first, then tap the buckle loose—do not muscle it with twisting force.
  • Insert the slotted screwdriver under the latch and apply steady upward pressure.
  • Tap the buckle using the screwdriver handle if it’s stubborn instead of leaning your body weight into the blade.
  • Keep your face and off-hand away from the buckle’s snap path to avoid pinch or impact injuries.
  • Success check: A clear metal “clack” happens and the latch lifts and hangs loose with minimal force.
• Q: What is the correct Smartstitch S1501 crate panel removal sequence to prevent the wooden crate from binding and twisting?
  A: Remove Smartstitch S1501 crate panels in this order: top → front → left/right → rear to avoid tension binding.
  • Remove the top board first, then the front board, then the left and right boards, and finish with the rear board.
  • Lean each panel against a wall in the same orientation it came off to simplify reassembly.
  • Avoid removing side panels before the top, because the remaining structure can twist and make buckles hard to release.
  • Success check: The Smartstitch S1501 is accessible 360° on the pallet base under the plastic dust cover.
• Q: Where are the Smartstitch S1501 diagonal shipping fixation screws located, and how do I know they are fully removed?
  A: The Smartstitch S1501 is bolted to the wooden pallet base with two diagonal fixation screws (often yellow) and both must be removed before lifting or shifting the machine.
  • Locate the two diagonal bolts at the base and reach underneath the wooden pallet to access the nuts.
  • Use a #14 wrench to break initial resistance counter-clockwise, then spin the long bolts out by hand.
  • Store the bolts/nuts in a labeled bag so they can be found for future moves or warranty shipping.
  • Success check: Both long bolts are in your hand, and the machine slightly “floats”/wiggles when gently rocked—no longer rigidly tied to the pallet.
• Q: Which Smartstitch S1501 accessories should be inventory-checked immediately after uncrating to prevent first-week downtime?
  A: Inventory every Smartstitch S1501 accessory box before moving on, because missing cap or frame components can stop production later.
  • Confirm toolbox, rolling wheels, bobbin winder, cap station & cap driver, alignment tool, hoop set, manual/USB, starter kit, frame holder/support bars, and tabletop.
  • Open the toolbox rather than assuming it’s complete, and verify hoop sizes match what you plan to stitch.
  • Flag any box that feels empty or “wrong” (especially cap driver/cap station parts) before assembly begins.
  • Success check: Each listed item is physically seen and placed into a staged “home spot” so nothing gets lost under panels or pallets.
• Q: How do I choose Smartstitch S1501 stabilizer and hooping method to reduce bird’s nests, broken needles, and hoop burn on common materials?
  A: Match Smartstitch S1501 stabilizer and hooping method to the fabric type—most early failures come from the wrong backing or over-tensioned hooping.
  • Use heavy tearaway (2.5 oz minimum) with the cap driver/cap frames for structured caps.
  • Use cutaway (no exceptions) for stretchy polos/T-shirts, and avoid pulling fabric drum-tight—let the stabilizer carry the load.
  • Use tearaway plus water-soluble topping for towels/velvet to prevent stitches sinking into pile; consider magnetic hooping to avoid crushing.
  • Success check: Fabric is held securely without a crushed “ring,” and stitches sit on top cleanly without tunneling or sinking into pile.
• Q: When should Smartstitch S1501 users upgrade from standard screw hoops to magnetic hoops, and what are the key safety warnings for magnetic embroidery hoops?
  A: Upgrade Smartstitch S1501 hooping to magnetic hoops when screw hooping becomes the time bottleneck or causes hoop burn, but handle magnets as a serious pinch hazard.
  • Choose magnetic hoops for repetitive runs (e.g., many left-chest logos) to cut hooping time and reduce rework from fabric marking.
  • Keep fingers clear when closing magnetic frames; strong magnets can snap together unexpectedly.
  • Do not use magnetic hoops if the operator has a pacemaker due to magnetic field risk.
  • Success check: Hooping takes seconds with consistent fabric holding and minimal or no visible hoop burn after unhooping; if pinch risk feels hard to manage, revert to standard hoops until technique is controlled.
