Wilcom 2025 Shamrock Digitizing That Actually Stitches Clean: Cap Corners, Underlay Angles, and a No-Trim Path

St. Patrick’s Day designs often look “easy” on screen… right up until the satin corners spike like thorns, the fill gaps allow the shirt color to peek through, and your machine spends more time aggressively trimming threads than actually sewing.

This shamrock isn't just a holiday trinket. It is a perfect calibration exercise. It teaches the specific habits that separate “it looks fine on screen” (amateur) from “it stitches clean on fabric” (pro). We will focus on the physics of embroidery: sizing constraints, structural integrity (stitch angles + underlay), corner control, and production-minded pathing that saves you time and money.

First, Don’t Panic: Wilcom 2025 Settings Feel Hidden Until You Know Where to Look

If you are new to Wilcom (or any pro-level software), the interface can feel like the cockpit of a 747. The "Fear Phase" usually hits when a tutorial mentions a specific setting—like Pull Compensation—and you simply cannot find it.

Let's clear the fog immediately: The setting mentioned in the tutorial, Pull Comp, lives inside the Object Properties docker.

The Pro Mindset: Wilcom is object-driven.

• The Problem: If you click the generic white background, the software shows you nothing because you haven't selected anything.
• The Fix: You must click the actual object (the green stem, the leaf fill, the satin outline). Once the object is highlighted, the specialized "cockpit controls" for that specific object will appear on the right.

One more reality check: A shamrock is forgiving. However, the anxiety you feel about "ruining a shirt" is real. We are going to build safety margins into this design so you can press "Start" with zero elevated heart rate.

The “Hidden” Prep Pros Do Before Digitizing: Artwork, Thread Plan, and a Fabric Reality Check

Amateurs open software and start clicking. Professionals diagnose before they digitize.

Before placing a single node, ask: What is the physics of this job? The video demonstrates a stitch-out on a stable white woven fabric using green thread. This is the "Best Case Scenario."

However, if you are stitching this on a stretchy performance tee or a thick hoodie, the "pull" of the thread changes.

• The variables: Stretchy fabrics shrink under stitching.
• The constant: You need a stable foundation.

The "Hidden" Consumables: Beyond the obvious thread and bobbin, reliable setups require:

1. Water-soluble marking pen (for placement).
2. Temporary spray_adhesive (if floating fabric).
3. Fresh needles (Size 75/11 Ballpoint for knits, Sharp for wovens).

The Workflow Upgrade: If you are planning to stitch 50 of these for a local event, consistency is your enemy. Hand-hooping 50 times often leads to "Hoop Burn" (those ugly crushed fabric rings) and crooked placement. This is where a magnetic hooping station becomes a necessary tool, not a luxury. It allows you to lock the placement once and repeat it mechanically, removing the "human error" variable.

Prep Checklist (Pre-Flight):

• Confirm Purpose: Is this a flat garment stitch (needs compensation) or a patch (needs edge locking)?
• Consumables Check: Do you have the right backing (Cutaway for knits, Tearaway for woven)?
• Software Hygiene: Open Wilcom 2025 and ensure the Object Properties docker is pinned open.
• Pathing Strategy: Commit to the "One Start, One Trim" rule to save machine time.
• Physical Check: Is your bobbin area clean? A lint-clogged bobbin case ruins tension regardless of your digitizing settings.


Lock the Size First: Measuring the Shamrock to 1.8 Inches So Density Behaves

The instructor uses the Measure tool to check the artwork height and locks it at 1.8 inches.

Why this number is critical: Embroidery is not vector art; you cannot just "scale it up" later without consequences.

• The Density Trap: If you digitize a satin column at 1.8" and stretch it to 4", the stitches simply separate, revealing the fabric underneath (gapping).
• The Bulletproof Vest Effect: If you shrink a 4" design to 1.8" without adjusting properties, the density becomes so high it can break needles and cut a hole in your fabric.

The Rule: Measure your target size first. Digitize 1:1 for that reality.

Column B in Wilcom 2025: The Fastest Way to Build a Clean Satin Stem Without Fighting Nodes

For the stem, the instructor uses Column B. In industry terms, we call this the "Railroad" tool.

The Action:

1. Select Column B.
2. Trace the left rail (Left side of the stem).
3. Press Enter.
4. Trace the right rail (Right side).

The Sensory Check: Imagine laying down train tracks. You define the width, and Wilcom fills the ties (stitches) between them. This is superior to a standard running stitch because you control the width variation, allowing the stem to taper elegantly from thick to thin.

Warning: Machine Safety. When testing your design later, keep hands clear of the needle bar area. Never reach in to trim a thread tail while the machine is running (even slowly). A descending needle bar moves faster than your reflex, and needle punctures through bone are a common ER visit for embroiderers.

Digitize Closed Shape Leaves: Trace First, Then Fix the Trace Like a Pro (Not a Perfectionist)

For the leaves, the instructor switches to Digitize Closed Shape.

The Psychology of Tracing: New digitizers obsess over placing nodes perfectly on the first click. This leads to stiff, jagged shapes. The Pro method is: Rough Draft -> Refine.

1. Click roughly around the shape to capture the "mass."
2. Use the Reshape tool to adjust the curves later.

Efficiency Note: If you run a production shop, time is currency. Spending 20 minutes perfecting a node that will be buried under 1500 stiches is wasted money. Fast, fluid tracing followed by strategic editing is how you make digitizing profitable.

This efficiency mindset also applies to your physical workflow. Adapting your hooping for embroidery machine process to be "rough then refine" (using magnetic frames to slide fabric into place rather than wrestling with screws) complements this digital workflow.

Give the Design “Bones”: Reshape Tool for Stitch Angles, Start/End Points, and Better Sewing Logic

The instructor calls it “bones.” I call it structural engineering.

Using the Reshape tool involves three actions that dictate physics:

1. Stitch Angles (The "Pull"): Stitches pull the fabric in the direction they run. If all stitches run vertically, your fabric will shrink vertically (the "accordion effect"). Varying angles prevents distortion.
2. Start Point (Green Logic): Where the needle enters.
3. End Point (Red Logic): Where the needle leaves.

The "Walk" Logic: Imagine walking through the design. You want to end Object A exactly where Object B begins.

• Bad Pathing: End on the left -> Jump across the design -> Start on the right (Result: Machine slows down, trims, moves, starts up. Noisy and slow).
• Good Pathing: End on the right -> Start on the right (Result: Continuous sewing. Quiet and fast).


Underlay That Holds Up in Real Fabric: Tatami Angle + Spacing Tests (1.0 vs 3.0 vs 6.0)

Underlay is the foundation of your house. If you build a heavy satin roof on a mud foundation, it will sink.

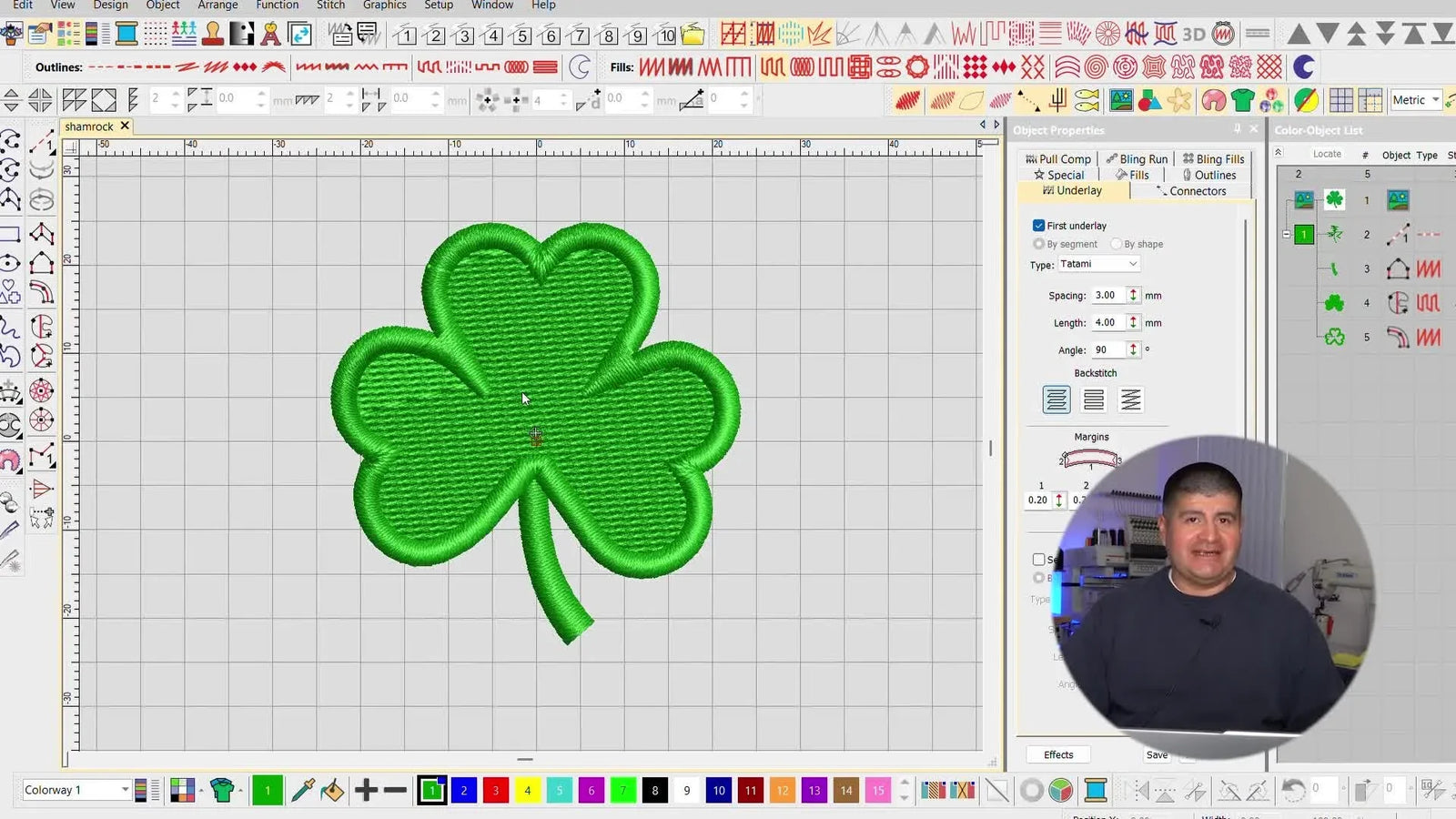

In Object Properties, the instructor selects Tatami underlay.

The Physics: Underlay attaches the fabric to the stabilizer before the visible top stitches land.

• The Angle: It must run perpendicular (90°) to the top stitch. If the top stitch runs North-South, the underlay must run East-West. This creates a "plywood" effect, locking the fabric stability.

The Data (Sweet Spots):

• 3.0 mm Spacing (The Standard): This is the "Goldilocks" zone. It provides support without bulk.
• 1.0 mm Spacing: Too dense. On a t-shirt, this creates a "cardboard" patch feel.
• 6.0 mm Spacing: Too loose. Your top stitches might sink into the gaps (especially on towels or fleece).

Setup Checklist (The "Foundation" Check):

• Select Object: Ensure you are editing the leaf fill.
• Underlay Type: Confirm Tatami (Edge run alone isn't enough for fills).
• Angle Check: Visually confirm the underlay grid crosses the top stitch grain.
• Spacing Value: Set to 3.0 mm–4.0 mm for standard wovens/knits.


The Satin Border That Doesn’t Spike: Duplicate, Convert to Satin, Set 2.5 mm, Then Cap Corners Above 60°

Satin borders on sharp shapes (like shamrocks) are notorious for "Spiking"—where the stitch becomes so long at the corner turn that it loops or snaps.

The Fix:

1. Duplicate the fill object.
2. Convert to Satin Stitch.
3. Set Width to 2.5 mm.

The Critical Safety Setting: Smart Corners

• Action: Select "Cap Corners."
• Value: Threshold Above 60 degrees.

Why? Without clear Capping, a sharp turn creates a fan of stitches that all pile into the same center hole. This creates a "bullet hole" in the fabric that can swallow the knot or break the thread. Capping blunts the turn, spreading the needle penetrations out safely.

Stop the Trim Madness: Use Wilcom Trim Triangles + Start/End Points to Get “One Start, One Trim”

The video shows Wilcom’s trim indicators as small triangles.

• Sound Check: Every trim triangle represents a mechanical sequence: Check-Chunk-Whirrr-Click. This takes about 6-10 seconds.
• Goal: A design with 10 unnecessary trims adds nearly 2 minutes to a run of 12 shirts. That's 24 minutes of lost production time.

The "One Start, One Trim" Rule: If the entire shamrock is green:

1. Use Reshape.
2. Move the End Point of Leaf 1 to touch the Start Point of Leaf 2.
3. Watch the dotted "Jump Stitch" line disappear.

If the dotted line vanishes, the machine will not trim. It will simply glide to the next object. This is how you get professional, fluid machine operation.

Pull Compensation in Wilcom 2025: Where It Lives, Why 0.3 mm Helps, and When to Back Off

Pull Comp is your insurance policy against embroidery physics.

The Phenomenon: As thread tightens, it pulls fabric in (narrowing the column). A 3mm satin column on screen might stitch out as 2.5mm on fabric, leaving a gap between the border and the fill.

The Solution:

• Setting: Pull Comp in Object Properties.
• The Value: 0.3 mm (safe starting point).

Empirical Data for different fabrics:

• Stable Woven (Denim/Twill): 0.20 mm - 0.30 mm.
• Unstable Knit (Polo/Tee): 0.35 mm - 0.45 mm (needs more compensation because the fabric gives way).

Consumable connection: If you use a how to use magnetic embroidery hoop setup, your fabric tension remains drum-tight and consistent. This consistency allows you to use lower pull compensation values because the fabric isn't distorting as much inside the hoop.

Stitch-Out Reality: Multi-Needle Machine + Blue Magnetic Hoop for Fast, Even Clamping

The tutorial concludes with a stitch-out on a multi-needle machine, utilizing a blue magnetic hoop.

Why this hardware matters: The digitizing is only 50% of the battle. The other 50% is stabilization and tension.

• Standard Hoops: Require hand-tightening screws. Too loose = outline misalignment. Too tight = hoop burn (permanent fabric ring).
• Magnetic Hoops: They automatically adjust to fabric thickness. They grip firmly without crushing fibers.

For anyone moving toward production, a magnetic embroidery hoop solves the "Outline Misalignment" issue that novices often blame on their digitizing.

Warning: Magnetic Hazard. These are industrial neodymium magnets. They snap together with immense force.
* Pinch Hazard: Watch your fingers; the snap can cause blood blisters or worse.
* Medical Safety: Keep at least 6 inches away from pacemakers and ICDs.
* Electronics: Keep away from credit cards and smartphones.

Decision Tree: Choose Stabilizer + Hooping Method Based on Fabric

Use this logic flow to determine your setup before you stitch your Shamrock.

START: What is your Fabric?

• A) Stretchy Knit (T-shirt, Polo, Beanie)
  • Stabilizer: Cutaway (2.5oz or 3.0oz). Must use Cutaway.
  • Needle: Ballpoint (75/11).
  • Pull Comp: High (0.35mm - 0.40mm).
  • Hooping: Do not stretch the fabric! Use a magnetic frame for embroidery machine to lay it flat and clamp.
• B) Stable Woven (Denim, Twill, Canvas)
  • Stabilizer: Tearaway (medium weight).
  • Needle: Sharp (75/11).
  • Pull Comp: Medium (0.25mm - 0.30mm).
  • Hooping: Tight as a drum skin. Tap it—it should sound like a dull thud.
• C) High Pile (Fleece, Towel, Velvet)
  • Stabilizer: Tearaway (Back) + Water Soluble Topping (Front/Solvy).
  • Underlay: Increase edge run to hold back pile.
  • Hooping: hooping station for embroidery recommended to ensure perfectly level clamping without crushing the pile texture.

The “Comments Section” Fixes: Version Compatibility, Tension Questions, and What to Do Next

Let's address the common anxieties found in the comments:

1) “Can you save the file for an older Wilcom version?” Wilcom 2025 is forward-compatible, but older versions can't read new .EMB files.

• The Fix: Always "File > Save As" and select a lower version (e.g., e4.5 or e3) if sharing files.
• The Format: If sending to a machine, you don't use .EMB. You export to machine language (.DST for Tajima/SWF/Ricoma/SEWTECH, .PES for Brother).

2) “Do you adjust Tajima tension the same way as Ricoma?”

• The Visual Test: Forget the numbers for a moment. Look at the back of your satin column.
• The "H" Test: You should see 1/3 top thread, 1/3 bobbin thread (white), and 1/3 top thread.
• The Feel: Pull the top thread through the needle. It should feel like pulling a slightly resistant dental floss. If it creates a "spiderweb" mess on the back, your top tension is too loose. If you see white bobbin thread on top, your top tension is too tight.

The Upgrade Path: From Frustration to Profit

If you stitch one Shamrock for a hobby, stick to the basics. But if you felt frustration during this tutorial—maybe your hands hurt from hooping, or your single-needle machine takes 30 minutes to stitch a 10-minute design due to thread changes—it is time to assess your toolkit.

The Diagnostic Criteria:

• Symptom: "I spent more time changing thread colors than stitching."
  • Prescription: A SEWTECH Multi-Needle Machine. Pre-load 10 colors and let the machine run continuously.
• Symptom: "I have permanent rings (hoop burn) on my velvet items."
  • Prescription: Upgrade to Magnetic Hoops. They distribute pressure evenly and eliminate the friction that causes burn.
• Symptom: "My logos are always crooked."
  • Prescription: A Hooping Station. It turns alignment into a mechanical guarantee, not a guess.

Final Operation Checklist (Launch Sequence):

• Outline Check: Are Satin Borders set to 2.5mm width?
• Corner Check: Is Smart Corners (Cap @ 60°) enabled? (Prevents spikes).
• Pathing Check: Did you connect Start/End points to eliminate trims?
• Screen Check: Does the design size match reality (1.8 inches)?
• Test Stitch: Run the design on scrap fabric similar to your final garment.

Follow these steps, and you won't just have a digitized Shamrock; you will have a repeatable, professional workflow. Happy stitching!

FAQ

• Q: In Wilcom 2025, where is the Pull Comp setting when Object Properties looks empty?
  A: Select the actual embroidery object first, then Pull Comp appears inside the Object Properties docker.
  • Click the satin stem/leaf fill/satin border so the object highlights (not the white background).
  • Open or pin Object Properties and locate Pull Comp for that selected object.
  • Start with 0.3 mm as a safe baseline, then adjust per fabric behavior.
  • Success check: a satin border that measures 3.0 mm on screen no longer stitches noticeably narrower with a visible gap to the fill.
  • If it still fails: increase Pull Comp slightly for unstable knits, and re-check hooping stability and stabilizer choice.
• Q: Which stabilizer and needle should be used for a shamrock design on stretchy knit T-shirts versus stable woven denim/twill?
  A: Match stabilizer/needle to fabric first, then fine-tune pull compensation—this prevents distortion and gaps.
  • Use Cutaway (2.5 oz or 3.0 oz) + 75/11 Ballpoint for stretchy knits; avoid stretching fabric while hooping.
  • Use medium Tearaway + 75/11 Sharp for stable wovens; hoop “tight as a drum skin.”
  • Set Pull Comp higher for knits (0.35–0.40 mm) and medium for wovens (0.25–0.30 mm) as starting ranges.
  • Success check: the design stays square (no “accordion” distortion) and the border-to-fill alignment looks even after stitching.
  • If it still fails: verify backing is firmly bonded to fabric (no shifting) and run a test stitch on scrap similar to the garment.
• Q: In Wilcom 2025, how do you stop satin border corner spikes on a shamrock outline when converting a fill to satin?
  A: Use Smart Corners with capping so the needle penetrations spread out instead of piling into one hole.
  • Duplicate the fill object, then Convert to Satin Stitch and set width to 2.5 mm.
  • Enable Smart Corners and choose Cap Corners with threshold Above 60°.
  • Re-stitch the corner areas on scrap before committing to the final garment.
  • Success check: corners look blunt/clean with no long “thorn” stitches, looping, or thread snapping at the turn.
  • If it still fails: reduce extreme corner sharpness during reshape and confirm stabilization is firm so fabric isn’t collapsing at the corner.
• Q: In Wilcom 2025, how can you reduce excess trim triangles to follow the “One Start, One Trim” rule on a single-color shamrock?
  A: Reposition Start/End points so objects connect, making jump lines disappear and preventing unnecessary trims.
  • Use Reshape to move the End Point of Leaf 1 to touch the Start Point of Leaf 2 (and continue around the design).
  • Watch the dotted jump-stitch line—aim to make it vanish wherever the same thread color continues.
  • Keep the path flowing so the machine “walks” through the design instead of jumping across it.
  • Success check: fewer trim triangles are visible, and the machine runs quieter/faster with fewer stop-start trim cycles.
  • If it still fails: confirm the objects truly meet at the same edge point (not just visually close) and re-check start/end markers for each object.
• Q: What is a practical tension success standard when stitching satin columns on Tajima-style multi-needle machines (also used by Ricoma/SEWTECH-class machines)?
  A: Use the “H test” on the back of the satin column—judge by thread balance, not dial numbers.
  • Stitch a short satin column test and flip the fabric to inspect the underside.
  • Aim for 1/3 top thread, 1/3 bobbin thread (white), 1/3 top thread on the back.
  • Pull the top thread by hand: it should feel like slightly resistant dental floss, not loose and “webby.”
  • Success check: no white bobbin thread is showing on the top surface, and the back shows the balanced 1/3–1/3–1/3 distribution.
  • If it still fails: clean lint from the bobbin area and re-test—dirty bobbin cases can mimic “bad tension” regardless of settings.
• Q: What needle-bar safety rule should be followed when test stitching a Wilcom 2025 design on a multi-needle embroidery machine?
  A: Never reach near the needle bar to trim or grab thread tails while the machine is running, even at slow speed.
  • Stop the machine fully before placing hands near needles, presser foot, or needle bar area.
  • Keep fingers clear during color changes, trims, and the first stitch of a new object.
  • Use tools (snips/tweezers) only after motion has stopped, and keep attention on the needle descent path.
  • Success check: thread tails are managed without any “quick reach-in” moments while the head is moving.
  • If it still fails: slow the machine for testing and build a repeatable start routine (hands off until the first few stitches are confirmed stable).
• Q: What magnetic safety precautions are required when using industrial magnetic embroidery hoops on a multi-needle embroidery machine?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from pacemakers and sensitive electronics.
  • Keep fingers out of the closing zone—magnets can snap together with enough force to injure.
  • Maintain at least 6 inches distance from pacemakers/ICDs.
  • Keep magnets away from credit cards and smartphones to reduce risk of damage.
  • Success check: hoops close in a controlled way without finger pinches, and the operator can open/close them consistently without “surprise snap.”
  • If it still fails: practice opening/closing off the machine first and reposition hands to hold from the sides, not between magnet faces.
• Q: How should embroidery workflow upgrades be chosen when production runs cause hoop burn, crooked placement, or slow output from thread changes?
  A: Use a tiered approach: fix technique first, then upgrade hooping tools, then upgrade machine capacity if the bottleneck is colors/time.
  • Level 1 (Technique): standardize prep—correct stabilizer, fresh needles, clean bobbin area, and optimize start/end points to reduce trims.
  • Level 2 (Tool): switch to magnetic hoops if hoop burn or inconsistent clamping/placement keeps happening.
  • Level 3 (Capacity): move to a multi-needle machine when time is lost mainly to repeated thread changes and stop-start operation.
  • Success check: placement becomes repeatable across garments and total stitch time per item drops because trims and re-hooping errors decrease.
  • If it still fails: run a controlled test batch on the same fabric type and document which step (hooping, stabilization, digitizing pathing, or machine downtime) is actually consuming time.
