ZSK Sprint 7 Single-Head Embroidery Machine Review: The Real Workflow Wins (and the Setup Traps) Shop Owners Should Know

Mastering the ZSK Sprint 7: The Commercial Embroidery Production Guide (2025 Edition)

If you have recently invested in—or are currently researching—a commercial single-head machine like the ZSK Sprint 7, you are likely standing at a crossroads. On one path lies the hobbyist mindset: guessing settings, hoping for the best, and accepting "good enough." On the other path lies the professional mindset: clean stitch quality, predictable production, and profitability.

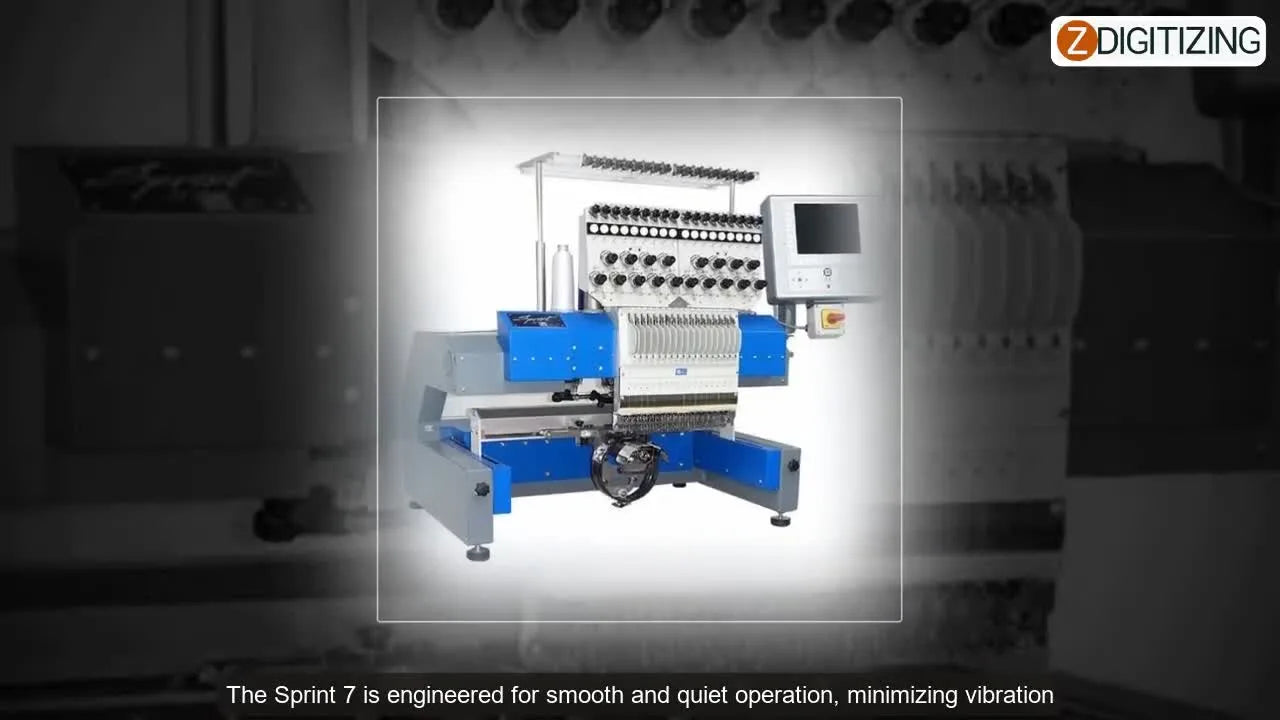

The ZSK Sprint 7 is an industrial workhorse designed for the latter. It offers precision and a robust feature set, but it does not run itself. As someone who has spent two decades on the shop floor, I can tell you that the machine is only 40% of the equation. The other 60% is you—your logic, your hands, and your workflow.

This operational guide moves beyond the brochure. We will dissect the ZSK Sprint 7 through the lens of a production manager, covering the T8 control unit, tension physics, and the critical "shop floor habits" that prevent downtime.

Don’t Panic—Production Means Predictability, Not Complexity

Standing in front of a commercial head for the first time can trigger a "Pilot's Anxiety." You see more needles (up to 12 or 15), complex thread paths, and a digital interface that looks nothing like a home machine.

Here is the cognitive shift you must make: The machine wants to work. Your job is simply to remove the obstacles.

The Sprint 7 is designed to reduce friction through automation—trimmers, color changes, and sensors. However, automation only works if the physical setup is perfect. Unlike a home machine that tolerates sloppy hooping, a commercial head running at 1000+ stitches per minute (SPM) will punish minor errors instantly.

Note on the Interface: The ZSK T8 control unit functions via a touchscreen. However, do not expect an iPad-like experience. Industrial touchscreens are resistive, designed for durability. You will be operating through this screen for 90% of your day, so mastering the navigation flow is as important as threading the needle.

The "Hidden" Prep: Pre-Flight Safety Checks

Before you even touch the power button, you must perform the physical prep that separates pros from amateurs. Thread breaks are almost never random; they are a symptom of a physical conflict in the thread path nor the needle.

The "Invisible" Consumables: You likely have thread and backing. But do you have the consumables that actually keep the machine running?

• Adhesive Spray (e.g., 505): Crucial for minimizing fabric shifting on lofty items.
• Fresh Needles (75/11 Ballpoint & Sharp): A 50-cent needle can ruin a $50 jacket. Change them every 8–10 operating hours.
• Compressed Air/Brush: To clean the bobbin area.

Warning: Mechanical Safety Hazard. Keep fingers, snips, drawstrings, and loose sleeves away from the needle bar and take-up levers. When a commercial machine engages, it accelerates instantly. Always keep your hands outside the "Red Zone" (the hoop area) when the green light is on.

Prep Checklist (The "Or Else" List)

• Needle Integrity: Run your fingernail down the needle tip. If you feel a "click" or scratch, the needle is burred. Replace it immediately, or it will shred your thread.
• Thread Path Floss: Ensure the embroidery thread cones are feeding directly upward without catching on the plastic notch of the cone base.
• Bobbin Health: Check the bobbin area for lint. A single piece of lint can alter tension by 20%.
• Stabilizer Selection: Consult the Decision Tree below.
• Plan the Hoop: Ensure you have the correct hoop size that leaves at least 1-inch clearance around the design.

The Physics of Stabilization: A Fabric → Backing Decision Tree

New operators often guess at stabilizers. Let's make this scientific. The goal is to neutralize the fabric's movement so the needle hits the exact coordinate relative to the previous stitch.

Decision Tree: Fabric/Substrate → Stabilizer Strategy

1. Is the fabric stretchy (Performance Knit, Polo, Spandex)?
   • Physics: The needle penetration pushes fabric down; the needle exit pulls it up. Stretch fabrics distort during this cycle.
   • Solution: Cut-away Stabilizer (2.5oz - 3.0oz). No exceptions. Tear-away will result in "gaposis" (gaps between outlines and fill).
2. Is the fabric stable (Denim, Canvas, Twill caps)?
   • Physics: The fabric structure supports itself.
   • Solution: Tear-away Stabilizer. It provides a crisper edge and easy cleanup.
3. Is the surface textured or lofty (Towel, Fleece, Terry Cloth)?
   • Physics: Stitches will sink into the loops, disappearing from view or getting snagged.
   • Solution: Sandwich Method. Use Cut-away on the bottom for structure, and a Water Soluble Topper (Solvy) on top to keep stitches elevated.


Navigating the T8 Control Unit: Rhythm Over Speed

The video demonstrates the T8 interface. In a production environment, you need to minimize "screen time" to maximize "sew time."

The Workflow Loop:

1. Load Design (USB/Network)
2. Assign Colors (Needle Mapping)
3. Trace (Design Boundary Check)
4. Start

Pro Tip: Create a standardized file naming convention on your PC before transferring to the machine. Use ClientName_DesignName_HoopSize. Searching through cryptic file names like Design1_final_v2 on a small industrial screen is a recipe for frustration.

If you are currently researching zsk embroidery machines, look beyond the stitch count specs. Test the user interface. Does it require 3 taps to load a design, or 10? That difference adds up to hours over a year.

Multi-Needle Logic: The "Lazy" Operator is the Efficient Operator

The Sprint 7 is a multi-needle machine (typically 12 needles). The novice loads colors randomly. The expert loads them strategically.

Standardize Your Rack: Keep your most used colors (Black, White, Red, Navy, Royal, Grey) on specific needles (e.g., Needles 1–6) permanently.

• Why? You stop wasting time changing thread cones for every simple left-chest logo.
• Tension Stability: Once Needle 1 (Black) is tensioned perfectly, you rarely have to touch it if you don't change the cone.


Automatic Trimming: The Finish Line Starts Here

Automatic trimmers are standard on the Sprint 7. However, the quality of the trim depends on the Picker and Knife adjustments.

Visual Check: When the machine trims, flip the garment over. The bobbin tail should be roughly 3mm–5mm long.

• Too short (<2mm): The thread may pull out of the needle eye on the next start (unthreading).
• Too long (>10mm): You will waste time hand-trimming later.


Color Sequence & Repeatability

The video shows the digital assignment of colors. This is where you lock in consistency. By saving the color sequence with the file (if your file format permits, like .dst with a color sheet or proprietary formats), you ensure that a reprint three months from now looks identical.

Shop Rule: Never rely on memory. If a client needs a specific Pantone match, map it to a specific needle in the software and tag the physical cone on the machine.

Mastering Tension: The "H" Test and Visual Anchors

The video shows manual adjustment of the upper tension knobs. This is the "Dark Art" of embroidery that scares most people. Let's demystify it with sensory anchors.

The "Dental Floss" Test (Upper Tension): Pull the thread through the needle eye (presser foot down). It should feel like pulling dental floss through tight teeth—smooth, consistent resistance, but not a struggle. If it flows like water, it's too loose. If it snaps or bends the needle, it's too tight.

The "H" Test (Bobbin Tension): Stitch a standard satin column "H" or "I" test (built into most machines). Flip the fabric over.

• Perfect: You see 1/3 white bobbin thread in the center, and 1/3 colored top thread on each side.
• Honey I Shrunk the Design: If you see no white bobbin thread, your top tension is too loose (or bobbin too tight).
• Caterpillars: If you see white bobbin thread pulled to the top of the garment, your top tension is way too tight.

If you find yourself searching for zsk embroidery machine troubleshooting, 80% of the time, the answer is balancing these two tensions. Start with the bobbin (the foundation), then adjust the top knobs.

Connectivity: USB vs. Network

The video highlights Ethernet and USB ports. In a modern shop, Ethernet is king. USB sticks are easily lost, corrupted, or stepped on. Networking your machine allows you to push designs from your digitizing software directly to the ZSK queue.

Why this matters: It prevents the "Sneaker-Net" bottleneck where the operator walks back and forth, breaking their focus.

Hooping: The Primary Bottleneck (and How to Fix It)

The video demonstrates tubular hoops and hoop recognition. While hoop recognition prevents you from slamming the needle into the plastic ring (a costly mistake), it does not solve the #1 issue in embroidery: Hooping Quality.

The Physics ofHoop Burn: Standard plastic hoops require you to force an inner ring into an outer ring.

• The friction: This pulls the fabric fibers, creating "hoop burn" (shiny marks) that often won't wash out of delicate polys.
• The strain: Repeatedly tightening hoop screws causes wrist fatigue (Carpal Tunnel is a real risk in this industry).

Commercial Upgrade Path: If you notice that your operator spends 2 minutes hooping for a 3-minute run, your ratio is broken.

1. Scenario: High volume of polos or thick jackets that pop out of plastic hoops.
2. Criteria: You need speed and zero fabric damage.
3. The Solution: Upgrade to Magnetic Hoops (such as SEWTECH Magnetic Hoops).
   • Why: They use vertical magnetic force rather than friction. They snap on instantly, hold thick seams without forcing, and leave zero hoop burn.
   • Result: You can hoop a shirt in 15 seconds instead of 60 seconds.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch skin severely. Keep them away from pacemakers, key fobs, and credit cards. Handle with care.

The term magnetic embroidery hoop is often searched by professionals looking to solve the "hoop burn" problem—it is widely considered the industry standard upgrade for production shops.

The Adjustable Presser Foot: The Unsung Hero

ZSK machines feature an adjustable presser foot (DAP).

Sensory Adjustment:

• Listen: Run the machine. If you hear a loud "Thud-Thud-Thud," the foot is hitting the needle plate too hard. Raise it.
• Watch: If the fabric "bounces" or "flags" up and down with the needle, the foot is too high. Lower it.
• The Sweet Spot: The foot should kiss the fabric just enough to hold it still while the needle exits, but not compress the life out of it.


Thread Break Sensors: A Diagnostic Tool

The video shows the sensor wheels. When they stop spinning, the machine stops.

Troubleshooting Logic: When the machine stops for a break, do not just re-thread and pray. Look at the thread end:

• Shredded/Frayed: The thread is rubbing against a burr (check needle or eyelet) or needle is too small for the thread weight.
• Clean Cut: Tension was likely too tight, or the thread got caught on the cone.
• Birdnest (Wad of thread under the plate): You likely missed the take-up lever during threading.


On-Machine Editing vs. Digitizing

The Sprint 7 allows for scaling and rotating. Rule of Thumb:

• Rotate: OK.
• Scale: Danger Zone. Do not scale a design up or down more than 10-15% on the machine.
  • Why? The machine does not add or remove stitches; it just stretches them. Expanding a set design by 20% will leave gaps. Shrinking it by 20% will create a bulletproof density that breaks needles. Always resize in your digitizing software (which recalculates stitch count).

Comparison shoppers looking at the zsk sprint embroidery machine often value this on-board editing, but it should be used for positioning, not redesigning.

Speed: The Myth of 1200 SPM

The video shows the machine running at 1200 SPM. The "Sweet Spot" Reality: Just because your car speedometer says 160mph doesn't mean you drive that speed to the grocery store.

• Caps: Run at 700–850 SPM. The bouncing flag frame needs stability.
• Flats (Polos/Backing): Run at 900–1000 SPM.
• Detailed Small Text: Slow down to 700 SPM for crisp definition.

Running at max speed increases vibration and heat, which breaks thread. 900 SPM with zero thread breaks is infinitely faster than 1200 SPM with three stops.

Operation Checklist (During the Run)

• Auditory Check: Listen for the rhythmic "hum." A "clacking" or "grinding" sound requires an immediate stop.
• Watch the Bobbin: Ensure the bobbin supply is sufficient for the run (or use a low-bobbin sensor if equipped).
• Stay Clear: Keep the area around the pantograph arm clear of walls or obstacles.


Physical Footprint & Expansion

The Sprint 7 is heavy (approx. 600-900 lbs) and requires specific clearance (roughly 80x35x63 inches).

Shop Layout: Ensure you have a 3-foot clearance on all sides for maintenance access. If you are comparing this to a lighter single head embroidery machine, remember that mass absorbs vibration. The heavy weight of the ZSK is a feature, not a bug—it contributes to stitch precision.

The Upgrade Path: Scaling Your Business

Eventually, you will hit a ceiling. You are running the Sprint 7 efficiently, using hooping stations to prep garments, and running perfect tension. Yet, you cannot keep up with orders.

Triggers for Scaling:

1. Downtime frustration: You hate waiting for the machine to finish so you can hoop the next item.
2. Bulk Orders: A client wants 500 polos in 3 days.

The Solution:

• Workflow: Implement a dedicated hooping station for machine embroidery to decouple hooping time from stitch time.
• Machinery: Move to Multi-Head machines or add cost-effective Multi-Needle machines (like SEWTECH multi-needle embroidery machines) to run 2, 4, or 6 garments simultaneously.

Many businesses start with a premium German single-head for samples and high-end work, then scale production volume with banks of reliable, cost-effective multi-needle machines equipped with magnetic hoops.

Setup Checklist (Final "Go" Confirmation)

• Correct Hoop? Selected on screen AND physically attached.
• Presser Foot Height? Adjusted for fabric thickness.
• Design Orientation? Rotated correctly (upside down for caps?).
• Thread Tree? No tangles or caught threads.
• Green Light? Go.

Final Verdict

The ZSK Sprint 7 is a precision instrument. It demands respect, correct consumables, and a disciplined operator. By mastering the variables—tension, stabilization, and hooping—you transform a capital expense into a profit generator.

Remember: The machine puts the thread in the fabric, but you determine if it stays there. Treat every run like a production run, and the quality will follow.

FAQ

• Q: What pre-flight safety checks should a ZSK Sprint 7 operator do to prevent thread breaks and downtime?
  A: Do a 60-second physical check before powering on; most “random” thread breaks come from a physical conflict in the thread path, needle, or bobbin area.
  • Replace: Feel the needle tip with a fingernail; if there is a “click”/scratch (burr), replace the needle immediately.
  • Clean: Brush/blow lint from the bobbin area; even a small piece of lint can change tension noticeably.
  • Verify: “Floss” the thread path and confirm the cone feeds straight up without catching on the cone base notch.
  • Confirm: Choose stabilizer by fabric type (stretch = cut-away; stable = tear-away; lofty = cut-away + water-soluble topper).
  • Success check: The machine runs several minutes with a steady hum and no fraying/breaks, and the thread feeds smoothly from the cone.
  • If it still fails… Inspect for a missed take-up lever during threading and re-check needle size/type for the material.
• Q: How can ZSK Sprint 7 operators confirm correct embroidery tension using the “H test” and what does a bad result mean?
  A: Use a standard satin “H/I” test and judge the underside; correct tension shows a balanced mix of bobbin and top thread.
  • Stitch: Run the built-in (or standard) satin “H” or “I” tension test.
  • Flip: Inspect the back of the sample.
  • Adjust: Treat bobbin tension as the foundation, then fine-tune upper tension knobs.
  • Success check: On the back, about 1/3 bobbin thread appears in the center with top thread on both sides (balanced columns).
  • If it still fails… If no bobbin thread shows on the back, the top tension is likely too loose (or bobbin too tight); if bobbin thread is pulled to the top, the top tension is too tight.
• Q: What should ZSK Sprint 7 operators do when a thread break sensor stops the machine, based on the thread-end symptom?
  A: Do not just re-thread—use the thread end as the clue to the root cause.
  • Inspect: Look closely at the broken thread end.
  • Correct (frayed/shredded): Check for a burred needle tip or rubbing point in the thread path; replace the needle if any burr is felt.
  • Correct (clean cut): Reduce excessive tension and confirm the thread is not catching on the cone/notch.
  • Correct (birdnest/wad under plate): Re-thread and confirm the take-up lever was not missed.
  • Success check: After the fix, the sensor wheels spin consistently and the machine runs without immediate re-breaking.
  • If it still fails… Slow the run speed for stability and repeat the threading path carefully, step by step.
• Q: How can ZSK Sprint 7 operators prevent hoop burn on delicate polyester and reduce hooping time without losing holding power?
  A: Reduce friction-based hooping pressure; when hoop burn or hoop slippage becomes routine, switching from plastic hoops to magnetic hoops is the practical production fix.
  • Diagnose: If shiny marks appear after unhooping, or thick seams/jackets keep popping out, hoop friction is too aggressive for the fabric/job.
  • Optimize (Level 1): Re-check hoop size (keep at least 1-inch clearance around the design) and hoop evenly to avoid over-cranking one side.
  • Upgrade (Level 2): Use a magnetic embroidery hoop that clamps with vertical force instead of friction to minimize fiber drag and speed up hooping.
  • Success check: The garment releases with no shiny ring marks and the fabric stays stable during the run (no shifting while stitching).
  • If it still fails… Add a hooping station workflow so hooping quality stays consistent while the machine is sewing.
• Q: What magnetic hoop safety rules should ZSK Sprint 7 operators follow to avoid injuries and damage?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive items; the holding force is strong enough to injure fingers.
  • Handle: Keep fingers clear when the magnetic ring snaps into place; separate rings slowly and deliberately.
  • Isolate: Keep magnetic hoops away from pacemakers, key fobs, and credit cards.
  • Control: Store magnetic hoops so they cannot slam together unexpectedly.
  • Success check: Operators can mount and remove the hoop repeatedly without pinched skin and without “jumping” rings.
  • If it still fails… Switch to a slower, two-hand mounting technique and retrain operators on safe grip points before resuming production speed.
• Q: What is a safe ZSK Sprint 7 speed setting for caps, flats, and small text when stitch quality keeps breaking down at high SPM?
  A: Run at the “sweet spot” for stability, not the maximum; slower with zero stops is faster than max speed with repeated breaks.
  • Set (caps): Use about 700–850 SPM to reduce bounce and improve control.
  • Set (flats like polos): Use about 900–1000 SPM for a stable production pace.
  • Set (small detailed text): Slow to around 700 SPM for crisp definition.
  • Success check: Stitching sounds like a consistent rhythmic hum (not clacking), with fewer thread breaks and cleaner edges.
  • If it still fails… Re-check stabilization choice and tension balance before increasing speed again.
• Q: When ZSK Sprint 7 production is bottlenecked by hooping time, what is the best “Level 1–3” fix path to regain output?
  A: Fix the workflow in layers: tighten technique first, then reduce hooping friction, then add capacity when demand proves it.
  • Level 1 (technique): Standardize prep—pre-select correct hoop size, keep 1-inch design clearance, and use a hooping station to decouple hooping from sew time.
  • Level 2 (tooling): Upgrade to magnetic hoops when hoop burn, wrist fatigue, or thick garments popping out become frequent.
  • Level 3 (capacity): Add additional multi-needle capacity (or multi-head) when orders outpace one head even with disciplined workflow.
  • Success check: Hooping time no longer exceeds run time on typical jobs, and stops/rehoops drop sharply during a shift.
  • If it still fails… Audit the full loop (load design → needle mapping → trace → start) and reduce on-screen time with consistent file naming and repeatable color mapping.
