BES 4 Monogram Designer, Without the Guesswork: Fonts, Frames, Color Swaps, and the One Save-First Habit That Saves Jobs

You’re not alone if monograms feel like they should be the easiest job in the world… but somehow turn into 45 minutes of clicking, undoing, and second-guessing.

In this lesson, we are analyzing a workflow by Jay from A Stitch in Time using Brother BES 4 Dream Edition. While the software is the tool, our focus is the strategy: handling the "customer wants it today" panic (receiving blankets, confirmation bibs, quick gifts) where speed matters, but a single mistake ruins the garment.

We will move beyond the buttons to understand the physics of the stitch. I will teach you how to build a "Monogram Recipe"—a repeatable combination of software settings and physical stabilizers—that allows you to scale from a reliable hobbyist to a production powerhouse.

The “Don’t Panic” Moment: The Psychology of the Interface directly

Jay starts by clicking the Monogram Designer icon. A dedicated window opens, showing a default monogram (an “A”) with decorative stars.

Why beginners freeze: It looks like you’ve been kicked out of the main program. The Expert View: Think of this window as a "Staging Area." You are building a composite package here. Nothing is permanent until you send it to the machine.

Warning: (Mechanical Safety Risk)
Software feels "safe" because there are no physical consequences on screen. However, if you resize a design down by more than 20% without adjusting density, you create a "bulletproof vest" effect. This can cause needle deflection, which may snap the needle, damage your bobbin case, or send metal shards flying. Always strictly observe density limits for your specific fabric weight.

Phase 1: The "Hidden" Prep (Do This Before You Touches the Keyboard)

Before you touch fonts, you must define the physical reality of the job. In the embroidery industry, we call this "Pre-Production Calibration."

Jay’s example is the classic three-letter monogram: First, Last, Middle (Left, Center, Right).

The "Ghost Steps" Professionals Do Automatically:

1. Fabric Diagnosis (Tactile Check): Close your eyes and feel the material. Is it a receiving blanket (plush, stretchy, unstable) or a bib (structured, woven, stiff)?
2. Hoop & Stability Strategy:
   • For structured items, a standard hoop is fine.
   • For plush/thick items (like the blanket in this example), standard hoops struggle. The inner ring pops out, or you get "hoop burn" (crushed fibers).
   • Trigger: If you find yourself wrestling the fabric or hurting your wrists to close the hoop...
   • Solution: This is where professionals switch to a magnetic hoop for brother dream machine. The magnets hold thick fabric firmly without the friction that causes burn, allowing you to hoop a blanket in 10 seconds rather than 2 minutes.

Prep Checklist (The "No-Go" List)

• Name Logic: Confirm format (First-LAST-Middle is standard; First-Middle-Last is for block fonts).
• Target Size: Decide height now (e.g., 4.00 inches). Resizing later introduces density risks.
• Hidden Consumable: If stitching on a blanket, do you have a Water Soluble Topper? (Essential to keep stitches from burying in the pile).
• Hoop Check: Does your chosen hoop fit the garment and the machine arm clearance?

Make the Letters Behave: The "Apply" Button Discipline

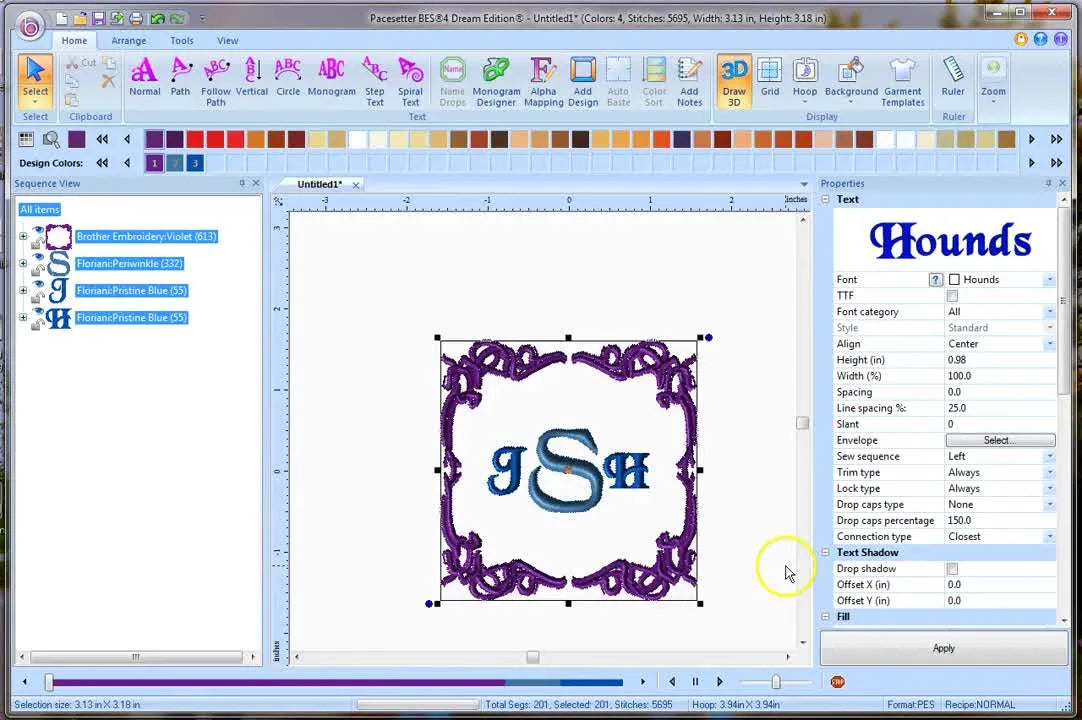

In the right-side properties panel, Jay edits his letters: Text A = J, Text B = S, Text C = H.

Then he clicks Apply.

The Cognitive Trap: In most modern apps, you type and it appears. In embroidery software, you must "submit" the command. If you type and nothing happens, you haven't broken the program.

Sensory Feedback Loop:

• Action: Click Apply.
• Visual Check: The center preview must blink and update. If the "A" remains, the change did not take.

Pro Tip: Create a consistent file naming convention: LASTNAME_First_Middle_FabricType_HoopSize.

• Bad Name: "Monogram1.pes"
• Good Name: "SMITH_JSH_Blanket_4inch_MagHoop.pes"

Font Selection: The "Hounds" Font and the Density Reality

Jay selects the Hounds font from the dropdown.

Expert Reality Check: Not all digital fonts survive the physical world. Fonts with extremely thin serifs (the little feet on letters) can vanish in high-pile fabrics (like blankets).

• The Test: Look at the satin columns (the thick bars of silence). If a column looks wider than 7mm on screen, it might loop or snag. If it looks thinner than 1mm, it might bury in the fuzz.

Action: If choosing a serif font for a blanket, you must use a topper (Solvy) to prop up the thread.

Decors: The Art of Subtraction

Jay demonstrates swapping the star decor for shells, or removing them entirely.

The Speed Trick: Uncheck the Decors box at the bottom. The Nuance: If you later decide to re-add them, check your spacing. Decorators push the frame outward, increasing the total sewing field usage.

Stop Scrolling Forever: The PDF Productivity Hack

Jay notes the BES 4 USB PDF catalogs (151 pages of designs, 98 pages of fonts).

Why this is a "Production Secret": Scrolling through tiny thumbnails on a screen induces "Decision Fatigue." You cannot judge the quality of a frame from a 1-inch icon.

• Action: Print the catalog (or save the PDF to your tablet).
• Client Management: when a customer says "I want a frame," hand them the physical binder. It moves the decision from 20 minutes of browsing to 30 seconds of pointing.

The Transfer: "OK" Means "Commit"

Jay clicks OK to bring the package into the main workspace.

This is the transition from Concept to Manufacturing. Once you are on the white workspace, you are preparing instructions for the machine.

Resizing: The Danger Zone

Jay resizes the design from ~3 inches to 4.00 inches.

The Physics of Resizing: Jay watches the stitch count jump from 5695 to 6492. This is good—the software is adding stitches to maintain coverage.

• The Trap: If you import a static file (PES/DST) and resize it by 20%, the stitch count often stays the same.
  • Result (Scaling Up): Gaps between threads (fabric shows through).
  • Result (Scaling Down): Thread piles up, needles break, fabric puckers.
• The Rule: Always resize in the native design file (BRF) whenever possible.

Hooping Consideration for Resizing: A 4-inch design fits perfectly in a standard brother 4x4 embroidery hoop. However, if you are nearing the max limit of the hoop size (e.g., a 3.9" design in a 4" hoop), you have zero margin for error in centering.

• Option: Step up to a 5x7 hoop or a larger magnetic frame to give yourself "positioning breathing room."

Color Logic: Select Only What You Change

Jay selects specifically the Purple Frame to change it to Willow Green.

Workflow Efficiency Tip: If you run a business, stop letting customers pick from "every color in the world."

• Strategy: Standardize on 10-15 core thread colors that match your inventory.
• Tooling: Use color charts. If you often stitch school logos, match your saved palette to specific thread cones. This prevents the "I thought it was Navy, but you stitched Royal Blue" argument.

Production speed isn't just software—it's hardware. For repeated color changes on diverse garments, pairing your machine with magnetic embroidery hoops for brother allows for rapid change-overs without adjusting hoop screws for every new fabric thickness.

Saving: The "Two-File" Safety Protocol

Jay saves as BRF first, then PES.

The Business Case for BRF:

• PES/DST is the "Printed Document." It is static. The machine reads it.
• BRF is the "Word Document." It is editable. You read it.
• Scenario: A customer returns a year later: "I love the blanket, can you do a bib with the same design but resize it to 2 inches?"
  • If you only kept the PES: You have to start over or risk density issues resizing.
  • If you kept the BRF: You open, scale, save. 2 minutes work.

The Physical Reality: Fabric & Stabilizer Decision Tree

The software is done. Now the real variable enters: The Fabric. Jay mentions a Receiving Blanket vs. a Bib. These require completely different physical setups.

Use this decision matrix to prevent "Subjective Guessing":

Warning: (Magnetic Hoop Safety)
Magnetic hoops use industrial Neodymium magnets. They snap together with immense force.
1. Pinch Hazard: Keep fingers clear of the mating surface.
2. Medical Safety: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place credit cards or phones directly on the magnets.

Troubleshooting: When It Goes Wrong

Even with a perfect file, things happen. Before you blame the software, check the physics.

Final Setup & Operation Checklist

Before you press the green button:

1. [ ] Needle Check: Is the needle fresh? (Change every 8 hours of stitching). Use a Ballpoint 75/11 for blankets (knits), Sharp 75/11 for wovens.
2. [ ] Obstruction Check: Rotate the handwheel manually for one full revolution to ensure the foot doesn't hit the hoop frame.
3. [ ] Thread Path: Tug the thread slightly at the needle. You should feel resistance similar to flossing teeth. No resistance = jumped out of tension discs.
4. [ ] The "Float" Check: If using a magnetic hoop or hooping station for brother embroidery machine, ensure the excess blanket fabric is not bunched up under the needle bar.

If you are consistently struggling to keep designs straight or hooping takes longer than the actual stitching, consider the workflow upgrades practiced by commercial shops. Moving to a dedicated hooping station or upgrading to typical commercial-style machine embroidery hoops (on compatible multi-needle machines) removes the physical variability that causes rejects.

Jay’s workflow in BES 4 is excellent because it balances Control with Speed. By adopting his "BRF First" habit and pairing it with a rigorous physical inspection of your fabric, you turn anxiety into consistent, sellable art.

FAQ

• Q: In Brother BES 4 Dream Edition Monogram Designer, why do the letters not change after typing initials (Text A/B/C)?
  A: Click Apply after editing Text A/B/C; typing alone does not commit the change in the Monogram Designer window.
  • Click inside Text A, Text B, Text C, type the initials, then click Apply.
  • Watch the center preview update before doing any other edits.
  • Success check: The preview visibly refreshes (the default “A” disappears and the new initials appear).
  • If it still fails… close and reopen Monogram Designer and re-enter the text, then Apply again before changing fonts/decors.
• Q: In Brother BES 4 Dream Edition, how do I resize a monogram safely without causing needle breaks or puckering?
  A: Avoid resizing a static PES/DST more than 20% without density control; resize in the native editable file whenever possible.
  • Decide the target height early (example shown: 4.00 inches) to reduce risky re-scaling later.
  • Resize in the editable design format first, then export the machine file.
  • Treat major downscales as a safety risk because density can become “too bulletproof.”
  • Success check: Stitch count changes appropriately after resizing (it should not stay identical when size changes).
  • If it still fails… rebuild the monogram at the correct size instead of forcing a large resize on an imported file.
• Q: How do I prevent hoop burn when hooping plush receiving blankets for machine embroidery monograms?
  A: Reduce friction and crushing pressure during hooping; plush fabrics often burn easily in standard hoops.
  • Switch hooping method for thick/plush items instead of forcing the inner ring closed with excessive pressure.
  • Add the correct topper on top of the blanket to support stitches and reduce pile distortion during sewing.
  • Handle the fabric gently—avoid over-tightening just to “make it stay.”
  • Success check: After hooping, the pile is not visibly crushed into a shiny ring and the fabric is held evenly.
  • If it still fails… change hooping approach (many shops move to magnetic-style hooping for thick fabrics) and re-test on a scrap area.
• Q: What stabilizer and topper combination should be used for monogram embroidery on high-pile fleece receiving blankets?
  A: Use cut-away stabilizer underneath plus a water-soluble topper on top to stop stitches from sinking into the pile.
  • Place cut-away stabilizer on the bottom for support.
  • Add water-soluble topper on the top surface before stitching.
  • Keep the fabric stable during hooping so the pile is not overly compressed.
  • Success check: Letters sit on top of the fibers (not “sunk”), and the stitched surface feels smooth rather than rough and buried.
  • If it still fails… choose a font with stronger satin columns and verify the topper was actually used for the full stitch-out.
• Q: How do I diagnose puckering around monogram letters during machine embroidery on bibs or blankets?
  A: Puckering is usually hoop tension that is too loose or stabilizer that is too weak—fix the physical setup before changing software.
  • Re-hoop with firmer, even tension (tight, but do not stretch the fabric).
  • Upgrade stabilizer weight if the material is moving during stitching.
  • Confirm the hoop fits with enough clearance and the fabric is not bunched under the needle area.
  • Success check: Tap the hooped fabric—proper tension sounds more like a “thump” than a loose “flap,” and the stitched area stays flat.
  • If it still fails… run a small test design and reassess fabric type (stable woven vs stretchy knit vs high pile) and match stabilizer accordingly.
• Q: What is the safest way to use magnetic embroidery hoops to avoid finger injuries and equipment issues?
  A: Treat magnetic hoops as pinch hazards—keep fingers clear, and follow basic medical/electronics precautions.
  • Keep fingers away from the mating surfaces when bringing magnets together.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Do not place phones, credit cards, or sensitive electronics directly on the magnets.
  • Success check: The hoop closes securely without any finger pinch incidents, and hooping feels controlled rather than “snapping unpredictably.”
  • If it still fails… slow down the closure motion and reposition your grip so hands never cross the snap zone.
• Q: If monogram orders are “needed today” and hooping takes longer than stitching, what is the fastest upgrade path for production consistency?
  A: Start with technique discipline, then upgrade hooping tools, and only then consider a production machine—this reduces rejects without guessing.
  • Level 1 (Technique): Lock a pre-production checklist (fabric diagnosis, target size set early, correct stabilizer/topper, Apply/OK discipline, two-file saving).
  • Level 2 (Tooling): Use faster, lower-friction hooping methods for thick or stretchy items to reduce hoop burn and re-hooping time.
  • Level 3 (Capacity): If order volume and change-overs stay high, move to a commercial-style multi-needle workflow to reduce downtime.
  • Success check: Hooping time drops reliably and stitch-outs stay consistent across blankets/bibs without repeated rework.
  • If it still fails… track the top failure mode (burn, puckering, sinking, tension) and upgrade the specific bottleneck first instead of changing everything at once.
