The Ultimate Guide to Brother Bobbin Maintenance: Eliminating Loops, Nests, and Sensor Errors

By the Chief Embroidery Education Officer

When a machine starts "birdnesting"—creating a chaotic tangle of thread under the fabric—or looping on top, it feels personal. It feels like your machine woke up and chose violence. In my 20 years on the production floor, I have watched countless confident operators freeze when they hear that sickening crunch sound.

The immediate reaction is fear: "I broke the timing." The second reaction is spending money: "I need a technician."

Here is the industry truth: 90% of these issues are not mechanical failures. They are hygiene and calibration issues within the bobbin case area. A brother embroidery machine is a precision instrument, and like a high-performance sports car, it requires a specific maintenance ritual.

This white paper reconstructs the standard maintenance protocol into an expert-grade workflow. We will move beyond "cleaning" and into "calibration," establishing a safety zone for your settings so you can stop guessing and start stitching.

The "Black Box" Anxiety: Why Your Bobbin Area Fails

To fix the problem, you must understand the physics. Embroidery produces volume—specifically, stabilizer dust and lint. Unlike standard sewing, embroidery packs thousands of stitches into a small area.

This creates a specific failure chain:

1. The Accumulation: Stabilizer dust (which is abrasive) mixes with lint and oil in the bobbin race.
2. The Lift: This debris packs under the bobbin case, physically lifting it by fractions of a millimeter.
3. The Drag: The thread can no longer pass smoothly around the hook.
4. The Nest: The top thread doesn't clear the bobbin case, catches, and piles up.

Warning: Before touching the bobbin area, Power the Machine OFF. A rotating hook race has enough torque to drive a needle through your finger or snap a screwdriver into your eye. Safety is not optional.

Phase 1: The Surgical Prep (Tools & Environment)

We do not use random tools in the bobbin area. The tolerances here are measured in microns. Using the wrong tool is the fastest way to damage an optical sensor.

Only Use These Tools

• The "Authorized" Brush: The small brush included with your machine. If lost, a high-quality artist's paintbrush (clean, soft bristle) is acceptable.
• The "Coin" or Short Screwdriver: For the needle plate screws (if removal is required).
• The Precision Flathead: For the bobbin tension screw.
• Optics: Good lighting or a headlamp. You cannot clean what you cannot see.

The "Hidden Consumables" List

Most beginners miss these, but professionals keep them on hand:

• Unwaxed Dental Floss: Excellent for "flossing" the tension disks (not the bobbin area) if thread path issues arise.
• Micro-vacuum attachments: Safe.
• Replacement Needles: A bent needle often mimics a bobbin issue.

The Absolute Prohibition

Never use canned air (compressed air). Blowing air into a computerized machine forces lint deep only into the greased gears and optical sensors. It turns a cleaning problem into a mechanical seizing problem. Vacuum out; never blow in.

Pre-Flight Checklist

• Machine is powered OFF and unplugged.
• Needle is raised to its highest position (turn handwheel toward you).
• Presser foot is raised.
• Embroidery unit/hoop is removed for clear access.
• Needle plate area is clear of fabric.

Phase 2: Access & Disassembly

This is where the fear sets in. We need to expose the "race" (the metal basket the bobbin case sits in).

1. Remove the Bobbin Cover: Slide the plastic release latch.
2. Remove the Bobbin: Set it aside. Check it for warping.
3. Remove the Grey Cover (The Trap):
   • The Move: Do not pull straight up.
   • The Technique: Place your thumb on the cover and slide it toward you slightly, then lift.
   • The Sound: It should click softly. If you hear a plastic crack, you pulled up too hard.
4. Extract the Bobbin Case: Lift the black plastic case out. It should come out with zero resistance.


Phase 3: Deep Cleaning & Optical Hygiene

A "clean" machine to the naked eye can still be a "dirty" machine to a sensor.

The Race Sweep

Use your brush to sweep the metal race. Rotate the handwheel (always toward you) to expose different sections of the hook assembly. You are looking for "lint felts"—compressed grey dust that looks like part of the machine but isn't.

The "Fuzzy" Pad (Do Not Remove)

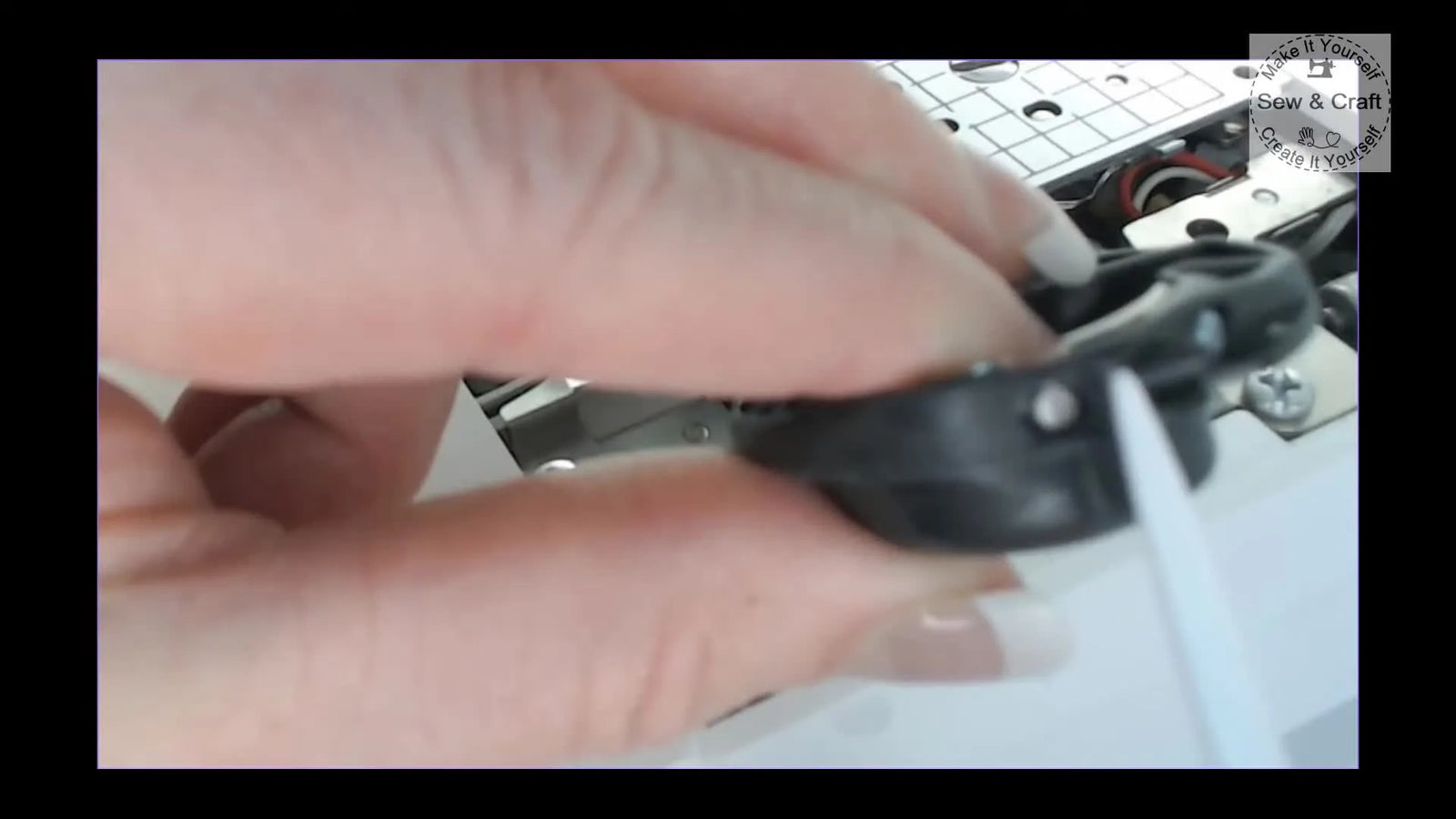

Critical Observation: On the black bobbin case, there is a small rectangle of felt/velcro-like material.

• Function: It provides braking friction to prevent the bobbin from over-spinning (backlash).
• Risk: Do not scrape this off! If it is missing, your tension will be erratic. If it is packed with lint, clean it gently with the soft brush.


Phase 4: The 15-Minute Rule (Tension Calibration)

This is the most misunderstood aspect of machine embroidery. Tension is not a "set it and forget it" variable. It is a relationship between the Top Thread (Pulling Up) and Bobbin Thread (Pulling Down).

Identifying the Screw

Look at your bobbin case side-wall. You will likely see two screws:

1. The Green Screw (Philips/Cross): Do complete touch. This is the axis screw.
2. The Silver/Black Screw (Flathead): This is your tension adjuster.

Note: On some Brother models, the adjustment screw is painted green to indicate "Factory Setting." You can still adjust this. The green paint is just a visual reference point.

The "Sweet Spot" Adjustment Protocol

Do not guess. Use the Clock Face Method.

1. The Test: Place a bobbin in the case. Hold the thread tail and let the case hang.
   • Result A: It falls to the floor immediately. Too Loose.
   • Result B: It hangs and won't move even if you shake it. Too Tight.
   • The "Sweet Spot": It hangs suspended, but when you give your wrist a gentle "yo-yo" jerk, the case drops 1-2 inches and stops.
2. The Adjustment:
   • To Tighten: Turn Clockwise.
   • To Loosen: Turn Counter-Clockwise.
   • The Rule: Adjust only 15 minutes (90 degrees) on a clock face at a time. Never do a full turn.


Why Tension Drifts

Springs have "memory." Over thousands of hours, the metal spring on the bobbin case relaxes. Furthermore, stabilizer dust can wedge under the spring plate, propping it open (zero tension).

• Action: If you cannot get tension even with the screw tight, take a business card and slide it under the tension spring to floss out trapped debris.


Phase 5: The "Bobbin Empty" Sensor Fix

If your machine fails to warn you when the thread runs out, or warns you prematurely, the optical eye is blinded.

The Cleaning Sequence

1. With the case removed, turn the handwheel until the metal race opening aligns with the sensor location (usually at the bottom right quadrant).
2. Gently insert your soft brush.
3. Sweep the "dark glass" eye. Sensory check: You are dusting a camera lens, not scrubbing a floor.

[FIG-10] [FIG-11]

The Digital Reset (Recalibration)

Cleaning is physical; this step is digital.

1. Replace the grey cover plate (some machines have sensors that detect this plate).
2. Leave the bobbin case OUT.
3. Turn the machine ON.
4. Press the Needle Up/Down button twice (Down, then Up).
   • The Sound: Listen for a rhythmic whir-click. This is the stepper motor resetting the hook timing to the "Home" position.

[FIG-12] [FIG-13]

Phase 6: Reassembly (The Binary Choice)

There is no "close enough" here. The bobbin case is either seated perfectly, or you will break a needle in 3 seconds.

The Alignment Anchor

Look for two markings:

1. A White Triangle/Arrow on the black bobbin case.
2. A White Dot on the metal machine race (or plastic housing).

The Action: Align the arrow to the dot. Drop the case in. The Sensory Check: Tap the center of the case. It should have a tiny bit of "wiggle" room (play). It must sit flush. If it rocks like a seesaw, it is not seated.

Level 2: The Business of Efficiency (Tooling Up)

You have cleaned your machine, but you are still getting bad results. Why? In many cases, the machine is fine—the variable is you, or your tools.

Embroidery is a battle against physics. Fabric wants to flag (bounce), and traditional hoops struggle to grip thick items or slippery performance wear. This leads to "Hoop Burn" (permanent rings on fabric) and distortion that mimics tension issues.

The "Hoop Burn" Crisis

If you are spending more time struggling to hoop a thick hoodie than actually embroidering it, your process is broken. This is where professionals graduate from standard plastic hoops.

Terms like magnetic embroidery hoop are not just buzzwords; they are solutions to physical limits.

When to Upgrade Checklist

If you encounter these three symptoms, stop adjusting your tension and upgrade your hoop:

1. Wrist Fatigue/Pain: From fighting tough screws and thick seams.
2. Hoop Burn: Leaving permanent rings on velvet, corduroy, or performance knits.
3. Slippage: The design outline doesn't match the fill (registration error).

The Solution:

• For single-needle users: An aftermarket brother magnetic embroidery frame clamps fabric without forcing it into a ring, eliminating burn.
• For specific models: Ensure you search precisely. A brother se600 hoop is not identical to brother se1900 hoops. The connectors differ. Always verify the "hoop clearance" size (e.g., 4x4 vs 5x7).

Warning (High Field Strength): Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Safety: Users with pacemakers must maintain a safe distance (usually 6+ inches) or consult a doctor.

Scaling Up: The Multi-Needle Reality

If you are perfectly maintaining your single-needle machine but still missing deadlines, the problem isn't maintenance—it's capacity. Changing threads 15 times for one logo breaks your workflow. This is the "Production Wall." Moving to a hooping for embroidery machine station and a multi-needle setup (like SEWTECH's commercial line) is the only way to reclaim that time. It's not about sewing faster (SPM); it's about not stopping.

[FIG-14] [FIG-15]

Troubleshooting Reference: Cause & Effect

Use this table before you call a technician.

Decision Tree: Stabilizer Selection

Dust is the enemy. Choosing the wrong stabilizer generates excess dust, clogging your bobbin case faster.

• Is the Fabric Stretchy (T-Shirt/Polo)?
  • YES: Use Cut-Away. (Tear-away will shatter stitches and create dust).
  • NO: Go to next.
• Is the Fabric Heavy/Stable (Denim/Canvas)?
  • YES: Use Tear-Away.
• Is the Pile Deep (Towel/Fleece)?
  • YES: Use Water Soluble Topper + Tear/Cut Away Backing. (Prevents loops).

Final Operating Protocols

To maintain the "Day 1" performance of your machine, adopt this rhythm:

1. Every Bobbin Change: Quick visual check for "dust bunnies."
2. Every Project End: Brush out the race area.
3. Every 50 Hours: Check the bobbin tension using the Drop Test.

By respecting the physics of the machine and keeping the bobbin area purely calibrated, you stop being a "user" and become an "operator."

Clean first. Calibrate second. Sew third.

FAQ

• Q: How do I safely clean the Brother embroidery machine bobbin area without risking needle injury or hook damage?
  A: Power the Brother embroidery machine OFF and unplug it before any bobbin-area work—this is the safest and fastest way to prevent accidental hook rotation.
  • Turn the handwheel toward you to raise the needle to the highest position, then lift the presser foot.
  • Remove the hoop/embroidery unit for clear access, then open the bobbin cover and take out the bobbin.
  • Brush lint out; do not use canned/compressed air because it can drive lint into sensors and greased parts.
  • Success check: The hook/race area looks clear under good light and nothing moves unexpectedly when you touch the area.
  • If it still fails: Stop and re-check that the machine is fully powered off and the needle is fully raised before continuing disassembly.
• Q: How do I remove the grey bobbin-area cover on a Brother embroidery machine without cracking the plastic “trap” cover?
  A: Do not pull the Brother grey cover straight up—slide it slightly toward you first, then lift.
  • Press your thumb on the grey cover and move it toward you a small amount before lifting.
  • Listen for a soft click; avoid forcing it if it feels locked.
  • Set the cover aside carefully so it does not warp.
  • Success check: The cover releases with a gentle click and no sharp cracking sound.
  • If it still fails: Recheck that the bobbin and bobbin cover are fully removed and try the slide-toward-you motion again with lighter force.
• Q: How do I calibrate Brother embroidery machine bobbin tension using the “yo-yo” drop test and the 15-minute screw rule?
  A: Use the bobbin case drop test and adjust the Brother bobbin tension screw only 90 degrees at a time to reach the sweet spot.
  • Hold the bobbin case by the thread tail and let it hang: if it drops immediately, tighten; if it will not move, loosen.
  • Turn the tension adjuster screw clockwise to tighten or counter-clockwise to loosen, only 15 minutes on a clock face per change.
  • Repeat until a gentle wrist “yo-yo” makes the case drop 1–2 inches and stop.
  • Success check: The bobbin case hangs suspended and responds with a controlled 1–2 inch drop on a gentle jerk (not free-falling, not stuck).
  • If it still fails: Floss under the tension spring with a business card to remove debris that may be propping the spring open.
• Q: How do I fix looping on top on a Brother embroidery machine when the bobbin tension is too loose?
  A: Treat top-side looping on a Brother embroidery machine as a bobbin-tension-too-loose symptom and tighten the bobbin case in small increments.
  • Perform the bobbin case drop test to confirm the case falls too easily.
  • Tighten the bobbin tension screw clockwise in 15-minute (90°) steps only.
  • Stitch a small test after each adjustment rather than making a large change.
  • Success check: The bobbin case no longer free-falls in the drop test and the looping reduces on the fabric surface.
  • If it still fails: Reseat the bobbin case (correct alignment) and clean stabilizer dust from the race before making further tension changes.
• Q: How do I fix Brother embroidery machine birdnesting underneath when the bobbin case is unseated or top tension is effectively zero?
  A: For under-side birdnesting on a Brother embroidery machine, rethread the top path and reseat the bobbin case before assuming timing is broken.
  • Remove thread nests, then completely rethread the top thread path from the start (do not “patch” the thread path).
  • Remove and reinstall the bobbin case so it drops in with zero resistance and sits flush.
  • Align the white arrow/triangle on the bobbin case to the white dot on the machine race/housing.
  • Success check: The bobbin case has a tiny wiggle (play) but does not rock like a seesaw, and the first stitches form without a crunching jam.
  • If it still fails: Deep-clean lint/stabilizer dust that may be lifting the case by a fraction of a millimeter.
• Q: How do I fix a Brother embroidery machine “Bobbin Empty” sensor warning that triggers too early or does not trigger at all?
  A: Clean the Brother bobbin-empty optical eye gently, then do a simple digital reset with the bobbin case removed.
  • Remove the bobbin case and rotate the handwheel toward you until the race opening aligns with the sensor area (often lower-right quadrant).
  • Brush the dark “glass” eye gently like cleaning a camera lens—no scrubbing.
  • Reinstall the grey cover plate, leave the bobbin case out, power ON, then press Needle Up/Down twice (Down, then Up).
  • Success check: The machine makes a rhythmic whir-click during the reset and the bobbin-empty behavior becomes consistent again.
  • If it still fails: Recheck that the grey cover is fully seated (some models detect it) and repeat the clean-and-reset sequence.
• Q: When should Brother embroidery machine users upgrade to a magnetic embroidery hoop to stop hoop burn, slippage, and registration errors on thick or delicate fabrics?
  A: Upgrade to a magnetic hoop when hooping problems (not tension) are causing visible marks, slipping, or mis-registration—this is common on hoodies, velvet, and performance knits.
  • Check for three triggers: wrist fatigue from tight screws, permanent hoop rings (hoop burn), and outlines not matching fills (registration drift).
  • Switch to a Brother-compatible magnetic frame that clamps fabric instead of forcing it into a ring (verify the correct hoop size and connector style for the specific Brother model).
  • Stabilize appropriately before blaming tension (stretch fabrics generally need cut-away; deep pile often needs a water-soluble topper plus backing).
  • Success check: Fabric holds firmly without ring marks and the design stays aligned from outline to fill.
  • If it still fails: Evaluate production limits—frequent thread changes and missed deadlines may indicate a move to a multi-needle workflow rather than more tension adjustments.
• Q: What magnetic embroidery hoop safety precautions should Brother embroidery machine users follow with neodymium magnets and pacemakers?
  A: Treat magnetic hoops as high-field tools: prevent finger pinch injuries and keep magnets away from pacemakers unless cleared by a doctor.
  • Keep fingers clear of mating surfaces when closing the magnetic frame; close slowly and deliberately.
  • Keep magnetic hoops a safe distance from pacemakers (commonly 6+ inches) or follow medical guidance.
  • Store magnets away from sensitive electronics and loose metal items that can snap toward the magnets.
  • Success check: The hoop closes without sudden snapping, and hands stay clear with no pinched skin.
  • If it still fails: Stop using the magnetic hoop for that operator/environment and switch back to a standard hooping method until safe handling is assured.
