Mastering Background Fills on the Brother Luminaire: The definitive "Stamp" Guide

If you’ve ever stared at a gorgeous built-in font on your Brother Luminaire and thought, “I want a clean stippled background around this… but I don’t want the fill crawling into every tiny swirl,” you are facing a classic digitizing challenge.

Most beginners ruin their first few attempts at background fills. Why? Because they treat the machine like a printer. But embroidery is physical—it involves push, pull, and fabric distortion.

This guide is your specialized workshop. We will use the Brother Luminaire Innov-is XP1/XP2 on-screen tools—specifically the Stamp feature (Upgrade Kit 2)—to create custom boundaries. But more importantly, we will cover the physics of stabilization that ensures your background frames the letter rather than burying it.

Don’t Panic: My Design Center "Stamps" Are Just Digital Fences

The first time you see terms like “inside and outside stamps,” it feels like technical jargon. Let’s reframe that using a physical analogy.

Think of your fabric as a piece of land. A "Stamp" is simply a fence.

• The Inside Stamp (The Letter): This is the house. You don't want grass growing inside the living room.
• The Outside Stamp (The Border): This is the property line.
• The Fill: This is the grass (stippling) that grows between the house and the fence.

In this workflow, Terry starts with a built-in letter R (chosen for its complex enclosed loops), then builds two boundaries around it (an oval and a rectangle). Those outlines become "fillable regions" in My Design Center (MDC).

The Hidden Prep: Physics, Hooping, and Density

Before you touch the screen, we must address the physical reality of what you are about to do. Adding a full background fill increases the stitch count by thousands. This creates massive tension on the fabric.

If your hooping is "loose enough," the background stippling will pull the fabric inward, causing the letter R to misalign or the border to warp.

1. The Thread and Needle Plan

• Thread: Use high-quality 40wt polyester (like Floriani or Isacord). Old, brittle thread will shred under the high speed of stippling.
• Needle: Change your needle now. Use a fresh Size 75/11 Embroidery needle. A dull needle punching thousands of stipple holes will cut fabric fibers rather than pushing them aside.

2. The Hooping Reality Check

Terry sizes the rectangle to fit the maximum area of the user's frame (approx. 9.5–10.5 inch square).

• The Tactile Test: When hooped, your fabric should sound like a drum when tapped. If you can pinch the fabric and ripple it, it is too loose.
• The Hoop Itself: For dense backgrounds, standard hoops can lose grip. This is where hooping for embroidery machine technique is critical. If you see "hoop burn" (shiny crushed fabric marks) or struggle to get even tension, this is the bottleneck that separates hobbyists from pros.

3. Hidden Consumables

Don't start without these:

• Temporary Spray Adhesive (e.g., 505): Essential to bond fabric to stabilizer for dense fills.
• Air-Erase Pen: To mark your center point physically on the fabric.

Prep Checklist (The "Pre-Flight" Safety Check):

• Upgrade Check: Confirm Upgrade Kit 2 features (Stamps) are active.
• Needle: Installed a brand new 75/11 or 90/14 needle.
• Bobbin: Cleaned the bobbin case area (remove lint) and inserted a full bobbin. Backgrounds eat thread!
• Hoop Check: Fabric is drum-tight. If using a standard hoop, consider wrapping the inner ring with grip tape or using clips.
• Design Logic: You have chosen a letter with "holes" (like A, B, R) to practice inside/outside logic.


Warning: Needle Safety
When stitching dense background fills, the machine moves rapidly in non-linear directions. Keep fingers at least 4 inches away from the needle bar. If a needle breaks during a high-speed stipple, the tip can fly with significant velocity. Wear glasses and keep hands clear.

Step 1: The "Recalculate Stitches" Button (Crucial)

Terry’s first critical on-screen move is resizing the built-in letter.

On the Luminaire edit screen, do not use the standard resize handles. You must use the Size Tool and select the second icon (looks like a jagged line).

• The Why: Standard resizing keeps the original stitch count. If you double the size, the stitches spread out, and your letter looks bald.
• The Fix: The "Recalculate" icon adds new stitches to maintain density.
• The Action: Resize the letter R to approx 4.06 inches tall.


Step 2: Build Clean Boundaries (Oval & Rectangle)

Now we define the "Yard" and the "Fence." Use the Add button in the shape menu.

1. The Oval (The Inner Buffer)

• Select shape "Number 10" (Oval).
• Rotate 90 degrees.
• Resize it so it sits comfortably outside the letter R.

2. The Rectangle (The Outer Limit)

• Select shape "Number 10" (Rectangle).
• Resize to the max usable area of your frame (Video shows 8.69 x 8.69 inches).

The Logic: You are creating three distinct Zones:

• Zone A: The Letter (Embroidery).
• Zone B: Between Letter and Oval (Stippling).
• Zone C: Between Oval and Rectangle (Decorative Fill).


Step 3: Stamp Settings & Distance Offsets (The "Secret Sauce")

This is where the magic happens. We convert shapes into passive "Stamps." The Distance setting controls the "No Fly Zone" around the object.

How to find the "Sweet Spot": If the distance is too small (0.00"), the stippling will kiss the satin stitches of the letter, creating a messy, crowded look. If it's too big, you get a distracting halo.

Stamp 1: The Letter R

• Select the R. Hit the Stamp Key (Flower icon).
• Inside and Outside: Set to ON. (Crucial: This tells the machine to respect the hole inside the 'R').
• Distance: Set to approx 0.060 inches (Video shows 0.056 - 0.060).
• Expert Note: We give the letter more clearance than the borders because letters have complex edges that need visual breathing room.




Stamp 2: The Oval

• Inside and Outside: ON.
• Distance: 0.032 inches.
• Expert Note: This is a tighter tolerance because it's just separating two background fills.


Stamp 3: The Rectangle

• Distance: 0.036 inches (Inside offset).

Commercial Insight: Precise offsets require precise fabric holding. If your fabric slips 1mm during stitching, your 0.032" offset disappears. This precision is why many users searching for how to use magnetic embroidery hoop tutorials are actually looking for ways to stop fabric shifting during these exact types of complex framing tasks.

Step 4: The "Safety Save"

Group all three objects (R + Oval + Rectangle) and Save to Memory.

• Why? Later, we will only import the shape of the background. We need the original design to overlay perfectly on top. If you don't save this specific arrangement, you will never manually align them perfectly again.

Setup Checklist (Before entering My Design Center):

• Stamps Created: Letter, Oval, and Rectangle are all processed as stamps.
• Clearance Strategy: Letter distance (approx 0.060") is larger than shape distance (approx 0.030").
• Memory Save: The grouped layout is saved in the machine's pocket.

Step 5: My Design Center Workflow

Go Home -> My Design Center. Retrieve the stamps in the order created.

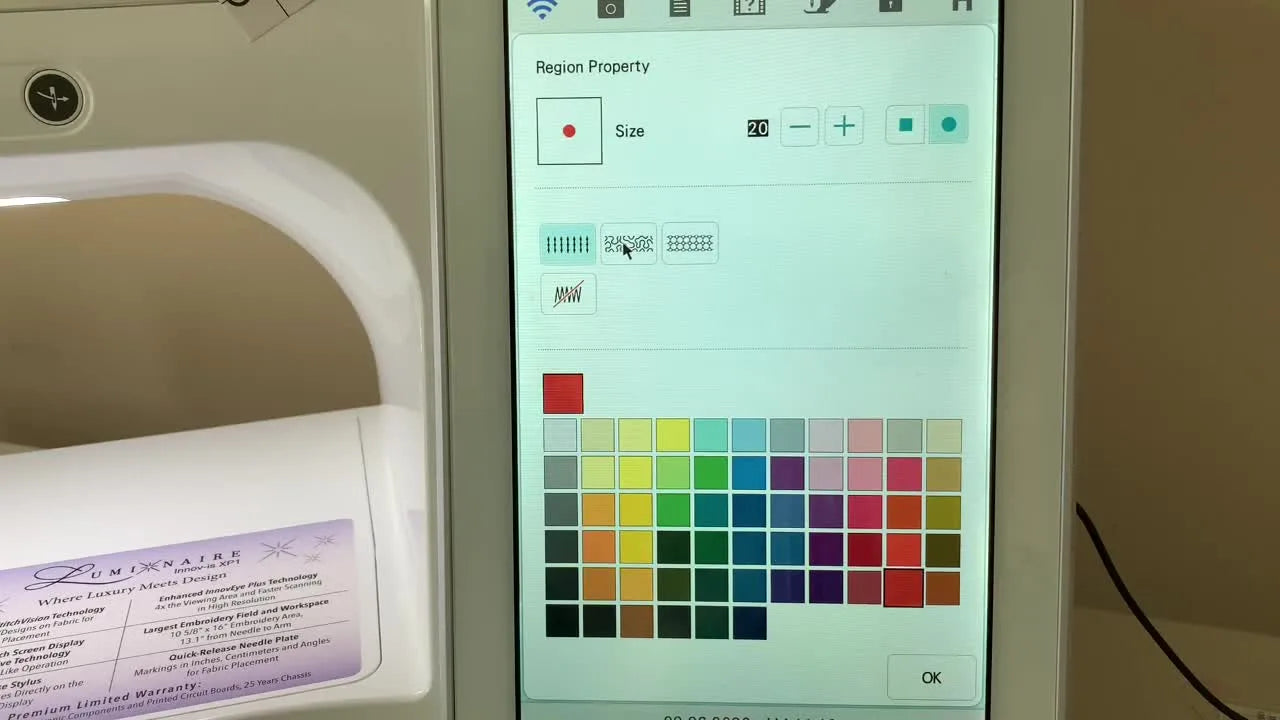

The Stipple Fill (Zone B)

• Select Fill Properties -> Stippling.
• Color: Blue.
• Action: Tap the region between the R and the Oval.
• Visual Check: Ensure the inside of the 'R' loop (the "counter") gets filled or left empty based on your preference. Terry leaves the letter itself empty here—it will be stitched by the embroidery file later.


The Decorative Border (Zone C)

• Select Fill Properties -> Pattern No. 038.
• Color: Green.
• Action: Tap the region between the Oval and Rectangle.




Step 6: Convert, Overlay, and Stitch

This is the moment of truth.

1. Press Next/Set to convert the MDC calculations into actual stitches.
2. Press Add (Memory/Pocket) and retrieve the grouped design you saved in Step 4.
3. The Result: The pristine satin letter R drops perfectly into the negative space reserved by the blue stippling.




Operation Checklist (Before hitting "Start"):

• Visual Preview: Zoom in on the screen. Is the stippling encroaching on the letter? If yes, go back and increase the Stamp Distance.
• Wait for the Click: When attaching the hoop, ensure it clicks firmly into the carriage.
• Speed Limit: Reduce machine speed to 600-700 SPM. Dense backgrounds create heat and friction; slower speeds produce cleaner stitch definition.

Step 7: The Physics of "Push and Pull" (Why Backgrounds Fail)

When you stitch a dense background, the fabric contracts. This fills behaves like a tightening net.

• The Risk: If the stabilizer is weak, the fabric creates a "dome" or "bubble" in the center.
• The Result: The letter R will register in the wrong place, crashing into the stippling.

To prevent this, you need a robust stabilization strategy.

Stabilizer Decision Tree

Use this logic to choose your "foundation":

Troubleshooting Guide

Here is a structured approach to common failures in this specific workflow.

Symptom A: Stippling "crawls" inside the small loops of the letter

• Likely Cause: Stamp Distance is too low (e.g., 0.020").
• Immediate Fix: Undo, select the Letter Stamp, increase distance to 0.060" - 0.080".
• Prevention: Always preview at 200% zoom.

Symptom B: The letter 'R' looks skinny or gaps appear in satin stitching

• Likely Cause: You skipped the "Recalculate Stitches" icon during resizing.
• Immediate Fix: Design must be deleted and re-imported/resized correctly. Physics cannot be cheated here.

Symptom C: "Hoop Burn" creates a permanent ring on the fabric

• Likely Cause: Standard hoop was tightened too aggressively to hold the dense heavy fabric.
• The Solution: This is a hardware limitation. Upgrading to a brother luminaire magnetic hoop eliminates the need for inner-ring friction, holding fabric flat with magnetic force instead of mechanical pinching.

Production Level: When Hobby Become High-Volume

If you plan to sell these—patches, coasters, or quilt blocks—efficiency matters.

Traditional hooping is slow and causes wrist strain over time. If you are doing repeats of this design, the alignment must be identical every time.

• The Pain Point: Re-hooping thick stabilizer + fabric layers 10 times in a row.
• The Upgrade: Many production shops switch to SEWTECH Magnetic Hoops.
• Why? They allow you to slide the fabric/stabilizer sandwich in and out without unscrewing/rescrewing the frame. For designs like this that rely on perfect tension to maintain the 0.060" gap, magnetic embroidery hoops for brother provide consistent tension across the entire surface, reducing the "pull" effect that ruins alignment.

Warning: Magnetic Field Safety
SEWTECH and other magnetic hoops use powerful N52 magnets.
1. Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surfaces.
2. Medical Safety: Users with pacemakers should maintain a safe distance (consult your doctor) as strong magnetic fields can interfere with device operation.

Final Quality Audit

A perfect "Stamped" Background has three sensory tells:

1. Visual: The gap around the letter is uniform, like a white river flowing evenly around the text.
2. Tactile: The background feels distinct from the letter, but the fabric lies flat (no bubbling).
3. Auditory: The machine runs with a rhythmic, consistent hum—no banging or laboring, which indicates correct stabilization and speed.

Master this workflow, and you stop "decorating letters" and start "manufacturing topography." That is the mark of a pro.

FAQ

• Q: What hidden prep items and pre-flight checks are required before stitching dense background fills with the Brother Luminaire Innov-is XP1/XP2 Stamp feature (Upgrade Kit 2)?
  A: Do a quick pre-flight check first—dense stippling adds thousands of stitches and exposes weak prep immediately.
  • Confirm Upgrade Kit 2 Stamp functions are active before starting.
  • Install a brand-new 75/11 embroidery needle (or 90/14 if the fabric is very dense/thick) and load a full bobbin after cleaning lint from the bobbin area.
  • Bond fabric to stabilizer using temporary spray adhesive (e.g., 505) and mark the center point with an air-erase pen.
  • Success check: the machine runs smoothly without sudden thread shredding or frequent stops, and the fabric stays flat (no bubbling) after the fill starts.
  • If it still fails: reduce speed to 600–700 SPM and re-check stabilization choice (cutaway vs tearaway) for the fabric type.
• Q: How can Brother Luminaire Innov-is XP1/XP2 users verify correct hooping tension before stitching a high-stitch-count stipple background fill?
  A: Hoop the fabric drum-tight—loose hooping is the most common reason stippling pulls borders out of shape.
  • Tap the hooped fabric and listen for a drum-like sound; re-hoop if it sounds dull.
  • Pinch the fabric surface; if the fabric ripples or slides, re-hoop tighter before stitching.
  • Add grip support if needed (wrap inner ring with grip tape or use clips) when a standard hoop loses hold during dense fills.
  • Success check: the filled area stays centered and flat while stitching, with no visible “dome” forming in the middle.
  • If it still fails: upgrade the fabric-holding method (magnetic hoop) because the issue is often hoop grip limitation, not settings.
• Q: Why does the Brother Luminaire Innov-is XP1/XP2 satin letter look skinny or show gaps after resizing a built-in font for Stamp background work?
  A: Resize using the Size Tool with the “Recalculate Stitches” icon—standard resize handles can spread stitches and cause bald/gappy satin.
  • Open the edit screen, choose the Size Tool, and select the second icon (jagged-line “Recalculate”) before resizing.
  • Rebuild the layout after resizing (letter + oval + rectangle) so all stamp boundaries still align.
  • Avoid “saving time” by stretching an already-placed letter with normal handles; density will not recover.
  • Success check: satin columns look full and even after resizing (no skinny edges or light gaps).
  • If it still fails: delete the resized object and re-import the original built-in letter, then resize correctly with recalculation.
• Q: How do Brother Luminaire Innov-is XP1/XP2 users stop My Design Center stippling from crawling into the small loops of the letter when using Stamps?
  A: Increase Stamp Distance on the letter Stamp—too little clearance makes stippling kiss the satin edges and invade tight curves.
  • Select the letter object, open the Stamp settings, and turn “Inside and Outside” ON so the hole inside letters like “R” is respected.
  • Set the letter Stamp Distance to about 0.060" (a safe working range is 0.060"–0.080" if the fill is still crowding).
  • Preview at 200% zoom before stitching and confirm the negative space around the letter is clean.
  • Success check: the gap around the satin letter is uniform and readable, with no stippling touching the satin edge.
  • If it still fails: re-check hoop stability—if fabric shifts even ~1 mm during stitching, small offsets effectively disappear.
• Q: What stabilizer setup should be used to prevent fabric doming or bubbling during dense background fills on the Brother Luminaire Innov-is XP1/XP2?
  A: Use a stabilization plan strong enough to resist “push-pull”—dense fills contract fabric like a tightening net.
  • Match stabilizer to fabric: knits often need iron-on no-show mesh cutaway plus floating tearaway; woven cotton typically needs medium cutaway; velvet/towel needs cutaway plus water-soluble topping.
  • Secure fabric to stabilizer with temporary spray adhesive to reduce shifting during rapid, non-linear stippling.
  • Slow the machine to 600–700 SPM to reduce heat/friction and improve stitch definition.
  • Success check: after the background runs, the fabric lies flat without a center bubble and the letter placement stays aligned to the reserved space.
  • If it still fails: strengthen the foundation (move from tearaway to cutaway for dense backgrounds) and re-hoop to drum-tight tension.
• Q: What needle safety rules should be followed when stitching high-speed stippling backgrounds on the Brother Luminaire Innov-is XP1/XP2?
  A: Keep hands well away—dense stippling drives rapid direction changes and a broken needle tip can fly.
  • Keep fingers at least 4 inches away from the needle bar while stitching stippling or dense fills.
  • Wear glasses and avoid reaching into the sewing field while the machine is running.
  • Reduce speed to 600–700 SPM for better control and less stress during heavy stitch sections.
  • Success check: you can monitor stitching without needing to guide fabric by hand, and you maintain a clear safety zone the entire run.
  • If it still fails: stop the machine, re-check hoop attachment (listen/feel for a firm click into the carriage), and only resume when the setup is stable.
• Q: When should Brother Luminaire Innov-is XP1/XP2 users upgrade from standard hoops to a magnetic hoop for Stamp-based background frames, and when does it indicate a need for a multi-needle machine?
  A: Upgrade in layers: first optimize technique, then improve fabric holding (magnetic hoop), then consider production equipment if volume demands it.
  • Level 1 (Technique): fix hooping to drum-tight, use proper stabilizer (often cutaway for dense fills), and slow speed to 600–700 SPM.
  • Level 2 (Tool): choose a magnetic hoop when standard hoops cause hoop burn, uneven tension, or fabric shifting that ruins small Stamp offsets (e.g., ~0.032"–0.060" clearances).
  • Level 3 (Capacity): consider a multi-needle machine when repeated re-hooping and long stitch times become the bottleneck for selling runs (patches/coasters/quilt blocks) and consistent alignment is critical.
  • Success check: repeat pieces stitch with the same clean gap around letters and minimal re-hooping adjustments between runs.
  • If it still fails: prioritize eliminating fabric shift first (holding method) before changing design settings—precision offsets cannot survive unstable hooping.
