The Real-World Hoop Truth: 6x10 vs. 8x10 and Why Your Machine Jams Steps from the Finish Line

If you’ve ever unboxed an upgrade machine and felt that stomach-drop moment—“Wait… this working area isn’t what I thought I bought”—you aren’t being dramatic. Hoop size is the single hardest boundary to fake. It dictates whether you finish a project in one hour or spend three hours splitting designs, re-hooping, and praying your alignment holds.

In a recent real-world test, Charmaine pitted the popular Brother PE800 against the Brother Innov-is NQ1600E. She uncovered two critical realities that affect every serious hobbyist and small shop owner:

1. The "Size Illusion": The NQ1600E’s maximum hoop is 6x10 inches, not the 8x10 many buyers expect.
2. The "Physics of Thread": A simple spool-feed issue escalated into a broken needle and damaged fabric on the pricier machine.

As an embroidery educator, I see these issues daily. Below is the clean, repeatable workflow—calibrated for safety and precision—that I would use to verify hoop claims and prevent thread disasters before they cost you money.

Don’t Let Marketing Pick Your Hoop Size: The NQ1600E 6x10 Reality

Charmaine’s frustration is the #1 complaint I hear from students upgrade-shopping. She expected an 8x10 field on the Brother Innov-is NQ1600E but discovered the physical limit is 6x10 inches.

Why does this matter? Because in embroidery, 1 inch is a mile. A 6x10 hoop is only one inch wider than a standard 5x7 field. If your goal was to stitch 8-inch wide circular logos or full-back jacket designs, that missing width is a dealbreaker.

The "Usable Area" Rule: Just because a hoop exists doesn't mean you can stitch edge-to-edge. You must leave a "safety margin" for the presser foot.

• Total Field: 6" x 10"
• Safe Zone: Realistically ~5.8" x 9.8" to strictly avoid hitting the frame.


Warning: Never force a design that exceeds your machine's red-line limit. If the needle strikes the hard plastic hoop frame, it can shatter the needle. Shards can fly toward your eyes, and the impact can knock your machine's timing out, requiring a $150+ repair.

The "Hidden Math" of Hoop Shopping

If you are shopping specifically for an embroidery machine 6x10 hoop, stop thinking in inches and start thinking in projects.

• Names & Monograms: 6x10 is excellent (lots of length for long names).
• Quilt Squares: 6x10 runs standard rectangular blocks well.
• Round Logos: This is the trap. You are limited by the narrowest dimension (6 inches).


The "Pre-Flight" Protocol: How to Prevent the Spool-Pin Jam

Charmaine’s test setup is standard: white cotton fabric, Cutaway stabilizer (essential for stability), and blue embroidery thread.

She ran the same heart design on both. But there is a step missing that separates amateurs from pros. Before you press start, you must clear the "Thread Path Physics."

Pre-Flight Checklist (Do this EVERY time)

• The Pull Test: Thread the machine, but don't start. Pull 6 inches of thread through the needle. It should feel smooth, with resistance similar to pulling dental floss between teeth. If it jerks or "sings," your path is wrong.
• Check the Bobbin: Open the clear cover. Ensure the bobbin is spinning counter-clockwise (usually looks like a "P"). If it spins clockwise, your tension will be zero.
• Stabilizer Audit: For standard cotton, use Medium Weight Cutaway (2.5oz). If using Tearaway on a dense design, you risk "hoop burn" or registration errors.
• Needle Check: Run your fingernail down the needle. If you feel a tiny burr, throw it away. A burred needle shreds thread.

Most "mystery jams" aren't mystery at all—they are inertia problems where the spool spins faster than the machine takes the thread.

The Control Group: Selecting the Design

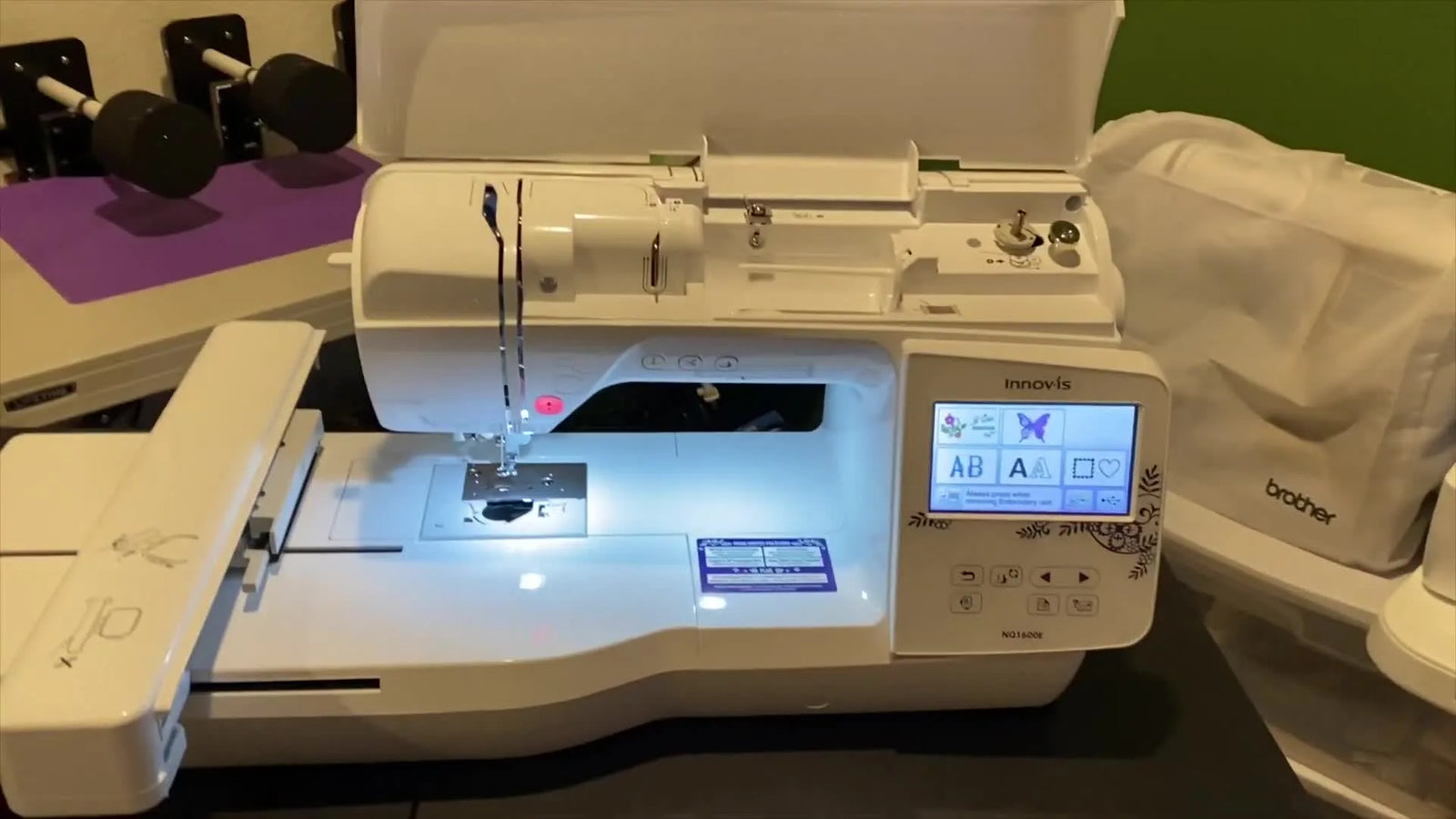

Charmaine navigates the NQ1600E touchscreen to choose a built-in heart. This is smart. Never test a new machine with a downloaded file from Etsy; half the time, the digitizing is the problem.

The Golden Rule of Testing: Always keep a "Control Code" file (like a simple circle or square) on your USB stick. When things go wrong, run the Control. If the Control stitches perfectly, the problem is your fancy design file. If the Control fails, the problem is the machine.

The Race: Speed vs. Convenience (PE800 vs NQ1600E)

Charmaine runs both machines simultaneously.

• PE800: 10 minutes, 2617 stitches.
• NQ1600E: 8 minutes, 2252 stitches.




The Metric That Matters: Jump-Stitch Trimming

The NQ1600E wins on time, but the real victory is Automatic Jump Stitch Trimming. The PE800 leaves connection threads (jump stitches) that you must trim by hand.

Why this is a Commercial Upgrade: Imagine stitching 50 shirts.

• Manual Trim (PE800): 2 minutes of hand-trimming per shirt = 100 minutes of labor.
• Auto Trim (NQ1600E): 0 minutes labor.

This feature alone pays for the machine upgrade if you value your time at $15/hour.

The "Wrestling Match": Fixing Hooping Pain

Charmaine notes that hooping on the PE800 feels like "wrestling," whereas the NQ1600E slide-on mechanism is smoother.

The Sensory Reality of Hooping: Hooping shouldn't replace your gym workout. If you have to forcefully "crank" the screw or lean your body weight on the inner ring to pop it in, you are creating Hoop Burn (permanent friction marks on the fabric).

This is where beginners get frustrated and pros upgrade their tools.

The Tool Upgrade Path

If you are struggling with standard hoops, especially for brother nq1600e hoops or similar models, you have two paths:

1. Technique: Use a silicone lubricant spray on the inner hoop (risky if it stains).
2. Hardware: Switch to Magnetic Hoops.

Magnetic hoops use strong magnets to hold the fabric flat without forcing an inner ring inside an outer ring. This eliminates hoop burn and significantly reduces wrist strain. Many users searching for a magnetic hoop for brother pe800 find that this $150-$200 investment saves them from buying a new machine just for better hooping.

Warning: Magnetic Safety
Magnetic hoops (like those from SEWTECH or MaggieFrame) utilize powerful Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the edge.
* Medical Safety: Keep at least 6 inches away from pacemakers.

Third-Party Hoops: Proceed with Caution

Charmaine displays a budget multi-hoop kit (often labeled HimaPro or similar) for the PE800.

While a brother 4x4 embroidery hoop from a third party is cheap, you must verify the fit. The "Wiggle Test": Lock the hoop onto the carriage. Gently try to wiggle the connection point. It should be rock solid. If there is even 1mm of play, your design will have gaps between the outline and the color fill.

The Crash: Analyzing the NQ1600E Failure

We see the results: The cheap PE800 stitched perfectly. The expensive NQ1600E jammed, broke a needle, and ate the fabric.

The Root Cause: Thread got caught on the spool pin. This is an upstream failure. The machine isn't broken; the delivery system failed.

Troubleshooting: The "Spool-Pin" Jam

If your thread wraps around the vertical spool pin, here is the structured fix definition:

The "Big Hoop" Temptation: Janome 500E

Charmaine mentions the Janome Memory Craft 500E for its 7.9x11 field. This is a massive jump from 6x10.

If you are researching janome memory craft 500e hoops, know that moving from Brother to Janome means changing your file format (PES to JEF) and your menu muscle memory. However, for large quilt blocks or jacket backs, that extra width is non-negotiable.

Decision Tree: What Should You Do?

Embroidery is expensive. Don't upgrade based on feelings; upgrade based on bottlenecks.

1. Is your bottleneck PAIN? (Wrists hurt, Fabric marks)

• Don't buy a new machine yet.
• Do upgrade your hoop system. A high-quality brother 5x7 magnetic hoop will solve the "wrestling" faster than a new machine.

2. Is your bottleneck SIZE?

• Scenario A: You want to do names on towels. The 6x10 NQ1600E is perfect.
• Scenario B: You want to do full jacket backs. 6x10 is too narrow. Look at the Janome 500E or a multi-needle machine with larger clearance.

3. Is your bottleneck SPEED (Production Volume)?

• If you have orders for 20+ items, a single-needle machine (even a fast one like the NQ1600E) requires you to change thread colors manually 10,000 times.
• The Pro Move: Keep your PE800 for samples. Invest in a SEWTECH Multi-Needle setup or similar entry-level industrial machine. These hold 10-15 colors at once. You press "Start" and walk away.

Setup Checklist for Your Next Project

Before you ruin another shirt, run this final check.

• Hoop Size: Confirmed usable area (minus safety margin).
• Magnet Check: If using magnetic hoops, ensure clips are secure.
• Spool Orientation: If using a cross-wound cone, it must stand vertically. If using a stack-wound spool, it sits horizontally.
• Sound Check: Listen to the first 100 stitches. A rhythmic "thump-thump" is good. A slapping or grinding noise means STOP.

Summary

Charmaine’s test proves that specs on paper don't match reality.

• The NQ1600E is powerful, but its "large hoop" is narrower than marketed.
• Automatic jump-cutting is a massive time-saver.
• Even $1,500 machines will destroy fabric if you don't manage your spool feed.

Master your Pre-Flight Checklist, verify your Hoop Dimensions, and consider Magnetic Hoops as your first line of defense against frustration.

FAQ

• Q: How can Brother Innov-is NQ1600E owners verify the true usable embroidery area of the 6x10 hoop before stitching?
  A: Treat the Brother Innov-is NQ1600E 6x10 hoop as slightly smaller than the full frame and keep a safety margin to avoid frame strikes.
  • Measure and plan for a safe zone (about 5.8" x 9.8") instead of stitching edge-to-edge.
  • Center the design and avoid pushing the outermost borders, especially on dense fills.
  • Run the machine’s positioning/trace function if available and confirm the needle path stays inside the hoop’s inner edge.
  • Success check: The needle path never approaches the plastic frame, and the first outline stitches do not “click” or deflect near the edge.
  • If it still fails: Reduce design size or rotate/reposition the design; do not force the hoop limit.
• Q: What should Brother PE800 and Brother Innov-is NQ1600E users do before pressing Start to prevent spool-feed thread jams?
  A: Do a quick “pre-flight” thread-path check and correct any drag before stitching—this is common and prevents most surprise jams.
  • Pull about 6 inches of thread through the needle by hand and confirm it feels smooth (steady resistance, not jerky).
  • Open the bobbin cover and confirm the bobbin is oriented correctly (often counter-clockwise, “P” appearance).
  • Verify stabilizer choice matches the job (medium cutaway is a safe baseline on standard cotton for stability).
  • Success check: Thread pulls evenly and quietly, and the first 100 stitches sound rhythmic rather than slapping/grinding.
  • If it still fails: Rethread completely from spool to needle and recheck spool orientation and bobbin seating.
• Q: How can Brother Innov-is NQ1600E owners troubleshoot thread wrapping around the vertical spool pin (spool-pin jam)?
  A: Stop immediately and correct the upstream spool setup—this is a thread delivery issue, not a “broken machine.”
  • Swap to a spool cap slightly larger than the spool diameter if thread is catching under the cap.
  • Add a thread net on slick rayon/poly threads if the spool is unspooling too fast and looping.
  • Use a standalone thread stand for large cones when the feed is inconsistent on the vertical pin.
  • Success check: The spool unwinds smoothly without sudden surges, and thread no longer snaps or grabs at the pin.
  • If it still fails: Change to a fresh needle and re-check hooping (fabric pull from tight thread can trigger needle breaks).
• Q: What does “bird’s nest” looping on top mean on Brother PE800 or Brother Innov-is NQ1600E, and what is the fastest fix?
  A: Cut the thread, rethread, and stabilize the spool feed—top-side loops often come from thread delivery problems.
  • Stop stitching and remove the looped thread gently to avoid bending the needle.
  • Rethread the entire top path with the presser foot up (if applicable) and repeat the pull test for smoothness.
  • Slow down spool release using a thread net if the thread is spilling off too quickly.
  • Success check: The next restart stitches lay flat with no loose loops forming on the fabric surface.
  • If it still fails: Verify bobbin orientation and seating under the clear cover before adjusting any tension.
• Q: What safety steps should Brother Innov-is NQ1600E users follow to avoid needle strikes when a design is near the hoop boundary?
  A: Never exceed the machine’s hoop limit and always leave a margin—needle-to-hoop contact can break needles and may affect timing.
  • Reduce or reposition the design so the stitch path stays inside the safe zone, not the plastic edge.
  • Do not “force” a too-large design to run; stop and resize instead of gambling near the red-line limit.
  • Wear eye protection if troubleshooting repeated needle breaks and keep hands away from the needle area while testing.
  • Success check: No clicking, deflection, or sudden impact sounds occur during edge stitching.
  • If it still fails: Stop and inspect the hoop for damage and replace the needle before restarting.
• Q: What is the correct “wiggle test” for third-party Brother PE800 hoops to prevent registration gaps between outline and fill?
  A: Only use a third-party Brother PE800 hoop if it locks onto the carriage with zero noticeable play.
  • Mount the hoop and gently wiggle at the connection point where it locks to the machine.
  • Reject the hoop if there is even slight movement (about 1 mm of play can show up as misalignment).
  • Run a simple control design (circle/square) before risking a detailed file.
  • Success check: The hoop feels rock-solid, and the control design’s outline matches the fill cleanly with no gaps.
  • If it still fails: Switch back to an OEM hoop or a higher-quality hoop system before blaming the design file.
• Q: When should Brother PE800 or Brother Innov-is NQ1600E users upgrade technique, upgrade to magnetic hoops, or upgrade to a multi-needle machine for production?
  A: Upgrade in layers based on the real bottleneck—pain, size limits, or production speed—so money fixes the correct problem.
  • Level 1 (Technique): If jams or looping happen, follow the pre-flight checklist and run a simple control design to separate design-file issues from machine/setup issues.
  • Level 2 (Magnetic hoops): If hooping feels like “wrestling” or causes hoop burn/wrist strain, switch to magnetic hoops to hold fabric flat without forcing an inner ring.
  • Level 3 (Multi-needle machine): If you’re doing 20+ items and losing time to constant color changes, consider a multi-needle setup to keep multiple colors loaded.
  • Success check: The upgrade removes the limiting symptom (less hoop burn, fewer restarts, fewer manual trims, faster throughput).
  • If it still fails: Reconfirm the project requirements (especially design width vs hoop width) and standardize testing with a control file before investing again.
• Q: What magnetic hoop safety rules should SEWTECH-style magnetic hoop users follow to prevent finger injuries and medical-device risks?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers—strong magnets snap together fast.
  • Keep fingers clear of the edge when bringing magnets together; let the magnets seat in a controlled way.
  • Keep magnetic hoops at least 6 inches away from pacemakers and follow medical guidance if uncertain.
  • Store magnets separated/secured so they do not slam together unexpectedly on the worktable.
  • Success check: Magnets close without pinching and the fabric stays evenly clamped without needing force.
  • If it still fails: Stop using the hoop until handling feels controlled; consider getting hands-on guidance before continuing.
